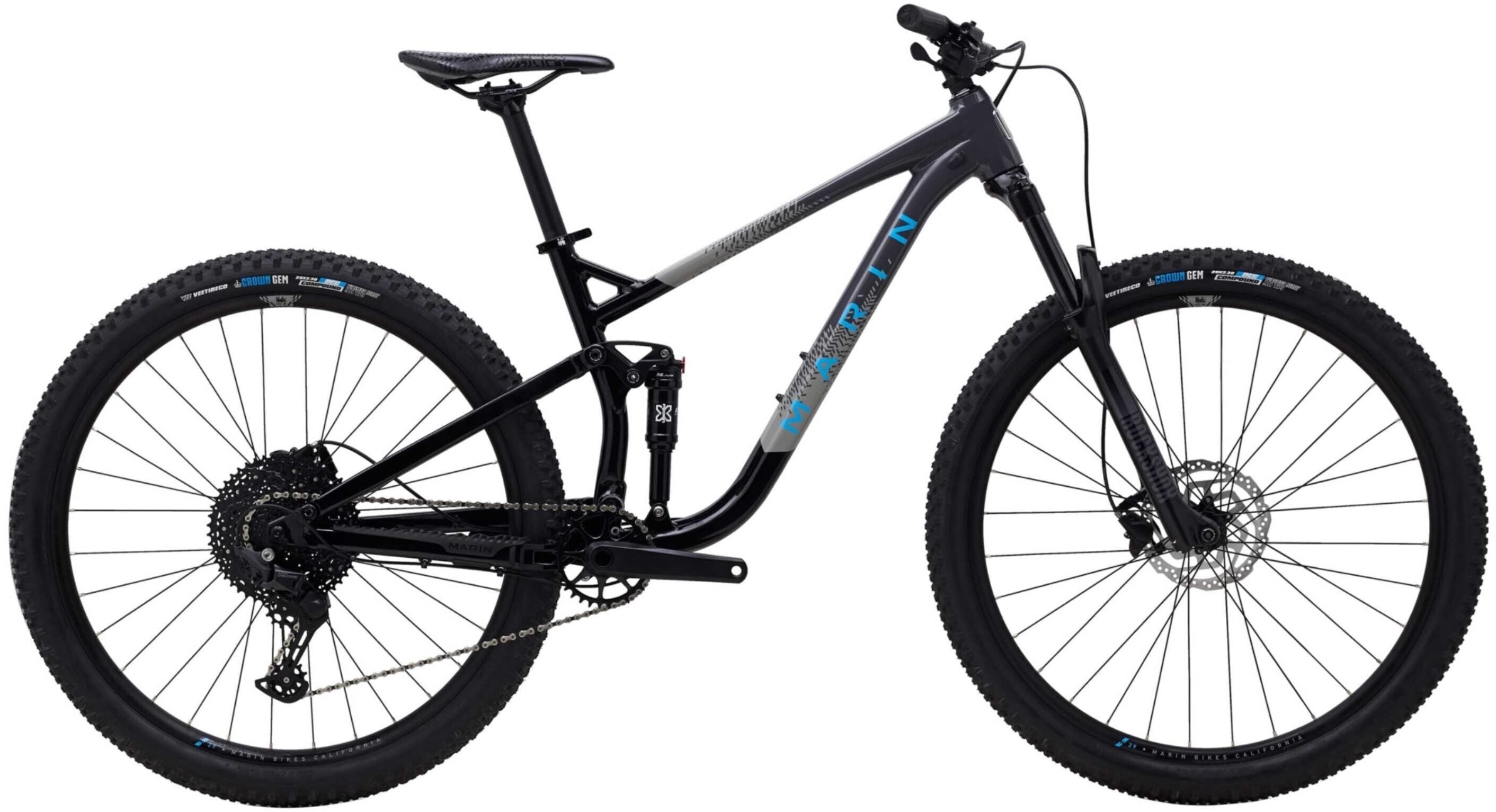

Marin Rift Zone 1 29

$2,299.00

$2,799.00

Description

The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.

Specifications

FRAME Series 3 6061 Aluminum Frame

FORK RockShox Recon Silver RL 29", 130mm Travel, Solo Air,

GEARS 1 x 11

CRANKSET Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

BOTTOM BRACKET External Sealed Cartridge Bearing

CASSETTE SunRace, 11-Speed, 11-51T, ED Black

CHAIN KMC X-11 Silver and Black

FRONT DERAILLEUR -

REAR DERAILLEUR Shimano Deore SGS, Shadow Plus, Direct Attachment, 11-Speed

SHIFTER-REAR Shimano Deore, 11-Speed, SL-5100R

BRAKES Shimano BL-MT201 Hydraulic Disc

ROTOR-FRONT Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

ROTOR-REAR Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

HANDLEBAR Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5 Up, 9 Back

STEM Marin 3D Forged Alloy

STEM LENGTH 35mm

HEAD SET FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2

SEAT POST Marin Alloy, 30.9mm

SADDLE Marin Speed Concept

HUB-FRONT Shimano HF-MT400B, 110x15mm, Centerlock

HUB-REAR Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body

SPOKES 14g Black Stainless Steel

RIMS Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

TYRES Vee Tire Crown Gem 29x2.35", Dual Control Compound, Tubeless Ready

Body Geometry

Geometry

STACK	602	607	611	616
REACH	430	455	480	505
HEADTUBE ANGLE	65.5°	65.5°	65.5°	65.5°
HEADTUBE LENGTH	100	105	110	115
SEATTUBE ANGLE	76°	76°	76°	76°
SEATTUBE LENGTH	390	400	425	430
TOPTUBE EFFECTIVE	580.24	606.36	632.51	658.6
BB HEIGHT	344	344	344	344
BB DROP	34	34	34	34
CHAINSTAY	425	425	425	425
WHEELBASE	1158.92	1186	1213	1240.1
STANDOVER HEIGHT	691.84	697.1	717.83	721.97
FORK OFFSET	44	44	44	44
SEATPOST DIAMETER	30.9	30.9	30.9	30.9
HANDLEBAR WIDTH	780	780	780	780
STEM LENGTH	35	35	35	35
CRANK LENGTH	170	175	175	175

Shipping & Delivery

All Bike orders must be Click & Collect as we do not ship bikes. We're a local bike shop serving Canterbury which allow our customers to come instore and pick up their bike. Bikes are fully built and ready-to-ride, at our store in Christchurch.

Our focus is on local riders with the goal of offering the best service possible.

Items available on our website are not always available in-store immediately, some are only held by our suppliers.

Items held with supplier might take up to 7 business days to arrive, depending on the supplier. Please contact us if you have specific questions.

*Specifications are subject to change without notice.
