A straightforward four-bike rack for vehicles fitted with a compatible 2-inch receiver.
The Allen S545 Premier 4-Bike Hitch Rack provides a practical way to carry up to four bikes on a vehicle fitted with a professionally installed 2-inch receiver hitch with a sufficient load rating.
Its folding carry arms, tilt-away mast and individual tie-down cradles make it easy to use, while the supplied No-Wobble Bolt helps reduce movement between the rack and receiver.
Four-Bike Capacity

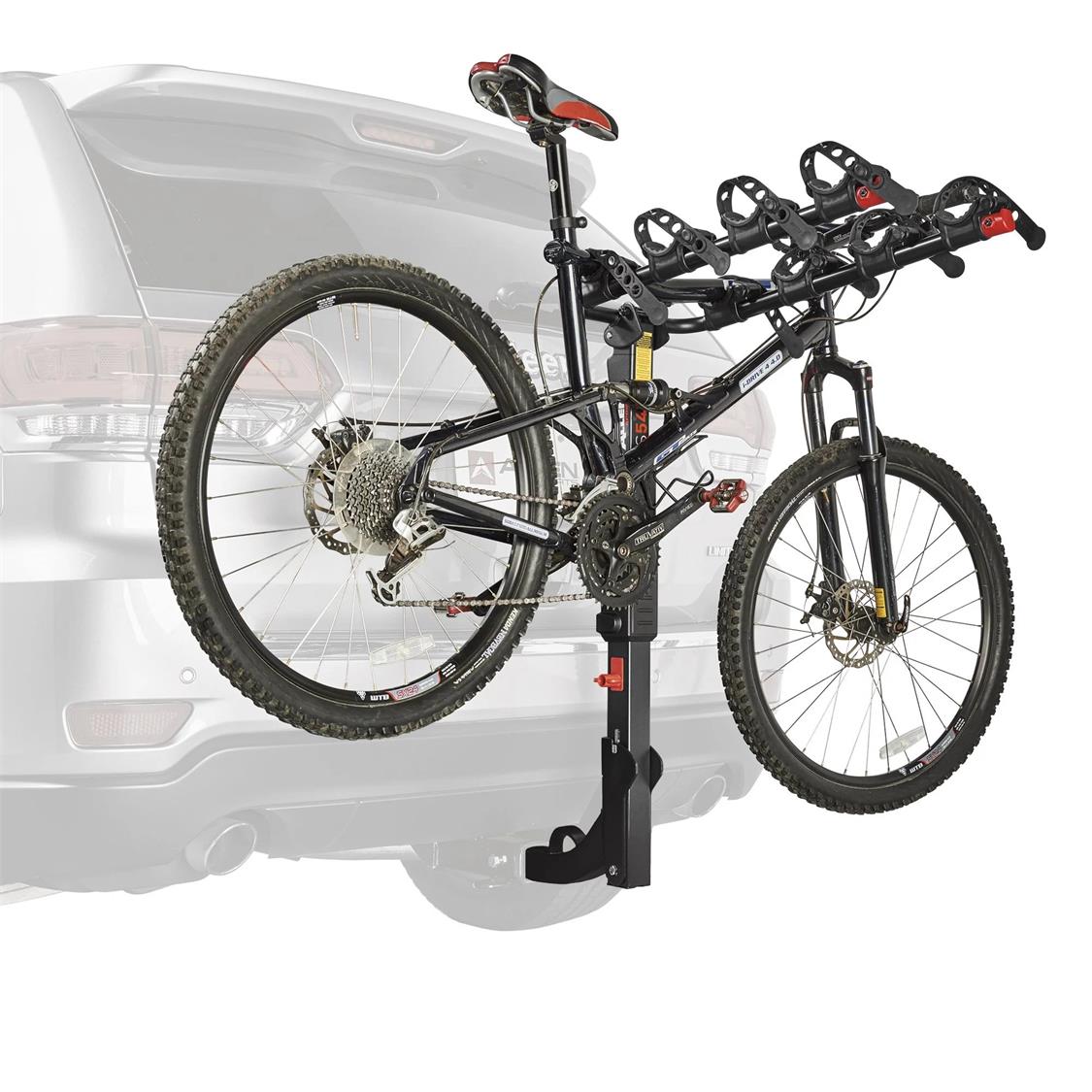

The S545 carries up to four bikes, with a maximum permitted weight of 16kg per bike and 64kg across the complete bike load.
Always check the load rating of the vehicle, towbar and receiver before fitting the rack. Remember that the rack’s own weight must also be included when checking the total load placed on the towbar.
Secure Bike Support

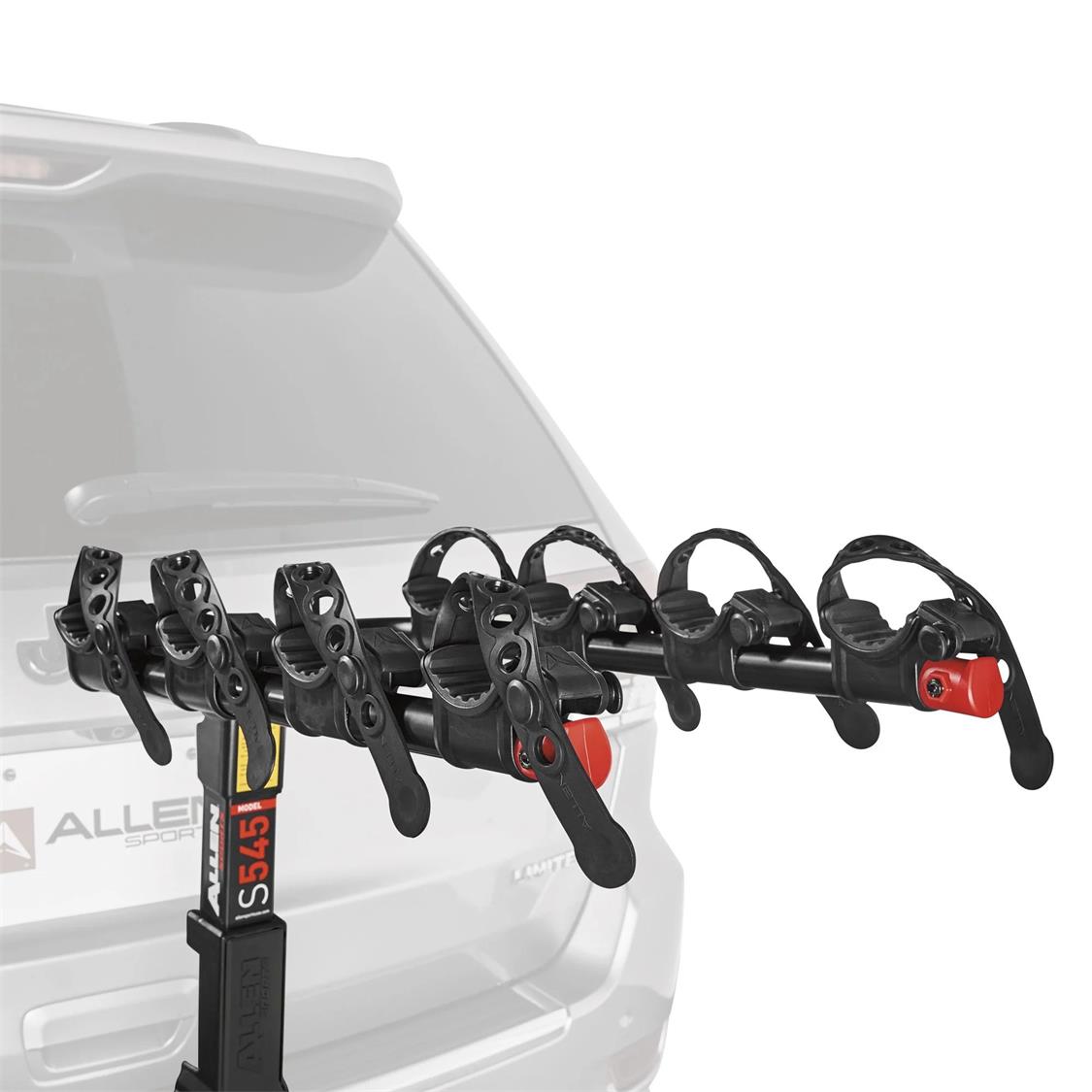

Dual-compound cradles support each bike along the carry arms, while quick-secure straps hold the frames in position. A padded spine shield helps protect the bikes from contact with the rack’s central mast.
An additional tie-down strap is included to help control the complete load. Secure loose wheels and handlebars before driving and make sure the bikes cannot swing into the vehicle or each other.
No-Wobble Hitch Installation

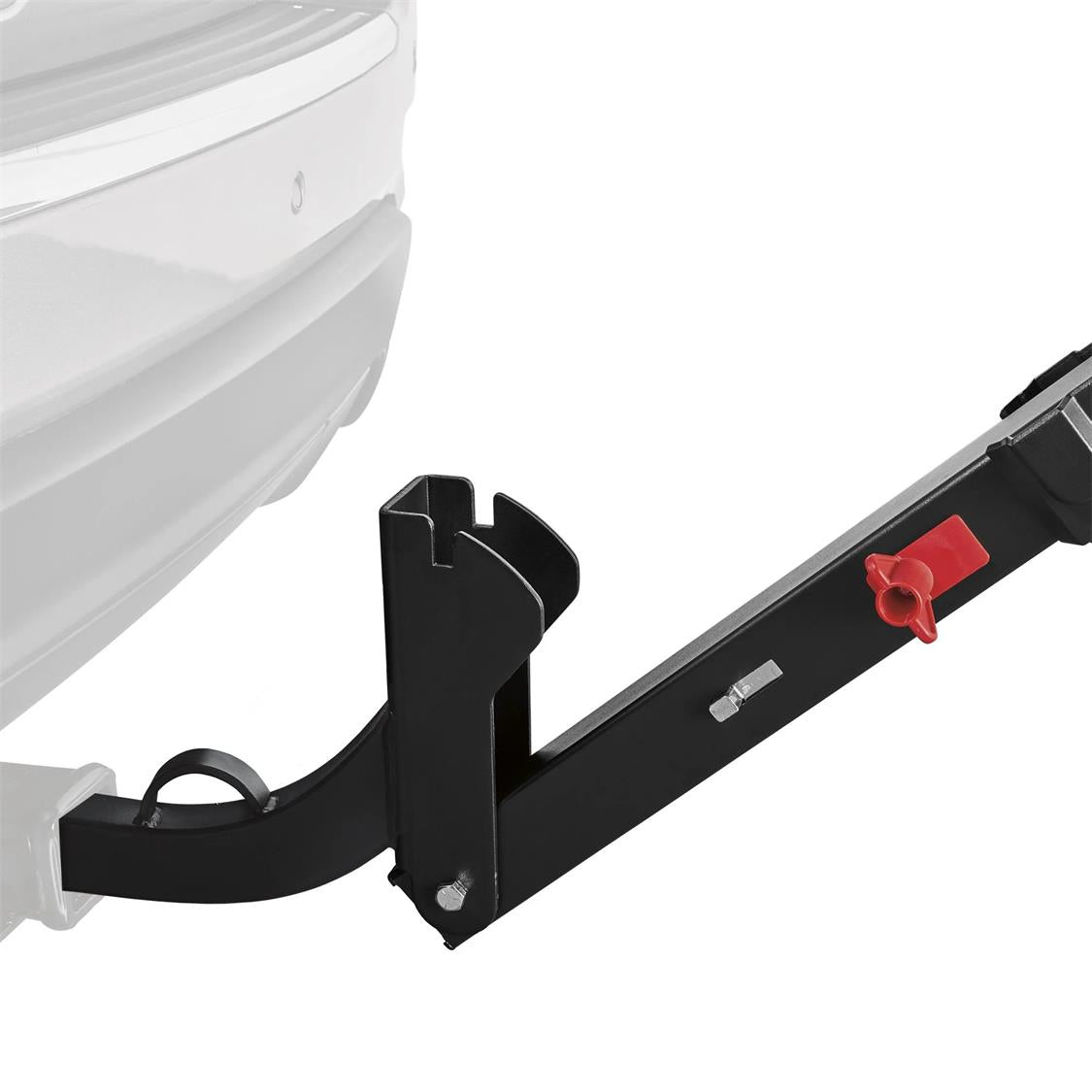

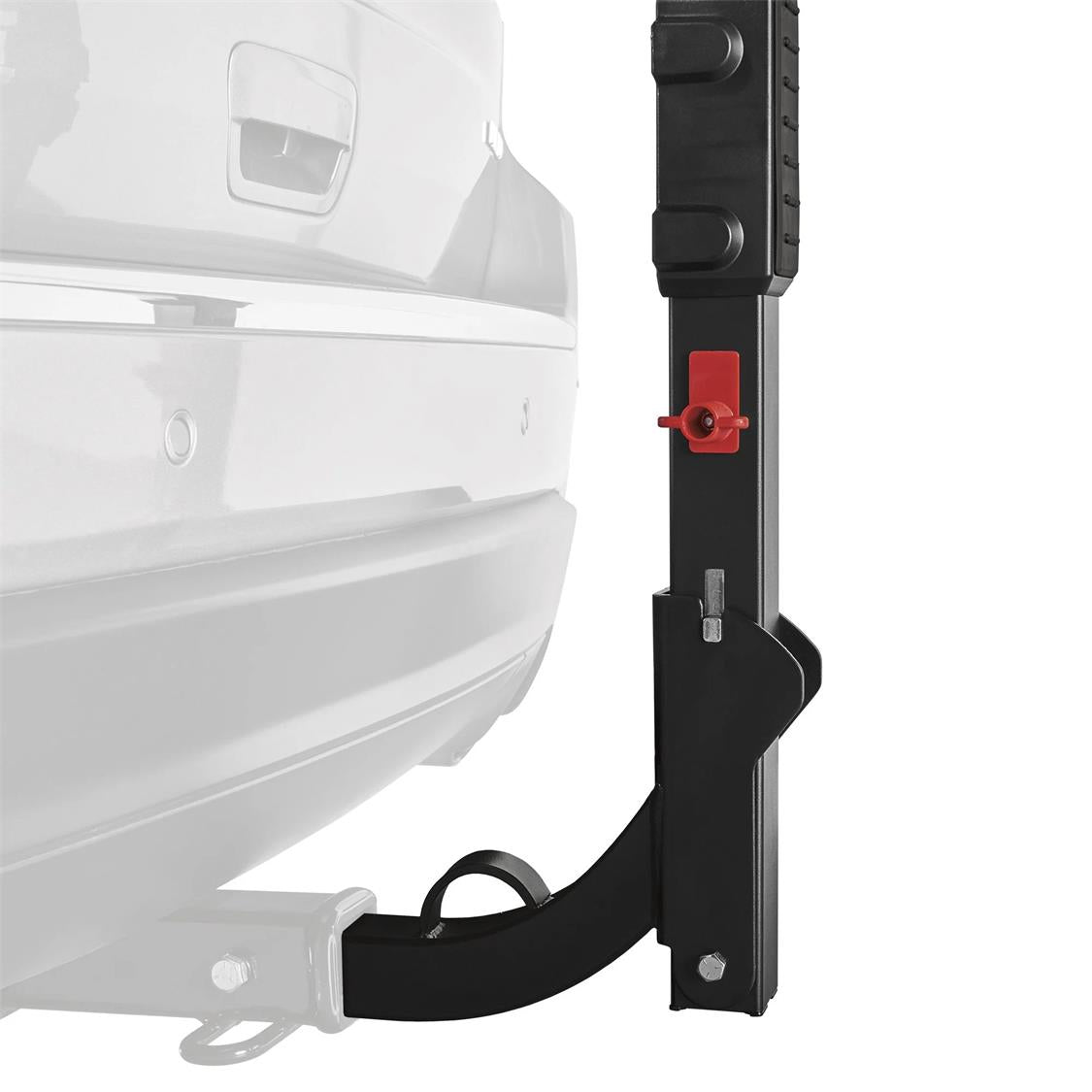

The supplied No-Wobble Bolt tightens the rack inside a compatible 2-inch receiver, helping reduce unwanted movement while driving.
The No-Wobble Bolt is not an anti-theft lock. Use a separate cable lock for the bikes and a compatible hitch-locking solution if you also want to secure the rack to the vehicle.

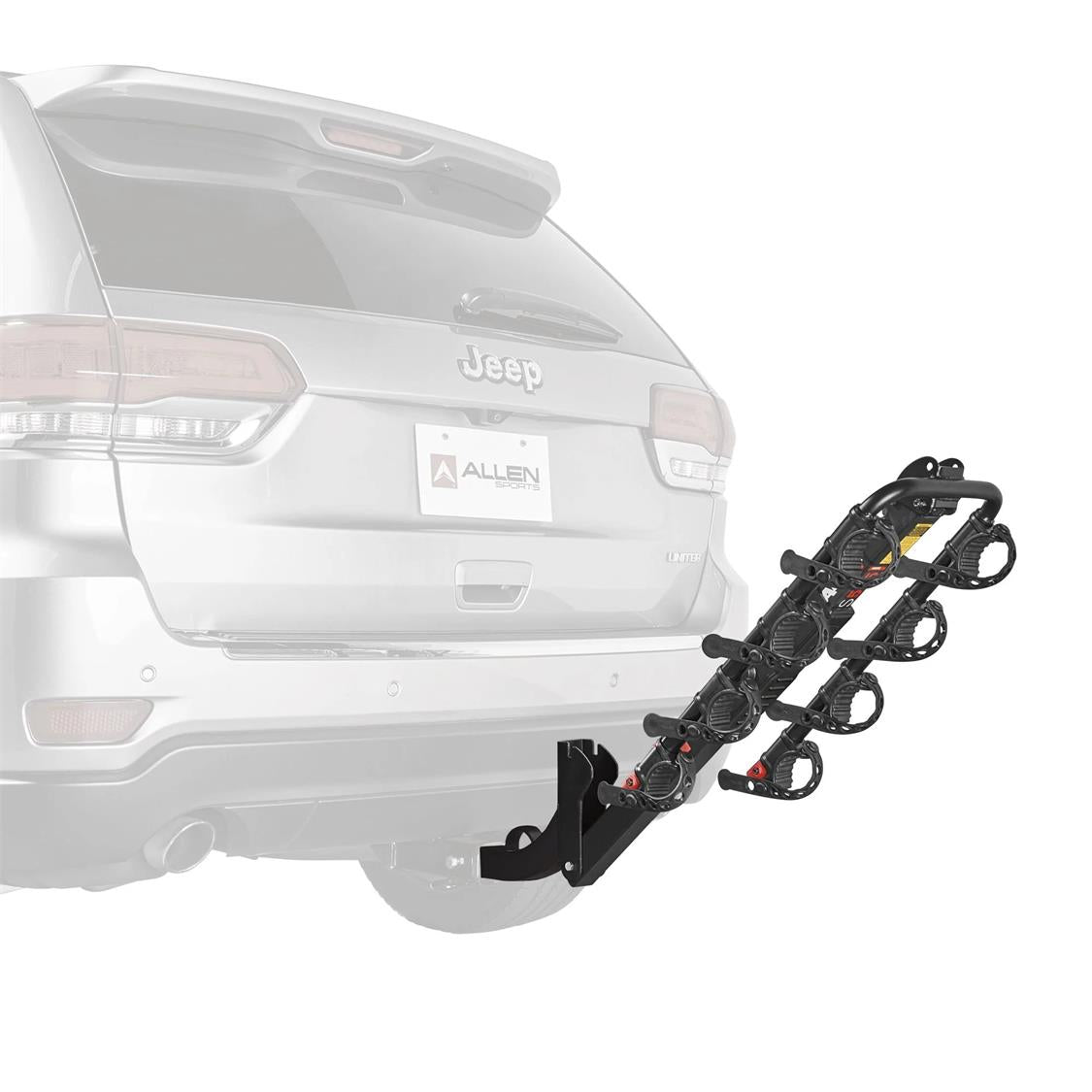

Folding and Tilt-Away Design

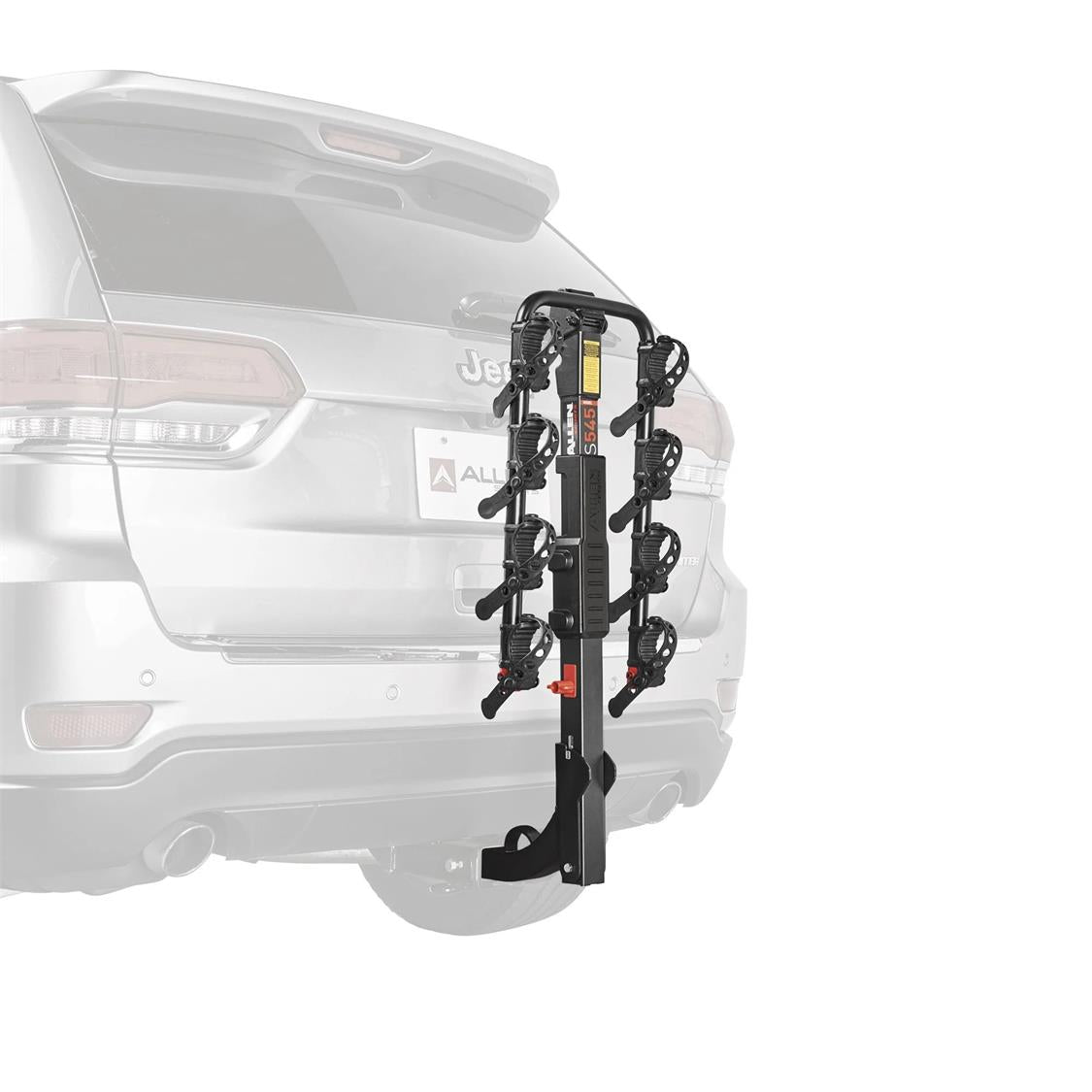

The carry arms fold down when the rack is unloaded, reducing how far it extends behind the vehicle.

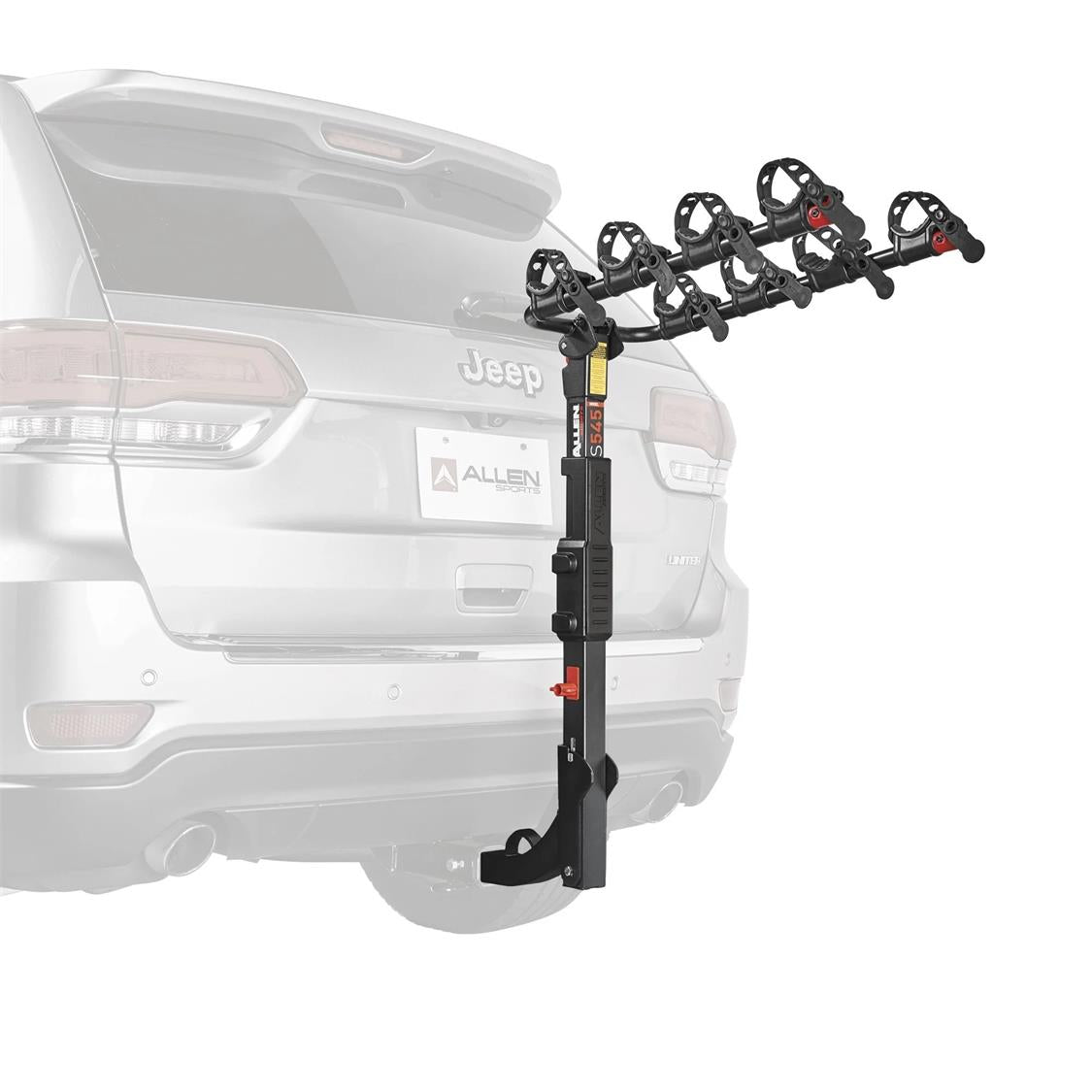

The tilt-away mast provides access to many rear doors and tailgates once the bikes have been removed. Check there is enough clearance before opening the vehicle.
Bike Compatibility
This hanging-style rack works directly with many conventional diamond-frame bikes. Step-through, compact, children’s and some full-suspension bikes may require a compatible frame adaptor bar to sit safely and level on the carry arms.
The S545 is not suitable for heavy e-bikes. Check the complete weight of every bike before loading and make sure its frame can be supported correctly by the hanging cradles.
Vehicle Compatibility
The S545 requires a professionally installed 2-inch receiver hitch with enough load capacity for the rack and bikes.
It must not be fitted to a front-mounted receiver, trailer, caravan, motorhome or any other vehicle being towed. It is not designed for off-road driving.
Key Features
- Carries up to four bikes
- No-Wobble Bolt helps reduce movement inside the receiver
- Quick-fold carry arms lower when the rack is not in use
- Tilt-away mast provides access to many rear doors and tailgates once the bikes are removed
- Dual-compound tie-down cradles support and protect bike frames
- Quick-secure cradle straps hold each bike in position
- Padded spine shield helps protect the bikes from the rack
- Additional load-stabilising strap included
- Minor initial assembly required
Our Thoughts
The S545 is a practical choice for families or groups needing to carry several conventional bikes without moving to a heavier platform rack. The folding arms make it less cumbersome when empty and the No-Wobble Bolt helps create a more stable fit inside the receiver.
The main difference between this rack and the QR545 is the hitch attachment. The S545 uses a bolt that requires a tool and does not lock the rack to the vehicle. The QR545 costs more but provides quicker tool-free fitment and an integrated rack lock.
Loading four bikes onto any hanging rack takes some planning. Alternate the direction of neighbouring bikes where necessary, protect contact points and secure the wheels so they cannot move while driving.
Why Buy from Chain Reaction?
- Practical advice on vehicle, receiver and bike compatibility
- Help checking bike weights and frame fit
- Frame adaptors and additional security options available
- Nationwide New Zealand delivery
- Ongoing support from our Christchurch team
Specifications
- Brand: Allen Sports
- Model: S545 Premier
- Rack type: Hanging hitch-mounted bike rack
- Bike capacity: Four
- Maximum weight per bike: 16kg / 35lb
- Maximum combined bike load: 64kg / 140lb
- Receiver size: 2-inch
- Hitch attachment: No-Wobble Bolt
- Integrated rack lock: No
- Bike retention: Dual-compound cradles with quick-secure straps
- Carry arms: Folding
- Vehicle-access feature: Tilt-away mast
- Frame protection: Padded spine shield
- Additional tie-down strap: Included
- Initial assembly: Minor assembly required
Important Installation and Safety Information
- Use only with a professionally installed 2-inch receiver hitch with a sufficient load rating.
- Check the permitted load for the vehicle, towbar and receiver before installation.
- Never fit the rack to a trailer, caravan, motorhome or another vehicle being towed.
- Do not fit the rack to a front-mounted receiver.
- Do not use a hitch adaptor or receiver converter.
- The rack is not designed for off-road driving.
- Do not exceed 16kg per bike or 64kg across the complete bike load.
- Remove all bikes before operating the tilt-away mechanism.
- Keep the vehicle’s lights and number plate clearly visible.
- Check the No-Wobble Bolt, cradles and straps before every journey.
- Follow the supplied Allen installation and loading instructions.
