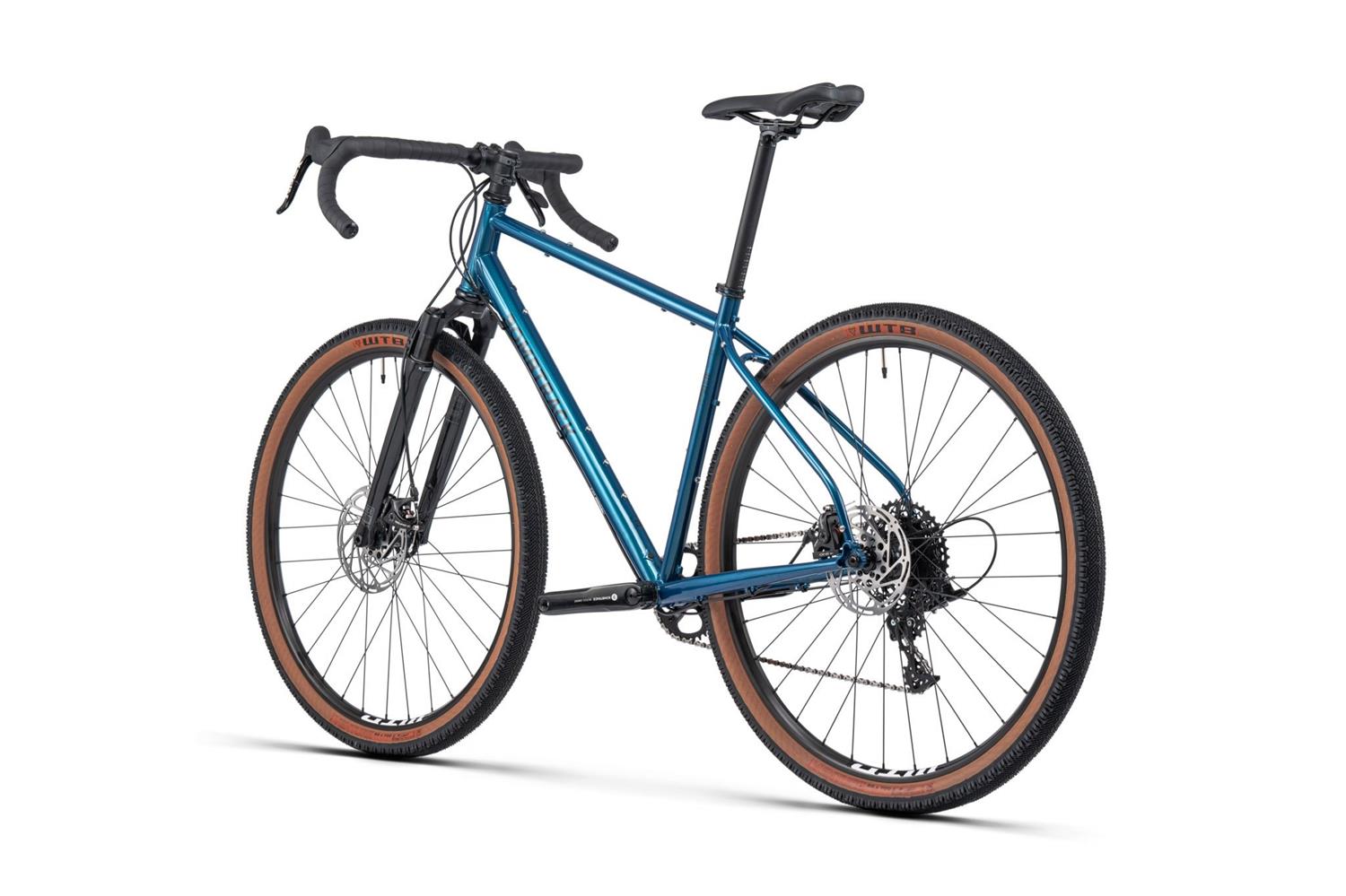

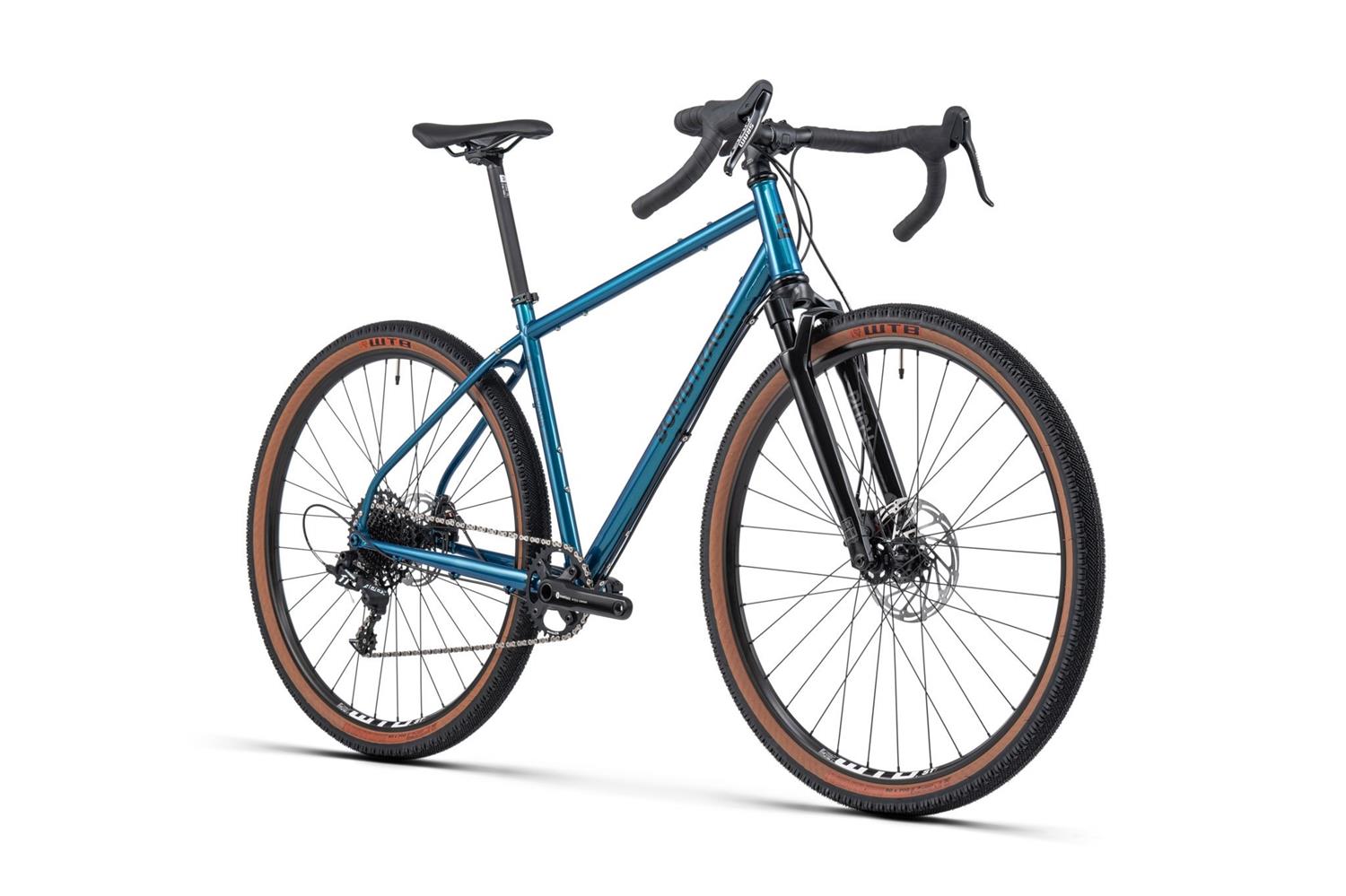

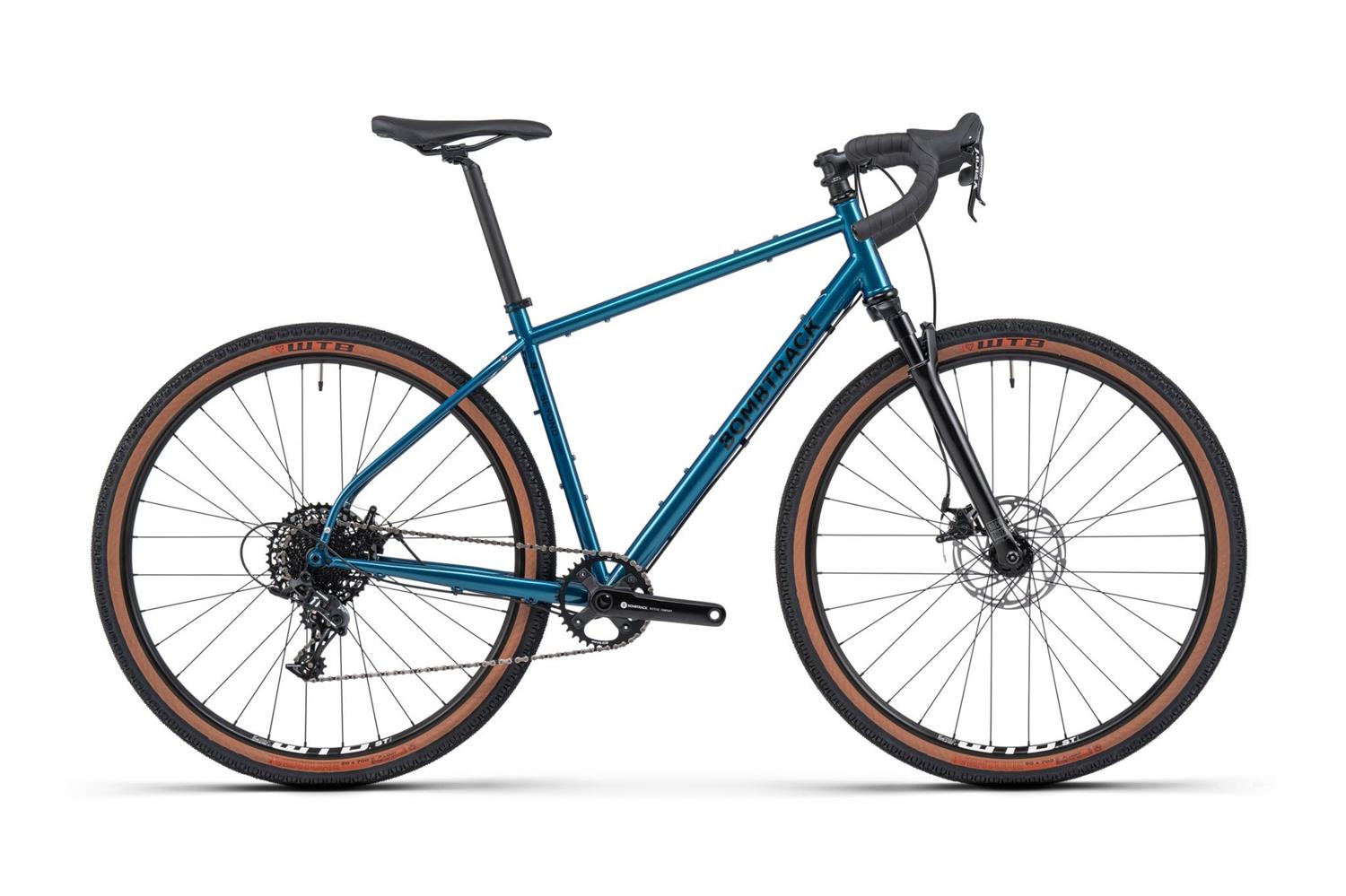

In 2018, we were one of the first bike brands to fit a suspension fork to a production gravel bike, and we immediately foresaw the huge amount of fun to be had ripping along really tough, technical trails. In the current range, the Beyond SUS has a RockShox Rudy XPLR fork with an adjustable 40 mm of travel combined with our multi-purpose Beyond frame and its multitude of mounting points for whatever you have planned.
Sram Apex 1 x 11 mechanical provides the shifting, TRP Spyre C callipers the control, and tough but lightweight WTB rims fitted with grippy Venture TCS tyres get you in and out of trouble. Wave goodbye to aching hands and say hello to crazy high-speed technical singletrack detours. Hell yeah!
"A steel frame, suspension fork and mountain bike width tires. Plus all the carrying options you'll ever need."
| Color 1 | Metallic teal |
| Frame | 4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell |

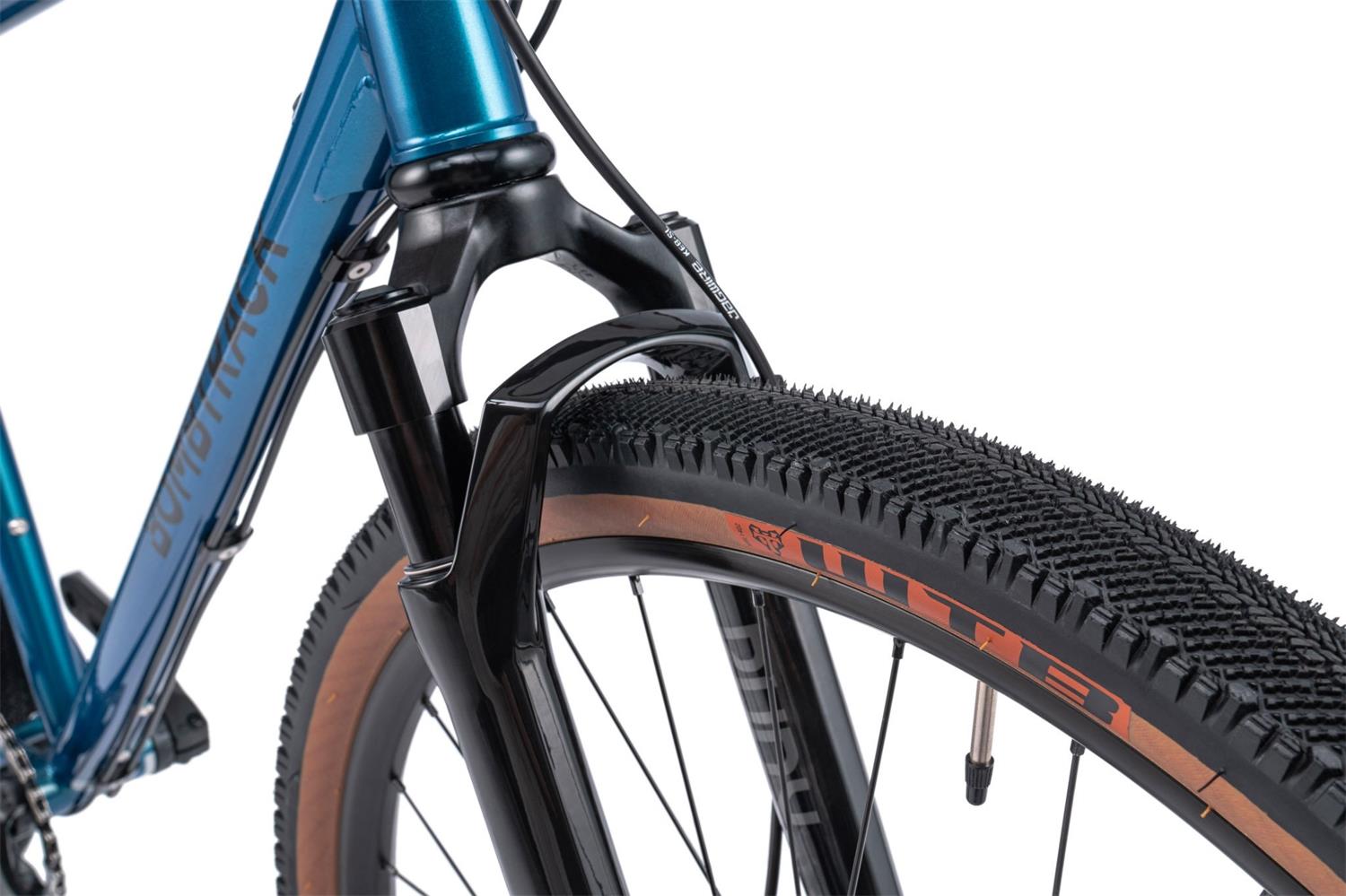

| Fork | RockShox Rudy XPLR suspension fork, 1.1/2" - 1.1/8", 40 mm travel, 51 mm offset |
| Handlebar | Bombtrack Tackle gravel bar, 31.8 mm, 25° flare |
| Grips | Bombtrack Command bar tape |

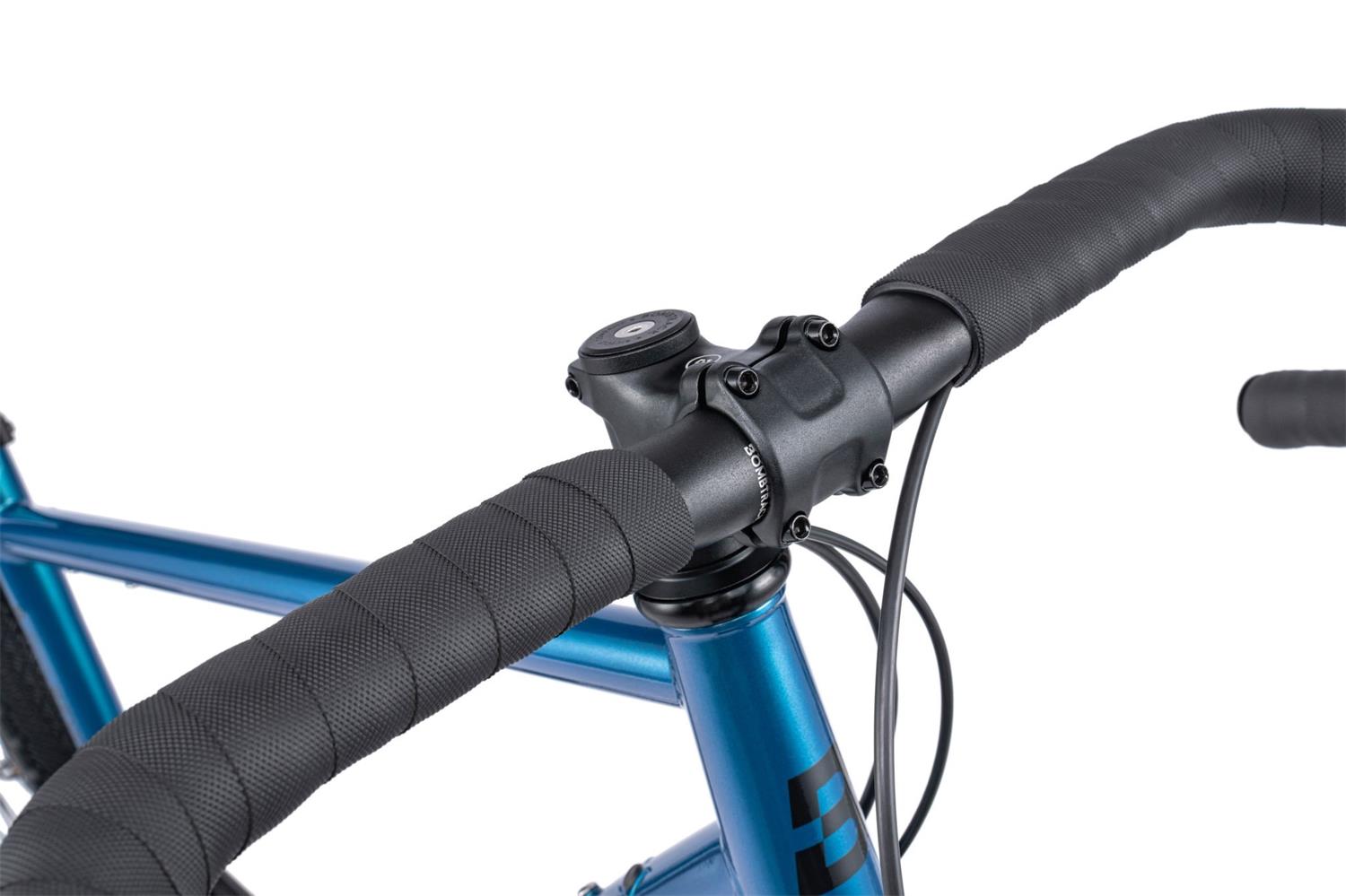

| Stem | Bombtrack Tramp forged aluminium stem, 3° |
| Headset | Sealed external aheadset, 1.1/2'' - 1.1/8'' |

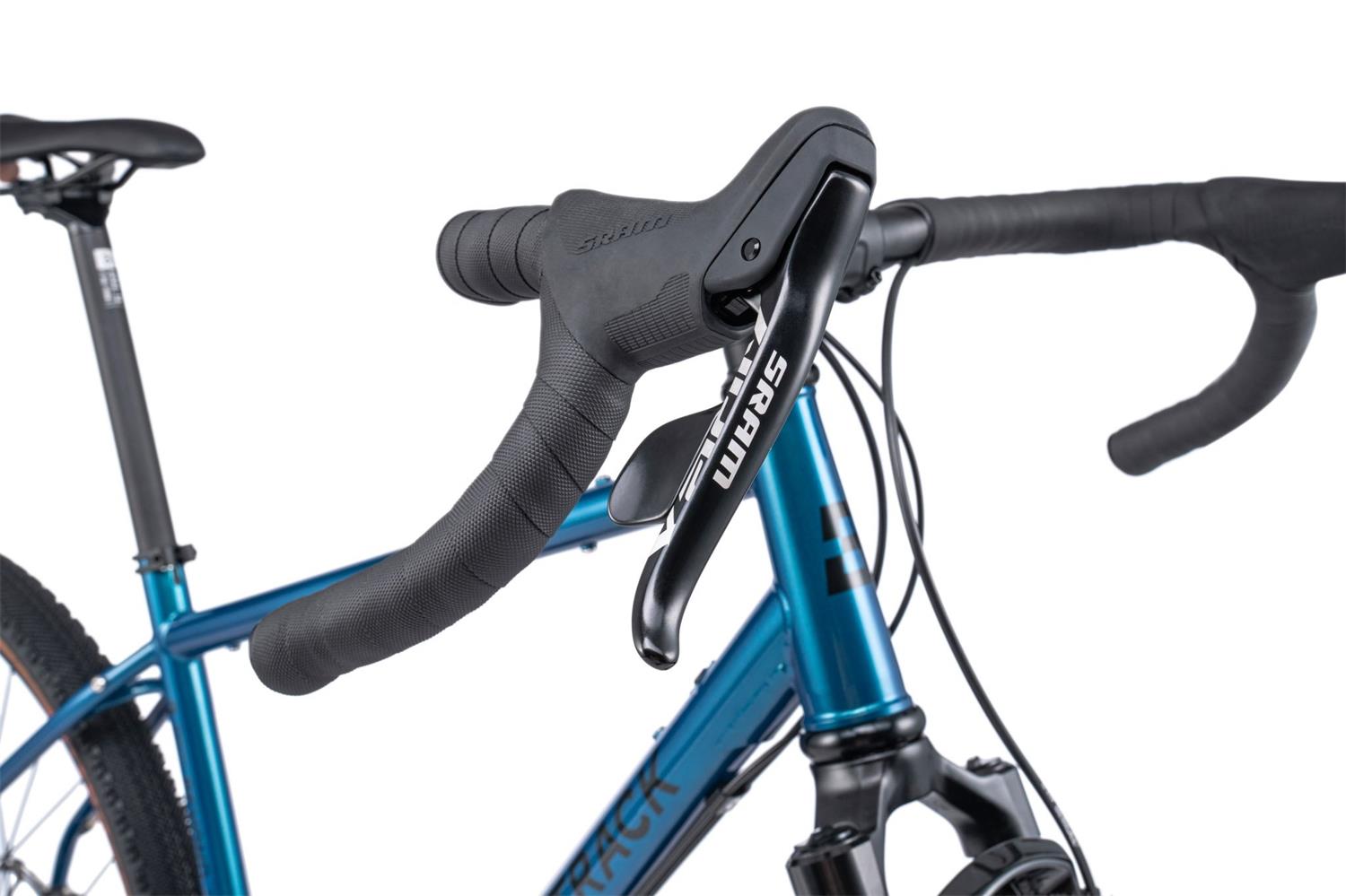

| Levers | Sram Apex double tap mechanic |
| Shifter | Sram Apex double tap 1 x 11 |

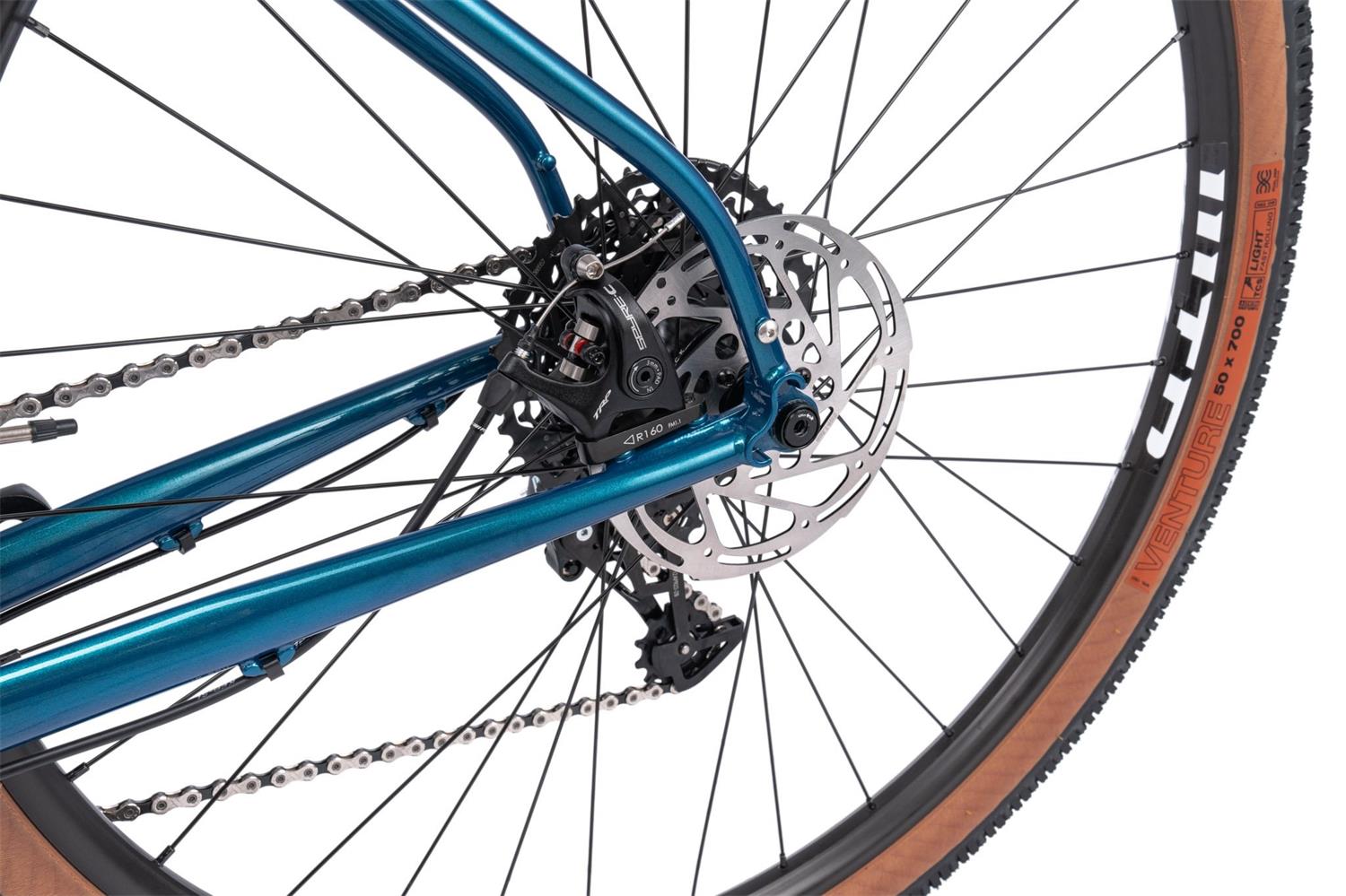

| Brakes | TRP Spyre C mechanic disc brakes |
| Rotor | Sram Centerline 180 mm front and 160 mm rear rotor |

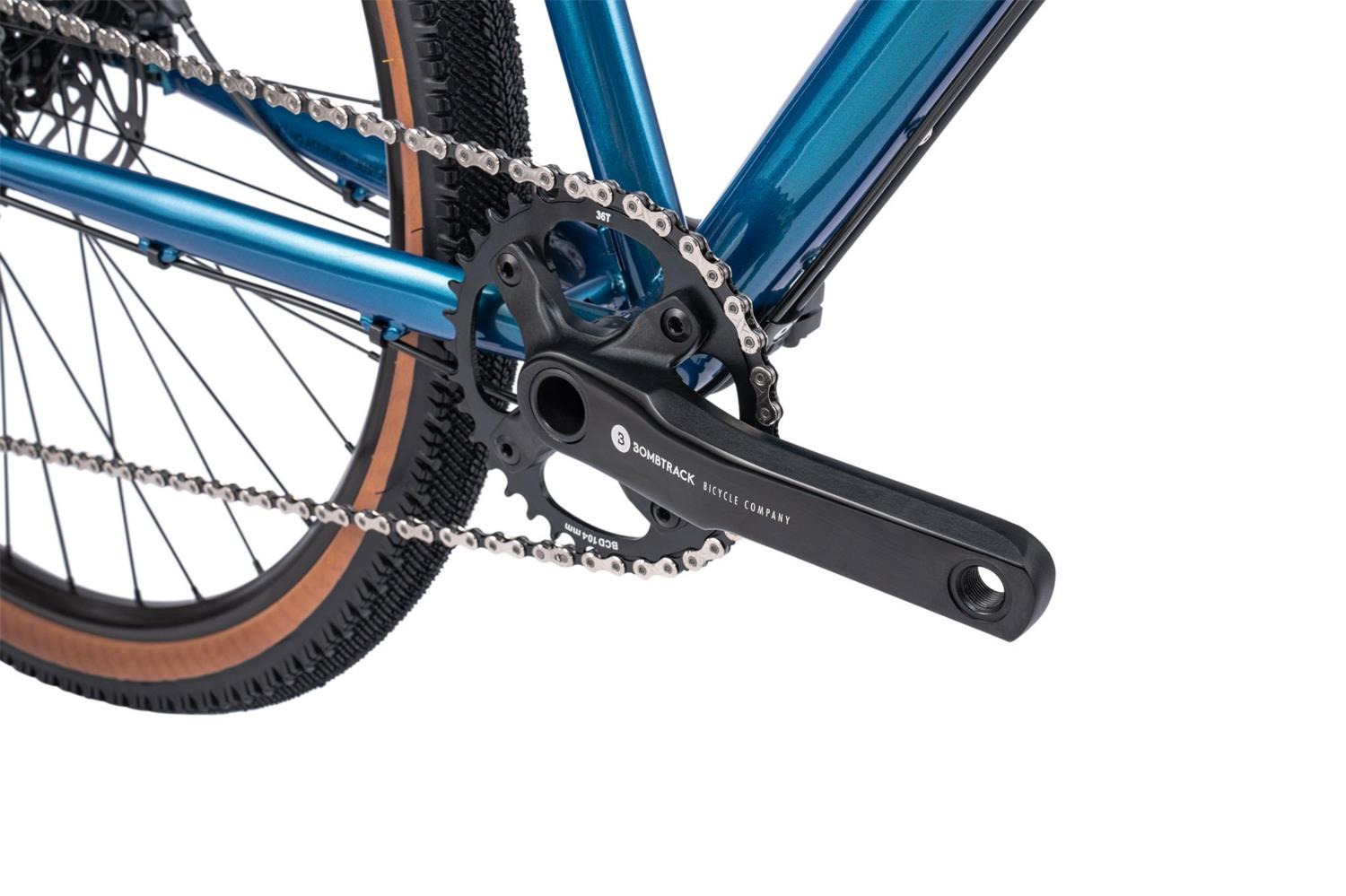

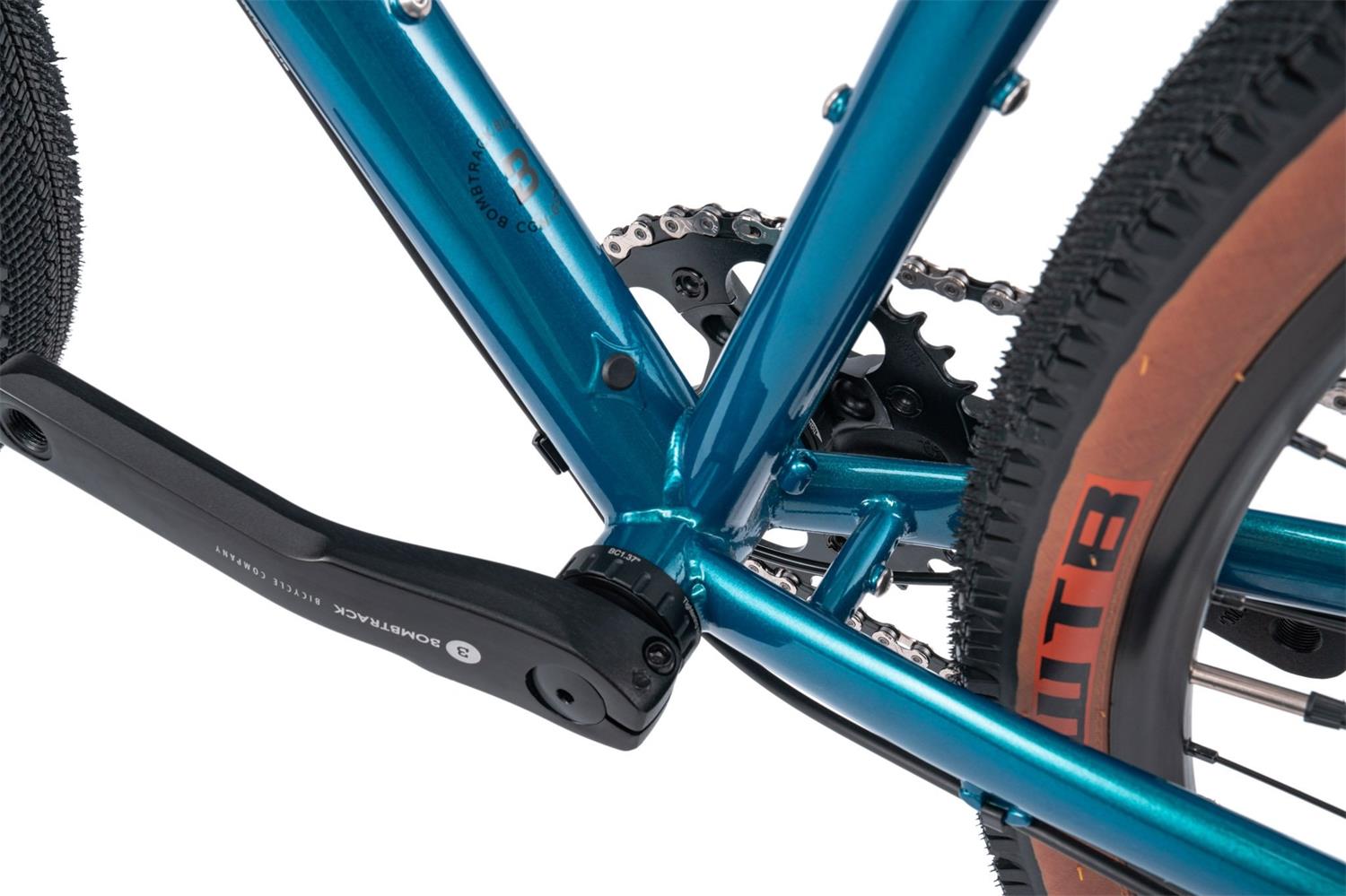

| Crankset | Bombtrack Ames forged aluminium crank, 24 mm spindle |
| BB | BSA sealed BB, external cups |
| Pedals | - |
| Chain | KMC X11 chain, 1/2'' x 11/128'', 114L |
| Chainring | Aluminium, narrow-wide, 36 T |
| Cassette | Sram PG-1130 11-speed, 11 - 42 T |
| Front derailleur | - |

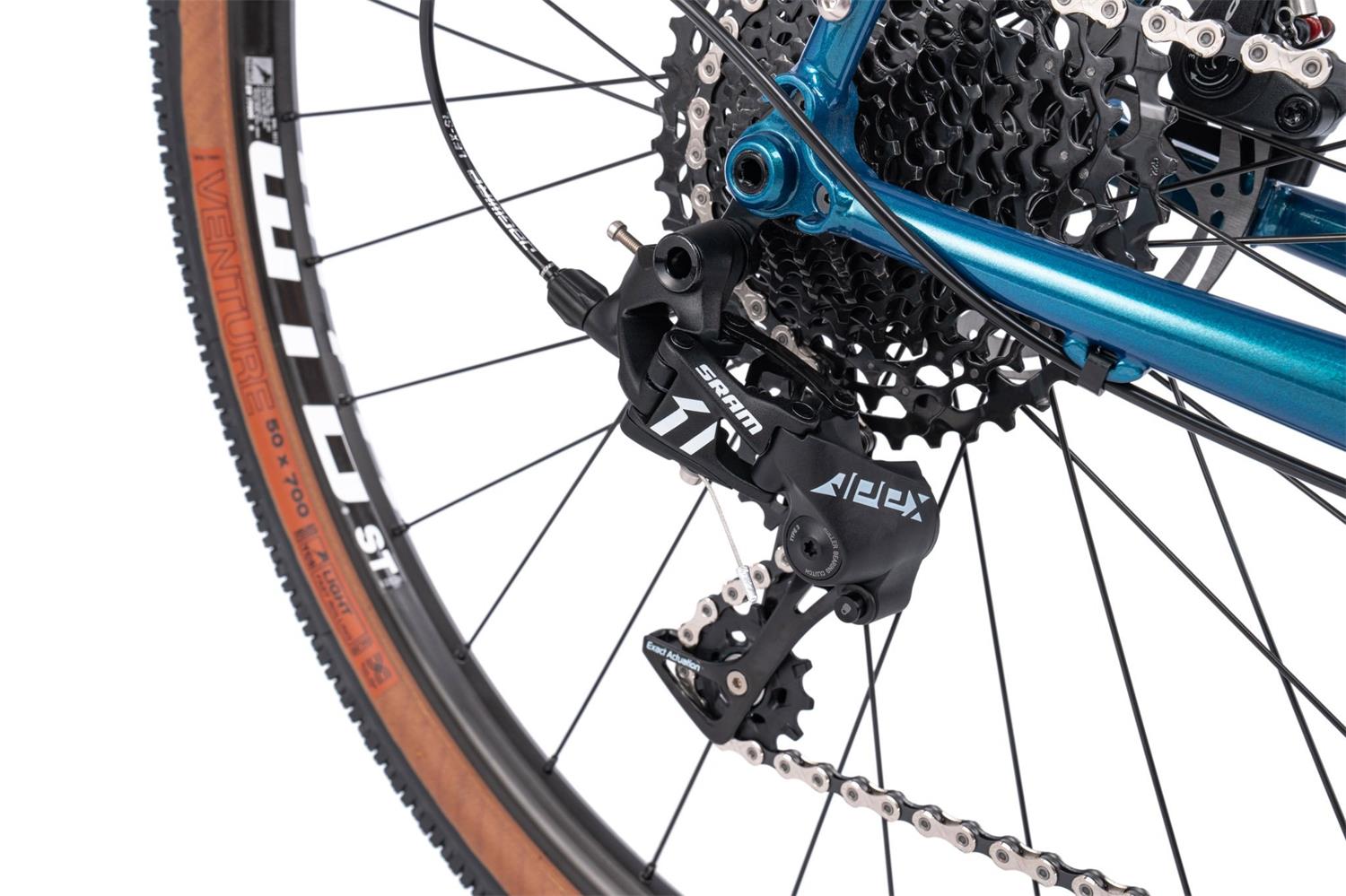

| Rear derailleur | Sram Apex 1, clutch, long cage |

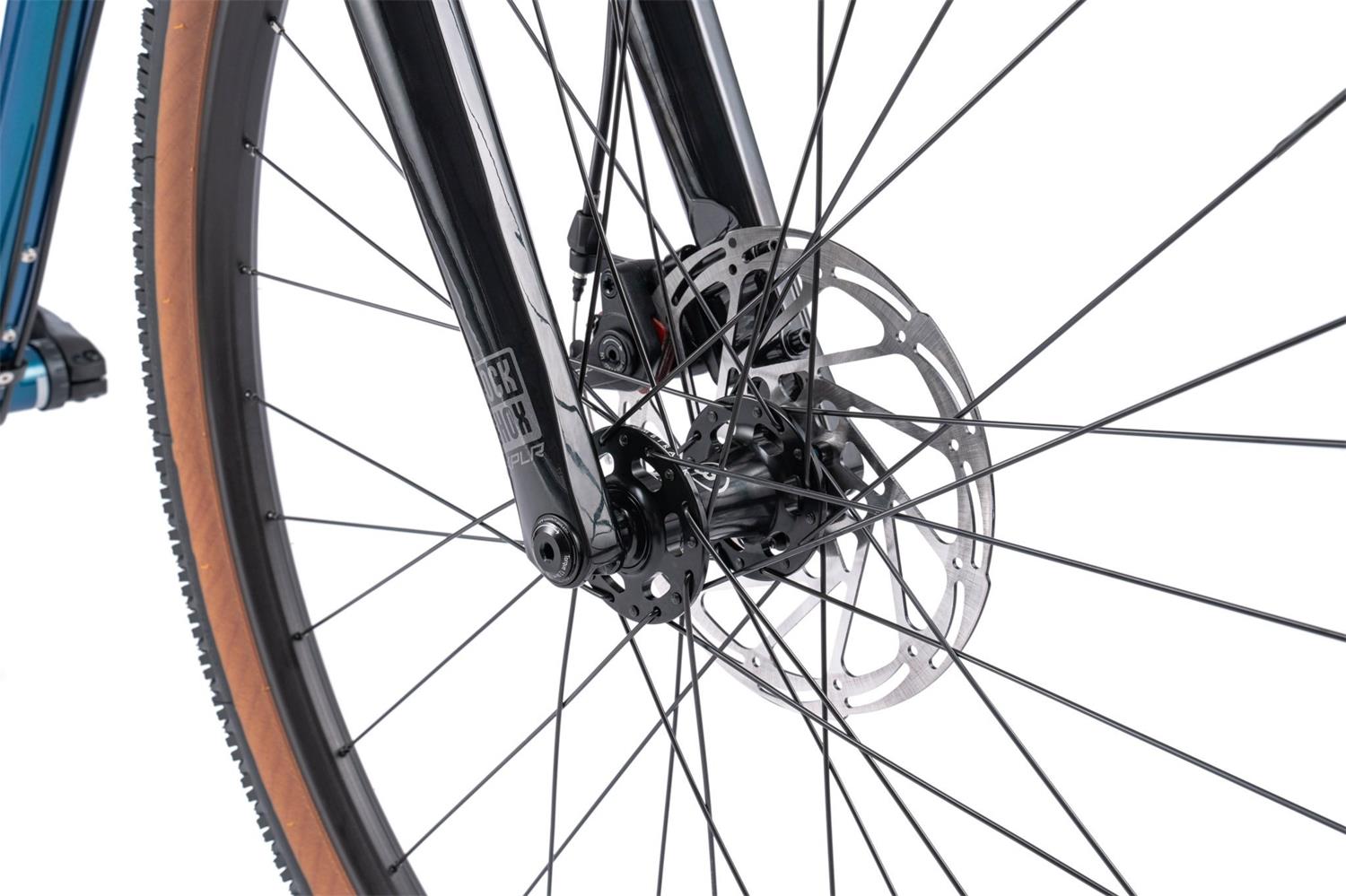

| Front hub | Bombtrack Arc sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i23 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i23 double wall, TCS 2.0, 32h |
| Saddle | Bombtrack Fuzz saddle |
| Seat post | Seido Beech 27.2 mm x 400 mm |
| Seat clamp | Bombtrack Prime 29.8 mm |
| Front tire | WTB Venture TCS Light / Fast Rolling XS - S 27.5'' x 1.9'' / M - XL 29'' x 2.0'', tubeless ready |
| Rear tire | WTB Venture TCS Light / Fast Rolling XS - S 27.5'' x 1.9'' / M - XL 29'' x 2.0'', tubeless ready |
| Weight | 12.3 kg (size M) |
| Weight frameset | 2540 g frame (size M, incl. TA, bolts, seatclamp, hanger) |
| Maximum rider weight | 140 kg incl. luggage |
| ASTM riding condition | 2 |
Final product may vary in appearance, finish and minor details.
