Clean, secure rear axle replacement for compatible Orange, Santa Cruz and Nukeproof bikes.

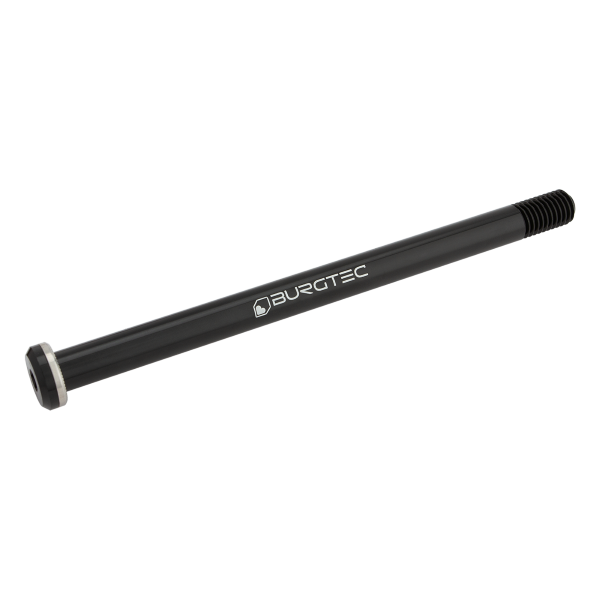

The Burgtec 174 mm Rear Axle is a strong, low-profile replacement for bikes using a 12 mm rear axle with an M12 x 1.75 mm thread. Its leverless design keeps the rear end tidy, provides extra clearance and uses a 6 mm hex key for fitting and removal.
Built for a Precise Fit
Machined from 7075 aluminium, this axle is made to the required dimensions for the compatible frames below. It corresponds with SRAM Maxle part number 00.4318.005.027.
Always compare the length and thread pitch with your existing axle before ordering. Bike model names are helpful, but the original axle dimensions are the best way to confirm fit.
Compatibility
Orange
- Orange full-suspension bikes from 2016 onwards
- Orange Crush models from 2017 onwards
- Orange Clockwork and Clockwork EVO models from 2017 onwards
Santa Cruz
- Santa Cruz Stigmata V2 and V3
Nukeproof
- Nukeproof Scout 275 and 290 models from 2018 to 2021
Leverless by Design
Removing the external lever creates a cleaner look and reduces anything protruding around rocks, vegetation and other trail obstacles. Installation is straightforward with a 6 mm hex key and a suitable torque wrench.
Use the tightening torque specified by your frame manufacturer.
Key Features
- Replacement 12 mm rear thru-axle
- 174 mm axle length
- M12 x 1.75 mm thread
- 7075 aluminium construction
- Low-profile leverless design
- 6 mm hex-key fitting
- SRAM Maxle reference: 00.4318.005.027
- Available in Burgtec anodised colours
Who Is It For?
For riders replacing a damaged axle or wanting a tidier, lower-profile rear axle on a compatible Orange, Santa Cruz or Nukeproof bike.
Our Thoughts
A tidy, well-made replacement axle that removes the bulk of a conventional quick-release lever. Just make sure the 174 mm length and M12 x 1.75 mm thread match your existing axle before purchasing.
Why Buy from Chain Reaction?
- Help checking frame and axle compatibility
- Professional installation available
- Independent Christchurch bike shop
- Support from experienced workshop mechanics
Specifications
- Brand: Burgtec
- Product: rear thru-axle
- Axle diameter: 12 mm
- Axle length: 174 mm
- Thread: M12 x 1.75 mm
- Material: 7075 aluminium
- Tool fitting: 6 mm hex
- Design: leverless
