Description

A clean, leverless rear axle for compatible mountain bike frames using an M12 × 1.0mm thread.

The Burgtec 180mm × 12mm Rear Axle replaces the original axle on compatible mountain bikes requiring a 180mm overall length and M12 × 1.0mm thread.

Machined from 7075 aluminium, it combines strong, lightweight construction with a tidy leverless profile. A 6mm hex fitting at each end provides two points for installation and removal.

Check All Three Measurements

This axle is not a universal replacement for every bike with a 12×148mm Boost rear hub. The axle length, diameter and thread pitch must all match the frame:

  • Overall length: 180mm
  • Axle diameter: 12mm
  • Thread: M12 × 1.0mm

Burgtec also makes a visually similar 180mm axle with an M12 × 1.75mm thread. These versions are not interchangeable. Installing an axle with the wrong thread can damage the frame or dropout.

Compatible Bikes

Burgtec currently lists this M12 × 1.0mm axle for:

  • Commencal Tempo
  • Commencal Meta V5
  • Cannondale Moterra 2024 and newer
  • Cannondale Moterra LT 2024 and newer
  • Cannondale Moterra SL 2024 and newer
  • Forbidden Druid V2
  • Forbidden Dreadnought V2
  • Nukeproof Giga 2021 and newer
  • Nukeproof Mega 2021 and newer
  • Nukeproof Megawatt

It may also fit other frames using exactly the same axle dimensions. Model specifications can change between generations, so compare it with the original axle or confirm the frame manufacturer’s specifications before ordering.

Dual 6mm Hex Fittings

The axle tightens from the non-drive side using a 6mm hex key. A second 6mm interface on the drive side provides another removal point if the main fitting becomes damaged or rounded.

Always start the axle by hand and follow the bike manufacturer’s tightening instructions. Use a clean, correctly fitting hex tool to reduce the chance of damaging the interface.

Key Features

  • Strong, lightweight 7075 aluminium construction
  • Clean leverless profile provides good dropout clearance
  • Dual 6mm hex fittings provide two removal points
  • Designed for compatible mountain bike frames
  • Available in a range of Burgtec colours

Our Thoughts

This is a tidy replacement or colour upgrade for a bike using this exact axle standard. The dual hex design is genuinely useful, particularly if the main interface becomes damaged during wheel removal.

The thread pitch is the detail most likely to cause confusion. Burgtec also produces a 180mm × 12mm axle with a coarser M12 × 1.75mm thread, so measure or identify the original axle before ordering.

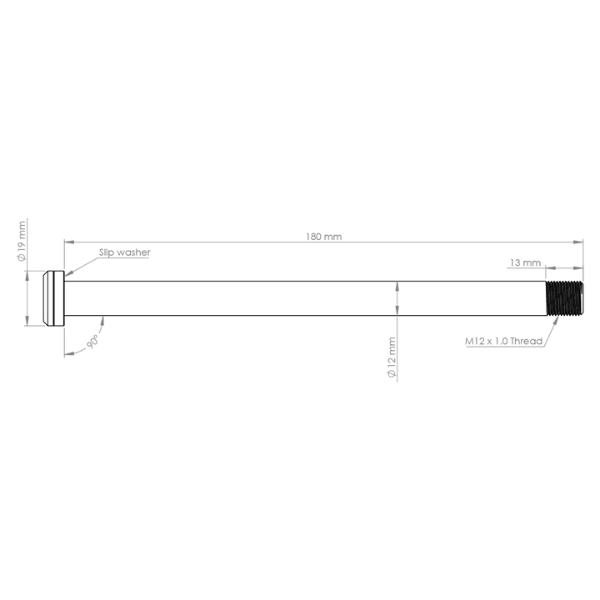

Specifications

  • Brand: Burgtec
  • Product: Rear thru-axle
  • Overall length: 180mm
  • Axle diameter: 12mm
  • Thread: M12 × 1.0mm
  • Material: 7075 aluminium
  • Tool interface: 6mm hex at both ends
  • Design: Leverless
  • Equivalent axle reference: 00.4318.050.001
  • Intended use: Compatible mountain bikes

Burgtec 180mm × 12mm M12 × 1.0 Rear Axle

Sale price $85.49
Regular price $94.99You saved$9.50 OFF

Tax included. Shipping calculated at checkout

  • SKU:
    BT-10161
  • BRAND:
  • BARCODE:
    0764283661852

Some dropdown options are for individual parts or specific sizes. Please select carefully.
