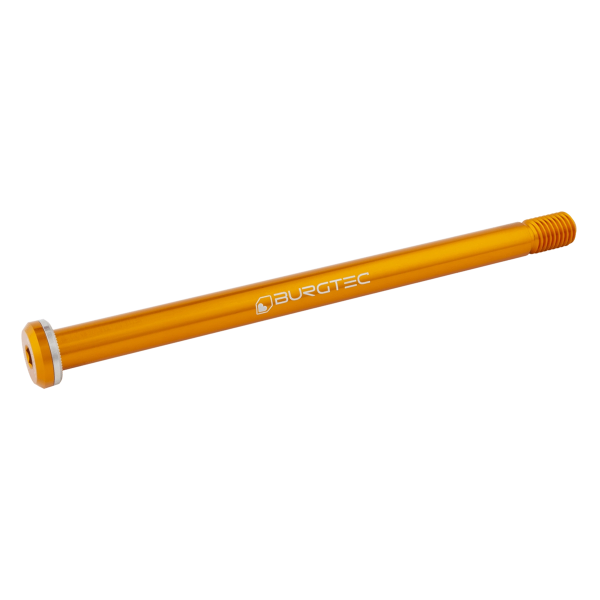

A Leverless Rear Axle for Bikes Using a 180mm, M12 × 1.75 Fitment.
The Burgtec 180mm × 12mm Rear Axle is a replacement thru-axle for compatible mountain bike frames using an M12 × 1.75 thread. Its leverless design provides a clean finish and removes the external handle found on a conventional quick-release axle.
Machined from 7075 aluminium, the axle is tightened with a 6mm hex key. It is commonly used with 12 × 148mm Boost rear hubs, but hub spacing alone does not confirm compatibility.
Check the Complete Axle Specification
This axle measures 180mm long, has a 12mm diameter and uses an M12 × 1.75 thread. All three measurements must match the original axle and frame.

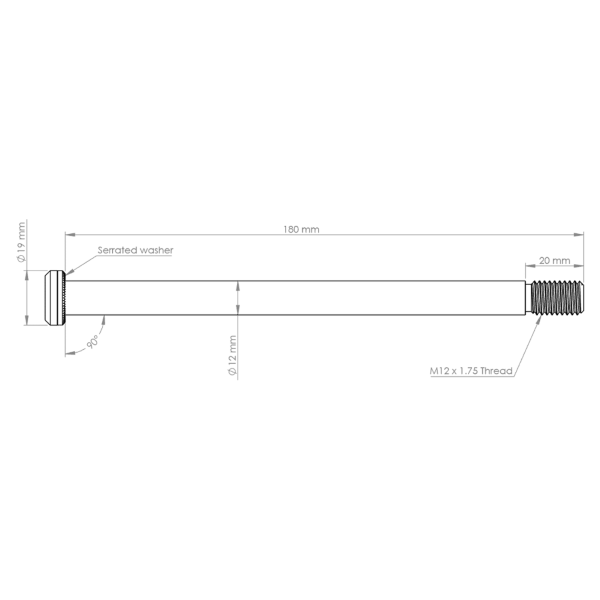

Burgtec lists SRAM reference 00.4318.005.028 for this axle. Check the number on your original axle where possible and compare it with the Burgtec dimension drawing before ordering.
Compatible Bikes
Burgtec lists the following applications:
Niner
- AIR 9 RDO V2
- RKT 9 RDO V1
- JET 9 RDO V2
- RIP 9 RDO V3
- AIR 9 Alloy V4
- SIR 9 V3
Nukeproof
- Reactor 275 and 290 – 2020 and 2021
- Mega 275 and 290 – 2020
Cannondale
- Habit Alloy and Carbon – 2019 to 2021
- Jekyll Alloy and Carbon – 2019 and 2020
- Moterra – 2020 and 2021
- Habit Neo – 2020 and 2021
Forbidden
- Druid
- Dreadnought
Compatible Stanton frames and some Commencal 12 × 148mm Boost frames may also use this axle. These brands have produced different frame designs, so compare the original axle measurements before ordering rather than relying on the brand or hub spacing alone.
This axle is not compatible with Evil bikes. A different Burgtec axle is required for those frames.
Leverless Design
The leverless head improves clearance around the dropout and reduces the chance of an external handle being caught or knocked by trailside debris.
A 6mm hex key is used for installation and removal, allowing a suitable torque wrench to be used. Always follow the frame manufacturer’s axle torque specification. The leverless design is clean and practical, but it is not an anti-theft feature.
Key Features
- Replacement rear thru-axle for compatible mountain bike frames
- Clean leverless design improves dropout clearance
- Machined from strong 7075 aluminium
- 6mm hex tool interface
- Suitable for frames requiring a 180mm axle with an M12 × 1.75 thread
- Available in a range of Burgtec anodised colours
Our Thoughts
This axle covers a useful range of frames from several manufacturers, but it should not be treated as a universal Boost axle. The 180mm length and relatively coarse M12 × 1.75 thread are the details that matter.
We recommend removing and measuring the original axle before ordering. That small check is considerably easier than discovering the thread or overall length is wrong when fitting the rear wheel.
Why Buy from Chain Reaction?
- Help checking frame and axle compatibility
- Experienced mountain bike workshop support
- Independent Christchurch bike shop
- Nationwide New Zealand delivery
Specifications
- Brand: Burgtec
- Product type: Rear thru-axle
- Axle diameter: 12mm
- Overall length: 180mm
- Thread: M12 × 1.75
- Typical hub spacing: 12 × 148mm Boost
- Material: 7075 aluminium
- Tool interface: 6mm hex
- SRAM reference: 00.4318.005.028
- Evil compatibility: Not compatible
- Quantity: One axle
