Reliable 1x Chain Retention for Shimano 96/64mm Cranks.

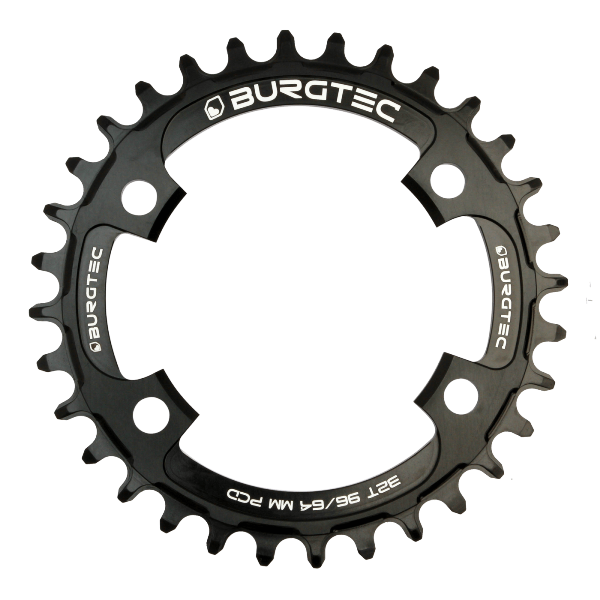

The Burgtec 96/64mm PCD Alloy Thick Thin Chainring is made for compatible Shimano mountain bike cranksets using the asymmetric four-bolt mounting pattern. It provides a simple way to replace a worn chainring, change your gearing or convert a suitable crankset to a cleaner 1x setup.
Burgtec’s Thick Thin tooth profile helps keep the chain securely engaged over rough ground, while the aerospace-grade aluminium construction keeps weight down. Available in Burgtec Black with 30T, 32T and 34T options. Please check the selector for current availability.
Compatibility
- Fits Shimano XTR FC-M9000 cranksets
- Fits Shimano XT FC-M8000 cranksets
- Fits Shimano SLX FC-M7000 cranksets
- Fits Shimano Deore FC-M6000 cranksets
- Compatible with other suitable Shimano asymmetric 96/64mm four-bolt cranks
- Designed for 1x mountain bike drivetrains
- Compatible with suitable 10, 11 and 12-speed chains, including Shimano 12-speed Hyperglide chains
This chainring uses Shimano’s asymmetric 96/64mm mounting pattern. It does not fit symmetrical 96mm BCD cranks or newer Shimano M6100, M7100, M8100 and M9100 direct-mount cranksets.
Check the crank model number and bolt layout before ordering. Chainring diameter alone is not enough to confirm compatibility.
Choose the Right Tooth Count
- 30T: Easier climbing for steep and technical terrain
- 32T: A versatile choice for general trail and cross-country riding
- 34T: Taller gearing for stronger riders and faster terrain
A smaller ring makes climbing easier but reduces the highest available gear. A larger ring provides more speed before spinning out but requires more effort on steep climbs. Check frame and chainstay clearance before increasing the tooth count.
Thick Thin Tooth Profile
The alternating thick and thin teeth match the different internal widths of the chain links. This helps guide the chain onto the ring and keeps it engaged when riding through roots, rocks and braking bumps.
The tooth profile also provides clearance for mud and debris. Correct chain length and derailleur clutch adjustment remain important, particularly when converting from a double chainring setup or changing the tooth count.
Aerospace-Grade Aluminium
The chainring is made from aerospace-grade aluminium, providing a useful balance of strength, wear resistance and low weight. It is a round chainring rather than an oval model and is finished in Burgtec Black.
Burgtec designs and manufactures the chainring in the United Kingdom, with testing carried out on the rocky and often muddy trails of the Peak District.
E-Bike Use
This lightweight aluminium chainring is intended for standard mountain bikes. For a high-torque e-MTB, choose a compatible steel e-bike chainring designed to handle the additional torque and mileage.
Key Features
- Shimano asymmetric 96/64mm four-bolt fitment
- Designed for compatible 1x mountain bike drivetrains
- Burgtec Thick Thin tooth profile
- Good chain retention and mud clearance
- Suitable for compatible 10, 11 and 12-speed chains
- 30T, 32T and 34T options
- Round chainring profile
- Aerospace-grade aluminium construction
- Burgtec Black finish
- Designed and manufactured in the UK
Our Thoughts
This ring is a practical way to keep a good Shimano M9000, M8000, M7000 or M6000 crankset in service. A 32T ring is the natural all-round choice, while 30T makes sense for steeper trails and 34T suits riders wanting taller gearing.
The main thing to check is the mounting pattern. Shimano has used several different 96mm and direct-mount systems, and they are not interchangeable. Look for the crank model number on the inside of the arm before ordering.
We also recommend checking the chain for wear. A heavily worn chain can run poorly on a new ring and shorten its working life.
Specifications
- Brand: Burgtec
- Product: 96/64mm PCD Alloy Thick Thin Chainring
- Mount: Asymmetric four-bolt 96/64mm PCD
- Compatible crank families: Shimano M9000, M8000, M7000 and M6000
- Drivetrain: 1x mountain bike
- Speed compatibility: 10, 11 and 12-speed
- Tooth counts: 30T, 32T and 34T
- Shape: Round
- Material: Aerospace-grade aluminium
- Tooth profile: Burgtec Thick Thin
- Colour: Burgtec Black
- Intended use: Cross-country, trail and all-mountain riding
