SRAM Direct-Mount Fit with a 6mm Non-Boost Offset.

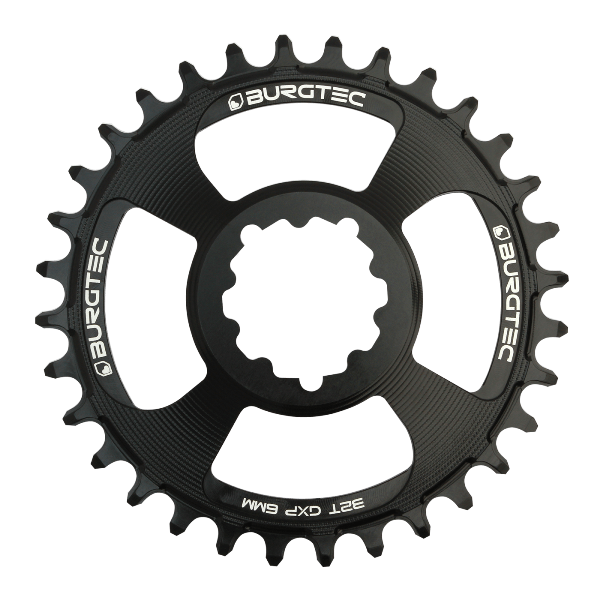

The Burgtec SRAM GXP 6mm Offset Alloy Thick Thin Chainring is made for compatible SRAM three-bolt direct-mount cranksets requiring a 6mm offset. Its alloy construction keeps weight down, while Burgtec’s Thick Thin tooth profile helps keep the chain securely engaged over rough trails.

Available in 30T and 32T sizes, it is a practical replacement for a worn chainring or a straightforward way to adjust the gearing on a compatible mountain bike.

Compatibility

• SRAM three-bolt direct-mount interface
• 6mm offset for compatible non-Boost crank and frame configurations
• Suitable for compatible conventional 1x mountain bike drivetrains
• Available in 30T and 32T sizes
• Not compatible with SRAM eight-bolt cranksets
• Not compatible with SRAM Transmission T-Type cranksets
• Not a replacement for a 3mm Boost chainring

The product name uses GXP because that is how this chainring has traditionally been identified, but the important fitment detail is the SRAM three-bolt direct-mount interface. Some SRAM DUB cranks also use this interface, so spindle type alone does not confirm compatibility.

Understanding the 6mm Offset

The offset controls how far inboard the chainring sits relative to the crank. A 6mm offset is normally used to produce an approximately 49mm chainline on suitable non-Boost mountain bikes with 135mm quick-release or 142mm thru-axle rear hubs.

This should still be checked against the frame and crank manufacturer’s specifications. A 3mm Boost ring and a 6mm non-Boost ring may use the same three-bolt mount, but they position the chainring differently.

Choosing the wrong offset can place the chainring too far inboard or outboard, leading to increased drivetrain noise, faster wear and poor chain retention at the ends of the cassette.

Choose the Right Tooth Count

• 30T: Provides easier climbing gears for steep terrain, technical trails and riders who prefer a higher cadence
• 32T: A versatile all-round option with slightly higher gearing for faster or less demanding terrain

Changing from 32T to 30T makes every gear easier but slightly reduces your highest available gear. Moving from 30T to 32T provides more top-end speed but requires more effort on steep climbs.

Check the available frame clearance and chain length if you change tooth count rather than replacing the existing ring like for like.

Thick Thin Chain Retention

Burgtec’s alternating Thick Thin teeth match the inner and outer links of the chain. This helps guide the chain onto the ring and improves retention across roots, rocks and rough trail surfaces.

A Thick Thin ring works best with a compatible chain, correct chainline and a properly functioning clutch derailleur. It cannot compensate for a worn chain, damaged derailleur or poor drivetrain adjustment.

Key Features

• Lightweight alloy construction
• SRAM three-bolt direct-mount interface
• 6mm offset for suitable non-Boost applications
• Thick Thin tooth profile supports dependable chain retention
• Choice of 30T or 32T gearing
• Designed for conventional 1x mountain bike drivetrains
• Burgtec Black finish

Our Thoughts

This is a good replacement for an older SRAM three-bolt crankset when the bike requires a 6mm offset. The main thing to get right is chainline. Do not assume this is the correct ring simply because your crank says SRAM or GXP.

Check the existing chainring offset and crank interface before ordering. We would also measure the chain for wear, as fitting a new chainring with a heavily worn chain can shorten its working life.

Why Buy from Chain Reaction?

• Help confirming crank, offset and chainline compatibility
• Advice on choosing between 30T and 32T
• Professional chainring installation available
• Chain-wear and drivetrain-condition checks
• Independent Christchurch bike shop
• Nationwide New Zealand delivery

Specifications

• Brand: Burgtec
• Product type: Mountain bike chainring
• Material: Alloy
• Mount: SRAM three-bolt direct mount
• Offset: 6mm
• Typical application: Non-Boost mountain bike chainline
• Available sizes: 30T and 32T
• Chainring type: Single ring
• Tooth profile: Thick Thin
• Colour: Burgtec Black
• Intended use: Conventional 1x mountain bike drivetrains
