Lightweight Carbon Control for Enduro and Trail Riding.

The Burgtec RideWide Carbon Enduro Handlebar combines an 800mm width with a familiar 9-degree backsweep and 5-degree upsweep. It is designed for riders wanting direct steering, plenty of leverage and a lower weight than Burgtec’s heavier-duty downhill carbon bar.

Made from unidirectional carbon fibre, it is available with either a 20mm or 30mm rise. Both versions use a 35mm clamp diameter and weigh approximately 258g.

800mm Width with Cut-Down Markings

The full 800mm width provides plenty of control on steep and technical terrain. It also gives you room to shorten the handlebar if a narrower position better suits your shoulder width, bike or local trails.

Suggested cut-down markings are printed beneath the grip area, along with useful torque information for the stem, controls and grips. Cutting a carbon handlebar requires the correct tools and technique, so we recommend having it shortened professionally if you are unsure.

Choose Your Rise

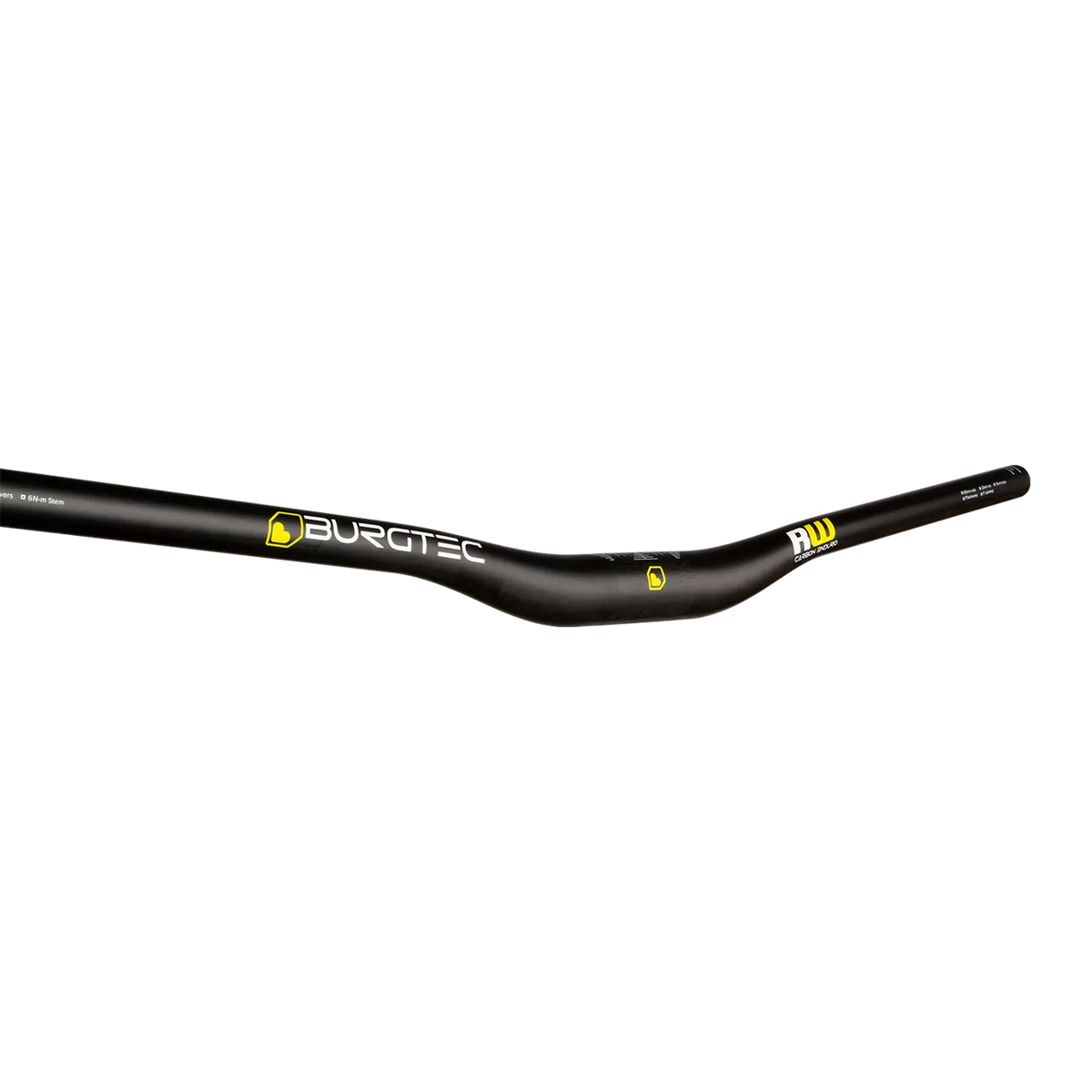

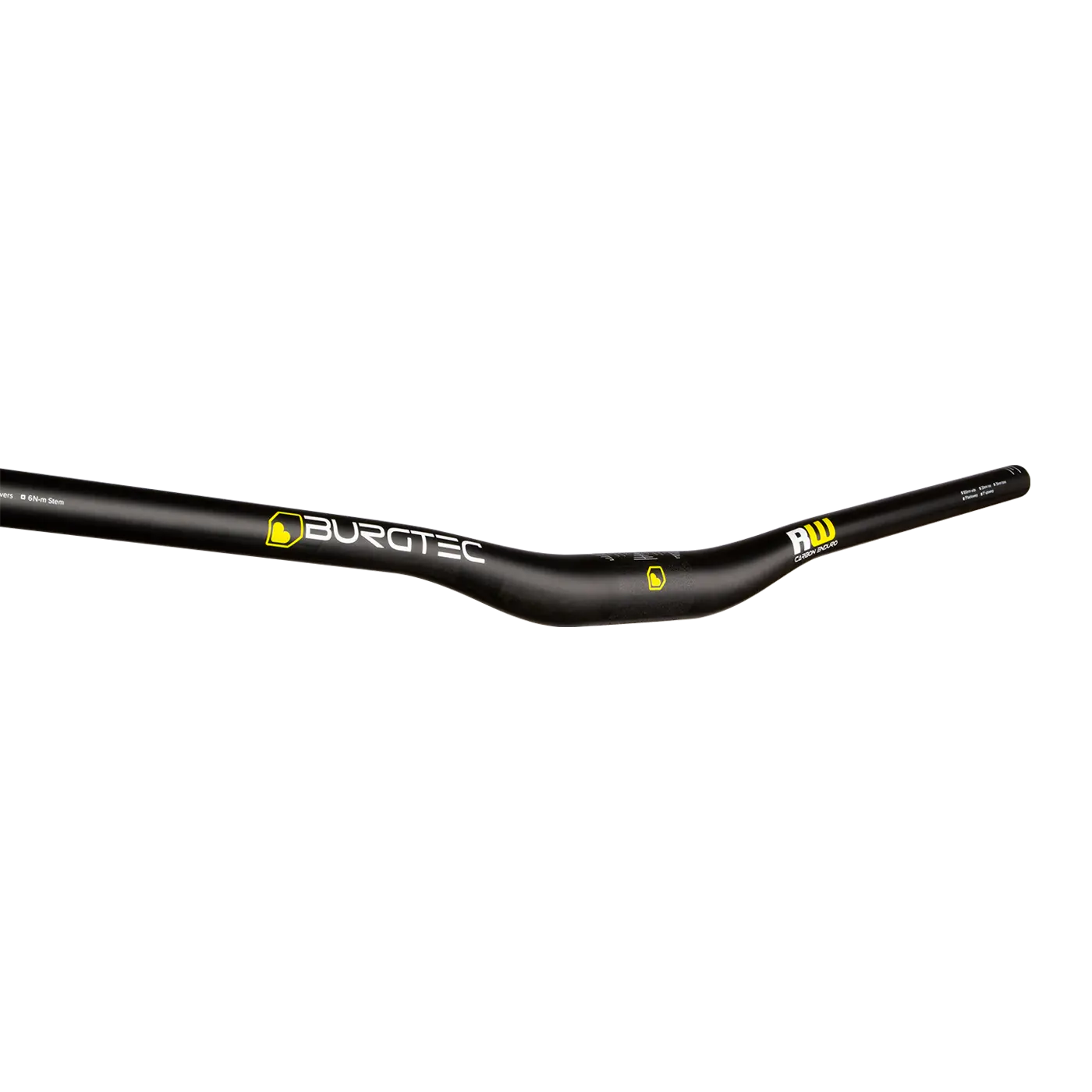

• 20mm Rise: Provides a lower front-end position for riders who prefer a more aggressive stance or already have a relatively tall cockpit

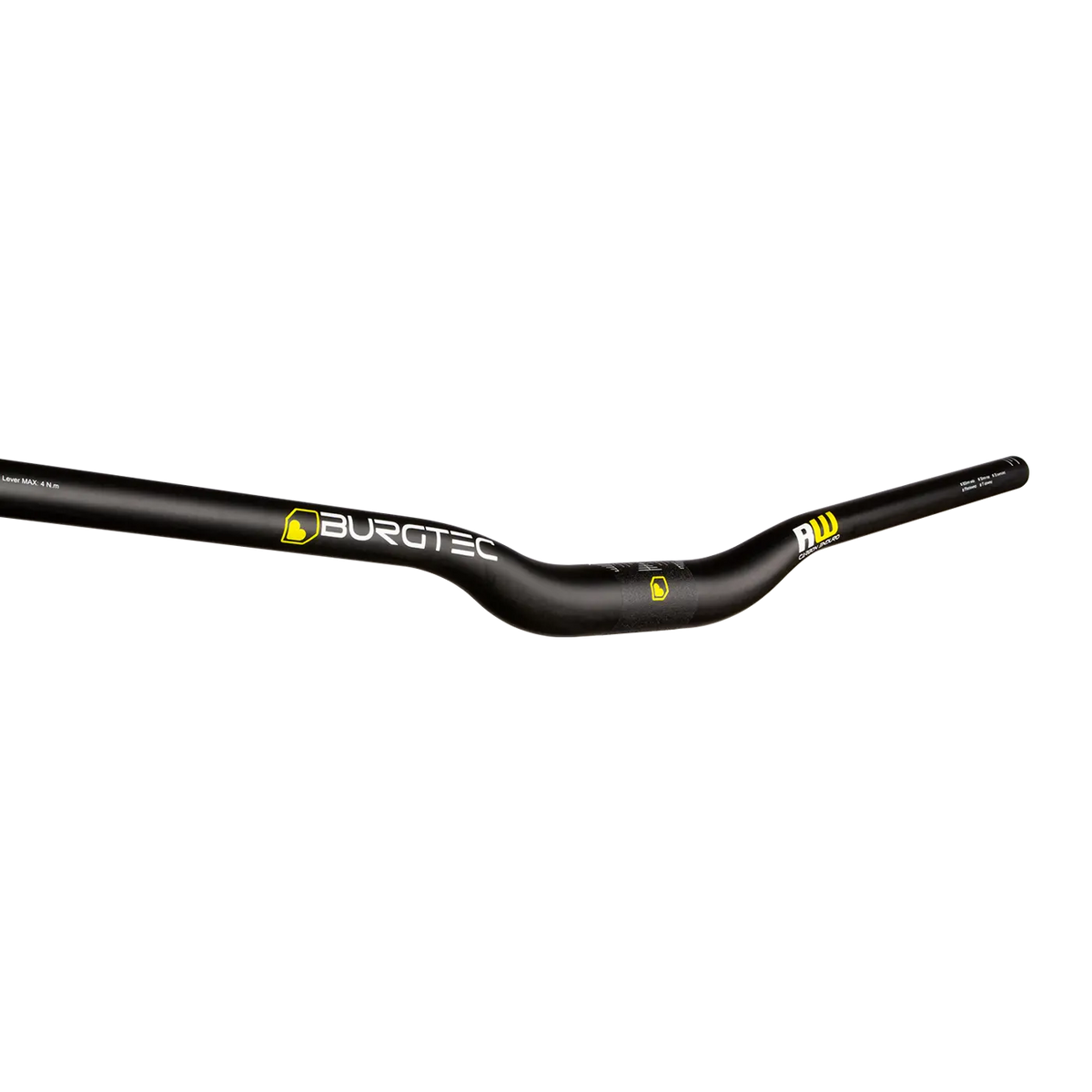

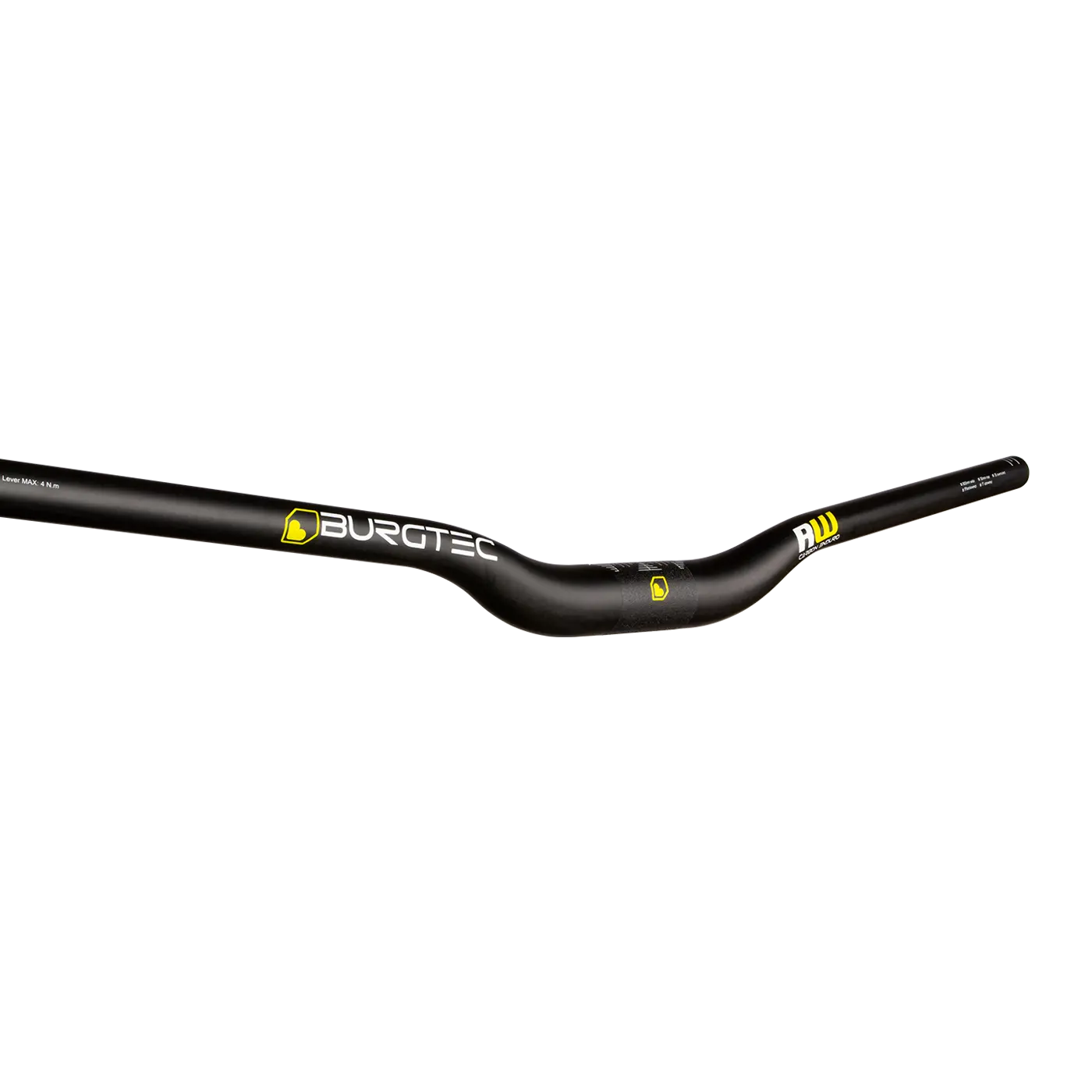

• 30mm Rise: Raises the grips by an additional 10mm and can provide a slightly more upright position

Handlebar rise is only one part of cockpit setup. Stem height, spacer position, bar roll and bike geometry all affect the final hand position, so compare the dimensions with your current handlebar before ordering.

35mm Clamp Diameter

It is not compatible with a 31.8mm stem and should only be fitted to a suitable 35mm-clamp stem

Follow the torque markings on the handlebar and the stem manufacturer’s instructions during installation. Carbon assembly paste may be appropriate where specified, but excessive clamp force can damage a carbon handlebar.

Key Features

• Unidirectional carbon-fibre construction
• Designed for enduro and technical trail riding
• 800mm original width
• Available in 20mm and 30mm rises
• 35mm stem clamp diameter
• 9-degree backsweep
• 5-degree upsweep
• Suggested cut-down markings beneath the grip area
• Component torque information printed on the handlebar
• Approximately 258g

Our Thoughts

The RideWide Carbon Enduro is a good option for riders who want a wide, precise-feeling cockpit without the weight of an alloy handlebar. Burgtec’s 9-degree backsweep and 5-degree upsweep provide a natural starting position, while the two rise options make it easier to match different bikes and riding preferences.

We would begin at the full width and shorten the bar gradually. Removing too much material at once cannot be reversed, and even a small width change can noticeably affect steering and body position.

Why Buy from Chain Reaction?

• Advice on handlebar width, rise and cockpit setup
• Professional handlebar installation and shortening available
• Help confirming stem and control compatibility
• Independent Christchurch bike shop
• Nationwide New Zealand delivery

Specifications

• Brand: Burgtec
• Model: RideWide Carbon Enduro
• Material: Unidirectional carbon fibre
• Width: 800mm
• Rise options: 20mm or 30mm
• Clamp diameter: 35mm
• Backsweep: 9 degrees
• Upsweep: 5 degrees
• Colour: UD Carbon
• Approximate weight: 258g
• Intended use: Enduro and trail riding
