A Clean, Leverless Replacement Axle for Compatible Santa Cruz and Juliana Bikes.

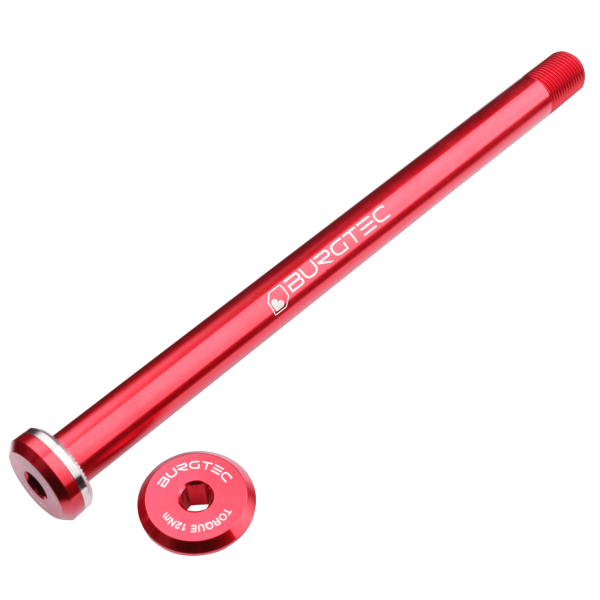

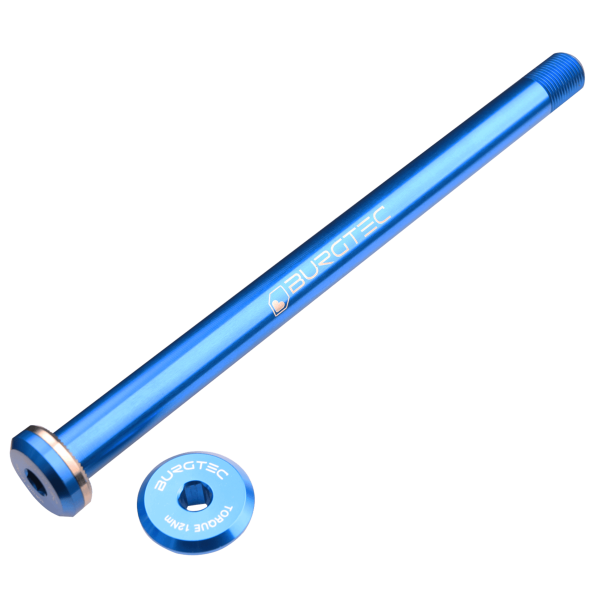

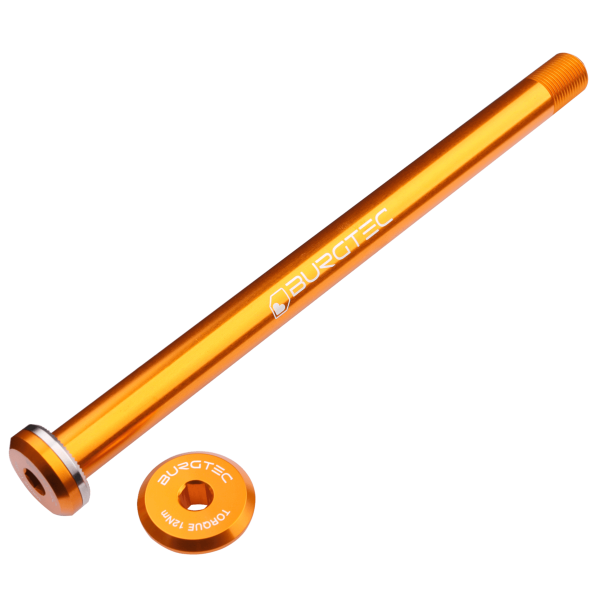

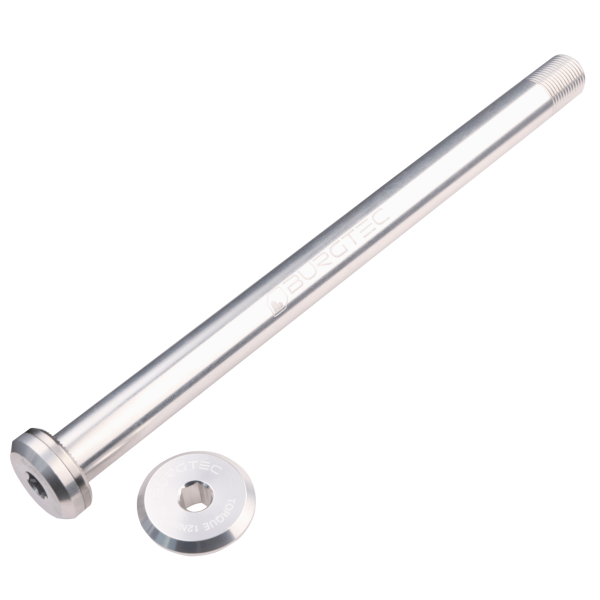

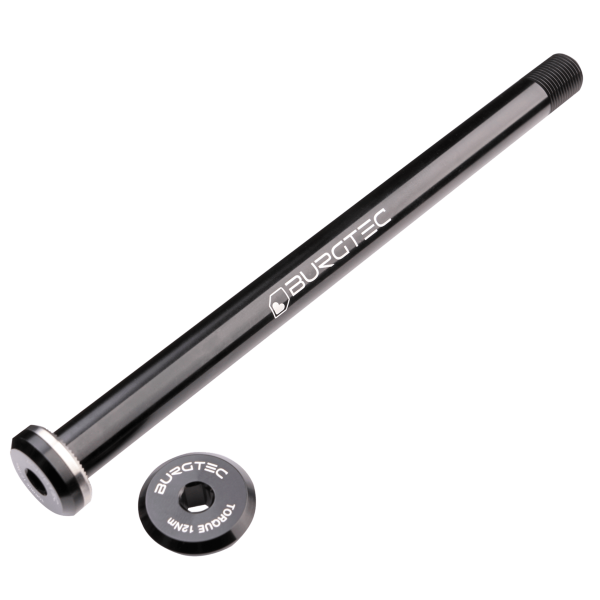

The Burgtec Santa Cruz 168.5mm Rear Axle replaces the original rear thru-axle on a range of compatible Santa Cruz and equivalent Juliana mountain bikes. Its leverless design gives the rear of the bike a tidy finish while providing extra clearance around the dropout.
Machined from 7075 aluminium, the axle is approximately 20g lighter than the corresponding standard OE axle. A 6mm hex fitting at each end provides a second removal point if the primary fitting becomes damaged.
Check Compatibility Before Ordering

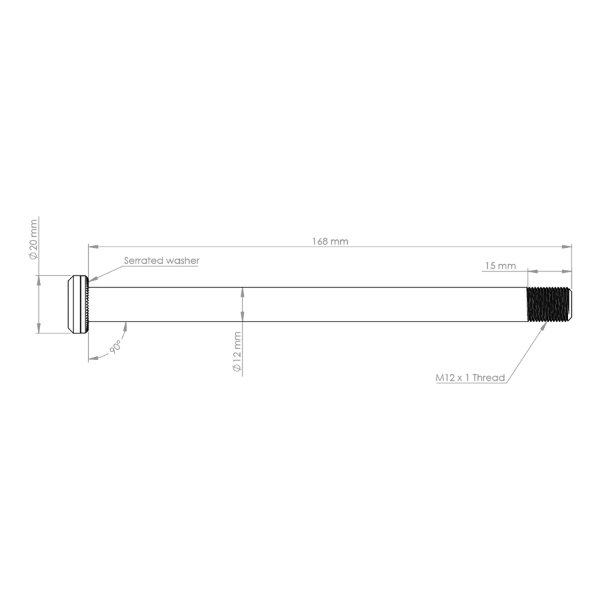

This axle measures 168.5mm long, has a 12mm diameter and uses an M12 × 1.0 thread. All three measurements must match your frame and original axle.
It can be found on compatible bikes with either 12 × 142mm or 12 × 148mm rear spacing, but hub spacing alone does not confirm fit. Do not assume it will fit every Santa Cruz or every bike using one of these hub standards.
Compatible Santa Cruz Models
- 5010 V1–V3
- Bantam V1
- Blur TR V1.1
- Blur XC V2.2
- Blur LT V2.1c and V2.2
- Blur V3
- Bronson V1–V3
- Chameleon V5–V7
- Heckler V7
- Heckler V8 e-bike
- Heckler MX V8 e-bike
- Highball V1–V3
- Hightower V1–V2, including the listed MY20 and MY21 applications
- Hightower LT V1
- Megatower V1
- Nomad V2.1–V4
- Tallboy LT V1.1
- Tallboy V1.1–V4, including the listed MY20 and MY21 applications
The axle also fits corresponding Juliana equivalents. Frame generations can use different axle designs, so check the model, version and original axle before ordering.
Leverless Design
Removing the external quick-release lever reduces the chance of it being knocked or caught by trailside debris. The axle is installed with a 6mm hex key, allowing a suitable torque wrench to be used for accurate tightening.
Always follow the frame manufacturer’s specified axle torque. The leverless design is tidy and practical, but it is not an anti-theft feature.
Key Features
- Replacement rear axle for compatible Santa Cruz and Juliana bikes
- Clean leverless design improves clearance around the dropout
- Machined from strong 7075 aluminium
- Approximately 20g lighter than the corresponding OE axle
- 6mm hex fitting at both ends
- Secondary fitting provides a backup removal point
- Hanger end cap included

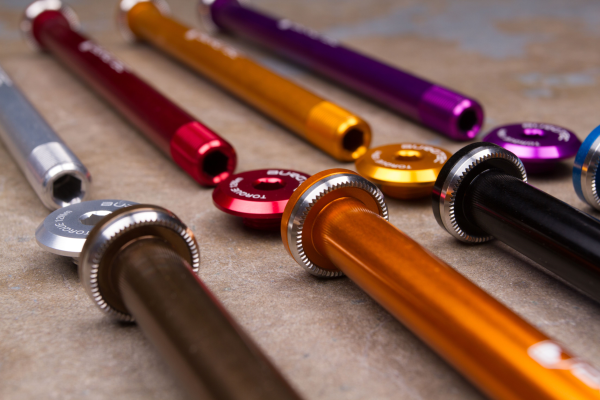

- Available in a range of Burgtec anodised colours
Our Thoughts
This axle is a good replacement for a damaged original or a simple way to remove the protruding quick-release lever. The second 6mm fitting is particularly useful if one end becomes rounded or difficult to remove.
The main thing to check is compatibility. Santa Cruz has used different axle dimensions across its frame generations, so the model name alone is not enough. Compare the 168.5mm length and M12 × 1.0 thread with the original axle before buying.
Why Buy from Chain Reaction?
- Help checking frame and axle compatibility
- Experienced mountain bike workshop support
- Independent Christchurch bike shop
- Nationwide New Zealand delivery
Specifications
- Brand: Burgtec
- Product type: Rear thru-axle
- Axle diameter: 12mm
- Overall length: 168.5mm
- Thread: M12 × 1.0
- Compatible hub spacing: Selected 12 × 142mm and 12 × 148mm applications
- Material: 7075 aluminium
- Tool interface: 6mm hex at both ends
- Manufacturer references: HWQASM00S9566S, QR1962 and 08-14622
- Included: One axle and one hanger end cap
