Easy Crank Preload with a Standard 8mm Hex Key.

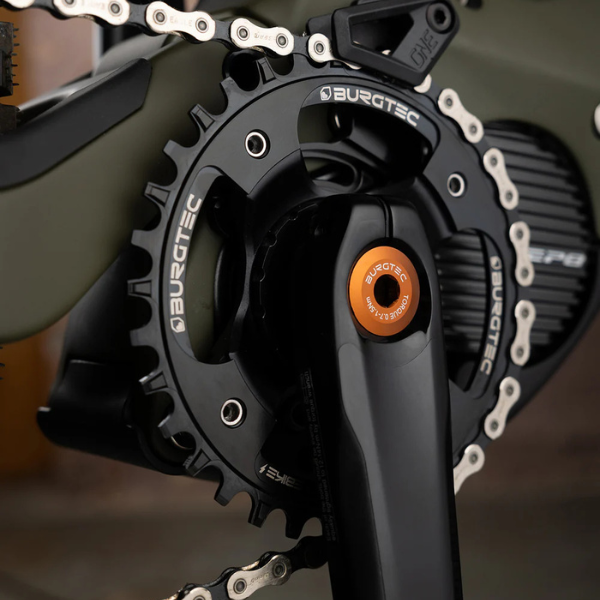

The Burgtec Shimano Crank Bolt replaces the plastic preload cap fitted to compatible Shimano Hollowtech II cranksets. Its 8mm hex fitting makes installation straightforward, while the anodised finish adds a small splash of colour to your drivetrain.
This bolt is used only to set bearing preload before the left crankarm pinch bolts are tightened. It does not secure the crankarm during riding and requires very little torque.
Important Torque Information
Tighten the preload bolt only enough to remove side-to-side play while allowing the crank to rotate freely. Burgtec specifies a torque range of 0.7–1.5Nm.
Do not overtighten it. Excessive preload can damage the bolt, increase bearing drag and shorten bottom-bracket bearing life. Once the preload is set, tighten the crankarm pinch bolts evenly to Shimano’s specification and check that the safety plate is correctly engaged.
Compatible Shimano Cranksets
The bolt fits a wide range of Shimano Hollowtech II mountain bike, trekking and compatible e-bike cranksets, including selected models from the following groups:
- XTR: FC-M9000 and FC-M985
- XT: FC-M7100, FC-M8000, FC-M785, FC-M782, FC-M780, FC-M771, FC-M770, FC-M761 and FC-M760
- SLX: FC-M6100, FC-M7000, FC-M677, FC-M675, FC-M672, FC-M670, FC-M665 and FC-M660
- Saint: FC-M800, FC-M820 and FC-M825
- Zee: FC-M645 and FC-M640
- Deore: FC-M612, FC-M610, FC-M617, FC-M615, FC-M6000, FC-M596, FC-M591 and FC-M590
- LX: FC-M583 and FC-M582
- Shimano e-bike: FC-E8000 and compatible M8000/M8050 applications
- Trekking: FC-T8000, FC-T781, FC-T780 and FC-T551
- Selected FC-MT, FC-M4000, FC-M500 and FC-M600 series Hollowtech II cranksets
Compatibility depends on the crank using Shimano’s standard Hollowtech II preload-cap thread. Check the existing cap and crank model before ordering.
Available Colours

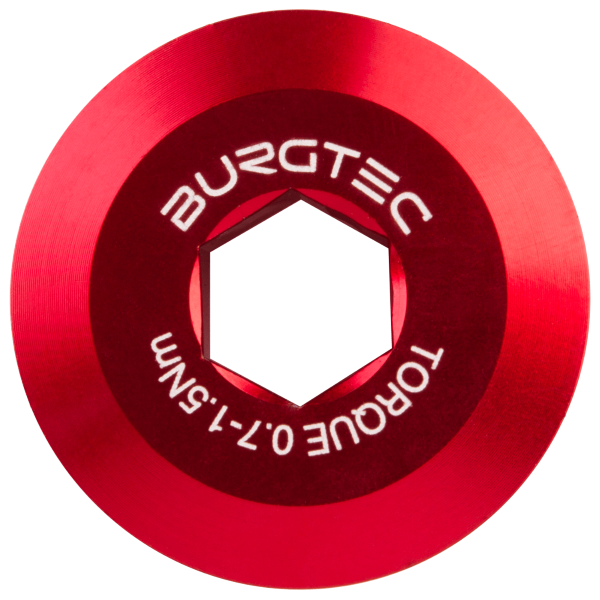

- Race Red
- Deep Blue

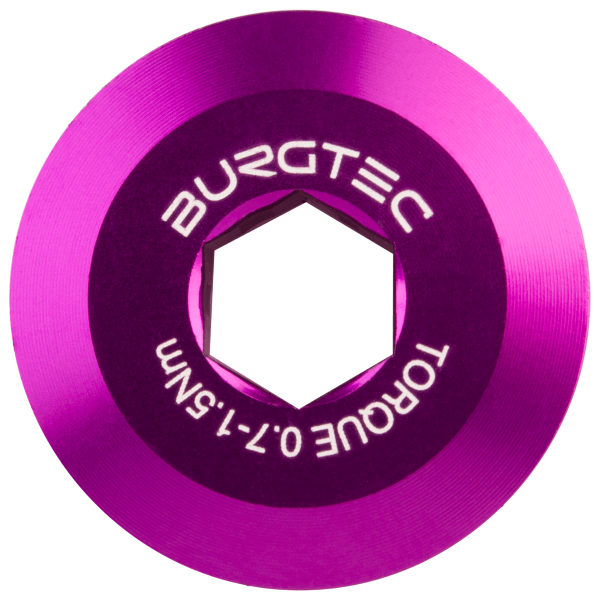

- Purple Rain

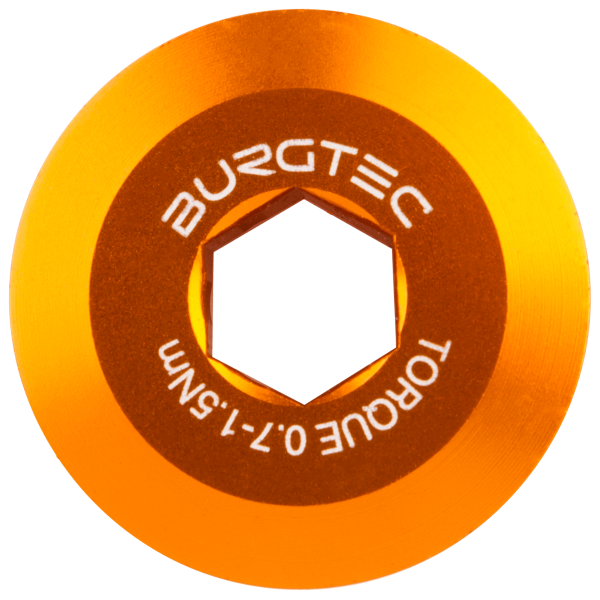

- Kash Bronze
- Iron Bro Orange
- Rhodium Silver
- Burgtec Bullion Gold

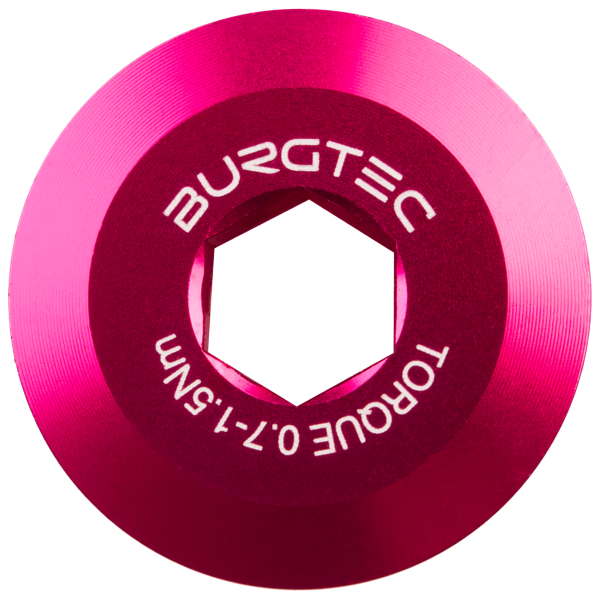

- Toxic Barbie Pink
Our Thoughts
This is a tidy replacement for Shimano’s plastic preload cap, especially if the original has been damaged or misplaced. The 8mm fitting also means you can install it with a normal hex key rather than searching for the Shimano preload tool.
The important part is remembering what it does. This bolt sets bearing preload; it is not meant to be tightened firmly. Use minimal torque, then let the crankarm pinch bolts do their job.
Why Buy from Chain Reaction?
- Help checking Shimano crank compatibility
- Professional crank and bottom-bracket installation available
- Independent Christchurch bike shop
- Nationwide New Zealand delivery
Specifications
- Brand: Burgtec
- Product: Shimano Crank Preload Bolt
- Crank standard: Shimano Hollowtech II
- Tool fitting: 8mm hex key
- Recommended torque: 0.7–1.5Nm
- Finish: Anodised
- Quantity: One
