Colour-Matched Mounting Hardware for Compatible SRAM Full Mount Derailleurs.

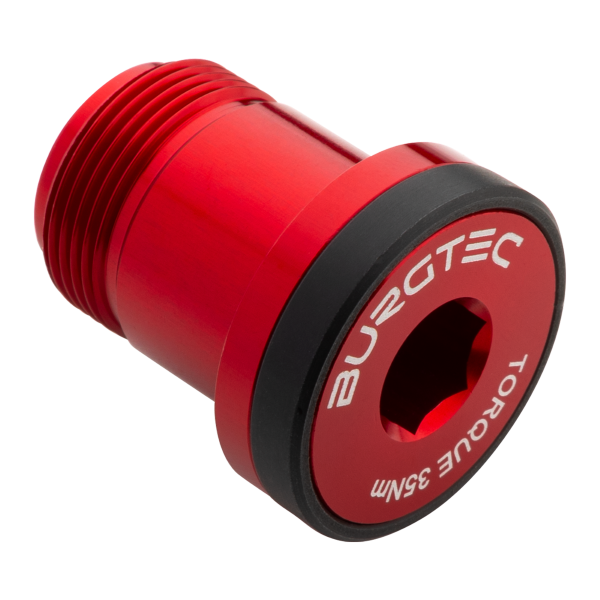

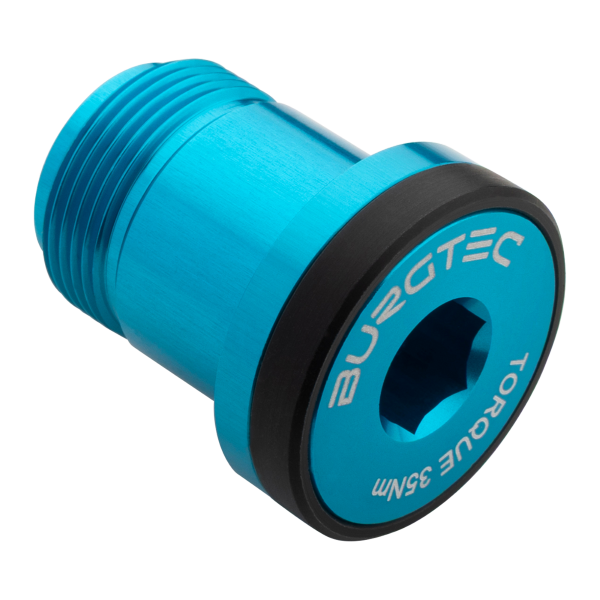

The Burgtec SRAM T-Type Derailleur Bolt replaces the main mounting bolt on compatible SRAM Eagle Transmission and XPLR Full Mount derailleurs.
Two different versions are available. Check the model printed on your derailleur and select the correct bolt type before ordering.

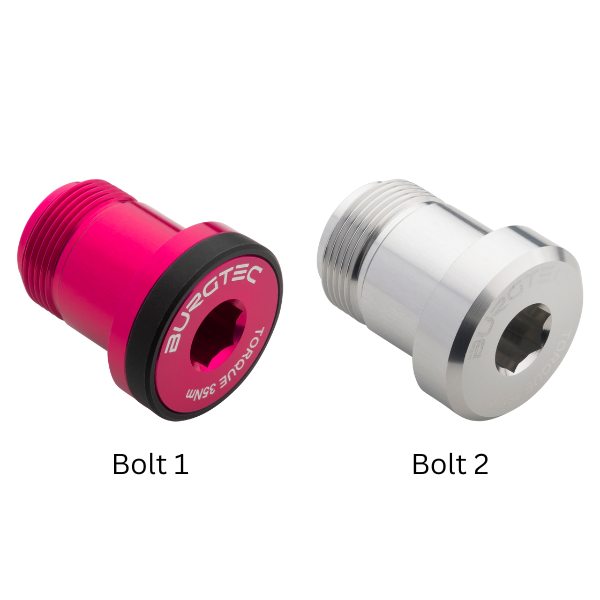

Choose the Correct Bolt
- Bolt 1: SRAM XX SL, XX and X0 Eagle Transmission derailleurs
- Bolt 2: SRAM GX, Eagle 90, Eagle 70, S1000, Force XPLR E1 and Rival XPLR E1 derailleurs
Bolt 1 and Bolt 2 are not interchangeable. Do not choose the version by colour, bike model or cassette alone.
SRAM Part References
- Bolt 1: 11.7518.104.000, 11.7518.104.001 and 11.7518.104.002
- Bolt 2: 11.7518.104.025
Full Mount Compatibility
This bolt forms part of the hangerless mounting system used by compatible SRAM T-Type derailleurs. It is not intended for conventional rear derailleurs that attach to a replaceable derailleur hanger.
Installation must follow SRAM’s procedure for the specific derailleur and frame. Use the correct tools and specified torque, as this is a structural mounting component rather than a decorative bolt cover.
Key Features
- Replacement mounting bolt for compatible SRAM Full Mount derailleurs
- Separate Bolt 1 and Bolt 2 versions
- Made to precise tolerances for dependable fitment
- Available in ten Burgtec colours
- Can be matched with other Burgtec finishing parts
- One derailleur bolt supplied
Our Thoughts
This is a small colour upgrade, but it also performs an important job in the derailleur mounting system. Check the derailleur model carefully before ordering and do not assume that every SRAM T-Type derailleur uses the same bolt.
If you are unsure which version you need, contact our Christchurch workshop before removing the original hardware.
Specifications
- Brand: Burgtec
- Product: SRAM T-Type Derailleur Bolt
- Available types: Bolt 1 and Bolt 2
- Mounting system: SRAM Full Mount
- Bolt 1 compatibility: XX SL, XX and X0 Eagle Transmission
- Bolt 2 compatibility: GX, Eagle 90, Eagle 70, S1000, Force XPLR E1 and Rival XPLR E1

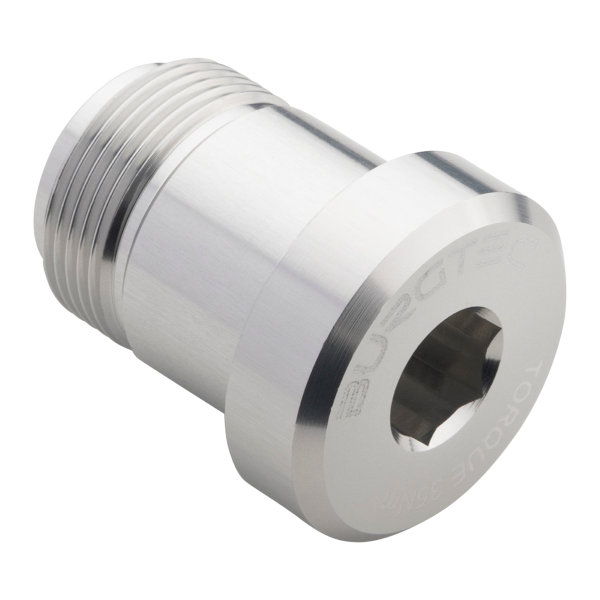

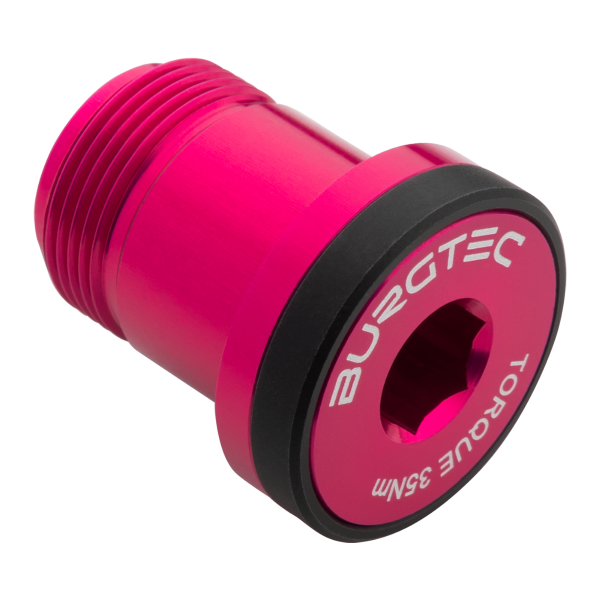

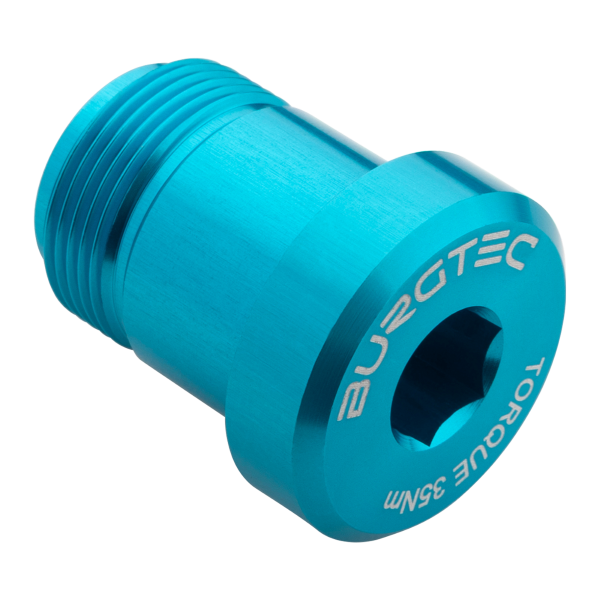

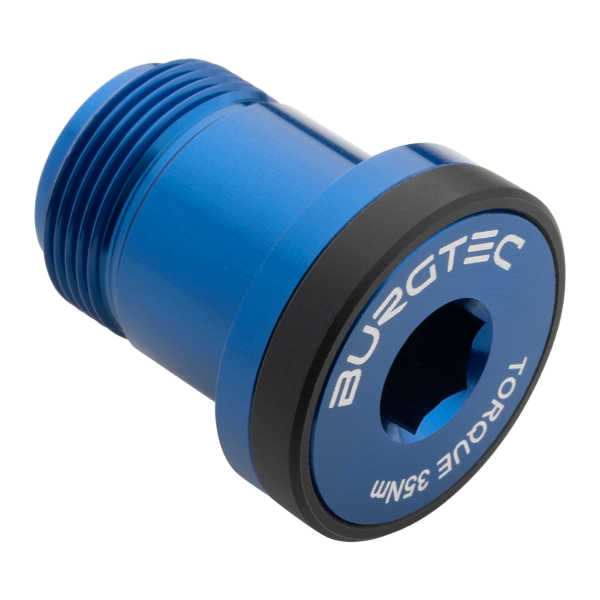

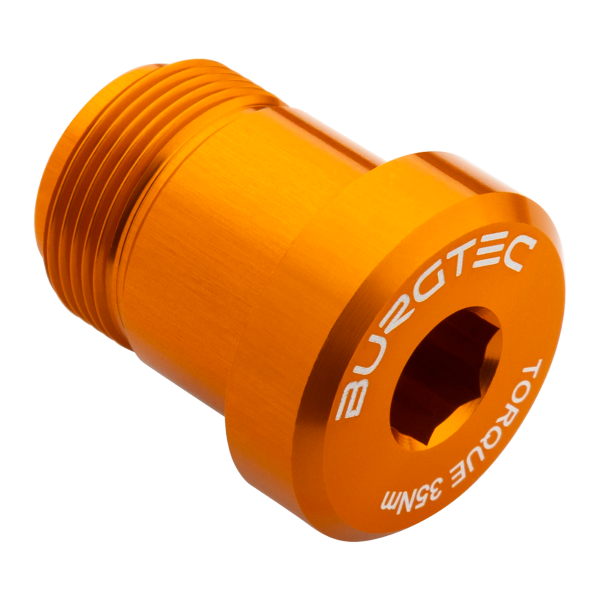

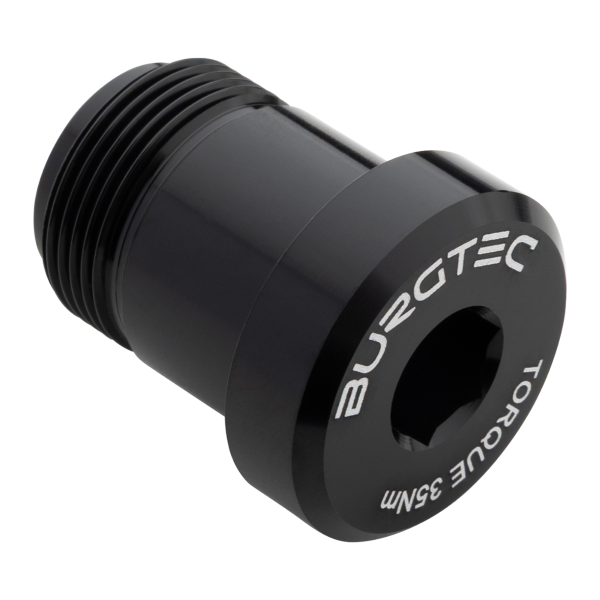

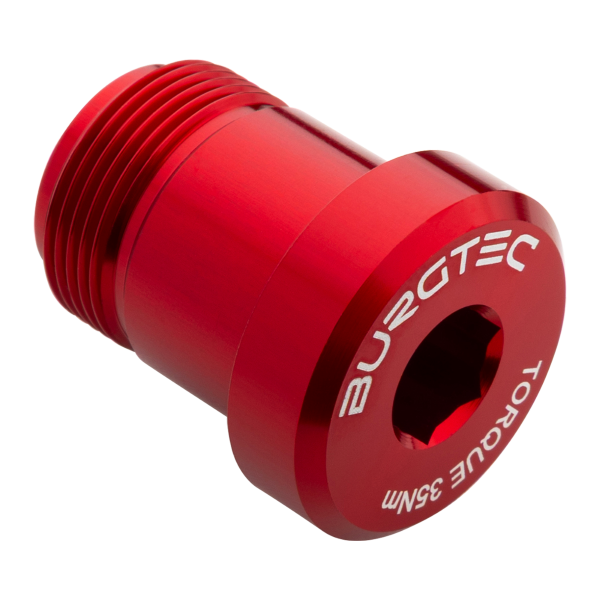

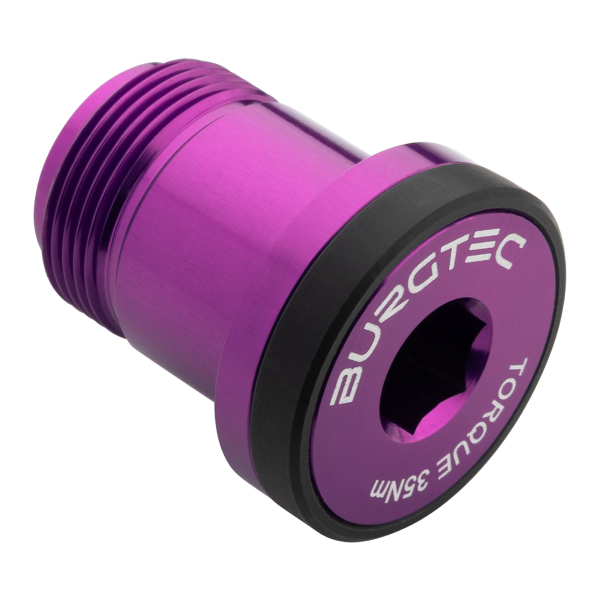

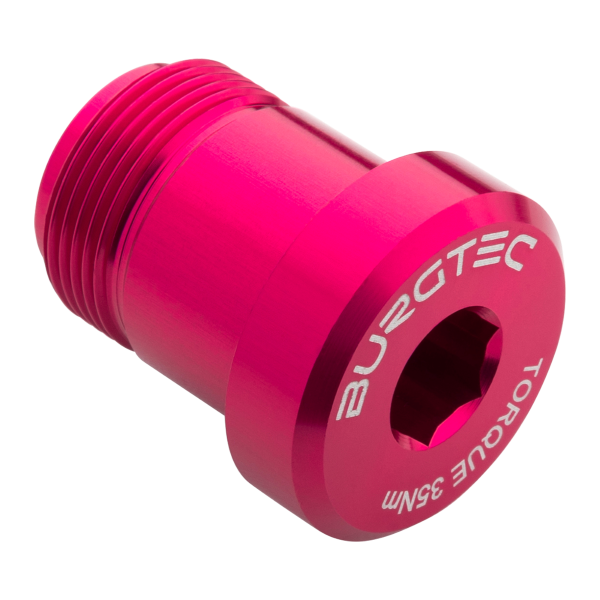

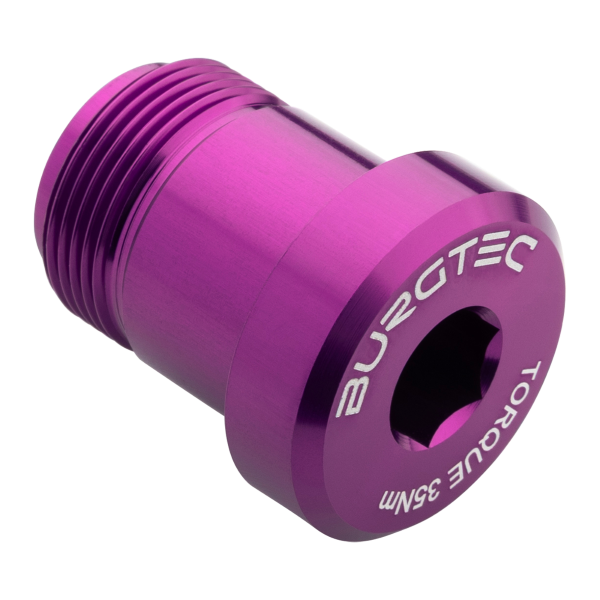

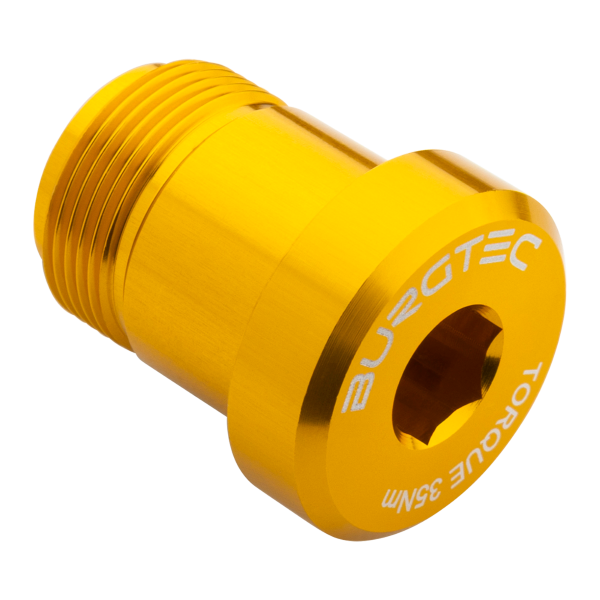

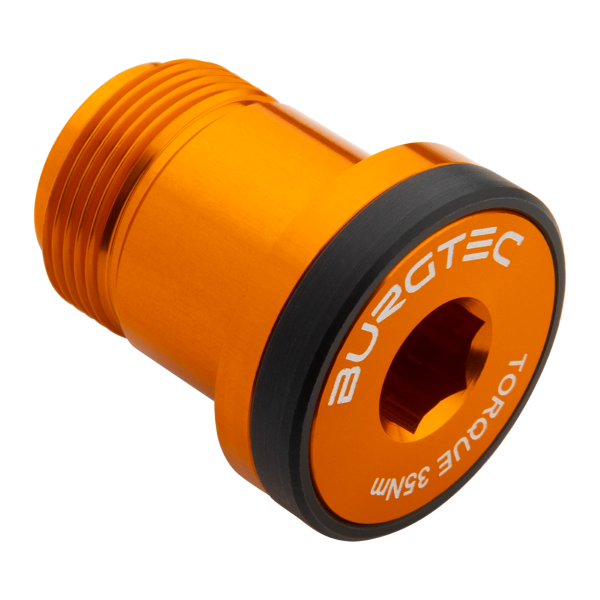

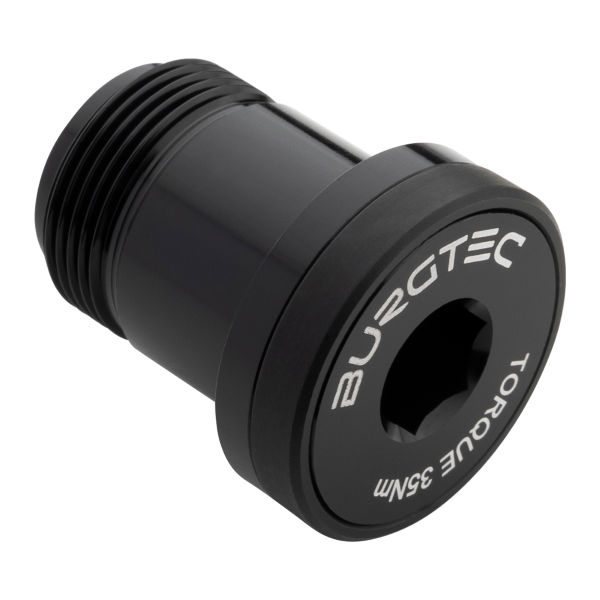

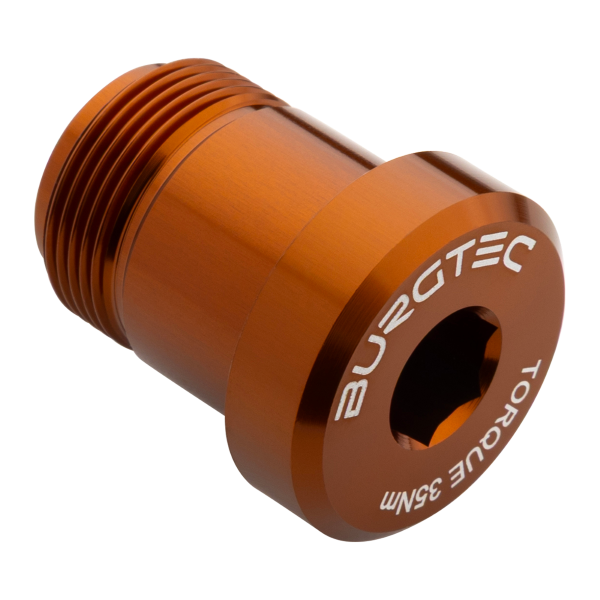

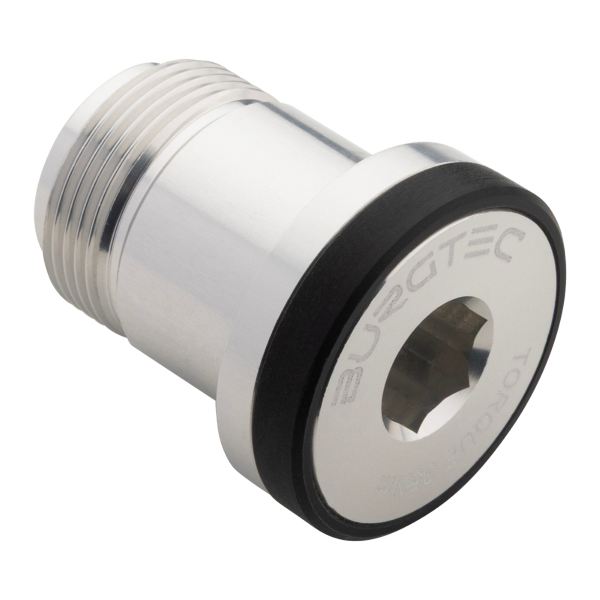

- Available colours: Burgtec Black, Race Red, Deep Blue, Purple Rain, Kash Bronze, Iron Bro Orange, Rhodium Silver, Colorado Blue, Toxic Barbie Pink and Burgtec Bullion Gold
- Quantity: One bolt
