A Clean, Leverless Rear Axle for Compatible Trek Boost Bikes.

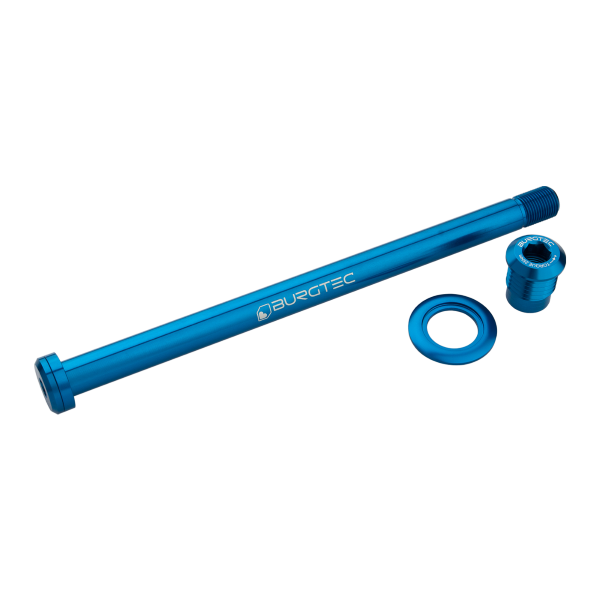

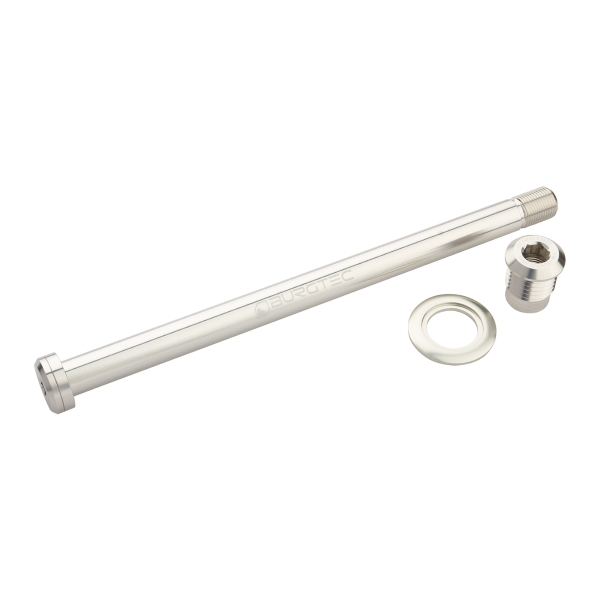

The Burgtec Trek 184.5mm Rear Axle replaces the original rear thru-axle on selected Trek mountain bikes using 12 × 148mm Boost spacing. Its leverless design creates a tidy finish and removes the external handle found on a conventional quick-release axle.
Machined from 7075 aluminium, the axle uses a 6mm hex fitting at both ends. One side handles normal installation and removal, while the second provides a useful backup if the primary fitting becomes damaged.
Compatible Trek Models
Burgtec lists this axle for the following model-year 2022 and 2023 Trek bikes:
- Top Fuel
- Fuel EX Gen 5
- Fuel EX Gen 6
- Slash
- Fuel EXe
- Rail Gen 2
- Rail Gen 3
- Rail Gen 4
This list applies to the stated model years only. Trek has used different axle dimensions across different models and frame generations, so the bike name or 12 × 148mm hub spacing alone does not guarantee compatibility.
Check Your Axle Before Ordering
This axle has a 12mm diameter, a nominal overall length of 184.5mm and an M12 × 1.0 thread. Burgtec’s detailed measurement is approximately 184.4mm.
Compare the original axle with the Burgtec dimension drawing before ordering. If your axle carries a Trek part number, check that it matches W583469.
This axle should not be confused with Burgtec’s Trek Remedy axle. The Remedy version is considerably longer and uses a different thread, so the two are not interchangeable.
Leverless Design
Removing the external lever improves clearance around the dropout and reduces the chance of the handle being caught or knocked by trailside debris.
The axle is tightened with a 6mm hex key, allowing a suitable torque wrench to be used. Always follow Trek’s specified axle torque rather than overtightening it.
The second 6mm fitting provides another removal point if the main interface becomes rounded or difficult to use. The leverless design is clean and practical, but it is not an anti-theft feature.
Key Features
- Replacement axle for selected Trek 12 × 148mm Boost bikes
- Clean leverless design improves dropout clearance
- Machined from strong 7075 aluminium
- 6mm hex fitting at both ends
- Secondary fitting provides a backup removal point
- Can be installed using a suitable torque wrench
- Available in a range of Burgtec anodised colours
Our Thoughts
This is a tidy replacement for a damaged original axle or a useful upgrade if you want to remove the protruding quick-release handle. The dual 6mm fittings are a sensible detail that can make removal easier if one end becomes damaged.
Compatibility is the important part. Check the 184.5mm length, M12 × 1.0 thread and Trek reference before buying, particularly if your bike falls outside the model years listed above.
Why Buy from Chain Reaction?
- Help checking Trek frame and axle compatibility
- Experienced mountain bike workshop support
- Independent Christchurch bike shop
- Nationwide New Zealand delivery
Specifications
- Brand: Burgtec
- Product type: Rear thru-axle
- Axle standard: 12 × 148mm Boost
- Axle diameter: 12mm
- Nominal length: 184.5mm
- Published measured length: Approximately 184.4mm
- Thread: M12 × 1.0
- Material: 7075 aluminium
- Tool interface: 6mm hex at both ends
- Trek part reference: W583469
- Quantity: One axle
