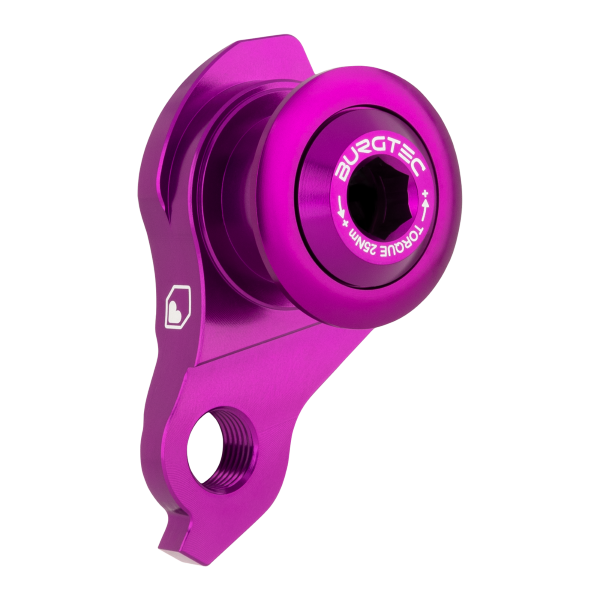

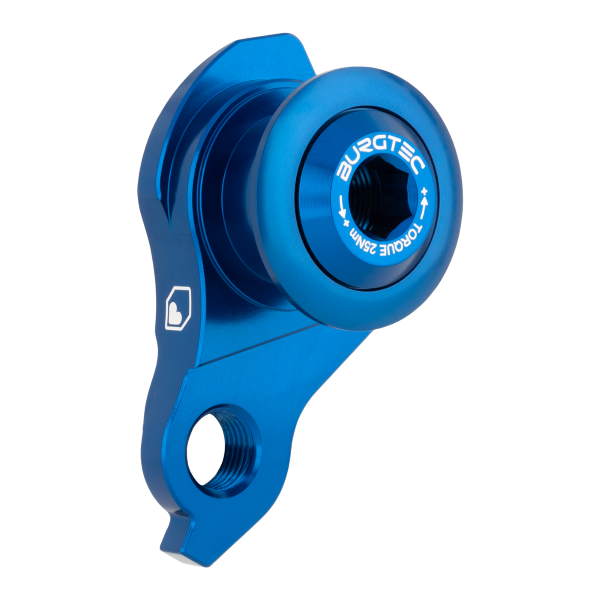

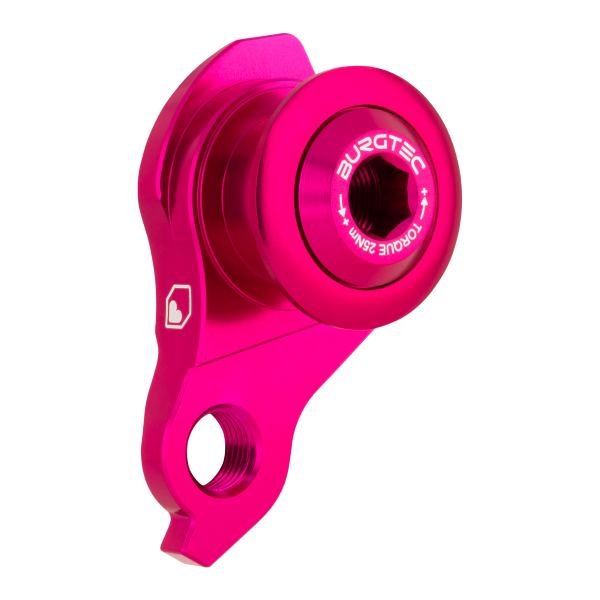

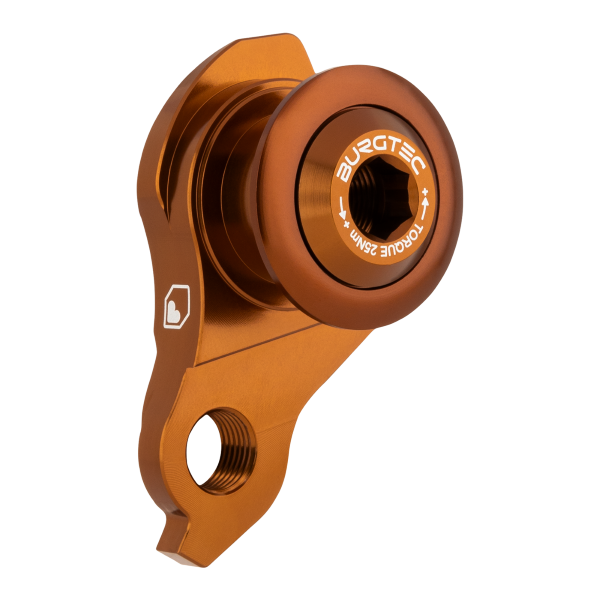

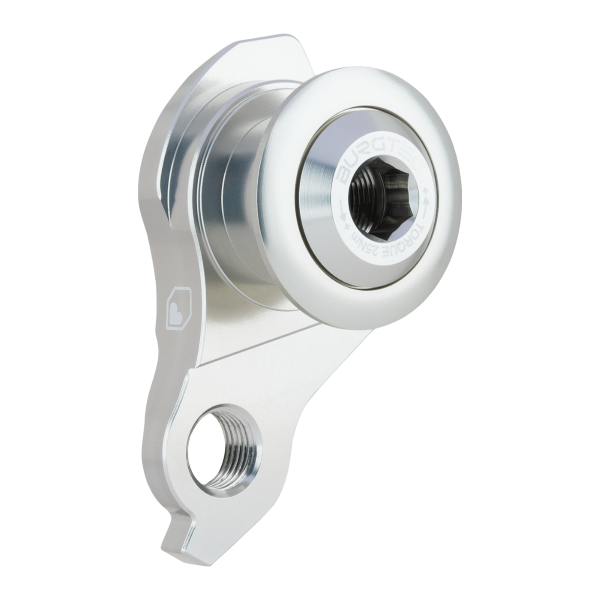

Trek ABP-Specific UDH Fit with Supplied Mounting Hardware.
The Burgtec Trek ABP UDH Derailleur Hanger is a replacement hanger for compatible Trek mountain bikes and e-MTBs that use both the ABP suspension system and SRAM’s Universal Derailleur Hanger interface.
It is forged and fully machined from 7075 aluminium, then supplied with the mounting screw and Trek ABP-specific washer required for installation. A choice of Burgtec colours lets you match the hanger with other components or keep the bike looking close to standard.
Compatibility
- Designed for compatible Trek frames using both ABP and SRAM UDH
- Suitable for compatible mountain bikes and e-MTBs
- Compatible with suitable hanger-mounted MTB derailleurs
- Supports compatible SRAM Full Mount drivetrain installation
- M12 x 1.0 thru-axle thread pitch
- Trek ABP-specific washer included
- Mounting screw included
This is not the correct hanger for every Trek bike. Trek has used several derailleur-hanger designs across different models and years, so confirm that your frame has the SRAM UDH interface before ordering.
The supplied washer is specifically made for Trek bikes combining ABP suspension with UDH. For a UDH-compatible bike from another brand, use Burgtec’s regular UDH Hanger instead.
Forged and Machined 7075 Aluminium
Burgtec produces the hanger from forged 7075 aluminium before fully machining it to its final shape. This gives you a precisely finished replacement part suitable for regular trail, enduro and e-MTB use.
A derailleur hanger still performs an important sacrificial role between the frame and rear derailleur. Any hanger should be inspected after a significant impact and replaced if it is bent, cracked or damaged.
Based on the SRAM UDH Standard
The UDH standard was introduced to reduce the number of different replacement hangers required across modern mountain bikes. Its design allows the hanger to rotate backwards during some forward impacts, which can help reduce the chance of a chain jam.
UDH also provides a consistent interface for compatible hanger-mounted derailleurs and SRAM Full Mount drivetrains. Correct installation and axle torque remain important for reliable shifting.
A Useful Trail Spare
A damaged derailleur hanger can end a ride even when the derailleur itself is still usable. Carrying a spare makes sense for multi-day trips, remote rides and racing, particularly when finding the correct Trek-specific part locally may be difficult.
Store the mounting screw and washer with the spare hanger so all the required parts remain together.
Key Features
- Replacement UDH hanger for compatible Trek ABP frames
- Forged and fully machined from 7075 aluminium
- Trek ABP-specific washer supplied
- Mounting screw included
- M12 x 1.0 thru-axle thread pitch
- Suitable for compatible MTB and e-MTB drivetrains
- Available in nine Burgtec colours
- Useful as a replacement or trail spare
Our Thoughts
This is the Burgtec hanger to choose when your Trek uses both ABP suspension and the SRAM UDH interface. The included washer is the important difference between this model and Burgtec’s standard UDH hanger.
We would confirm the frame model, year and existing hanger before ordering. If you are carrying it as a spare, keep the supplied screw and washer with it rather than leaving the hardware at home.
Why Buy from Chain Reaction?
- Help confirming Trek frame and hanger compatibility
- Professional hanger installation available
- Derailleur alignment and drivetrain checks
- Independent Christchurch bike shop
- Nationwide New Zealand delivery
- Ongoing support from our Christchurch team
Specifications
- Brand: Burgtec
- Product: Trek ABP UDH Derailleur Hanger
- Material: Forged and fully machined 7075 aluminium
- Frame interface: SRAM UDH
- Frame requirement: Compatible Trek ABP frame
- Thru-axle thread pitch: M12 x 1.0
- Mounting screw included: Yes
- Trek ABP-specific washer included: Yes
- Intended use: Mountain bikes and e-MTBs
- Colours: Burgtec Black, Race Red, Deep Blue, Purple Rain, Kash Bronze, Iron Bro Orange, Rhodium Silver, Burgtec Bullion Gold and Toxic Barbie Pink
