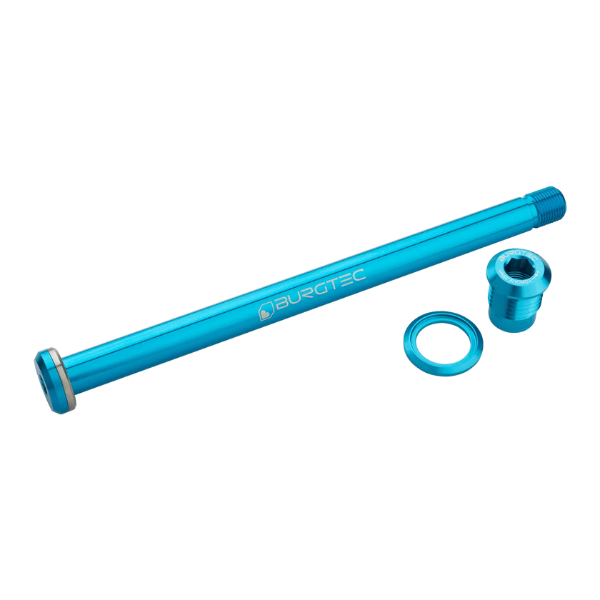

A Clean, Leverless Replacement Axle for Compatible Yeti Frames.
The Burgtec Yeti 174mm Rear Axle is a strong, neatly finished replacement for selected Yeti mountain bikes. Machined from 7075 aluminium, it replaces the standard rear axle with a low-profile design that provides good clearance around the frame.
A 6mm hex fitting on each end provides two points for installation and removal. The second fitting can be used if the main non-drive-side interface becomes damaged.
Compatibility
This axle is designed for the following Yeti models:
- Yeti 160E
- Yeti ARC
- Yeti SB120
- Yeti SB140, model year 2023 and newer
- Yeti SB160
- Yeti SB135
- Yeti ASR
- Yeti SB165, model year 2024 and newer
Some original Yeti axles are marked as 172mm long. Burgtec confirms that its 174mm axle is the compatible replacement for the models listed above.
If your bike is an earlier SB165, SB150, SB140, SB130 or another previous-generation Yeti, it may require Burgtec’s 171mm axle instead. Check the dimensions of the original axle and confirm the frame model and year before ordering.
7075 Aluminium Construction
The axle is machined from 7075 aluminium to provide a useful balance of strength and low weight. Its leverless head sits close to the frame, reducing the chance of catching an external handle on rocks, vegetation or other obstacles.
The leverless design should not be treated as an anti-theft device. A standard 6mm hex key is all that is required for normal installation and removal.
Dual Hex Access
The main 6mm hex interface is positioned on the non-drive side. A second 6mm fitting on the drive side provides another removal point if the primary fitting becomes rounded or damaged.
Apply suitable grease to the axle shaft and threads before installation, then tighten it to the torque specified by Yeti for your frame. Do not rely on axle length alone because the diameter, thread pitch and threaded-section length must all match.
Key Features
- Replacement rear axle for selected Yeti mountain bikes
- Low-profile leverless construction
- Machined from 7075 aluminium
- 6mm hex fitting at both ends

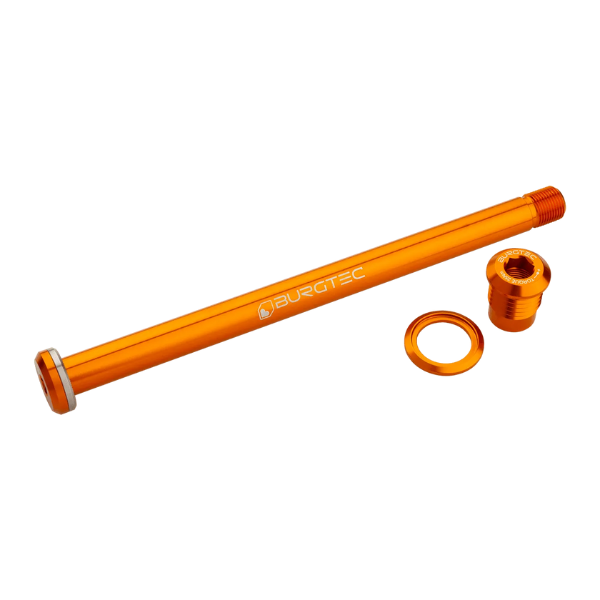

- Available in a range of Burgtec colours
- Compatible with selected original axles marked 172mm
Our Thoughts
This is a tidy replacement when the original axle is damaged or you want a colour that matches other Burgtec components. The dual-ended hex design is particularly useful because it gives you a second removal point if the main fitting is ever damaged.
Compatibility is the important part. Yeti has used different axle specifications across its frame generations, so check the exact model and year rather than assuming every Boost Yeti uses this 174mm axle.

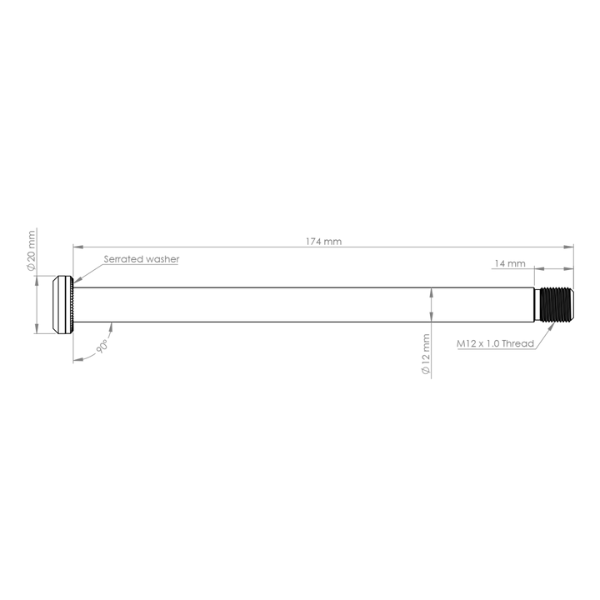

Specifications
- Brand: Burgtec
- Product: Yeti rear axle
- Axle diameter: 12mm
- Axle length: 174mm
- Thread pitch: M12 × 1.0
- Threaded-section length: 14mm
- Material: 7075 aluminium
- Tool interface: 6mm hex at both ends
- Yeti manufacturer reference: 100425009
