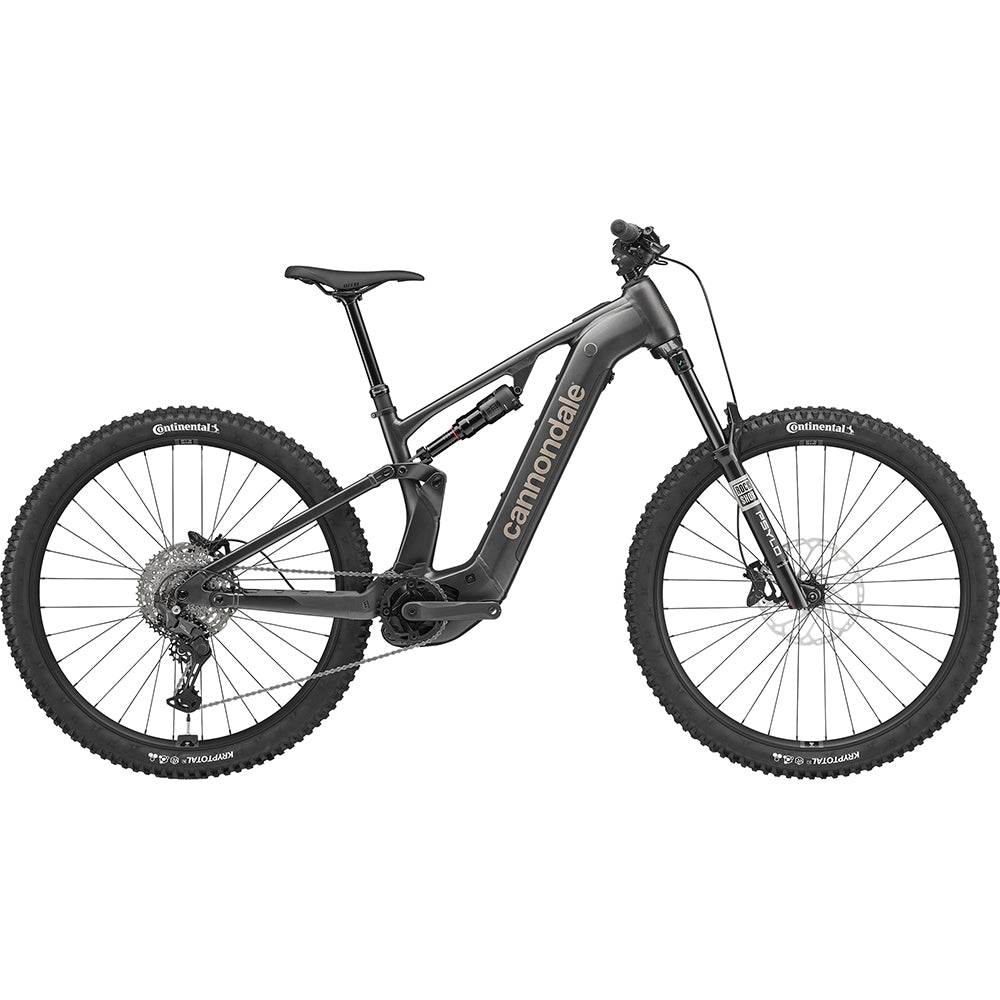

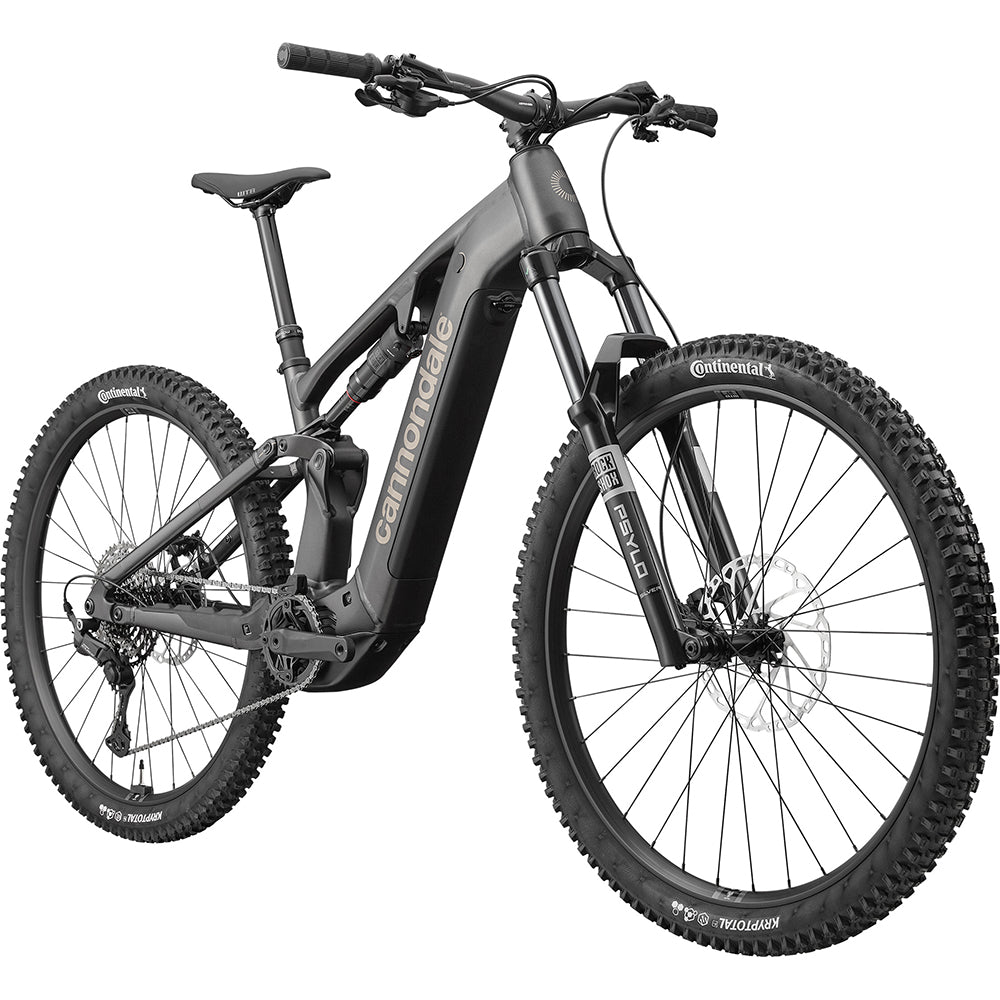

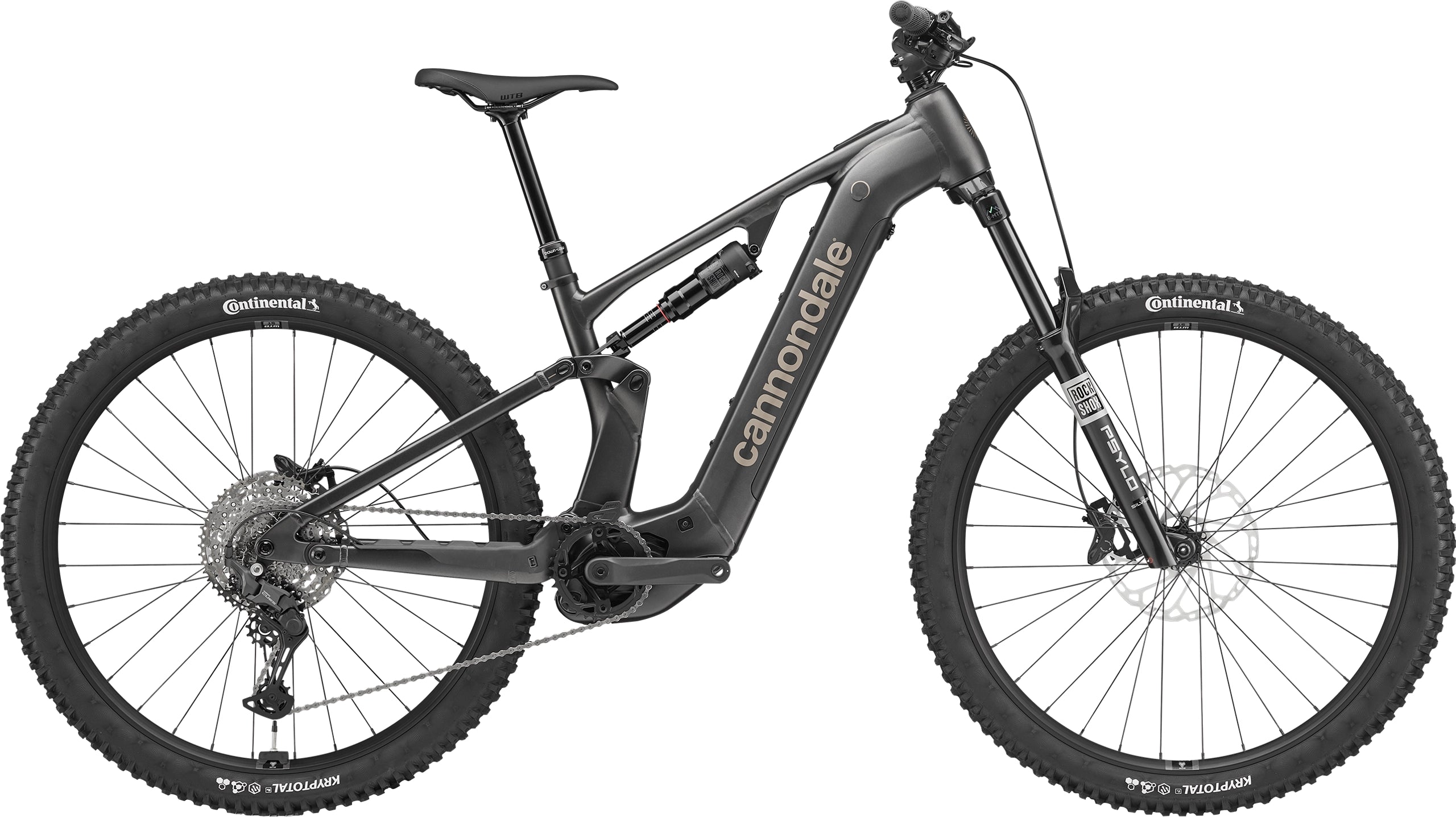

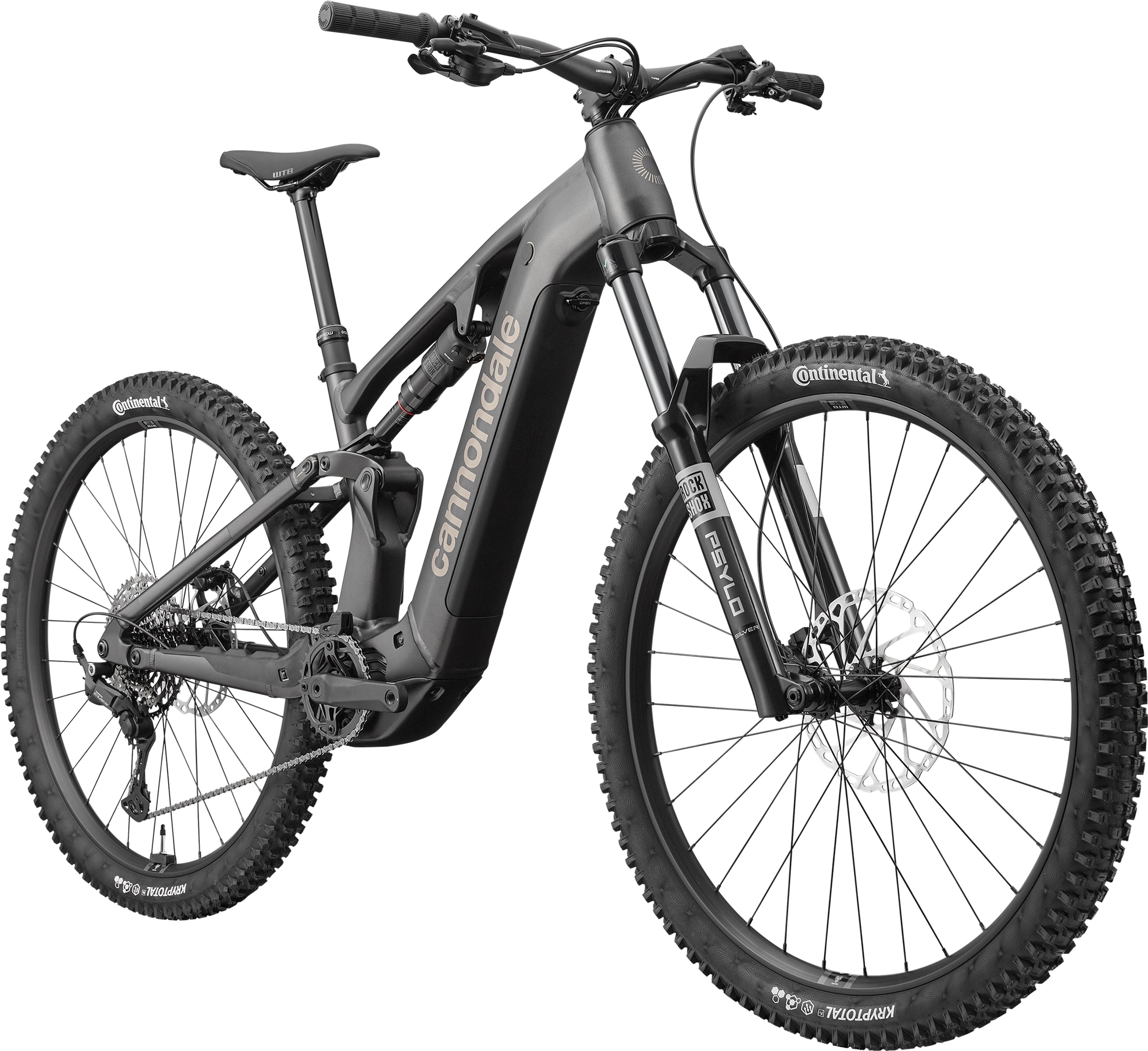

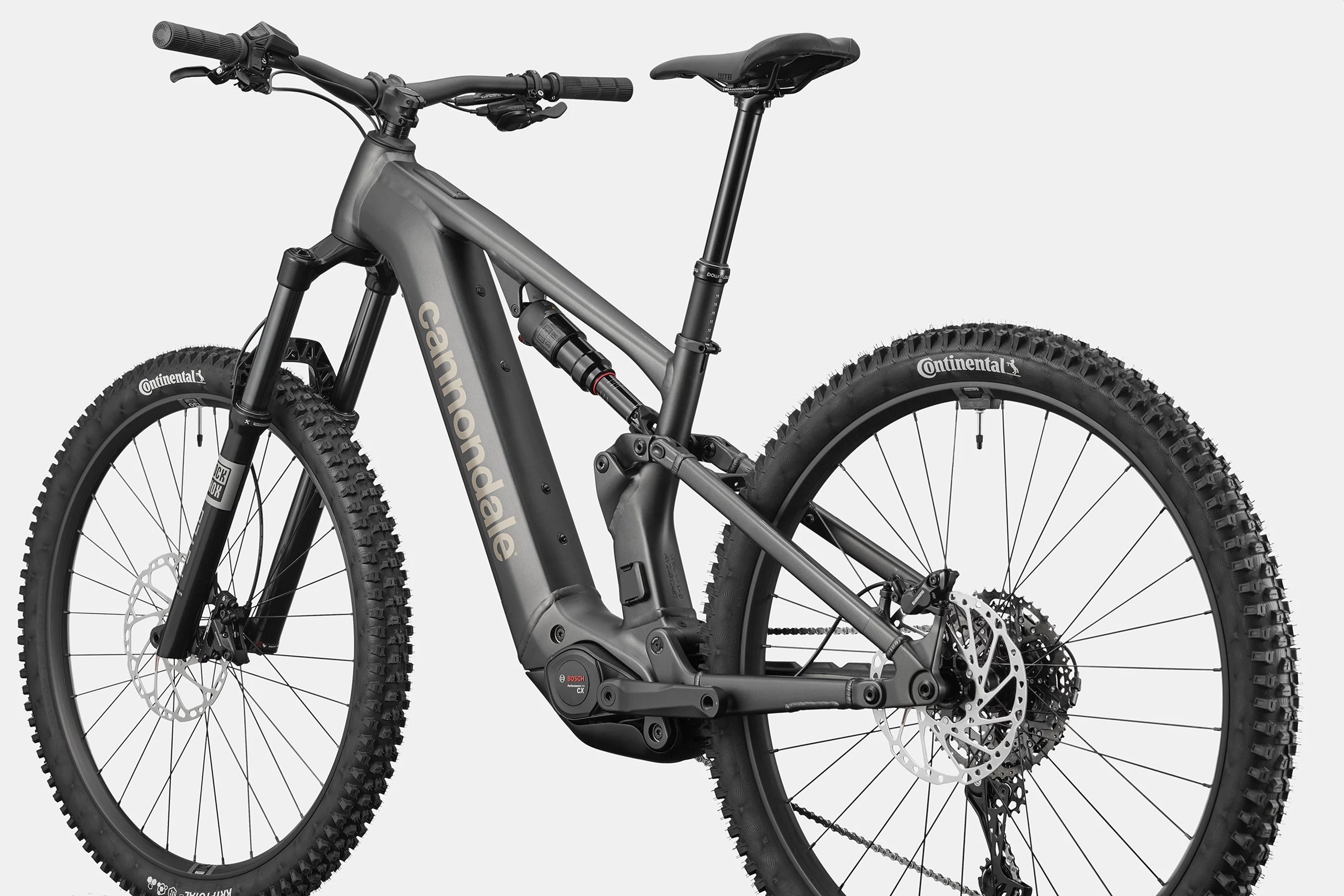

CANNONDALE MOTERRA 3
More Juice, No Excuse.
The new Moterra is more than capable—it’s relentless. With a light and agile frame wrapped around Bosch's most powerful drive system, it handles steep ascents and rugged descents with the confidence of a luxury off-roader. Built for the seekers, the adventurers, the riders who live to see what’s over the next ridge. Go far. Go fast. Come back happy.
Light, Nimble, Ready.
Designed for riders who refuse to compromise, the SmartForm Alloy frames of Moterra 3 take agility to new heights.. With 150mm of rear travel, 160mm up front and 29” wheels, it has an incredibly balanced ride feel - lively and precise on the descents, steady on climbs, and so responsive you forget you’re on an eMTB. Less weight, more freedom, and all the control you need.
Power to the Pedal.
Moterra gets its all-conquering boost from the latest version of Bosch’s most powerful drive system. The updated Performance Line CX drive unit delivers delivers its powerful torque more quietly, smoothly and naturally than ever before, slaying even the nastiest climbs with silent ease, while the massive 800 or 600Wh interchangeable battery options offer the range to roll for hours. Whether conquering steep climbs or cruising alpine paths, this system ensures maximum power and battery longevity, ride after ride.
Specifications
Frame Moterra, SmartForm C1 Alloy, 29" wheels,150mm travel, Proportional Response Tuned Suspension
Rear Shock RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm
Fork RockShox Psylo Silver RC, 160mm, Motion Control, SoloAir, 15x110mm Maxle, tapered steerer, 44mm offset

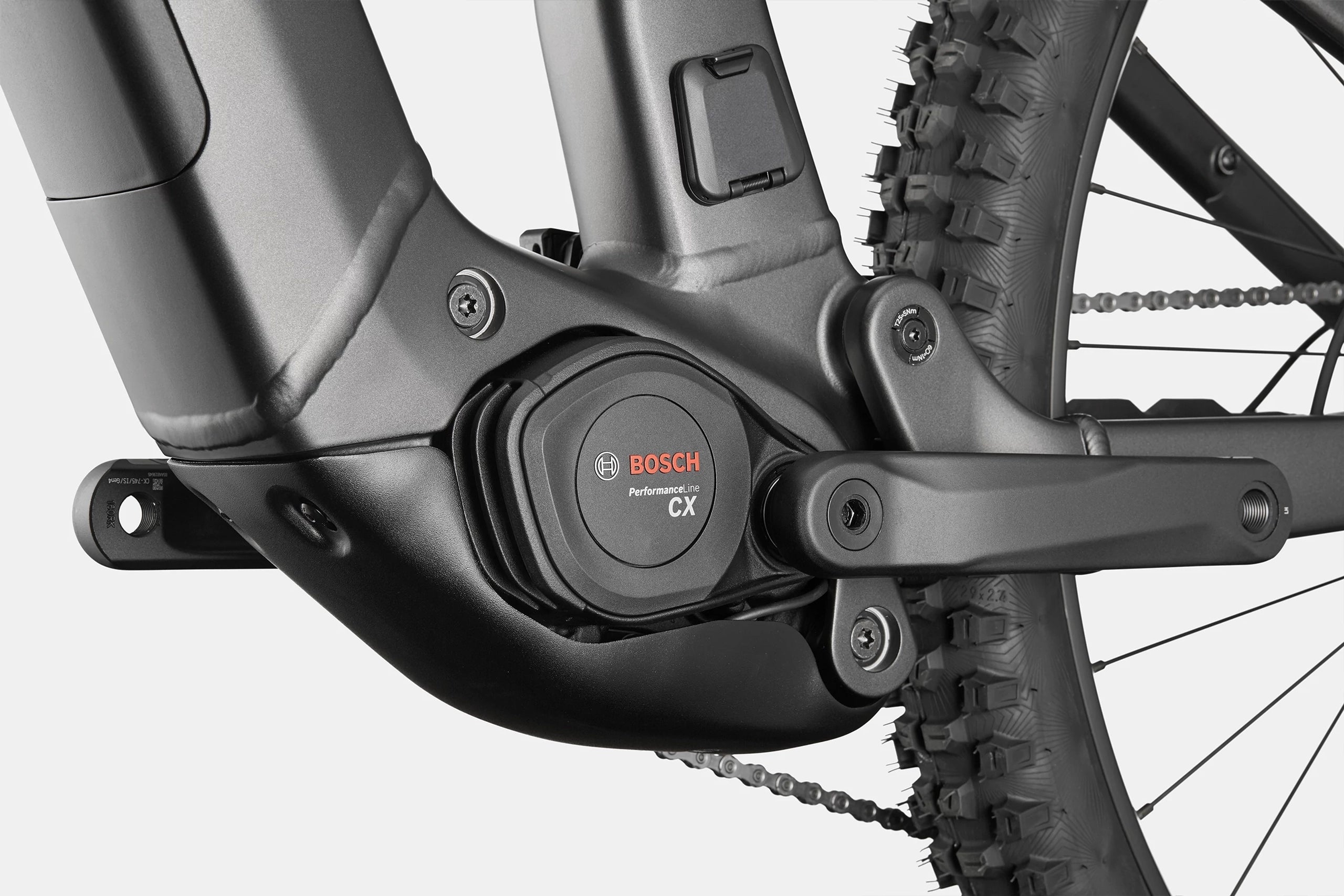

Drive Unit Bosch Performance Line CX
Battery Bosch PowerTube 800Wh

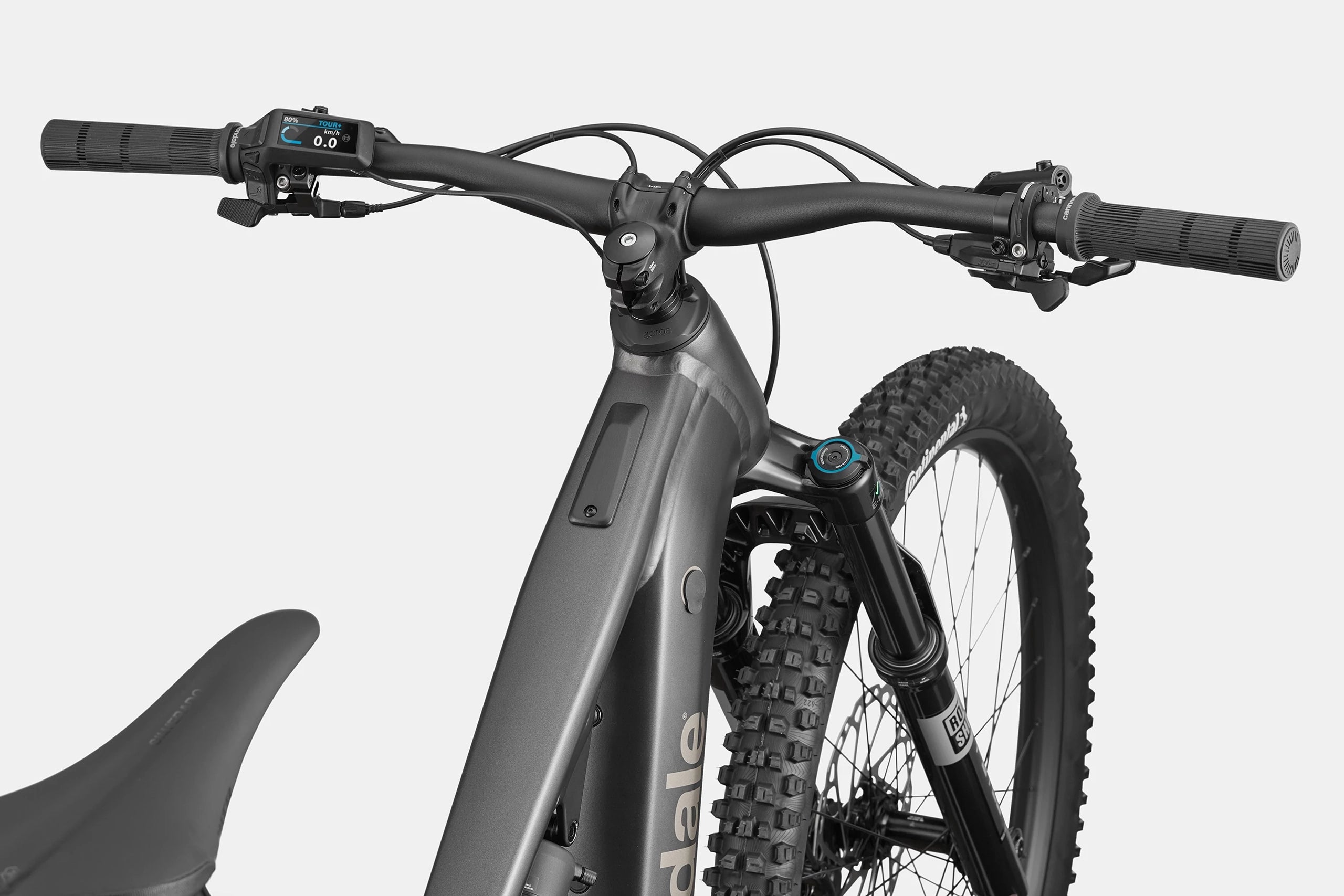

Display Bosch Purion 200
Charger Bosch 4A
Rims WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible
Hubs (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, centerlock
Spokes DT Swiss Champion 2.0
Tires (F) Continental Kryptotal-F, 29x2.4", Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29x2.4", Enduro Soft Black Foldable
Pedals N/A
Crank FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Chain Shimano LG500, LinkGlide, 11-speed
Rear Cogs Shimano CUES LG400, LinkGlide, 11-50, 11-speed

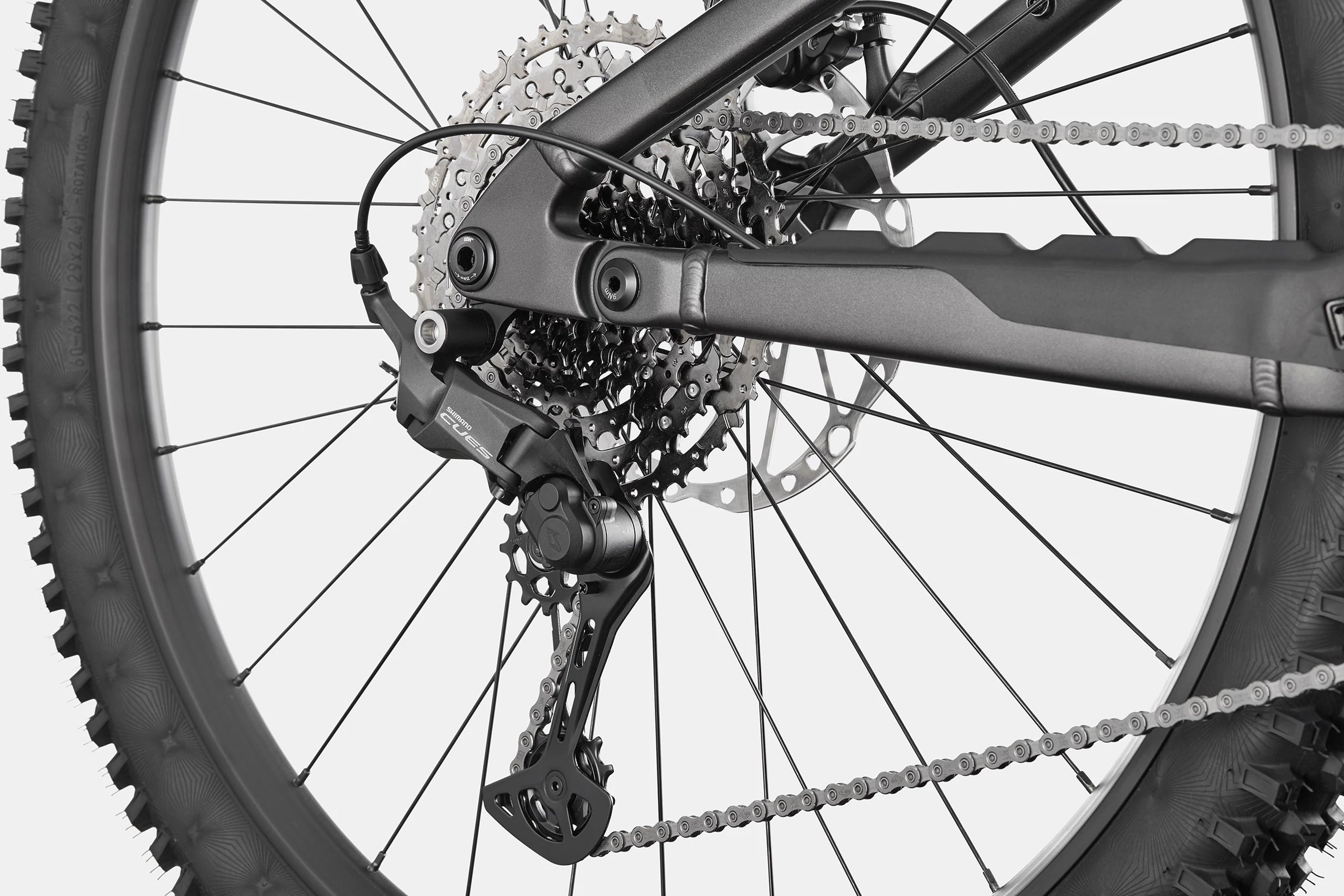

Rear Derailieur Shimano CUES U6000, LinkGlide
Shifters Shimano CUES U6000, 11-speed, LinkGlide
Handlebar Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
Grips Cannondale TaperRidge
Stem Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
Headset Acros ICR, 1.5" to 1.8", sealed bearings
Brakes Shimano MT520 4-piston hydraulic disc, 203mm RT64 rotors
Brake Levers Shimano MT501 hydraulic disc
Saddle WTB Silverado Medium
Seatpost Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Sizes S, M, L, XL
Colour Obsidian (OBS)
Extras Bosch PowerMore range extender compatible
