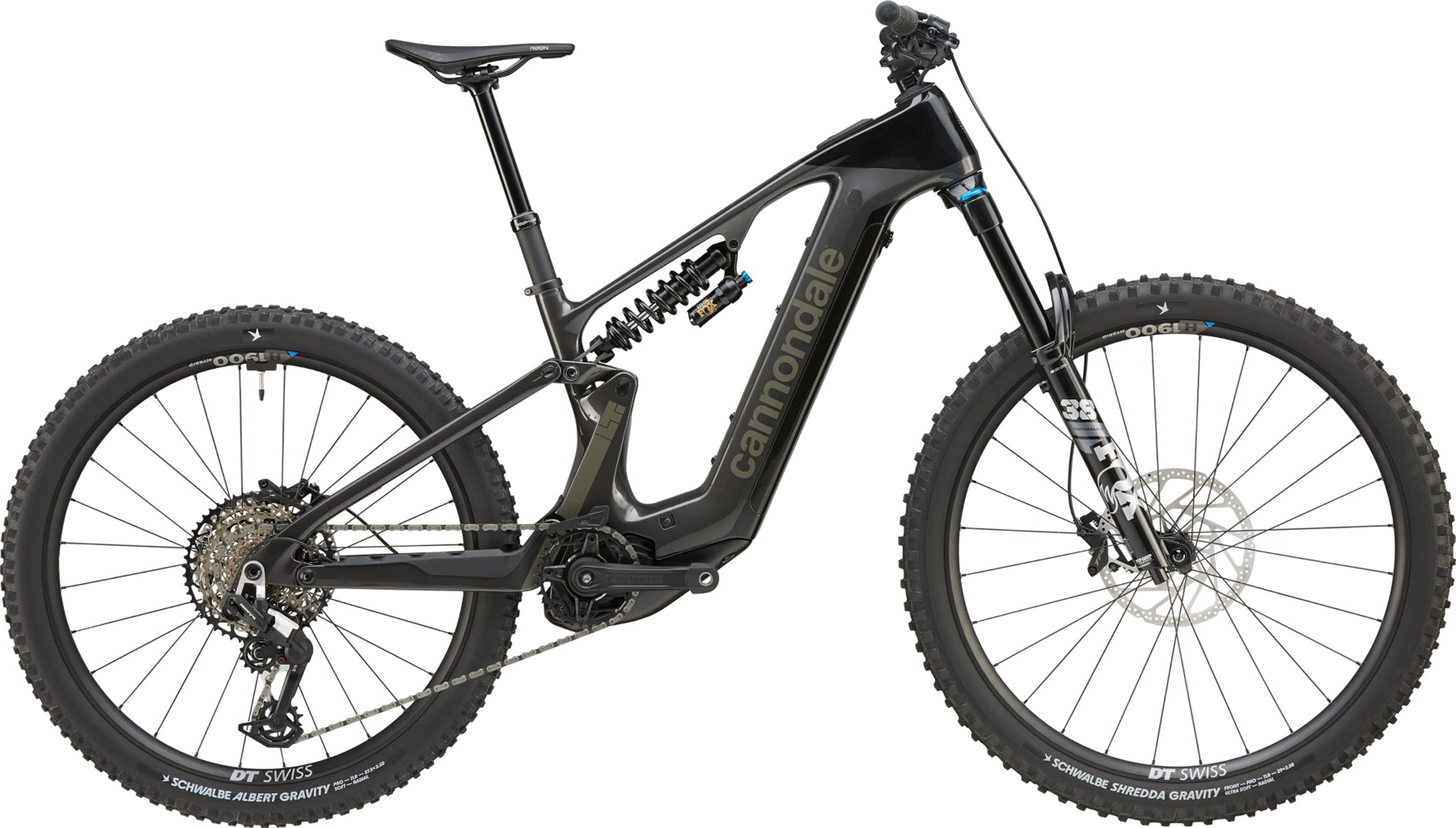

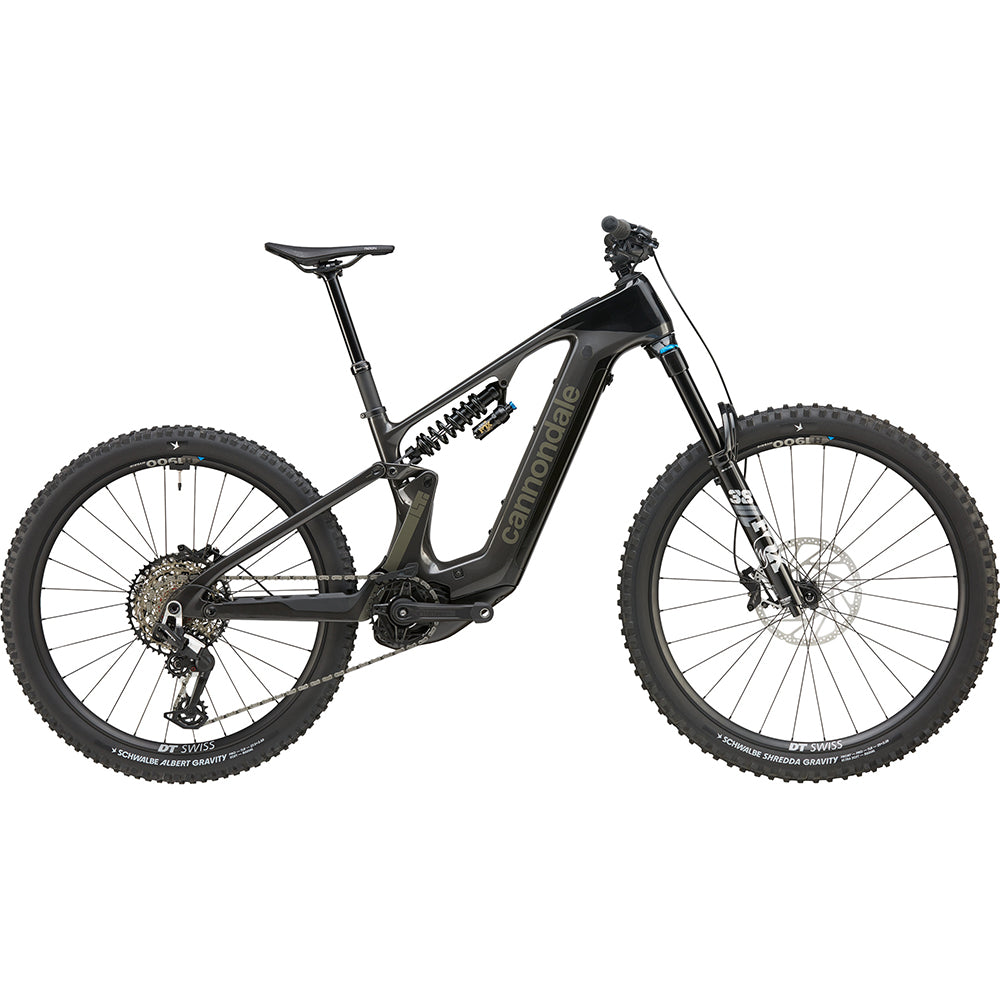

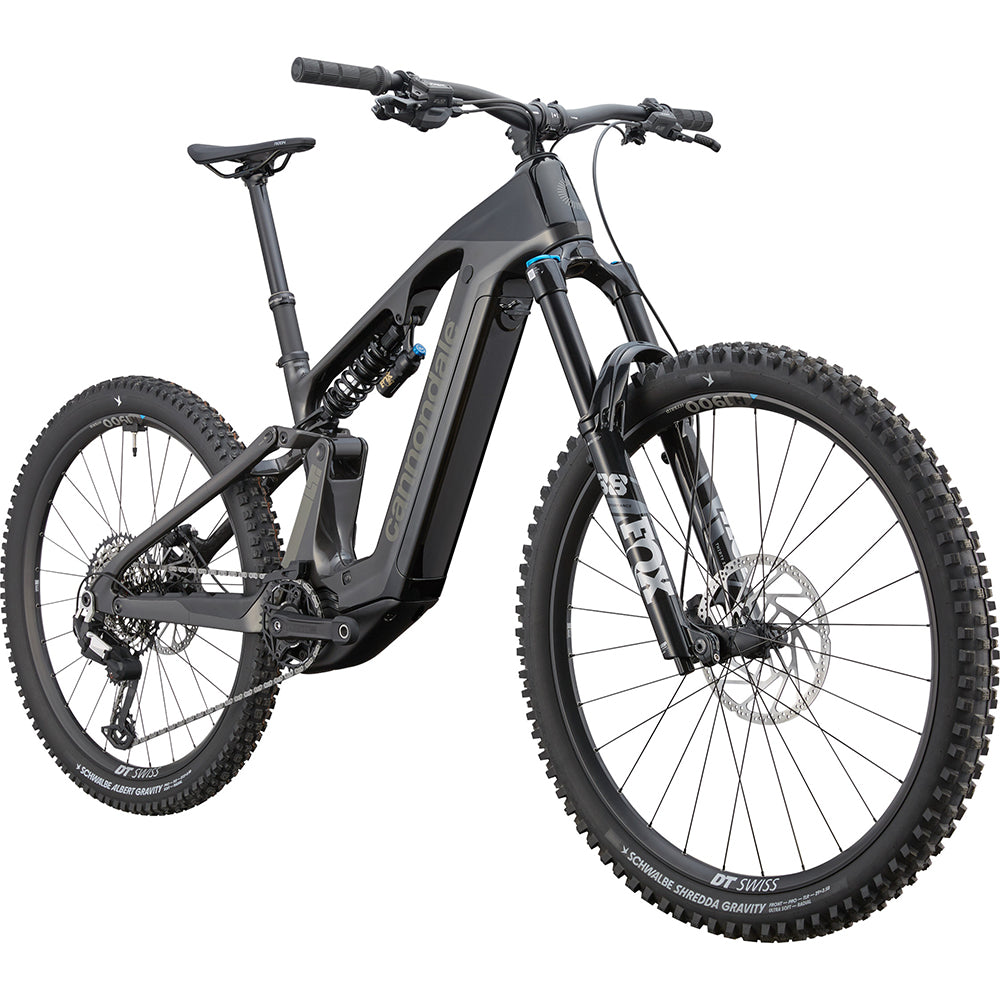

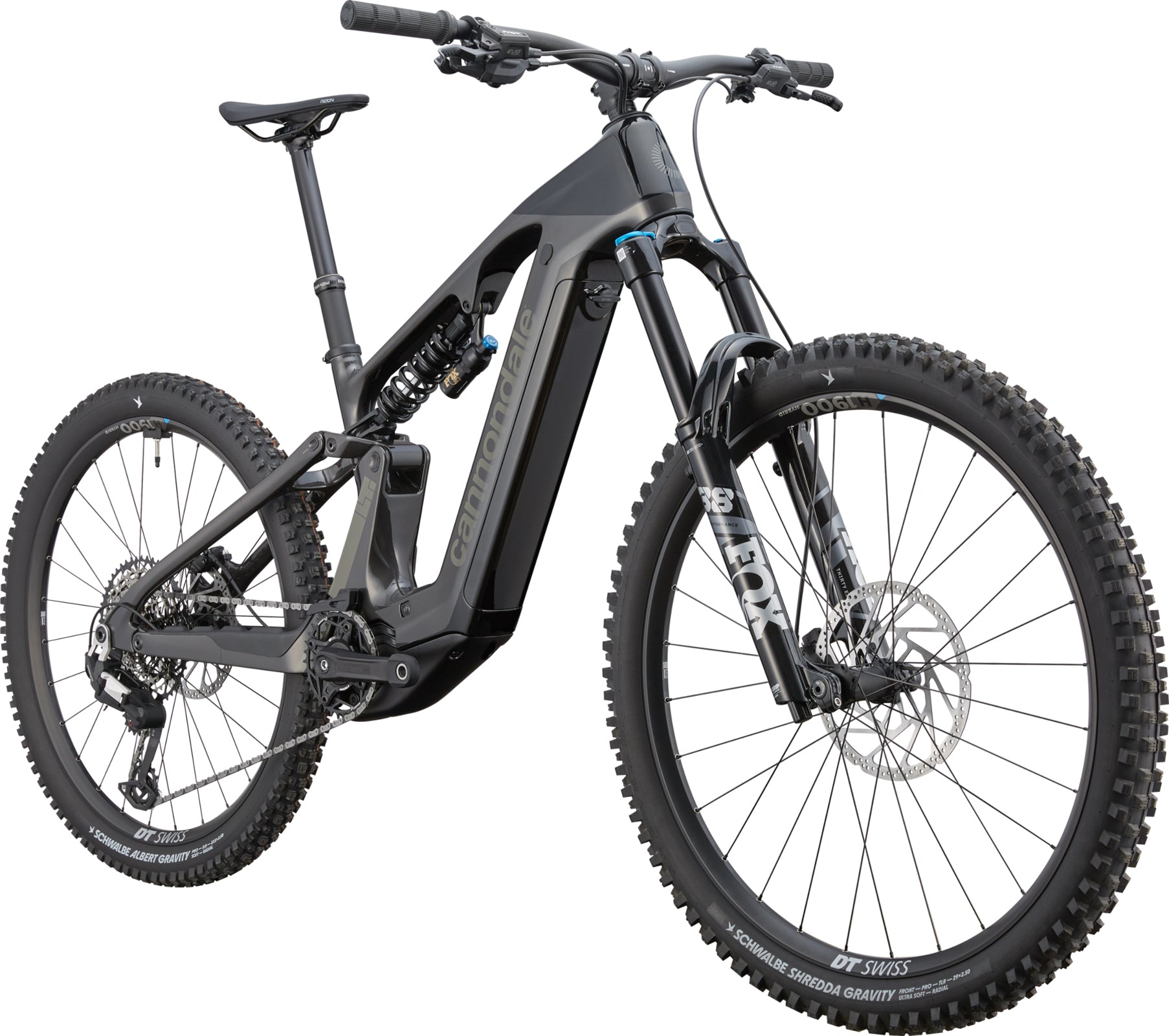

Cannondale Moterra LT 1
Cannondale Moterra LT 1 2025
Description

Point and Play

The Cannondale Moterra LT 1 is a long-travel, full-power electric mountain bike made for steep climbs, rough descents and trails where holding back is not part of the plan.

Its full-carbon frame combines 165 mm of rear travel with a 170 mm FOX 38 fork. A 29-inch front wheel helps it roll through rough ground, while the 27.5-inch rear wheel keeps the bike manoeuvrable on steep terrain and through tighter corners.

Bosch’s Performance Line CX drive system and removable 800 Wh battery provide the power and capacity for big days. A FOX DHX coil shock, SRAM Eagle T-Type drivetrain, TRP EVO Pro brakes and DT Swiss H 1900 wheels complete a build made for aggressive riding.

Lighter Full-Carbon Frame

The Moterra LT uses a redesigned full-carbon frame that saves close to a kilogram compared with the previous version when combined with the updated e-bike system components.

Cannondale’s Proportional Response system adjusts the suspension layout and geometry across the size range. This helps give riders on each frame size a balanced position and consistent suspension performance.

The frame provides 165 mm of rear-wheel travel and houses the removable Bosch PowerTube battery inside the downtube. Internal cable routing keeps the bike tidy, while the long-travel chassis places the rider securely between the wheels when the trail becomes steep.

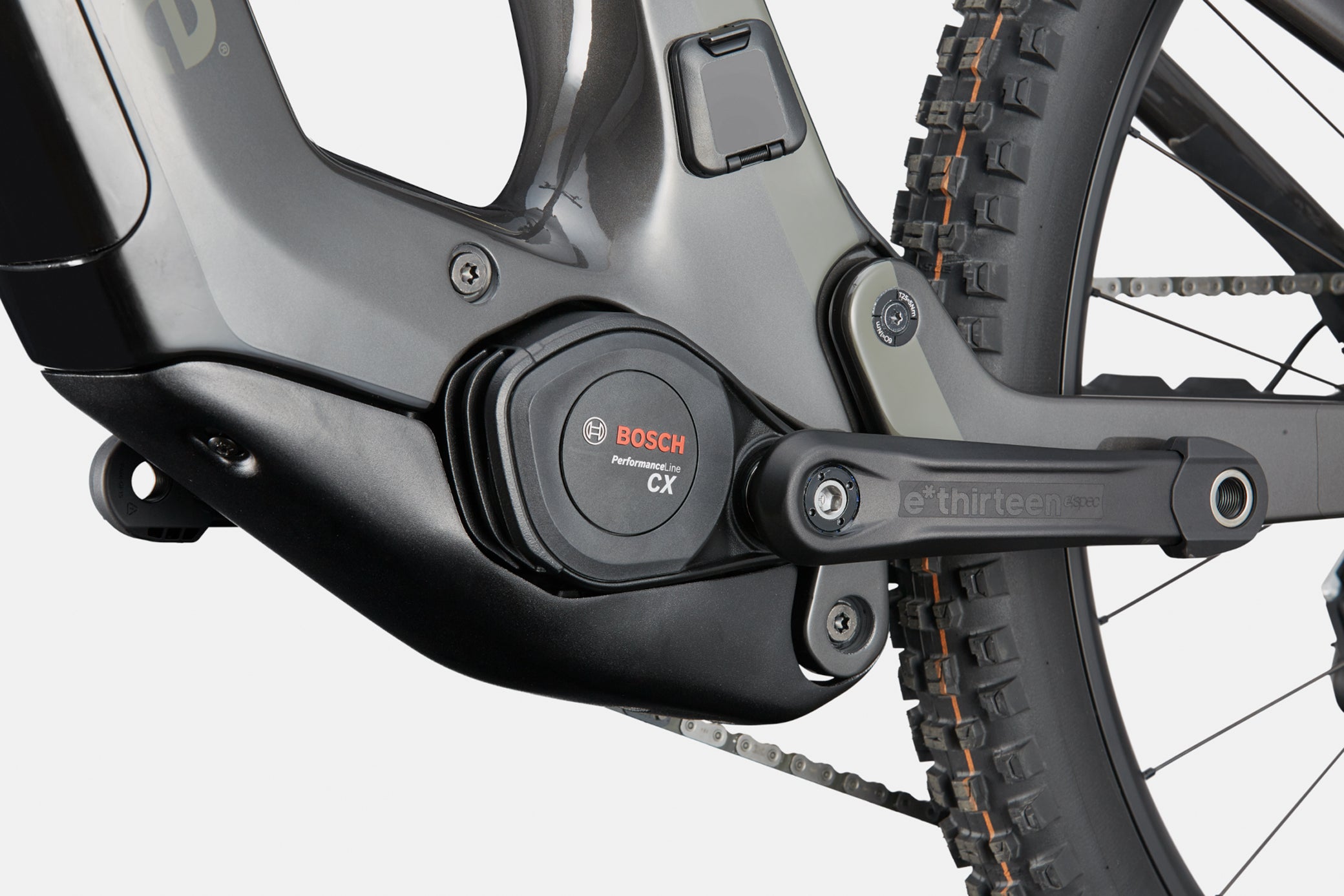

Bosch Performance Line CX Assistance

The Bosch Performance Line CX drive unit provides the support needed to get a long-travel bike back up steep and technical climbs. Its assistance responds to rider input, helping maintain traction without making the bike difficult to control through tight or awkward sections.

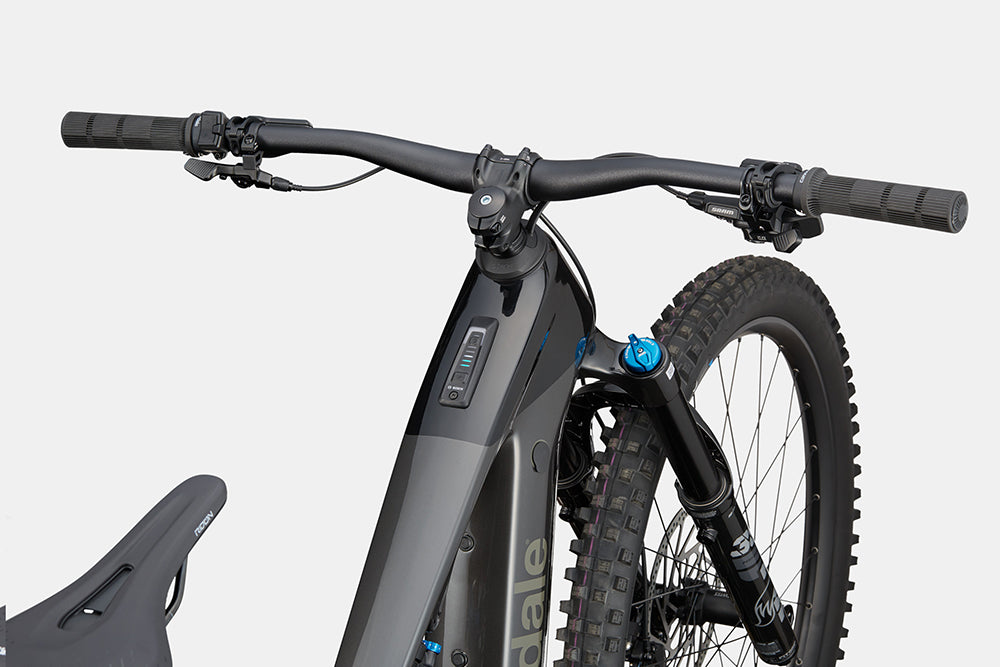

The latest Bosch CX system delivers its power more quietly and naturally than previous versions. The compact top-tube System Controller and wireless Mini Remote keep operation simple without crowding the handlebar.

Removable 800 Wh Battery

The Bosch PowerTube 800 Wh battery provides enough capacity for long trail rides and days with repeated climbing. It can be removed from the downtube for charging or to reduce the bike’s weight during transport.

Actual range depends on assistance mode, elevation, rider weight, trail conditions, temperature, tyre pressure and how much effort the rider contributes.

The Moterra LT 1 is also compatible with the optional Bosch PowerMore Range Extender, allowing extra battery capacity to be added for bigger rides without carrying it every day.

FOX 38 and DHX Coil Suspension

The FOX 38 Performance fork provides 170 mm of travel through a stiff chassis built for hard trail and enduro riding. Its GRIP three-position damper provides useful control over the fork without requiring an overly complicated setup.

At the rear, a FOX DHX Performance coil shock controls 165 mm of travel. Coil suspension provides consistent support and sensitivity across long, rough descents where repeated impacts can generate significant heat.

The shock includes two-position adjustment for quickly changing its level of support. Correct spring rate is important, so the coil should be selected and set up around the rider’s weight and riding style.

Mixed Wheels for Steep Terrain

The 29-inch front wheel provides rollover and confidence through rocks, roots and braking holes. The smaller 27.5-inch rear wheel gives the rider more clearance on steep descents and helps the back of the bike change direction more easily.

This mixed-wheel layout suits the Moterra LT’s purpose. It keeps the front end composed at speed without making the bike feel unnecessarily difficult to move around.

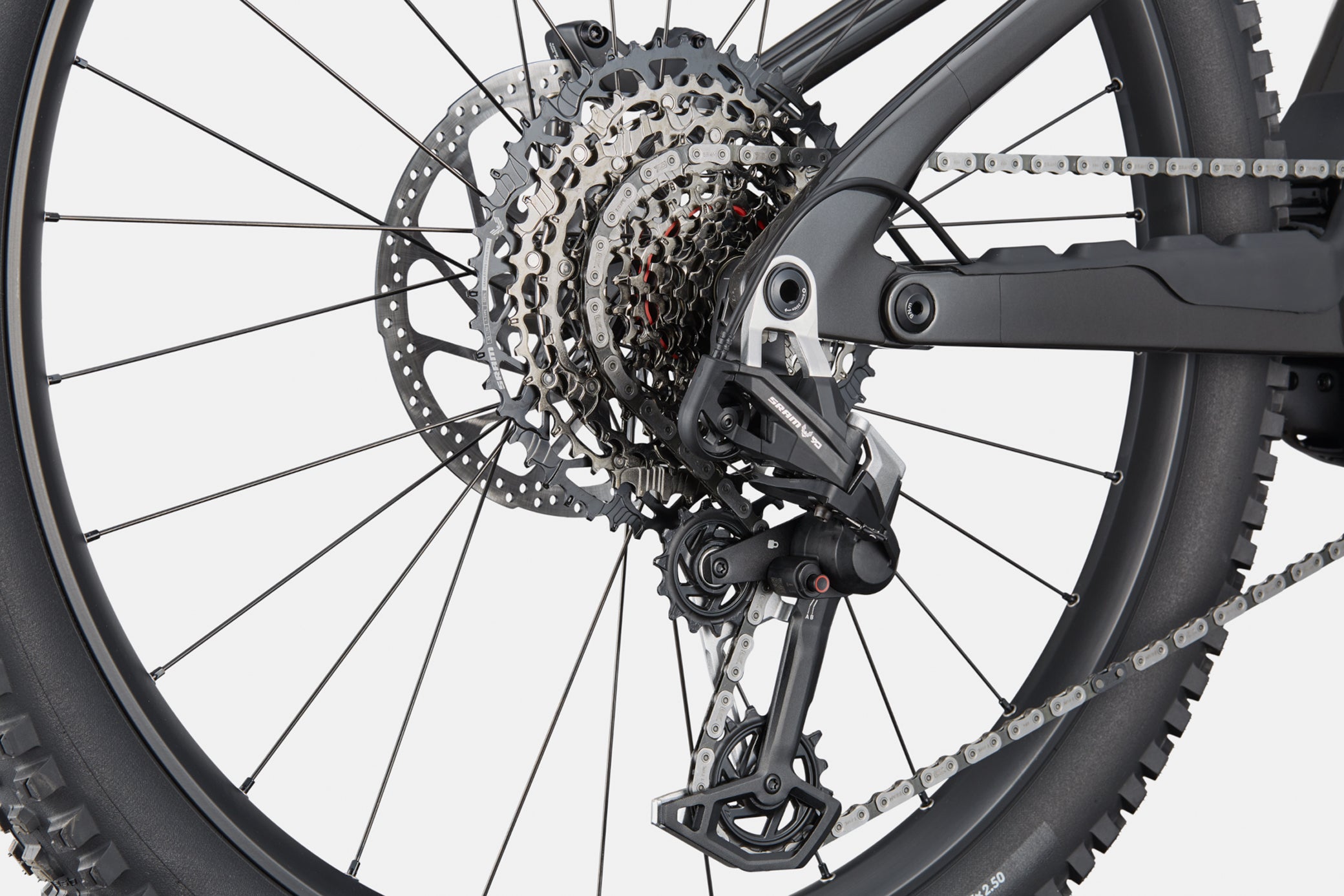

SRAM Eagle T-Type Drivetrain

The SRAM Eagle 90 T-Type derailleur and shifter are designed to provide dependable mechanical shifting under load. This is particularly useful on a full-power e-MTB where gear changes regularly happen while the motor is delivering substantial assistance.

SRAM Eagle 70 cassette and chain components complete the 12-speed drivetrain. Cable-operated shifting keeps adjustment and servicing straightforward while retaining the direct-mount strength and load-shifting performance of SRAM Transmission.

TRP EVO Pro Four-Piston Brakes

TRP EVO Pro four-piston hydraulic brakes provide the stopping power required for a long-travel e-MTB. A large 220 mm front rotor gives the system plenty of leverage, while the 203 mm rear rotor maintains balanced control.

This combination is well suited to sustained descending, steep terrain and the higher system weight of a full-power e-bike.

DT Swiss H 1900 Wheels

DT Swiss H 1900 Spline wheels are designed specifically for the loads produced by e-MTB riding. The 30 mm internal-width rims provide a supportive base for the 2.5-inch tyres and arrive tubeless ready.

A DT Swiss 370 front hub and Ratchet System 18 rear hub provide a proven and easily serviced platform for regular trail use.

Schwalbe Radial Tyres

The front-specific Schwalbe Shredda uses a Radial casing and Addix Ultra Soft compound for maximum steering and braking grip. At the rear, the Schwalbe Albert combines a Radial casing with the firmer Addix Soft compound to balance traction, support and durability.

Both tyres are 2.5 inches wide, giving the Moterra LT plenty of footprint and cushioning on loose, steep and rough terrain.

Key Features

  • Full-carbon Moterra LT frame
  • Cannondale Proportional Response Tuned Suspension
  • 165 mm of rear-wheel travel
  • FOX 38 Performance fork with 170 mm travel
  • FOX DHX Performance coil rear shock
  • Bosch Performance Line CX drive unit
  • Removable Bosch PowerTube 800 Wh battery
  • Top-tube System Controller and Bosch Mini Remote
  • Bosch 4A charger included
  • Compatible with the optional Bosch PowerMore Range Extender
  • SRAM Eagle 90 mechanical T-Type drivetrain
  • TRP EVO Pro four-piston hydraulic brakes
  • 220 mm front and 203 mm rear brake rotors
  • Mixed 29-inch front and 27.5-inch rear wheels
  • DT Swiss H 1900 Spline tubeless-ready wheelset
  • Schwalbe Radial-casing tyres
  • Size-specific Cannondale DownLow dropper post

Who Is It For?

  • Aggressive trail and enduro riding
  • Steep, rough and technical descents
  • Riders wanting full-power Bosch assistance
  • Long rides with repeated technical climbing
  • Bike-park laps where climbing assistance replaces the uplift
  • Riders who prefer the consistency of a coil rear shock
  • Anyone wanting more descending capability than a standard Moterra

The Moterra LT 1 is aimed at riders who will use its suspension travel and gravity-focused build. For smoother trails, general recreational riding or riders wanting a lighter and more efficient feel, the standard Moterra may be a better fit.

Our Thoughts

The Moterra LT 1 is the bike for riders who look at the standard Moterra and immediately want more travel. The 170/165 mm suspension package, mixed wheels and coil shock give it the composure needed for rough terrain without turning it into a downhill bike that is awkward everywhere else.

The Bosch CX system and 800 Wh battery mean you can use that capability for more than a couple of descents. It has the power for repeated climbing and enough battery capacity for a solid day when ridden sensibly.

The SRAM Eagle 90 mechanical Transmission is a good match for this sort of bike. It shifts well under load but avoids adding another battery to manage. TRP EVO Pro brakes and the large rotors also show that Cannondale has taken the bike’s speed and weight seriously.

Coil setup deserves attention. With the correct spring and damping settings, the DHX should provide excellent grip and consistency. With the wrong spring, even an expensive shock will not perform properly, so we recommend having it set up around the rider before heading to the trails.

Why Buy from Chain Reaction?

  • Professionally assembled and completely safety checked
  • Coil-spring suitability checked for the rider
  • Fork and shock settings adjusted before collection
  • Brakes professionally checked and bedded in
  • Bosch system checked and updated where required
  • Complete bike, control and e-bike system walkthrough
  • Expert sizing and cockpit setup advice
  • Help setting up the Bosch eBike Flow app
  • Practical battery, charging and range advice
  • Finance and WorkRide options available
Specifications

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

  • Drive unit: Bosch Performance Line CX, 250 W nominal output
  • Battery: Bosch PowerTube, removable, 800 Wh
  • Controller: Top-tube Bosch System Controller
  • Remote: Bosch Mini Remote
  • Charger: Bosch 4A
  • Range Extender compatibility: Bosch PowerMore

Frame and Suspension

  • Frame: Cannondale Moterra LT Carbon with Proportional Response Tuned Suspension and removable downtube battery
  • Wheel configuration: 29-inch front and 27.5-inch rear
  • Rear travel: 165 mm
  • Fork: FOX 38 Performance, GRIP three-position damper, tapered steerer and 44 mm offset
  • Fork travel: 170 mm
  • Fork axle: 15 x 110 mm Kabolt thru-axle
  • Rear shock: FOX DHX Performance coil with two-position adjustment
  • Shock size: 230 x 65 mm
  • Headset: Acros ICR, 1.5 to 1.8 inches, sealed bearings

Drivetrain

  • Shifter: SRAM Eagle 90 T-Type, mechanical, 12-speed
  • Rear derailleur: SRAM Eagle 90 T-Type
  • Cassette: SRAM Eagle 70, 12-speed
  • Chain: SRAM Eagle 70, 12-speed
  • Crankset: e*thirteen e*spec Helix Core, 55 mm chainline and 160 mm crank arms
  • Chainring: 34T

Brakes

  • Front brake: TRP EVO Pro four-piston hydraulic disc
  • Front rotor: 220 mm
  • Rear brake: TRP EVO Pro four-piston hydraulic disc
  • Rear rotor: 203 mm
  • Brake levers: TRP EVO Pro hydraulic

Wheels and Tyres

  • Wheelset: DT Swiss H 1900 Spline, 30 mm internal width and tubeless ready
  • Front wheel: 29 inches
  • Rear wheel: 27.5 inches
  • Front hub: DT Swiss 370, 15 x 110 mm thru-axle
  • Rear hub: DT Swiss 370 Ratchet System 18, 12 x 148 mm thru-axle and six-bolt disc
  • Spokes: DT Swiss Competition, straight pull
  • Front tyre: Schwalbe Shredda Front, Radial casing, Addix Ultra Soft, folding, 29 x 2.5 inches
  • Rear tyre: Schwalbe Albert, Radial casing, Addix Soft, folding, 27.5 x 2.5 inches
  • Included tubeless equipment: Tubeless valve stems

Cockpit and Contact Points

  • Handlebar: Cannondale 3 riser, 6061 alloy, 800 mm width, 25 mm rise, 8-degree sweep and 4-degree rise
  • Stem: Cannondale 1, 6061 alloy, 35 mm clamp, 40 mm length and zero-degree rise
  • Grips: Cannondale TaperRidge
  • Saddle: Fizik Terra Aidon X5, 145 mm, Wingflex and S-Alloy Mobius rail
  • Seatpost: Cannondale DownLow dropper, internal routing and 34.9 mm diameter
  • Dropper travel: 150 mm on size S, 170 mm on size M, 200 mm on size L and 230 mm on size XL
  • Pedals: Not included

Sizes and Colour

  • Sizes: S, M, L and XL
  • Colour: Black
  • Colour code: BLK

Specifications Disclaimer

Specifications are based on current Cannondale supplier information and may change without notice due to production availability. Equivalent components may be substituted where required.

Battery range varies with assistance mode, rider weight, elevation, trail conditions, temperature, tyre pressure and riding style. The Bosch PowerMore Range Extender is sold separately.

Coil-spring requirements depend on rider weight, riding style and suspension preference. Confirm the supplied spring rate before purchase if this is important to you.
