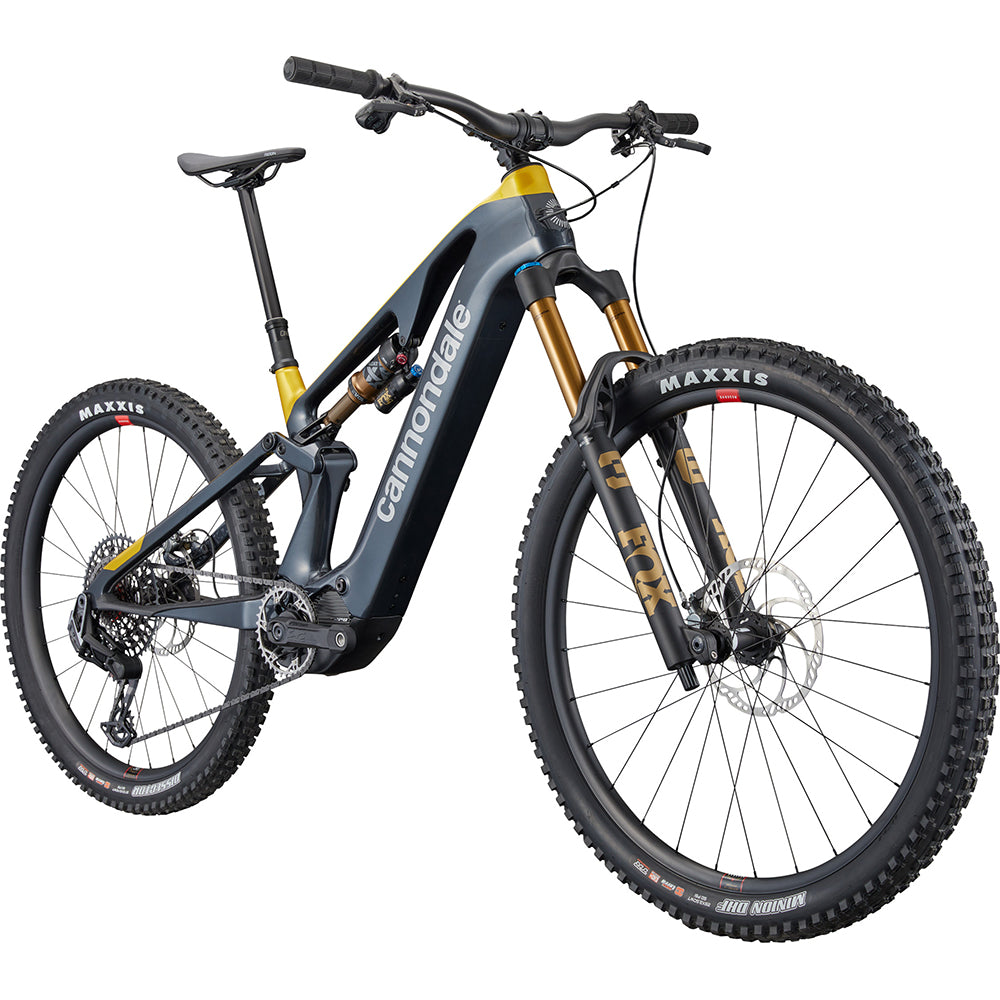

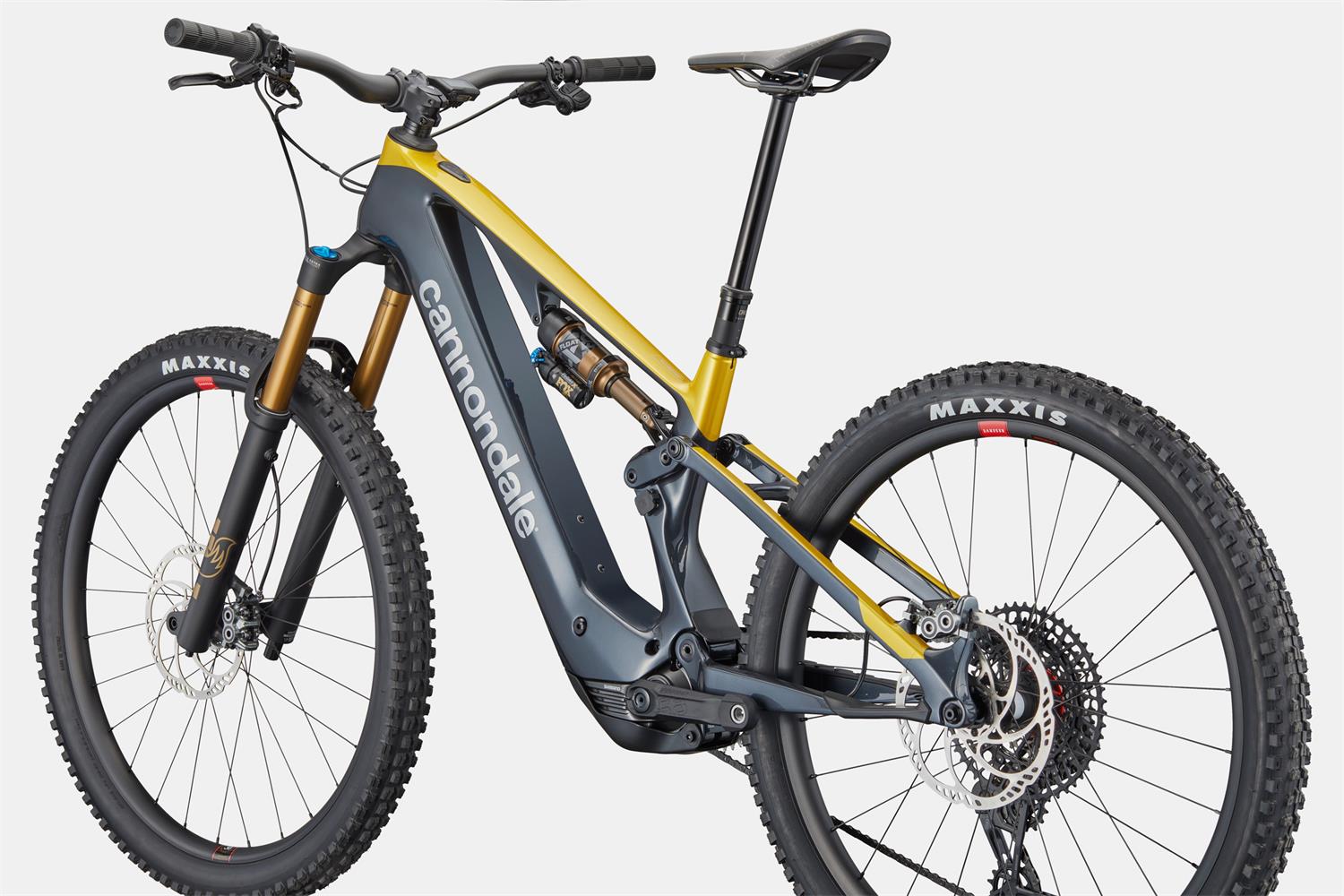

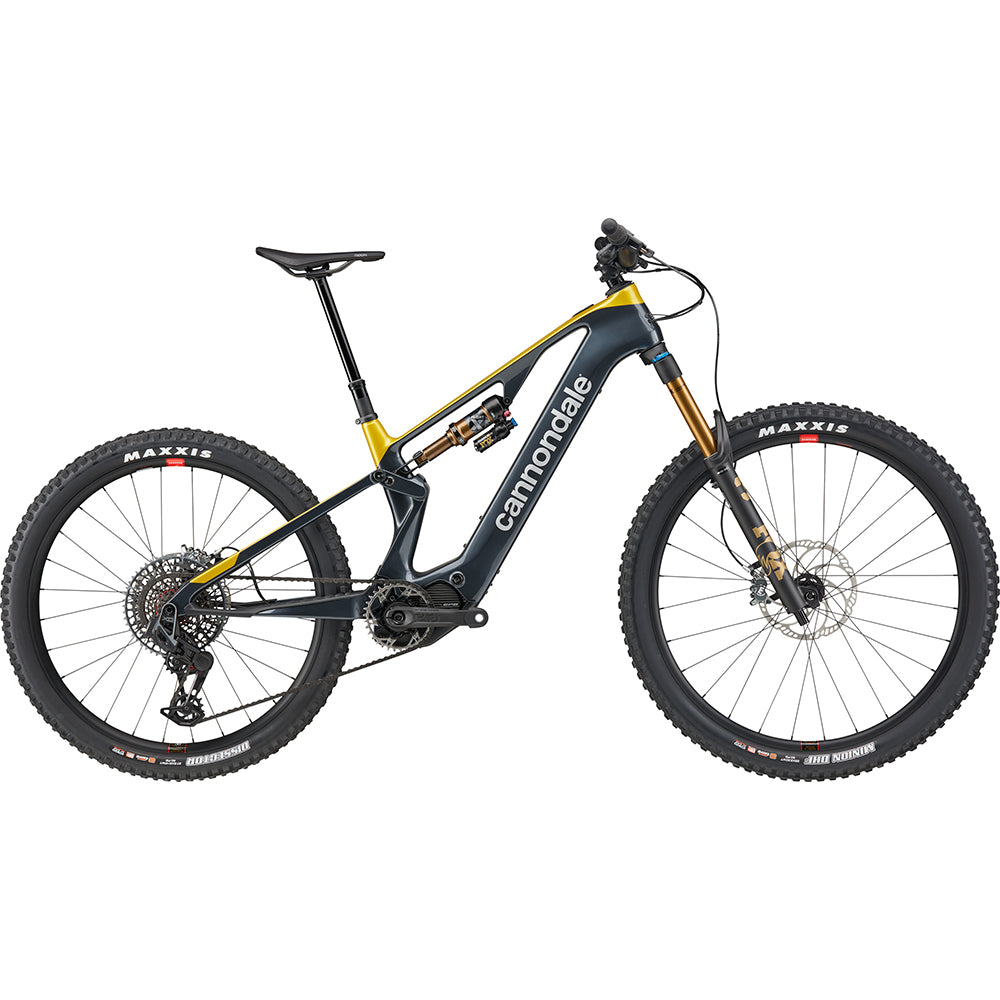

Cannondale Moterra SL 1 Tungsten Blue
Cannondale Moterra SL 1 – Tungsten Blue – XL Only
Description

Full-Power Assistance Without the Usual Weight

The Cannondale Moterra SL brings full-power motor performance to a bike that feels lighter, quicker and more responsive than a conventional full-power e-MTB.

Its Series 1 carbon FlexPivot frame provides 150 mm of rear travel, paired with a 160 mm FOX 36 Factory fork and a mullet wheel setup. A Cannondale-tuned Shimano EP801 motor delivers up to 85 Nm of torque, while the compact 601 Wh internal battery keeps unnecessary weight out of the bike.

SRAM X0 Eagle AXS Transmission, Magura MT7 brakes, FOX Factory suspension and Reserve 30 HD rims complete a high-level build for fast and technical trail riding.

High on Power, Low on Weight

Cannondale developed the Moterra SL for riders who want serious motor support without giving up the lively handling of a lighter trail bike. The carbon frame uses weight-saving FlexPivot chainstays to deliver 150 mm of rear-wheel travel without a conventional pivot near the rear axle.

Proportional Response suspension and geometry are tuned across the size range, helping riders on each frame size receive balanced handling and appropriate suspension performance.

The battery is mounted directly inside the frame, while an engineered skid plate protects the underside of the bike from trail impacts. Internal cable routing, a SRAM UDH hanger and a native 200 mm rear-brake mount complete a frame designed for hard trail use.

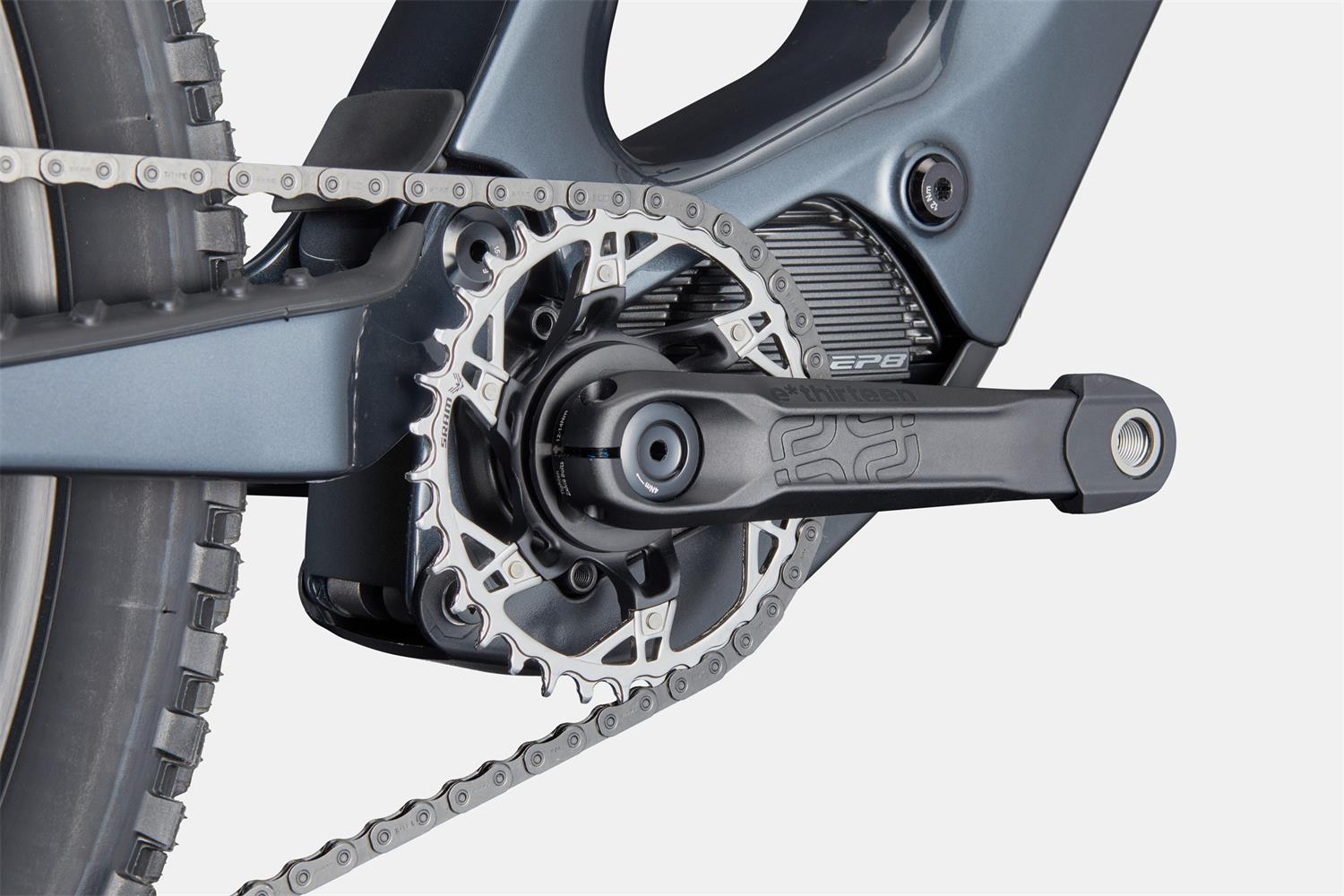

Shimano EP801 Full-Power Assistance

The Cannondale-tuned Shimano EP801 drive unit provides up to 85 Nm of torque and more than 600 W of maximum output. It has enough support for steep and technical climbs while remaining compact and light enough to preserve the Moterra SL’s responsive handling.

Motor assistance responds to rider input, helping maintain traction on loose ground without making the bike difficult to control through tight or awkward sections. A walk-assist mode is also available when the terrain becomes impossible to ride.

Custom-Tuned Ride Modes

Cannondale has developed four assistance modes specifically for the Moterra SL:

  • Eco: Prioritises battery range for longer rides
  • Trail: Balanced support for everyday trail riding and riding with lightweight e-MTBs
  • Boost: Stronger assistance for steep climbs and riding with full-power e-MTBs
  • Turbo: Maximum assistance when full power is required

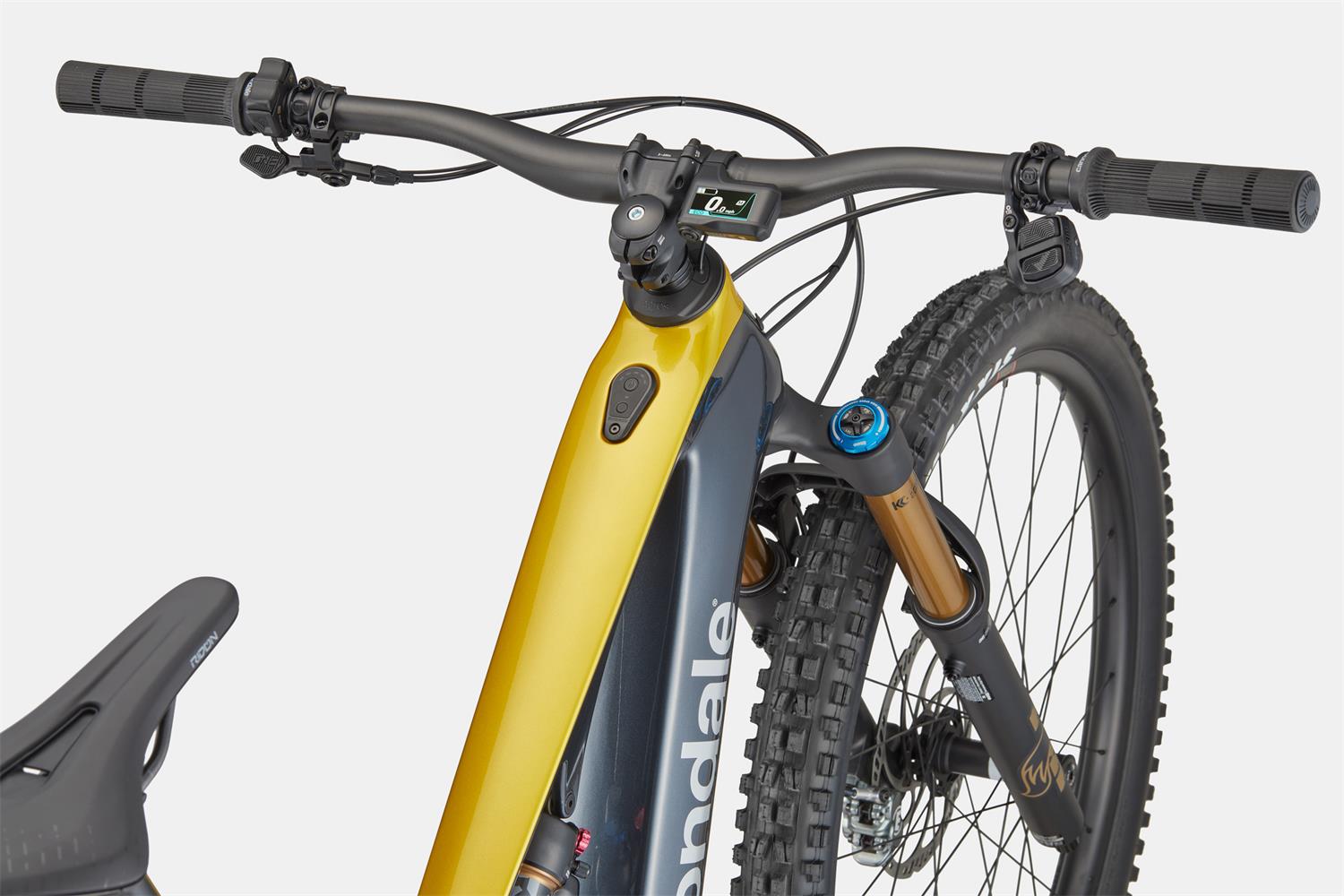

The Shimano SC-EM800 cycle computer displays ride and system information and supports Bluetooth Low Energy connectivity for compatible setup and diagnostic functions.

Custom 601 Wh Internal Battery

The custom 601 Wh battery uses high-energy-density cells to provide useful trail range without adding the weight of a larger conventional e-MTB battery.

The battery is mounted directly inside the frame and is not designed for routine removal. The bike will normally need to be stored near a suitable power outlet for charging.

Actual range depends on assistance mode, elevation, rider weight, trail conditions, temperature, tyre pressure and how much effort the rider contributes.

FOX Factory Suspension

The FOX 36 Factory fork provides 160 mm of travel and uses the GRIP X2 damper for detailed control over compression and rebound behaviour. Its Kashima-coated stanchions help reduce friction, while the 36 mm chassis balances steering accuracy with a lower weight than a heavier enduro fork.

A FOX FLOAT X Factory shock controls 150 mm of rear-wheel travel. Its EVOL LV air spring provides useful sensitivity over smaller bumps while retaining the support needed through compressions, corners and harder impacts.

The shock’s two-position adjustment allows additional pedalling support to be selected on smoother climbs and connecting trails.

Mullet-Wheel Trail Handling

The Moterra SL uses a mullet wheel setup with a 29-inch front wheel and a 27.5-inch rear wheel. The larger front wheel improves rollover and confidence through roots, rocks and braking holes, while the smaller rear wheel helps the bike change direction and provides additional clearance on steep terrain.

An Acros adjustable-angle headset provides 1.2 degrees of geometry adjustment. The frame also includes Cannondale’s 29-inch FlipChip system for configuring the chassis around a different rear-wheel setup.

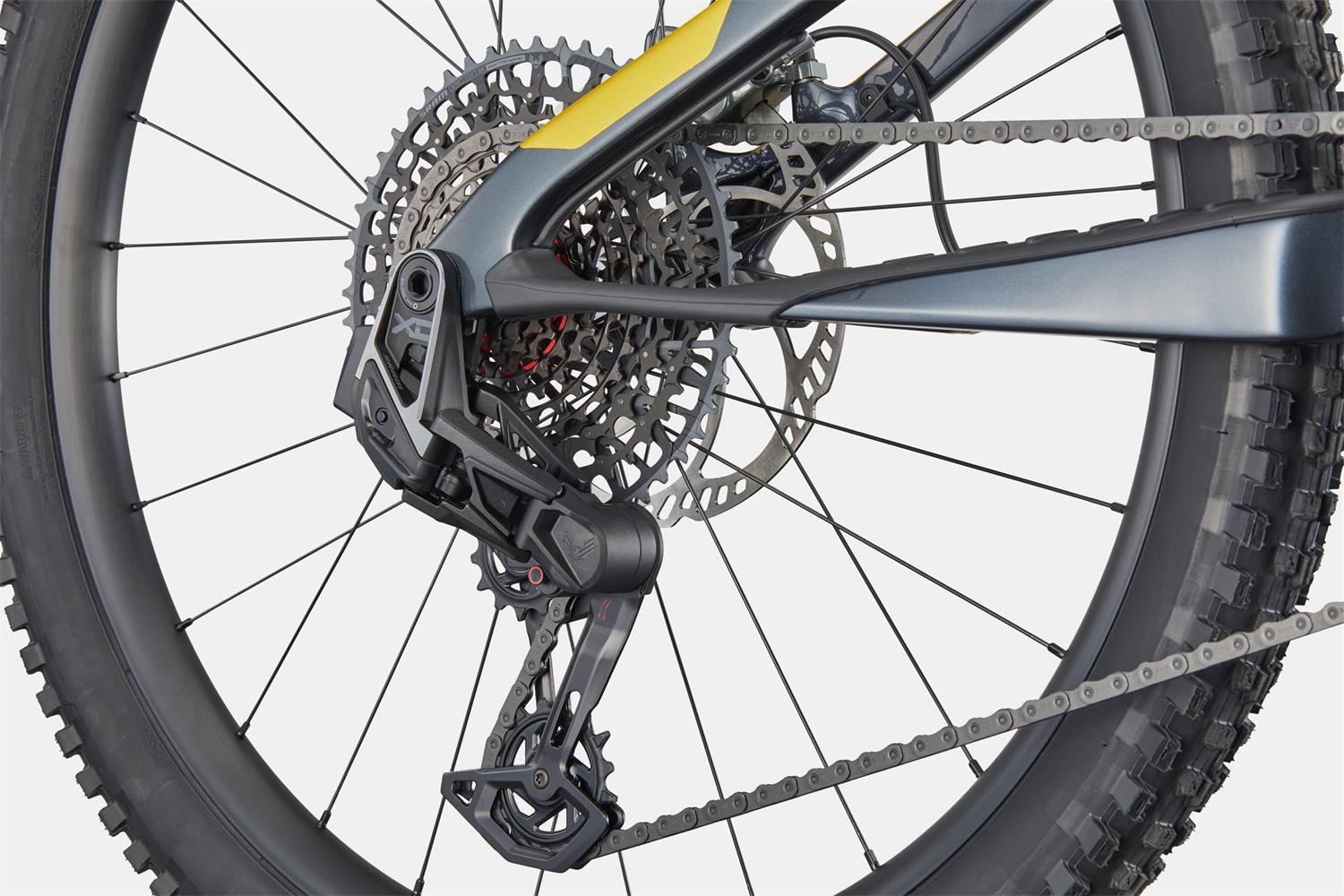

SRAM X0 Eagle AXS Transmission

SRAM X0 Eagle AXS provides wireless electronic 12-speed shifting through a direct-mount T-Type derailleur. The drivetrain is designed to shift under load, which is particularly useful when climbing with motor assistance.

A wide-range 10–52T cassette provides the gearing needed for steep climbs, while the compact SRAM Pod Controller keeps the handlebar tidy.

The rear derailleur uses a removable SRAM AXS battery. This needs to be charged separately from the bike’s main battery, although carrying a spare AXS battery is straightforward.

Magura MT7 Four-Piston Brakes

Magura MT7 four-piston hydraulic brakes provide the power and modulation required for a fast e-MTB. Large 203 mm Storm HC rotors are fitted at both ends to improve braking leverage and manage heat on longer descents.

This is a strong braking package for the Moterra SL’s intended use, giving riders dependable control without requiring excessive force at the lever.

Reserve Rims and DT Swiss Hubs

Reserve 30 HD rims are paired with DT Swiss 350 hubs and Sapim D-Light spokes. The rims use 28 spokes and arrive ready for tubeless conversion.

The DT Swiss 350 rear hub uses a Ratchet System 36 SL mechanism, providing dependable engagement and straightforward long-term servicing.

Maxxis Mullet Tyre Setup

A Maxxis Minion DHF 29 x 2.5-inch front tyre provides confident steering and braking grip. The 27.5 x 2.4-inch Maxxis Dissector rear tyre rolls more quickly while retaining useful climbing, braking and cornering traction.

Both tyres use 3C rubber compounds, reinforced EXO+ casings and tubeless-ready beads, making them well suited to aggressive trail riding.

Key Features

  • Series 1 carbon FlexPivot frame
  • Cannondale Proportional Response suspension and geometry
  • 150 mm of rear-wheel travel
  • FOX 36 Factory fork with 160 mm travel
  • FOX FLOAT X Factory rear shock
  • FOX GRIP X2 fork damper
  • Shimano EP801 drive unit with 85 Nm of torque
  • More than 600 W of maximum motor output
  • Custom 601 Wh internal battery
  • Custom Eco, Trail, Boost and Turbo assistance modes
  • Shimano SC-EM800 cycle computer
  • SRAM X0 Eagle AXS T-Type drivetrain
  • Wide-range 10–52T cassette
  • e*thirteen carbon crankset
  • Magura MT7 four-piston hydraulic brakes
  • 203 mm front and rear brake rotors
  • Mullet wheels with a 29-inch front and 27.5-inch rear
  • Reserve 30 HD tubeless-ready rims
  • DT Swiss 350 hubs
  • HollowGram SAVE carbon handlebar
  • Adjustable-angle headset
  • Cannondale DownLow dropper post
  • Tungsten Blue finish
  • XL only

Who Is It For?

  • Riders wanting full-power assistance with lighter handling
  • Fast and technical trail riding
  • Steep climbs followed by rough descents
  • Riders who find conventional full-power e-MTBs cumbersome
  • Experienced riders who value suspension and geometry adjustment
  • Anyone wanting a premium mullet e-MTB

The Moterra SL is lighter than many full-power e-MTBs, but it still uses a fixed internal battery. Riders who need to remove the battery regularly for charging, security or transport should consider a conventional Moterra with a removable Bosch PowerTube battery.

Our Thoughts

The Moterra SL occupies an interesting middle ground. It has the torque and climbing support of a full-power e-MTB, but its carbon FlexPivot frame, compact battery and mullet wheel setup give it a noticeably more energetic feel on the trail.

The 601 Wh battery is smaller than the 800 Wh batteries fitted to the latest full-power Moterra models. The trade-off is a lighter bike that is easier to change direction, more responsive through rolling terrain and less demanding when the motor is switched off.

The component selection suits the bike’s intent. FOX Factory suspension provides plenty of setup control, SRAM X0 AXS shifts cleanly under load and the Magura MT7 brakes have enough power for steep terrain.

The fixed battery is the main practical consideration. If you can charge the bike where it is stored, it is unlikely to be an issue. If you need to carry the battery indoors after every ride, the standard Moterra platform will be more convenient.

Why Buy from Chain Reaction?

  • Professionally assembled and completely safety checked
  • Suspension pressures set for your weight and riding style
  • Brakes professionally checked and bedded in
  • Shimano e-bike system checked and updated where required
  • SRAM AXS drivetrain checked, charged and configured
  • Complete bike, display and e-bike system walkthrough
  • Expert sizing and cockpit setup advice
  • Practical battery, charging and maintenance advice
  • Finance and WorkRide options available
Specifications

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

  • Drive unit: Shimano EP801, Cannondale custom tune
  • Maximum torque: 85 Nm
  • Assistance modes: Walk, Eco, Trail, Boost and Turbo
  • Battery: Custom direct-mount internal battery, 601 Wh
  • Display: Shimano SC-EM800 cycle computer
  • Connectivity: Bluetooth Low Energy compatible
  • Charger: Custom 4A

Frame and Suspension

  • Frame: Cannondale Moterra Neo SL, Series 1 carbon construction
  • Suspension design: Proportional Response Tuned Suspension with FlexPivot chainstay
  • Rear travel: 150 mm
  • Battery mounting: Direct-mount internal
  • Frame protection: Engineered plastic skid plate
  • Chainline: 55 mm
  • Cable routing: DirectLine internal routing
  • Rear-wheel adjustment: 29-inch FlipChip
  • Rear spacing: 12 x 148 mm Maxle thru-axle
  • Derailleur hanger: SRAM UDH
  • Rear-brake mount: Post mount, native 200 mm
  • Head tube: Tapered
  • Headset: Acros adjustable-angle headset, 1.2 degrees
  • Fork: FOX 36 Factory, GRIP X2 damper, Kashima coating and 44 mm offset
  • Fork travel: 160 mm
  • Fork axle: 15 x 110 mm Kabolt thru-axle
  • Rear shock: FOX FLOAT X Factory, EVOL LV and two-position adjustment
  • Shock size: 210 x 55 mm

Drivetrain

  • Shifter: SRAM AXS T-Type Pod Controller
  • Rear derailleur: SRAM X0 Eagle AXS T-Type
  • Cassette: SRAM X0 Eagle T-Type, 12-speed, 10–52T
  • Chain: SRAM X0 Eagle T-Type, 12-speed
  • Crankset: e*thirteen e*spec Helix Race Carbon
  • Chainring: 34T

Brakes

  • Front brake: Magura MT7 four-piston hydraulic disc
  • Rear brake: Magura MT7 four-piston hydraulic disc
  • Front rotor: Magura Storm HC six-bolt, 203 mm
  • Rear rotor: Magura Storm HC six-bolt, 203 mm

Wheels and Tyres

  • Wheel configuration: Mullet, 29-inch front and 27.5-inch rear
  • Rims: Reserve 30 HD, 28H and tubeless ready
  • Front hub: DT Swiss 350, 15 x 110 mm
  • Rear hub: DT Swiss 350 Ratchet System 36 SL, 12 x 148 mm
  • Spokes: Sapim D-Light
  • Front tyre: Maxxis Minion DHF, 3C, EXO+, tubeless ready, 29 x 2.5 inches
  • Rear tyre: Maxxis Dissector, 3C, EXO+, tubeless ready, 27.5 x 2.4 inches

Cockpit and Contact Points

  • Handlebar: HollowGram SAVE carbon riser, 35 mm clamp, 780 mm width, 30 mm rise, 8-degree sweep and 5-degree rise
  • Stem: Cannondale 1, 7075 alloy, 35 mm length and zero-degree rise
  • Grips: Cannondale TaperRidge
  • Saddle: Fizik Terra Aidon X3 with Kium Mobius alloy rail
  • Seatpost: Cannondale DownLow dropper, internal routing and 31.6 mm diameter
  • Dropper travel: 170 mm on the available XL size

Size and Colour

  • Available size: XL only
  • Colour: Tungsten Blue

Specifications Disclaimer

Specifications are based on the confirmed information supplied for the Tungsten Blue model. Components may change without notice due to production availability.

Battery range varies with assistance mode, rider weight, elevation, trail conditions, temperature, tyre pressure and riding style. The internal battery is not designed for routine removal.
