A lightweight road race frameset, ready for your custom build.
The Cannondale SuperSix EVO Hi-MOD Gen 5 Frameset is for riders who want to choose the components that go on their next race bike. With a lightweight carbon frame, aerodynamic shaping and responsive race geometry, it is a starting point for a bike built to climb, sprint and ride fast on the flat.

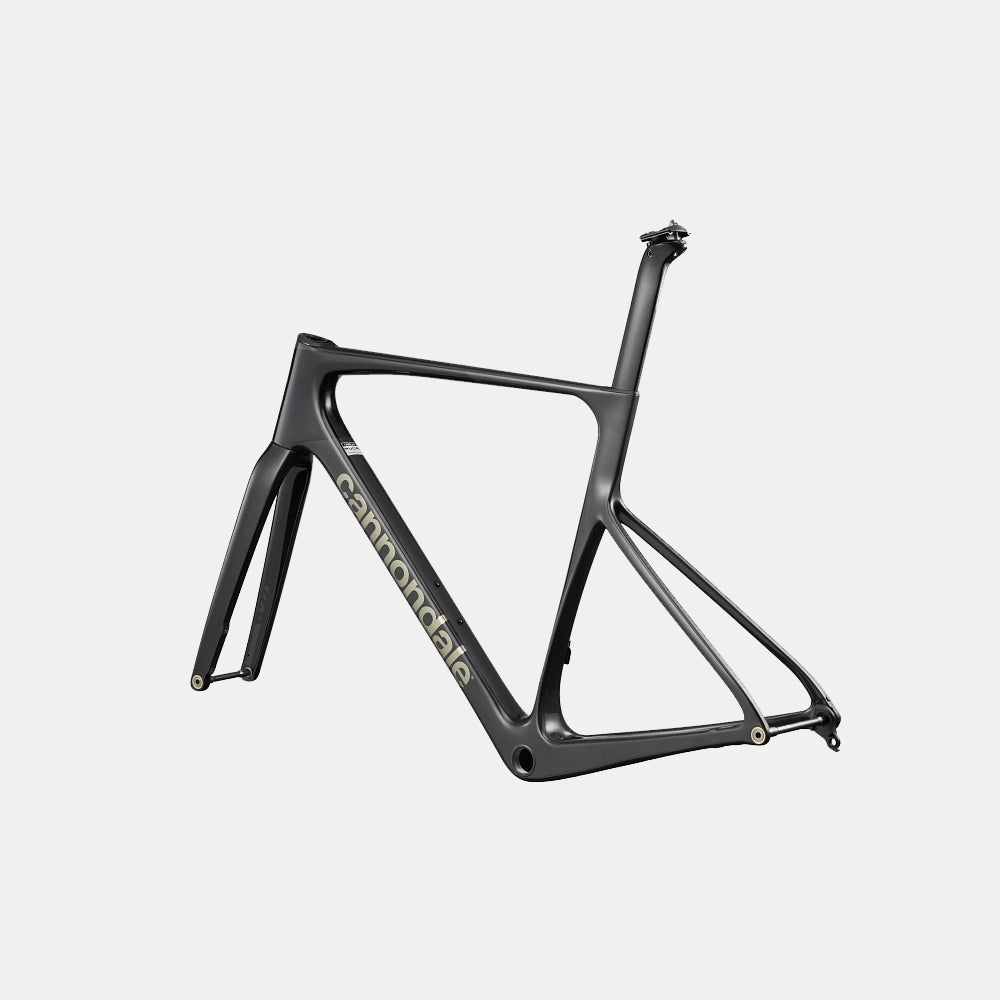

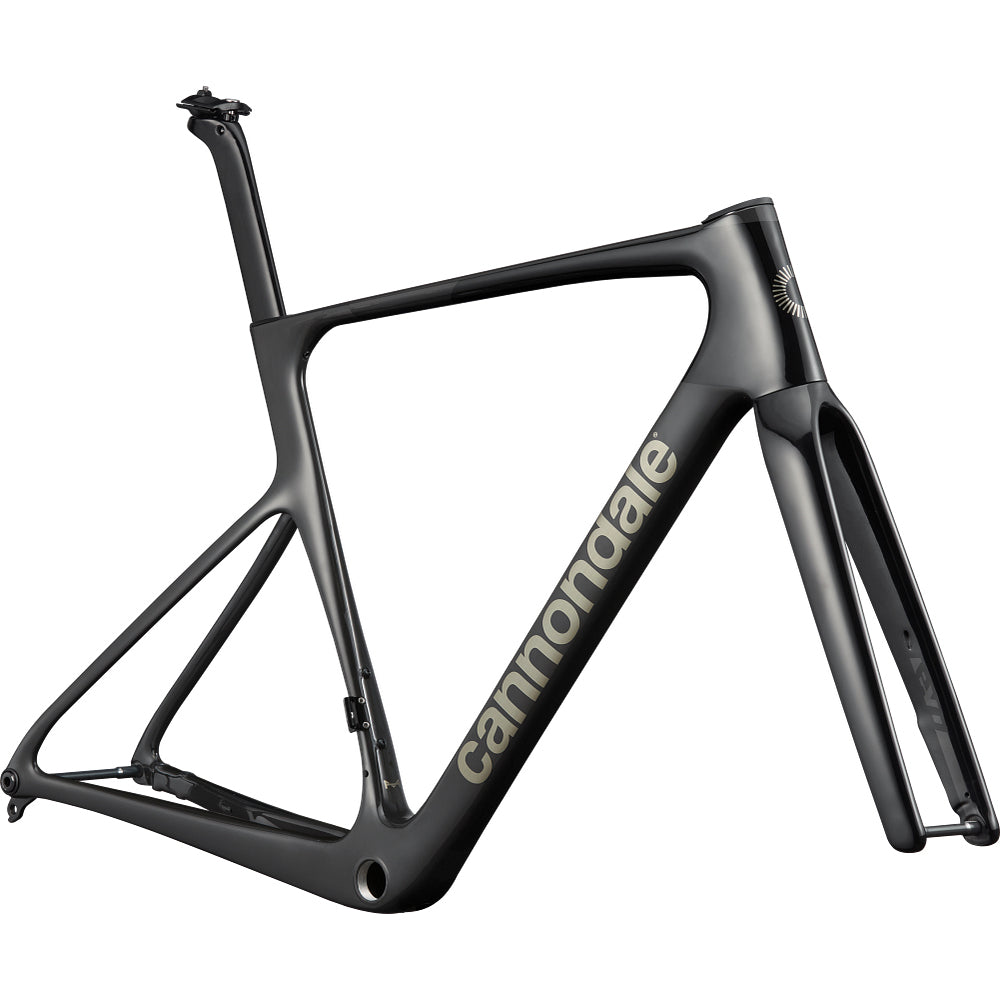

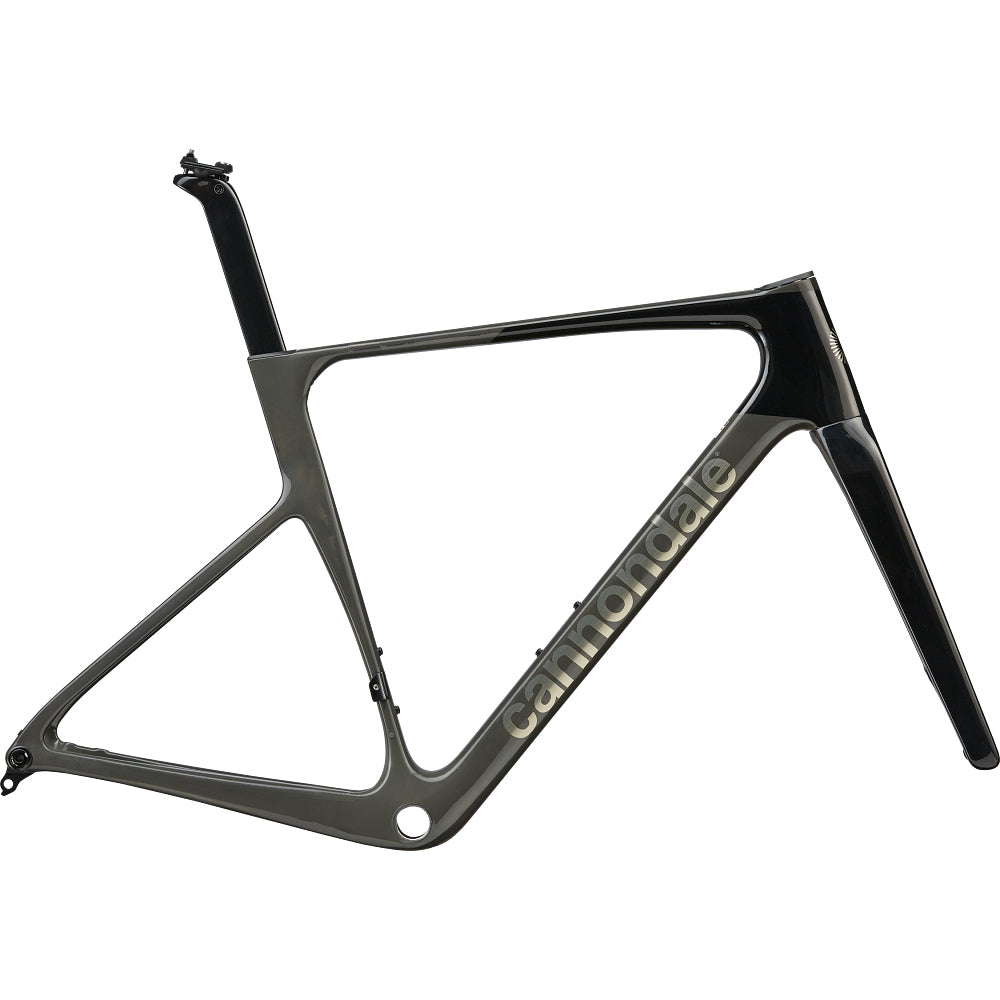

Finished in Jet Black with Raw Carbon and Smoked Chrome details, the frameset includes a Hi-MOD carbon fork, C1 Aero 40 carbon seatpost, Cannondale Gripper Aero bottles and CarbonGrip Aero cages.
Want to compare your options? Browse our road bike collection for complete bikes and other framesets.
Lightweight Hi-MOD Carbon
Cannondale’s Hi-MOD carbon construction combines low weight with a responsive feel for hard efforts. Cannondale claims 789 g for a painted size 56 frame and 399 g for the fork. Those figures are for the individual frame and fork, not the complete frameset or finished bike.
Proportional Response construction adjusts the carbon layup and frame design across the size range, helping maintain the intended balance of stiffness and handling for different riders.
Aero Without Giving Up Low Weight
The Gen 5 SuperSix EVO uses aerodynamic tube shapes and integrated routing to reduce drag while retaining the low weight that makes the platform appealing for climbing and acceleration.
It is a race-focused frameset, but the combination also makes sense for fast bunch rides, hilly road events and riders who want one road bike for a bit of everything.
Delta Steerer and Clean Integration
Cannondale’s Delta Steerer allows cables and hoses to route internally through the front of the bike. It is designed to work with compatible Cannondale cockpit options for a clean setup.
The handlebar and stem are not listed as included with this frameset. Integrated cockpits can require specific spacers and routing parts, so talk to us about compatibility before ordering your components.
C1 Aero 40 Carbon Seatpost
The included Cannondale C1 Aero 40 Carbon V2 seatpost uses an aerodynamic profile and titanium hardware. Offset varies by frame size: 0 mm on sizes 48–54 and 15 mm on sizes 56–61.
Choosing the right offset is part of getting the saddle position right. We can help check the geometry and fit before you commit to your build.
Room for 32 mm Tyres
Cannondale lists a maximum measured tyre width of 32 mm, with at least 4 mm of clearance on each side. That gives you the option of a wider road tyre for added comfort and grip on coarse chipseal and uneven roads.
Actual tyre width varies with the rim and pressure. Check the clearance of your chosen wheel and tyre combination before riding.
Aero Bottles and Cages Included
The frameset comes with Cannondale Gripper Aero bottles and CarbonGrip Aero cages, designed to fit neatly against the frame. Cannondale also says the cages can accommodate standard round bottles, which is handy when picking up a bottle during an event.
Key Features
- SuperSix EVO Hi-MOD Gen 5 carbon frame and fork
- Claimed 789 g painted frame weight in size 56
- Claimed 399 g fork weight
- Proportional Response size-specific carbon construction
- Aerodynamic frame shaping
- Delta Steerer and internal cable routing
- Cannondale C1 Aero 40 Carbon V2 seatpost with titanium hardware
- UDH-compatible rear derailleur mount
- 68 mm BSA threaded bottom-bracket shell
- Flat-mount disc brake fittings
- Clearance for tyres up to 32 mm measured width
- Cannondale Gripper Aero bottles and CarbonGrip Aero cages included
- Jet Black / Raw Carbon / Smoked Chrome finish
Who Is It For?
- Road racers building a bike around their preferred components
- Climbers who want a lightweight frameset
- Fast bunch rides and road events
- Riders who want an aerodynamic all-round road bike
- Riders choosing their own drivetrain, wheels and cockpit
- Anyone planning a premium custom road build
Our Thoughts
The SuperSix EVO Hi-MOD is a great starting point if you want one race bike for climbs, fast bunch rides and rolling roads. It is light enough to make sense in the hills, but the aero shaping means you do not have to give up speed when the road flattens out.
The integrated front end looks tidy, but it makes component selection and fit important. We would recommend checking your position and cockpit choice before ordering parts. Our workshop can help you work through the build and make sure everything fits together.
Specifications
- Frame: SuperSix EVO Hi-MOD Carbon, Gen 5, integrated cable routing, integrated seat binder and UDH compatibility
- Fork: SuperSix EVO Hi-MOD Carbon, Gen 5, integrated crown race and internal routing
- Steerer: 1-1/8-inch to 1-1/4-inch Delta Steerer
- Headset: Integrated, 1-1/8-inch to 1-1/4-inch
- Fork offset: 55 mm on sizes 48–54; 45 mm on sizes 56–61
- Front axle spacing: 12 × 100 mm thru-axle
- Rear axle spacing: 12 × 142 mm thru-axle
- Bottom-bracket shell: 68 mm BSA threaded
- Brake mount: Flat-mount disc
- Wheel size: 700c
- Maximum tyre clearance: 32 mm measured width, with at least 4 mm clearance on each side
- Seatpost: Cannondale C1 Aero 40 Carbon V2, 365 mm, titanium hardware
- Seatpost offset: 0 mm on sizes 48–54; 15 mm on sizes 56–61
- Included extras: Cannondale Gripper Aero bottles and CarbonGrip Aero cages
- Claimed frame weight: 789 g, painted size 56
- Claimed fork weight: 399 g
- Colour: Jet Black / Raw Carbon / Smoked Chrome
- Sizes listed: 48, 50, 52, 54, 56, 58 and 61 cm
This is a frameset, not a complete bicycle. Drivetrain, wheels, tyres, brakes, saddle and cockpit components are not listed as included. Please contact us to confirm the headset, axles and any small parts supplied before ordering.
Select your preferred size to check current availability.

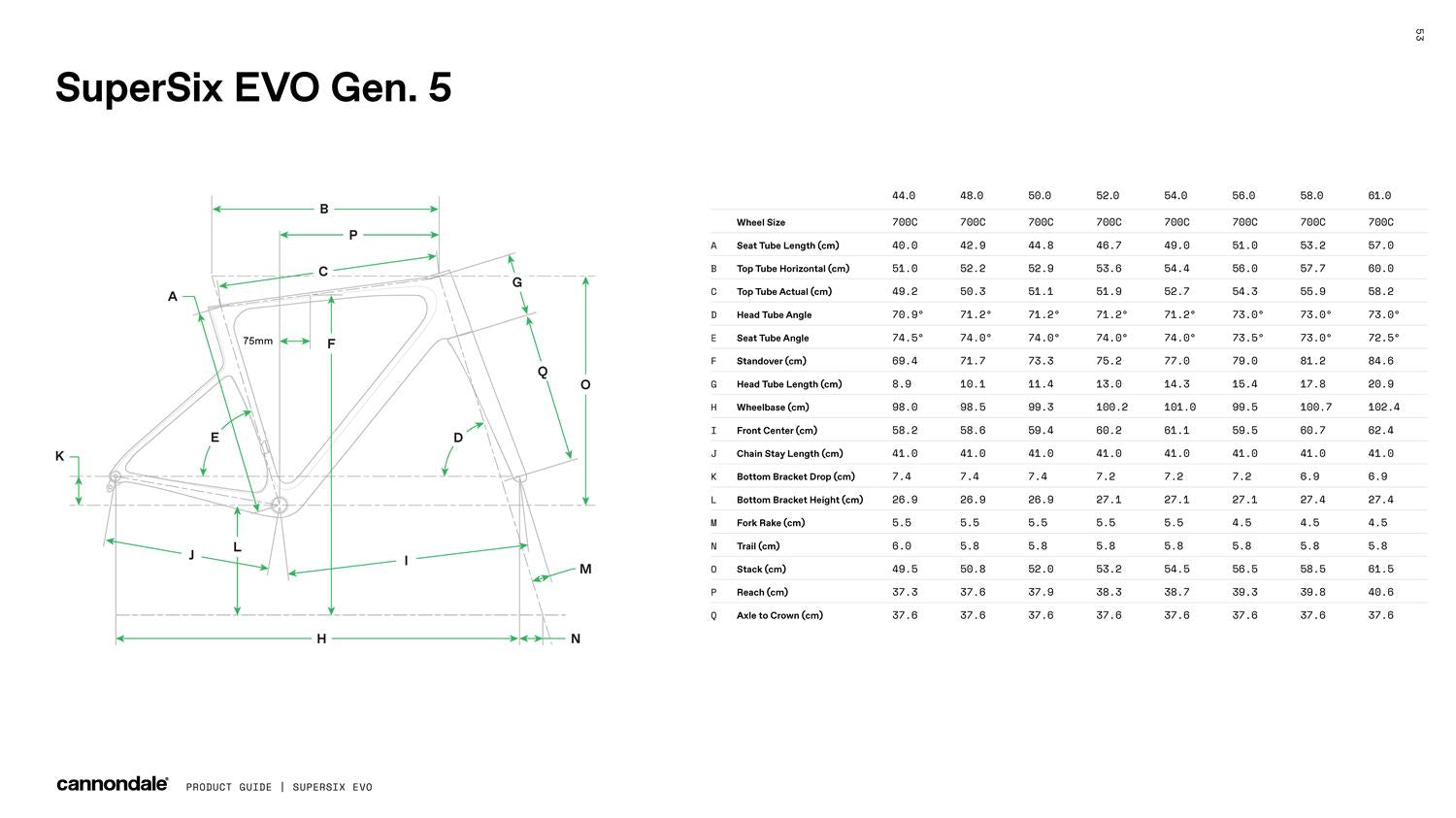

Size Guide
The Gen 5 SuperSix EVO has race-focused geometry. Cannondale has lowered the stack compared with Gen 4 and added sizes 50 and 52 in place of the previous size 51.
Rider height is only one part of choosing a frameset. Reach, stack, body proportions and your preferred riding position all matter, particularly when planning an integrated cockpit. Contact Chain Reaction for help choosing a size before ordering.
Why Buy from Chain Reaction?
- Official Cannondale dealer
- Custom build and component compatibility advice
- Experienced workshop for assembly and setup
- Road-bike sizing and setup advice
- Help choosing wheels, gearing and cockpit components
- Ongoing workshop and servicing support
- Finance and WorkRide options available
Visit Chain Reaction at 4/218 Moorhouse Avenue, Christchurch. There are more than 200 free car parks on-site, along with plenty of room to discuss your build.
Specifications are based on Cannondale and supplier information and may change without notice. Claimed weights are manufacturer figures and may vary with frame size, finish and production components. Please confirm included parts and component compatibility before ordering.
