A fast carbon gravel bike with electronic shifting and close-ratio gearing.

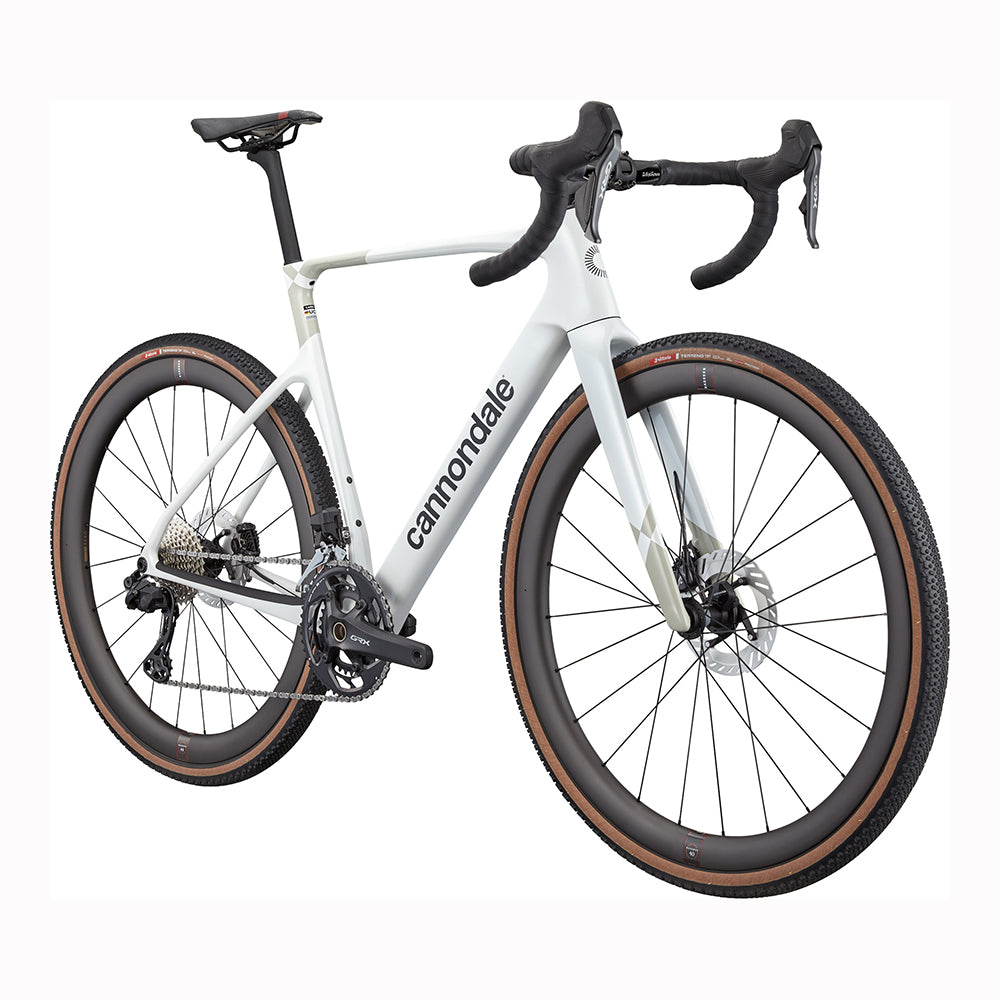

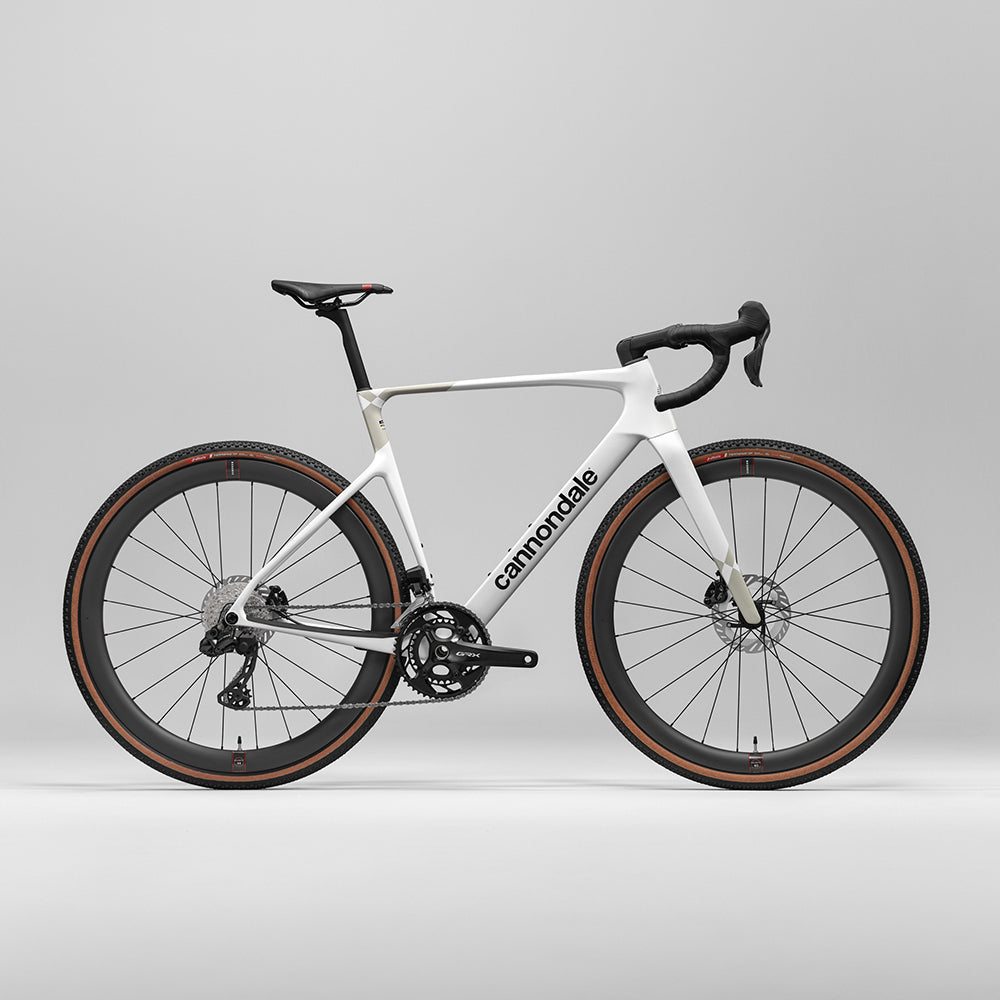

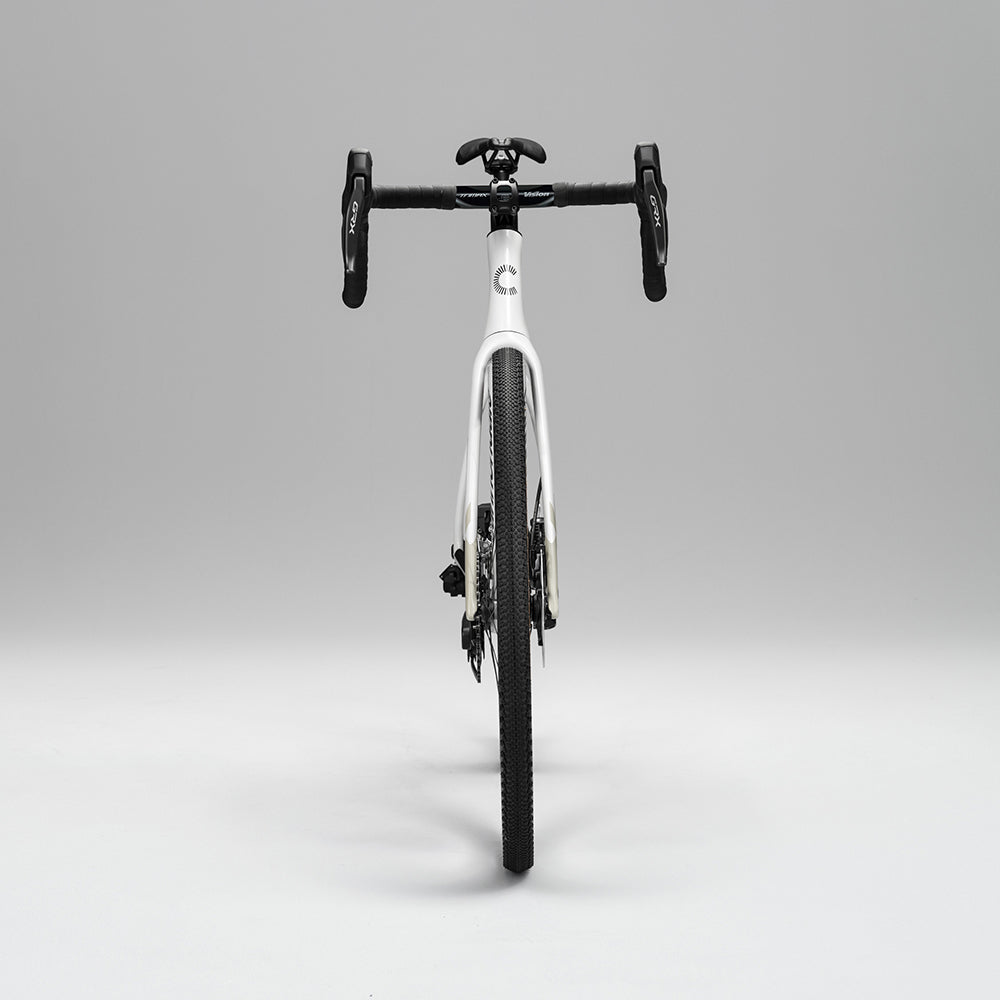

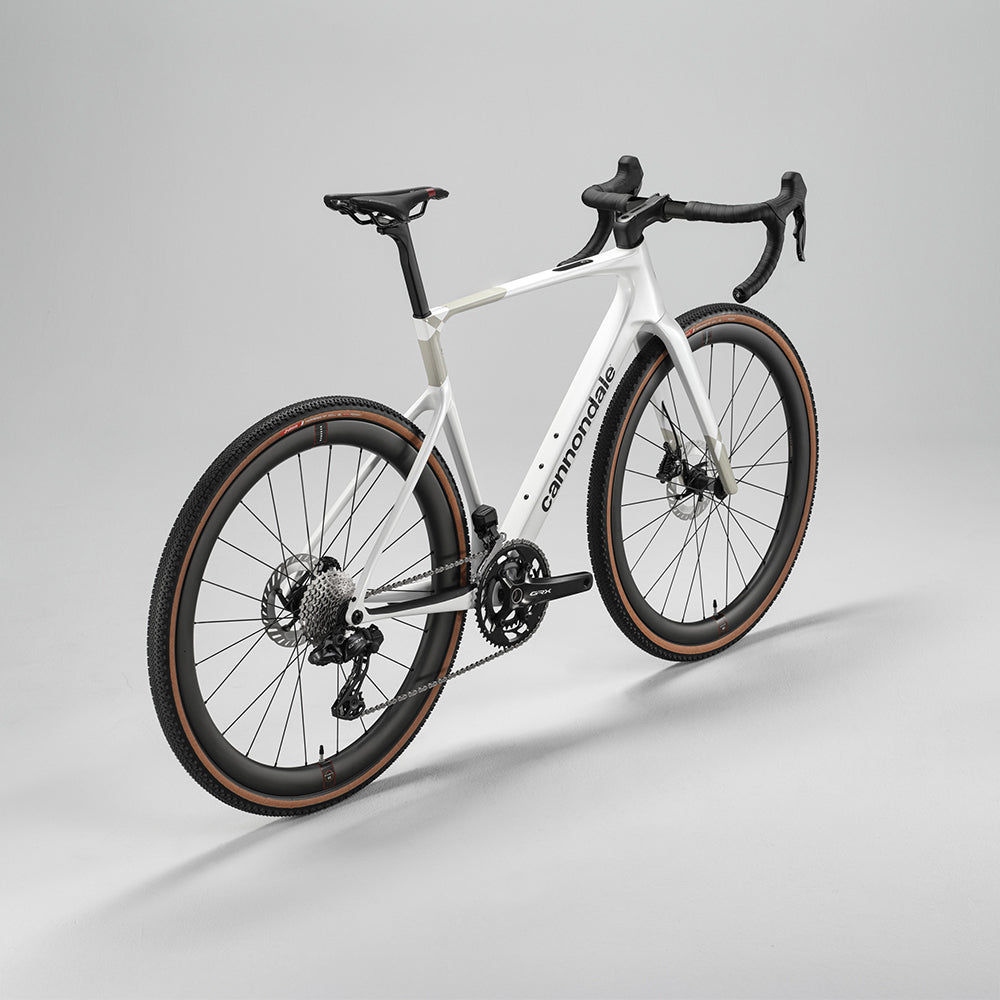

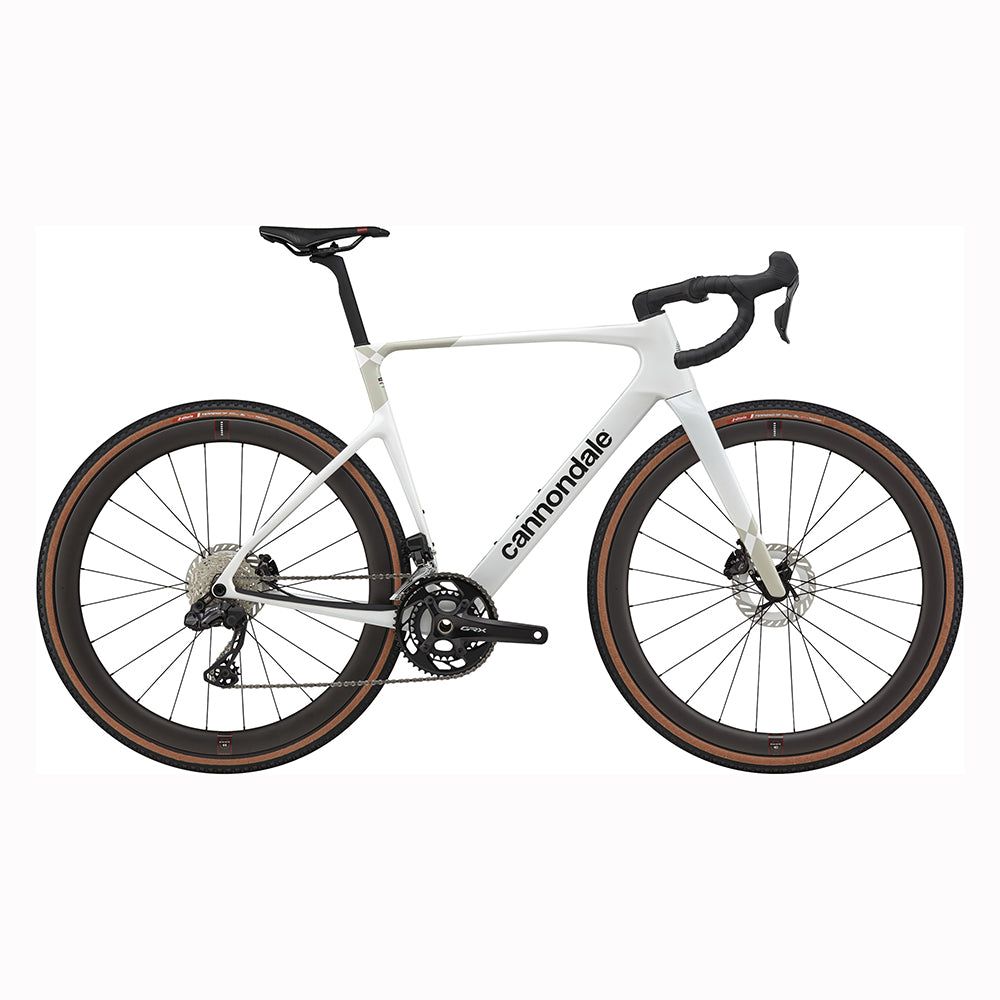

The Cannondale SuperX 2 is built for riders who like to push the pace when the road turns to gravel. Its carbon frame, Shimano GRX Di2 electronic shifting and Reserve carbon wheels make it a capable choice for gravel racing, fast group rides and long mixed-surface events.

Finished in Cashmere, the SuperX pairs race-focused handling with 40 mm Vittoria tyres and room for wider rubber when your route calls for it.

Not sure which model is right for you? Read our Cannondale gravel bike buyer’s guide or browse the full gravel bike collection.

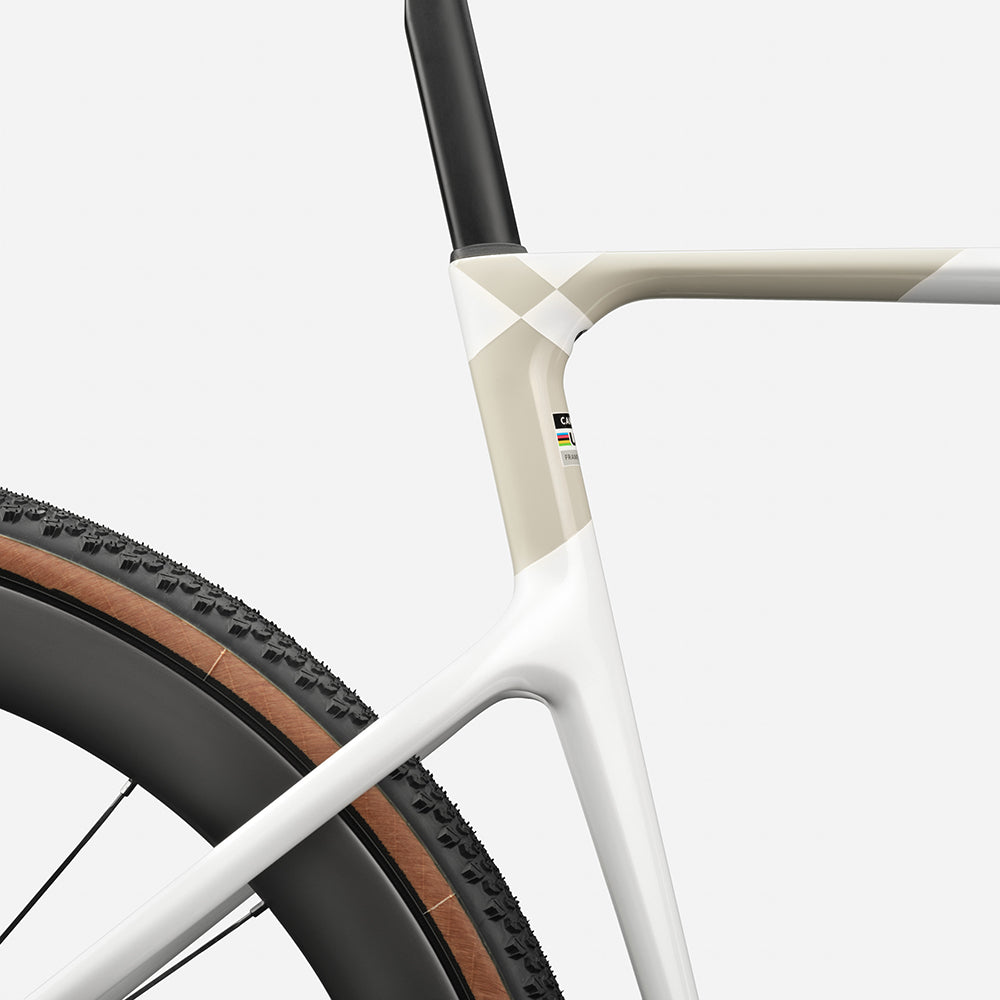

Carbon Frame Built for Speed

The SuperX carbon frame combines aerodynamic shaping with a responsive feel for accelerating, climbing and riding at pace. Cannondale’s Proportional Response construction adjusts the frame design across the size range to suit different riders.

Internal cable routing keeps the frame tidy, while a BSA threaded bottom bracket and UDH-compatible rear derailleur mount provide practical standards for servicing and component replacement.

Shimano GRX Di2 Electronic Shifting

Shimano GRX 825 Di2 provides precise electronic shifting for both front and rear derailleurs. The 2 × 12-speed setup suits riders who like smaller steps between gears when holding a steady pace on sealed roads or fast gravel.

The size 46 uses a shorter 165 mm GRX RX610 crankset with 46/30T chainrings. The size 61 uses a GRX RX820 crankset with 48/31T chainrings. Both are paired with an 11–34T cassette.

A 2x drivetrain offers useful gearing for mixed surfaces, though it adds a front derailleur compared with a single-chainring setup. If your rides include steep climbs with a loaded bike, talk to us about whether the gearing suits your routes.

Reserve Carbon Wheels

Reserve 40|44 GR carbon wheels give the SuperX a responsive feel when you pick up the pace. They are paired with DT Swiss 370 hubs and Vittoria Terreno T50 700 × 40c tyres for a fast-rolling setup suited to gravel and mixed surfaces.

The wheels and tyres are tubeless-ready, and Reserve Fillmore valves are listed with the bike. Sealant and final tubeless setup may still be required. Talk to our workshop if you would like the bike set up tubeless.

Control When the Gravel Gets Loose

Cannondale’s OutFront steering geometry pairs a relaxed head angle with a 55 mm fork offset. It helps the front end feel settled on loose surfaces and at speed, while remaining responsive when you need to change your line.

Shimano GRX 820 hydraulic disc brakes provide controlled stopping power on gravel descents and in changing weather. The bike uses 160 mm Shimano CL800 rotors front and rear.

Room for Wider Tyres

Cannondale lists SuperX clearance for tyres up to 48 mm at the frame and 51 mm at the fork. The frame is the limiting point when choosing tyres for both wheels.

Actual tyre width depends on the tyre, rim and pressure. The front derailleur may also affect clearance on a 2x setup, so check the measured clearance before fitting wider tyres and allow extra room for mud.

Clean Cockpit and Carbon Seatpost

The Vision Trimax Aero alloy handlebar and Cannondale C1 Conceal stem create a tidy cockpit, with the Delta Steerer allowing cables and hoses to pass through the front of the bike.

The C1 Aero 27 carbon seatpost has a D-shaped profile designed to provide controlled flex at the saddle. A Conceal stem accessory mount for a Garmin or Wahoo computer is listed by Cannondale.

Key Features

• SuperX carbon frame and fork
• Proportional Response size-specific construction
• OutFront steering geometry with 55 mm fork offset
• Shimano GRX 825 Di2 2 × 12-speed electronic shifting
• Shimano GRX 820 hydraulic disc brakes
• Shimano Ultegra 11–34T cassette
• Reserve 40|44 GR tubeless-ready carbon wheels
• DT Swiss 370 hubs
• Vittoria Terreno T50 700 × 40c tubeless-ready tyres
• Vision Trimax Aero alloy handlebar
• Delta Steerer and Cannondale C1 Conceal stem
• Cannondale C1 Aero 27 carbon seatpost
• Tyre clearance up to 48 mm at the frame and 51 mm at the fork
• Reserve Fillmore valves and Shimano Di2 charger listed as included
• Cashmere finish
• Pedals not included

Who Is It For?

• Gravel racing and fast gravel events
• Riders who enjoy pushing the pace on mixed surfaces
• Long training rides on gravel and sealed roads
• Riders who prefer closer steps between gears
• Cyclocross riding with suitable tyres
• Riders wanting GRX Di2 electronic shifting
• Anyone looking for a carbon gravel race bike with carbon wheels

Our Thoughts

The SuperX 2 is a good choice if you want a fast gravel bike and prefer the smaller gear changes of a 2x drivetrain. GRX Di2 takes care of shifting, while the carbon frame and Reserve wheels give the bike the responsive feel you want when the pace lifts.

Compared with the Topstone, the SuperX is more focused on speed and has a more direct feel, without Kingpin rear suspension. If your priority is comfort over long, rough roads, the Topstone may suit you better. If you are lining up for gravel events or enjoy fast rides on mixed surfaces, the SuperX is worth a closer look.

Specifications

Frame and Fork

• Frame: SuperX carbon, Proportional Response construction, internal cable routing, UDH compatible and flat-mount disc
• Fork: SuperX carbon, integrated crown race, Delta Steerer, internal routing and flat-mount disc
• Fork offset: 55 mm
• Headset: Integrated, 1-1/8-inch to 1-1/2-inch
• Front axle: 12 × 100 mm thru-axle
• Rear axle: 12 × 142 mm thru-axle
• Bottom-bracket shell: 68 mm BSA threaded
• Stated maximum tyre clearance: 48 mm frame / 51 mm fork; check clearance with the 2x drivetrain and fitted tyres

Drivetrain

• Shifters: Shimano GRX 825 Di2, 2 × 12-speed
• Front derailleur: Shimano GRX 825 Di2, braze-on
• Rear derailleur: Shimano GRX 825 Di2, Shadow RD+
• Crankset, size 46: Shimano GRX RX610, 46/30T, 165 mm
• Crankset, size 61: Shimano GRX RX820, 48/31T, 175 mm
• Cassette: Shimano Ultegra R8100, 11–34T, 12-speed
• Chain: Shimano M8100, 12-speed
• Bottom bracket: Shimano BSA 68
• Pedals: Not included

Brakes

• Brakes: Shimano GRX 820 hydraulic disc
• Brake levers: Shimano GRX Di2 RX825 hydraulic disc
• Rotors: Shimano CL800, 160 mm front and rear

Wheels and Tyres

• Wheels: Reserve 40|44 GR carbon, Turbulent Aero Tech, 24-hole, tubeless-ready
• Front hub: DT Swiss 370, 12 × 100 mm, Centre Lock
• Rear hub: DT Swiss 370 LN Ratchet System, 12 × 142 mm, Centre Lock
• Spokes: Sapim CX-Delta J-bend
• Tyres: Vittoria Terreno T50, 700 × 40c, tubeless-ready

Cockpit and Contact Points

• Handlebar: Vision Trimax Aero alloy
• Stem: Cannondale C1 Conceal alloy, -6 degrees
• Bar tape: Cannondale Bar Tape, 3.5 mm
• Saddle: Prologo Dimension AGX T4.0
• Seatpost: Cannondale C1 Aero 27 carbon

Additional Details

• Colour: Cashmere
• Sizes listed: 46 and 61 cm
• Extras: Reserve Fillmore valves and Shimano Di2 charger

Select your preferred size to check current availability.

Size Guide

The right SuperX size depends on your height, body proportions and preferred riding position. Contact Chain Reaction for personalised sizing advice before ordering, particularly if you are between sizes.

Why Buy from Chain Reaction?

• Official Cannondale dealer
• Professionally assembled, tuned and safety checked
• Brakes professionally checked and bedded in
• Shimano Di2 shifting checked and configured
• Expert gravel-bike sizing and setup advice
• Help choosing tyres and setting up tubeless
• Practical advice on charging, care and maintenance
• Finance and WorkRide options available

Visit Chain Reaction at 4/218 Moorhouse Avenue, Christchurch. There are more than 200 free car parks on-site, along with plenty of room to discuss sizing and setup.

Specifications are based on supplier and manufacturer information and may change without notice. Components can vary between production batches. Pedals are not included; please contact us if a particular component or accessory is important to your purchase.
