A fast carbon gravel bike with dependable mechanical gearing.

The Cannondale SuperX 3 is built for riders who enjoy pushing the pace when the road turns to gravel. Its carbon frame, Shimano GRX 2 × 12-speed drivetrain and DT Swiss wheels make it a good choice for gravel events, fast group rides and long mixed-surface days.

Finished in Raw, the SuperX pairs race-focused handling with 40 mm Vittoria tyres and room for wider rubber when your route calls for it.

Not sure which model is right for you? Read our Cannondale gravel bike buyer’s guide or browse the full gravel bike collection.

Carbon Frame Built for Speed

The SuperX carbon frame combines aerodynamic shaping with a responsive feel for accelerating, climbing and riding at pace. Cannondale’s Proportional Response construction adjusts the frame design across the size range to suit different riders.

Internal cable routing keeps the frame tidy, while a BSA threaded bottom bracket and UDH-compatible rear derailleur mount use practical standards for servicing and component replacement.

Shimano GRX Mechanical Gearing

Shimano GRX 820 provides dependable mechanical shifting designed for gravel riding. The 2 × 12-speed setup offers smaller steps between many gears than a wide-range 1x drivetrain, which is useful when you want to hold a steady cadence on sealed roads or fast gravel.

The Shimano 105 11–36T cassette provides a useful range for rolling terrain and climbs. With cable-operated shifting, there are no drivetrain batteries to charge before your next ride.

DT Swiss Wheels and Vittoria Tyres

DT Swiss G1800 Spline wheels are paired with DT Swiss 370 hubs and Vittoria Terreno T50 700 × 40c tyres. The 40 mm tyres provide useful volume for gravel while rolling well on the sealed sections between routes.

The tyres are tubeless-ready and tubeless valves are listed with the bike. Sealant and final setup may still be required. Talk to our workshop if you would like help setting the bike up tubeless.

Control When the Gravel Gets Loose

Cannondale’s OutFront steering geometry pairs a relaxed head angle with a 55 mm fork offset. It helps the bike feel settled on loose surfaces and at speed, while remaining responsive when you need to change your line.

Shimano GRX 820 hydraulic disc brakes provide controlled stopping power on gravel descents and in changing weather. The bike uses 160 mm Shimano CL800 rotors front and rear.

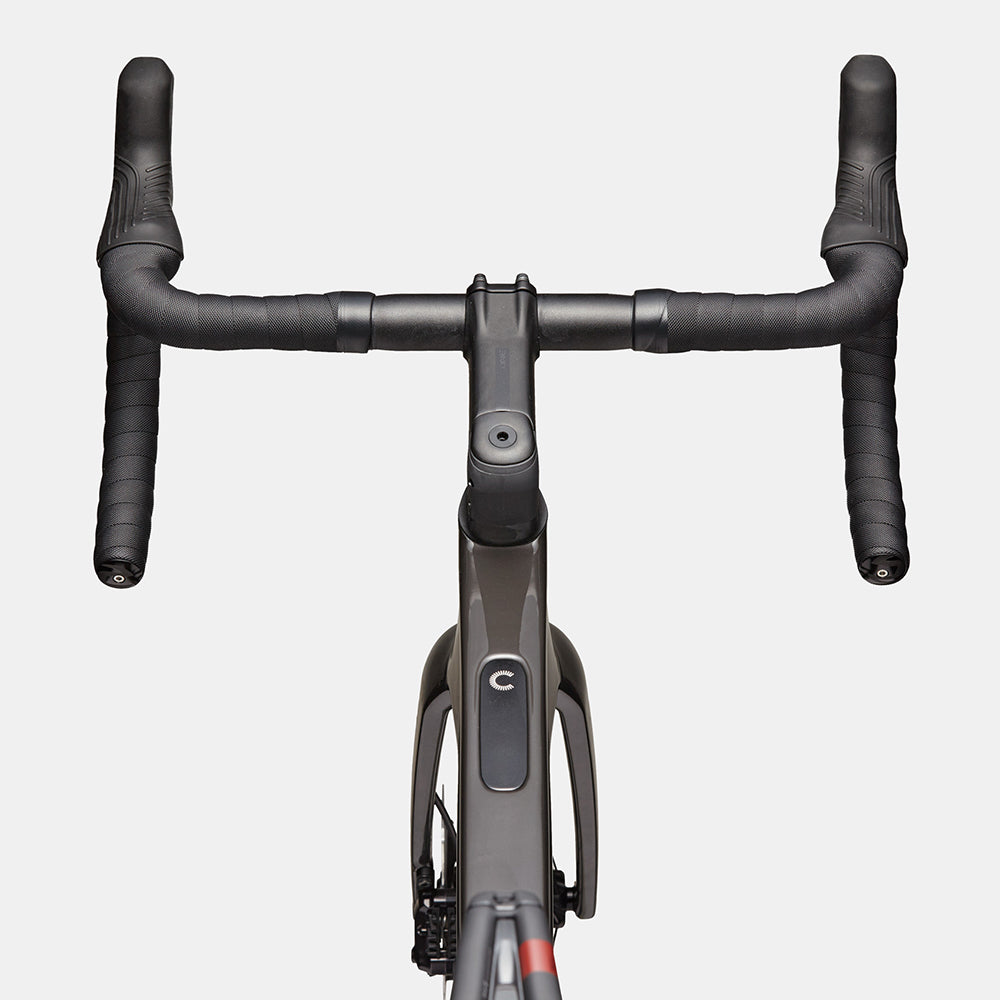

Delta Steerer and Conceal Stem

The Delta Steerer and Cannondale C1 Conceal stem route cables neatly through the front of the bike. The compact Cannondale C2 alloy handlebar provides a familiar position for riding on the hoods or in the drops.

At the saddle, the C1 Aero 27 carbon seatpost has a D-shaped profile designed to provide controlled flex while keeping the frame’s streamlined appearance.

Room for Wider Tyres

Cannondale lists SuperX clearance for tyres up to 48 mm at the frame and 51 mm at the fork. The frame is the limiting point when choosing tyres for both wheels.

Actual tyre width depends on the tyre, rim and pressure. The front derailleur may also affect clearance on a 2x setup, so check the measured clearance before fitting wider tyres and allow extra room for mud.

Key Features

• SuperX carbon frame and fork
• Proportional Response size-specific frame construction
• OutFront steering geometry with 55 mm fork offset
• Shimano GRX 820 2 × 12-speed mechanical shifting
• Shimano 105 11–36T cassette
• Shimano GRX 820 hydraulic disc brakes
• DT Swiss G1800 Spline wheels with DT Swiss 370 hubs
• Vittoria Terreno T50 700 × 40c tubeless-ready tyres
• Delta Steerer and Cannondale C1 Conceal stem
• Cannondale C1 Aero 27 carbon seatpost
• Tyre clearance up to 48 mm at the frame and 51 mm at the fork
• Tubeless valves listed as included
• Raw finish
• Pedals not included

Who Is It For?

• Gravel racing and fast gravel events
• Riders who enjoy pushing the pace on mixed surfaces
• Long training rides on gravel and sealed roads
• Riders who prefer closer steps between gears
• Cyclocross riding with suitable tyres
• Riders who prefer mechanical shifting
• Anyone looking for a responsive carbon gravel bike

Our Thoughts

The SuperX 3 is a good choice if you want a fast gravel bike without moving to electronic shifting. GRX 820 is a dependable mechanical groupset, and the 2x drivetrain makes sense for rides that mix gravel with longer sealed-road sections.

Compared with the Topstone, the SuperX is more focused on speed and has a more direct feel, without Kingpin rear suspension. If comfort on long, rough roads is your main priority, the Topstone may suit you better. If you enjoy fast gravel rides and events, the SuperX is worth a closer look.

Specifications

Frame and Fork

• Frame: SuperX carbon, Proportional Response construction, internal cable routing, UDH compatible and flat-mount disc
• Fork: SuperX carbon, integrated crown race, Delta Steerer, internal routing and flat-mount disc
• Fork offset: 55 mm
• Headset: Integrated, 1-1/8-inch to 1-1/2-inch
• Front axle: 12 × 100 mm thru-axle
• Rear axle: 12 × 142 mm thru-axle
• Bottom-bracket shell: 68 mm BSA threaded
• Stated maximum tyre clearance: 48 mm frame / 51 mm fork; check clearance with the 2x drivetrain and fitted tyres

Drivetrain

• Shifters: Shimano GRX 820, 2 × 12-speed
• Front derailleur: Shimano GRX 820, braze-on
• Rear derailleur: Shimano GRX 820 Shadow RD+
• Crankset: Shimano GRX RX820
• Cassette: Shimano 105 7100, 11–36T, 12-speed
• Chain: Shimano M8100, 12-speed
• Bottom bracket: Shimano BSA 68
• Pedals: Not included

Brakes

• Brakes: Shimano GRX 820 hydraulic disc
• Brake levers: Shimano GRX RX820 hydraulic disc
• Rotors: Shimano CL800, 160 mm front and rear

Wheels and Tyres

• Wheels: DT Swiss G1800 Spline, 24 mm internal width and 25 mm depth
• Front hub: DT Swiss 370, 12 × 100 mm, Centre Lock
• Rear hub: DT Swiss 370, 12 × 142 mm, Centre Lock
• Spokes: DT Swiss Aero Comp
• Tyres: Vittoria Terreno T50, 700 × 40c, tubeless-ready
• Extras: Tubeless valves

Cockpit and Contact Points

• Handlebar: Cannondale C2 compact, 7050 alloy
• Stem: Cannondale C1 Conceal alloy, 31.8 mm clamp, -6 degrees
• Bar tape: Cannondale Bar Tape, 3.5 mm
• Saddle: Prologo Dimension AGX STN
• Seatpost: Cannondale C1 Aero 27 carbon

Sizes and Colour

• Sizes listed: 54 and 58 cm
• Colour: Raw

Select your preferred size to check current availability.

Size Guide

The right SuperX size depends on your height, body proportions and preferred riding position. Contact Chain Reaction for personalised sizing advice before ordering, particularly if you are between sizes.

Why Buy from Chain Reaction?

• Official Cannondale dealer
• Professionally assembled, tuned and safety checked
• Brakes professionally checked and bedded in
• Gears adjusted and drivetrain tuned
• Expert gravel-bike sizing and setup advice
• Help choosing tyres and setting up tubeless
• Practical maintenance advice at handover
• Finance and WorkRide options available

Visit Chain Reaction at 4/218 Moorhouse Avenue, Christchurch. There are more than 200 free car parks on-site, along with plenty of room to discuss sizing and setup.

Specifications are based on supplier and manufacturer information and may change without notice. Components can vary between production batches. Pedals are not included; please contact us if a particular component is important to your purchase.
