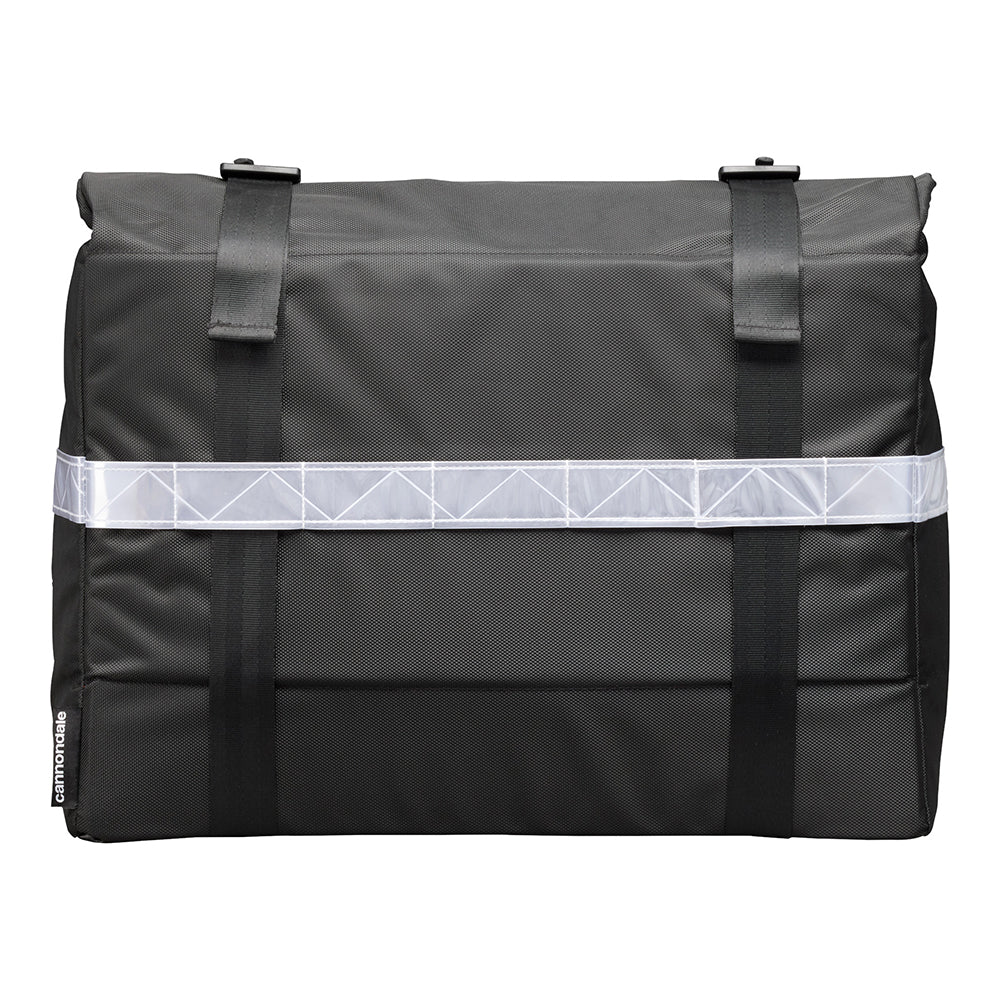

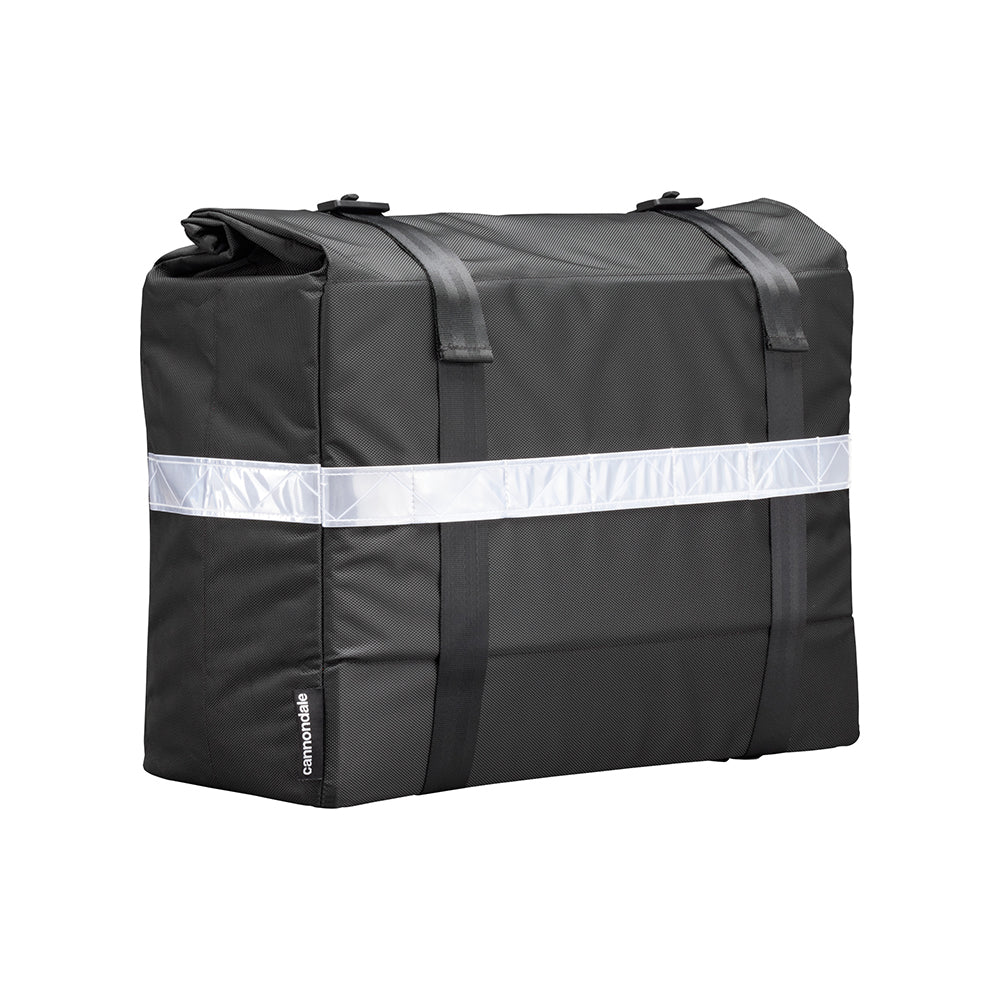

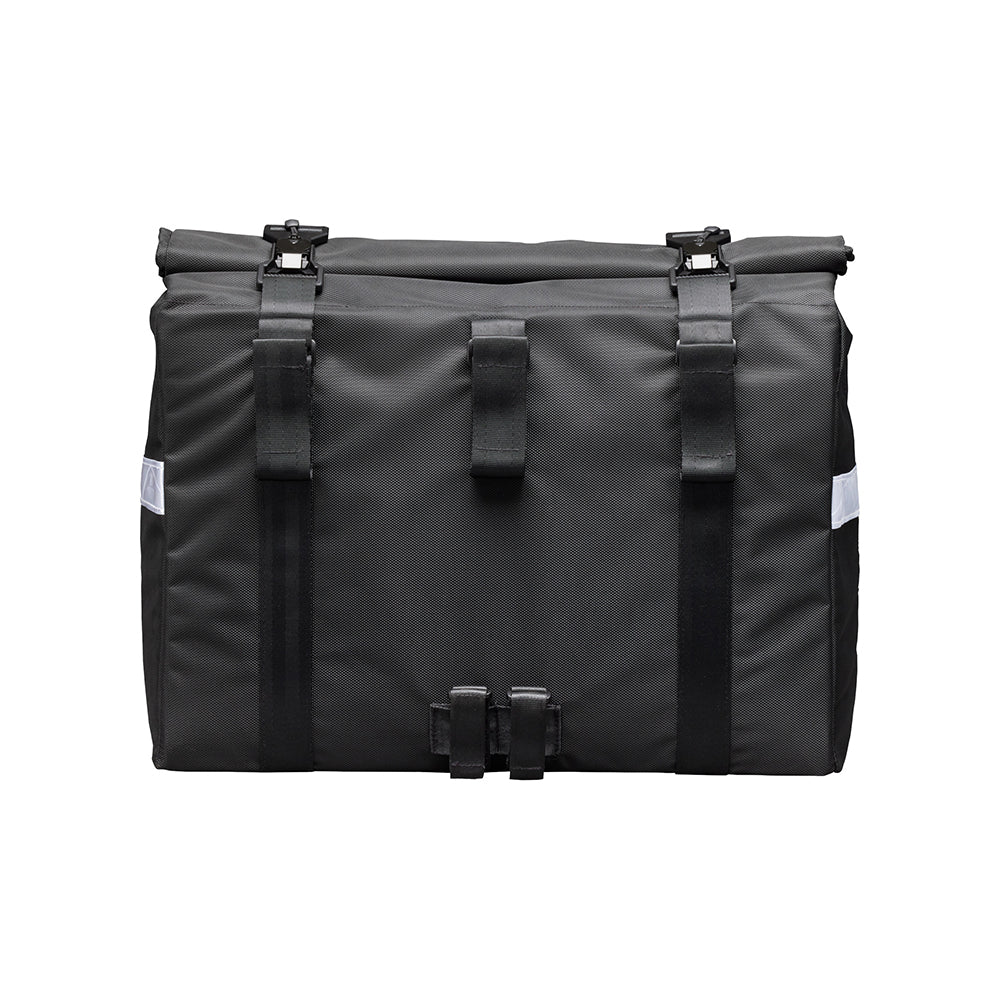

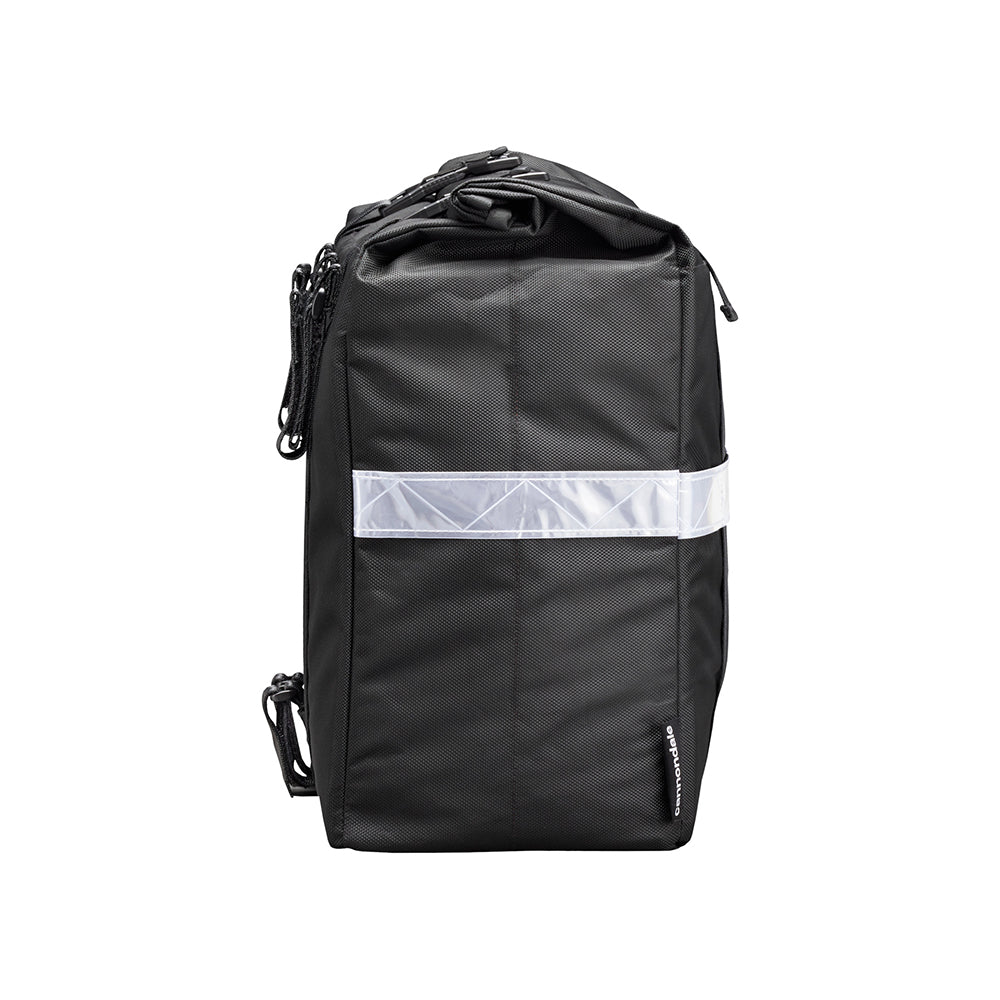

Cannondale Cargowagen Neo Contain Pannier 48L Black

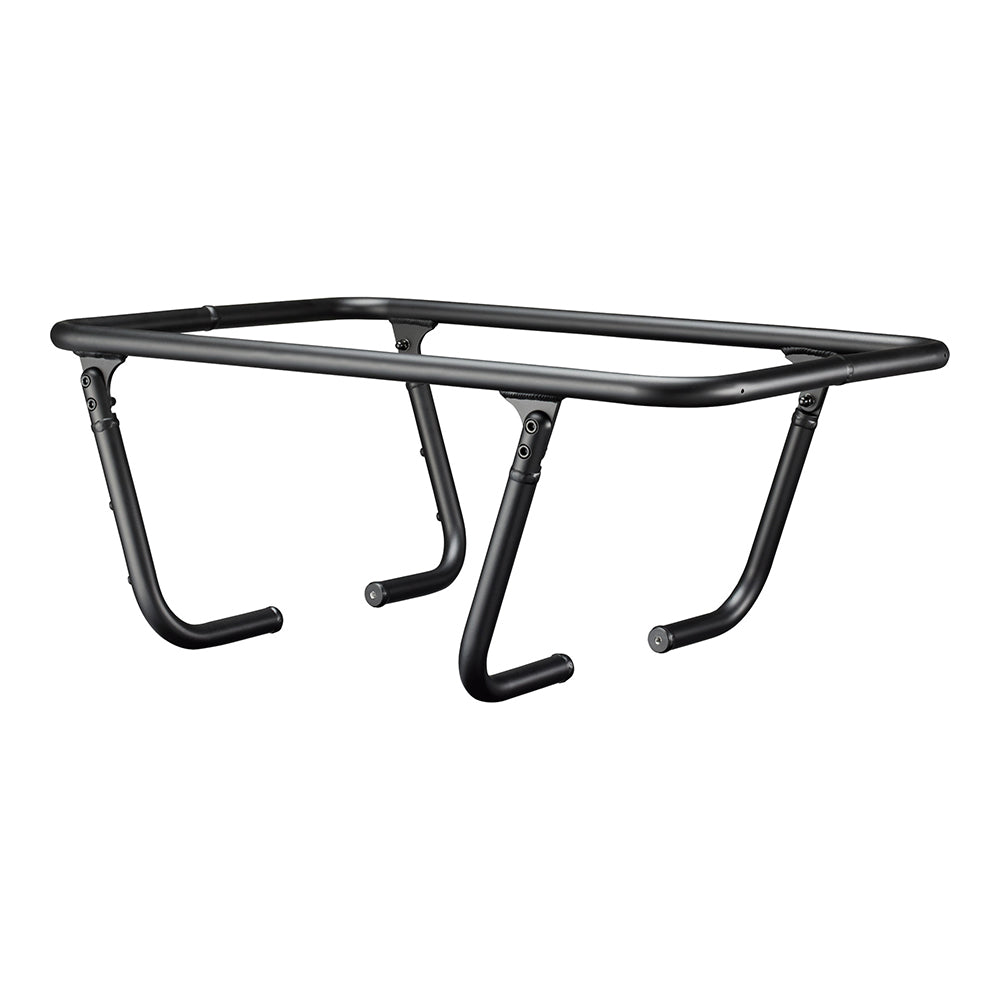

Cannondale Cargowagen Neo Surround Rails Black

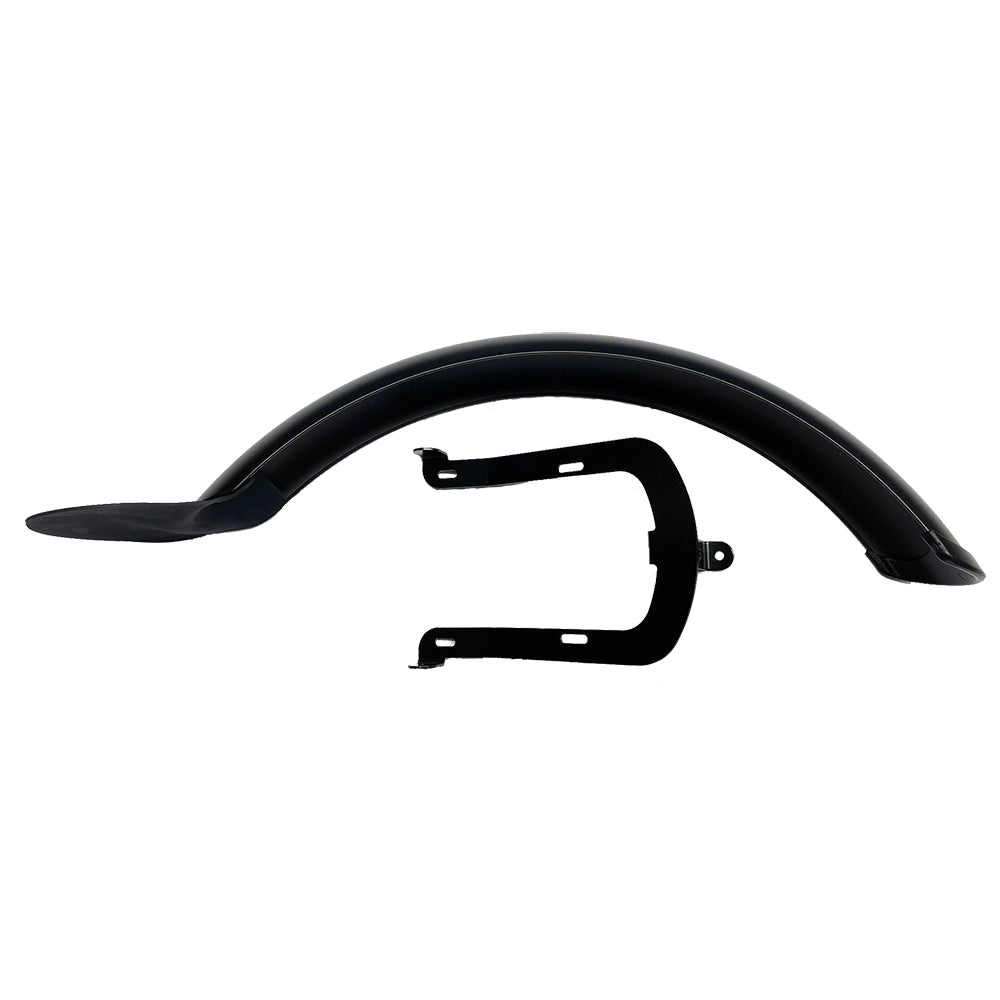

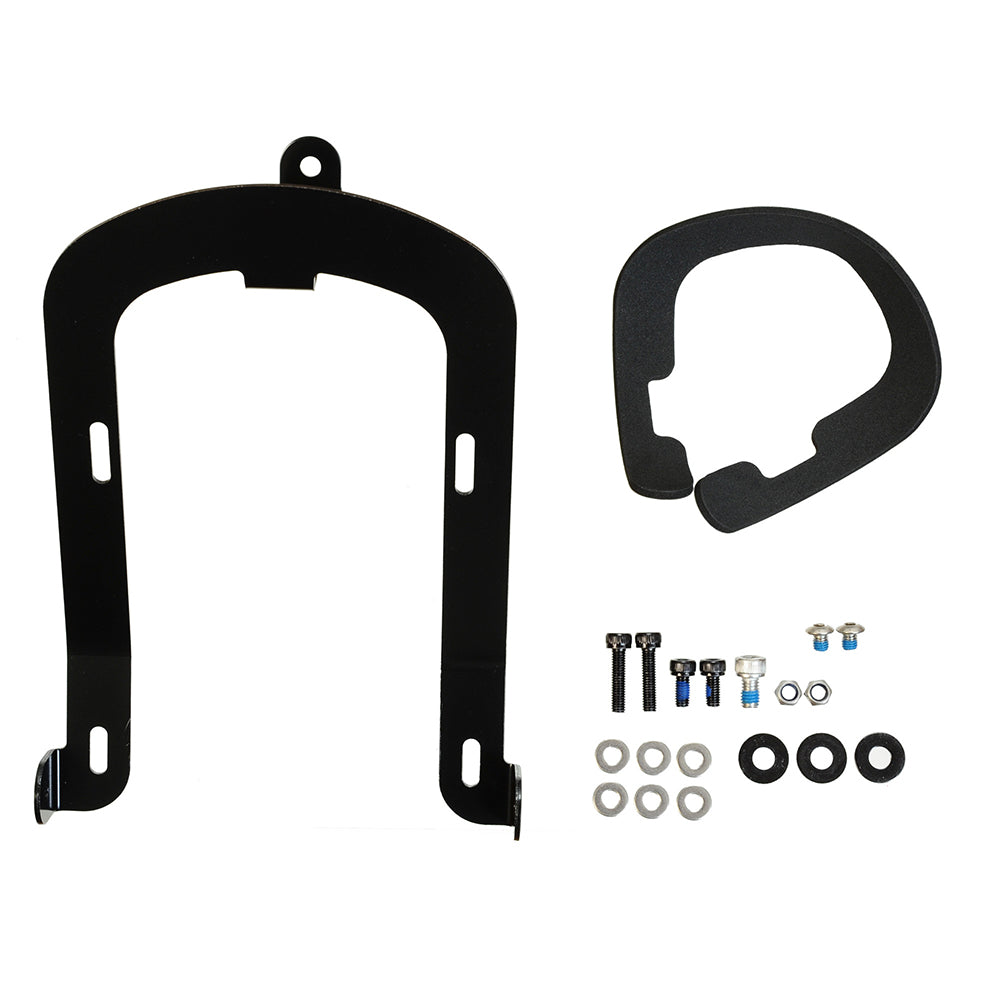

Cannondale Cargowagen Neo Lock / Front Fender Hardware

Cannondale Cargowagen Neo Rack Running Boards

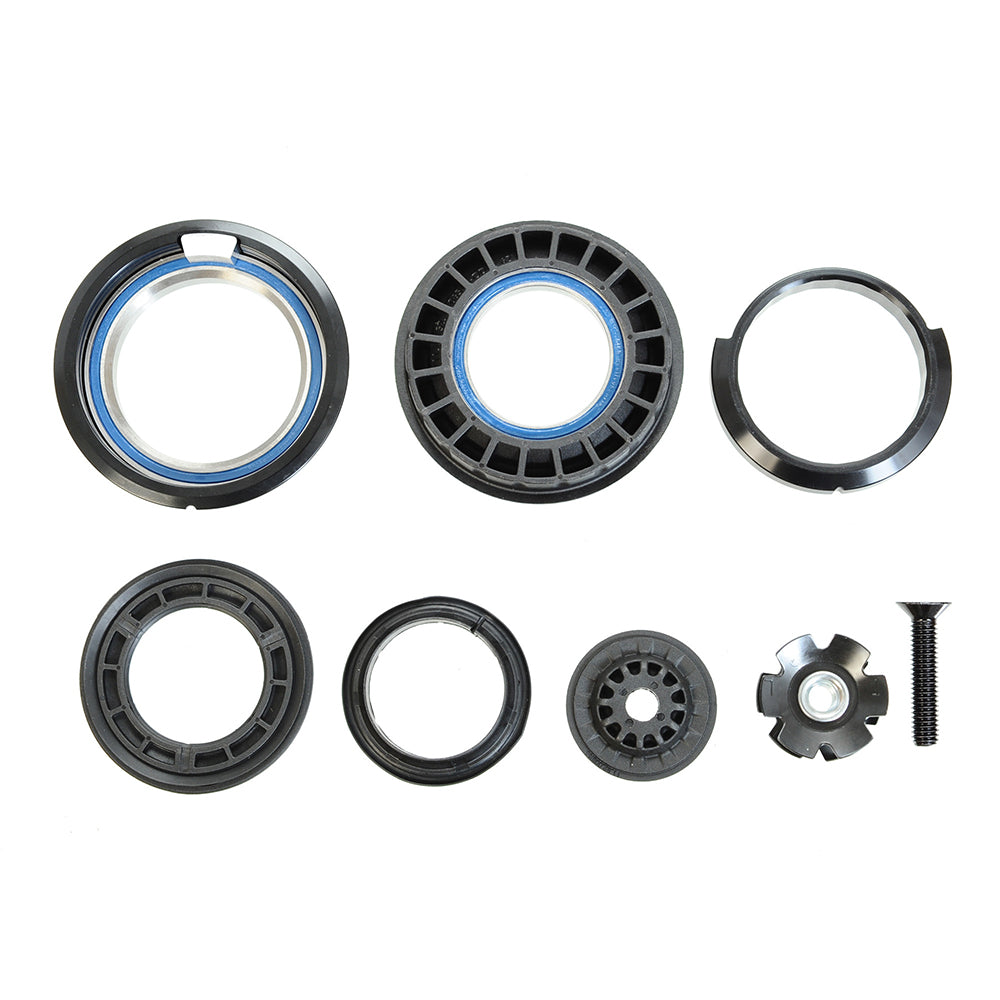

Cannondale Cargowagen Neo 1.5" Semi Internal BlockLock Headset 28.6/56-56/40

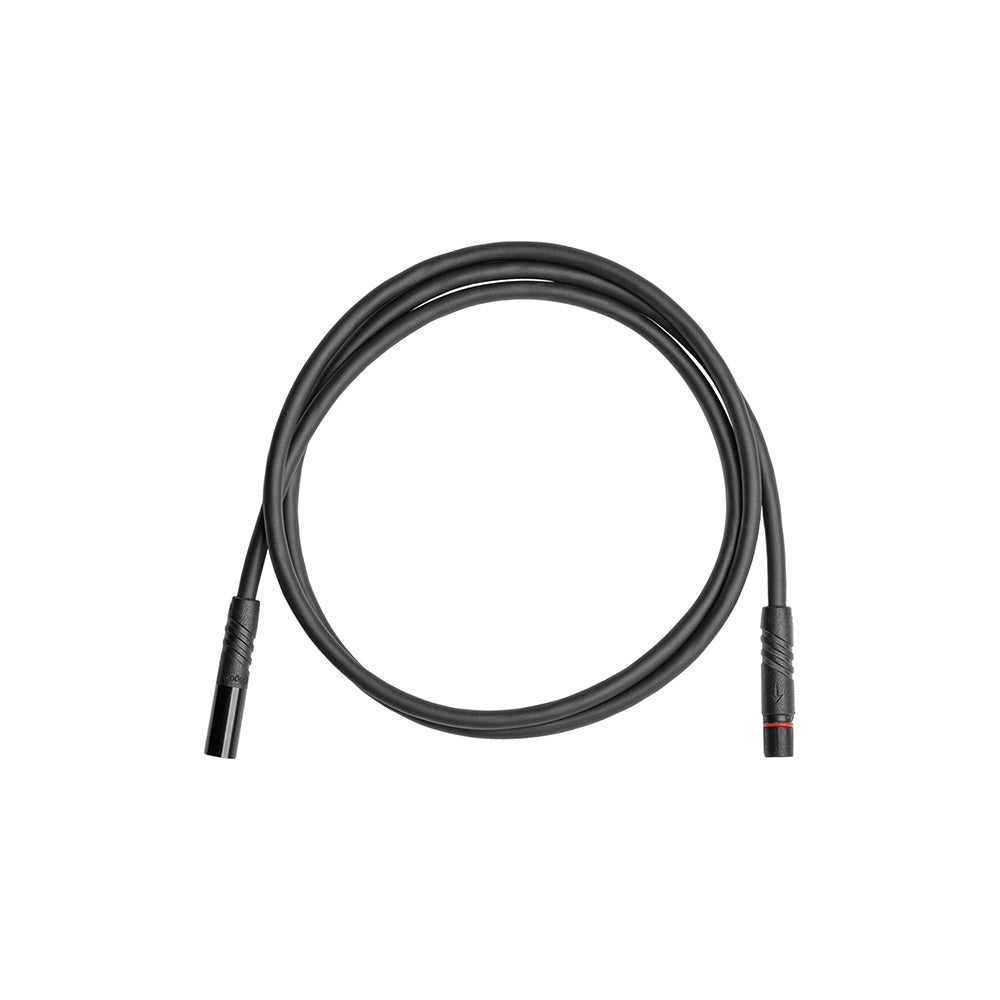

Cannondale Cargowagen Neo Higo Extension Cable 400mm

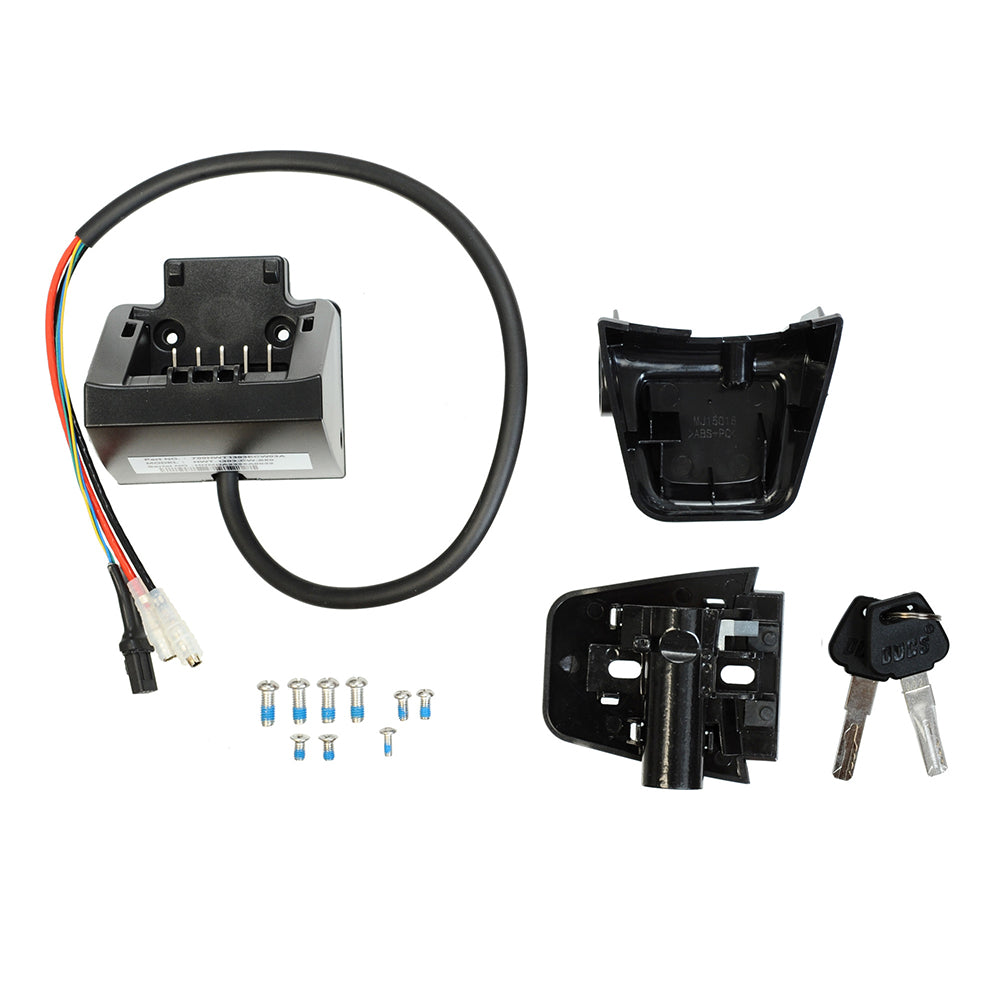

Cannondale Cargowagen Neo Battery Mount Bracket

Cannondale Jekyll, Trigger Rear Derailleur Hanger

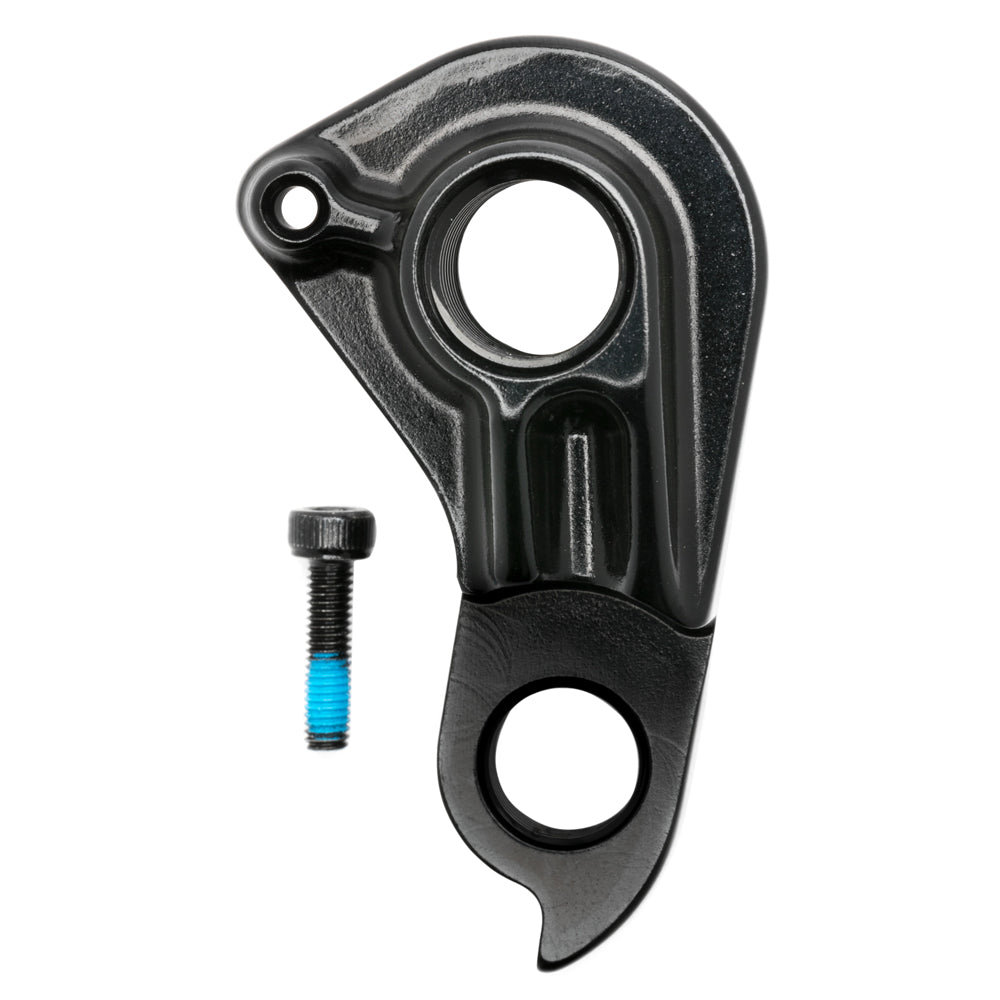

Cannondale Hanger Jekyll Trigger Cujo Neo Habit

Gallery
Description

Description

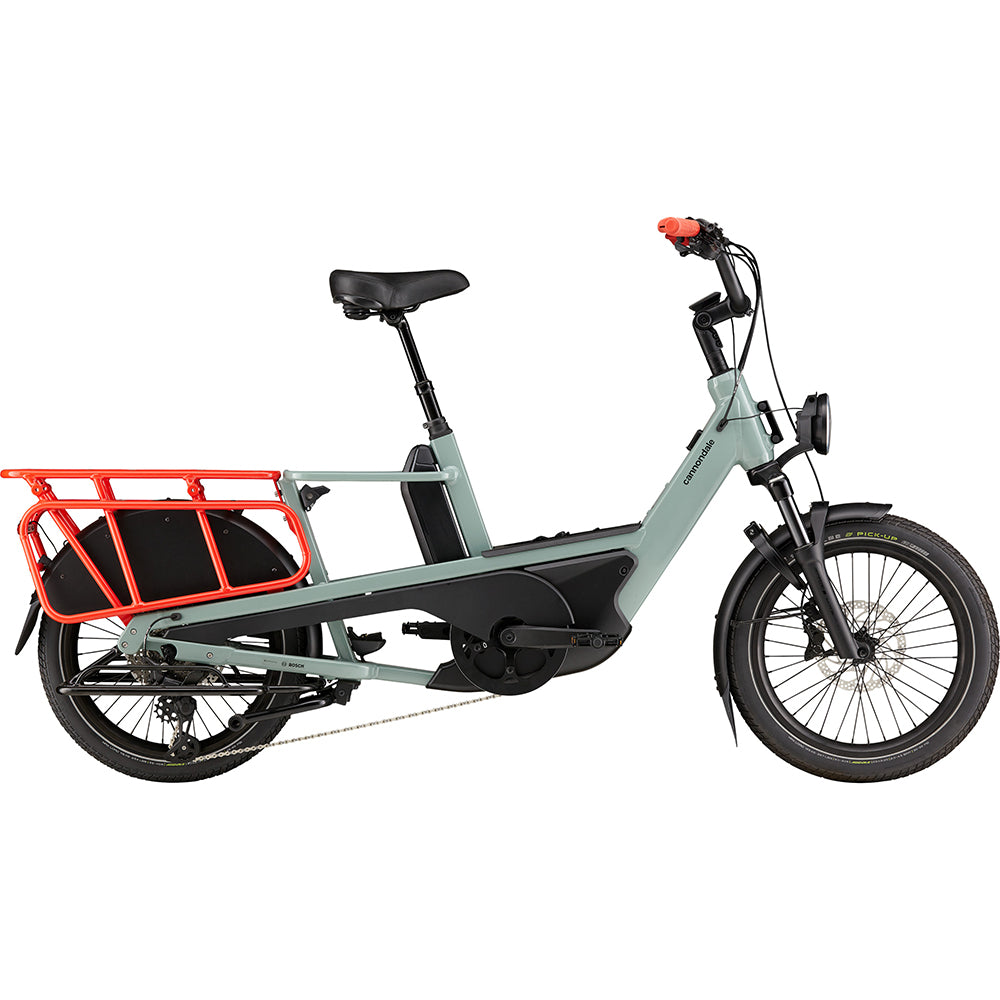

Cargowagen Neo Spares

Head Tube - UPR:1-1/2”, LWR: 1-1/2”
Headset - Semi-Integrated, 1.5” Straight – ACROS Blocklock ZS56 top, ZS56 bottom
Bottom Bracket: Type / Width - Bosch Drive Unit
Front Derailleur - N/A
Seat Post: Dia./Binder - 31.6mm/34.9mm
Min. Seat Post Insert - 100 mm
Max. Frame Seat post Insert Depth - 290 mm
Specified Tire - Schwalbe Pick-Up Perf, Super Defense, Twinskin, 60-406 B/B+Rt Hs609 Addix E 2x67epi 36b
Tire Size x Max. Width - Front: 20” x 2.6” (measured) Rear: Derailleur 20” x 2.15” (measured), IGH 20” x 2.35” (measured)
Max. Fork Length - 404.8mm
Brakes: Mount Type / Min./Max. Rotor Dia.- RR: Post Mount/203mm/203mm
Max. Front Rack Weight Limit - 15kg
Max. Rear Rack Weight Limit - 80kg
Brakes: Mount Type/Min/Max Rotor Diameter - Post Mount / 180 mm/203 mm
Axles: Type/Length - RR: Maxle TA/148 x 12mm x 1.75P, 180mm Overall Length
Total Maximum Weight Limit (Bike + Rider + Passengers+ Cargo + Accessories/ Trailer) - 200kg
Bike Weight - 39 kg

Cannondale Cargowagen Spares

$80.91

$89.90$8.99 OFF

Tax included. Shipping calculated at checkout

SKU:
FRCACP1653U10OS
BRAND:
Cannondale

Select stock item

Product variants

Please note that some dropdown options are parts only. Please choose carefully.
