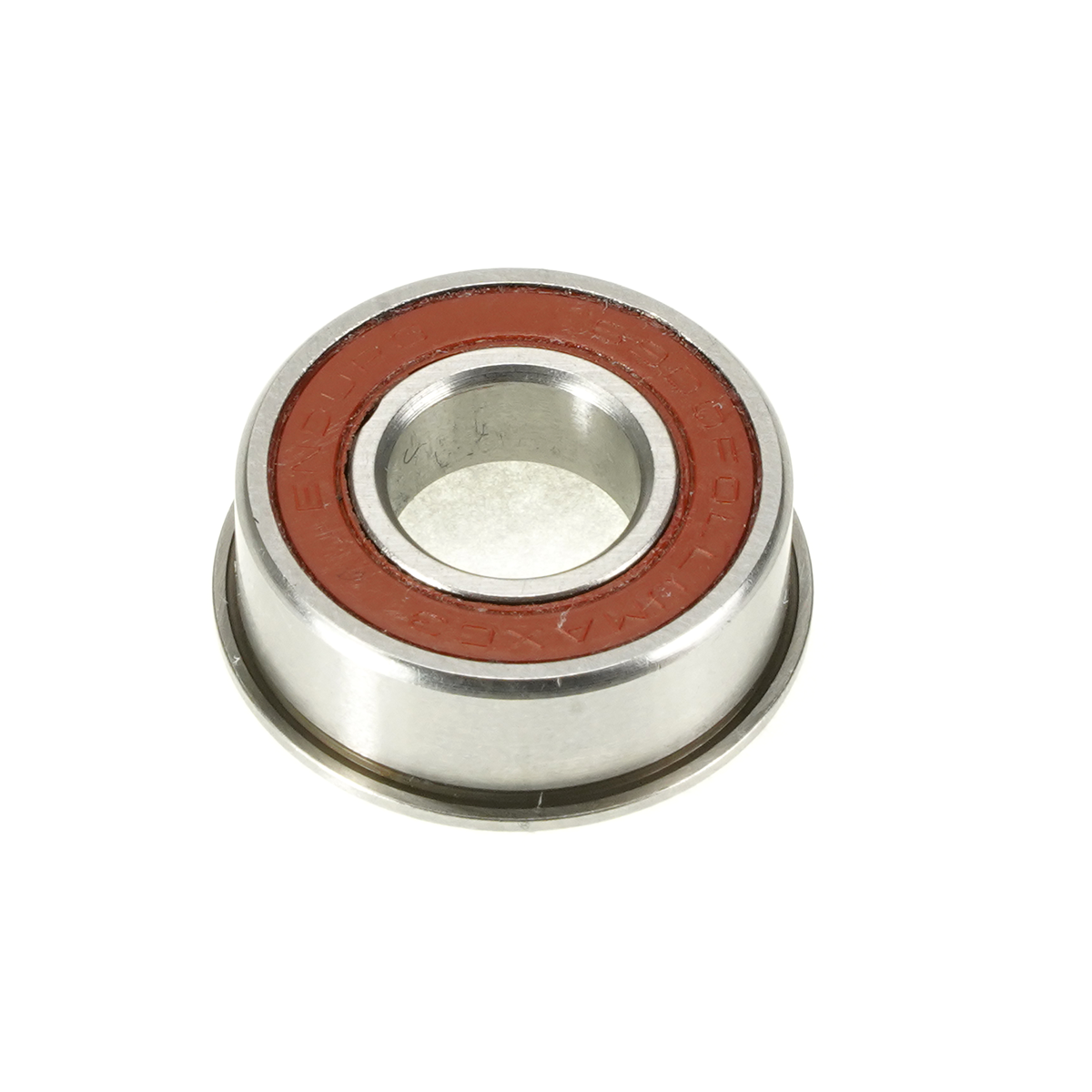

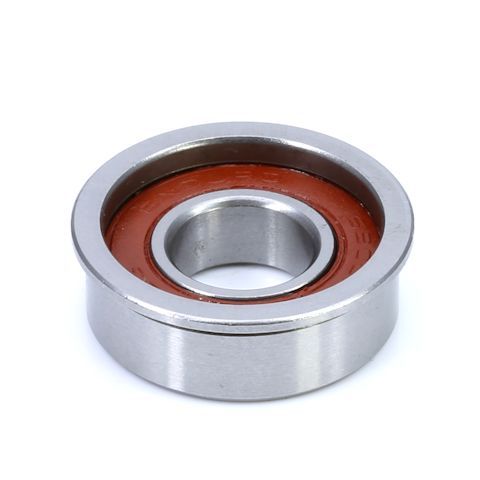

6900 FO LLU - ABEC-3, Flanged, Offset, Radial Bearing (C3 Clearance) - 10mm 22/24mm x 6/8mm -

This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Mobil XHP 222 Extra High Pressure Grease inside. The flanged design ensures precise insertion into through-holes in swing-arms and suspension linkages while the offset inner race is designed specifically to fit in 2015+ Giant Trance.

This bearing has been used exclusively as a suspension pivot bearing for Giant bikes.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 477lbf / 2.12kN
Weight - 11.4g
