Description

6808 LLU MAX - MAX-Type, ABEC-3 radial suspension bearing - 40mm x 52mm x 7mm -

Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings provide greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside.

This bearing has been used as a suspension pivot bearing by multiple small bicycle brands including Pole Bikes.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating full labyrinth to provide long life and superior protection against the elements.

Static load - 2037lbf / 9.06kN
Weight - 32.4g

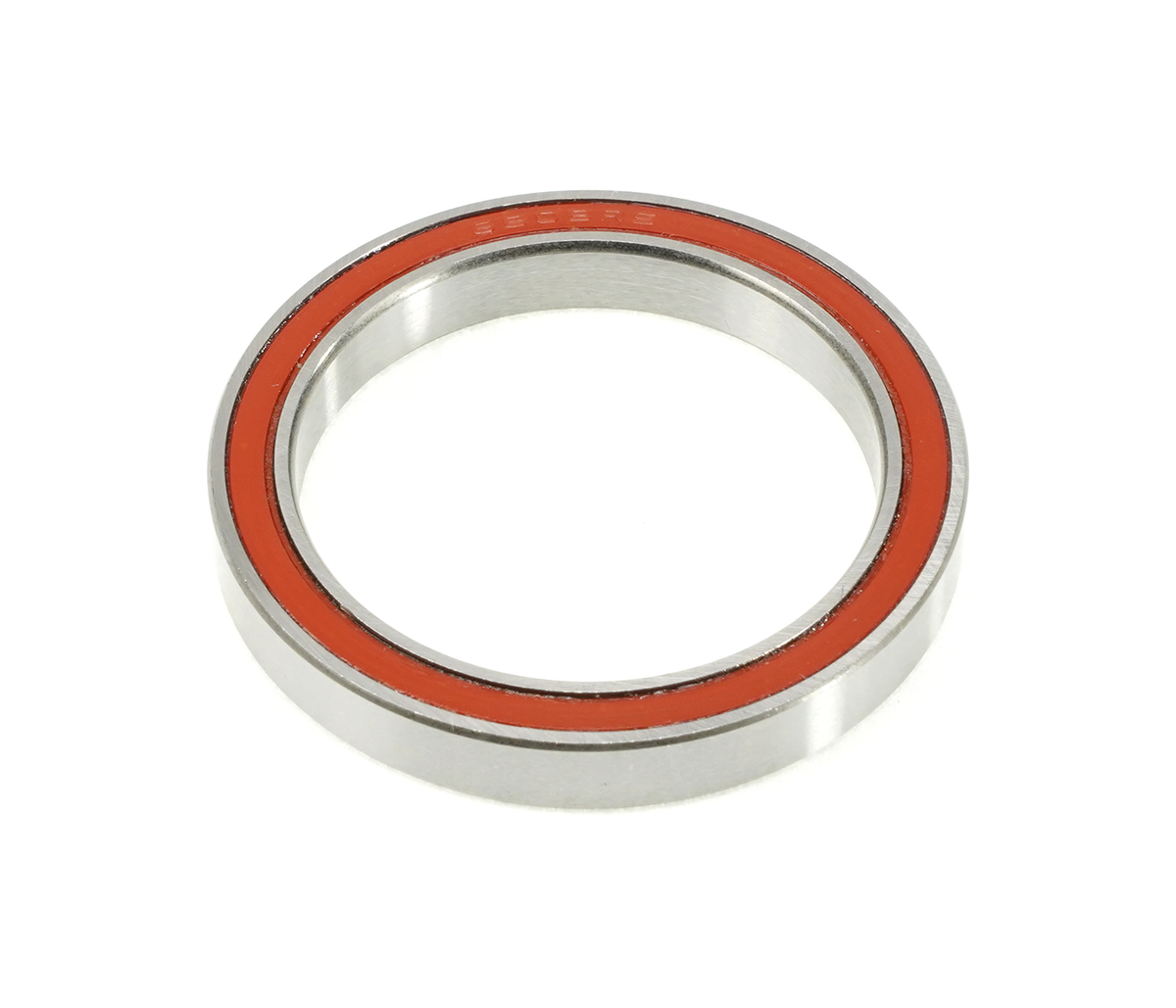

Enduro Max Radial Bearing 6808 40 x 52 x 7

Regular price $33.70

Tax included. Shipping calculated at checkout

  • SKU:
    BEEN1152
  • BRAND:
  • BARCODE:
    810191011422

FAST SHIPPING

14 DAY RETURNS

EXPERT SUPPORT

Note on Availability Items available on our website are not always available in-store, some are only held by our suppliers. In-store items usually arrive 2-3 business days after the order is dispatched (rural deliveries can take an extra 2 business days). Items only held with supplier might take up to 7 business days from when the order is dispatched, depending on the supplier. Please contact us if you have specific questions.

6808 LLU MAX - MAX-Type, ABEC-3 radial suspension bearing - 40mm x 52mm x 7mm -

Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings provide greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside.

This bearing has been used as a suspension pivot bearing by multiple small bicycle brands including Pole Bikes.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating full labyrinth to provide long life and superior protection against the elements.

Static load - 2037lbf / 9.06kN
Weight - 32.4g

Enduro Max Radial Bearing 6808 40 x 52 x 7
