607 LLB - ABEC-3 radial Bearing (C3 clearance) - 7mm x 19mm x 6mm -

ABEC3

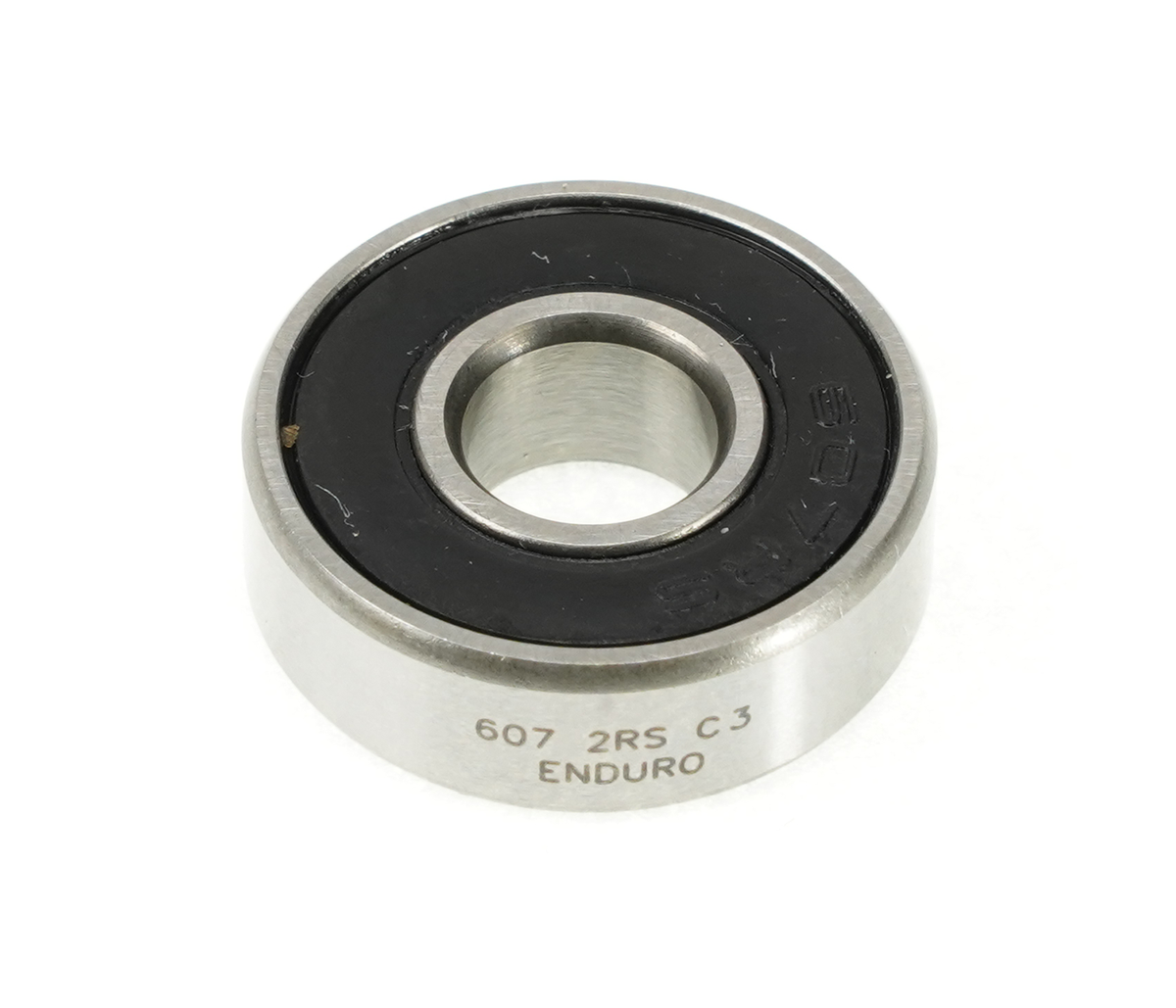

This ABEC-3 radial bearing features 52100 High-Carbon Chromium alloy races paired with Grade 10 balls and full-contact, dual-lip labyrinth (LLB) seals to withstand the outside elements, and to contain the 90% fill Mobil XHP 222 high pressure water proof synthetic grease.

ABEC5

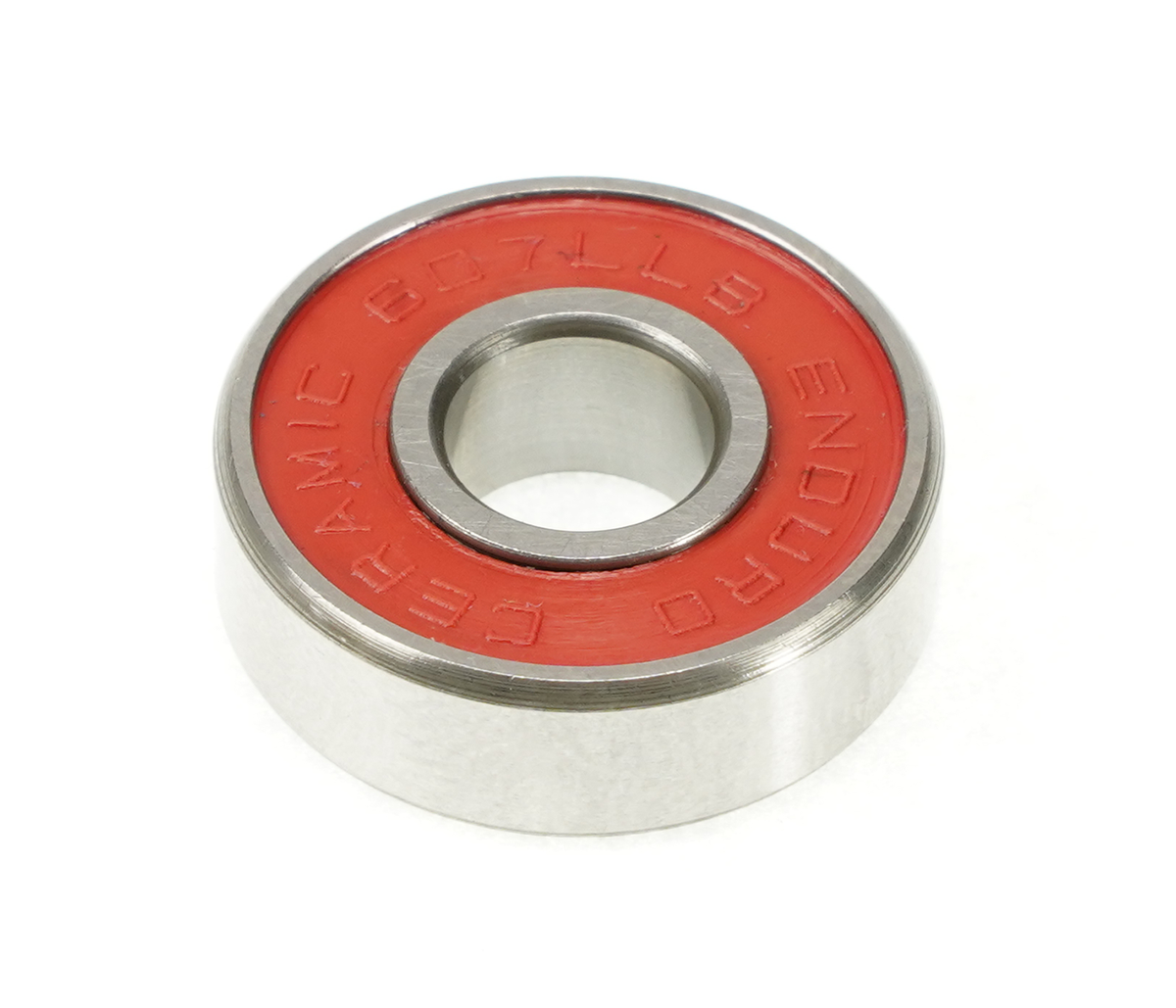

This ABEC-5, Ceramic-hybrid bearing features deep-groove design 52100 High-Carbon Chromium alloy races, with grade 5 Silicon-Nitride Ceramic balls, dual-lip labyrinth (LLB) seals to withstand the outside elements, and to contain the 90% fill Kluber NBU52 ultra-smooth and sticky, water-proof grease. Si3N4 Ceramic balls reduce bearing wear and increase bearing life by eliminating steel on steel contact within the bearing.

Not a particularly popular bearing, this radial bearing has been used primarily as a pedal bearing.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 286lbf / 1.27kN
Weight - 7.4g
