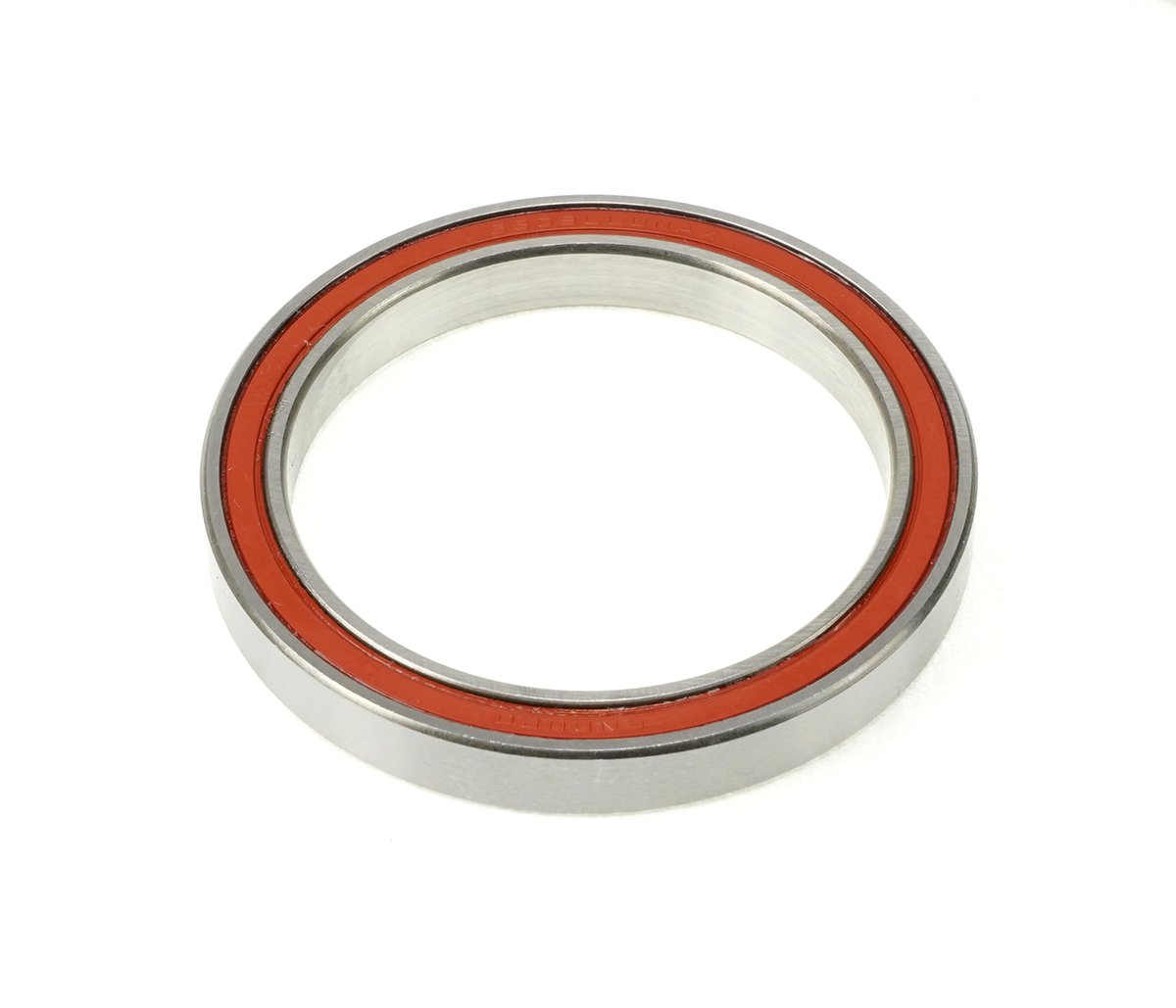

6809 LLU/CN - ABEC-3, radial suspension bearing (CN Clearance) 45mm x 58mm x 7mm -

This ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside.

This size bearing has been used as a suspension pivot bearing by Devinci Cycles and Intense.

Also used in Bosch Bosch Generation 2 motor BDU2xx (NOTE: Small chainring) Active Line, Performance Line & Performance Line CX drive units as a main motor bearing - Bosch part PLB00518

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 1156lbf / 5.14kN
Weight - 33.1g
