Force 4

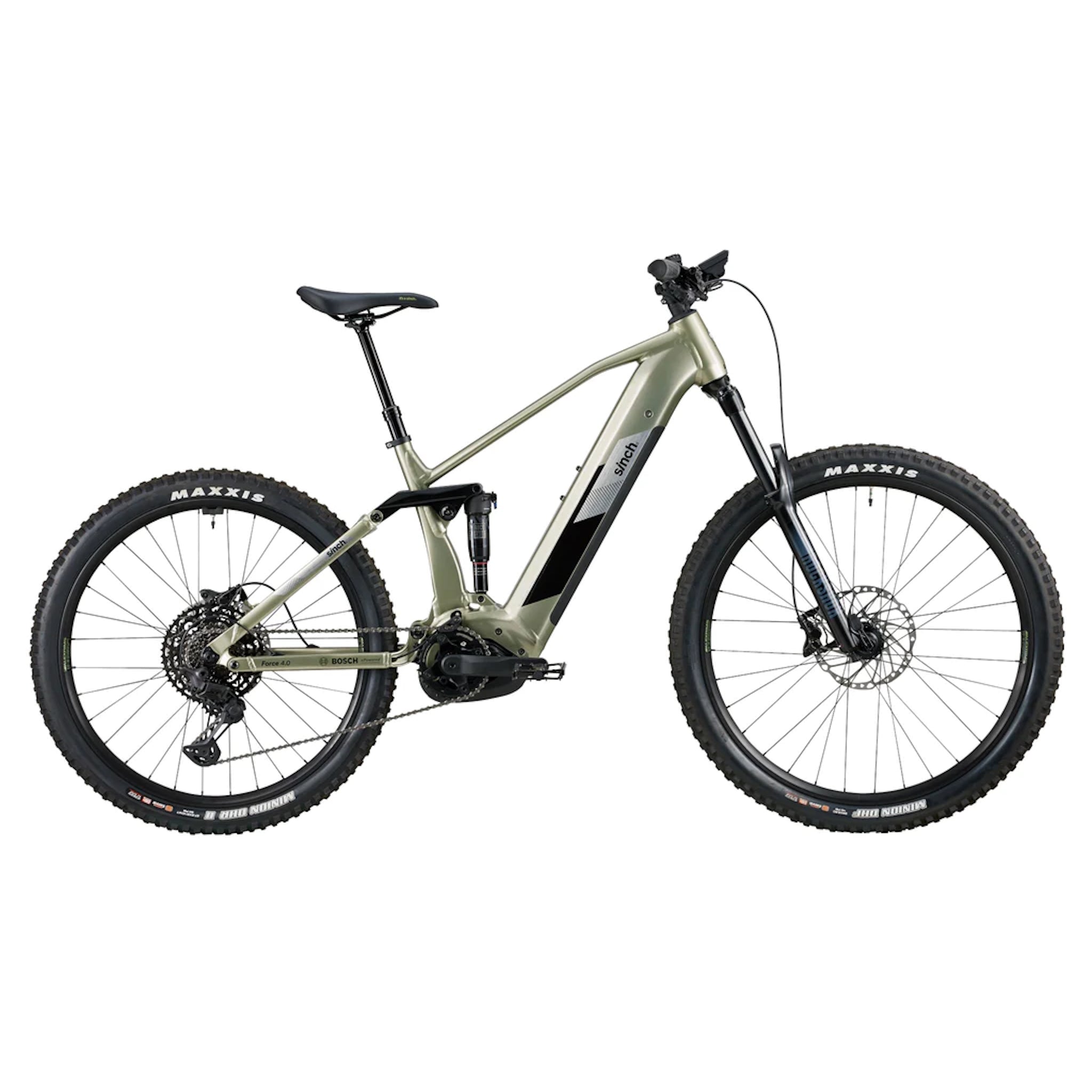

Introducing the Force 4: A full suspension e-MTB boasting Mullet geometry and internal cable routing frame design. Equipped with Bosch's smart system technology and Kiox 300 display for effortless connectivity and activity tracking via eBike Flow app. Embrace the outdoors, stay active, and experience limitless fun with this versatile go-anywhere e-MTB.

Frameset

Frame 6061 E Bike Specific Aluminum Suspension Mullet Frame with
150mm rear travel and fully intergrated and removable Down Tube battery and
internal cable management system

Front Suspension Rock Shox 35 Silver TK Solo Air 110 x 15mm boost thru axle, 160mm travel with rebound adjust and lockout

Rear Suspension Rock Shox Deluxe Select+RL custom tuned with rebound adjust and lockout

Motor

Drive Unit Bosch Performance Line CX Gen 4 250watt 85Nm, 32km/hr with walk assist mode

Battery Bosch PowerTube, 36V 16.7Ah 625Wh

Display Bosch Kiox 300

Controller Switch Bosch LED remote

Wheels

Hubs Shimano TC500 Boost 110x15mm Thru axle 32H front, TC500 Boost 148x12mm Thru axle 32H rear

Rims Alex EM30 Double Wall Front=29”, Rear=27.5” 32H F/V

Tyres Maxxis Minion DHF 29x2.6” front, Minion DHR II 27.5x2.4” rear Foldable, 3C MaxxTerra TR NEXO+ puncture protection

Drivetrain

Shifter Shimano Deore XT SL-M8130 11 Speed

Derailleur Shimano Deore XT LinkGlide RD-M8130 SGS Shadow Plus 11 Speed

Crankset FSA Alloy with 34T Chainring and Chain device

Cassette Shimano Cassette LG400 LinkGlide 11-50T 11 Speed

Chain Shimano CN-LG500 LinkGlide

Pedals Sinch Alloy platform

Components

Brakeset Shimano MT420 4 Piston Hydraulic disc, 203mm rotors

Saddle Sinch Sports 150mm Gel

Seat post Dropper, S=120, M,L=150, XL=175mm travel, Internal routing,
30.9mm

Bar Sinch Alloy Riser, 15mm rise, 9° sweep, 780mm

Stem Sinch Alloy 31.8mm, 0-degree

Headset Acros AZX-673 integrated

Grips Sinch Sports Gel Lock-on triple density

Accessories

Lights N/A

Accessories Range extender PowerMore 250 compatible, Sinch carry case

Sizes S,M,L,XL

S: 156-166cm rider height

M: 164-176cm rider height

L: 174-186cm rider height

XL: 184-200cm rider height
