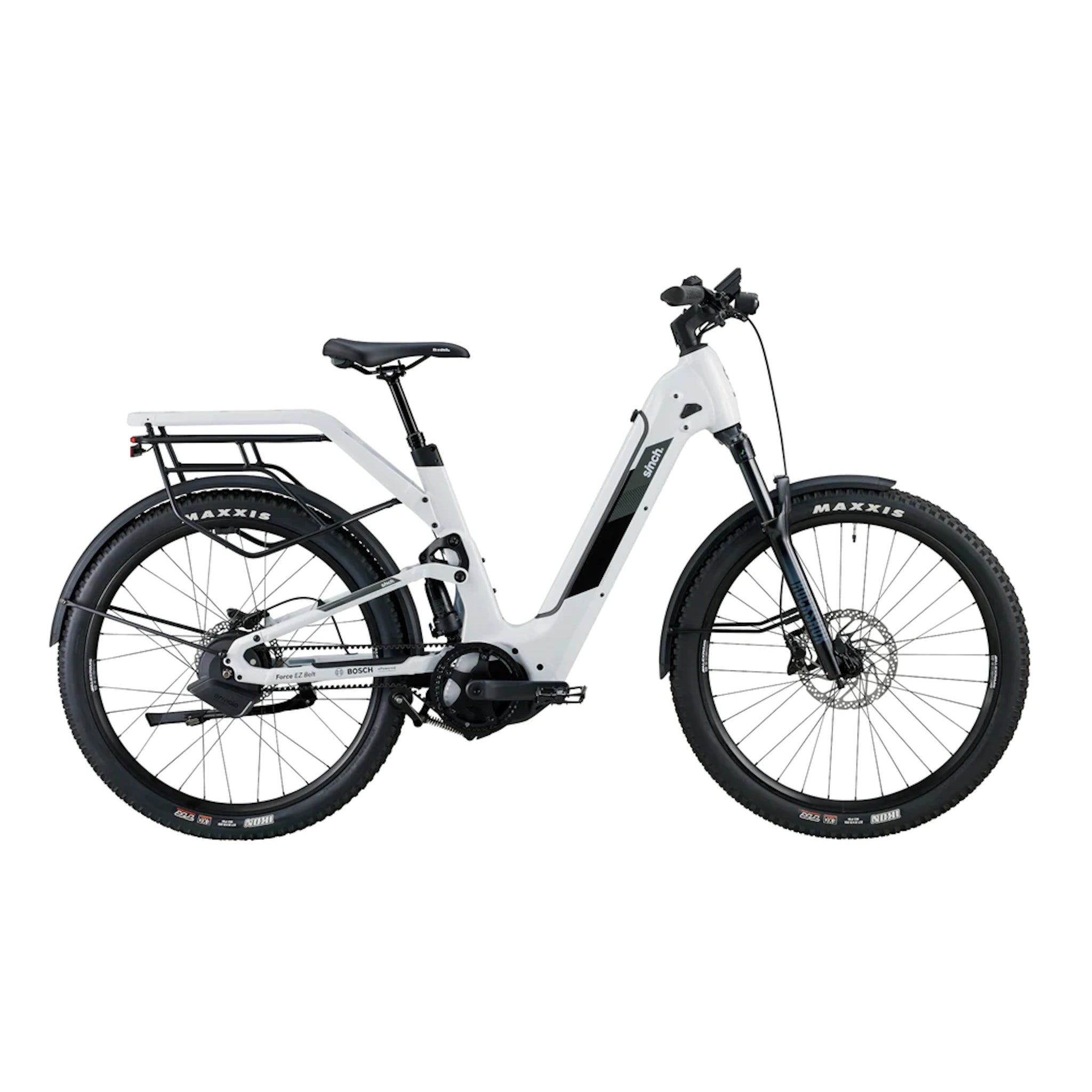

Force EZ Belt

Introducing the Force EZ Belt, an automatic shifting, comfortable SUV e-bike for daily use and exploration. The Enviolo stepless automatic technology ensures a consistent pedaling pace up to 45km/hr. The latest Bosch smart system tech and large step-through frame enhance your riding comfort. Unmatched in its class, this sporty e-bike is perfect for outdoor adventures, staying active, and commuting. Simply hop on and ride!

Frameset

Frame 6061 E Bike Specific Step-through Aluminum Suspension Belt Drive Frame with 100mm rear travel, fully intergrated and removable Down Tube battery and internal cable management system

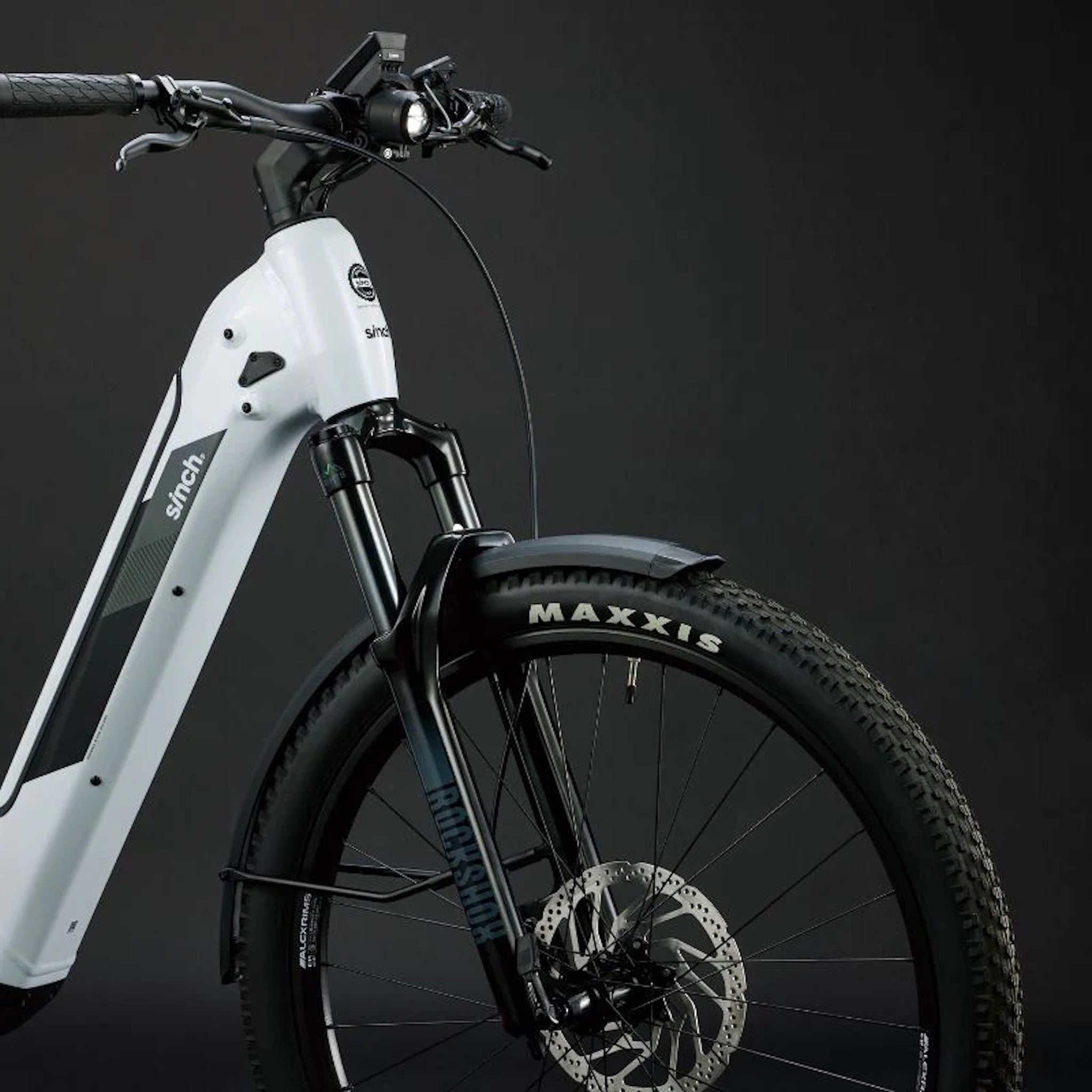

Front Suspension Rock Shox 35 Silver TK Solo Air 110 x 15mm boost thru axle, 120mm travel with rebound adjust and lockout

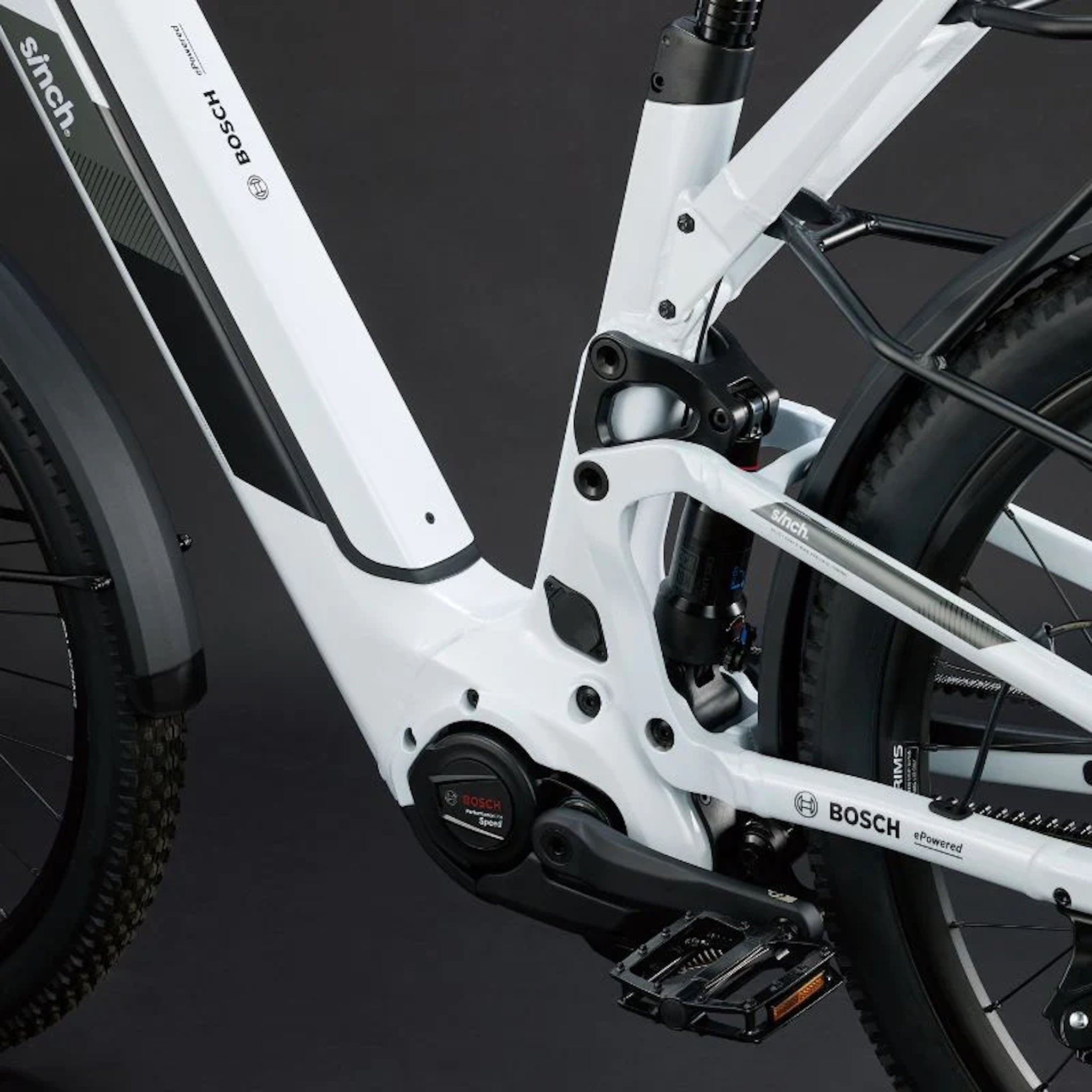

Rear Suspension Rock Shox Deluxe Select+RT custom tuned with rebound adjust and lockout

Motor

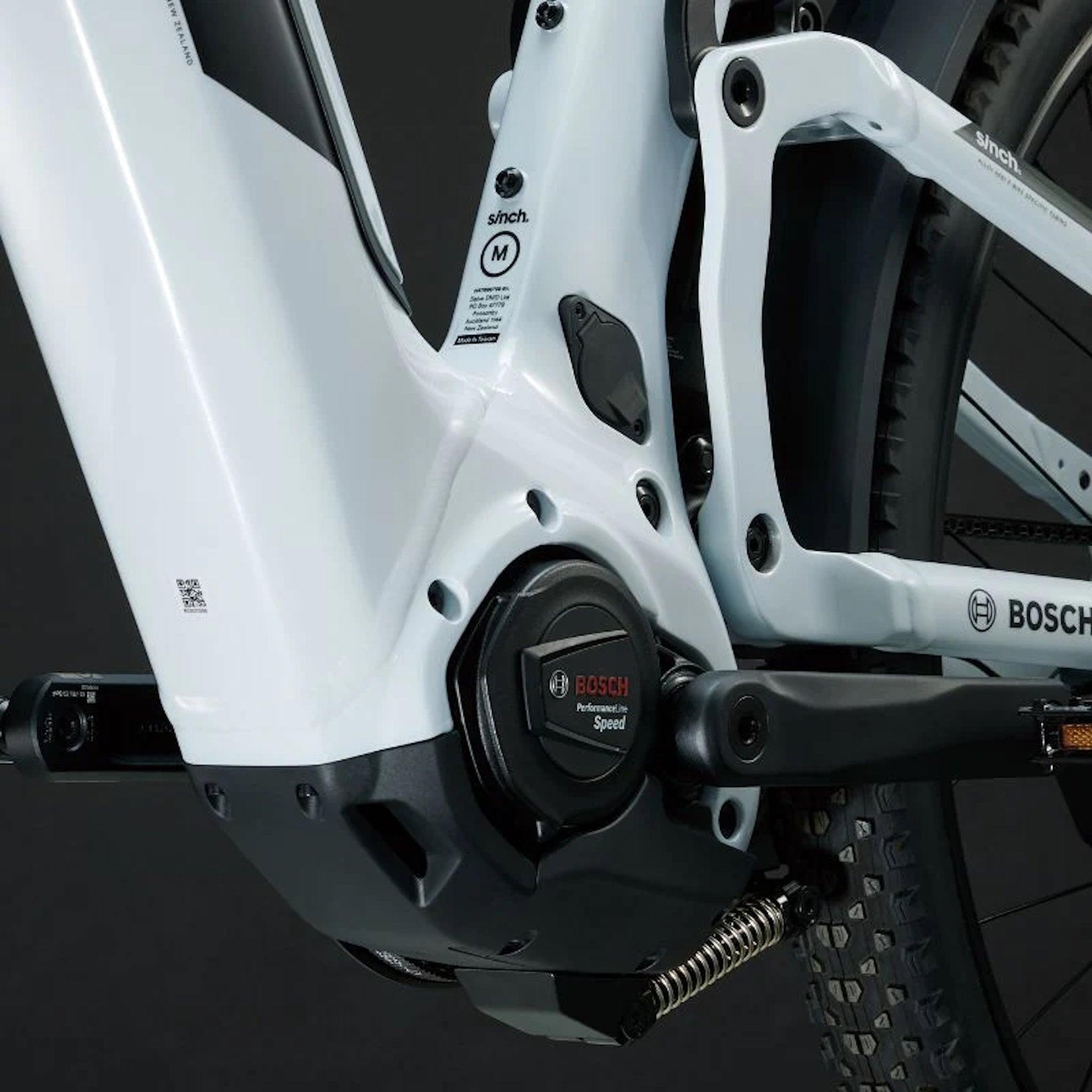

Drive Unit Bosch Performance Line Speed Gen 4 250watt 85Nm, 45km/hr with walk assist mode

Battery Bosch PowerTube, 36V 16.7Ah 625Wh

Display Bosch Kiox 300

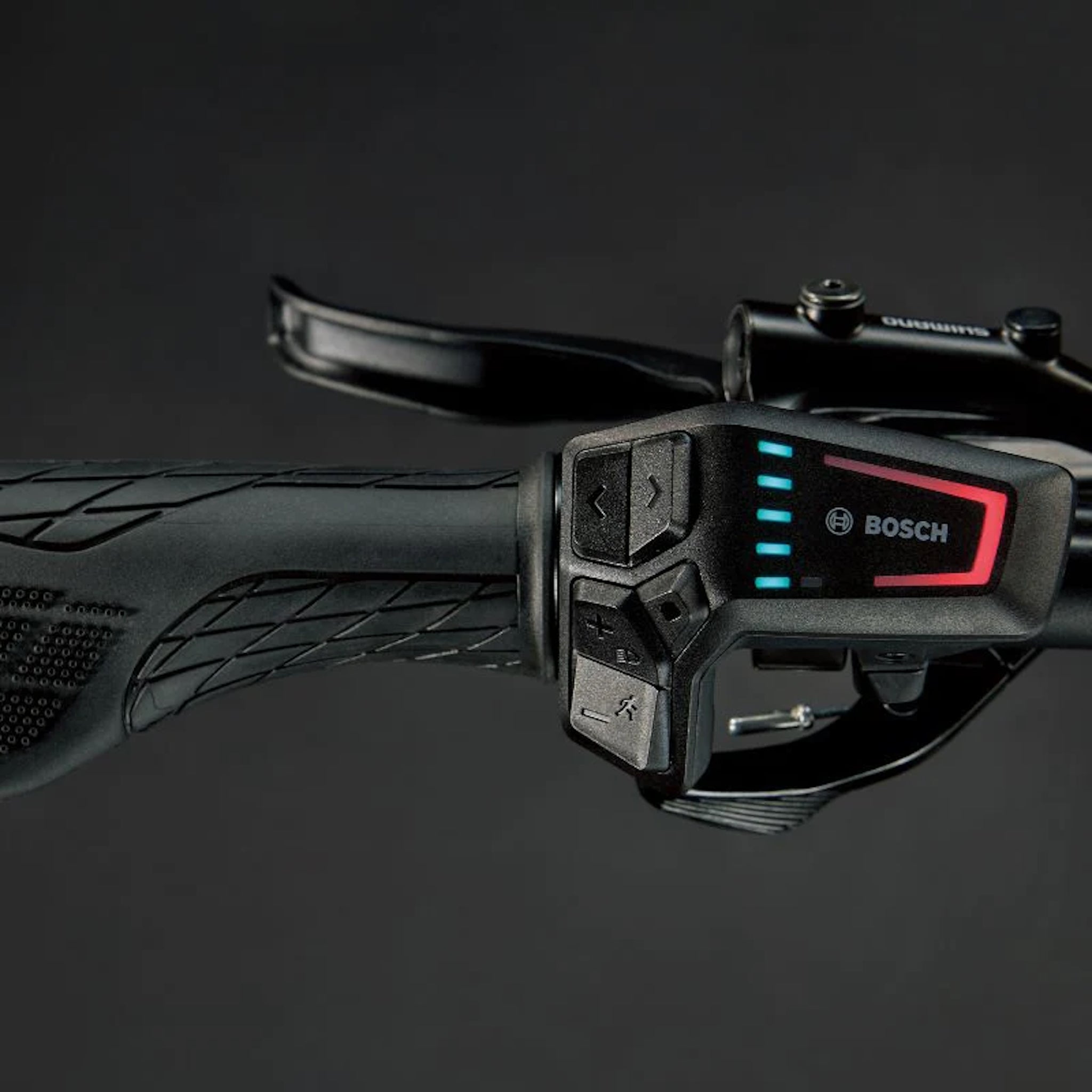

Controller Switch Bosch LED remote

Wheels

Hubs Shimano TC500 Boost 110x15mm Thru axle 32H front, TC500 Boost 142x12mm Thru axle 32H rear

Rims Alex EM30 Double Wall 27.5” 32H F/V

Tyres Maxxis Ikon 27.5x2.35” Foldable, 60tpi, TR/EXO puncture protection

Drivetrain

Shifter Enviolo Automatic

Derailleur Enviolo AutomatiQ hub interface 40T Spline

Crankset FSA Alloy with Gates 50T CDX Chainring, Belt device and Belt Tensioner

Cassette Gates Enviolo CDX 24T

Chain Gates CDX 128T Belt

Pedals Sinch Alloy platform

Components

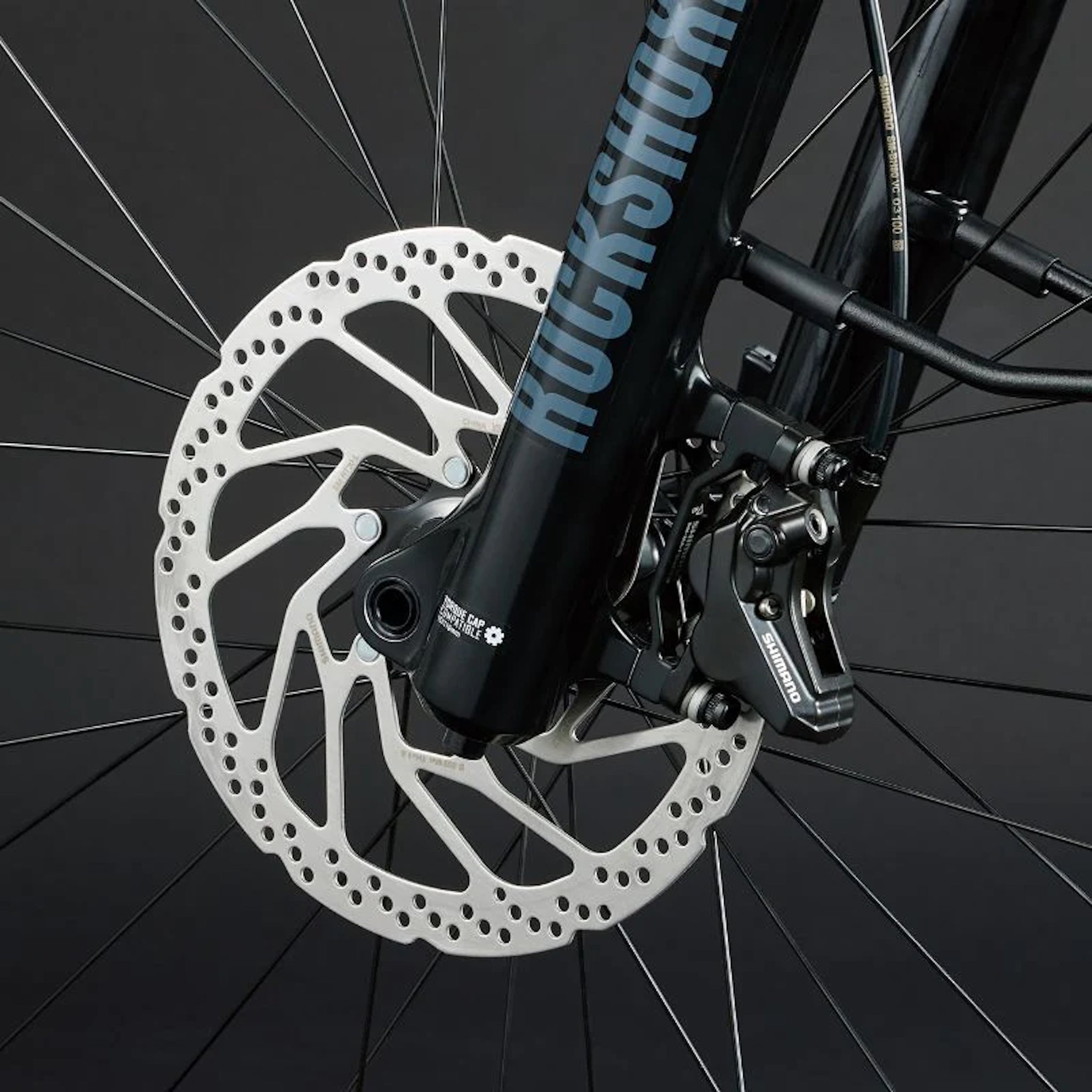

Brakeset Shimano MT420 4 Piston Hydraulic disc, 203mm front/180mm rear rotors

Saddle Sinch Sports 177mm Gel

Seat post Dropper, S,M=100, L,XL=125mm travel, Internal routing, 31.6mm

Bar Sinch Alloy Comfort, 20mm rise, 15° sweep, 680mm

Stem Fastback 20 31.8mm, 20-degree

Headset Acros AZF-656 integrated

Grips Sinch Sports Gel Lock-on triple density

Accessories

Lights Litemove SE-90 stem mounted Front, Pimento Large XEr Rear with Brake Sensor

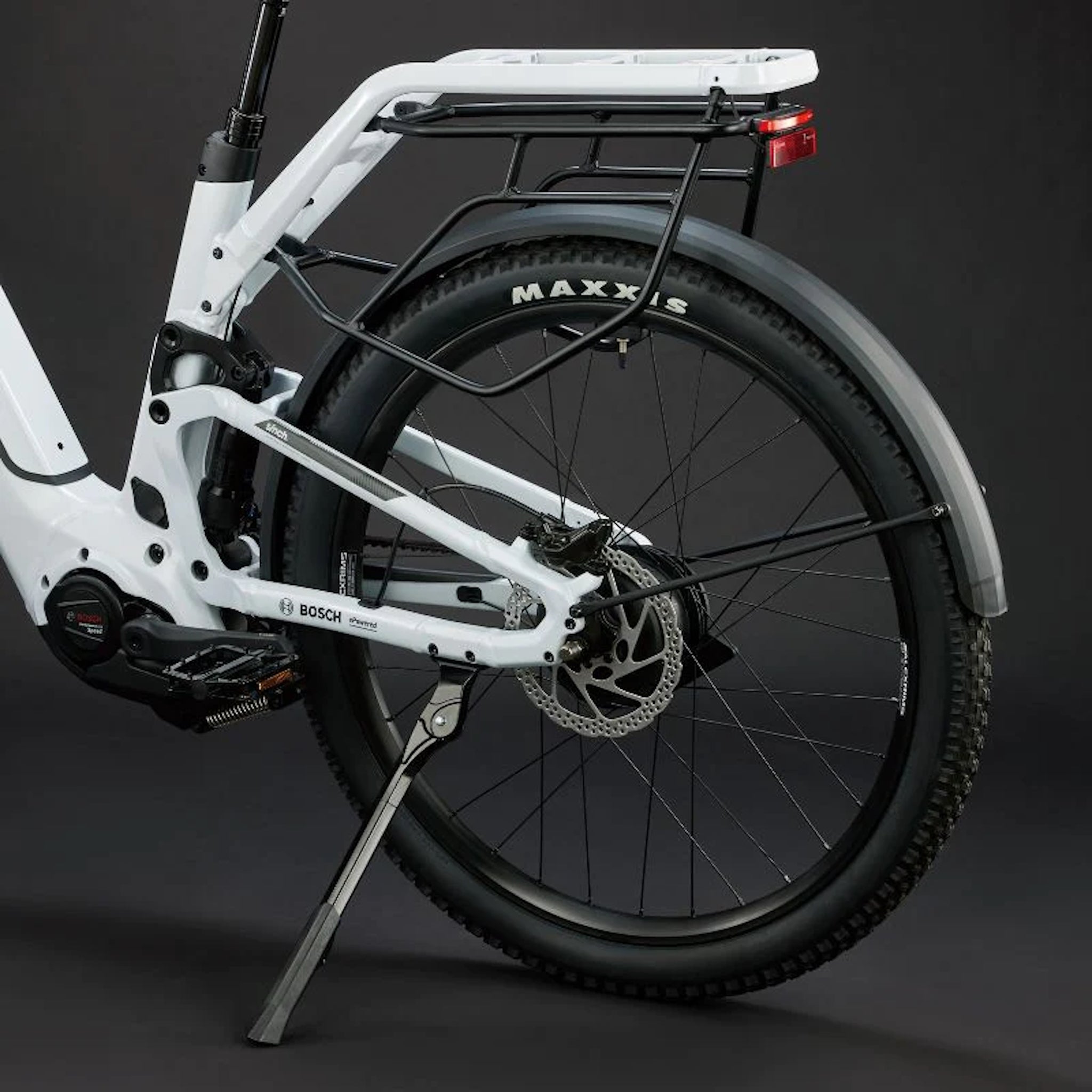

Accessories Alloy Fenders, Suspended MIK Rear Carrier 27kg load capacity, Kickstand, Range extender PowerMore 250 compatible, Sinch accessory case

Sizes S,M,L,XL

S: 156-166cm rider height

M: 164-176cm rider height

L: 174-186cm rider height

XL: 184-200cm rider height
