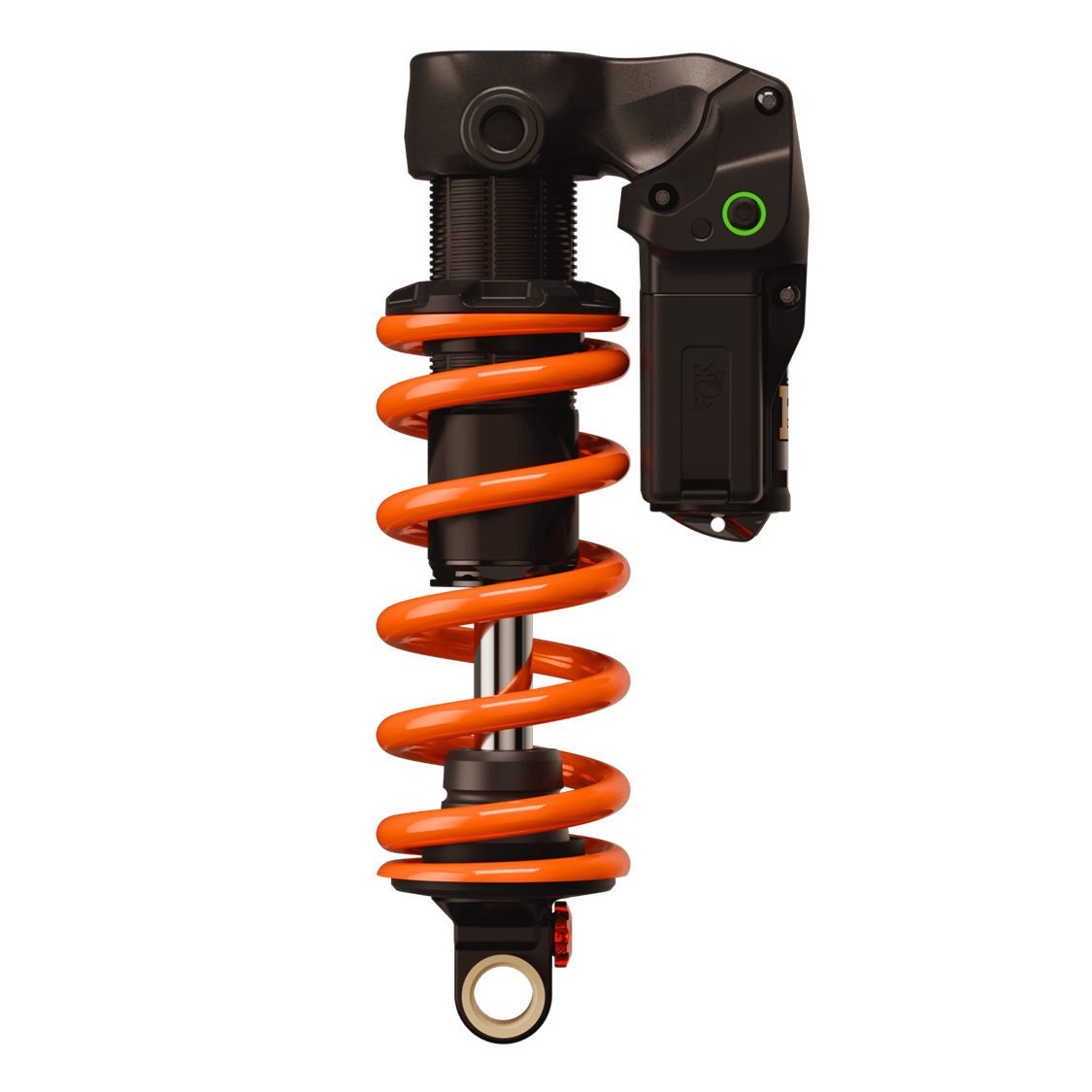

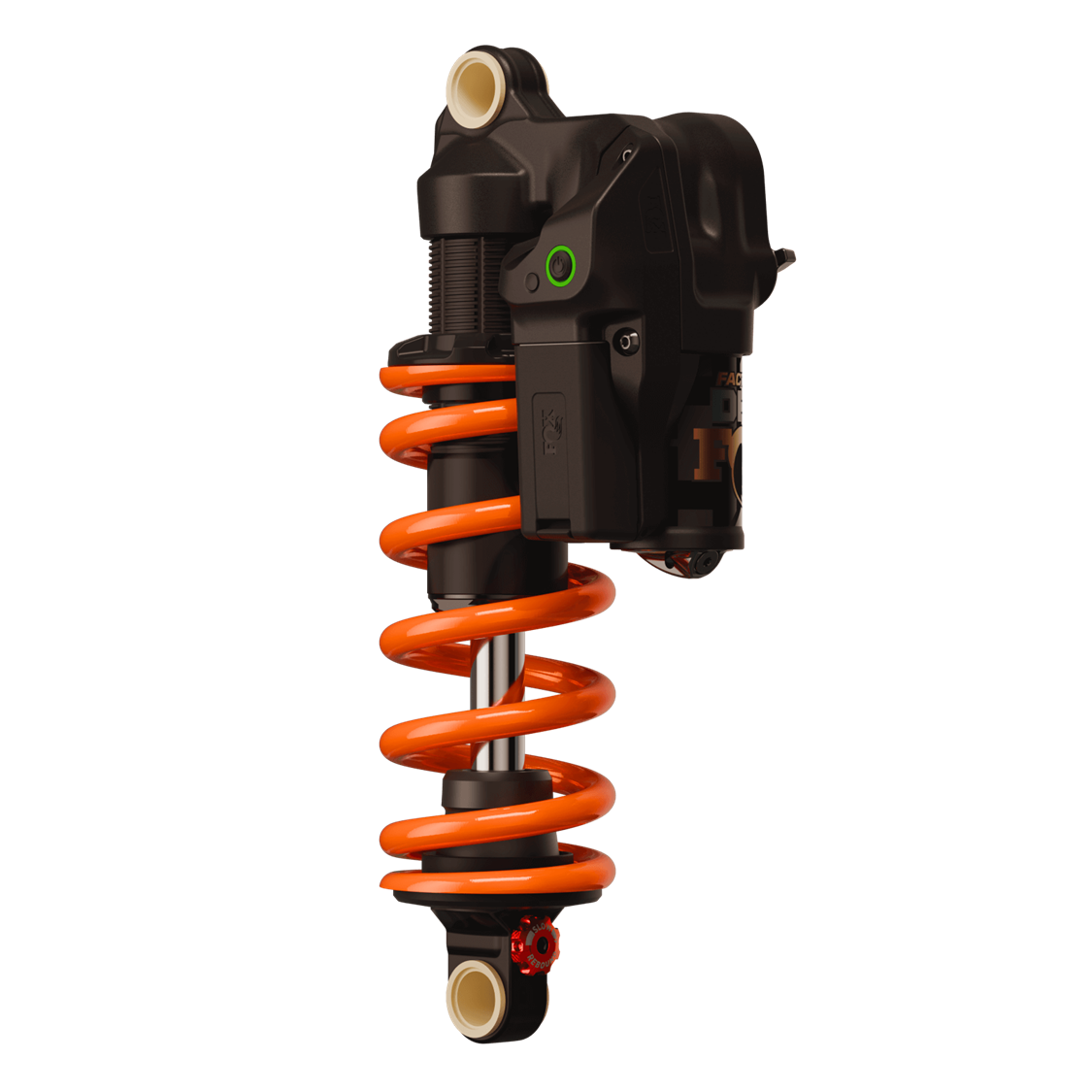

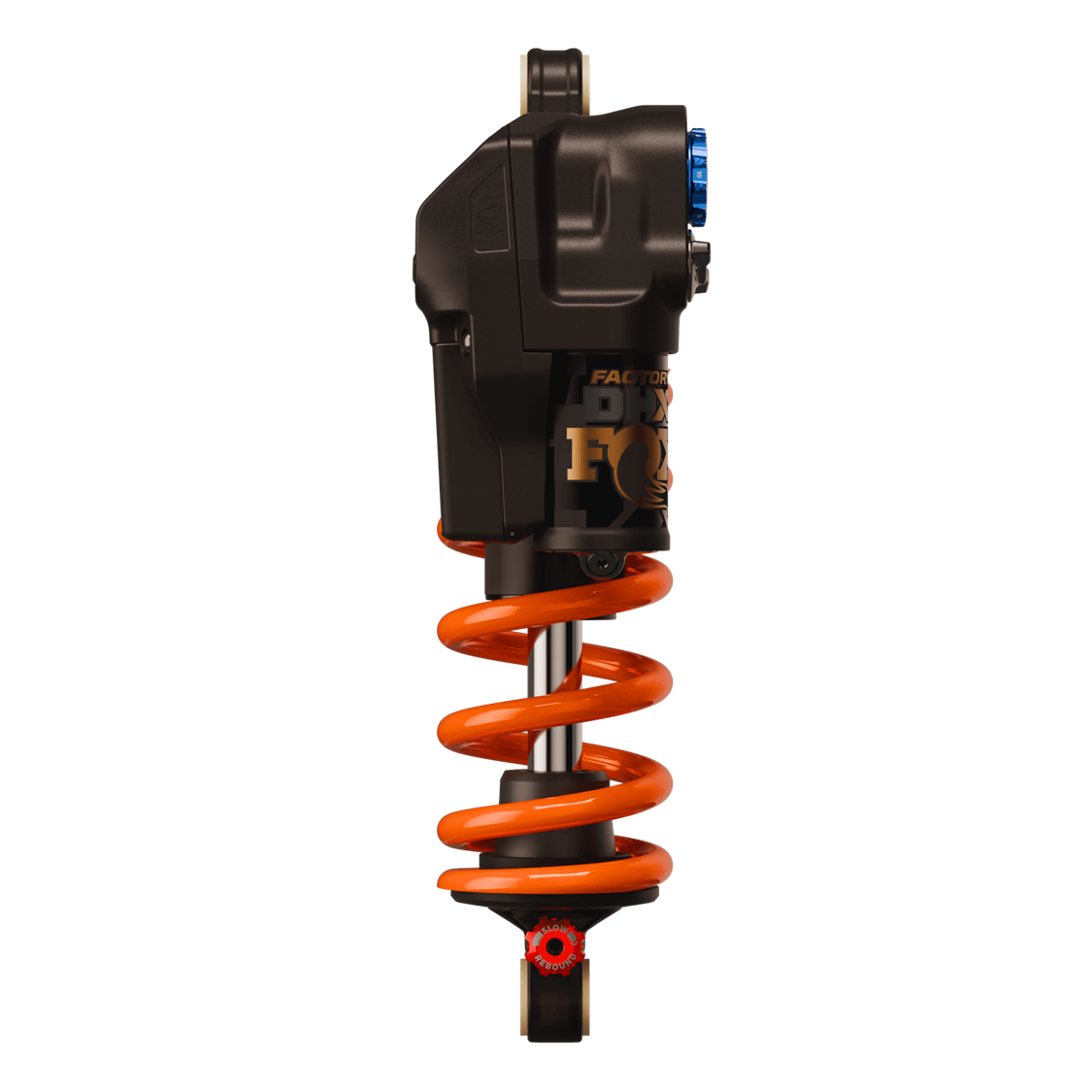

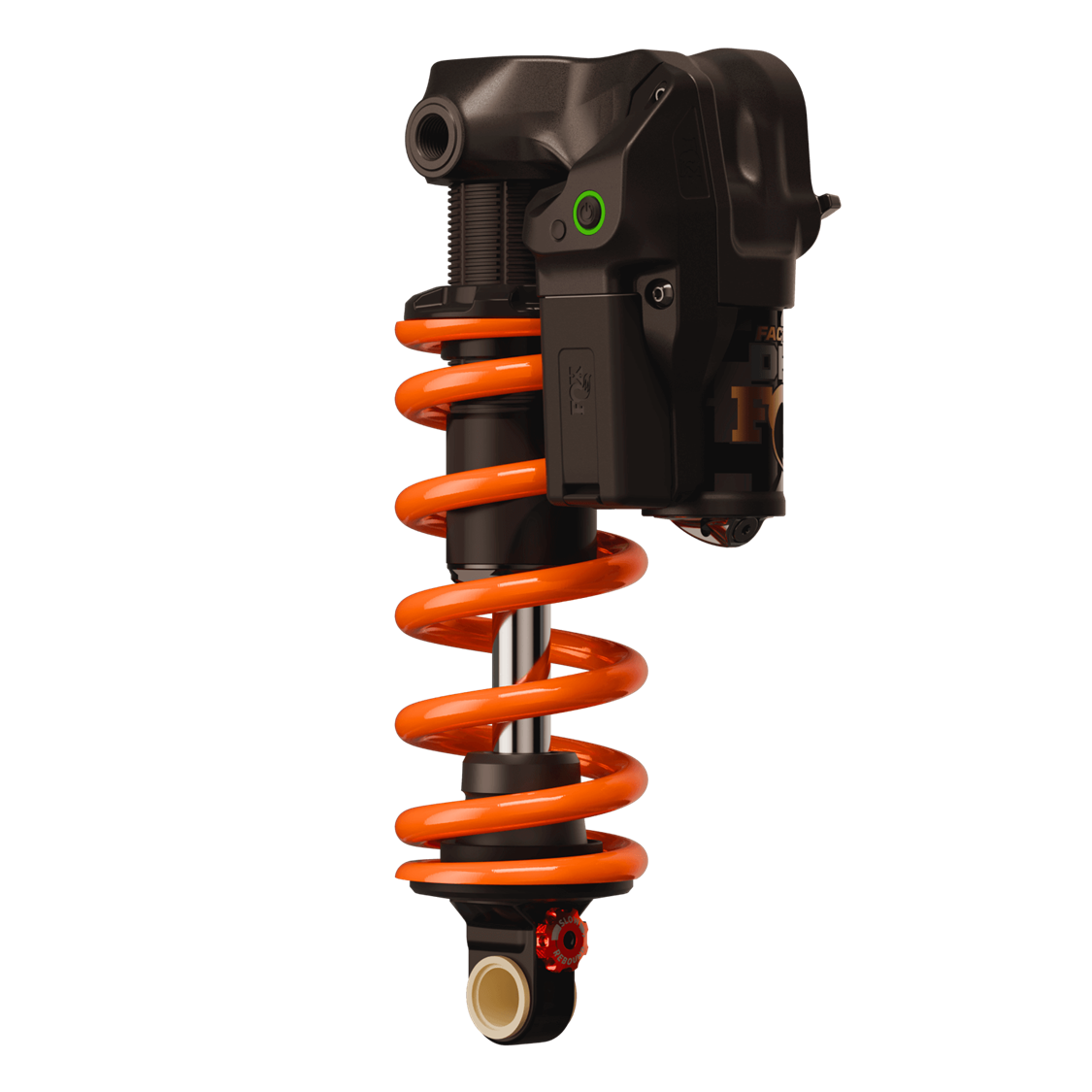

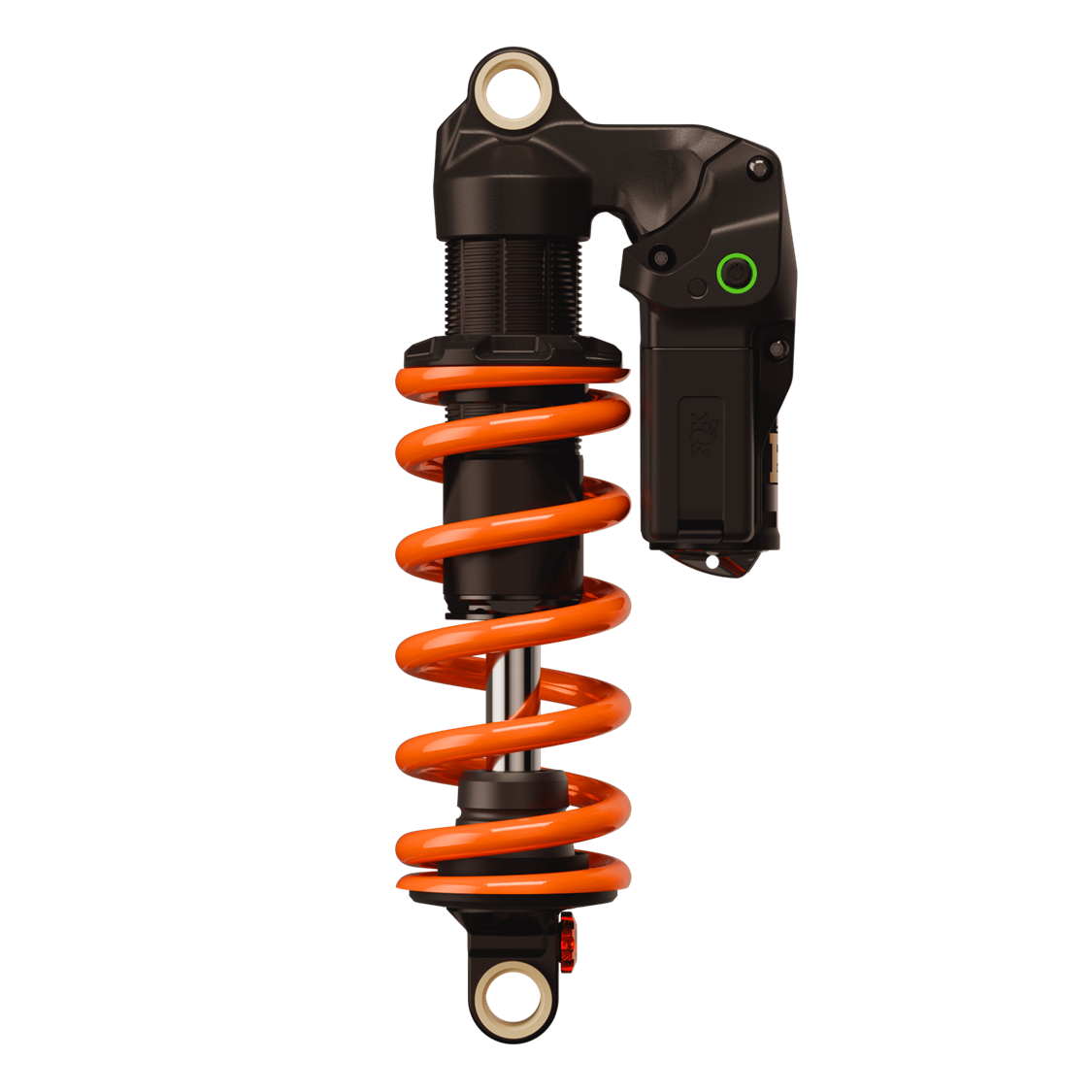

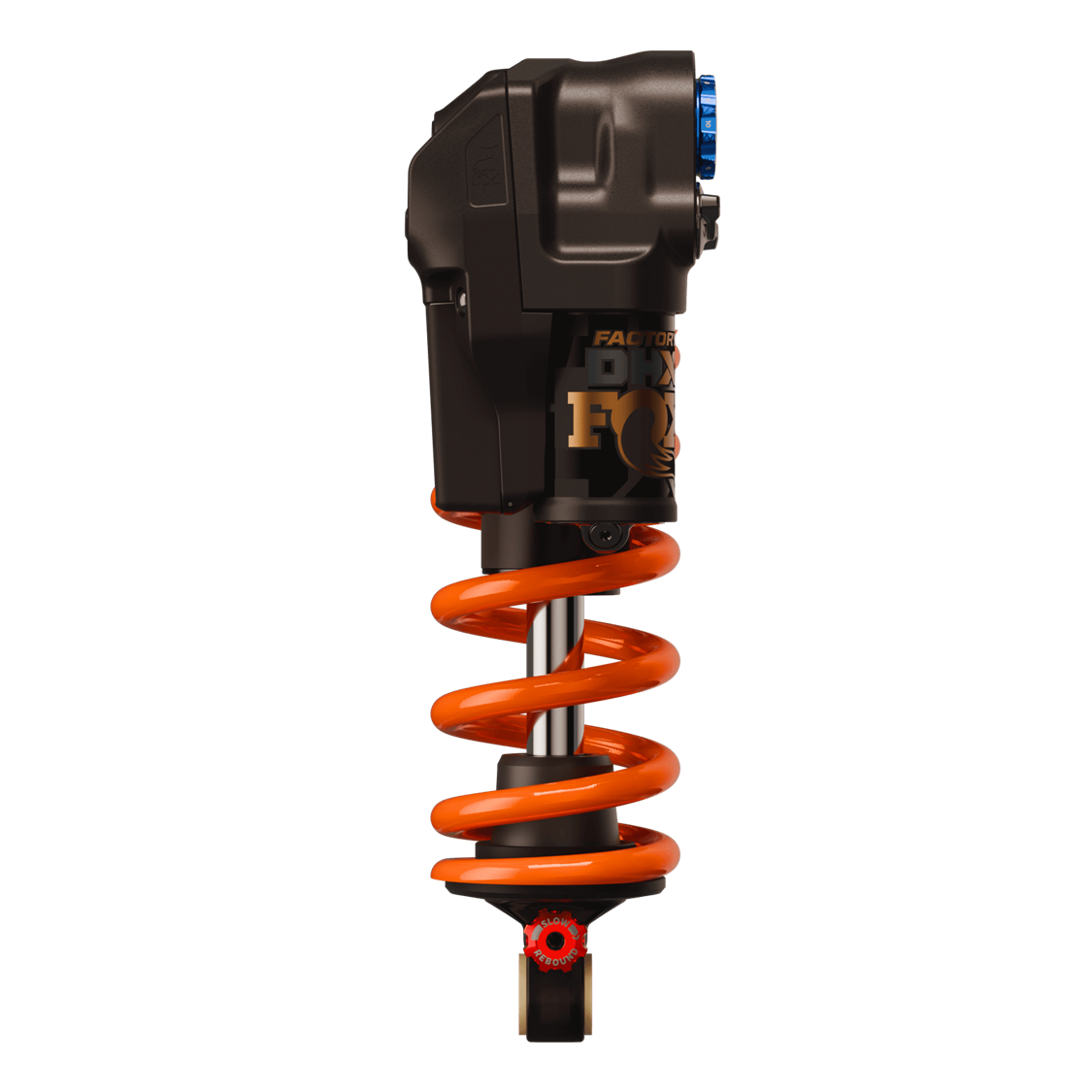

FOX - DHX LIVE VALVE NEO FACTORY SHOCKS

COIL NEVER FELT FASTER

The coil-sprung, ground-hugging, trail-smoothing performance of DHX powers up with Live Valve Neo for the ultimate in wireless suspension control. An The coil-sprung, ground-hugging, trail-smoothing performance of DHX powers up with Live Valve Neo for the ultimate in wireless suspension control. An updated high-flow main piston assembly advanced offers damping approaching that of DHX2. By opening or firming the compression circuit based on trail data in 1/70th of a second, DHX Live Valve Neo gives you more performance than any other coil shock.


LIVE VALVE NEO
Live Valve Neo reads terrain 400 times per second, and will instantly respond by opening or firming your shock. Harness speed and efficiency in every moment on the trail — support when you want it, plushness when you need it.

BUILT ON A FIRM FOUNDATION
A 7-position Firm Mode Adjust dial lets riders fine tune the support of DHX Live Valve Neo, when firmed. The indexed Low Speed Compression and Rebound dials let riders tune their descent settings when the shock is in Open mode.

OPTIMIZE WITH THE FOX BIKE APP
Follow easy setup guides, monitor battery levels, download and engage Live Valve Neo Tunes, track suspension service intervals. Find in the Apple App Store and Google Play Store.

ALL TERRAIN ADAPTABILITY
The size-specific piggyback reservoir on DHX Live Valve Neo increases oil volume for enhanced bump sensitivity. Paired with a FOX coil spring, riders experience greater tire grip and fade-free performance over long descents.

FEATURES

• Fox-specific rechargeable lithium battery – interchangeable with transfer neo seatpost.
• Shake to wake function – when activated, live valve neo turns on automatically when bike moves and wheels are bumped.
• Bump led indication – when enabled, any bump will illuminate the ring around the power button on your controller.
• Battery level indicator surrounds power button – when inserting battery, powering on, or briefly pressing the power button while the system is awake.
• 2-position magnetic latching solenoid – for quick and quiet transitions between open and firm shock positions.
• Shock defaults to open position in event of a dead battery.
• Sensors use common cr2032 coin cell batteries – easily replaceable without removing sensor from bike.
• Tool-free firm mode adjuster – controls the firmness of the shock’s platform when the 2-position solenoid is closed.
• 701g system weight – 185x55mm shock, sensors and controller battery. spring not included.
• Transparent and trackable 125-hour service interval.
• Numbered, tool-free low speed compression adjuster – 11 positions, easily adjusted trailside.
• Numbered, tool-free rebound adjuster shared with dhx.

SPECS

• Series: Factory
• Upper Tube Finish: Chrome
• Sizes (Metric): 210x55, 230x57.5, 230x60, 230x65
• Sizes (Metric Trunnion): 185x55, 205x62.5

NOTES:

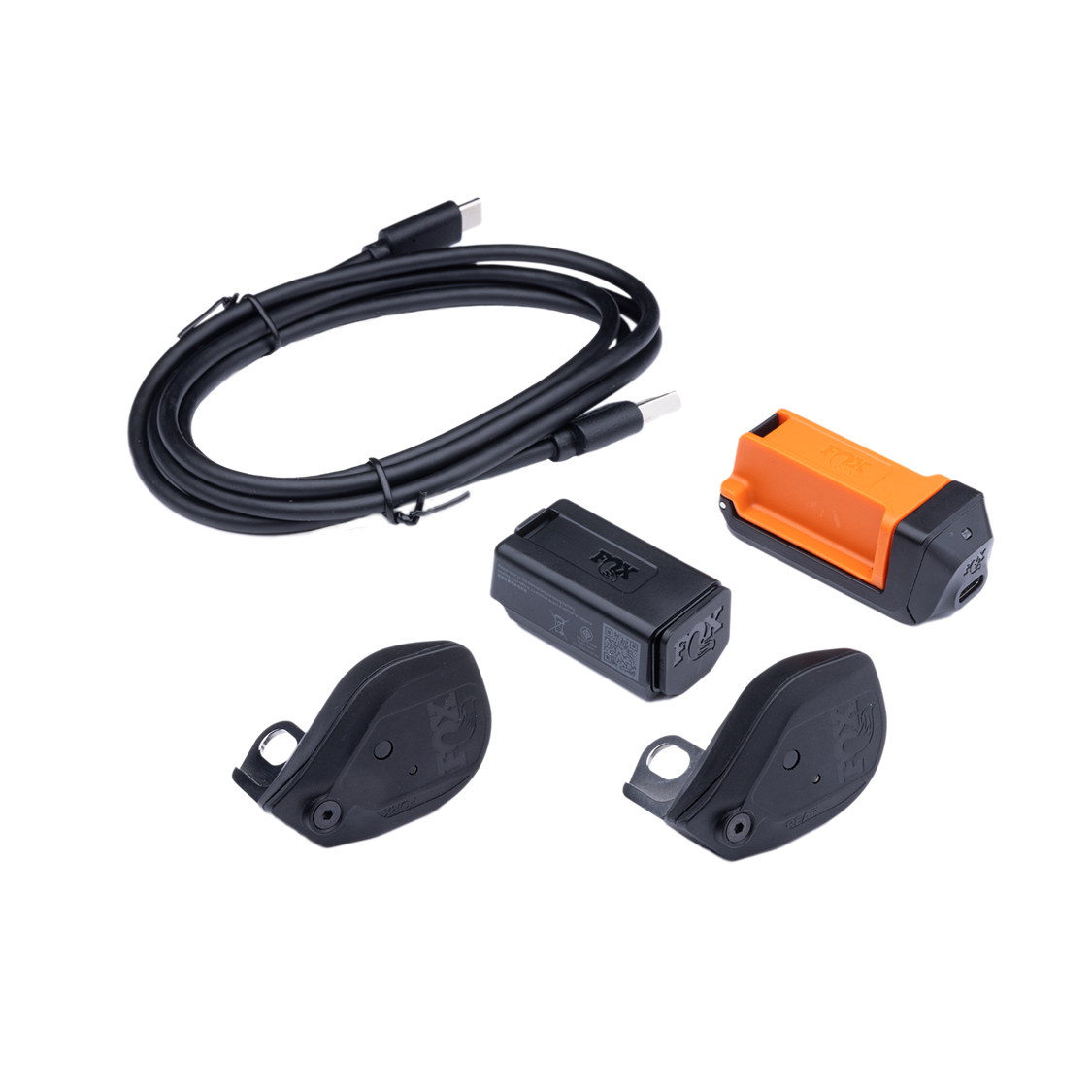

• The Live Valve Neo Kit (which includes sensors, Controller battery and mounting hardware) is sold separately and is required for the DHX Live Valve Neo shock to function as intended.
• Coil spring not included. Need help determining which spring fits you and your bike? Check out the FOX spring calculator here.
