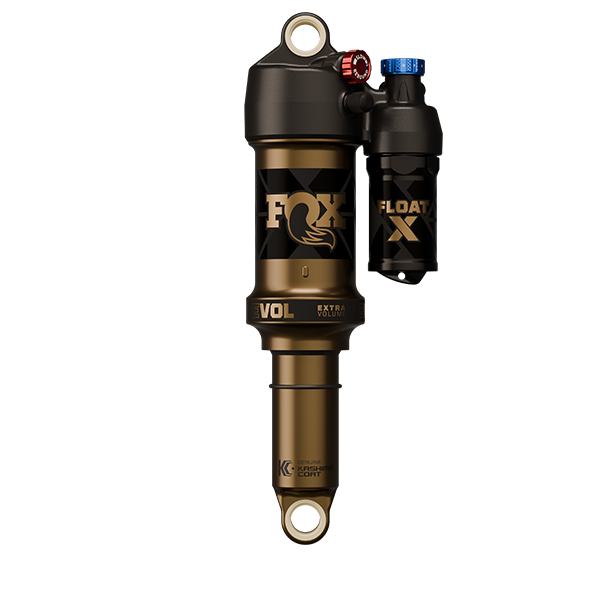

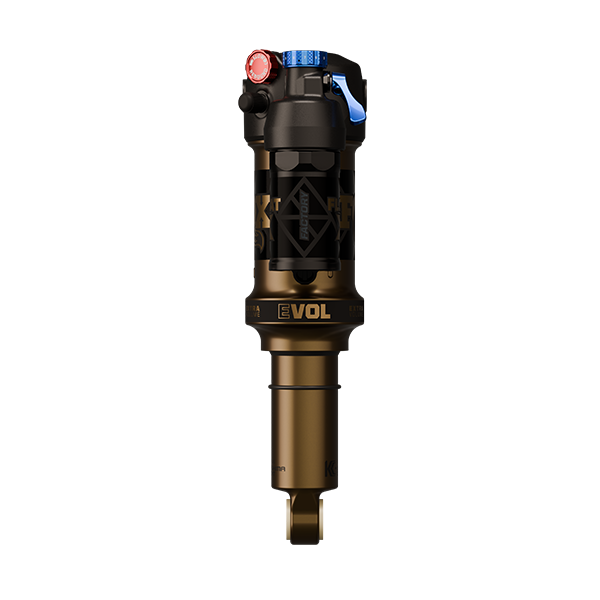

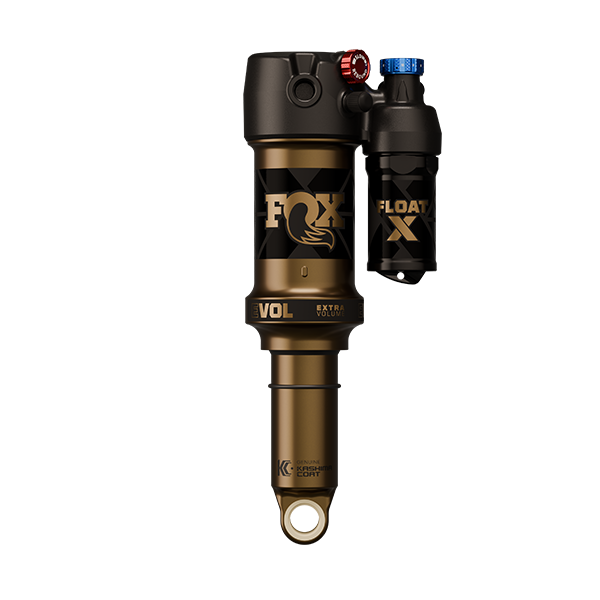

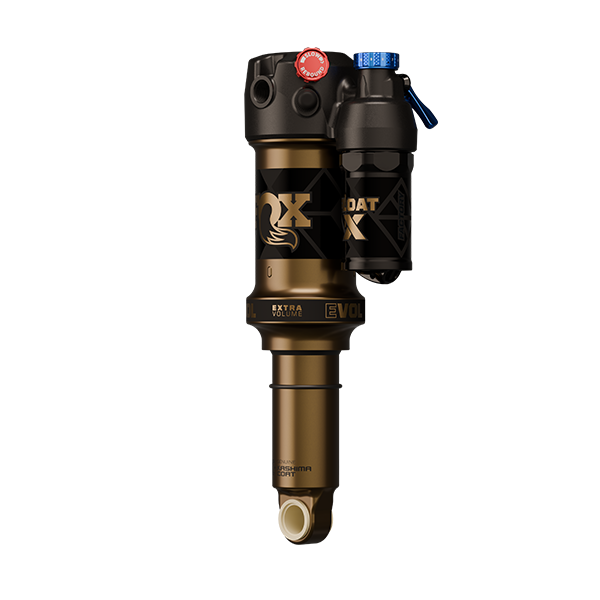

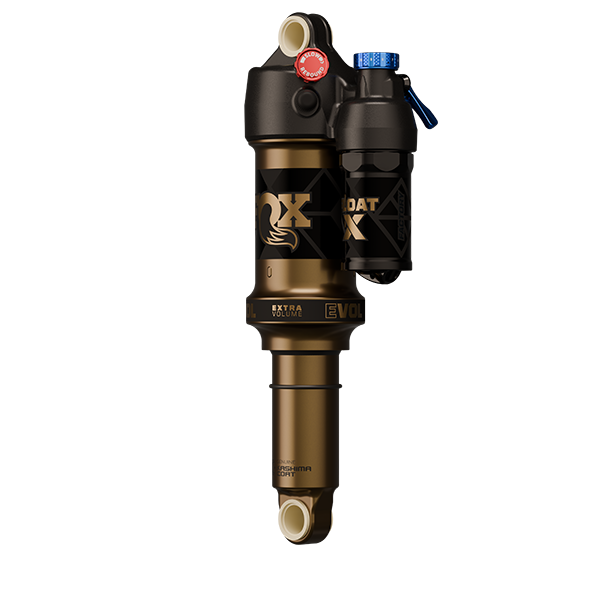

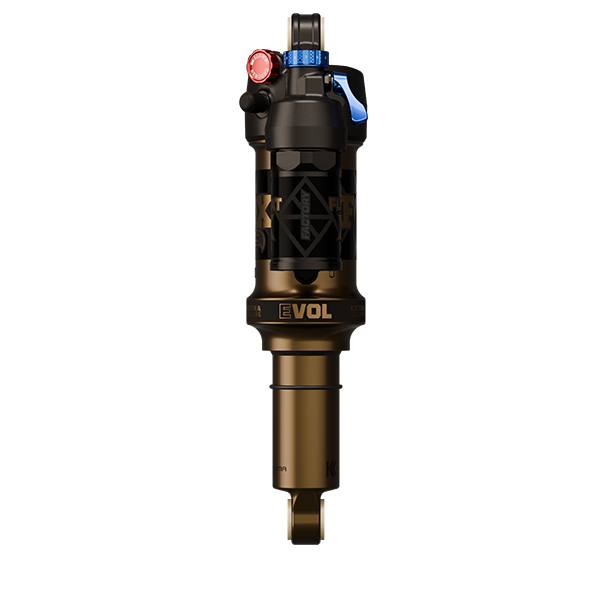

FOX - FLOAT X FACTORY SHOCKS
MASTER OF ALL-MOUNTAIN
FOX FLOAT X is the master of All-Mountain suspension, engineered to meet the demands of aggressive Trail riders. Available in Live Valve Neo, Factory, and Performance Elite series, it delivers sophisticated damping and fade-free performance on the roughest terrain. The FLOAT X’s advanced design ensures outstanding structural integrity while remaining impressively lightweight, so you can push harder and ride further with confidence.
Designed specifically to meet the demands of aggressive trail riders, the new FLOAT X combines sophisticated damping and fade free performance with incredible light weight and outstanding structural integrity.
ALL TERRAIN ADAPTABILITY
Tool-free adjustment allows quick and easy tuning for current trail conditions. The low-speed compression dial and 2-position lever run on independent circuits, giving All-Mountain riders the descent tunability they need with the convenience of a climbing switch.
OPTIMAL WEIGHT AND PERFORMANCE
The size-specific piggyback reservoir increases oil volume and adds a secondary compression circuit for enhanced bump sensitivity and tire grip. Paired with a large EVOL air sleeve, riders experience fade-free performance over long descents.
KEY INNOVATIONS
- ALL-NEW chassis and damper High-flow main piston Air seal package
- Volume spacers with smaller increments MCU bottom out bumper
- Numbered tool-free 12 position single-turn LSC (Low Speed Compression) adjuster Independent firm mode circuit – Clockable 2 position adjuster
- Increased rebound adjuster range (over DPX2) Optimized reservoir lengths per shock size
- Hydraulic top out feature
- Damper designed for reduced noise
- Larger air sleeve bore reduces average rider pressure by 40 psi vs. DPX2
- Bearing hardware compatible both sides
- Air valve location offers improved frame fitment and pump access
SPECS
- Series: Factory
- Upper Tube Finish: Kashima
- Spring: EVOL LV
- Adjustability Options: 2Pos-Adj
- Sizes (Metric): 190x45, 210x55
- Sizes (Metric Trunnion): 185x55, 205x60
