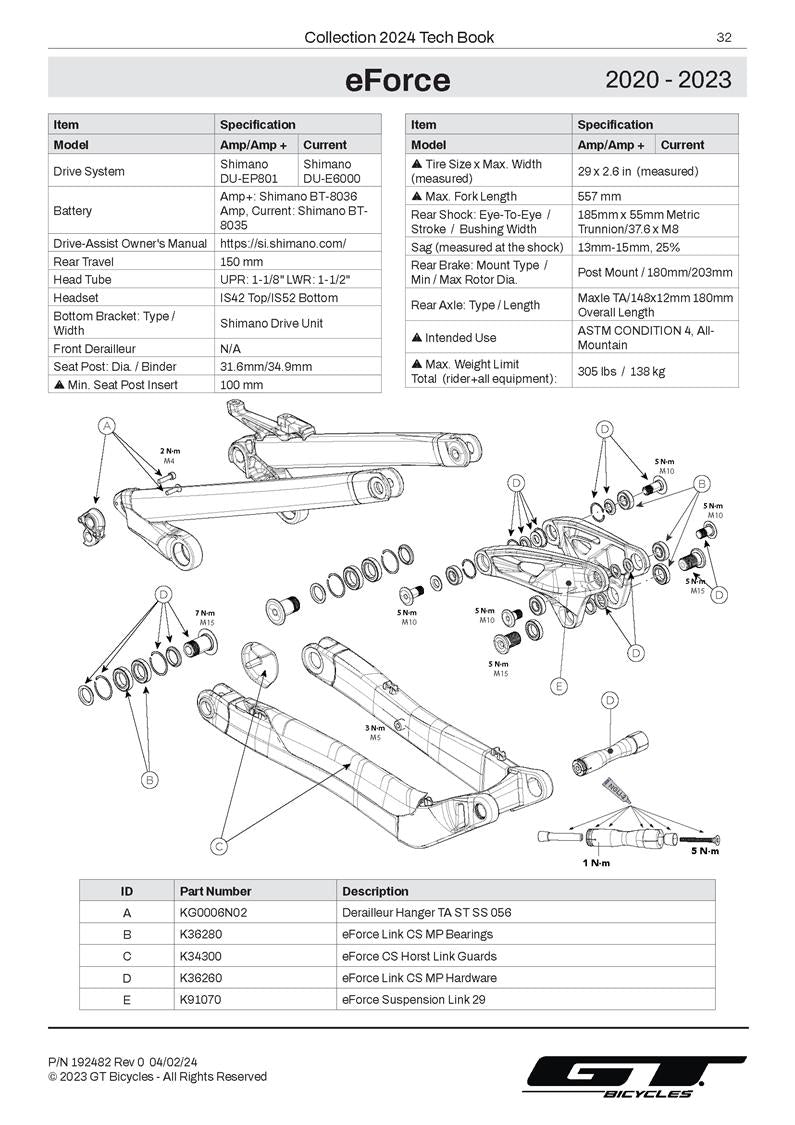

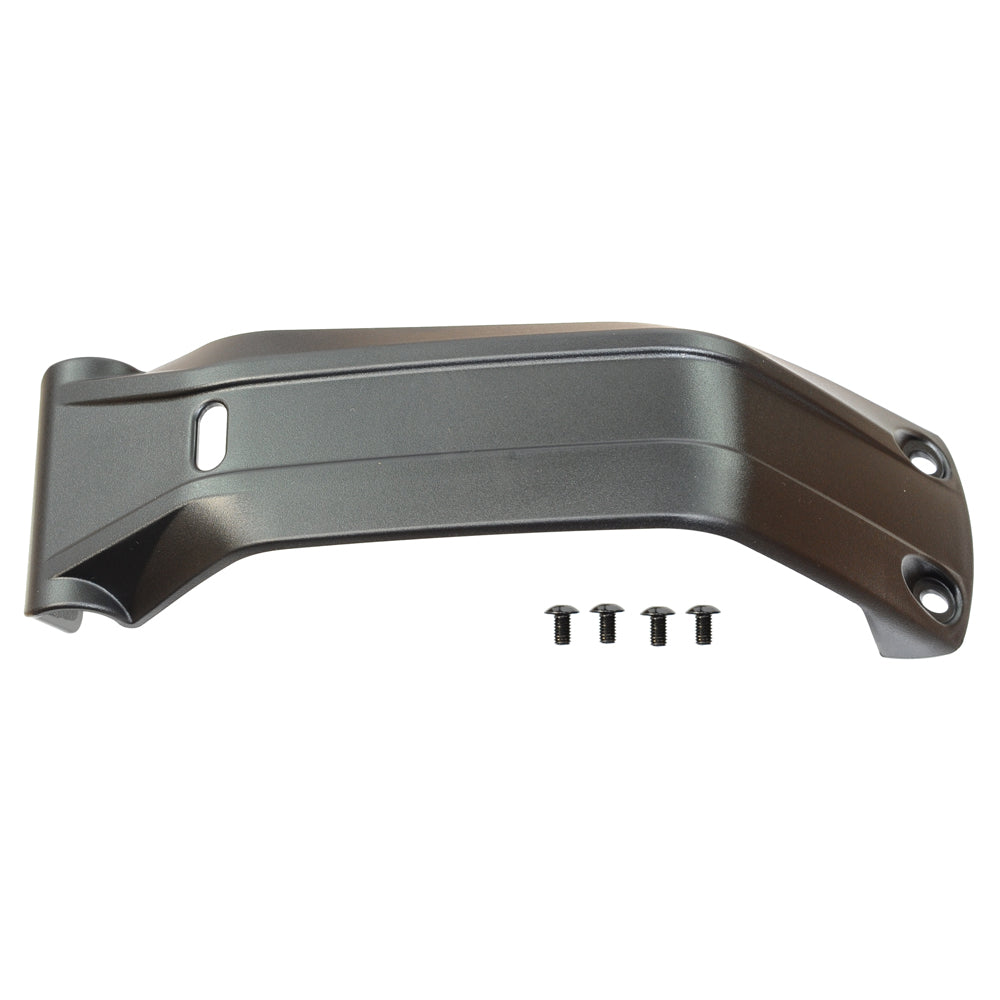

GT eFORCE 2020 - 2023 FRAME PARTS

SPECIFICATIONS

  • Drive System - Shimano
  • Battery - Amp+: Shimano BT-8036, Amp, Current: BT-8035
  • Rear Travel - 150 mm
  • Head Tube - UPR: 1-1/8” LWR: 1-1/2”
  • Headset - IS42 Top/IS52 Bottom
  • Bottom Bracket: Type / Width - Shimano Drive Unit
  • Front Derailleur - N/A
  • Seat Post: Dia./Binder - 31.6mm / 34.9mm
  • Min. Seat Post Insert - 100 mm
  • Tire Size x Max. Width - 29 in x 2.6 in
  • Max. Fork Length - 557 mm
  • Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 185 mm x 55 mm / Metric Trunnion/37.6 x M8
  • Sag - 13mm-15mm, 25%
  • Rear Brake Mount / Type - Post Mount / 180mm / 203mm
  • Rear Axle: Type / Length - Maxle TA / 148x12mm / 188mm L
  • Max. Weight Limit: Total - 138kg




GT eForce 2020 - 2023 Frame Parts

Regular price $49.90

Tax included. Shipping calculated at checkout

  • SKU:

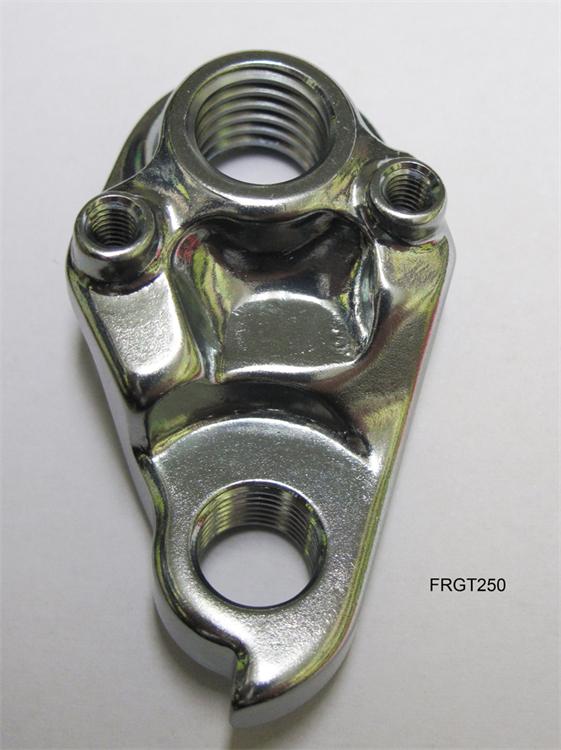

    FRGT250
  • BRAND:

Please note that some dropdown options are parts only. Please choose carefully.

FAST SHIPPING

14 DAY RETURNS

EXPERT SUPPORT

Note on Availability Items available on our website are not always available in-store, some are only held by our suppliers. In-store items usually arrive 2-3 business days after the order is dispatched(rural deliveries can take an extra 2 business days). Items only held with supplier might take up to 7 business days from when the order is dispatched, depending on the supplier. Please contact us if you have specific questions.

GT eFORCE 2020 - 2023 FRAME PARTS

SPECIFICATIONS

  • Drive System - Shimano
  • Battery - Amp+: Shimano BT-8036, Amp, Current: BT-8035
  • Rear Travel - 150 mm
  • Head Tube - UPR: 1-1/8” LWR: 1-1/2”
  • Headset - IS42 Top/IS52 Bottom
  • Bottom Bracket: Type / Width - Shimano Drive Unit
  • Front Derailleur - N/A
  • Seat Post: Dia./Binder - 31.6mm / 34.9mm
  • Min. Seat Post Insert - 100 mm
  • Tire Size x Max. Width - 29 in x 2.6 in
  • Max. Fork Length - 557 mm
  • Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 185 mm x 55 mm / Metric Trunnion/37.6 x M8
  • Sag - 13mm-15mm, 25%
  • Rear Brake Mount / Type - Post Mount / 180mm / 203mm
  • Rear Axle: Type / Length - Maxle TA / 148x12mm / 188mm L
  • Max. Weight Limit: Total - 138kg

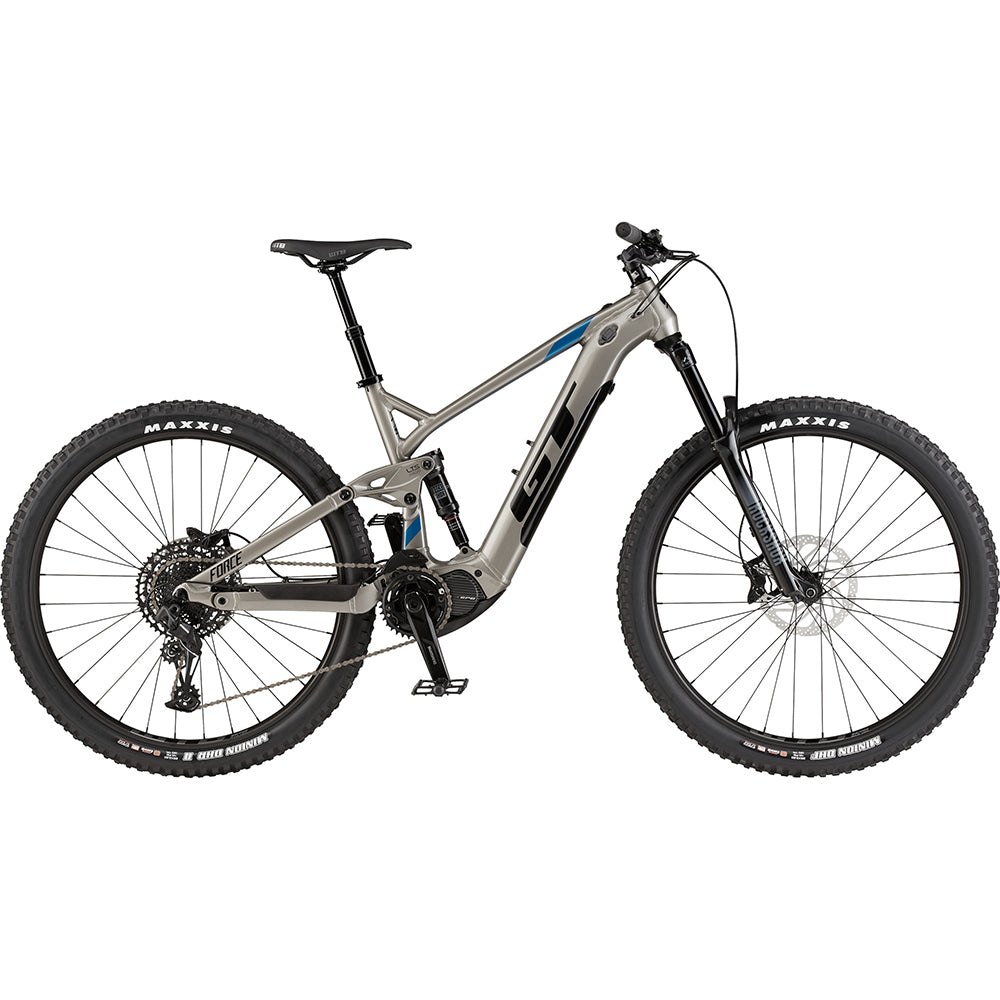

eForce 2020 - 2023
GT eForce 2020 - 2023 Frame Parts
