Description

GT FORCE CARBON 27.5 1019 - 2022 FRAME PARTS

SPECIFICATIONS

  • Rear Travel - 150 mm
  • Head Tube - UPR: 1-1/8” LWR: 1-1/2”
  • Headset - Integrated, 1-1/8” - 1-1/2”
  • Bottom Bracket: Type / Width - BSA / 73mm
  • Front Derailleur - N/A
  • Seat Post: Dia./Binder - 31.6mm / 34.9mm
  • Min. Seat Post Insert - 100 mm
  • Tire Size x Max. Width - 27.5 in x 2.5 in
  • Max. Fork Length - 550 mm
  • Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 185 mm x 55 mm / Metric Trunnion 37.6 mm x M8
  • Sag - 12.5mm
  • Chain Guide - ISCG 05
  • Rear Brake Mount / Type - Post Mount / 180mm / 203mm
  • Rear Axle: Type / Length - Maxle TA / 148x12mm / 180mm L
  • Max. Weight Limit: Total - 138kg

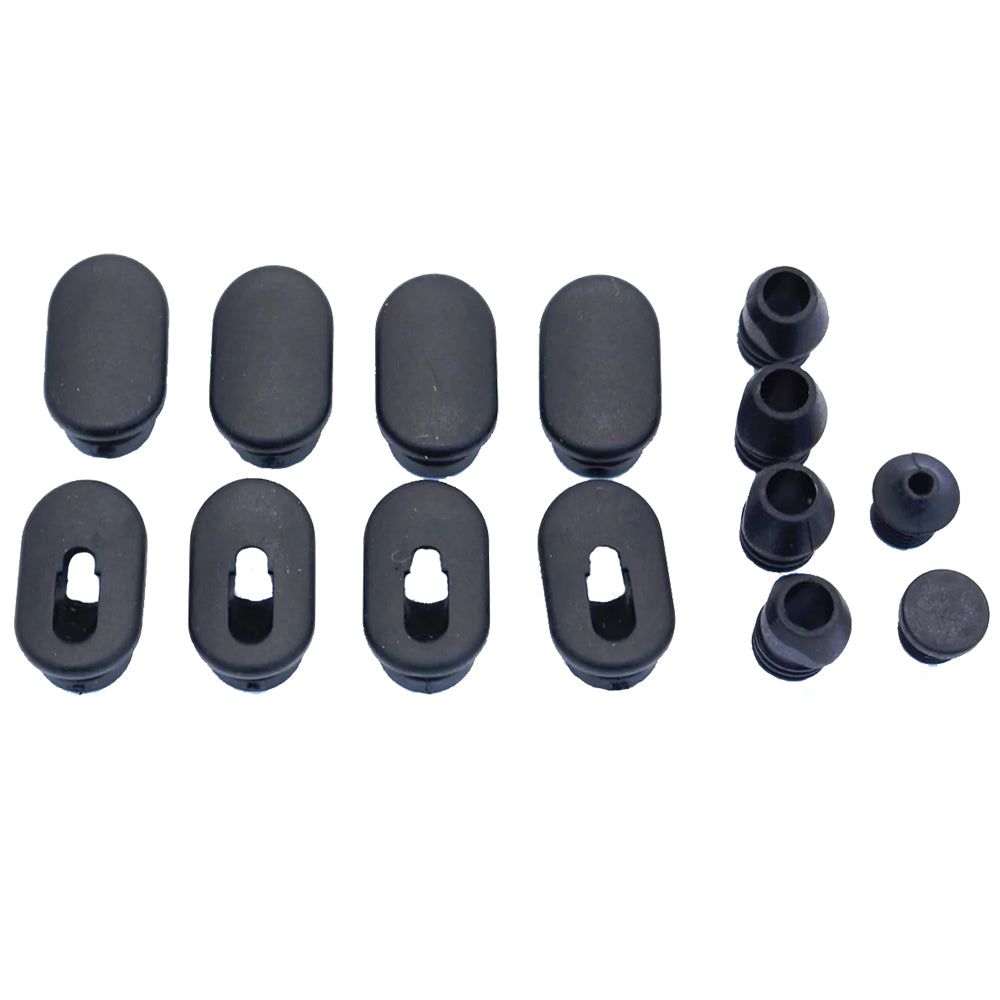

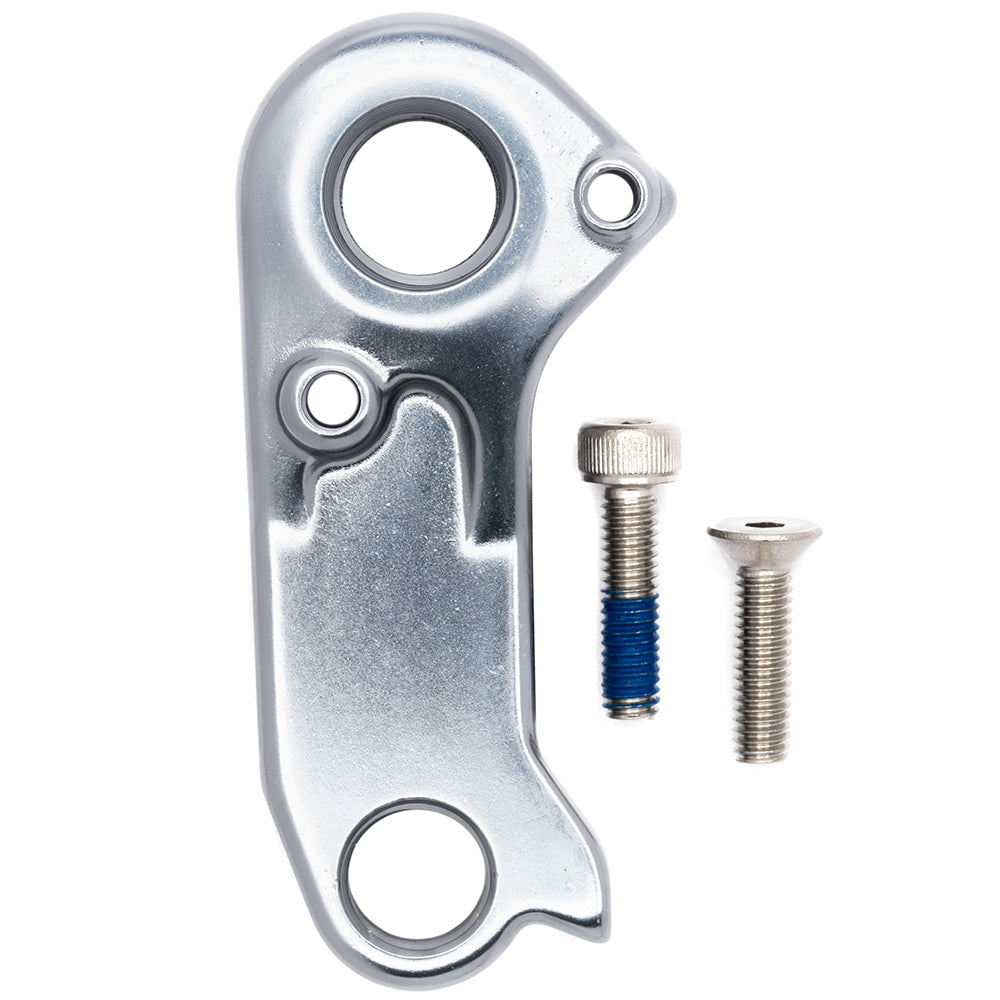

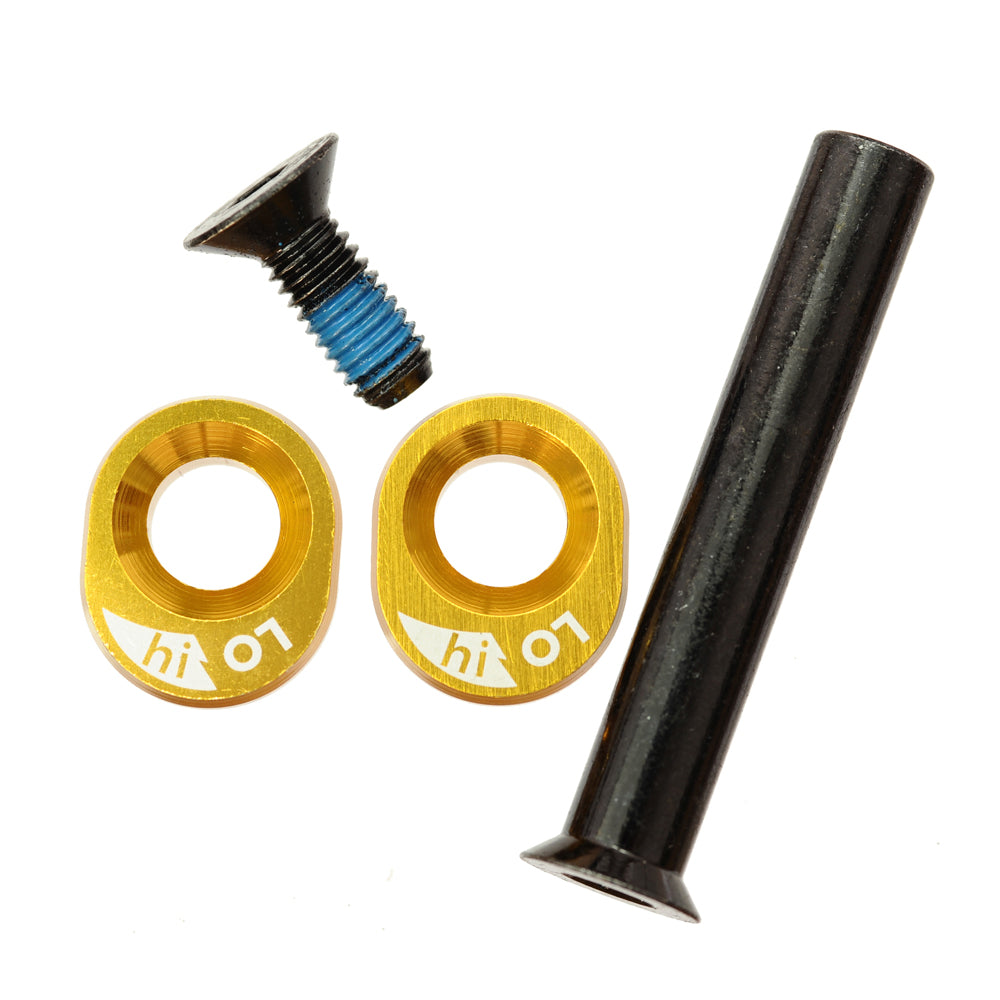

GT Force Carbon 27.5 2019 - 2022 Frame Parts

Regular price $94.90

Tax included. Shipping calculated at checkout

  • SKU:
    FRGT754
  • BRAND:

Please note that some dropdown options are parts only. Please choose carefully.

FAST SHIPPING

14 DAY RETURNS

EXPERT SUPPORT

Note on Availability Items available on our website are not always available in-store, some are only held by our suppliers. In-store items usually arrive 2-3 business days after the order is dispatched(rural deliveries can take an extra 2 business days). Items only held with supplier might take up to 7 business days from when the order is dispatched, depending on the supplier. Please contact us if you have specific questions.

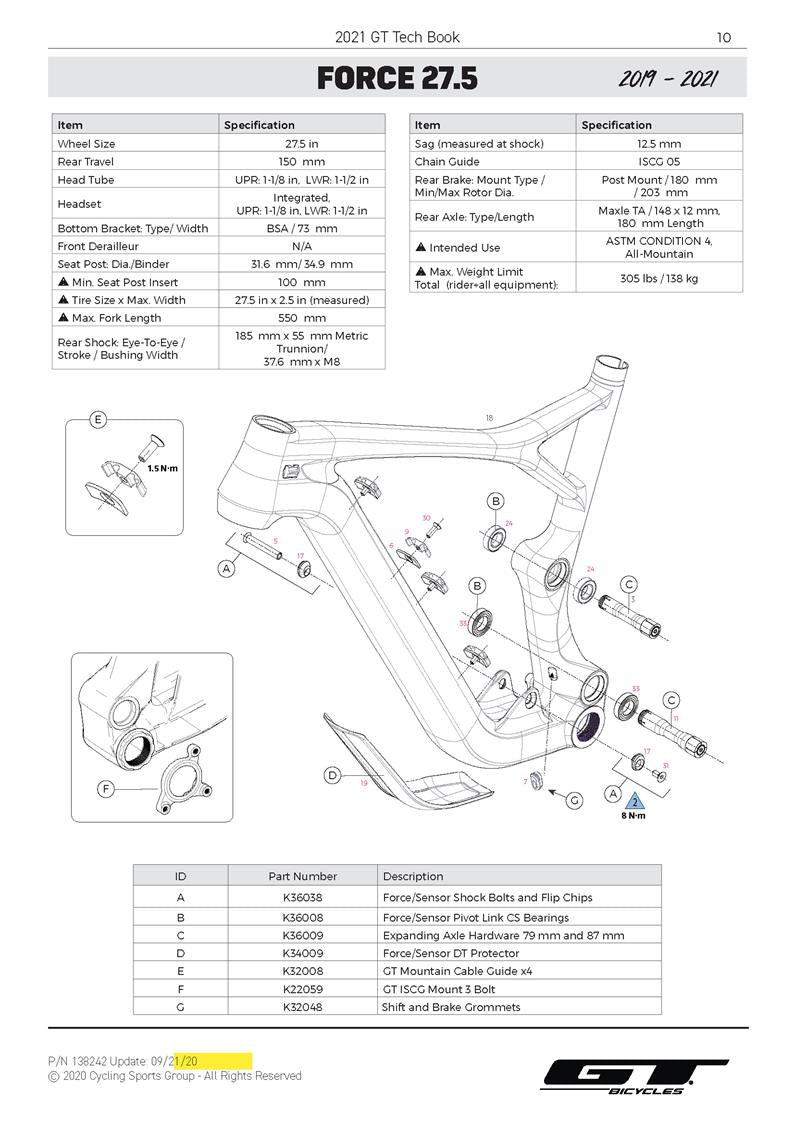

GT FORCE CARBON 27.5 1019 - 2022 FRAME PARTS

SPECIFICATIONS

  • Rear Travel - 150 mm
  • Head Tube - UPR: 1-1/8” LWR: 1-1/2”
  • Headset - Integrated, 1-1/8” - 1-1/2”
  • Bottom Bracket: Type / Width - BSA / 73mm
  • Front Derailleur - N/A
  • Seat Post: Dia./Binder - 31.6mm / 34.9mm
  • Min. Seat Post Insert - 100 mm
  • Tire Size x Max. Width - 27.5 in x 2.5 in
  • Max. Fork Length - 550 mm
  • Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 185 mm x 55 mm / Metric Trunnion 37.6 mm x M8
  • Sag - 12.5mm
  • Chain Guide - ISCG 05
  • Rear Brake Mount / Type - Post Mount / 180mm / 203mm
  • Rear Axle: Type / Length - Maxle TA / 148x12mm / 180mm L
  • Max. Weight Limit: Total - 138kg

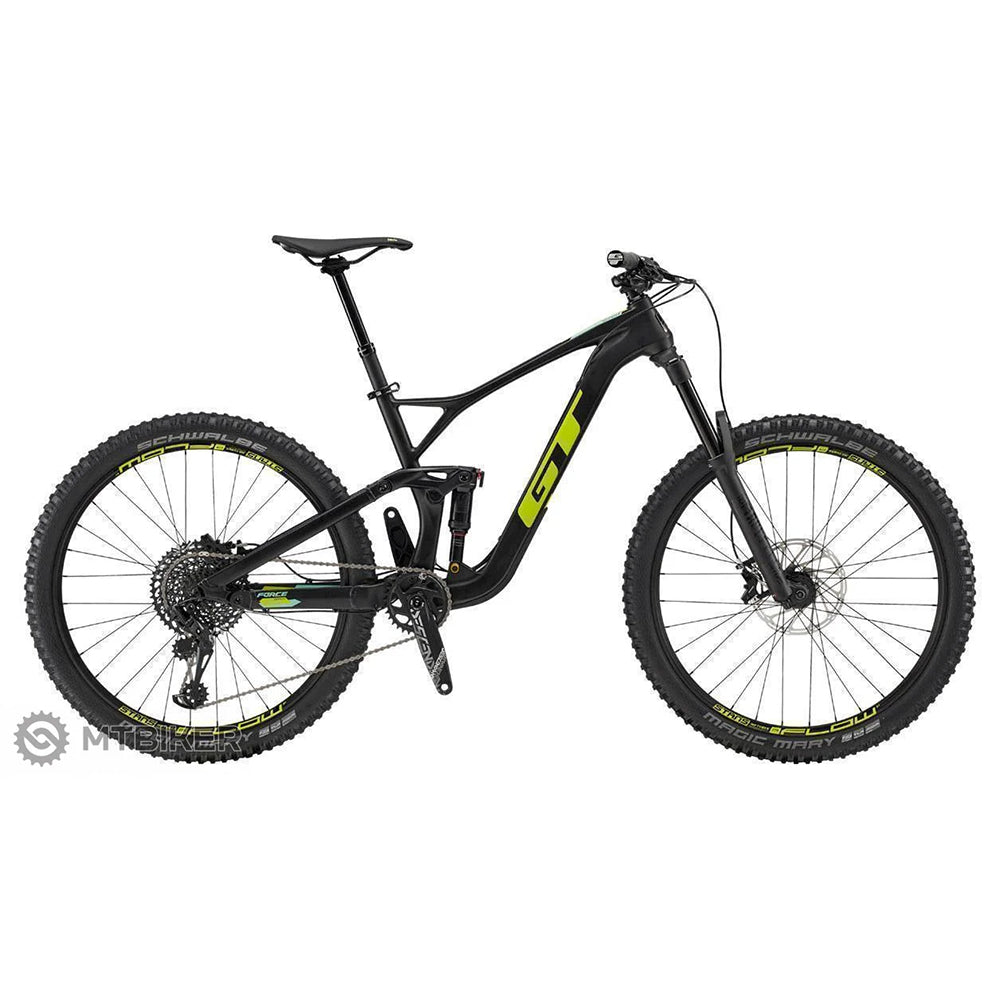

Force 27.5 2019 - 2022
GT Force Carbon 27.5 2019 - 2022 Frame Parts
