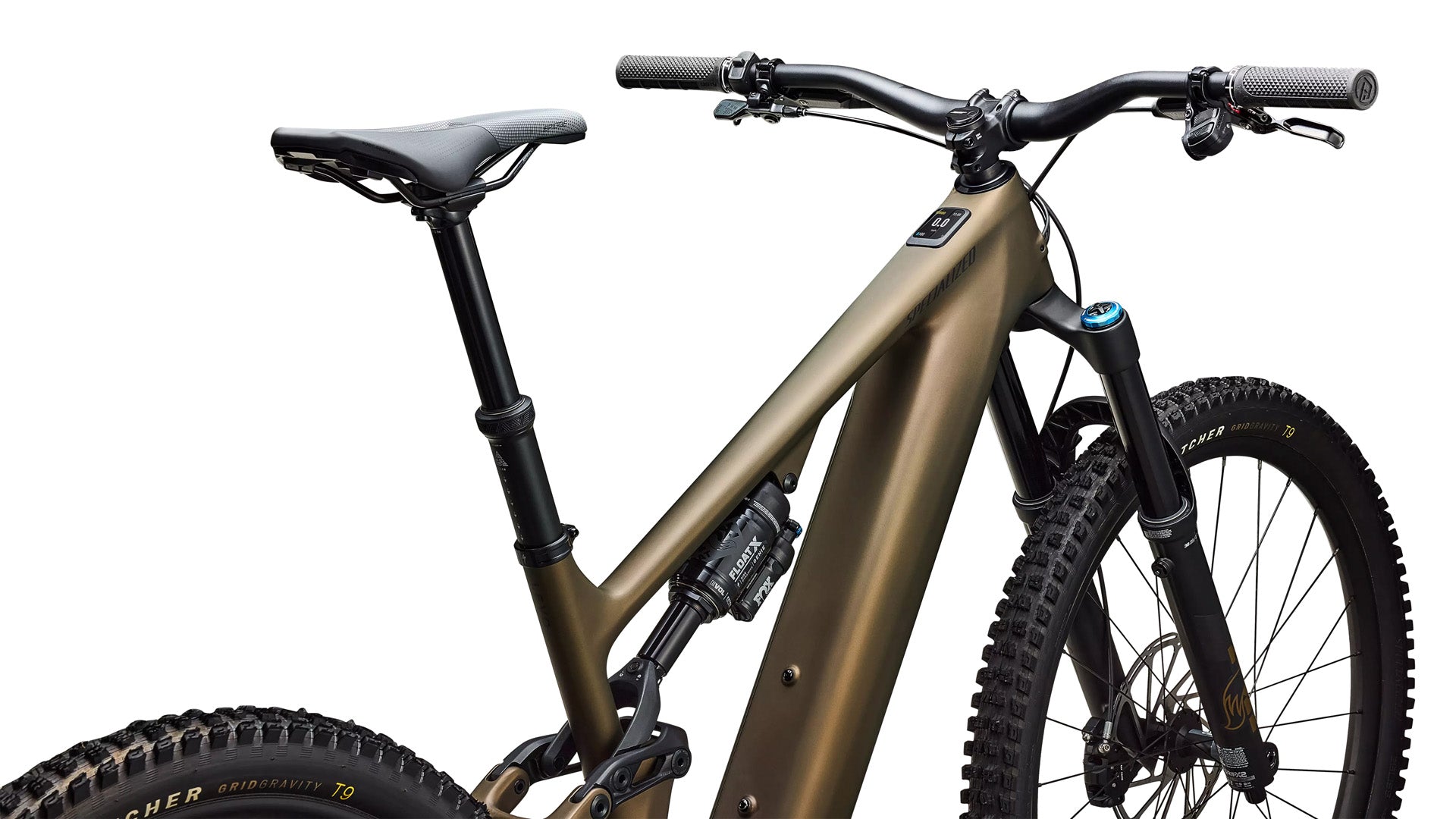

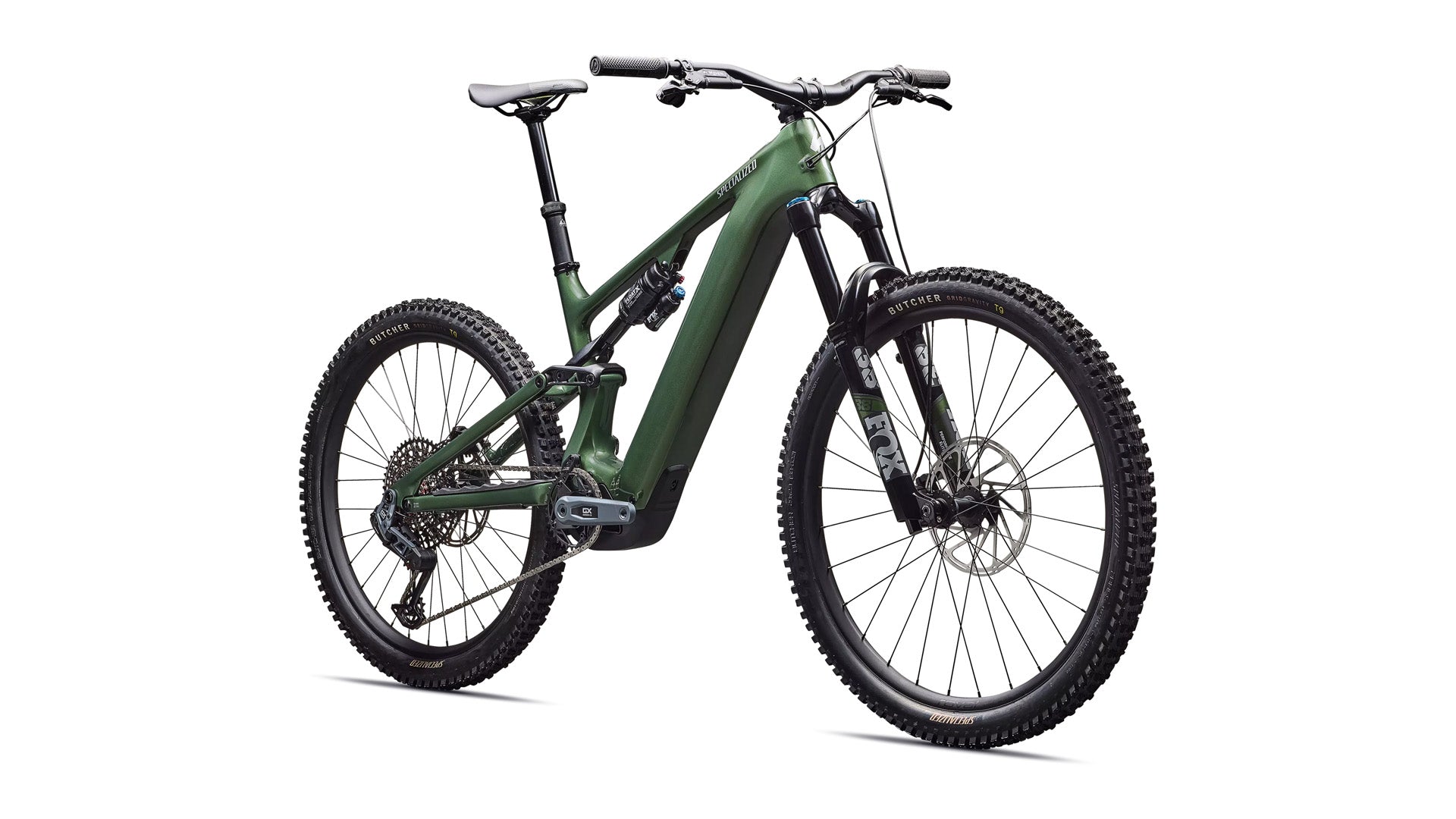

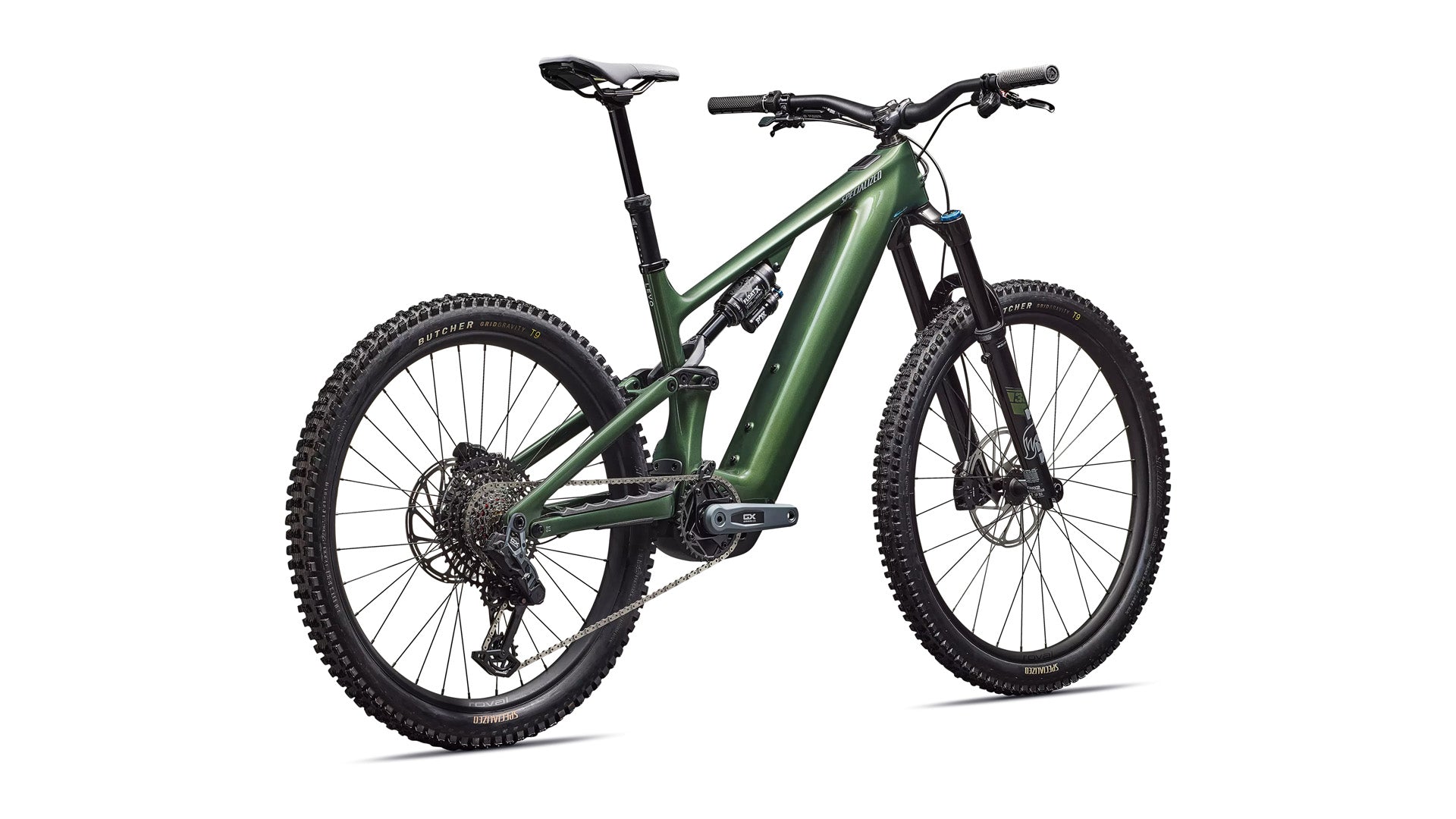

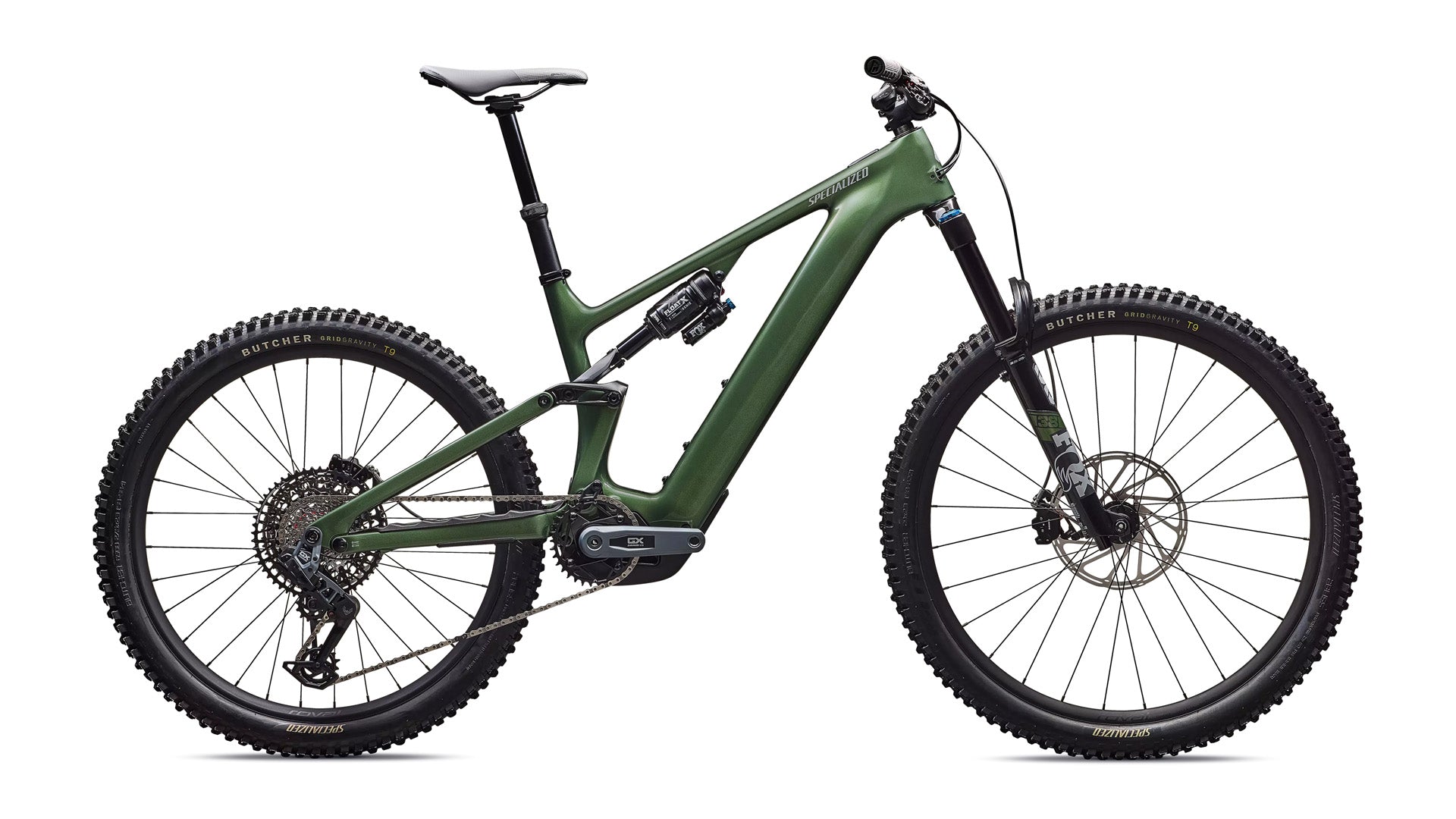

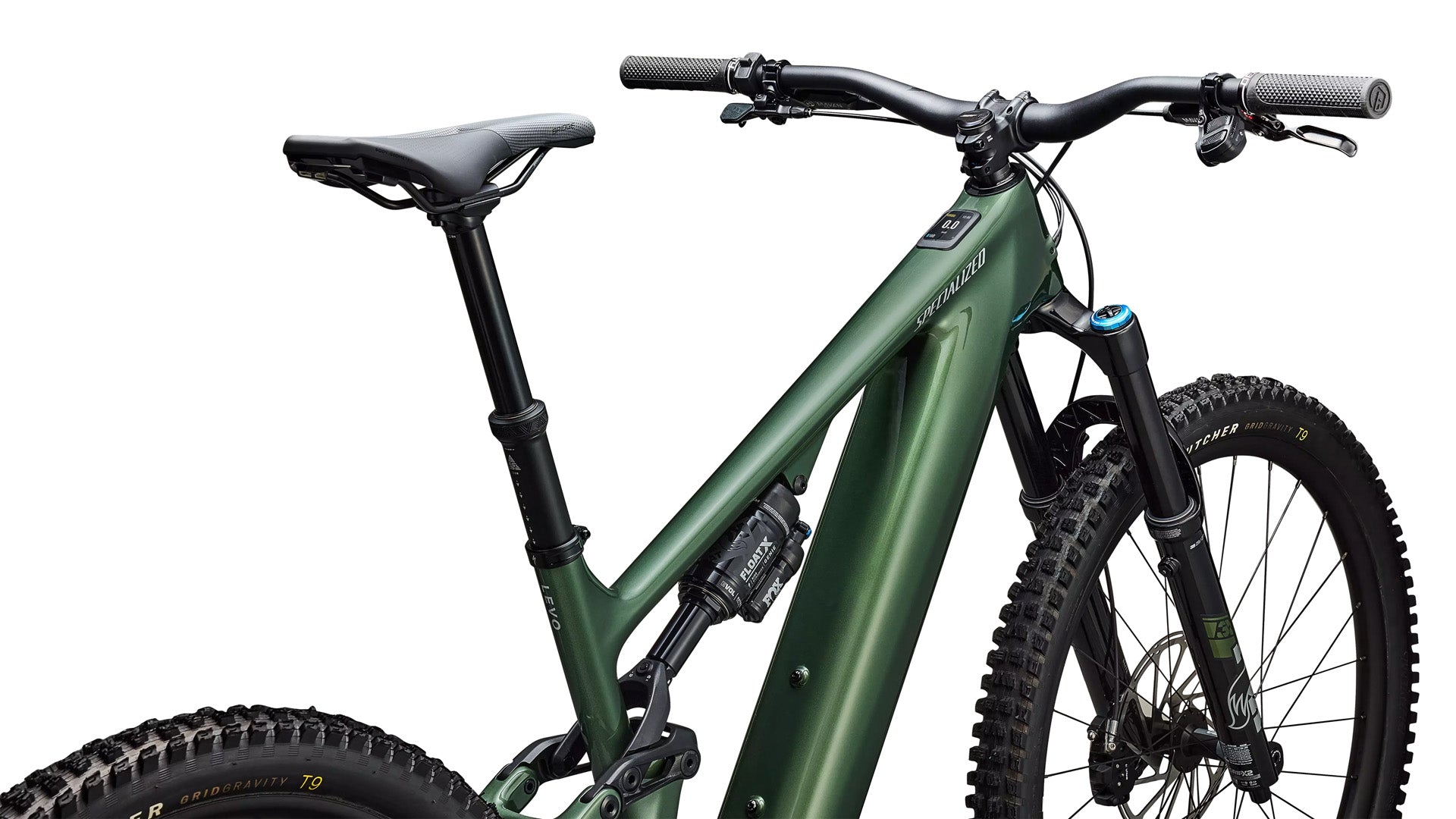

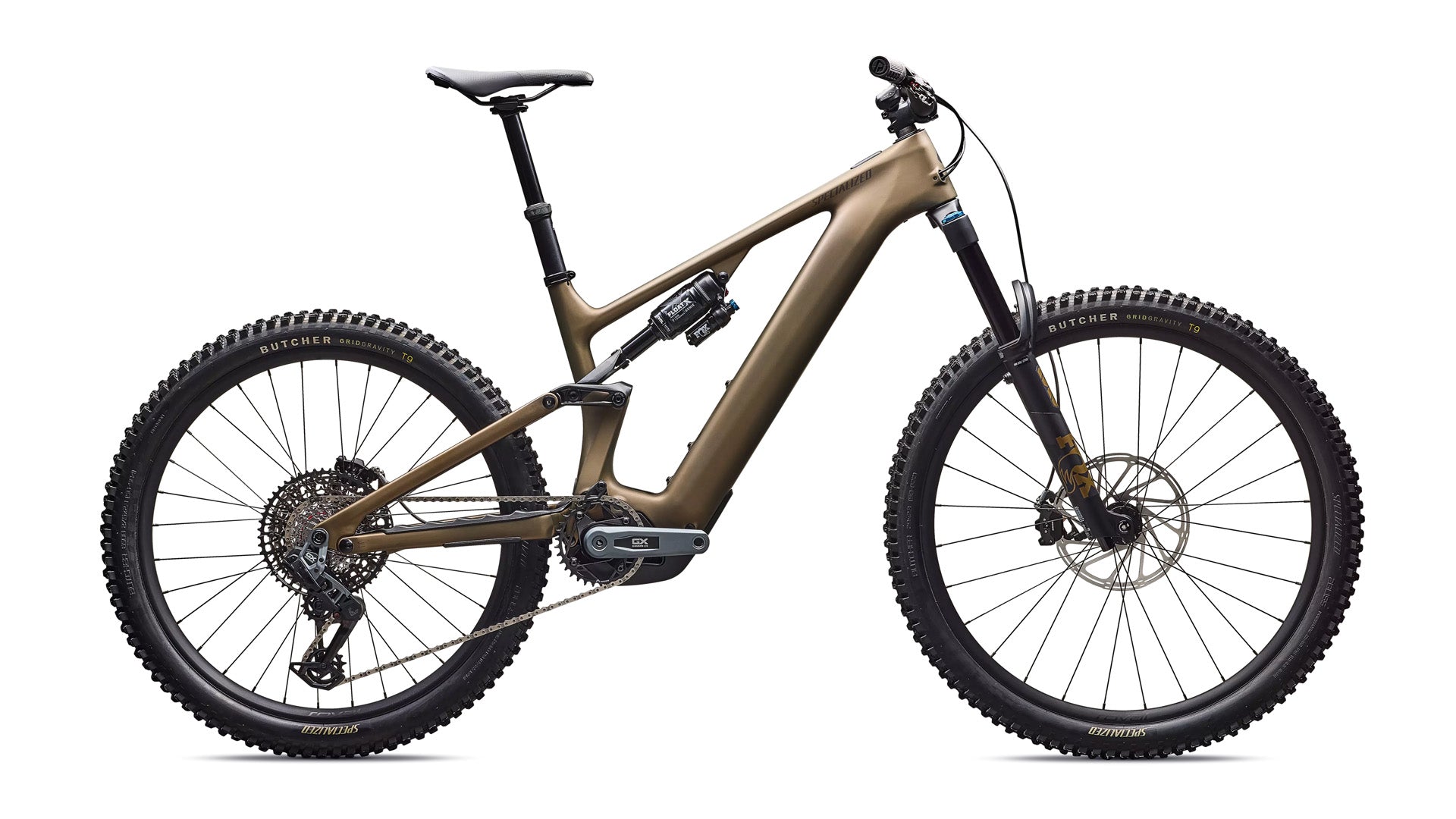

Specialized Turbo Levo 4 Expert 2026

E-Bike System

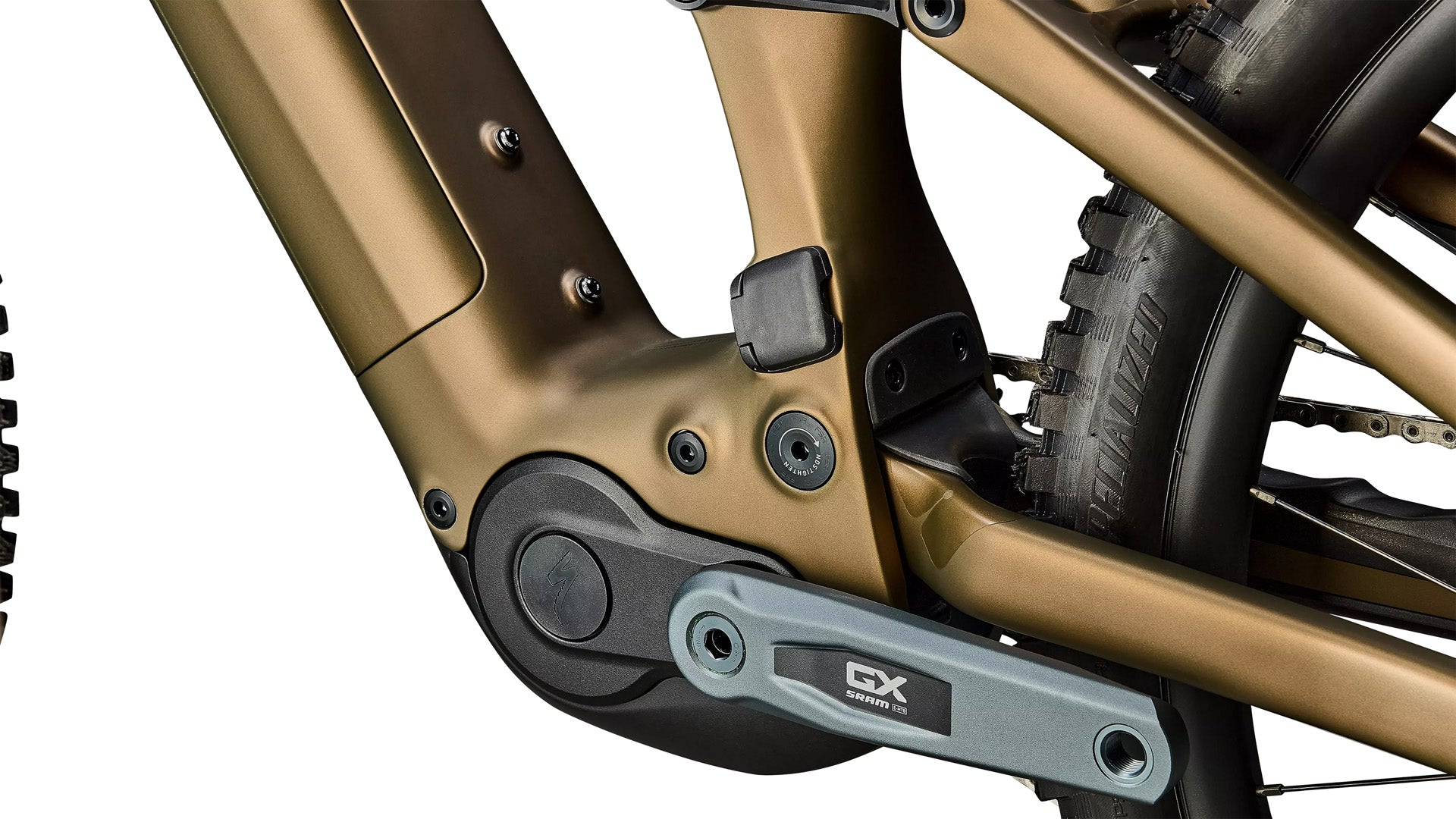

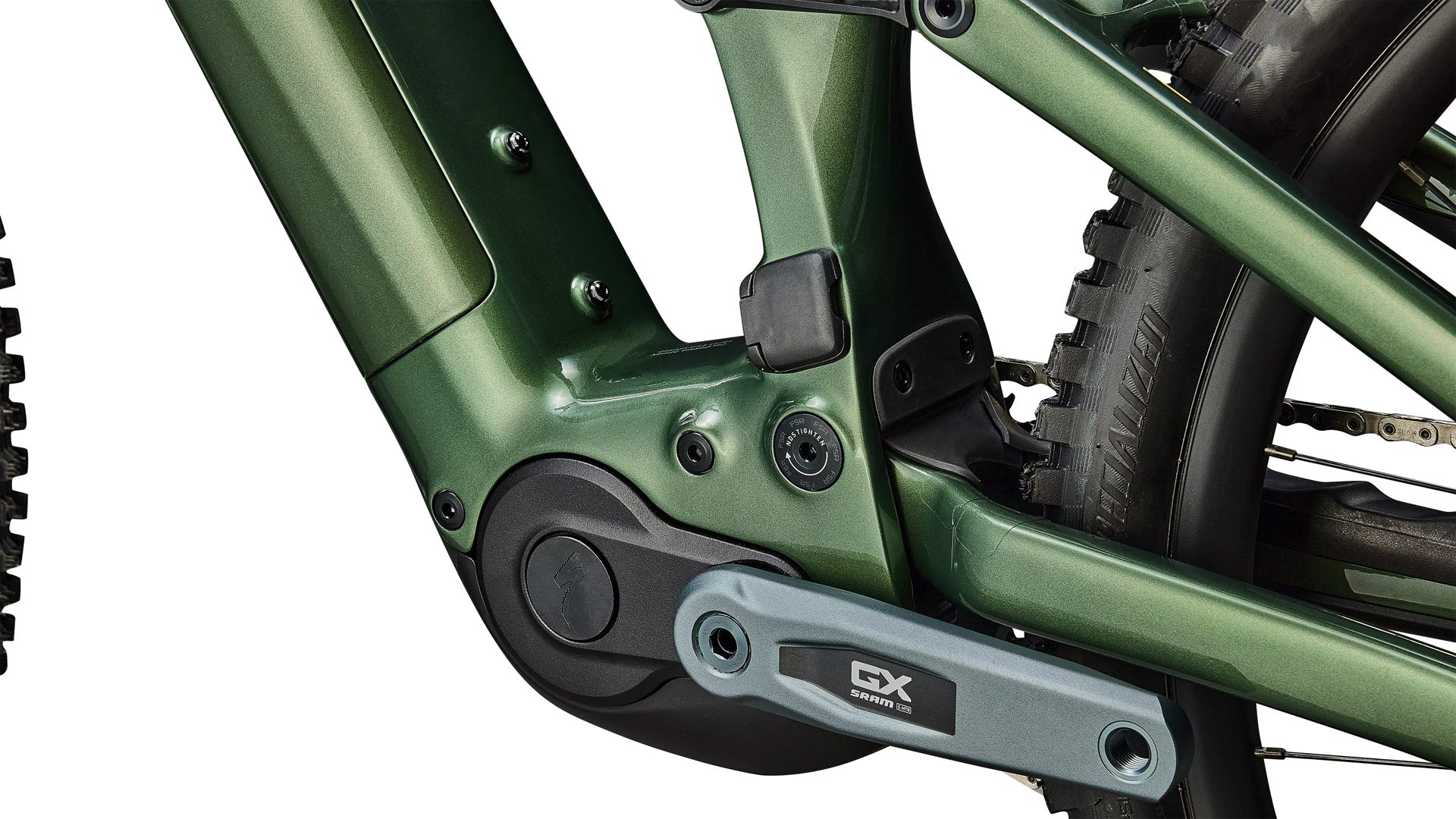

• Motor: Specialized 3.1 Motor, up to 810W peak power and 105Nm torque
• Battery: Integrated 840Wh battery
• Claimed riding time: Up to 5.33 hours
• Range extender compatibility: Specialized Levo 4 Full Power 280Wh Range Extender, sold separately
• Maximum combined battery capacity: 1,120Wh with the optional Range Extender

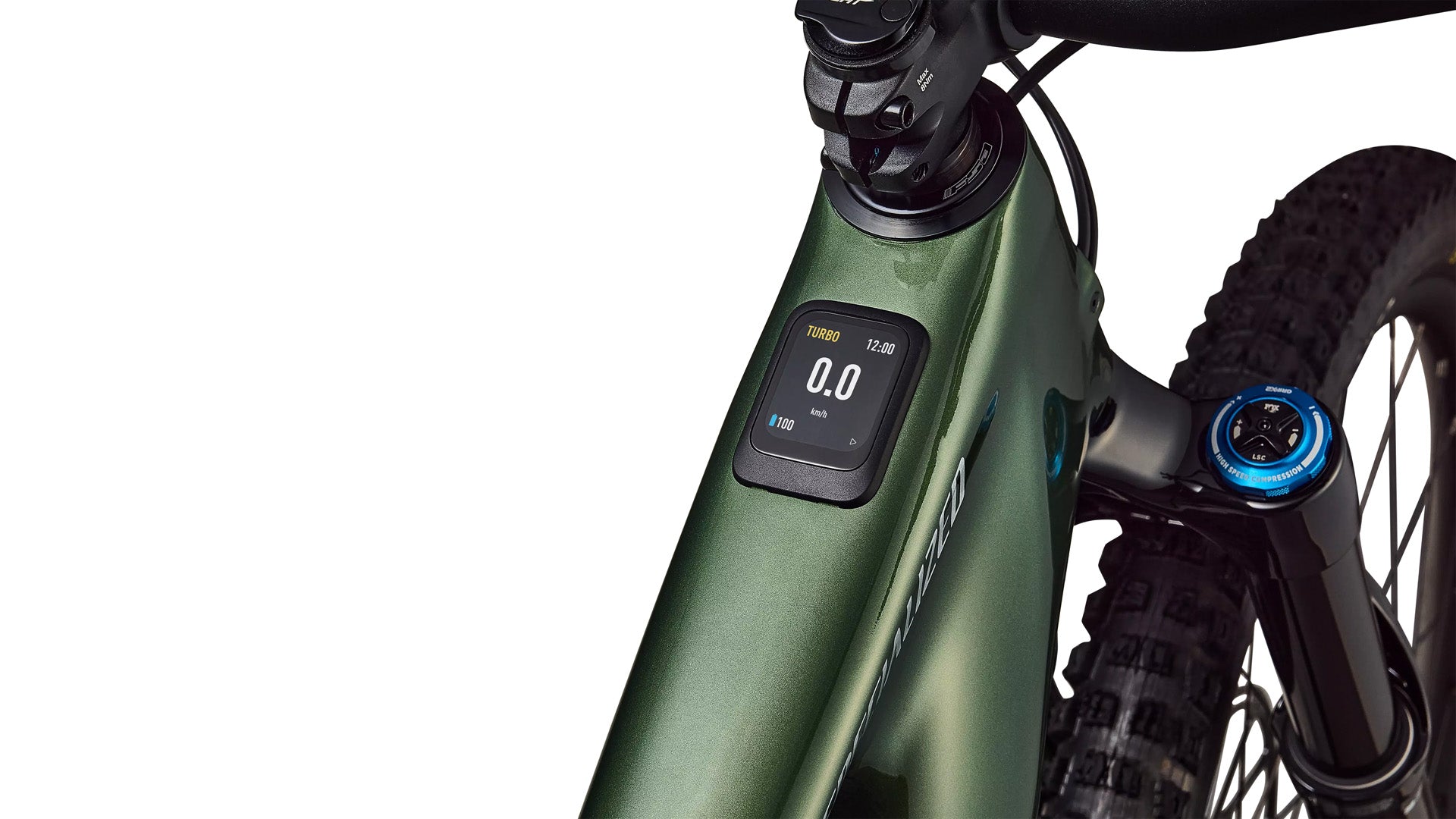

• Display: MasterMind T3 with 2.2-inch high-resolution colour screen
• Connectivity: Customisable through the Specialized app
• Charger: Specialized 4A charger

Frame and Suspension

• Frame: Specialized Levo 4 FACT 11m carbon chassis and rear end, 150mm travel, sealed cartridge-bearing pivots and side-entry battery
• Frame spacing: 12 x 148mm
• Derailleur-hanger compatibility: SRAM UDH
• Geometry adjustment: Adjustable head-tube angle, bottom-bracket height and chainstay length
• Storage: Integrated weather-resistant downtube SWAT storage
• Maximum compatible fork travel: 180mm
• Fork: FOX 38 Performance Elite, 29-inch, GRIP X2 damper, 15 x 110mm axle, 44mm offset and 160mm travel

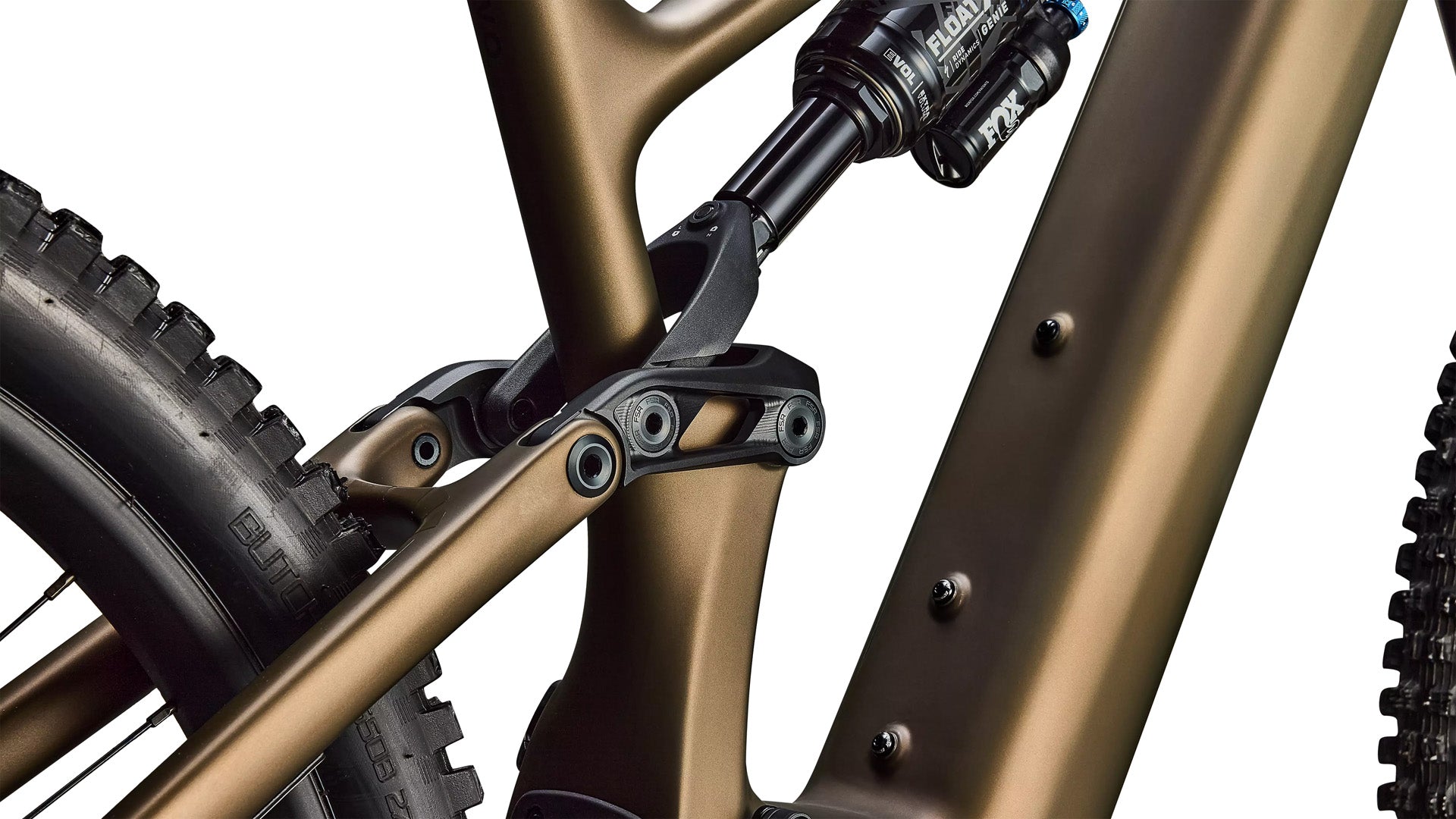

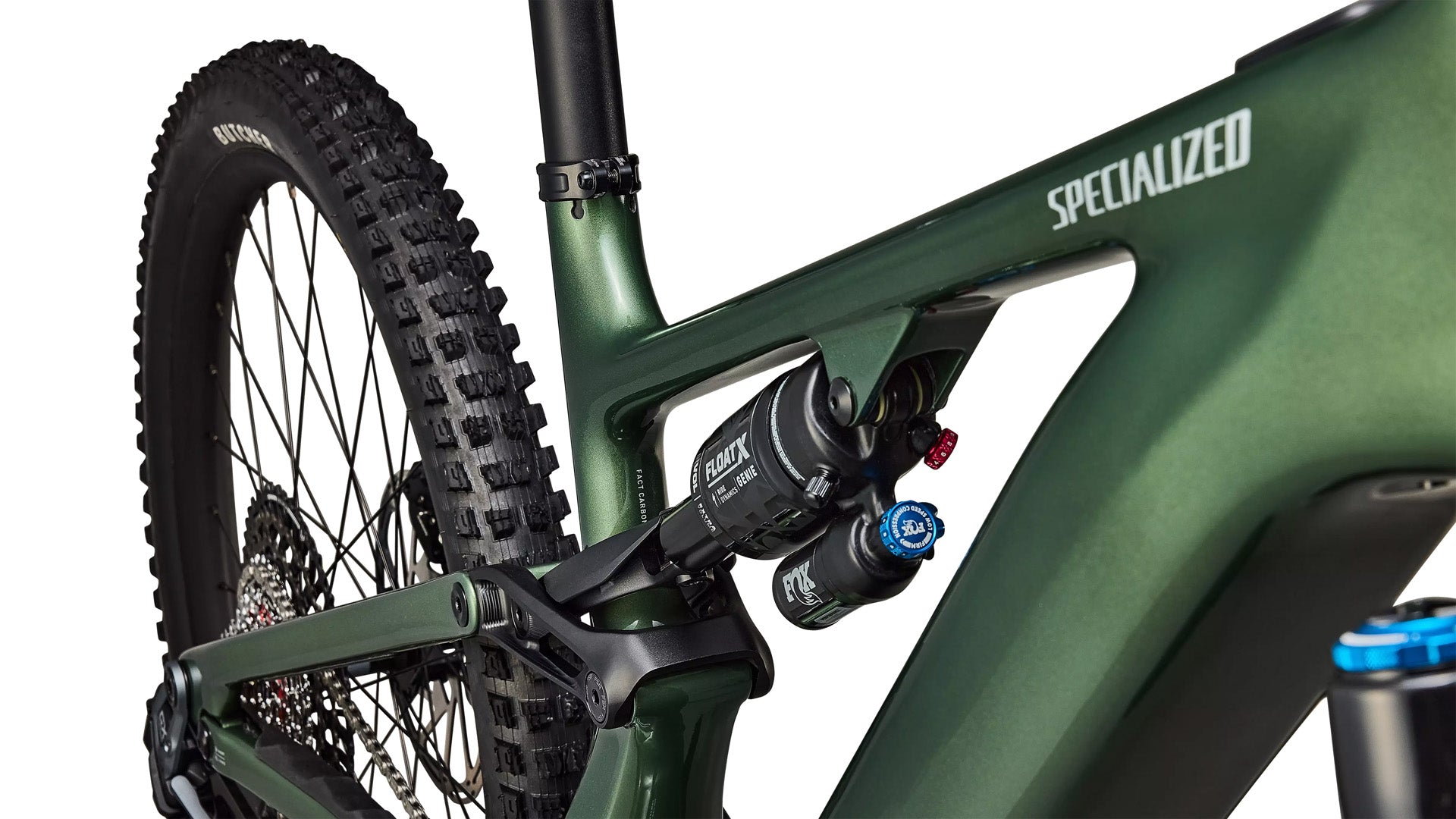

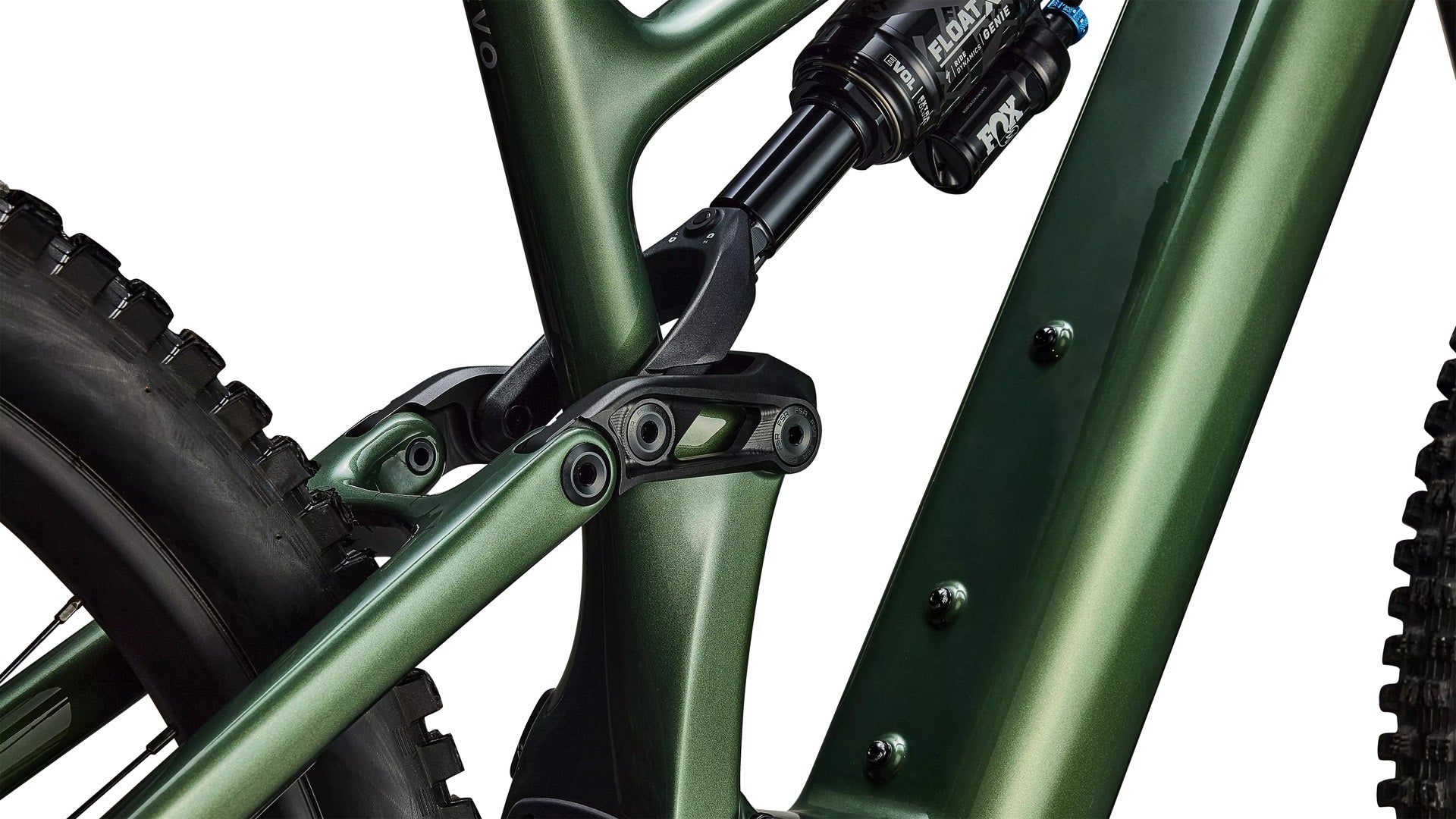

• Rear shock: FOX FLOAT X Performance Elite with Specialized GENIE Shock Technology, Ride Dynamics Trail Tune, two-position lever, three-setting Open-mode adjustment and low-speed rebound adjustment
• Rear travel: 150mm
• Seat binder: Alloy, 38.6mm

Drivetrain

• Controller: SRAM AXS Pod wireless controller
• Rear derailleur: SRAM GX Eagle AXS Transmission with integrated wired power connection
• Derailleur power: Supplied directly by the Levo 4 main battery; no removable AXS derailleur battery
• Cassette: SRAM GX Eagle Transmission, 12-speed, 10–52T
• Chain: SRAM GX Eagle Transmission Flattop
• Crankset: SRAM GX Eagle, ISIS interface, integrated guard, 55mm chainline and 155mm arms
• Chainring: SRAM T-Type steel, 34T, 104 BCD

Brakes

• Front brake: SRAM Maven Silver four-piston hydraulic disc
• Front rotor: 220mm
• Rear brake: SRAM Maven Silver four-piston hydraulic disc
• Rear rotor: 200mm

Wheels and Tyres

• Wheel configuration: 29-inch front and 27.5-inch rear
• Front wheel: Roval Traverse Alloy 29-inch, DT Swiss 370 hub, 15 x 110mm, 28H
• Rear wheel: Roval Traverse Alloy 27.5-inch, DT Swiss 370 hub, XD freehub, 12 x 148mm, 32H
• Front tyre: Specialized Butcher, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 29 x 2.3 inches
• Rear tyre: Specialized Butcher, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 27.5 x 2.3 inches
• Inner tubes: Standard with Presta valves

Cockpit and Contact Points

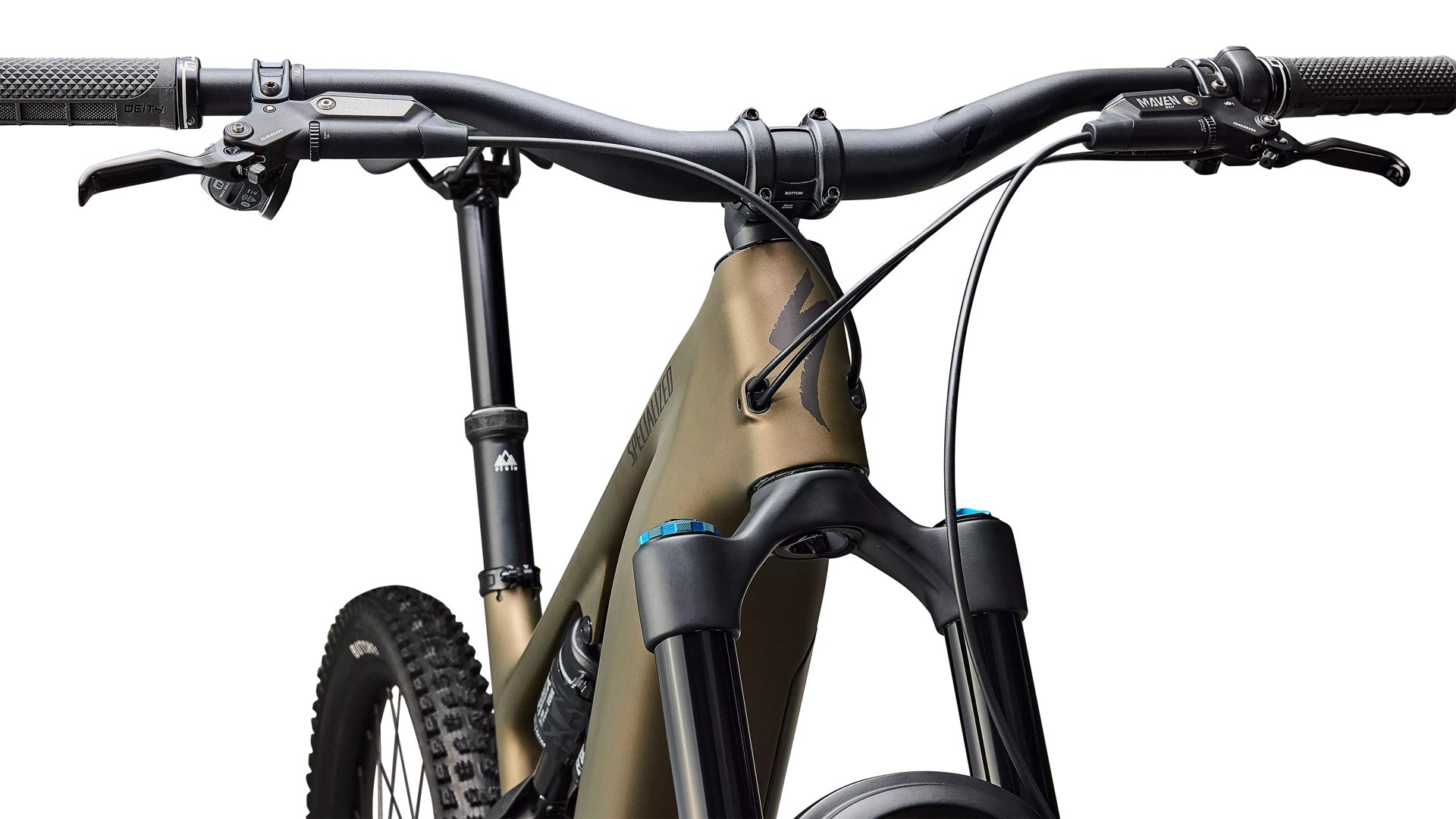

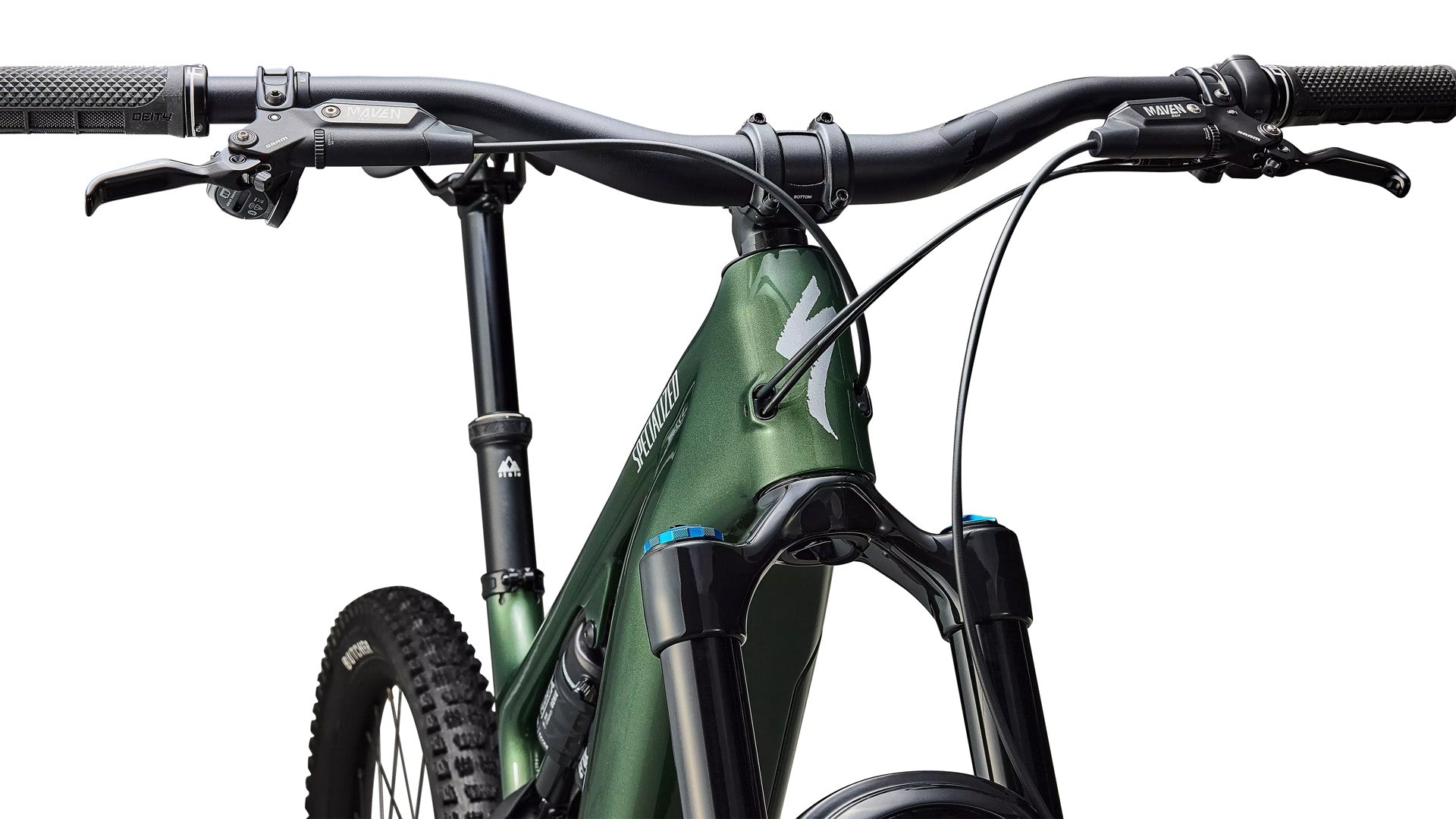

• Handlebar: Alloy, 35mm diameter, 8-degree backsweep and 6-degree upsweep
• Handlebar sizing: S2: 780mm wide with 30mm rise; S3–S6: 800mm wide with 50mm rise
• Stem: Alloy Trail Stem with 35mm handlebar clamp
• Grips: Deity Lockjaw
• Saddle: Specialized Bridge Comp with hollow chromoly rails
• Seatpost: PNW Loam dropper with adjustable travel
• Dropper travel: S2: 125mm; S3: 170mm; S4–S6: 200mm

Sizes and Weight

• Sizes: S2, S3, S4, S5 and S6
• Claimed weight: 24.41kg in size S4

Specifications Disclaimer

Specifications are based on manufacturer and distributor information and may change without notice. Equivalent components may be substituted depending on production availability.

Claimed riding time is an estimate. Actual battery performance varies with assistance mode, rider weight, elevation, trail conditions, temperature, tyre pressure and riding style. The Specialized 280Wh Range Extender is sold separately.

Claimed weight is based on a production-painted size S4 bike. Actual weight may vary with frame size, colour and component variation.
