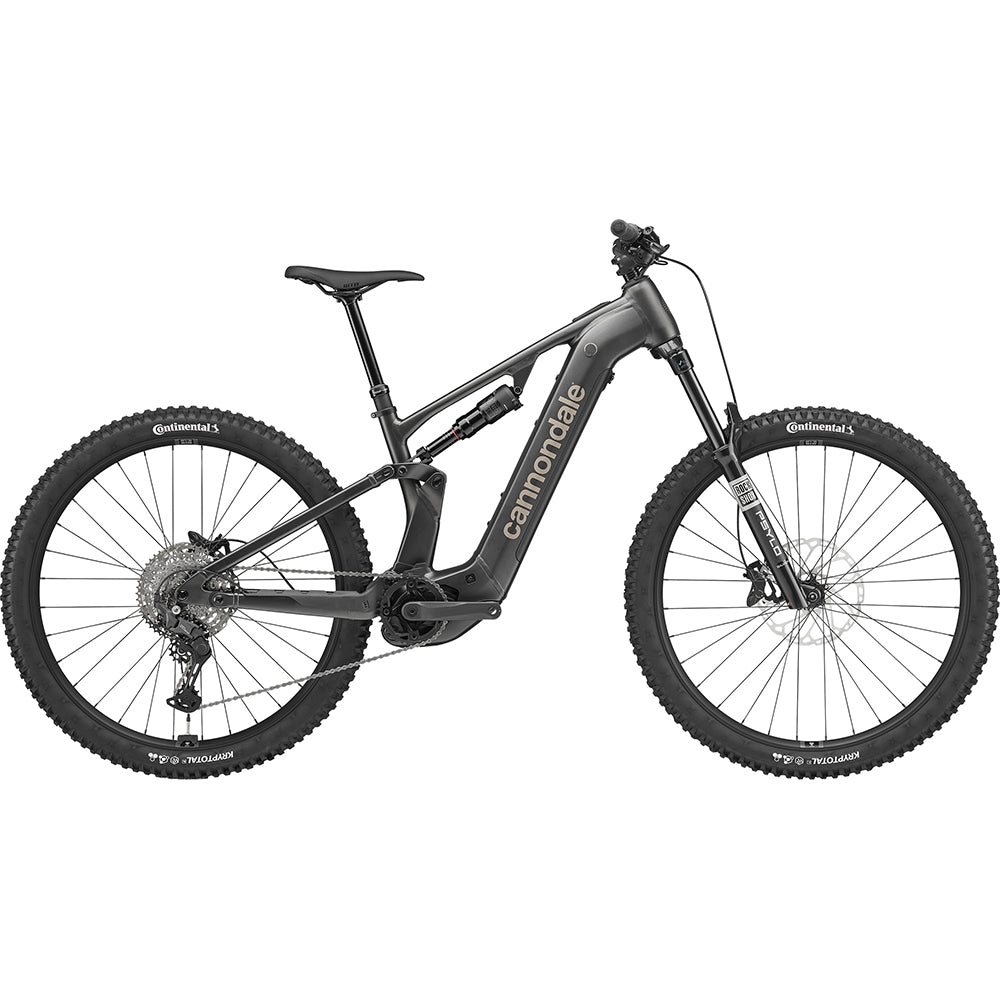

CANNONDALE MOTERRA ALLOY SPARES (2025+)

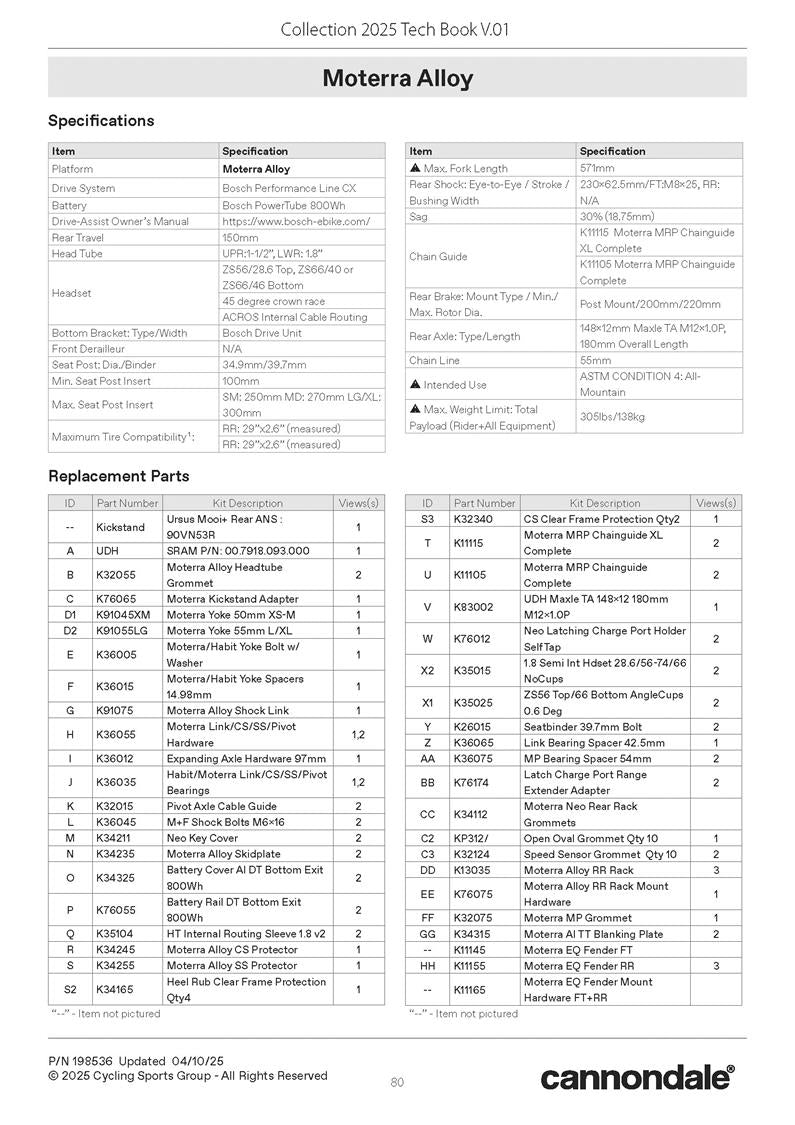

Specifications

• Drive System: Bosch Performance Line CX

• Battery: Bosch PowerTube 800 Wh

• Rear Travel: 150 mm

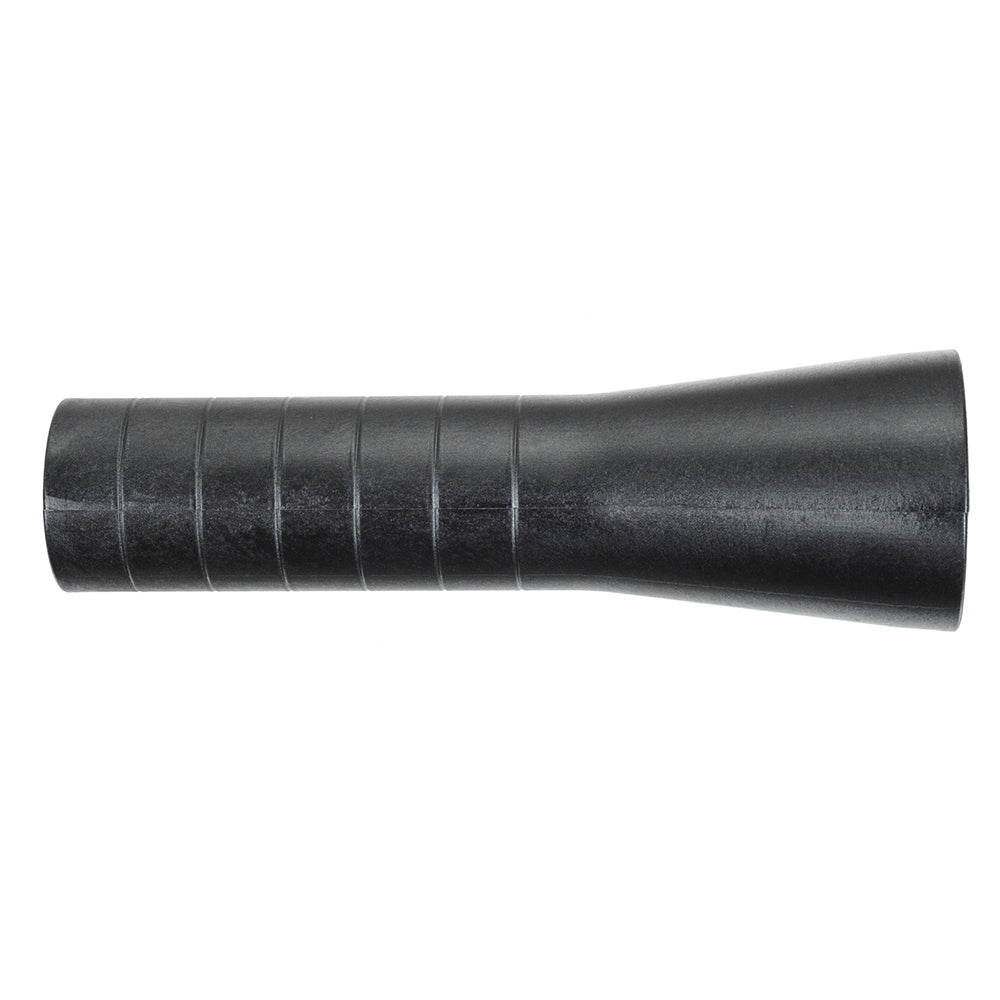

• Head Tube: Upper 1-1/2”, Lower 1.8”

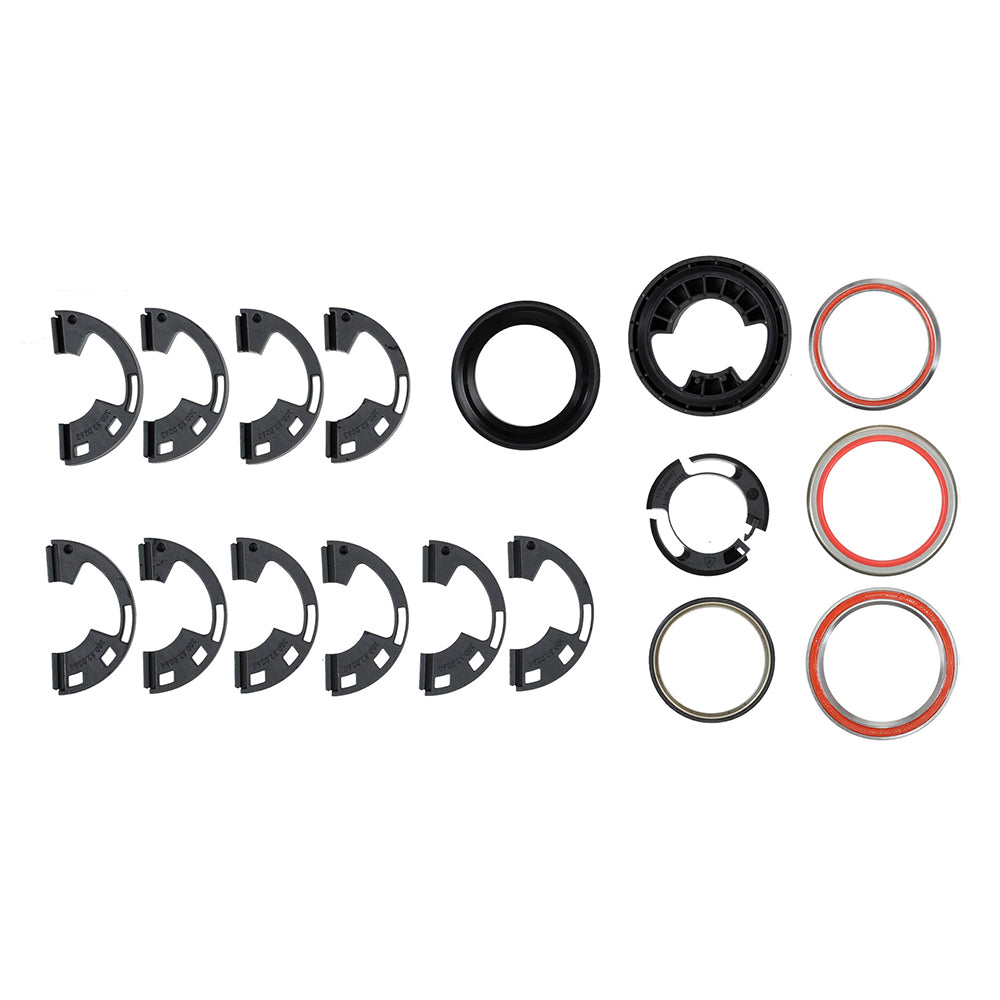

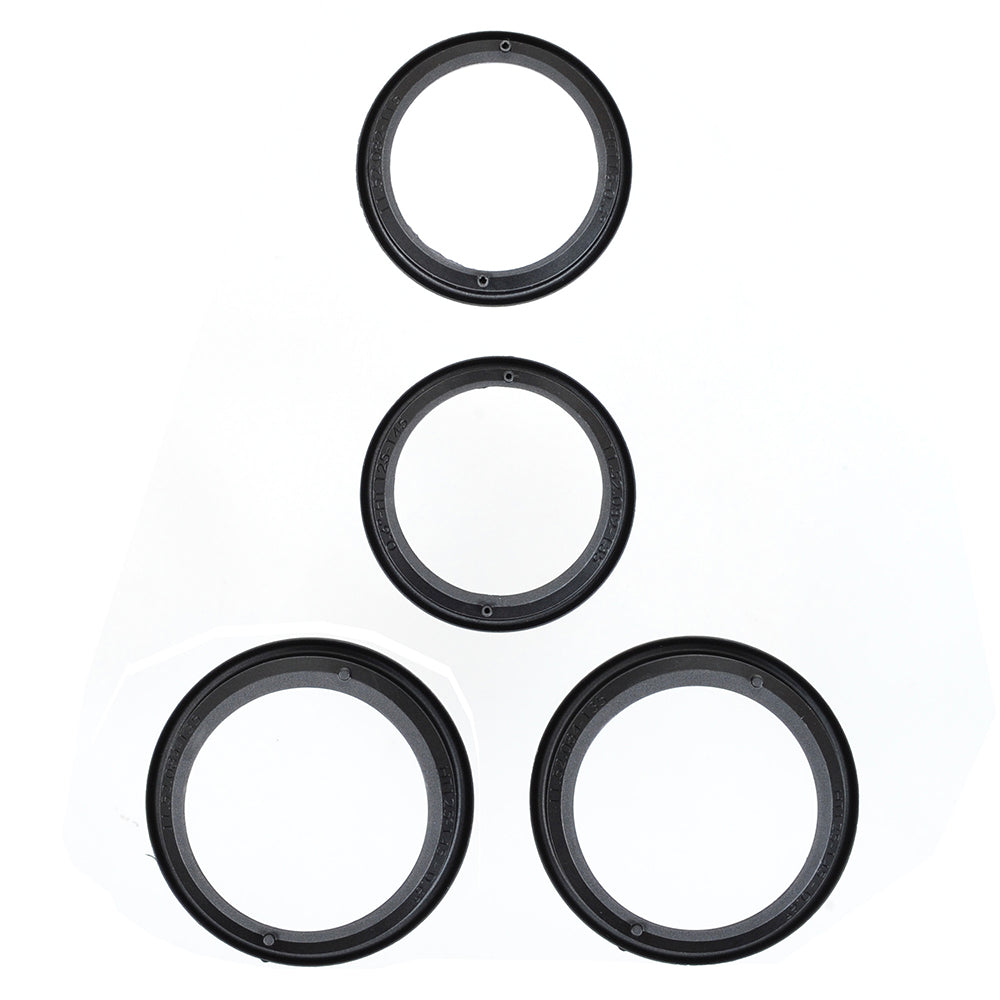

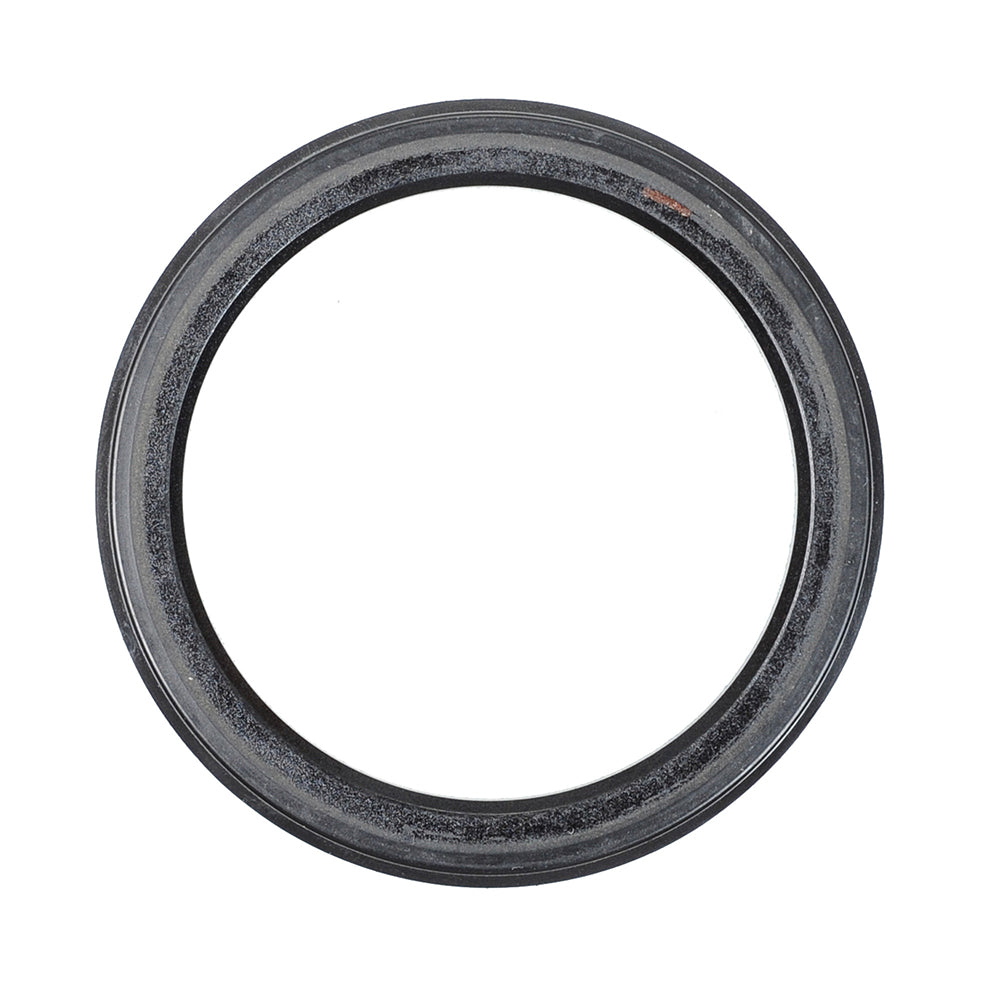

• Headset: ZS56/28.6 (Top), ZS66/40 or ZS66/46 (Bottom), 45° crown race

• Bottom Bracket: Bosch Drive Unit

• Front Derailleur: N/A

• Seat Post (Diameter / Binder): 34.9 mm / 39.7 mm

• Minimum Seat Post Insert: 100 mm

• Maximum Frame Seat Post Insert Depth:

  • SM: 250 mm

  • MD: 270 mm

  • LG / XL: 300 mm

• Tyre Size (Maximum): Rear 29” × 2.6”

• Maximum Fork Length: 571 mm

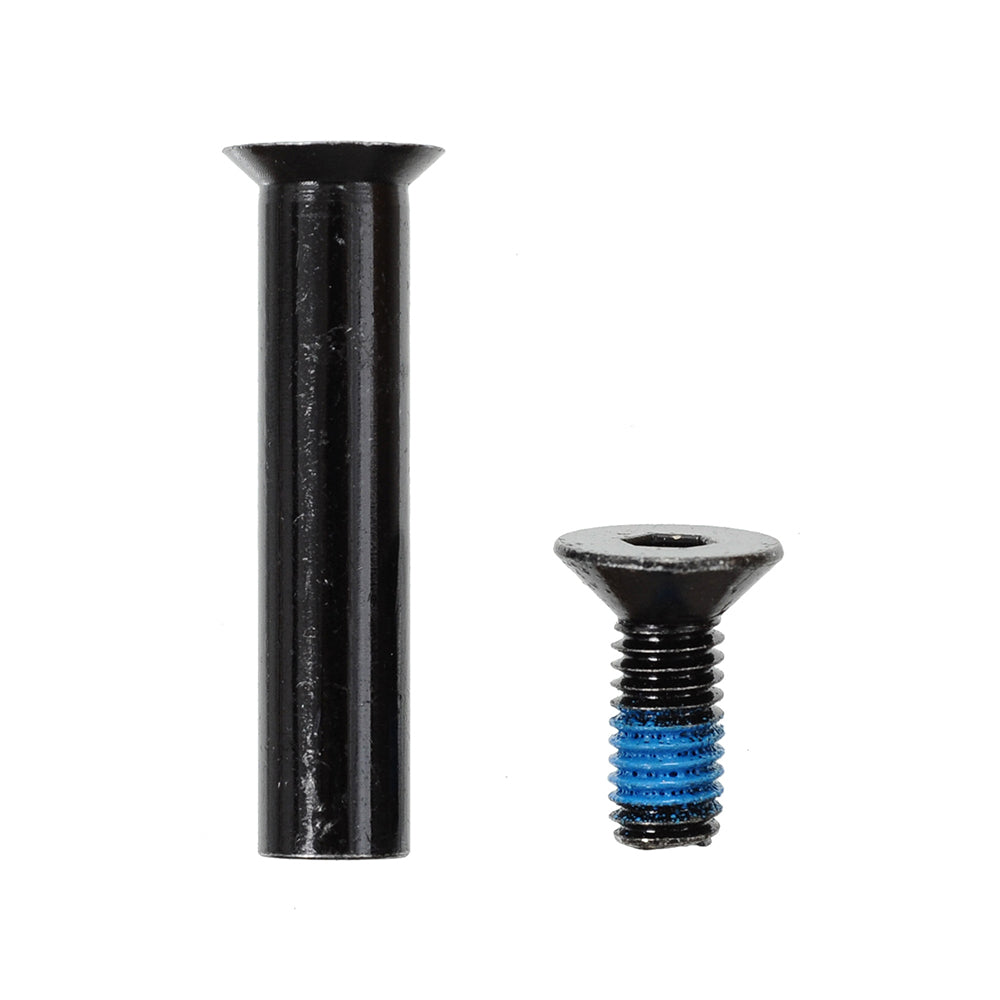

• Rear Shock (Eye-to-Eye / Stroke / Bushing Width):
  230 × 62.5 mm / FT: M8 × 25, RR: N/A

• Recommended Sag: 30% (17.3 mm)

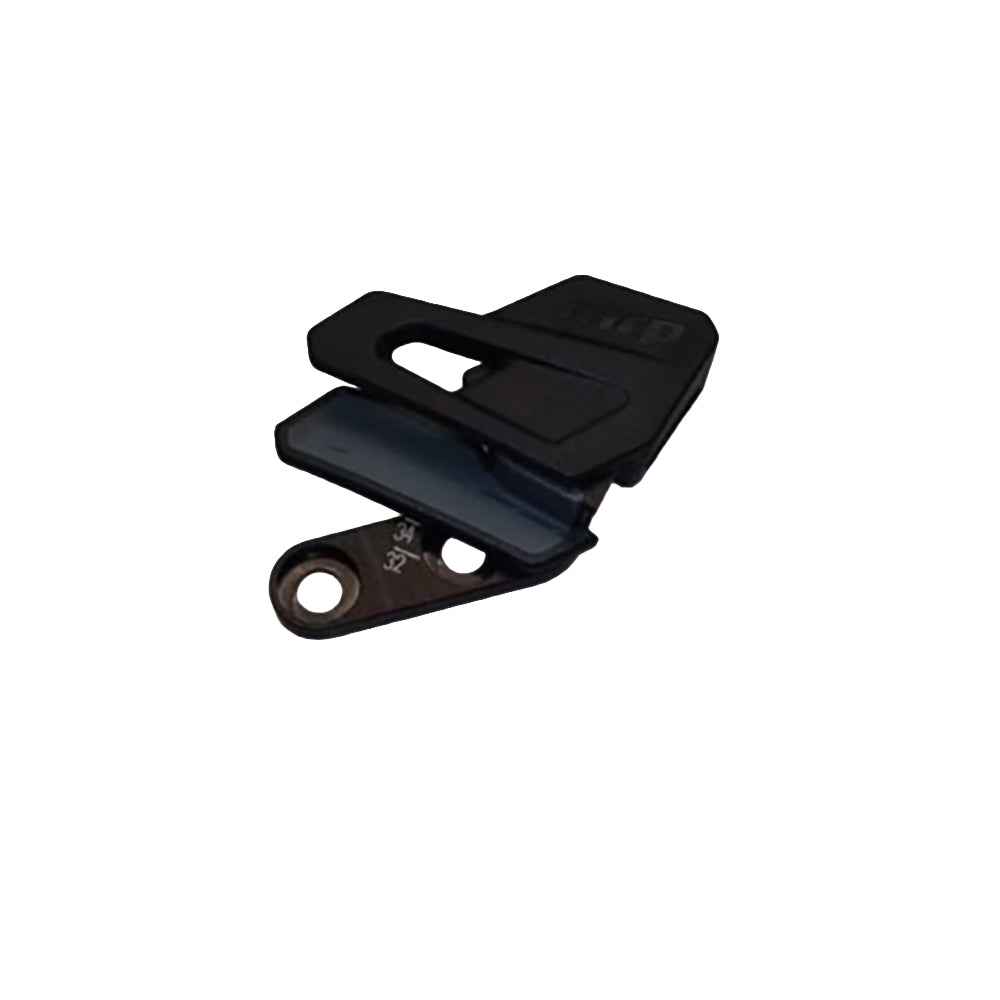

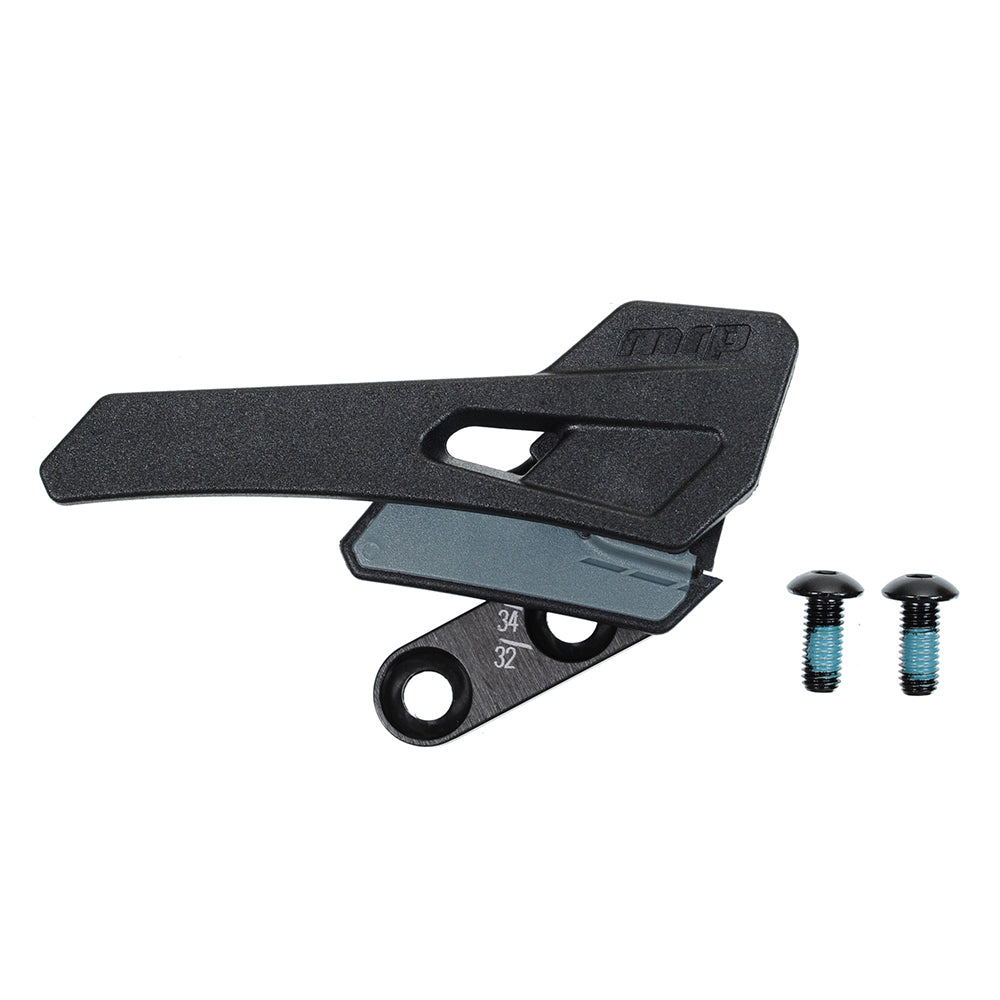

• Chain Guide: K11115 Moterra MRP Chainguide XL Complete

• Brakes (Mount / Min–Max Rotor): Post Mount / 200–220 mm

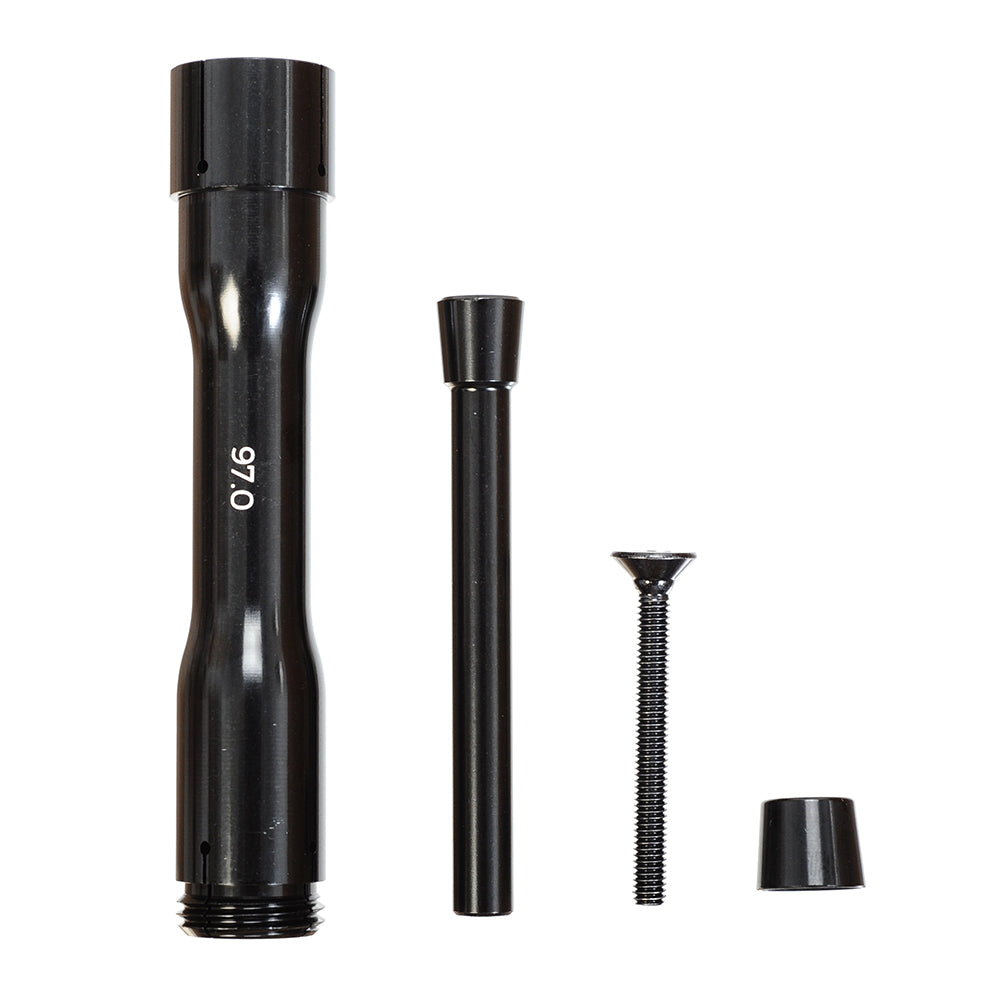

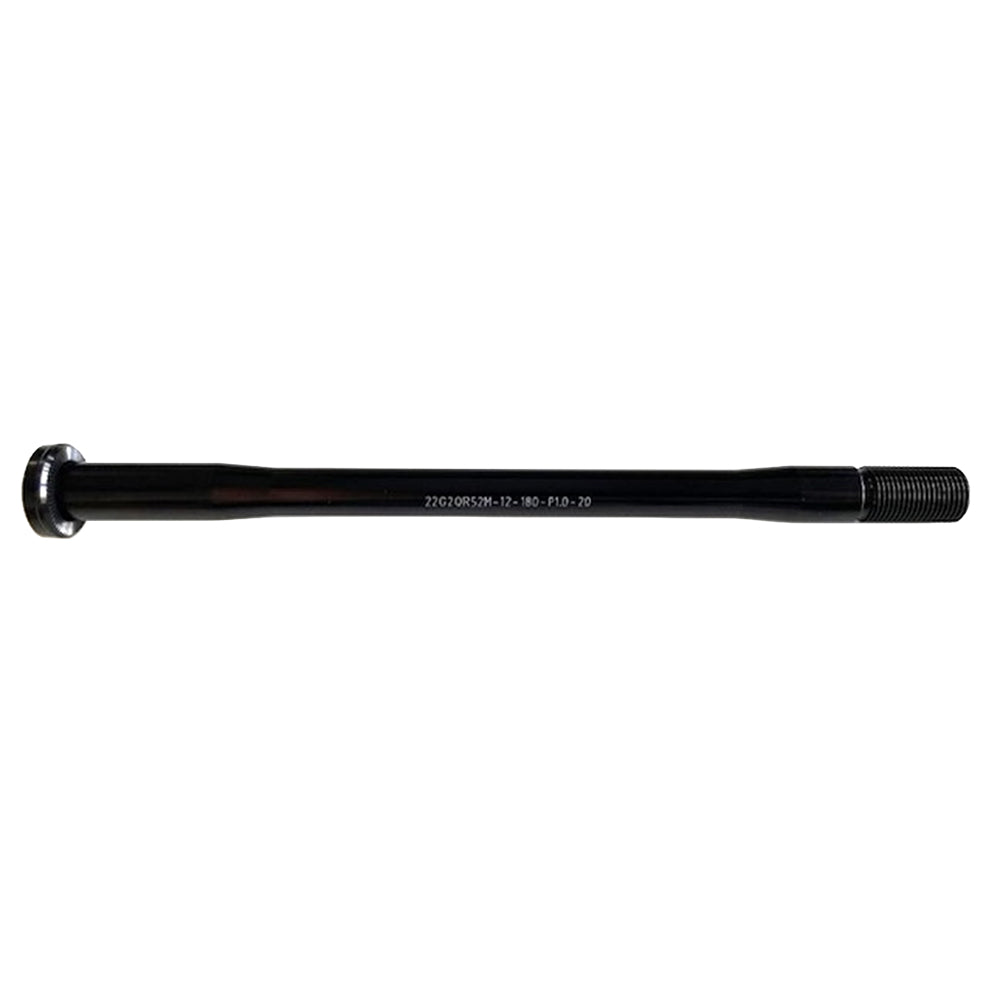

• Axles (Type / Length): 148 × 12 mm Maxle TA, M12 × 1.0P, 180 mm overall length

• Maximum Total Weight Limit: 138 kg
