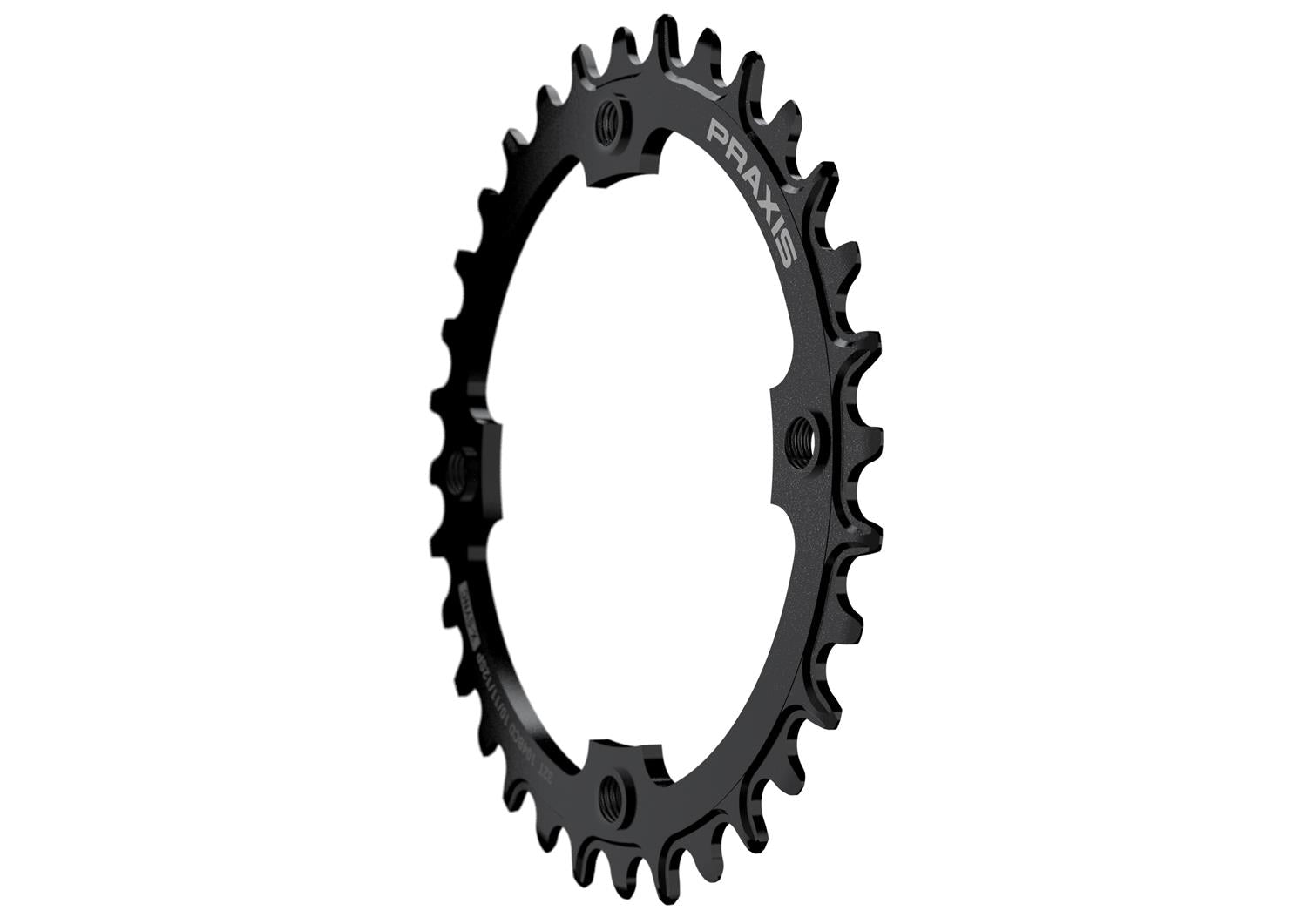

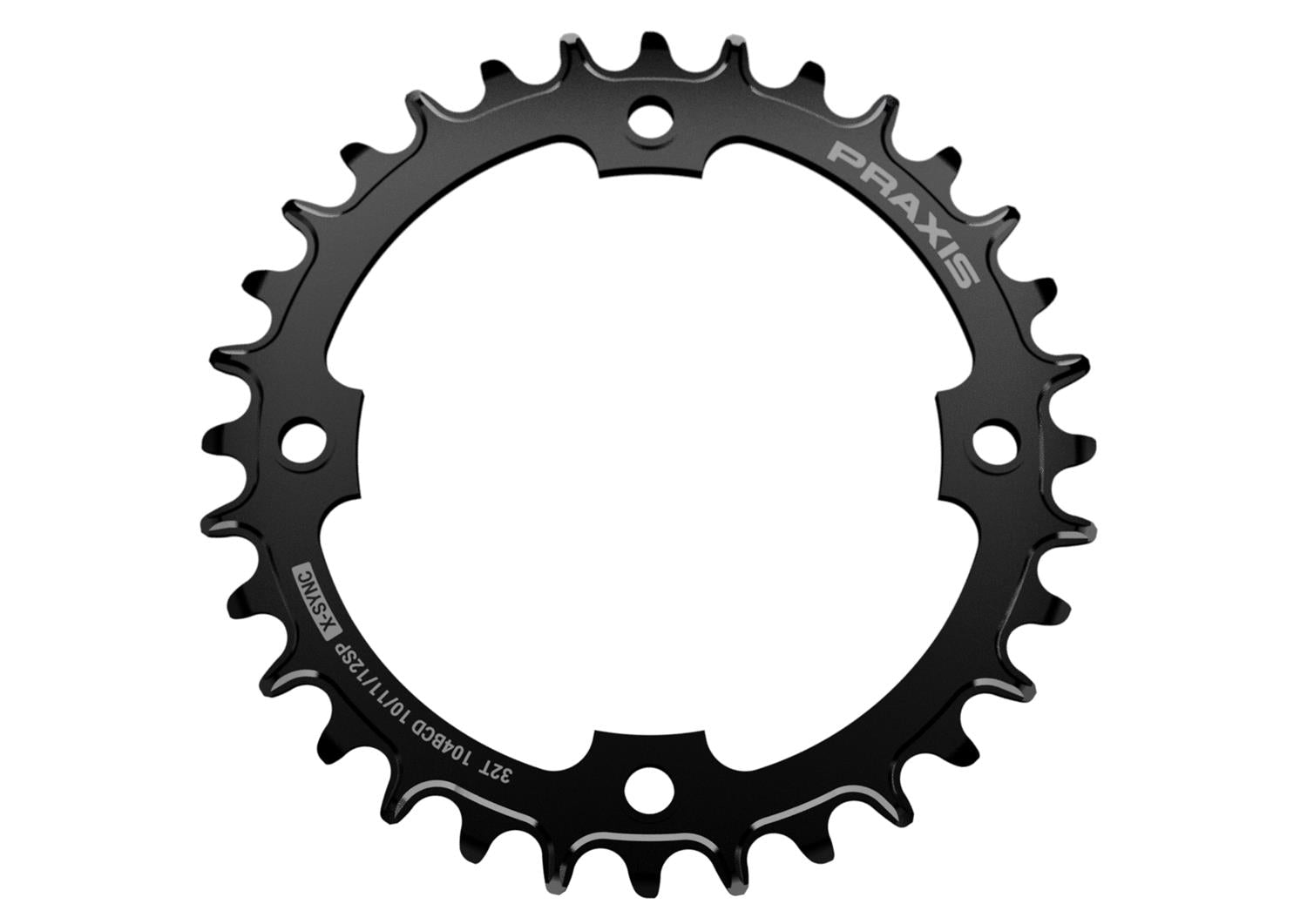

PRAXIS - MTB E-RING STEEL 104 BCD 1X NARROW WIDE

Cold forged from 4130 high-grade steel, our MTN E-Rings are designed specifically for e-MTN and longer wear.

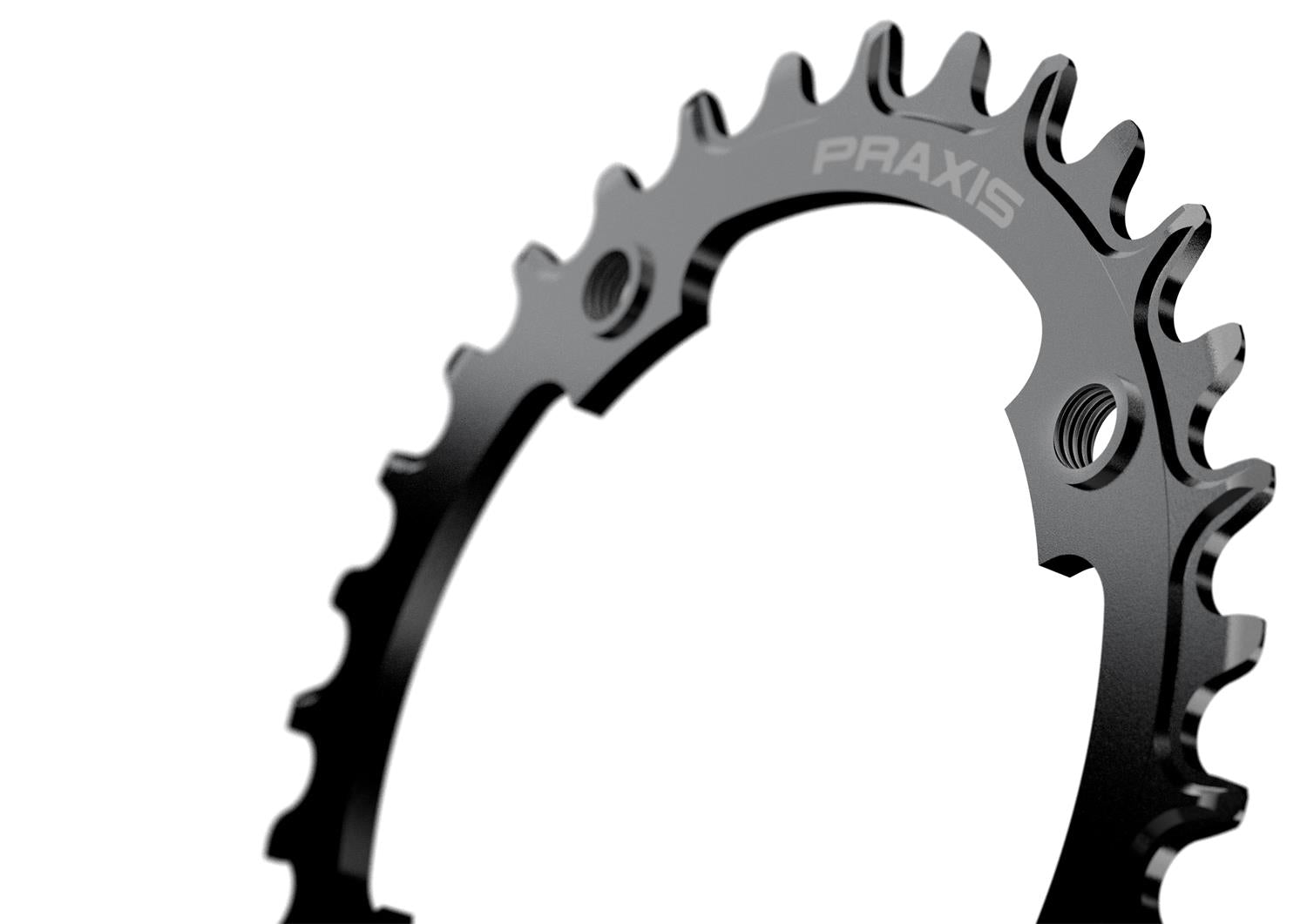

THREADED - These MTN E-Rings are ‘female‘ threaded for an M8 chain ring bolt. The M8 CR bolt threads directly into the 104BCD ring for better motor clearance.

PRODUCT: 1X STEEL MTN E-RING | 104 Bolt Circle Diameter | Threaded

BUY THIS IF: You want to change gearing/refresh the ring on your 104BCD E-MTN Spider. Please make sure your spider is 104BCD and NOT the smaller 94BCD

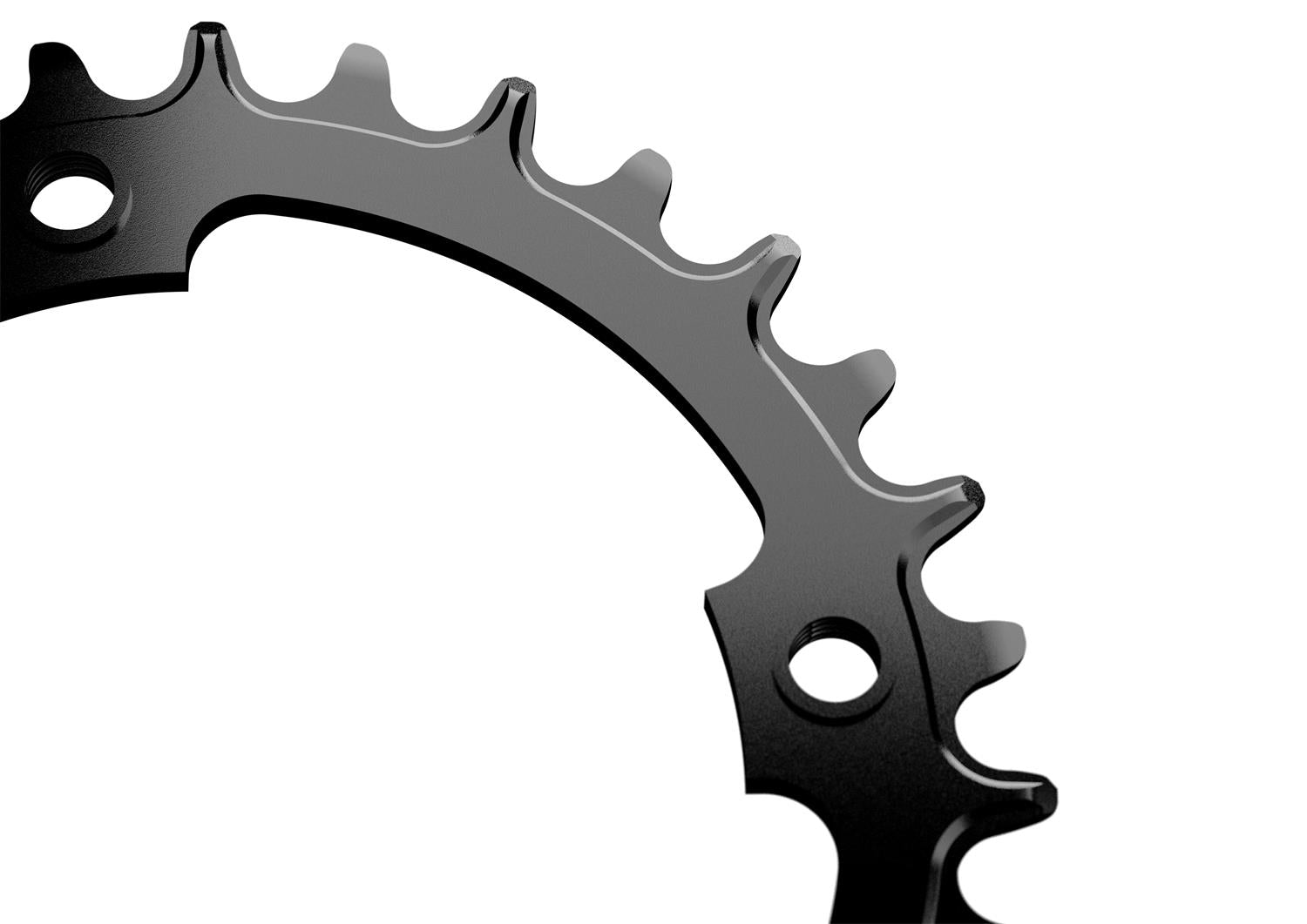

DESIGN/STYLE: NARROW / WIDE TOOTH - E-Rings are ‘female‘ threaded for installation with a regular M8 male bolt for better motor clearance. Please see all photos above.

MFG: Cold Forged | Case hardened high grade steel | Black Oxide finish

GEARING: 32T / 34T / 36T

AVG. WEIGHT: 32T = 98g (Ref size & weight)

CHAIN: Shimano / SRAM / KMC - 10 / 11 /12sp Compatible

DRIVETRAIN: SHIMANO -Compatible with both mechanical and Di2 Shimano 10/11/12sp. / SRAM -Compatible with both mechanical and Wireless SRAM 10/11/12sp.

NOTE!

- Must use a ‘CLUTCH’ type rear derailleur. Ex: Shimano Shadow or SRAM Type2 - GUIDE –In rough terrain, or just for pure security, we still recommend use of an upper guide

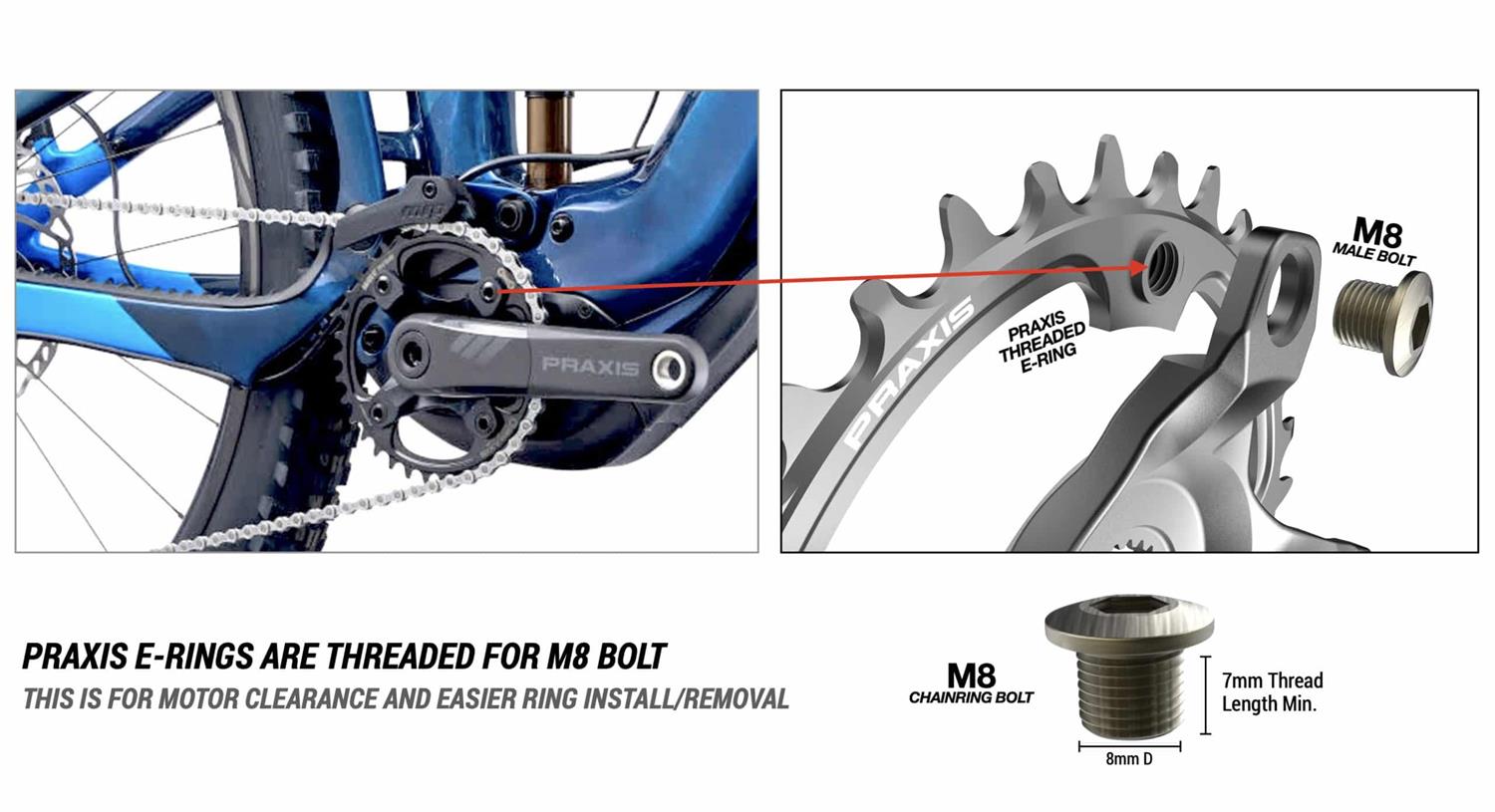

- THREADED - These MTN E-Rings are ‘female‘ threaded for an M8 chain ring bolt. The M8 CR bolt threads directly into the 104BCD ring for better motor clearance. SEE PICTURE

- MOUNTING – LOGOS ALWAYS FACE OUTWARD! SEE PICTURE

Praxis - MTB E-Ring Steel 104 BCD 1x NW

$74.90

Tax included. Shipping calculated at checkout

SKU:
PX-32-NW7001
BARCODE:
850033390520
BRAND:
Praxis

Select stock item

Product variants

Please note that some dropdown options are parts only. Please choose carefully.

Future Shipments
PX-32-NW7001 due 15/08/25
PX-34-NW7001 due 15/08/25
PX-36-NW7001 due 15/08/25
