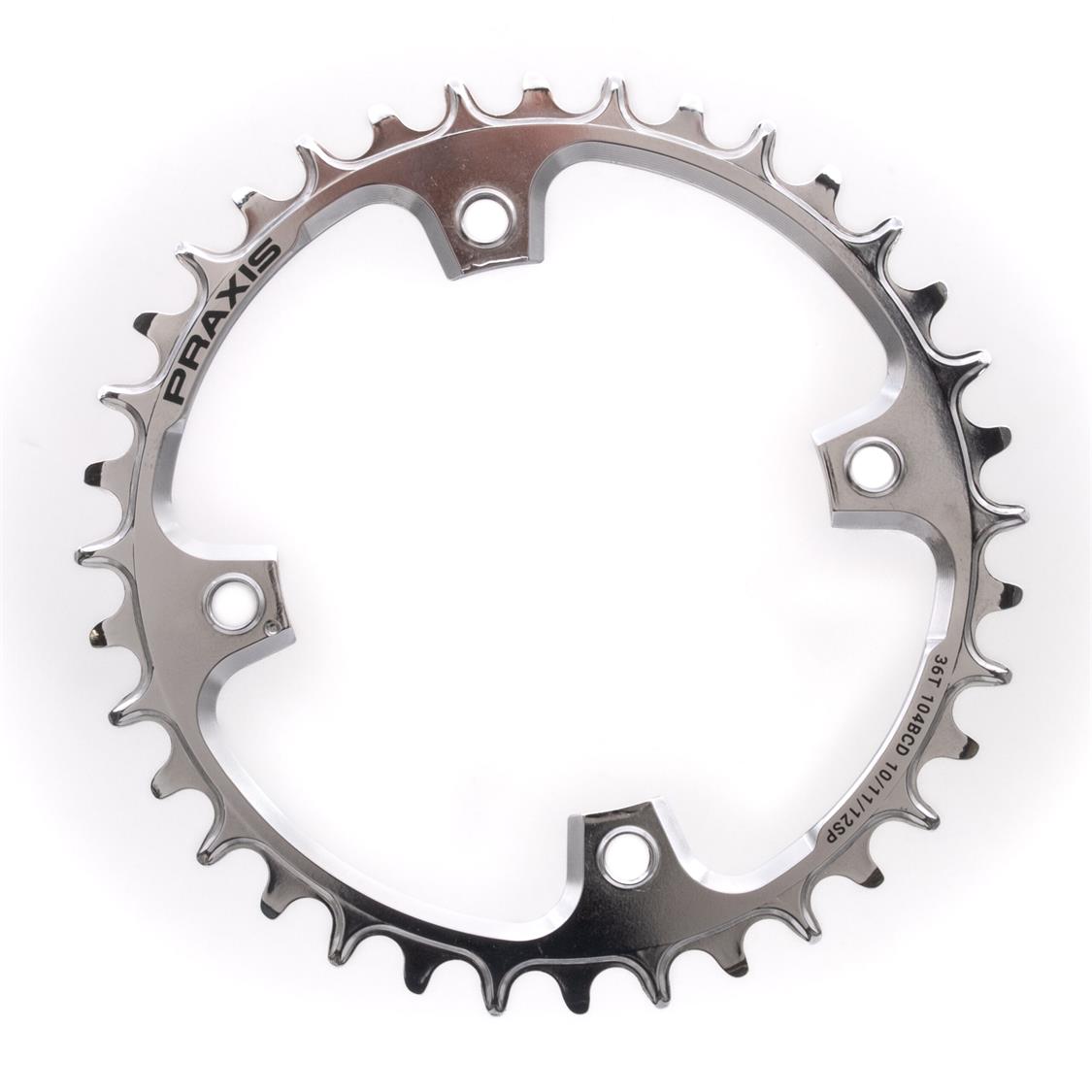

PRAXIS - MTB E-RING STEEL SILVER PVD 104 BCD 1X NARROW WIDE
Cold forged from case hardened high-grade steel, our MTN E-Rings are designed specifically for e-MTN and longer wear.
THREADED - These MTN E-Rings are ‘female‘ threaded for an M8 chain ring bolt. The M8 CR bolt threads directly into the 104BCD ring for better motor clearance.
Buy This If: You want to change gearing/refresh the ring on your 104BCD E-MTN Spider. Please make sure your spider is 104BCD and NOT the smaller 94BCD
Specifications:
- 1X STEEL MTN E-RING | 104 Bolt Circle Diameter | Threaded
- NARROW / WIDE TOOTH
E-Rings are ‘female‘ threaded for installation with a regular M8 male bolt for better motor clearance. Please see all photos above.- Cold Forged | Case hardened high grade steel, NEW HARD A.F. PVD Silver Coating
- 32T / 34T / 36T
10/11/12sp - KMC / SHIMANO / SRAM - All "Eagle" "Flat" "T-Type"- SHIMANO -Compatible with both mechanical and Di2 10-12sp.
- SRAM -Compatible with both mechanical and wireless SRAM 10-12sp.
Note:
- Must use a ‘CLUTCH’ type rear derailleur. Ex: Shimano Shadow or SRAM Type2 - GUIDE -In rough terrain, or just for pure security, we still recommend use of an upper guide

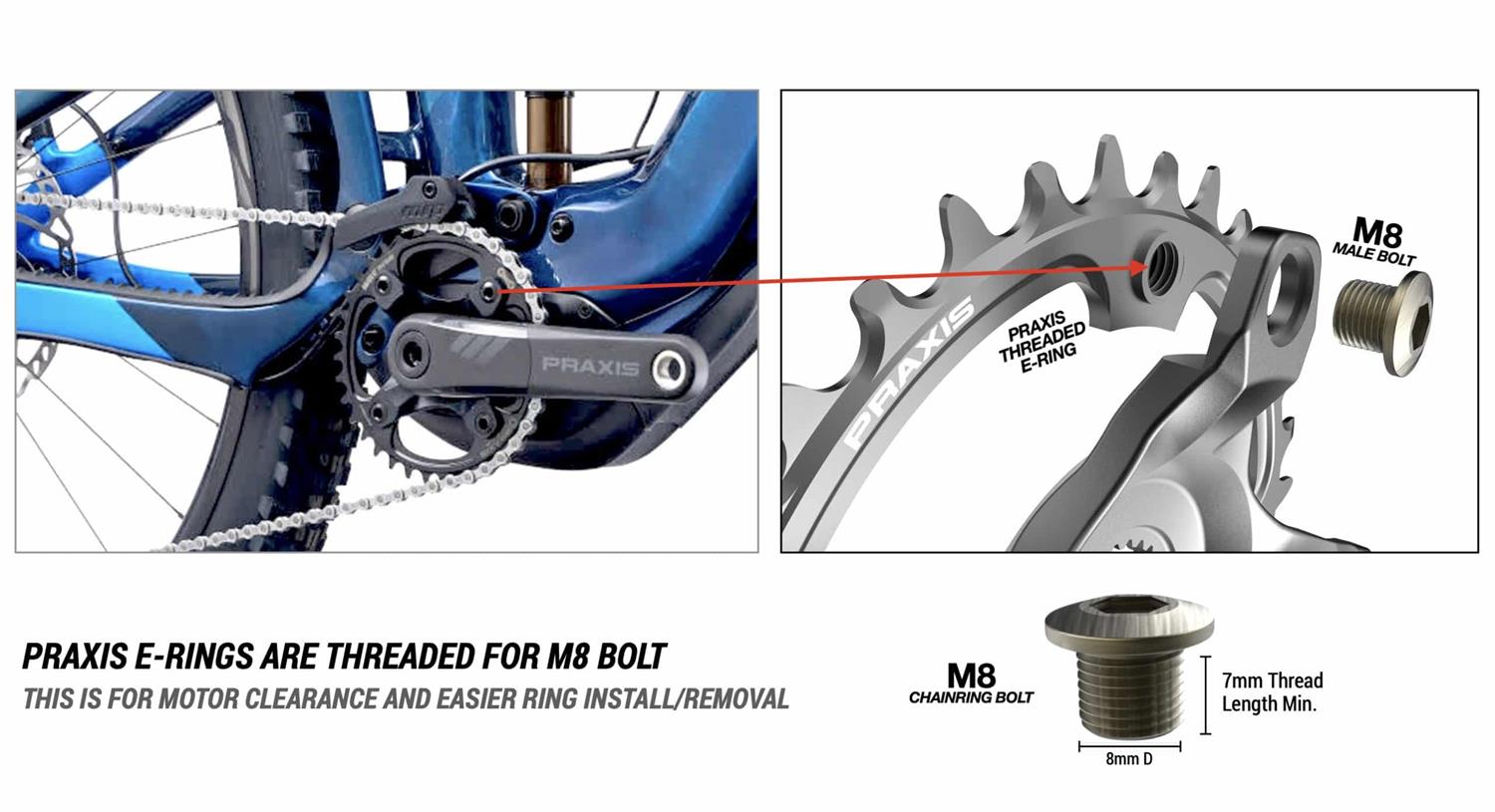

- THREADED - These MTN E-Rings are ‘female‘ threaded for an M8 chain ring bolt. The M8 CR bolt threads directly into the 104BCD ring for better motor clearance. SEE PICTURE

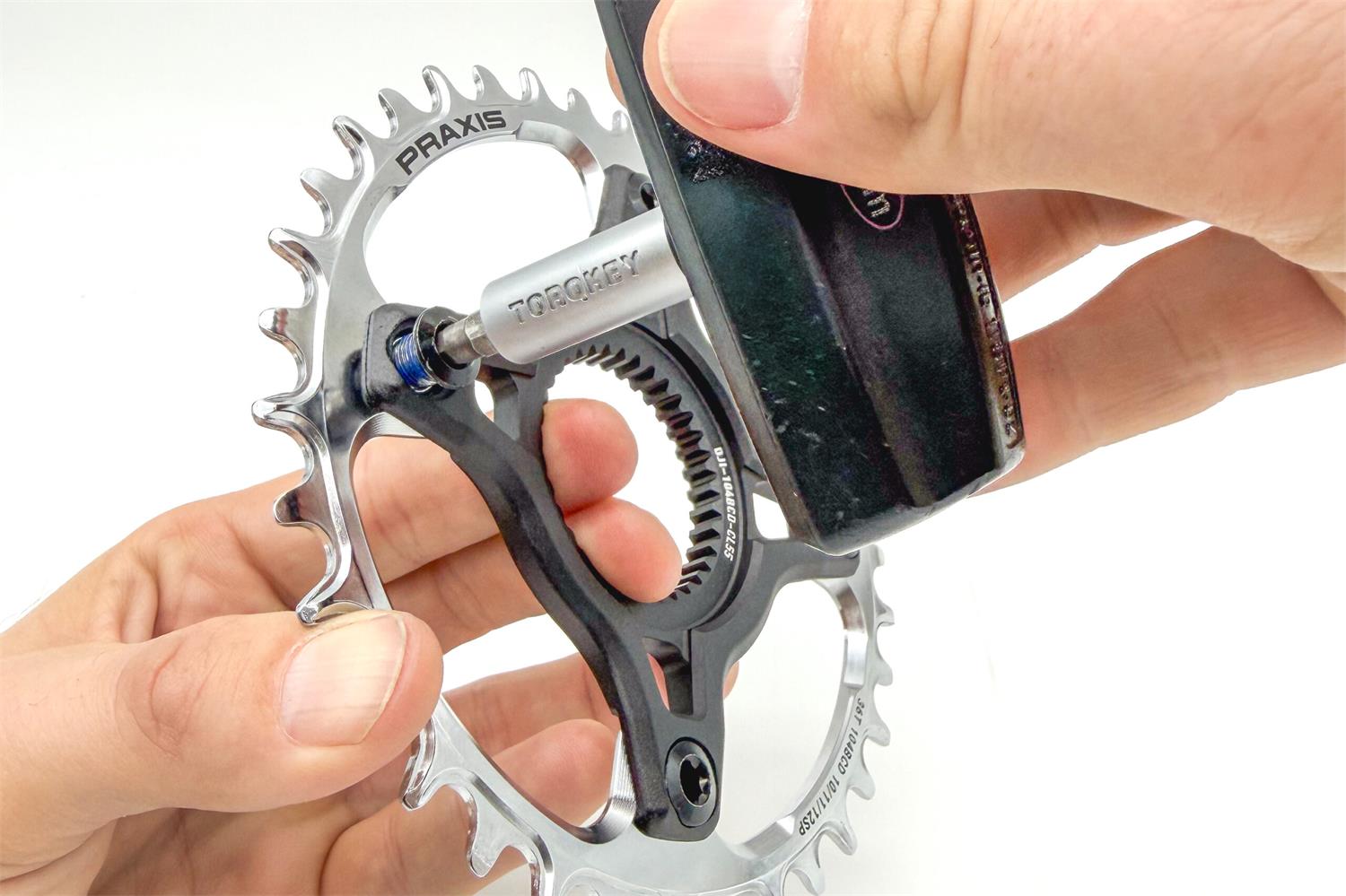

- MOUNTING – LOGOS ALWAYS FACE OUTWARD! SEE PICTURE
