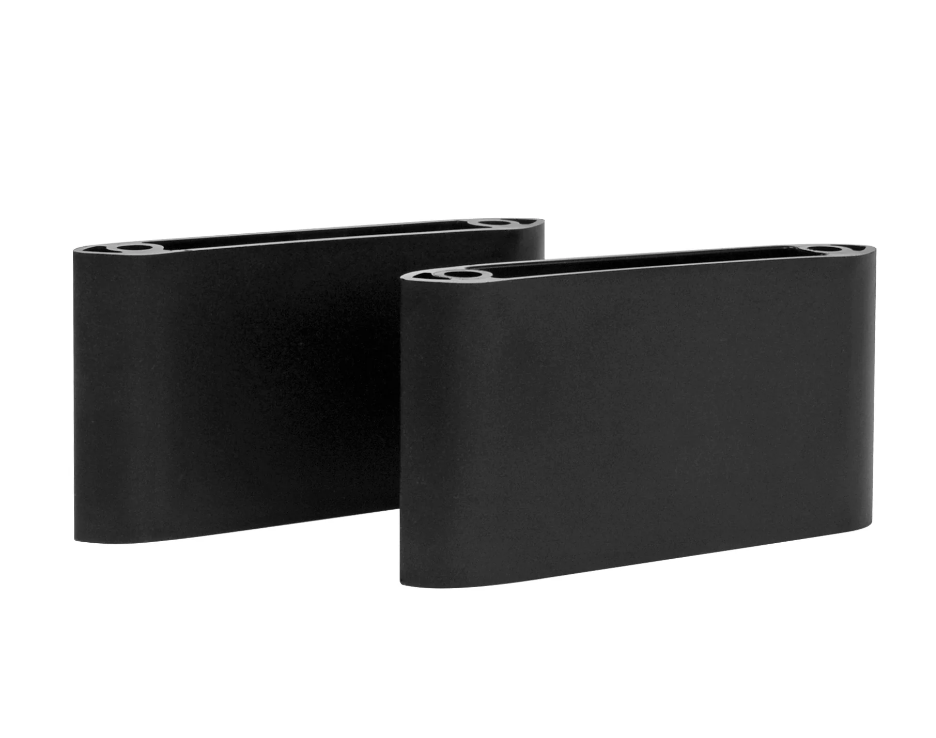

PROFILE DESIGN - HSA RISER KIT

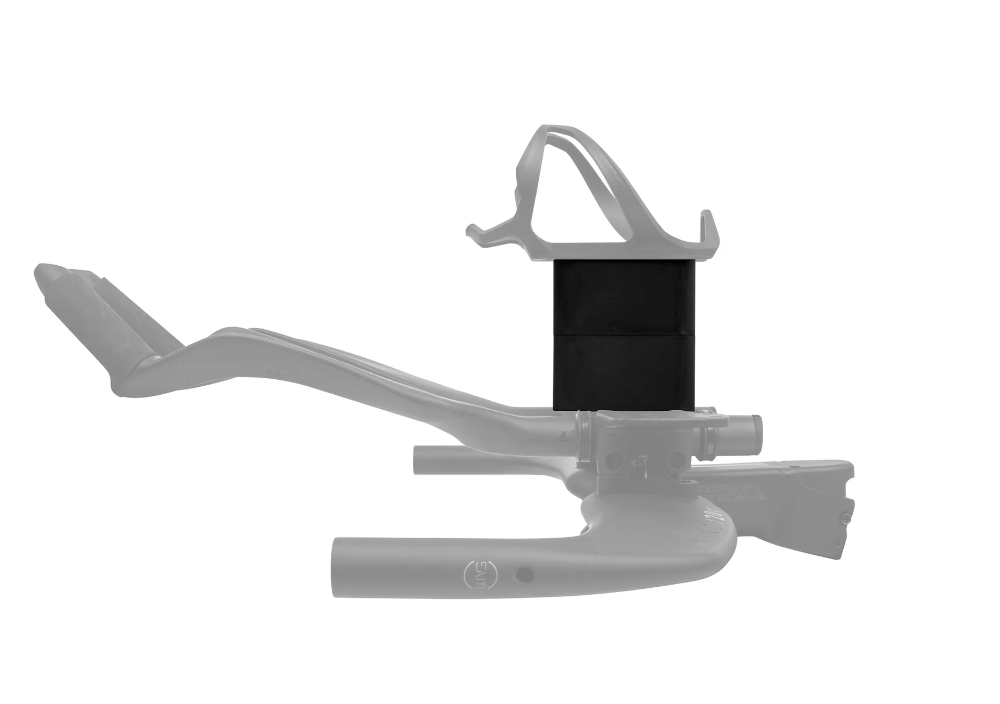

The HSA Riser works with our aerobar mounted brackets to raise the bottle by 45mm. The risers can be stacked for a total height of 90mm.
Pairing the riser with our BTA wedges will allow riders to fine tune the placement of their bottles to achieve the best accessibility.
Key Features:
- Compatible with any 65mm spaced BTA cage mount
- Lightweight resin construction
Tech Specs:
- Construction: Injected nylon/glass fiber construction
- Compatibility: HSA Mini BTA mount, HSF BTA, Aerodrink BTA tilt bracket, HC systems or BTA mounts with a standard cage mount.
- Bolt Spacing: 65mm

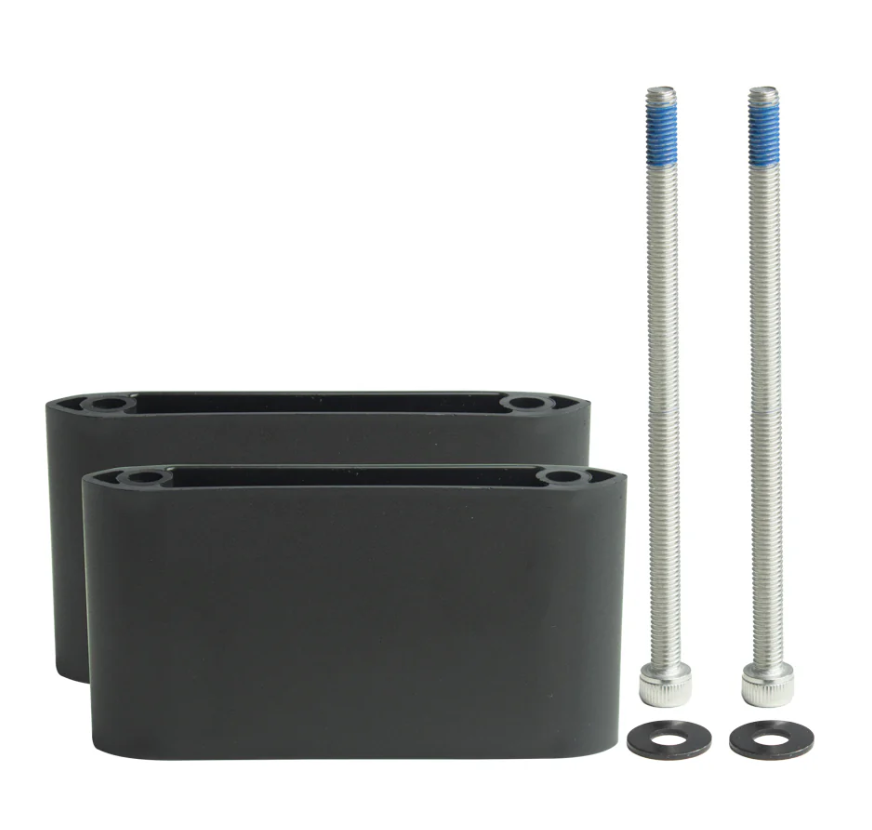

- Height: two options available - 45mm kit or 90mm (a 90mm comes with 2 x 45mm risers)
- Length: 83.5mm
- Colors: Matte Black
- Weight: 18.3g (45mm kit)
Torque settings
- Mounting Bolts: 1Nm
