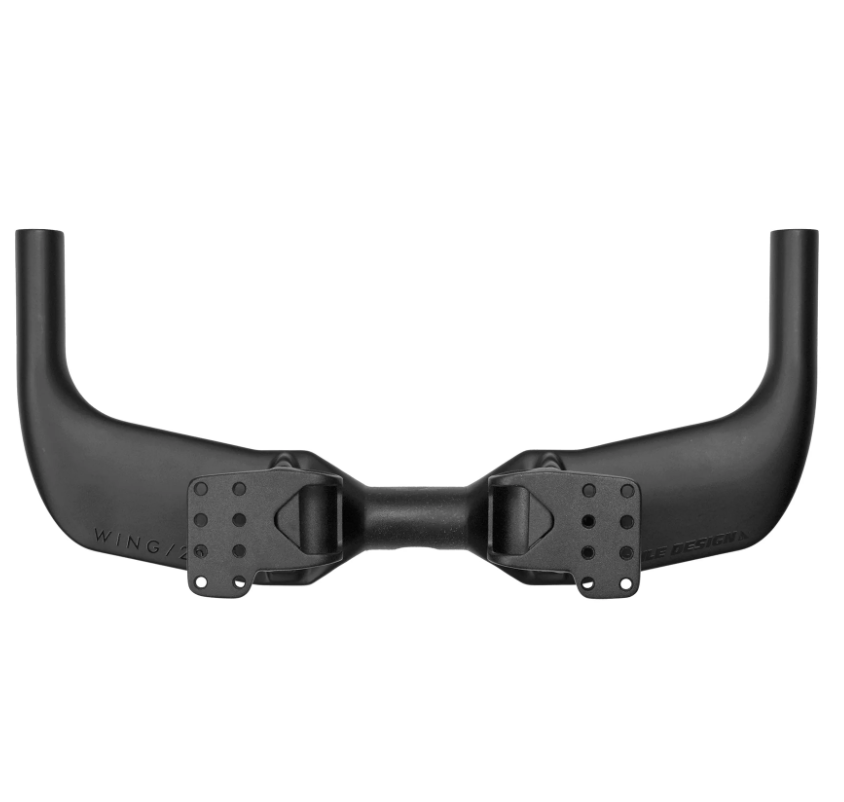

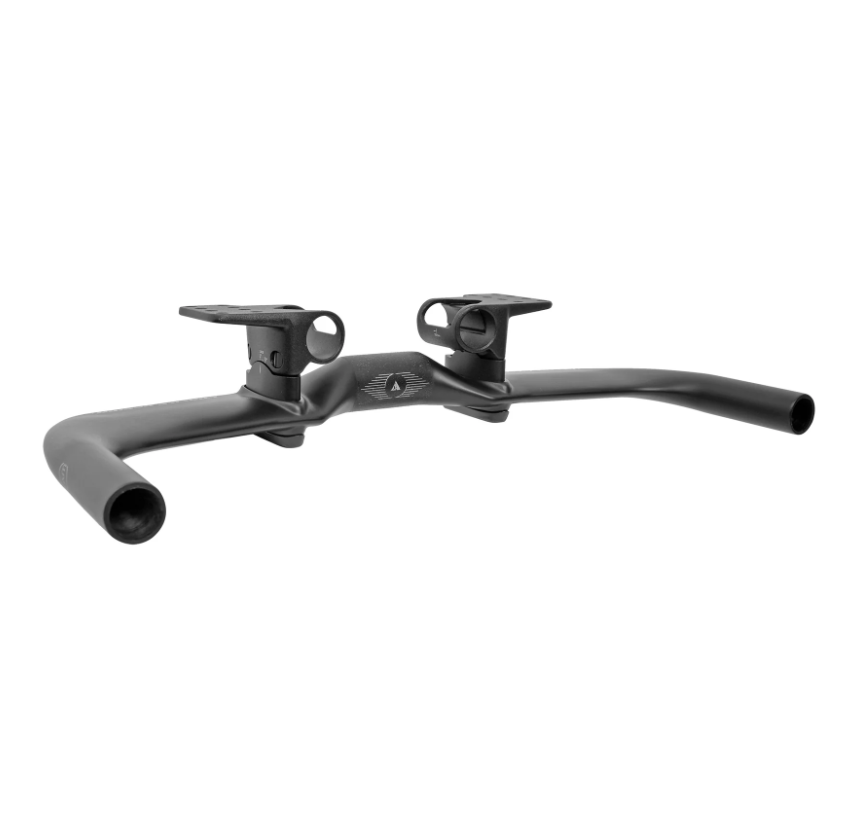

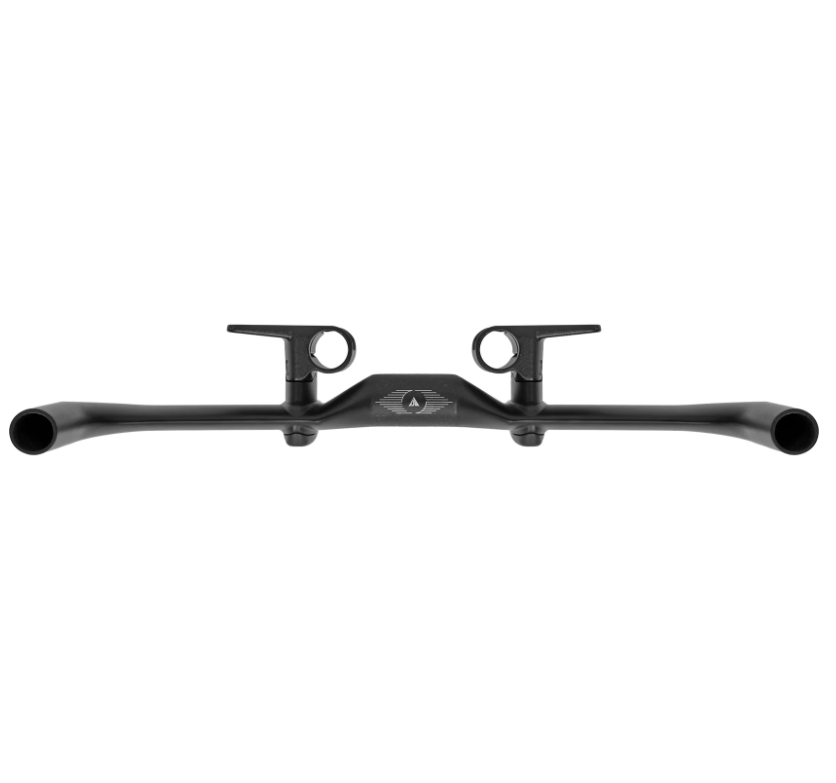

PROFILE DESIGN - WING 20c+ II CARBON BASE BAR WITH AU BRACKET
The Wing 20C+ II features a new, slimmer shape, that takes advantage of the updated UCI rules. This basebar utilizes the A3 platform, which allows the use of the A2 Standard, A2 Race and ASC Pro brackets. Along with the other A3 accessories. The basebar has the option for adjustment, turning the bar over changes the height of the hand grip and the aerobar by 20mm.
*Note: Sold as just a Basebar and Bracket kit
Who is it for
This bar is perfect for riders who wish to achieve lower positions than are possible with standard aerobar designs. Unlike other low stack bars it allows fine-tuning of the stack height so the rider is not limited to only one arm pad height. With the Race armrests fitted it is tailored towards riders who intend to be low and narrow to punch the smallest possible hole through the wind.
Performance
The Wing 20C+ II offers a combination of aerodynamic integration and supreme fit range. With the change in spec comfort for most users will be increased alongside the performance advantage of lower weight.
Fit Data
- Armrest offset: -92.5mm to -10mm in 7.5mm steps
- Armrest Width: 124mm to 254mm in 18.5mm steps
- Armrest Stack: The minimum is 64mm to 84mm
Tech Specs
- Basebar Width: 38cm or 42cm (Center-to-Center)
- Internal Cable Routing: Yes (Stem or Back of the Basebar)
- Di2 Compatible: Yes

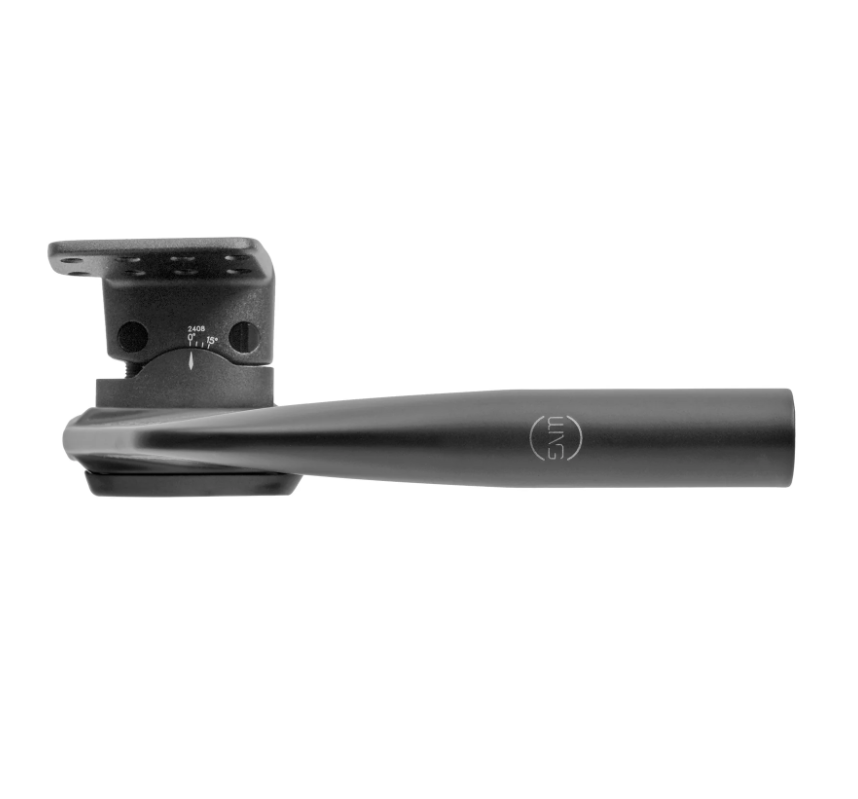

- Bracket: Aeria Ultimate Bracket - A2
- Armrest: Not Included
- Extension Length: Not Included
- Extension Clamp Diameter: 22.2mm
- Bracket Tilt Adjustment: 0-15° or reach 18-30° with A3 Tilt (A3 Tilt - Sold separately)
- Pursuit OD/ID: 24.1 / 18.9mm
- ASC Pro Compatible: Yes
- Construction: Carbon
- Color: Matte Black
Tech Guide
Torque Settings
- Extension Clamp: 5Nm
- Armrest Bolts: 4.7Nm
- Stem Clamp: 6Nm Max
Weight
- Basebar: 265g
- Brackets: 204g (pair)
