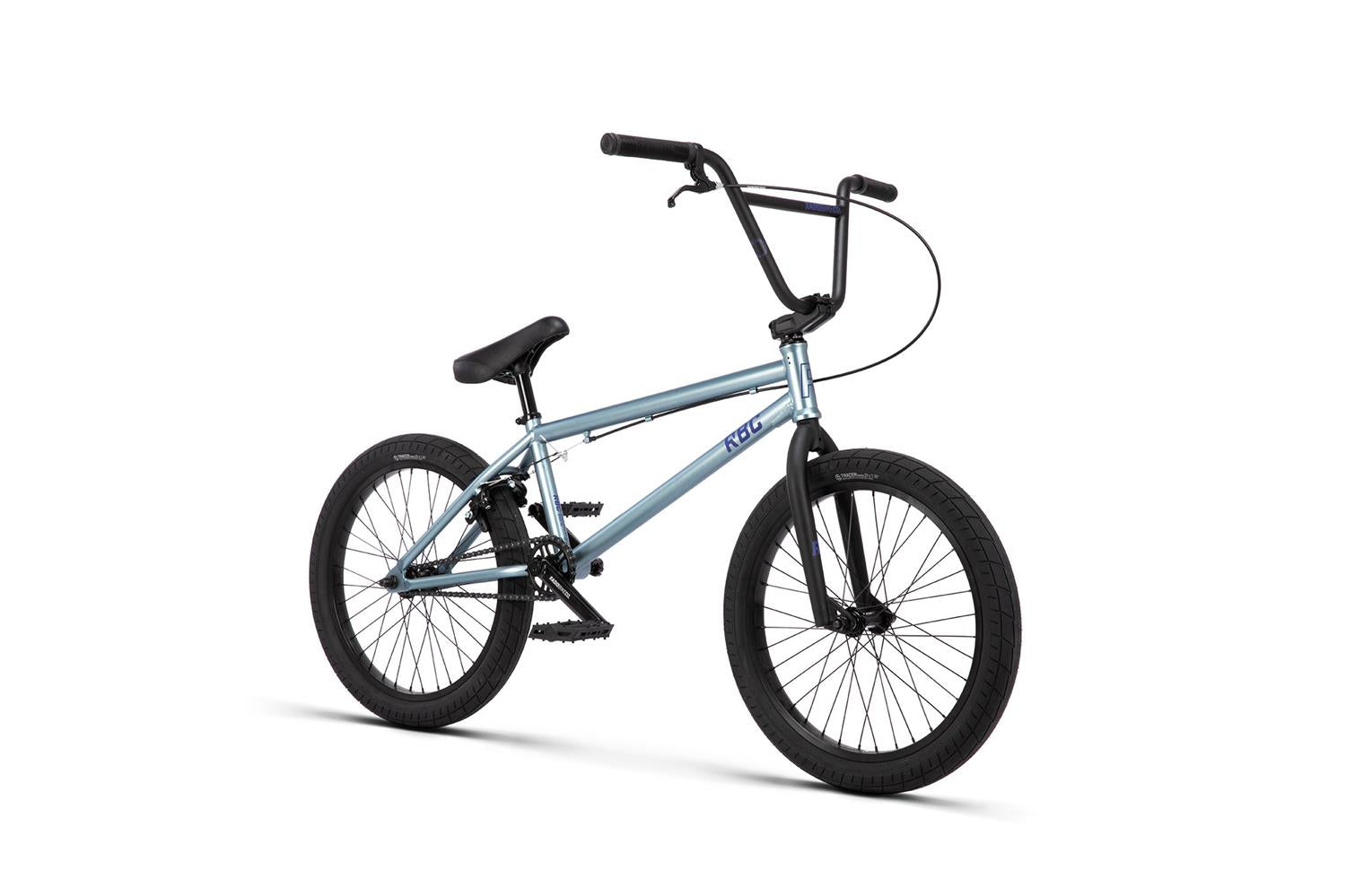

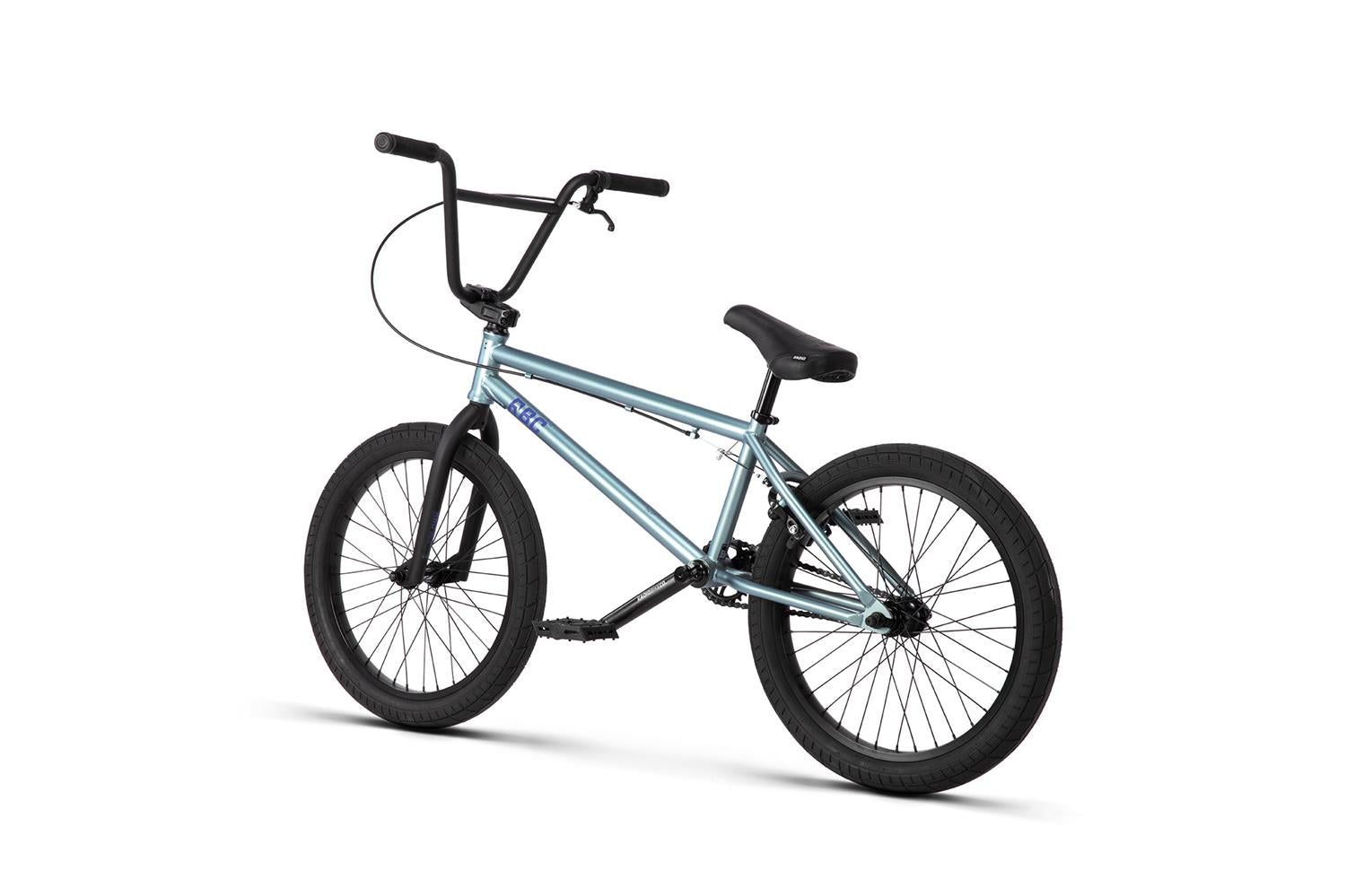

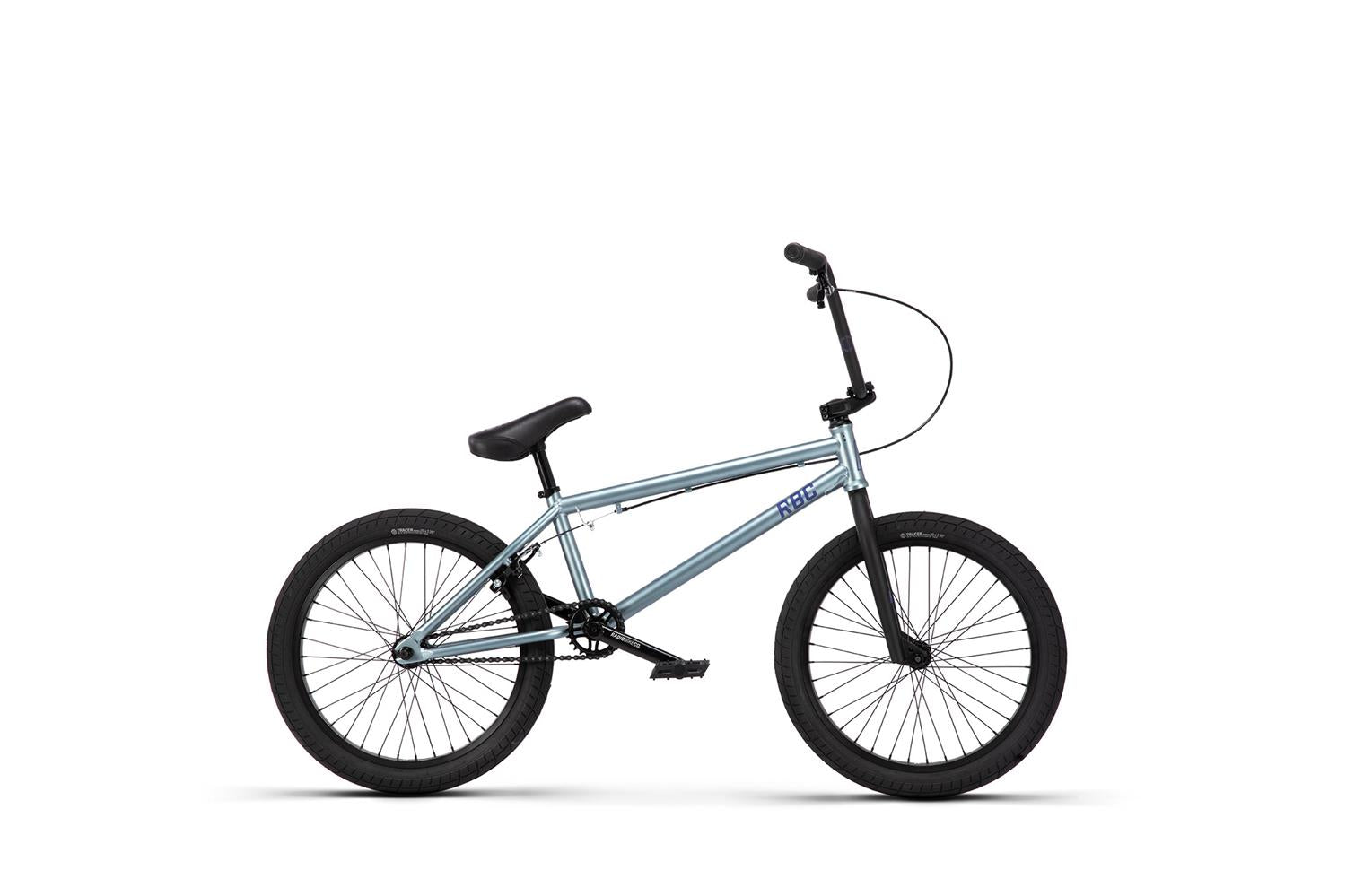

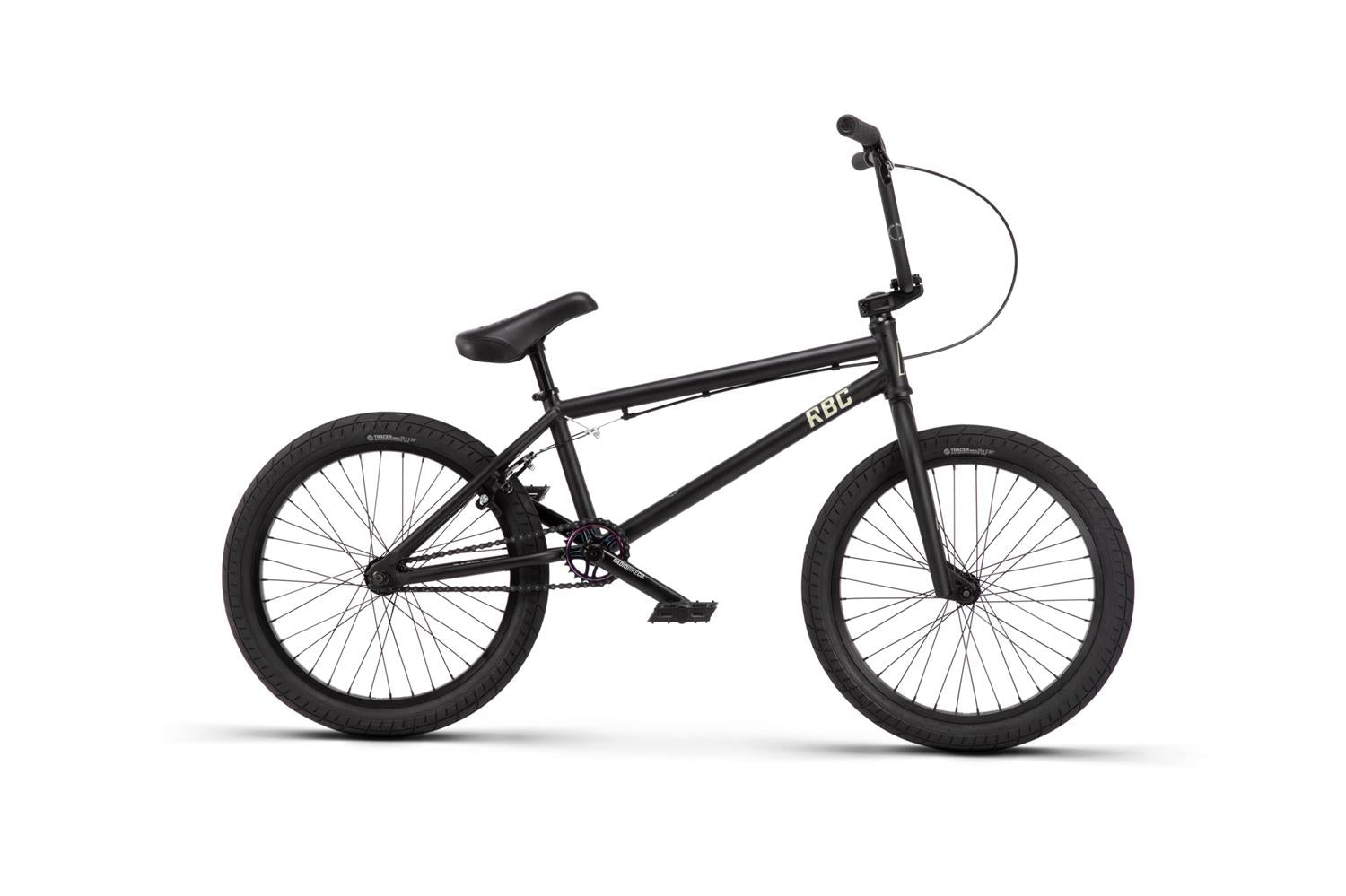

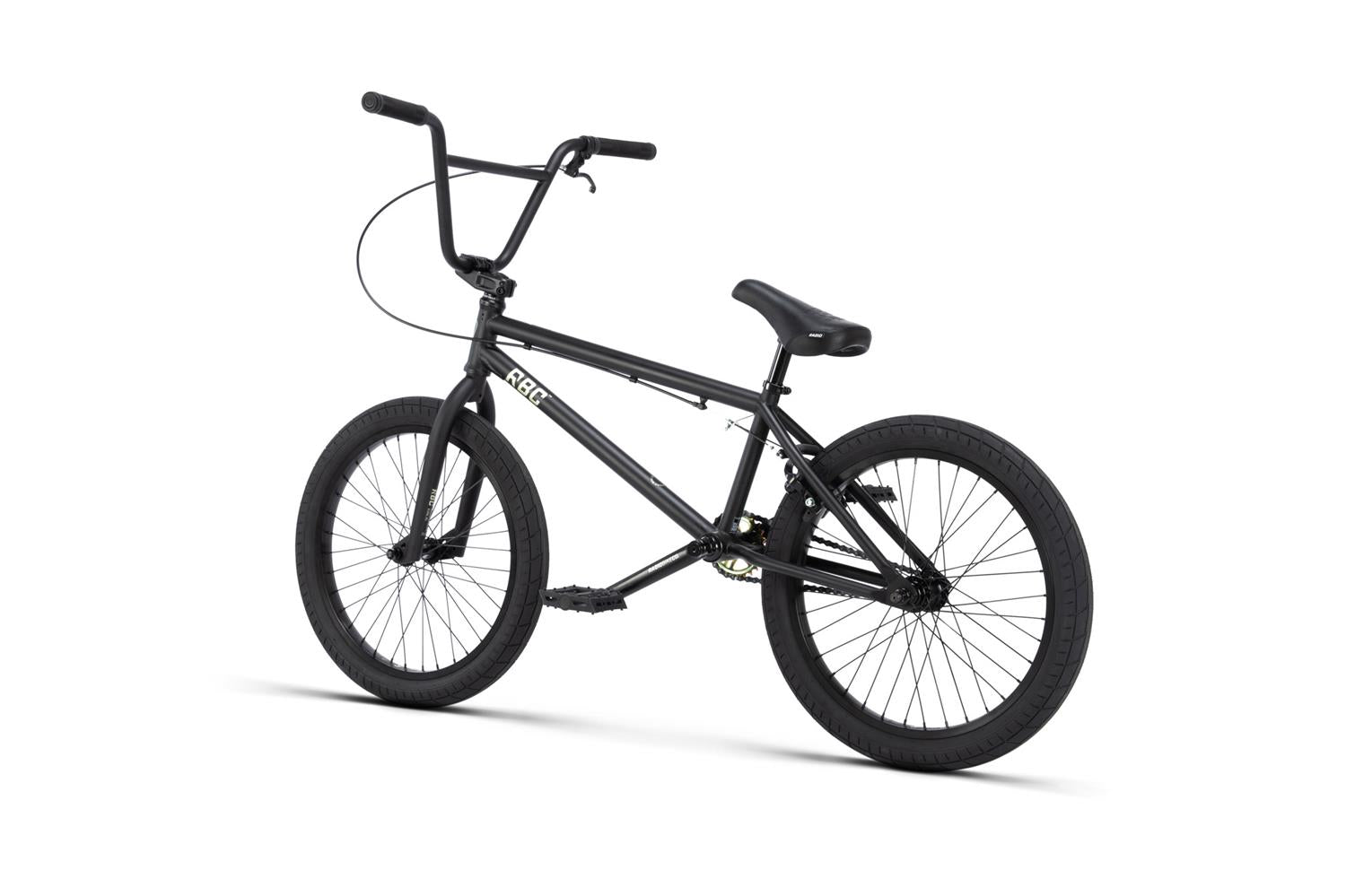

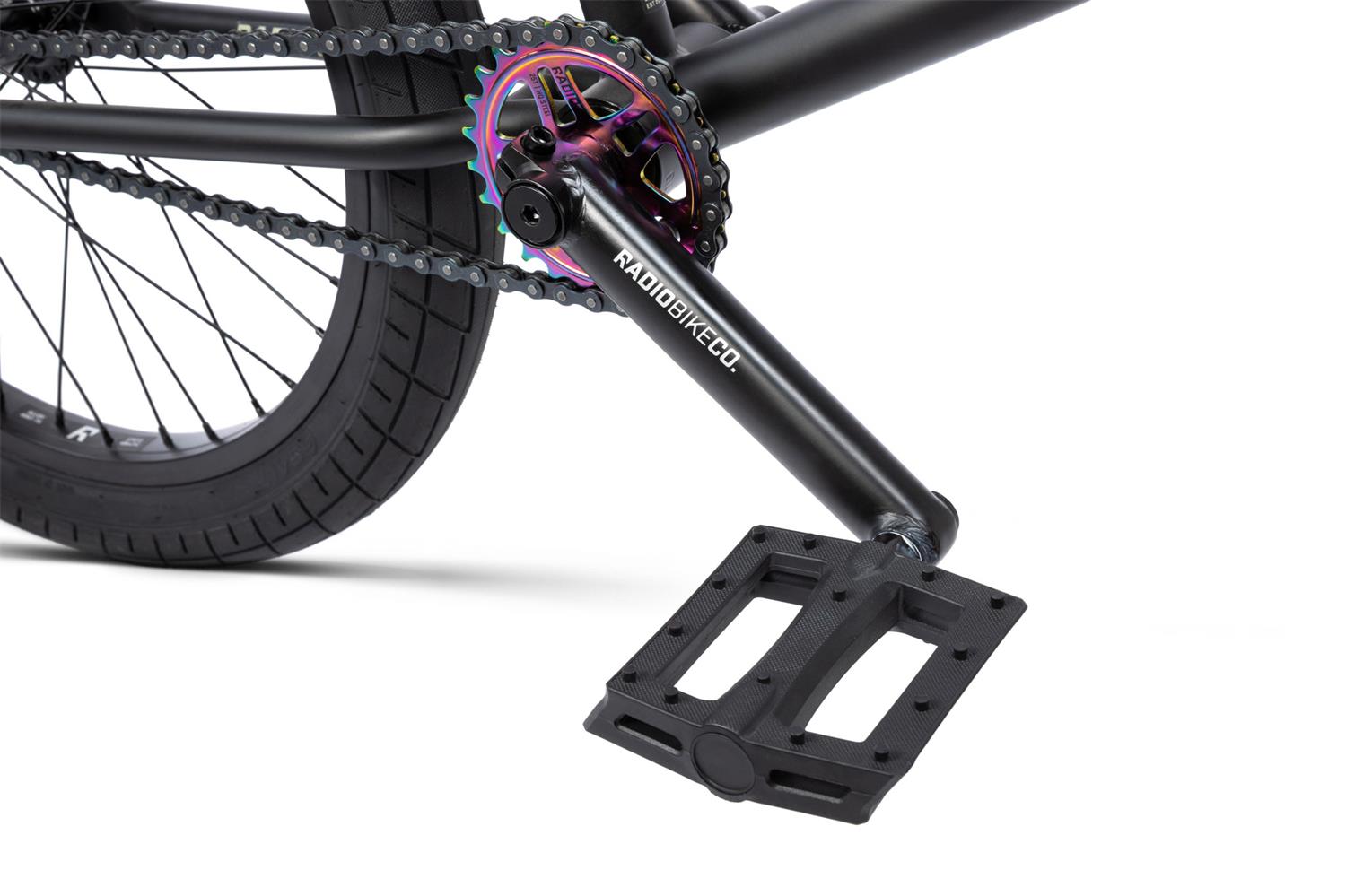

The Evol is a solid entry level machine with everything you need to start making serious progression with your riding. Boasting a crmo toptube and a sealed integrated headset and Mid-sized bottom bracket, details like the big logo Radio Rookie tires and Oil Slick sprocket make the Evol something very special and unique.

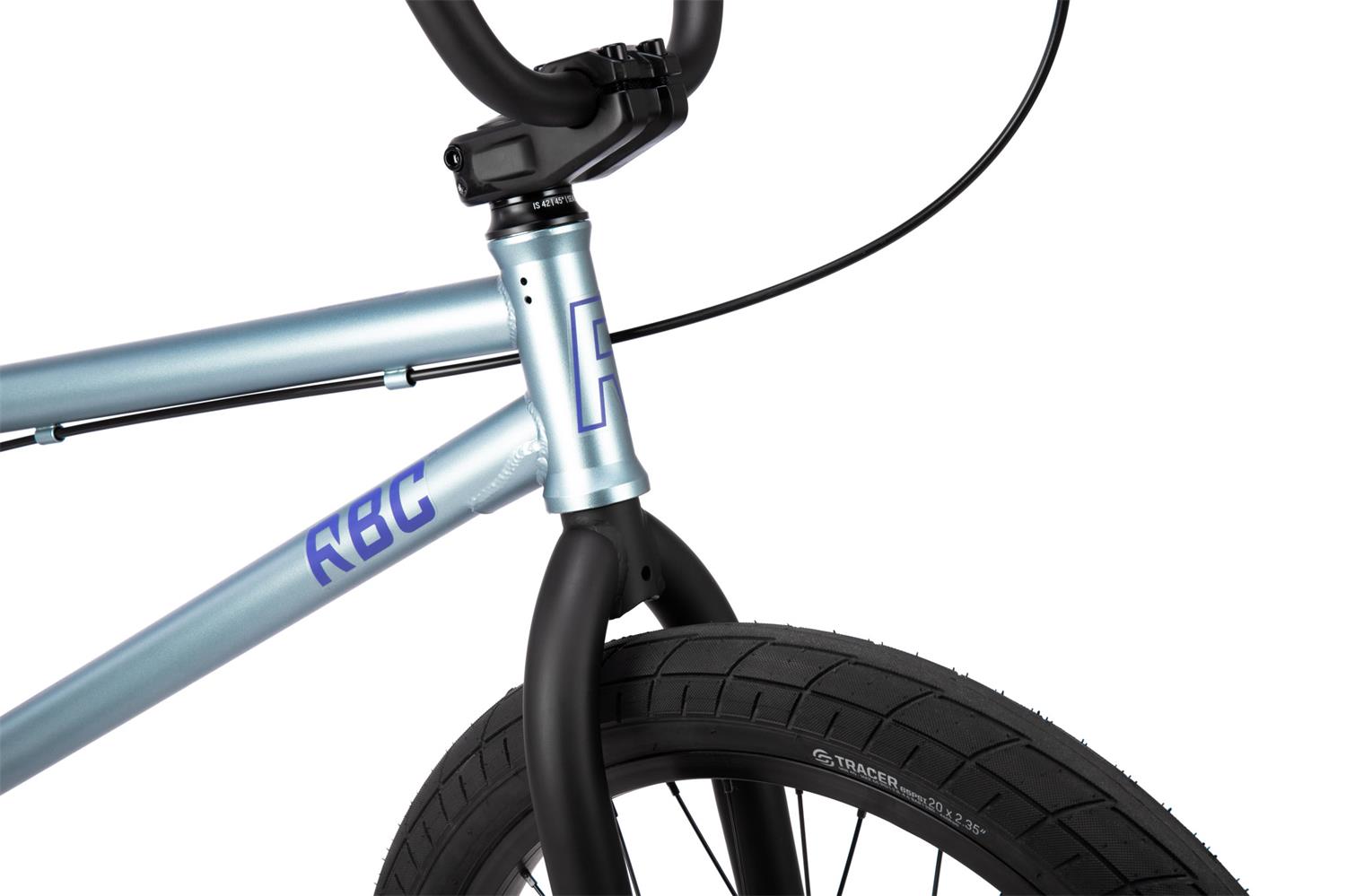

| Frame | Radio Evol frame, crmo top tube, 1020 hi-ten |
|---|---|

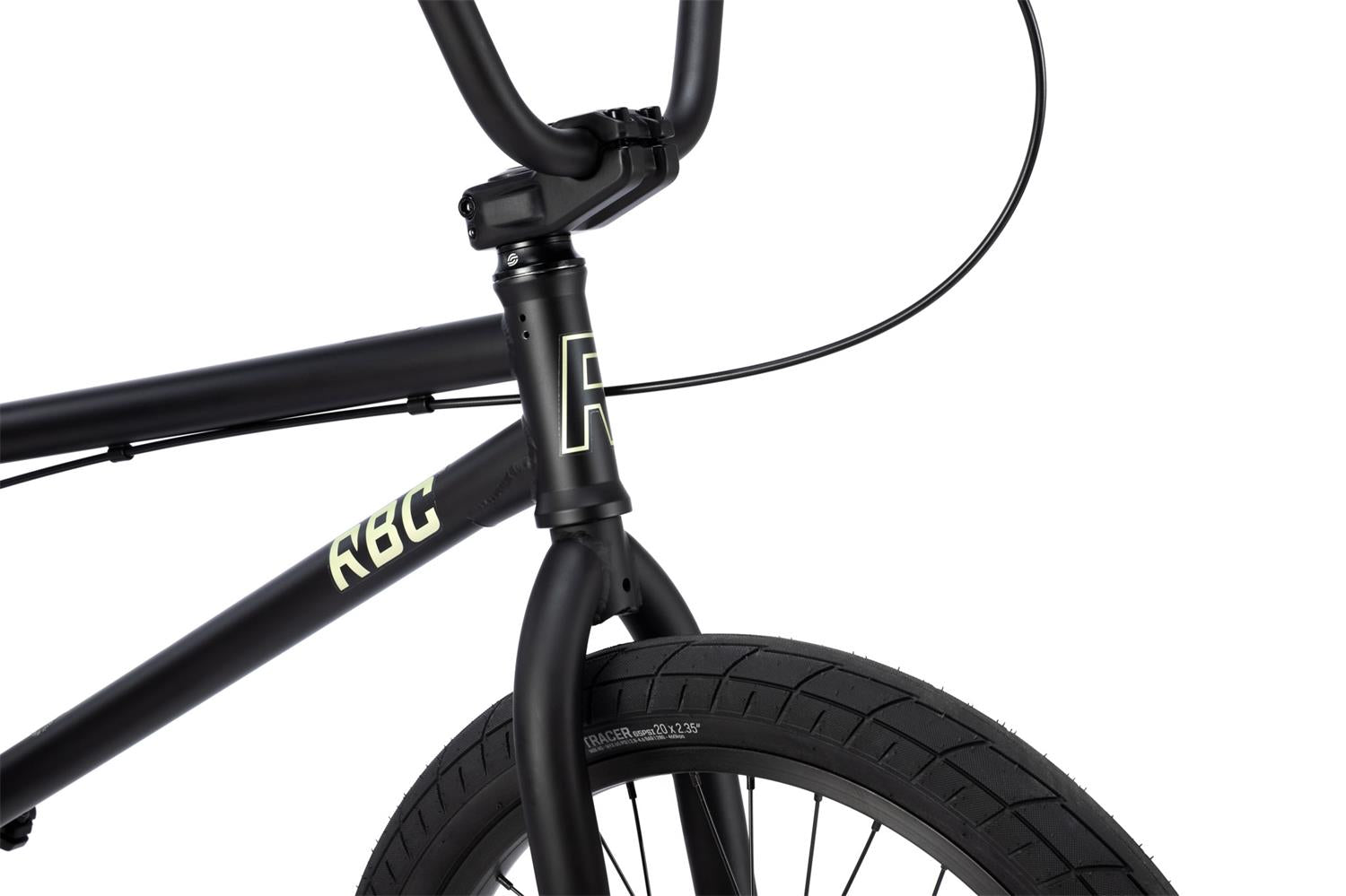

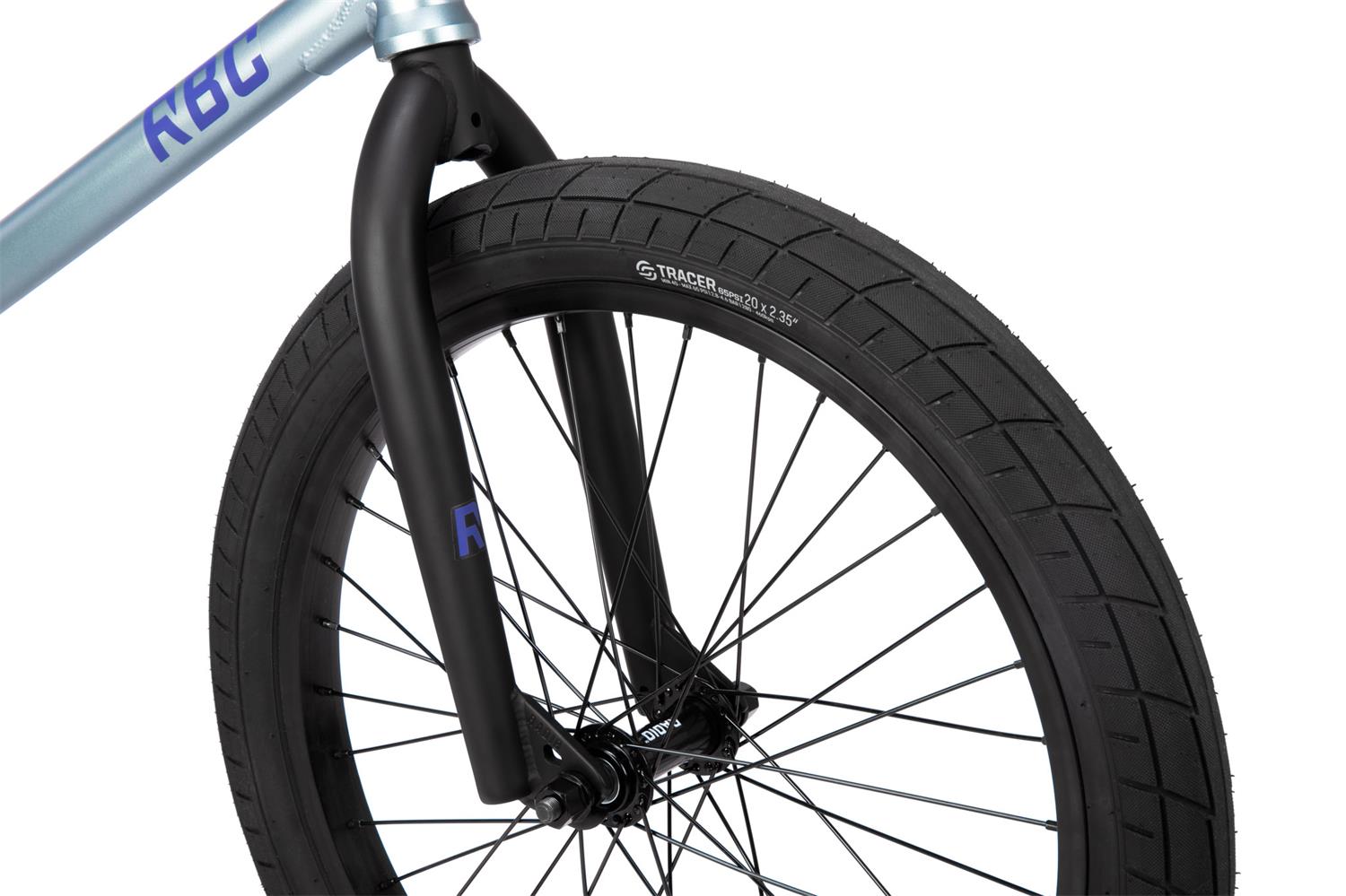

| Fork | Radio AM fork, 1020 hi-ten, crmo steerer, tapered legs |

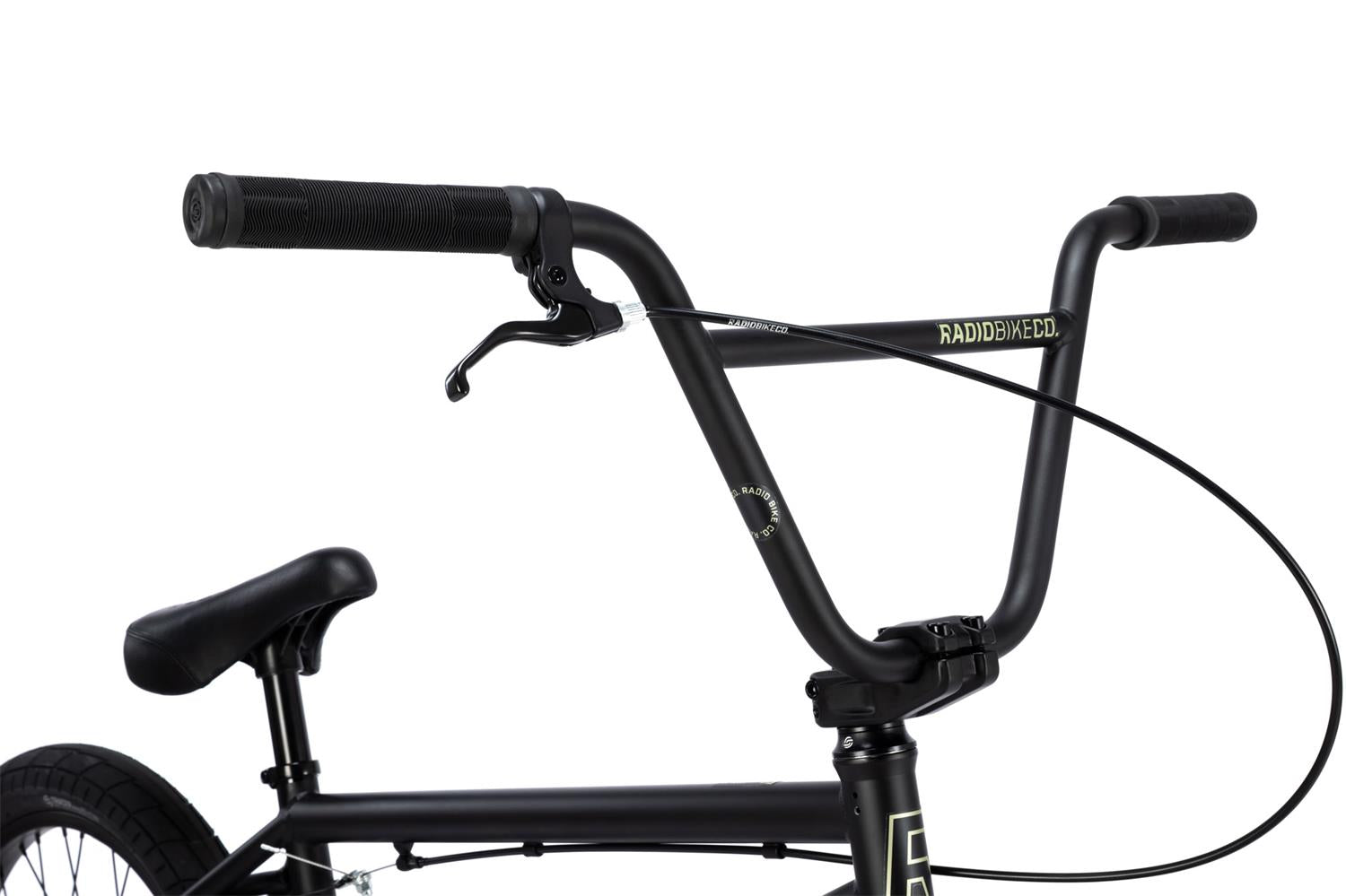

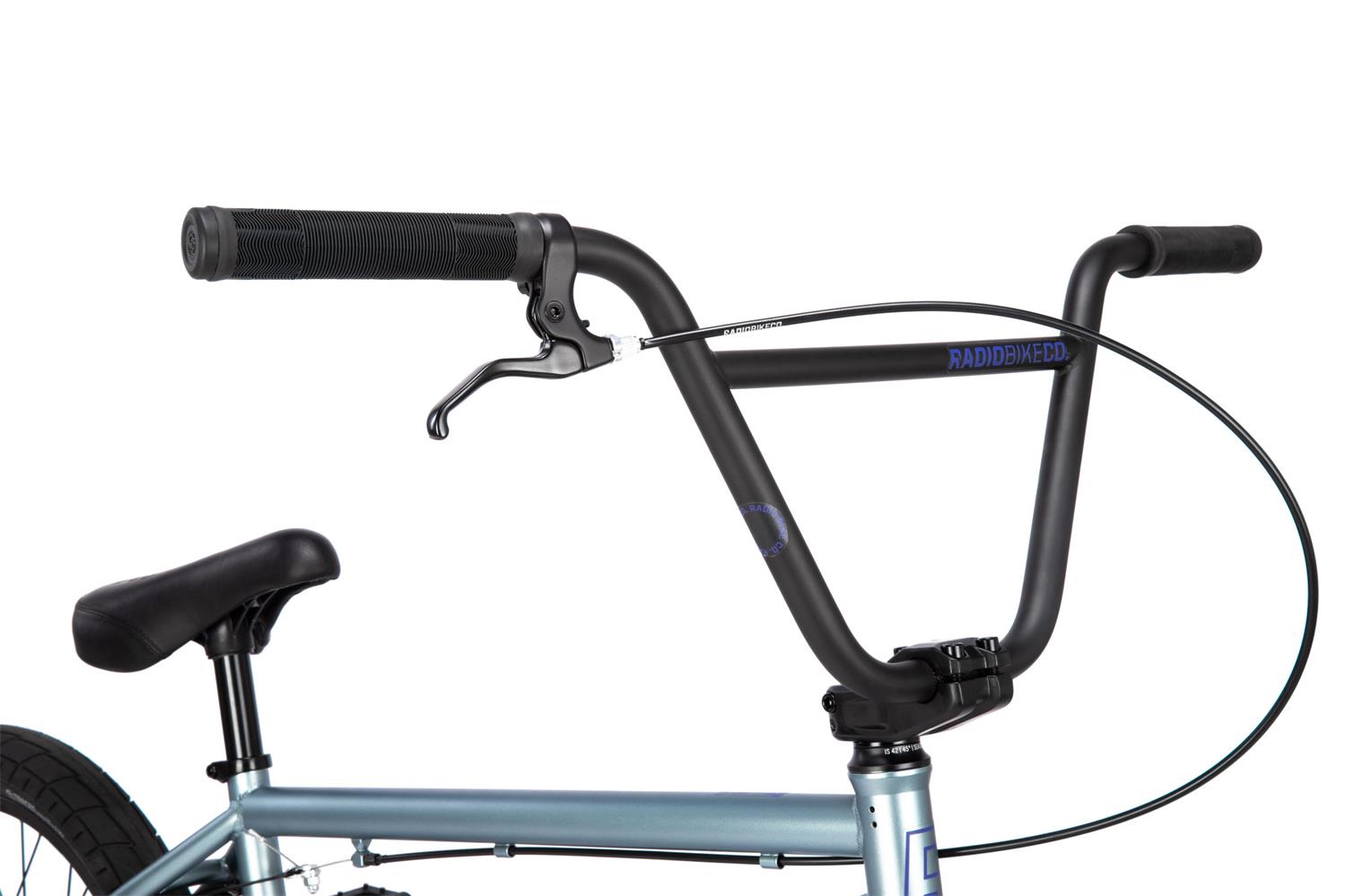

| Bars | AM radio, 20 bar, 1020 hi-ten |

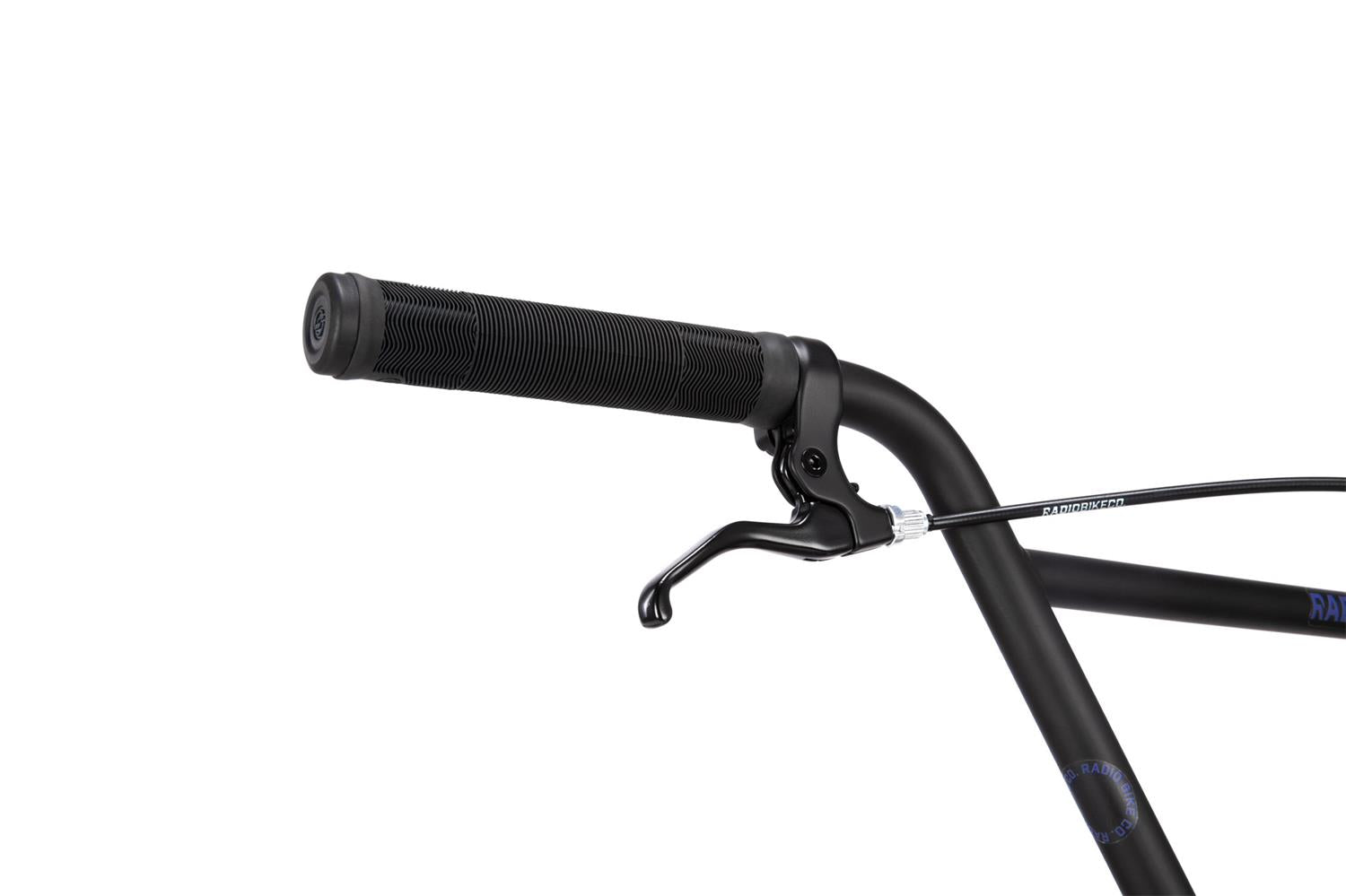

| Grips | Salt EX grips, flangless, 155mm |

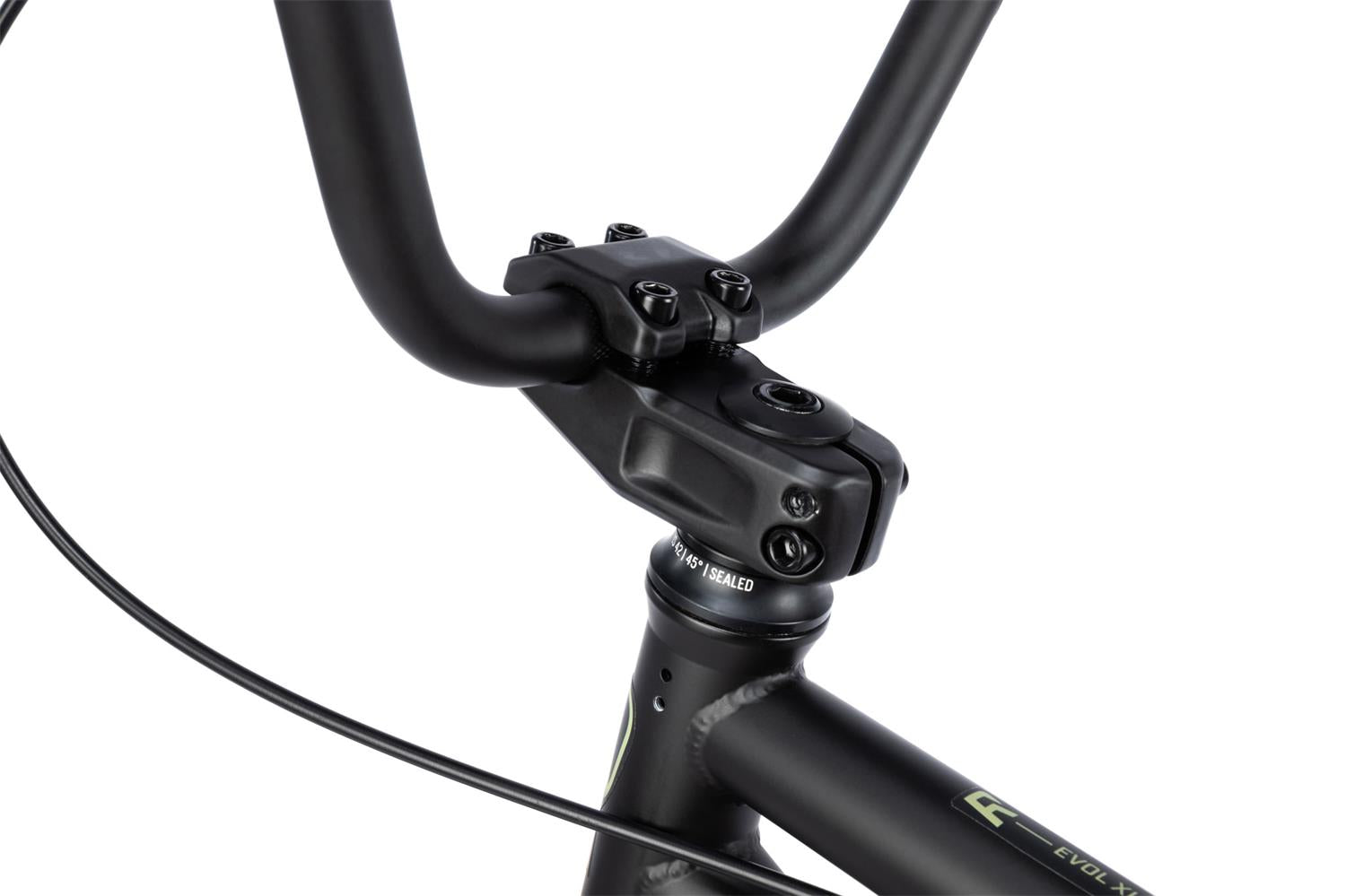

| Stem | Radio AM topload stem, 50mm reach |
| Headset | Salt Pro integrated headset, sealed bearing |

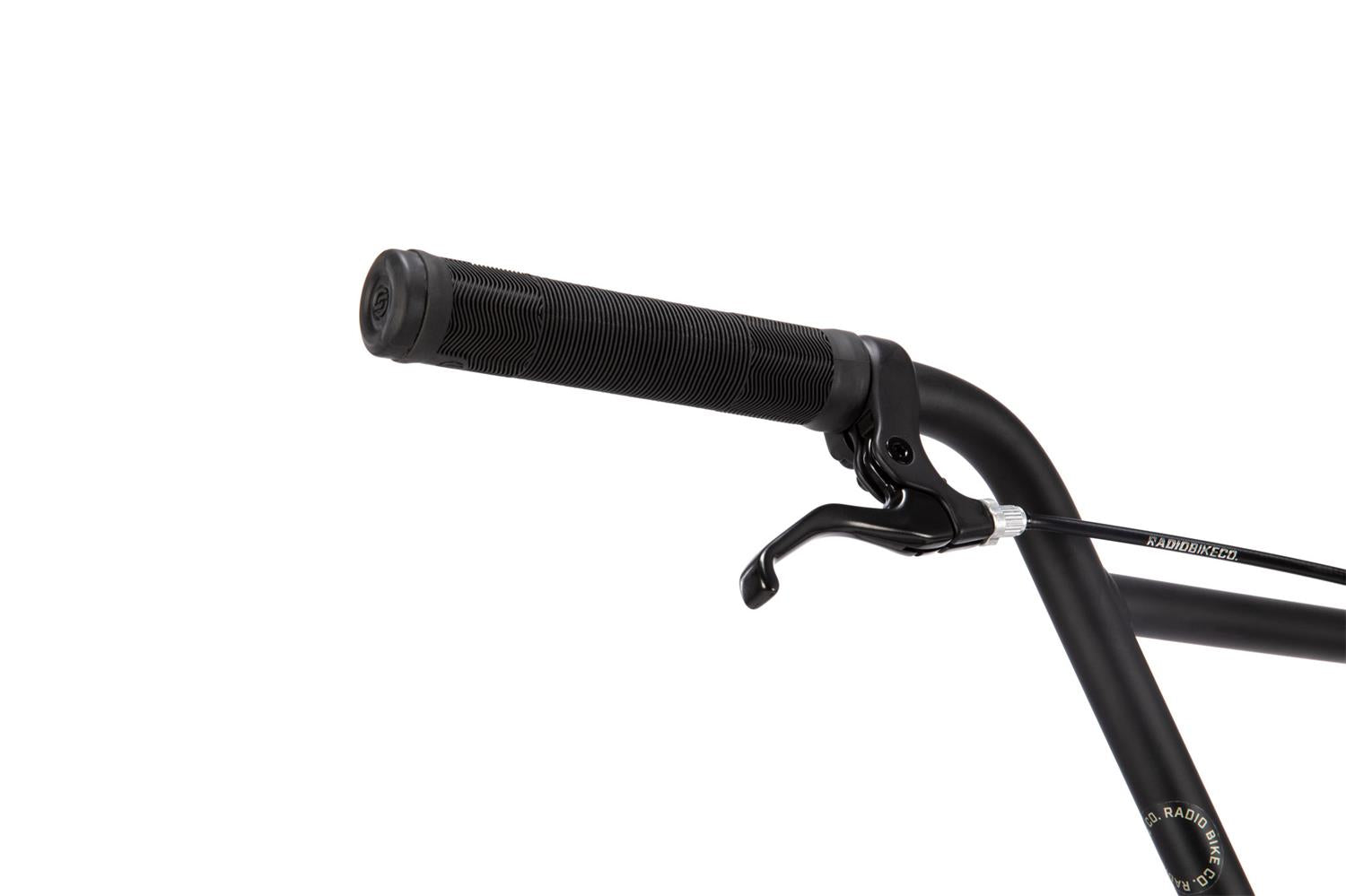

| Brake lever | Radio AM brake lever, aluminium, rear |

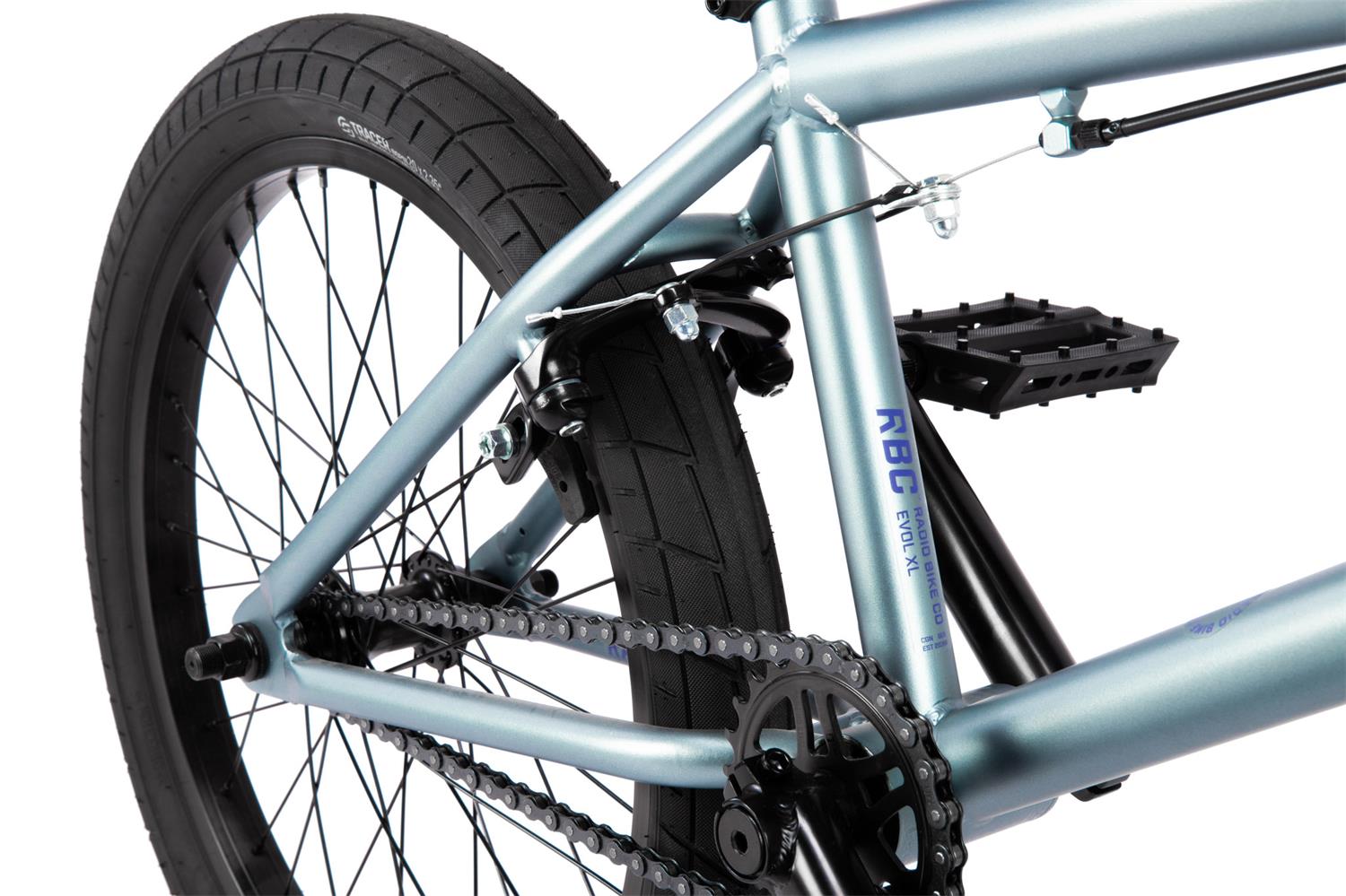

| Brake | Radio AM U-Brake, aluminium, rear |

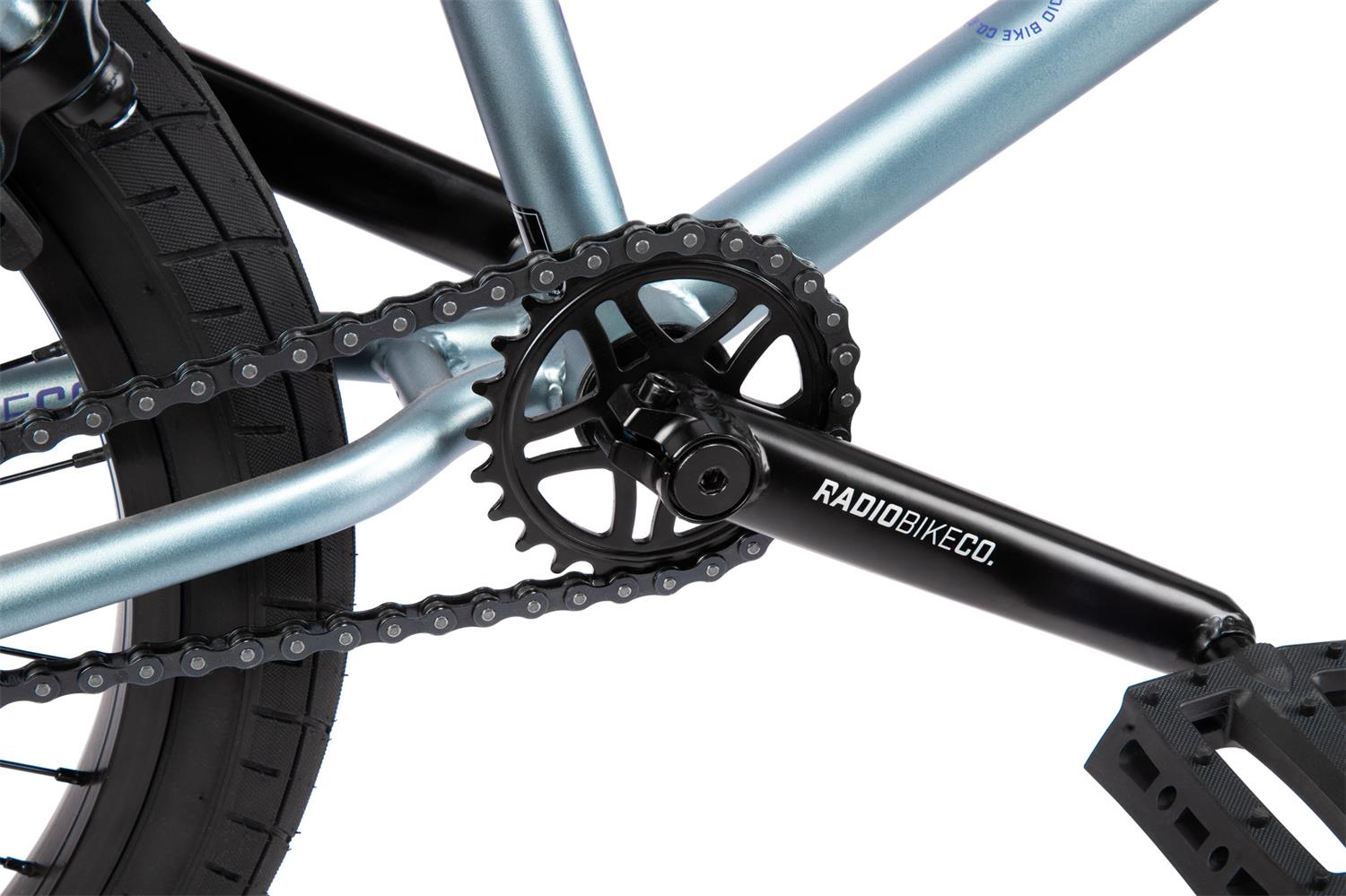

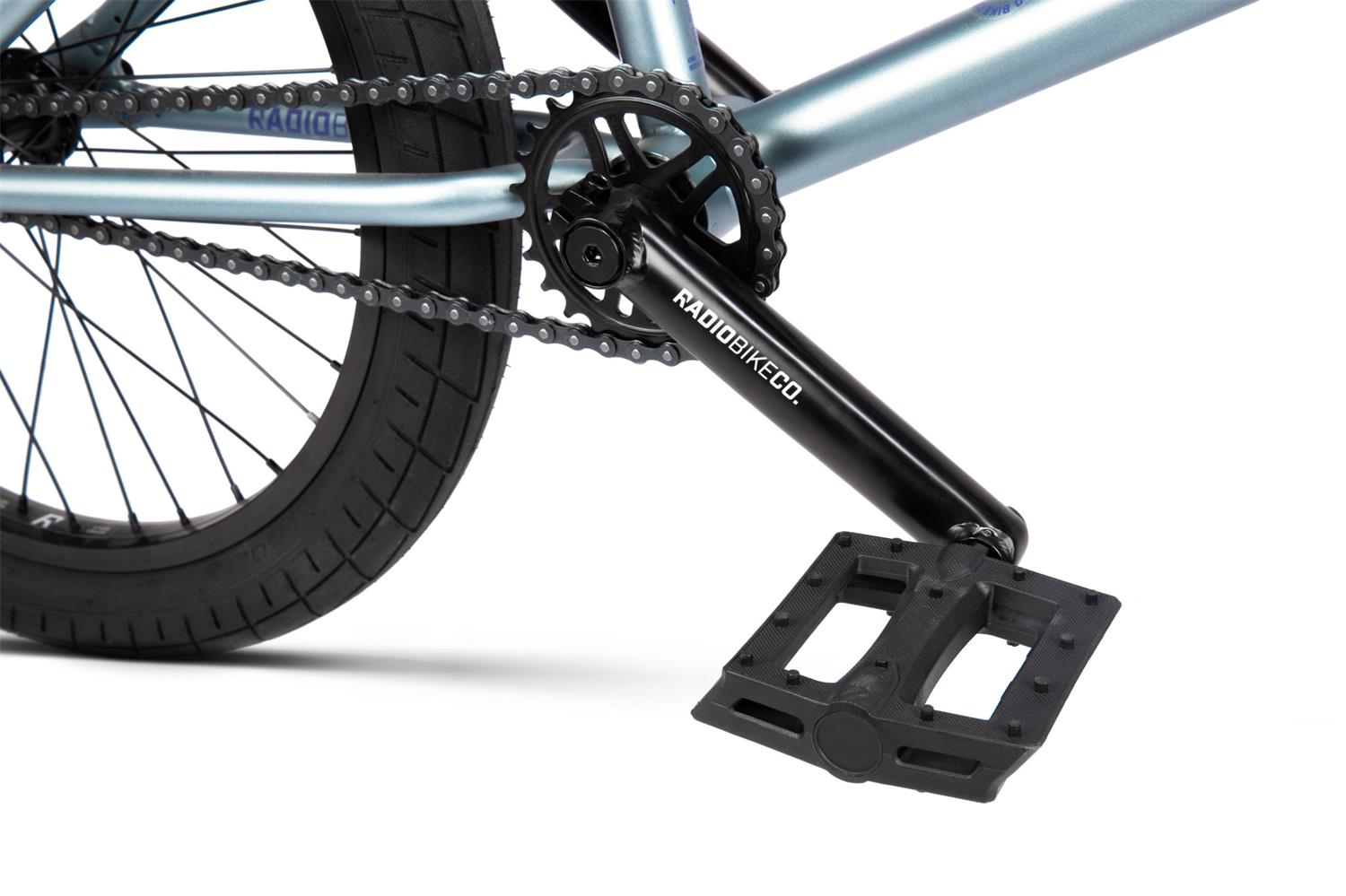

| Crank | Radio Rookie 3pc crank, tubular, crmo, 165mm, 8 spline |
| BB | Radio MID bb set, press fit, sealed bearing |
| Pedal | Radio Pro Pedals, nylon/fiberglass |
| Chain | Salt AM chain, WZ1 type |

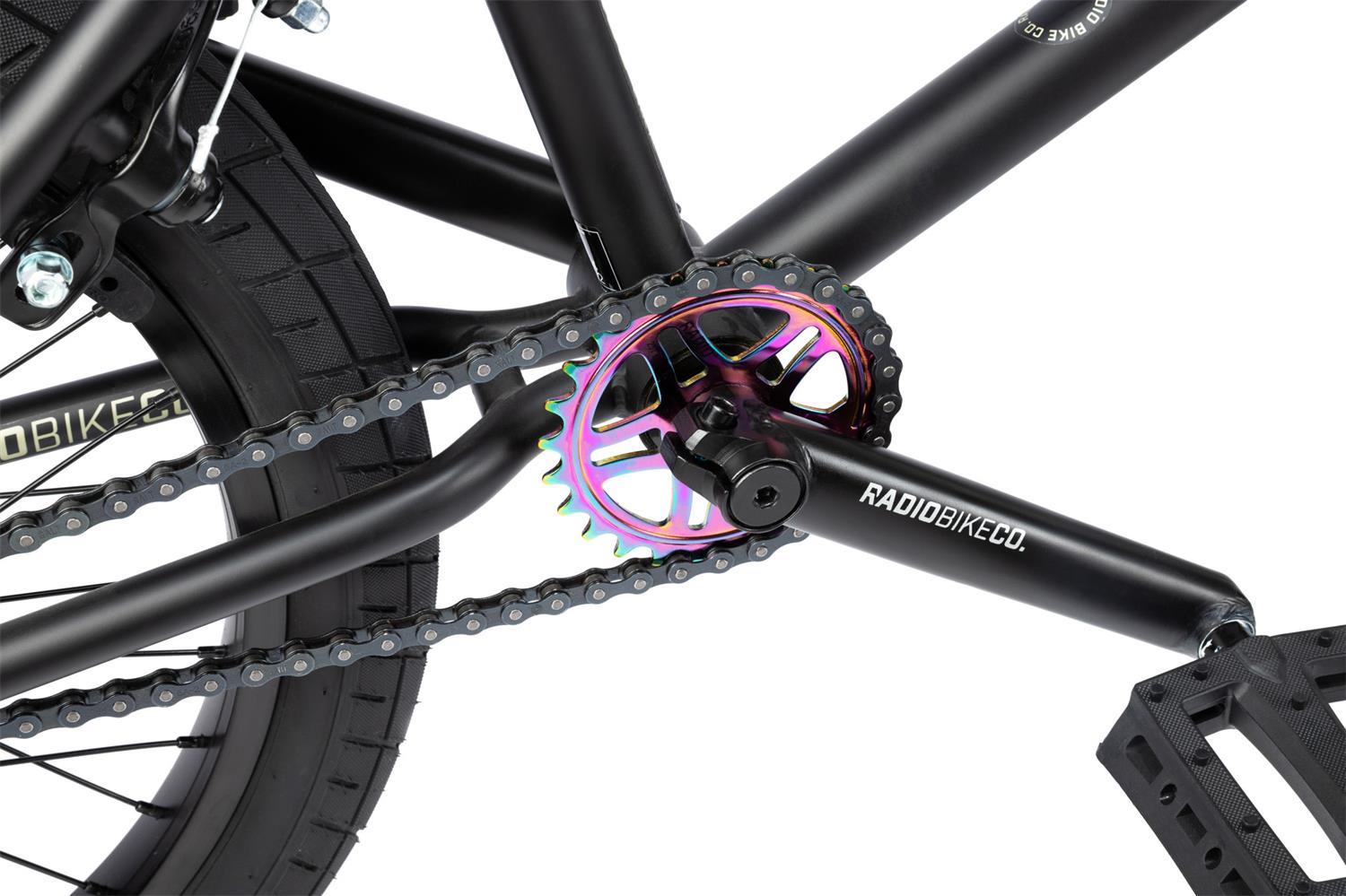

| Sprocket | Radio Vision sprocket, steel, 25t |
| Driver | Cassette Driver, 9T, sealed bearing |

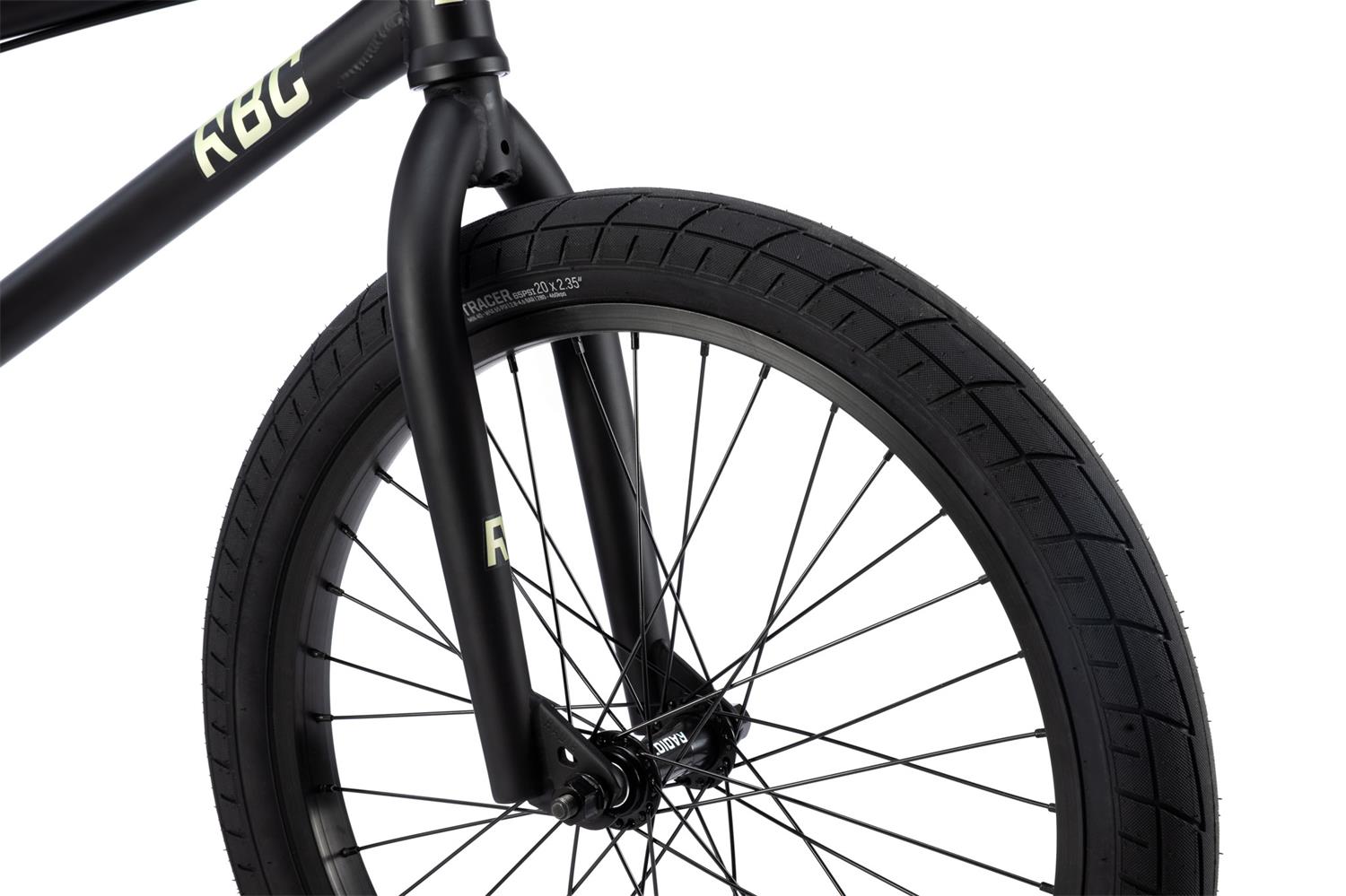

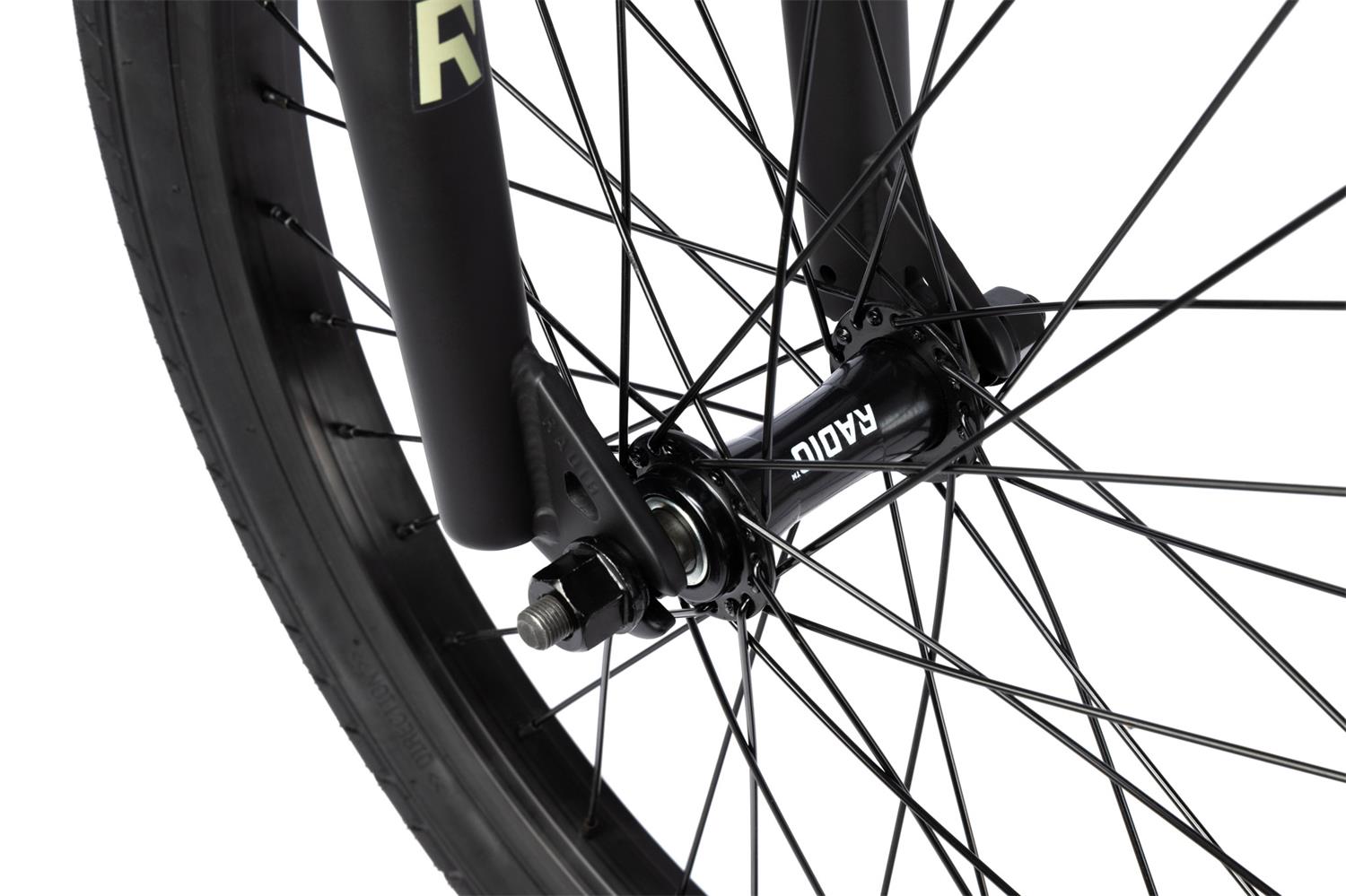

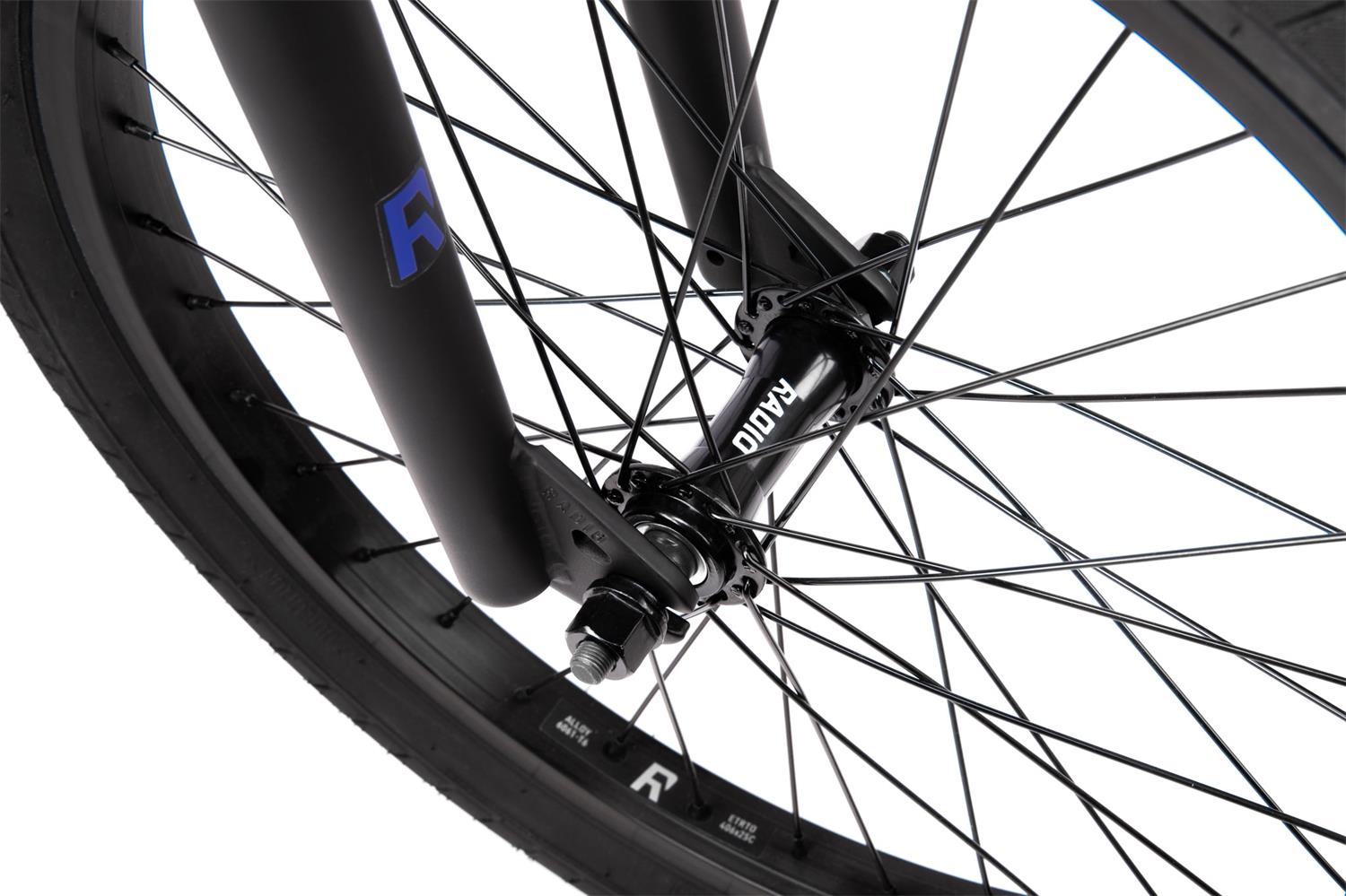

| Front wheel hub | Radio Rookie hub, steel, loose ball, 3/8"s, 36h |

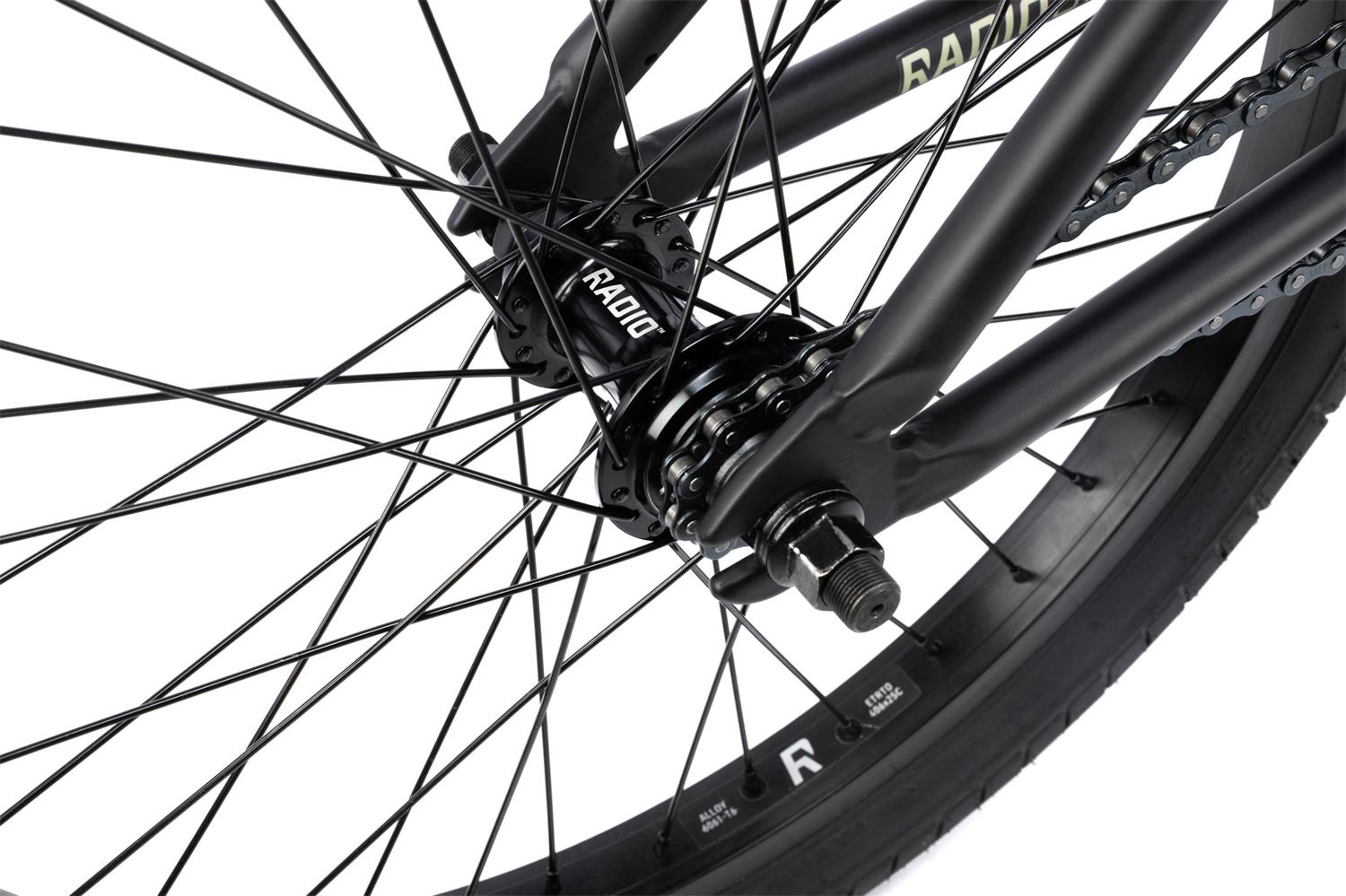

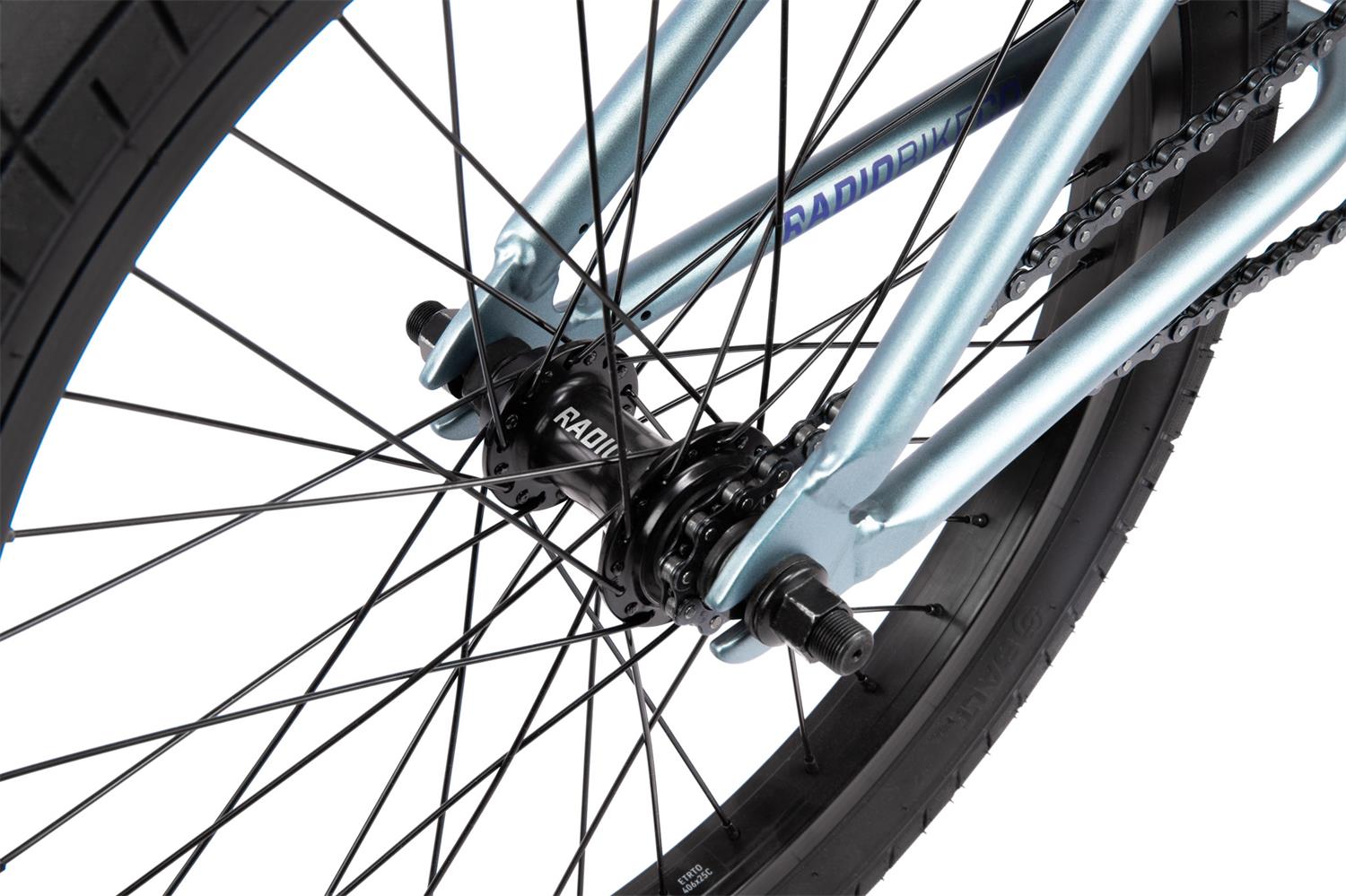

| Rear wheel hub | Radio AM cassette hub, aluminium, semi-sealed, 9T, 14mm axle, 36H |
| Front rim | Radio Rookie Rim, single wall |
| Rear rim | Radio Rookie Rim, single wall |

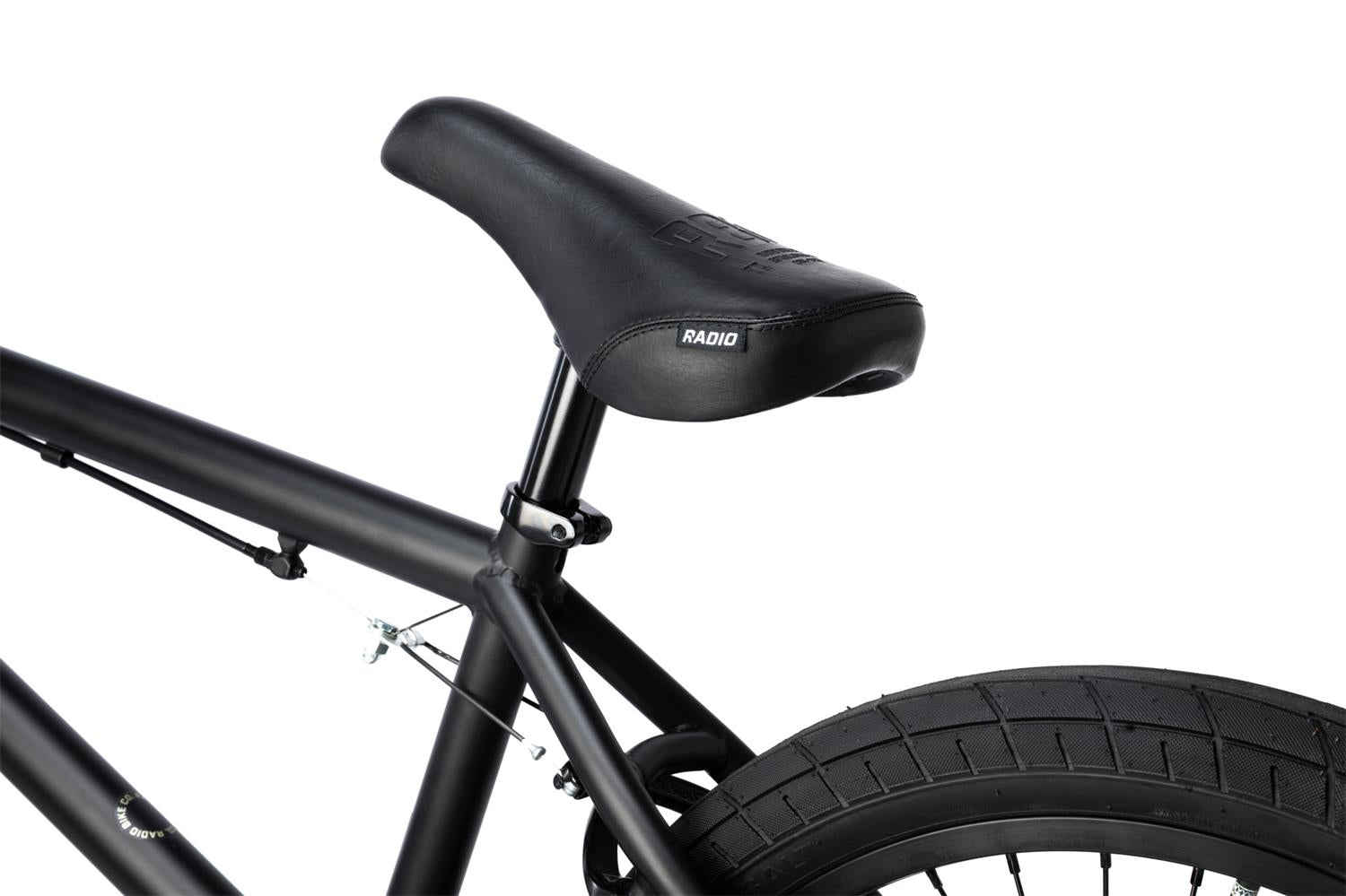

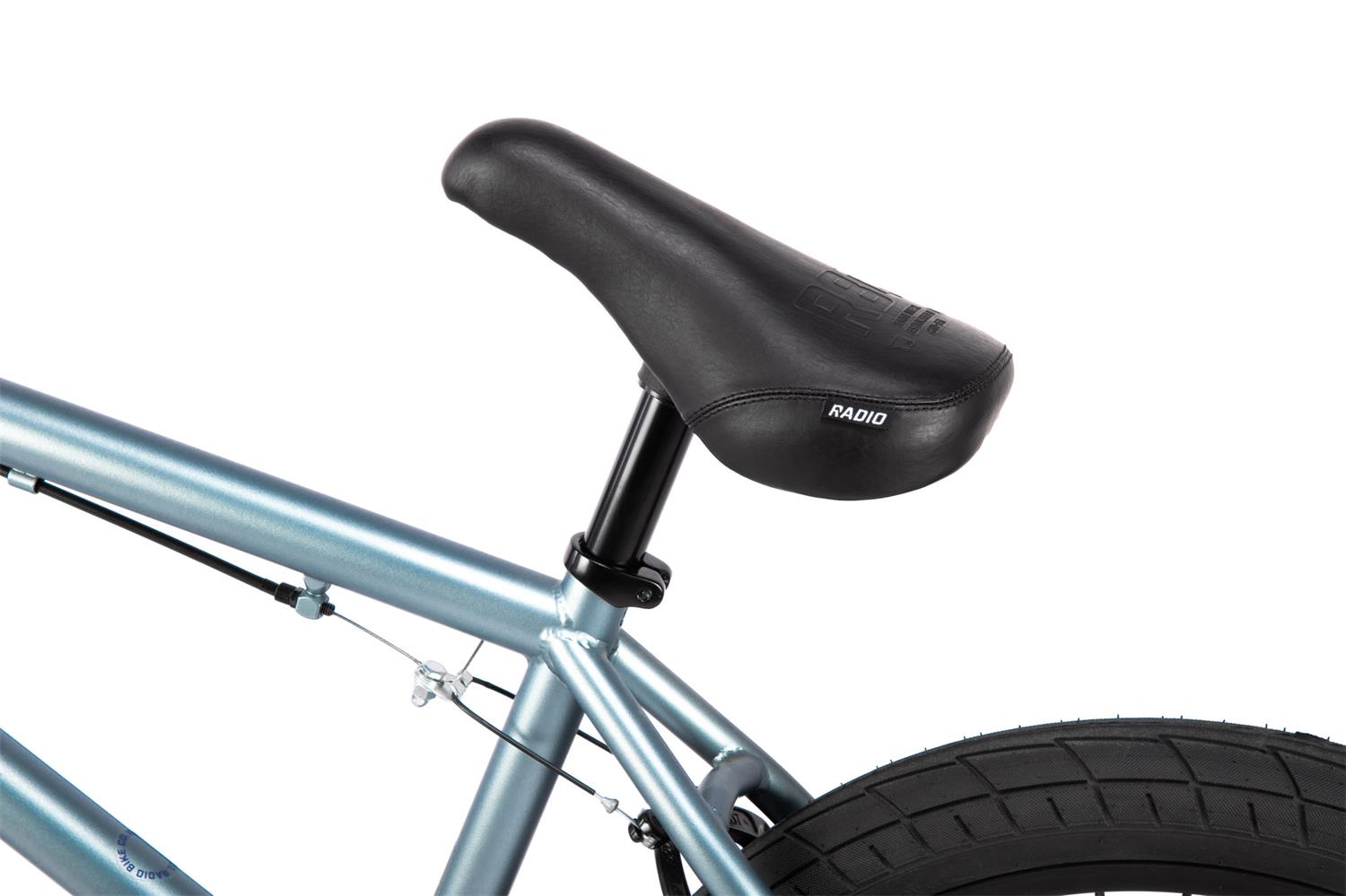

| Saddle | Radio Century Combo Seat, mid padded |
| Seat clamp | Radio Slim seat clamp, aluminium |
| Tires | Salt “TRACER” |
Weight 12.25kg / 27.02lbs
Frame Geometry:
| Top Tube Length | 21" |
| Chain Stay Length | 13.2" |
| Head Tube Angle | 75° |
| Seat Tube Angle | 71.5° |
| Bottom Bracket Height | 11.75" |
| Standover Height | 8.25" |
Handlebar Geometry:
| Rise | 9" |
| Width | 29.5" |
| Backsweep | 12° |
| Upsweep | 2° |
