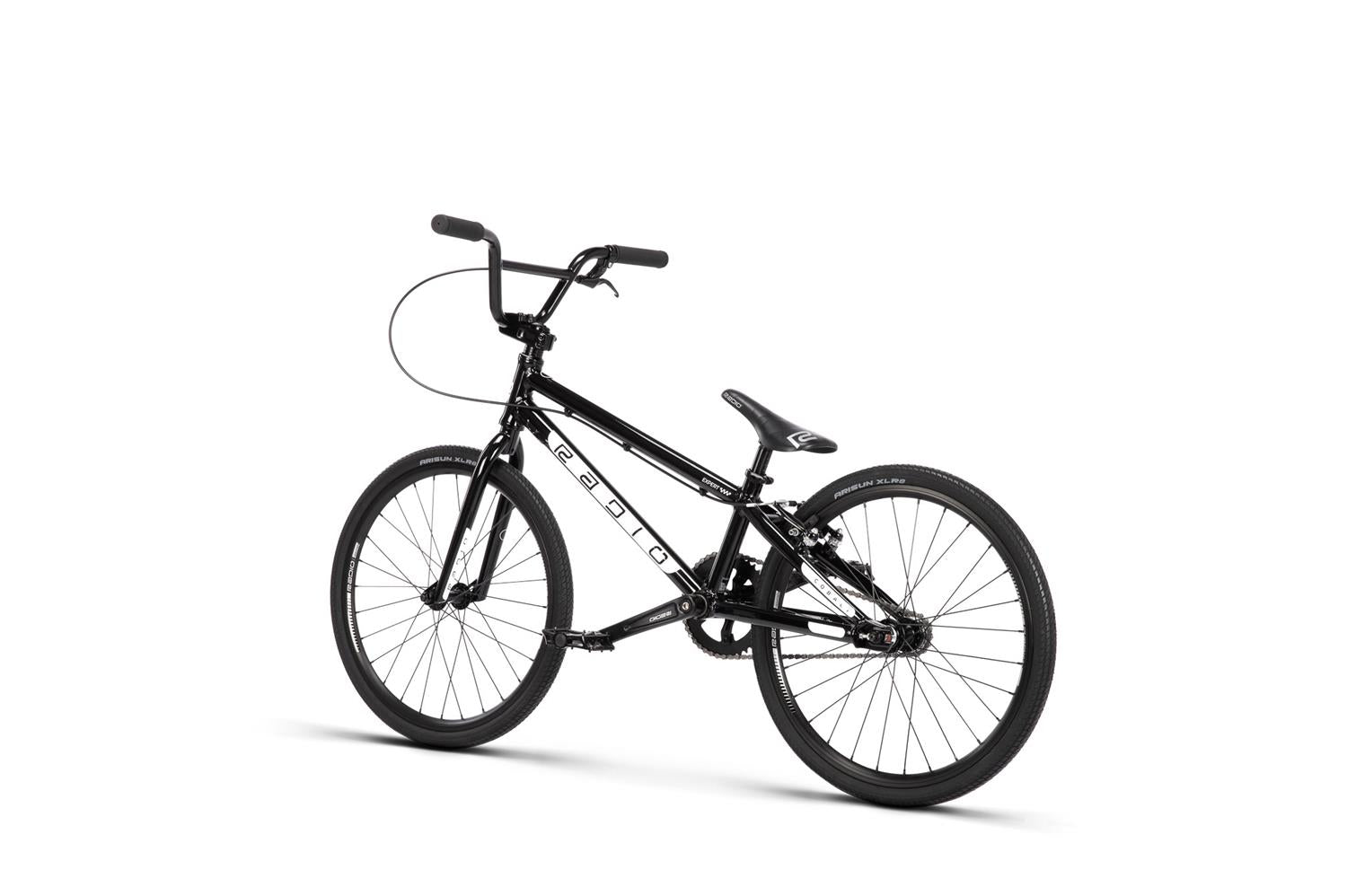

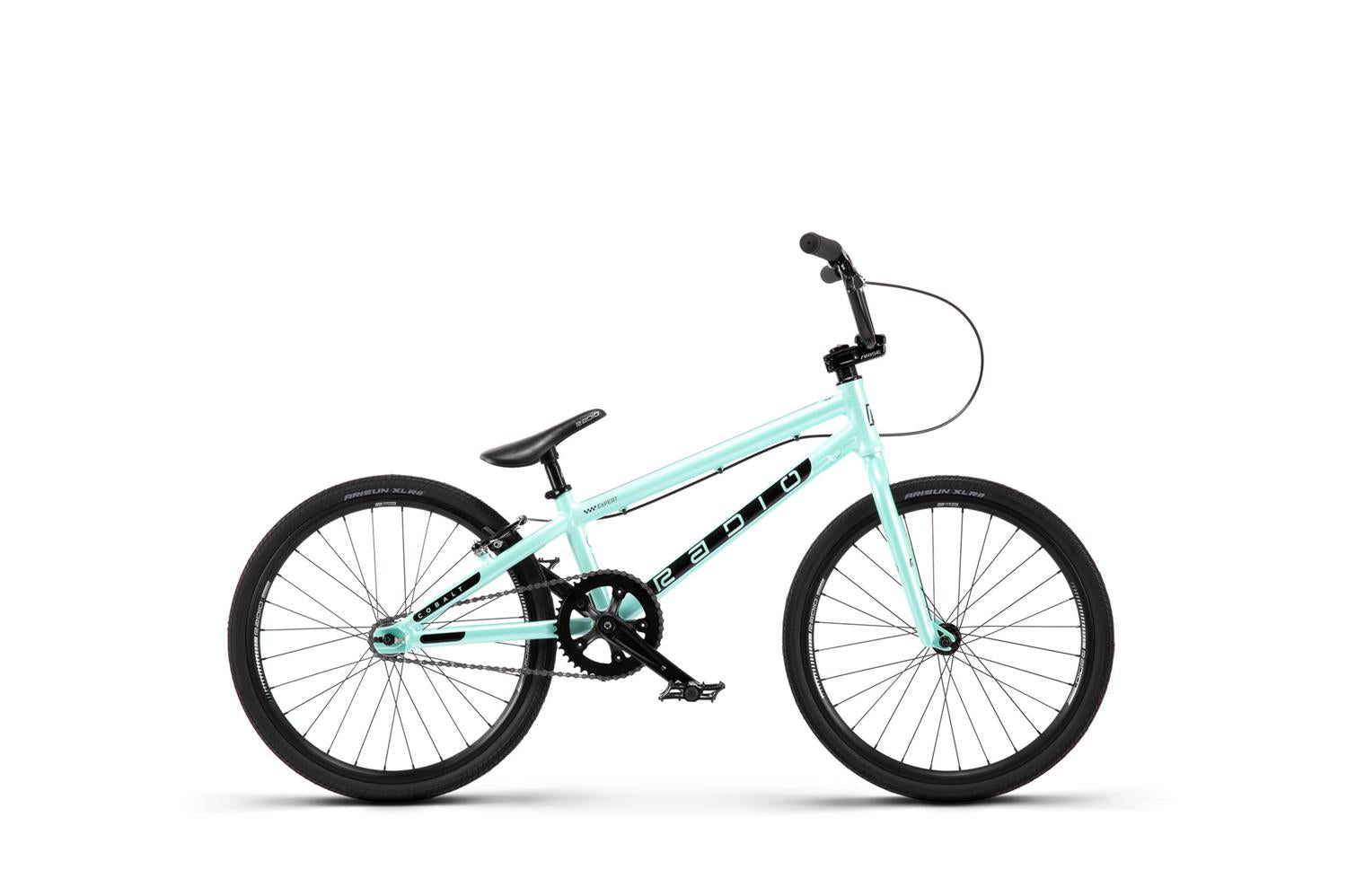

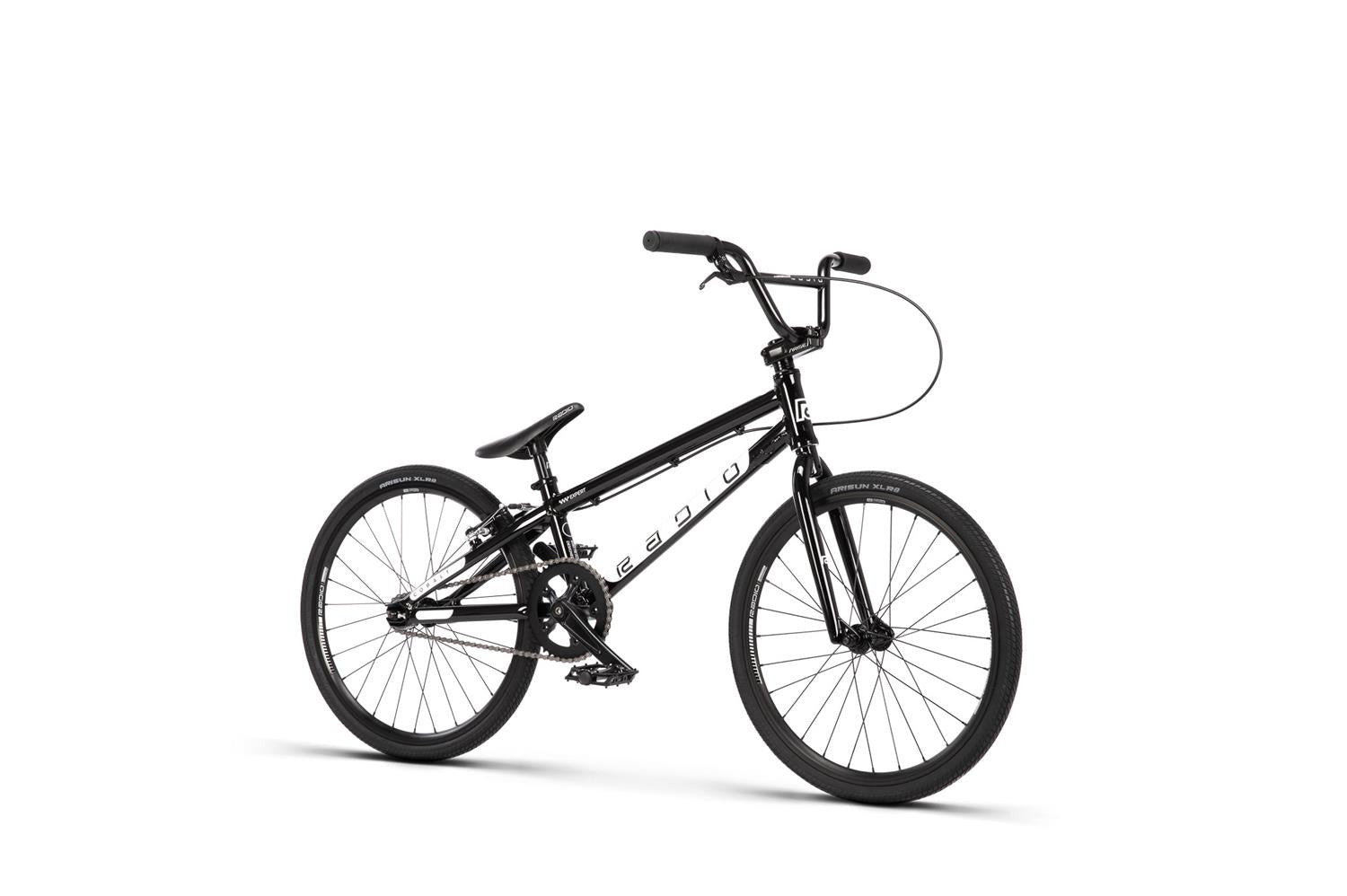

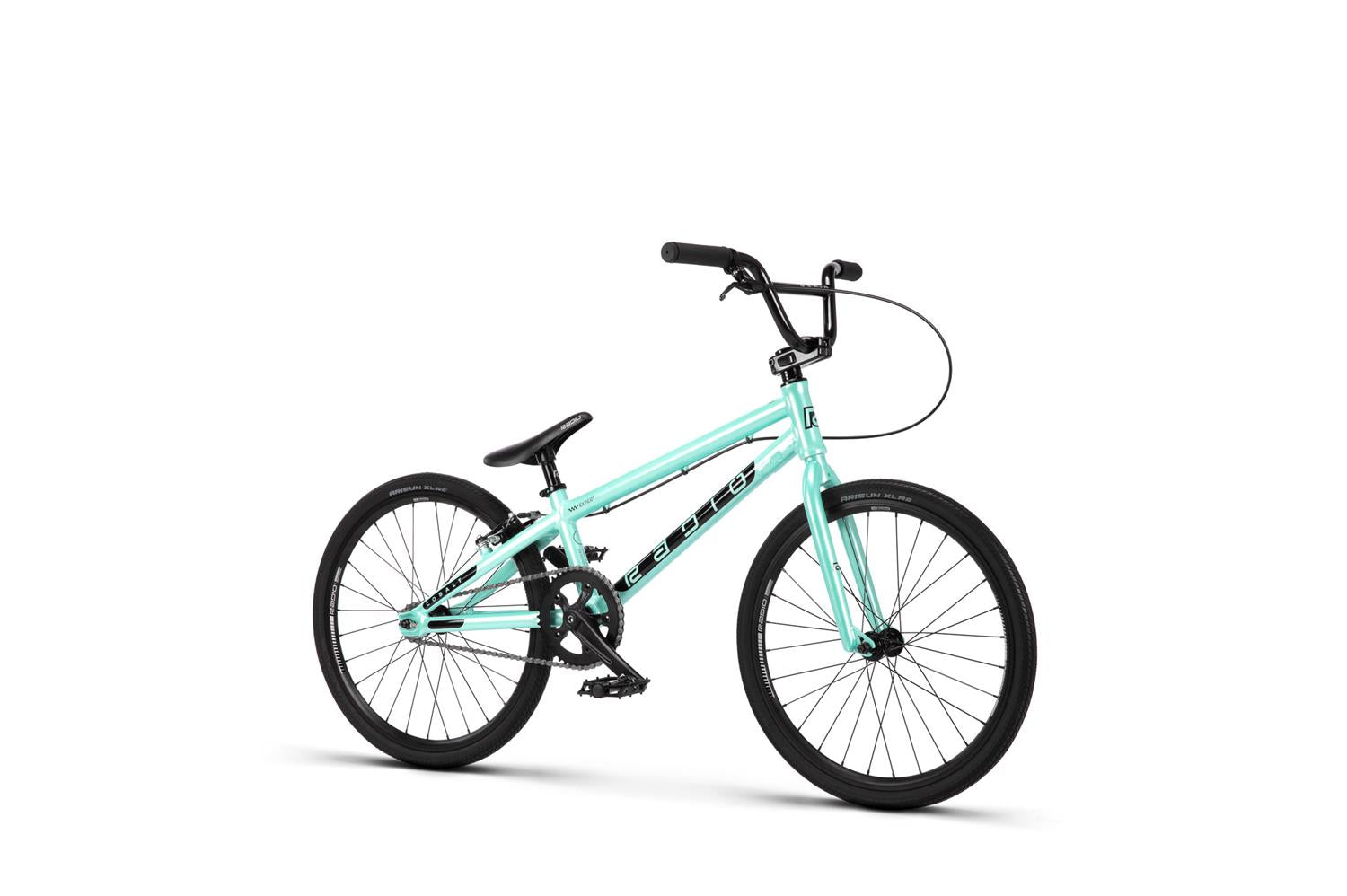

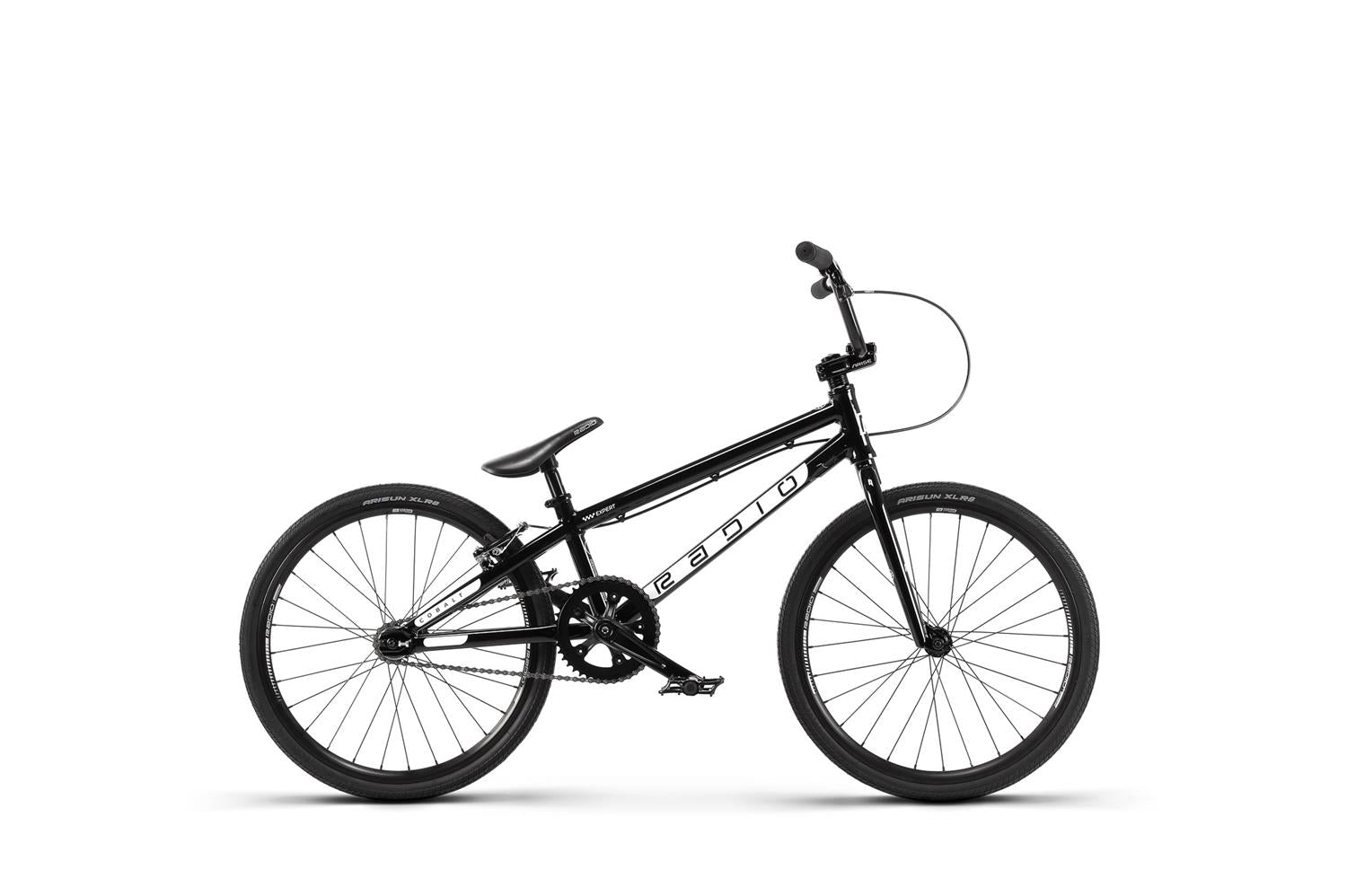

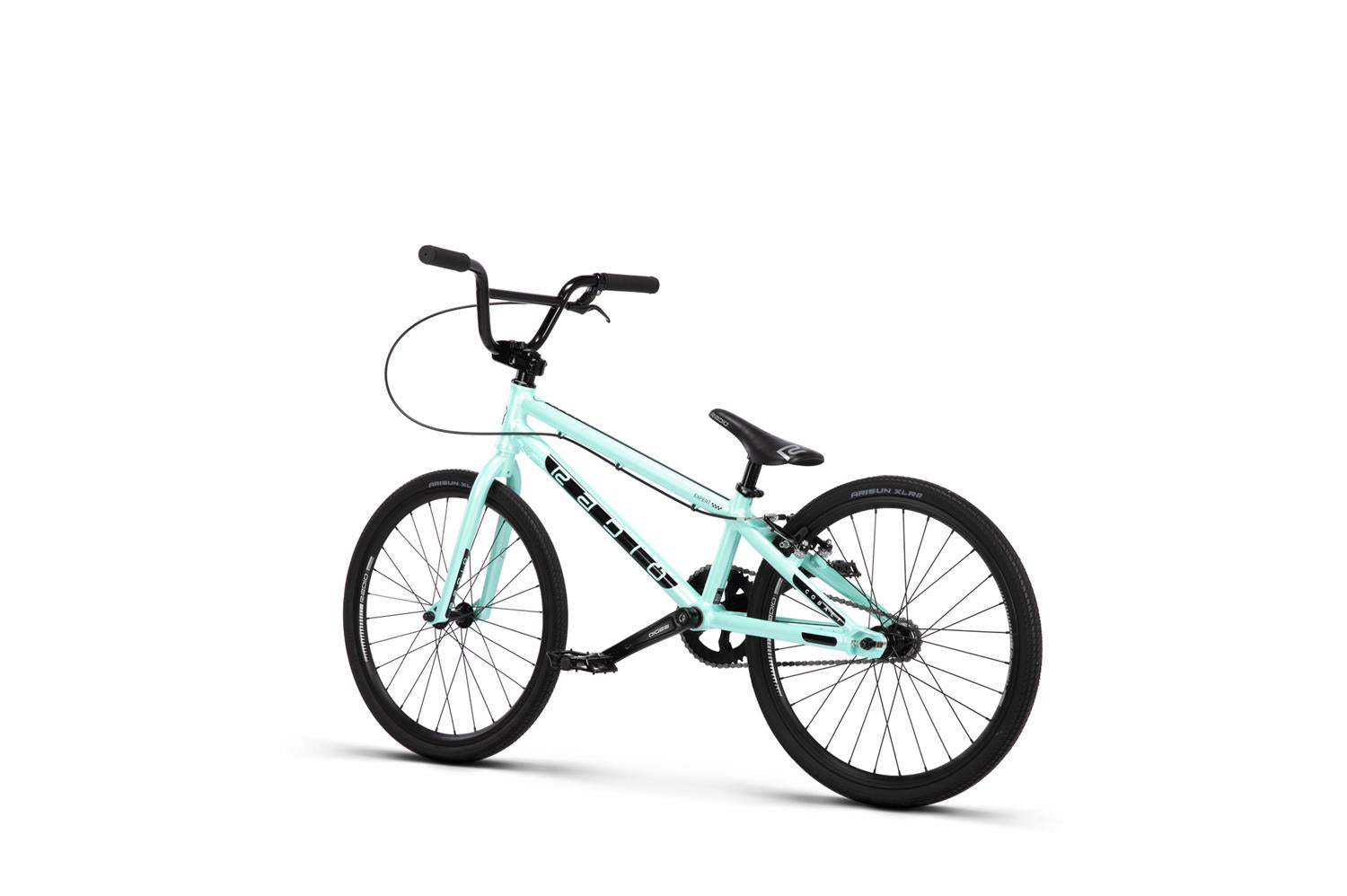

Cobalt Expert Complete Bike

The Cobalt line combines proven geometry and dialled components giving you the best start out of the gate during your first days racing. The Cobalt Expert steps up to a 19.5″ toptube, a longer 50mm reach cobalt stem, a slim Radio combo seat and wider 1 3/8″ ARISUN "XLR8" tires. Fresh out of the box this year with incredible new paint and graphics, you’ll be able to spot a Cobalt on the track very easily. All Cobalt bikes now feature full sealed front hubs and integrated headsets, making them simply unbeatable when comparing price to spec. The Cobalt is one seriously unstoppable machine.

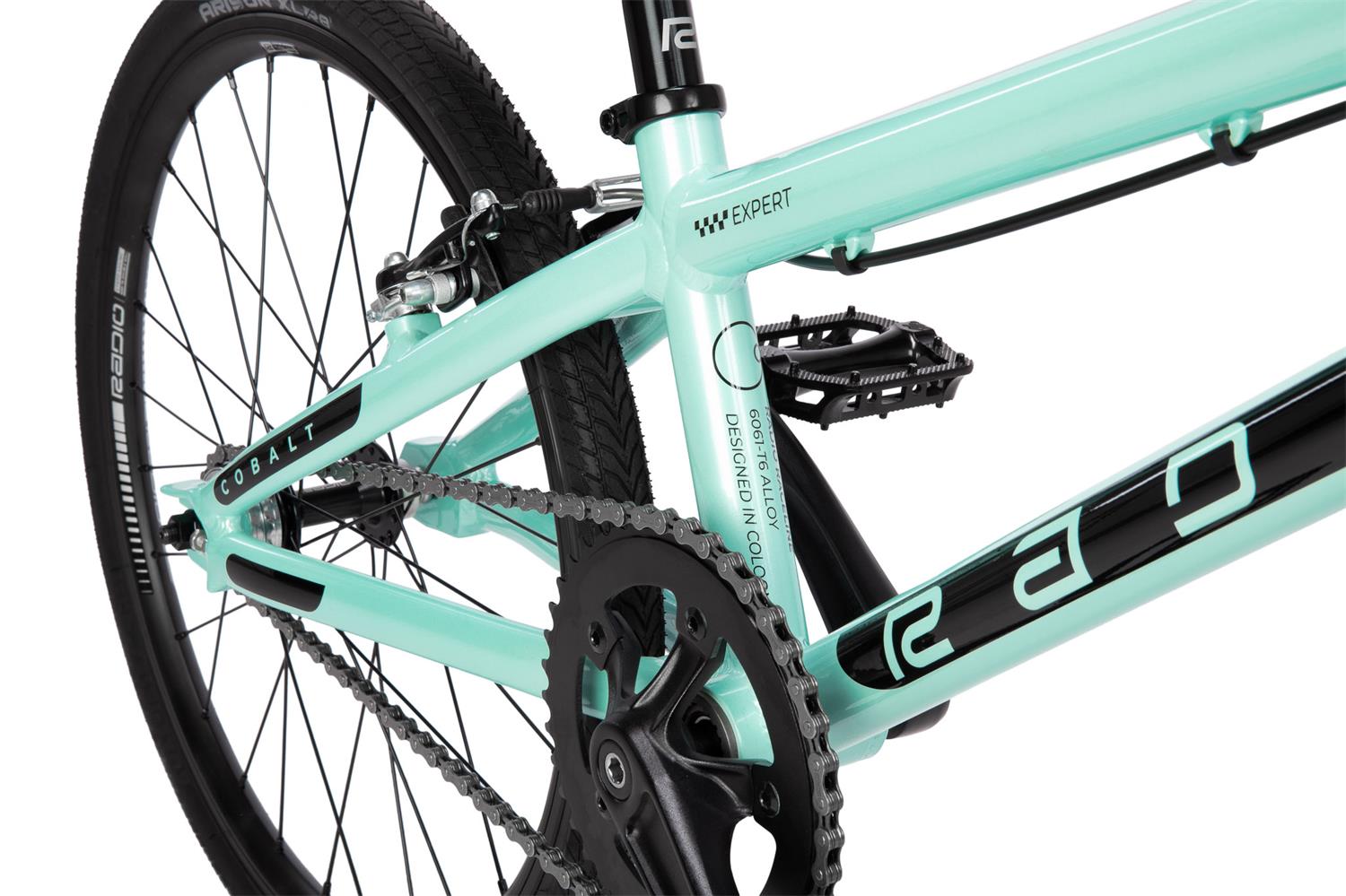

• FRAME: 6061-T6 alloy frame, forged dropouts with int. chaintensioner

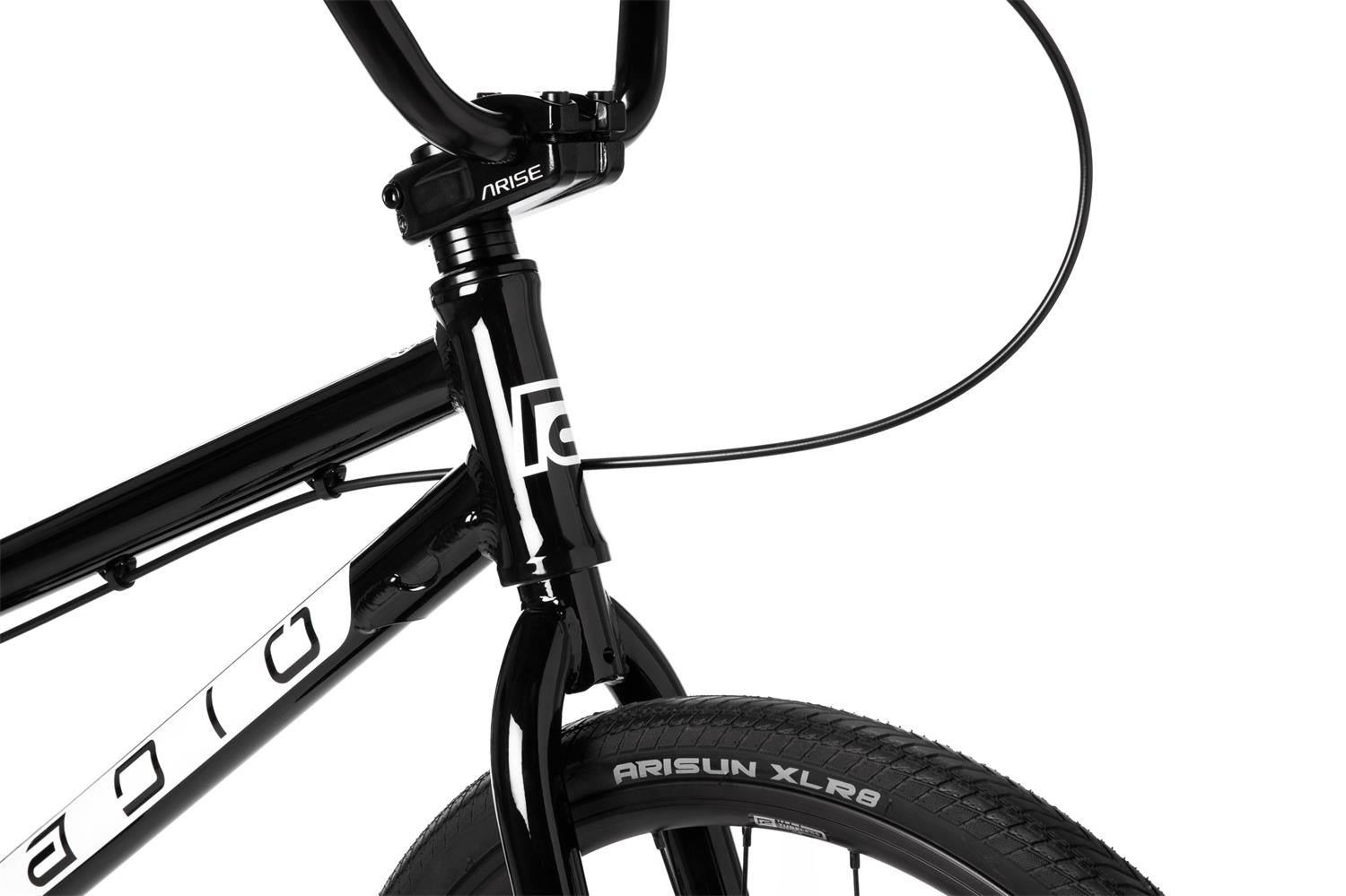

• FORK: crmo fork, 1-1/8" butted steerer, hi-ten fork legs, 23mm offset

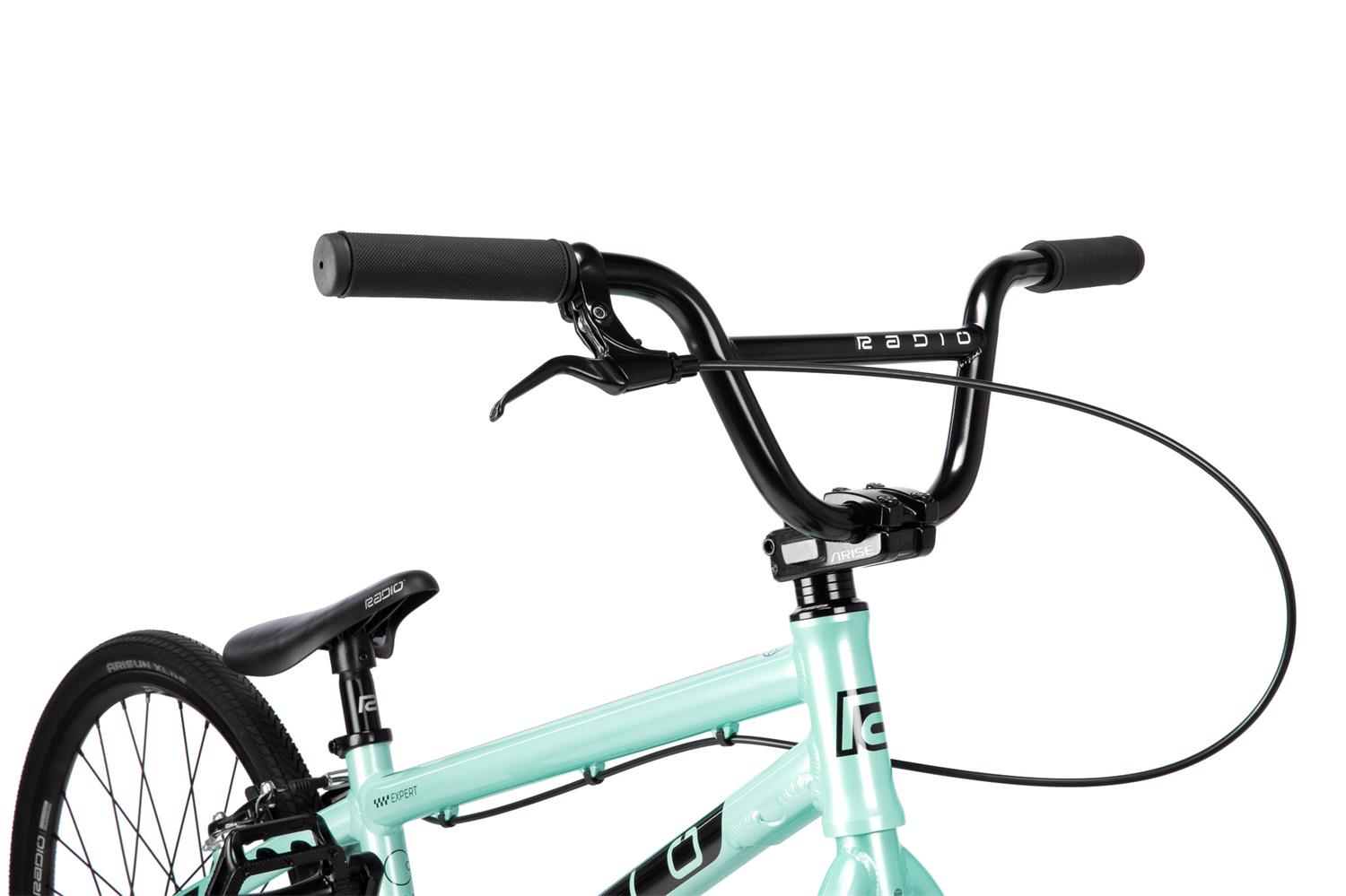

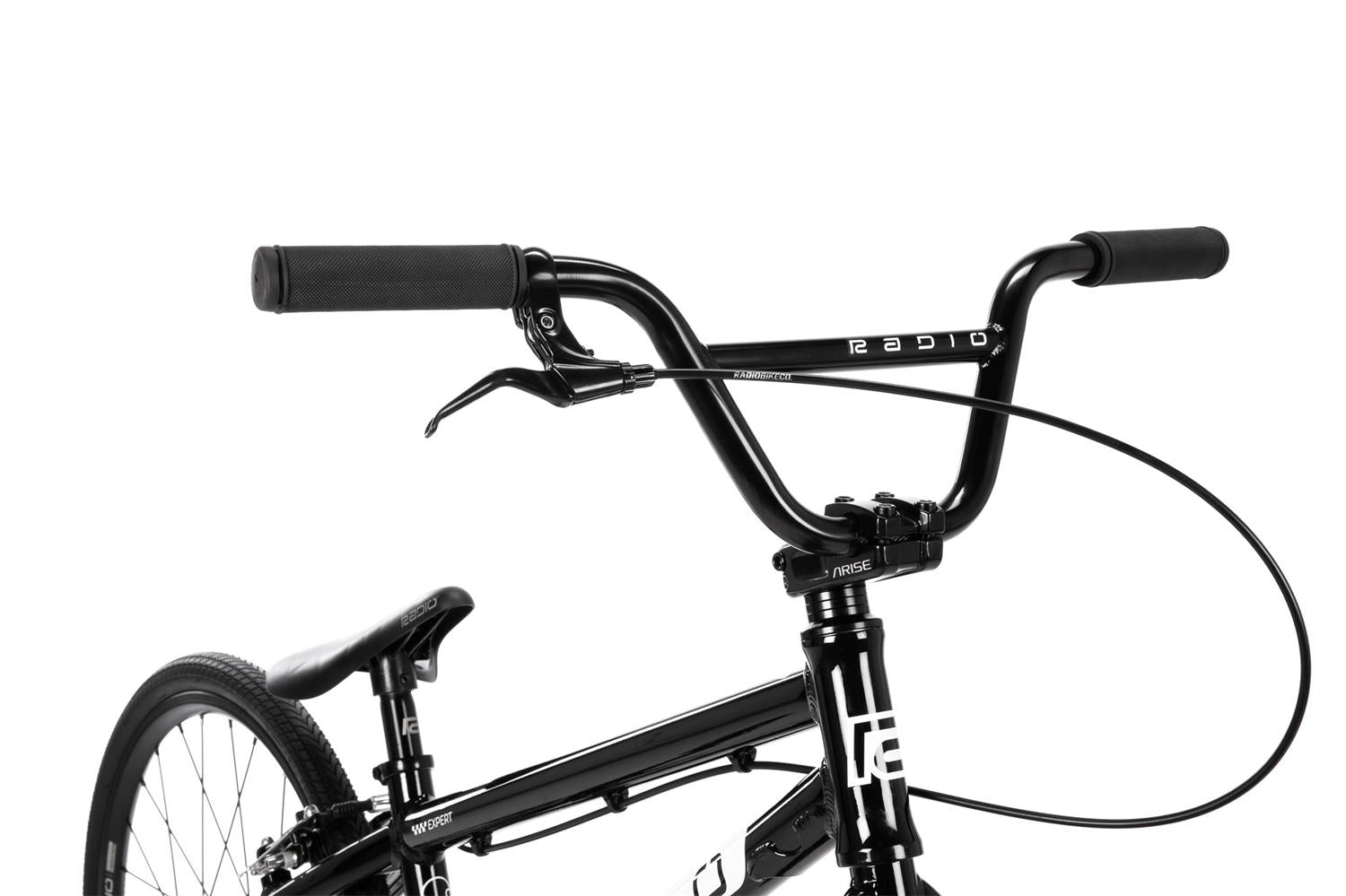

• HANDLEBAR: 4130 crmo bar, seamless

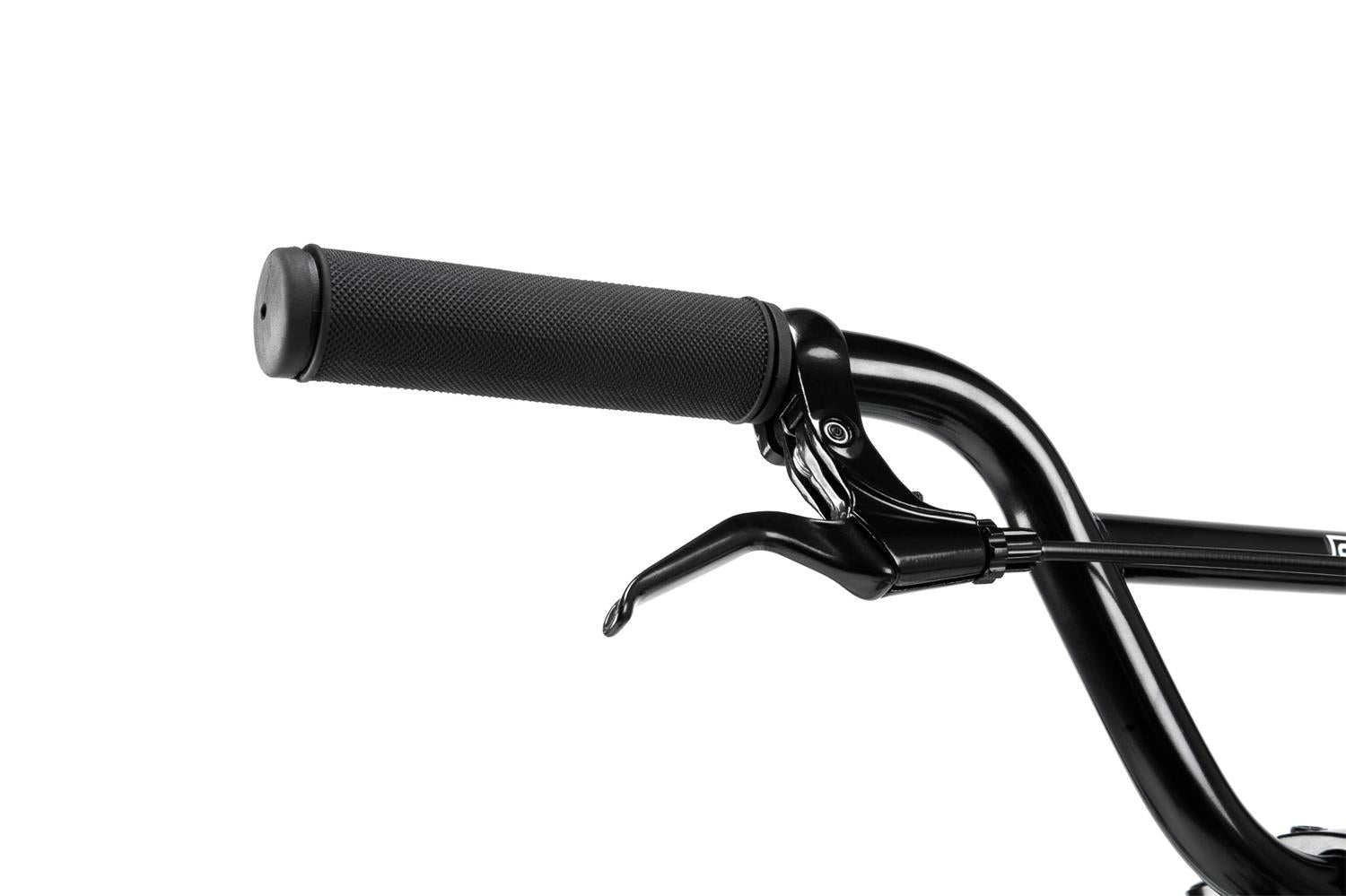

• GRIPS: RADIO RACELINE "COBALT" grips, diamond knurling, closed end, flangeless, 130mm length

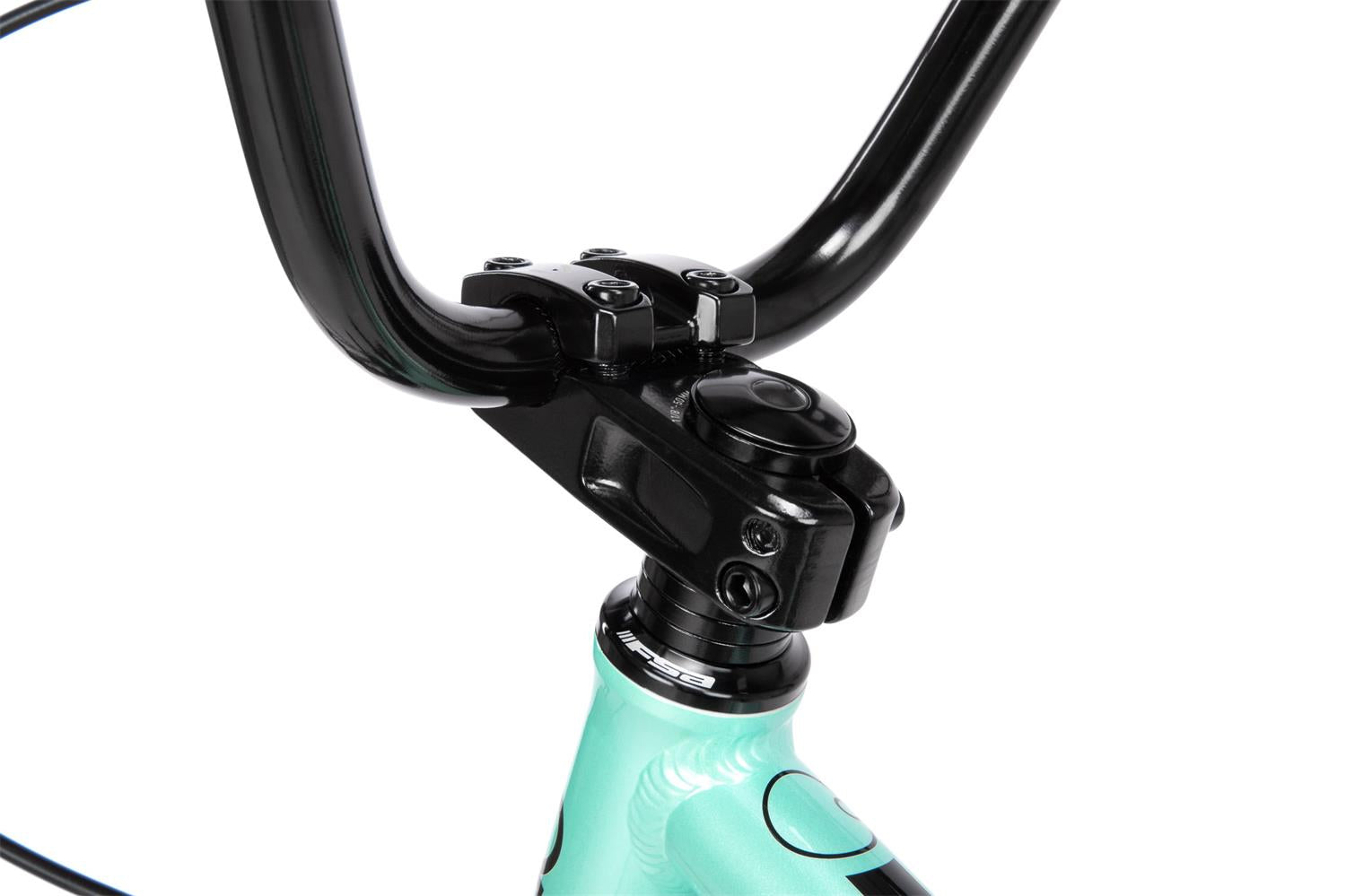

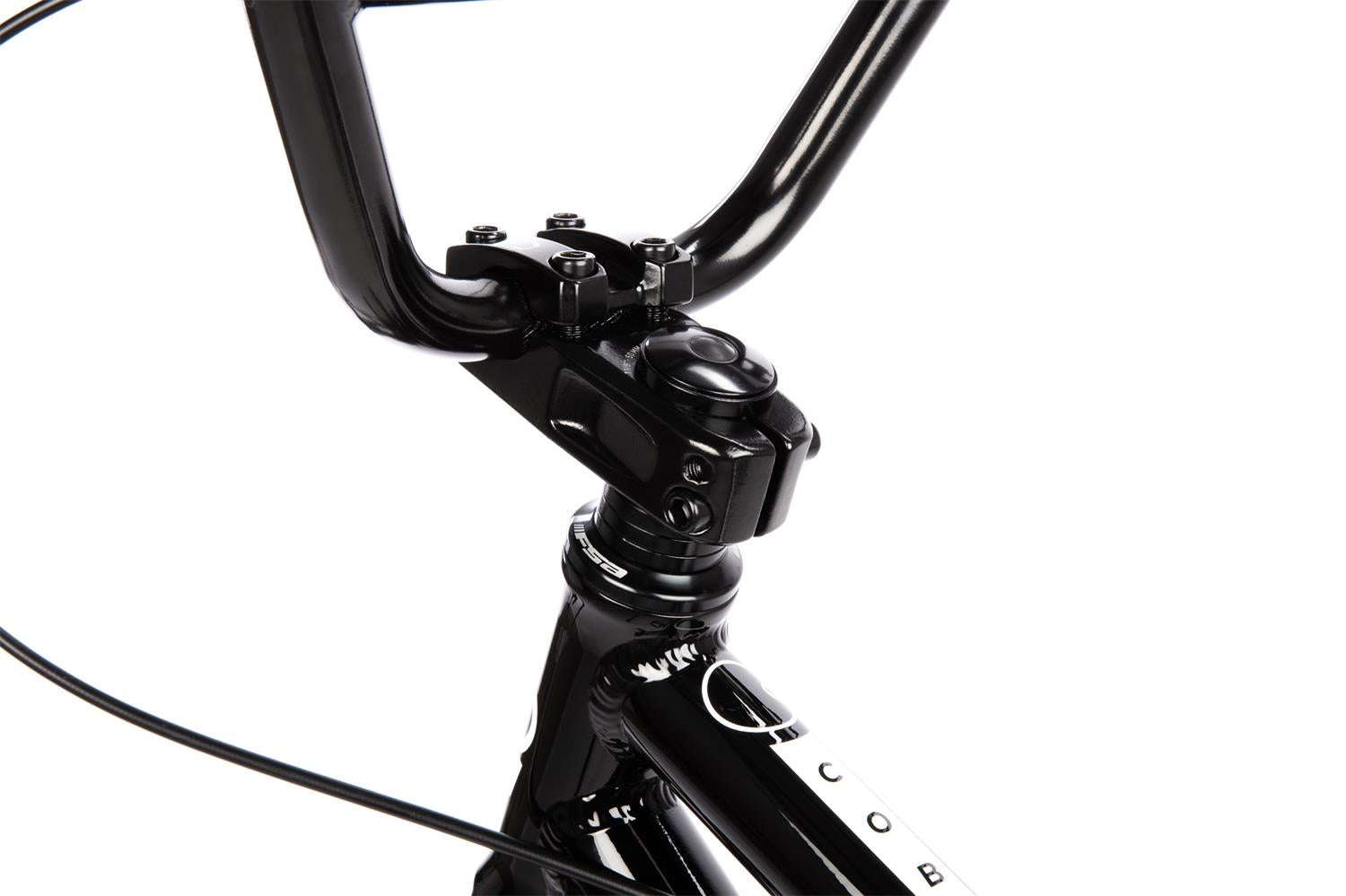

• STEM: RADIO RACELINE "COBALT" toploader stem, ext. 50mm, alloy
• HEADSET: FSA "No.28" integrated headset, sealed, 1-1/8"

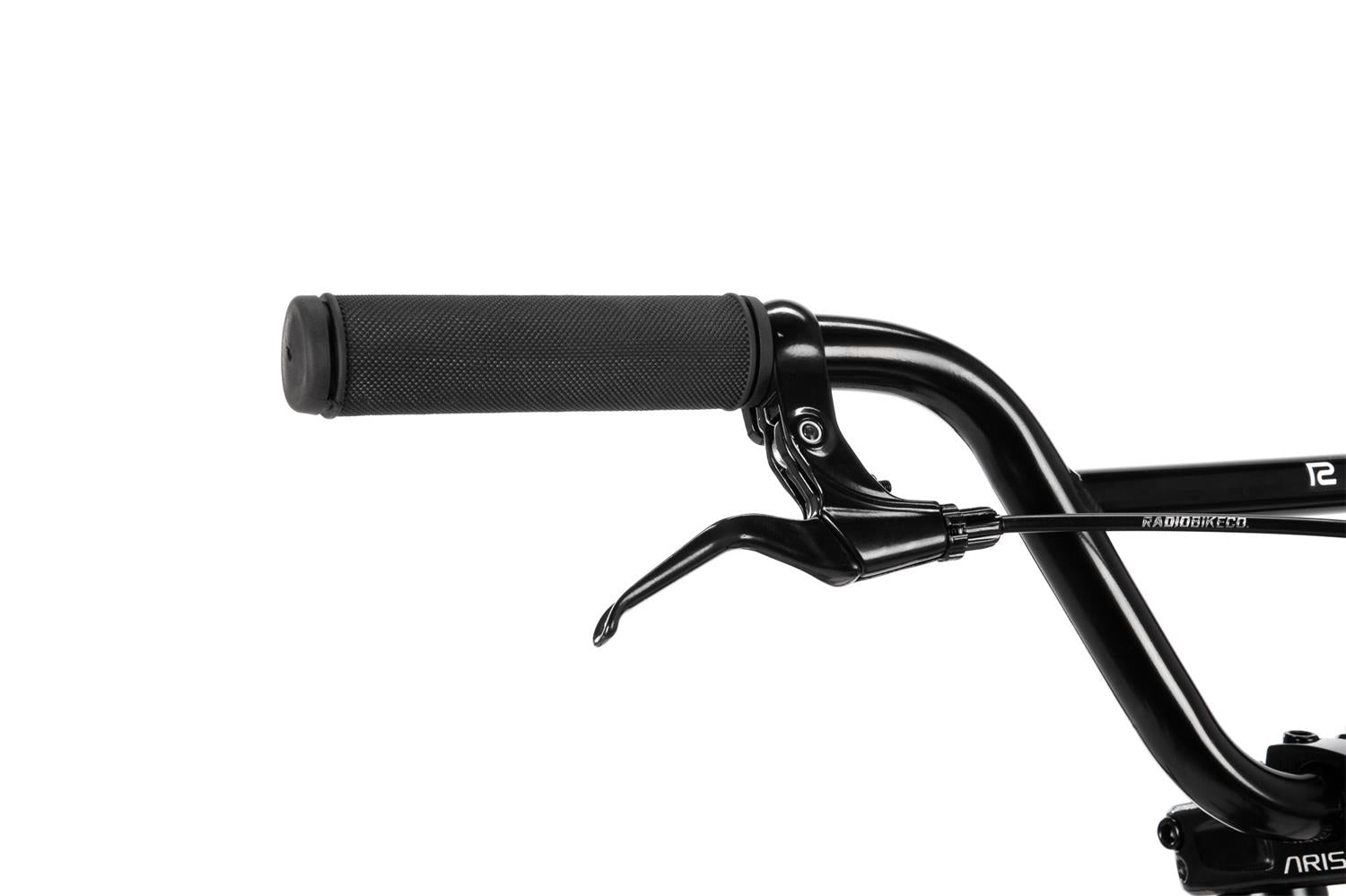

• BRAKE LEVER: Radio Raceline Junior brake lever, rear
• BRAKE: Radio Raceline Mini V-Brake, rear

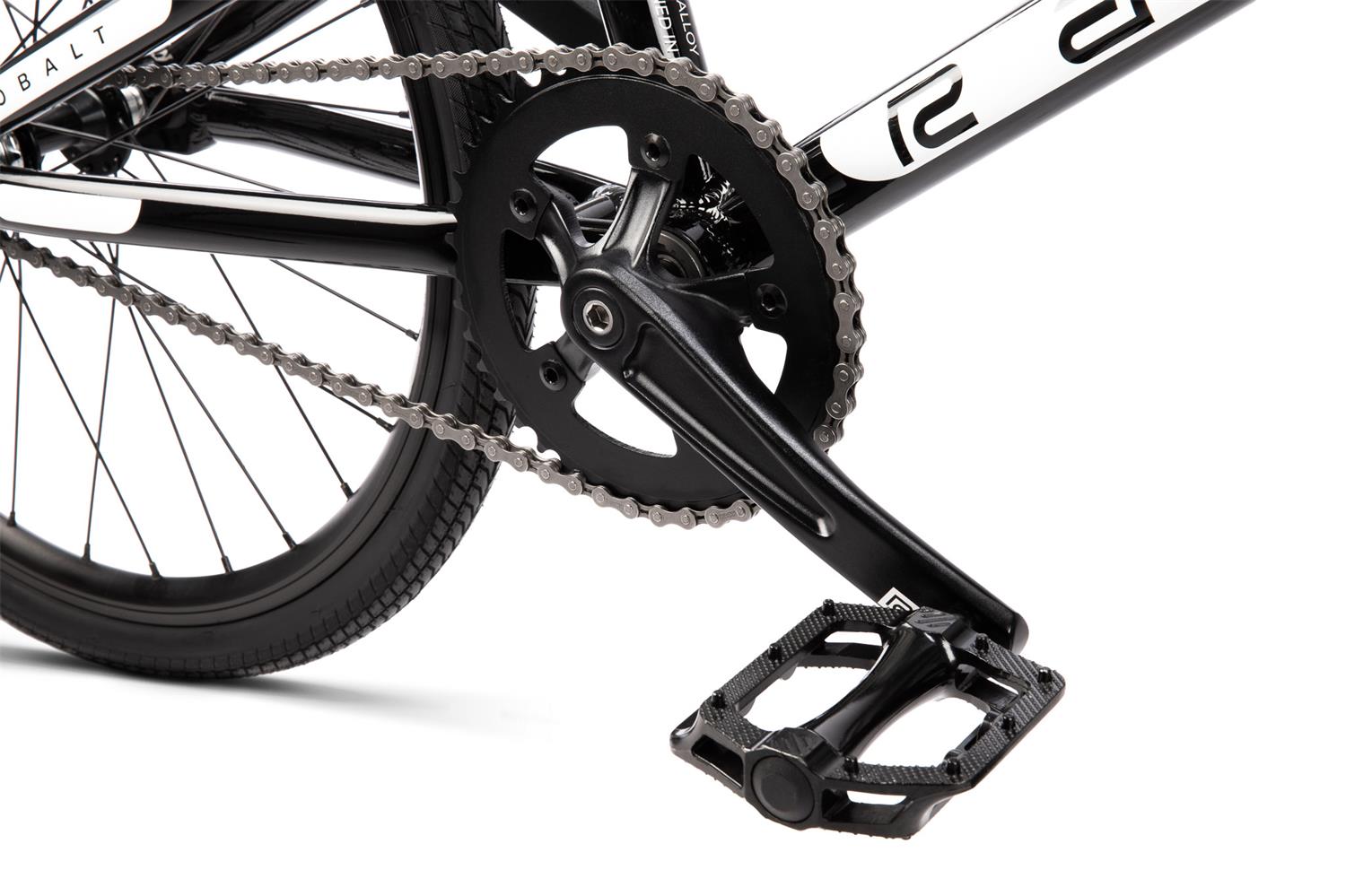

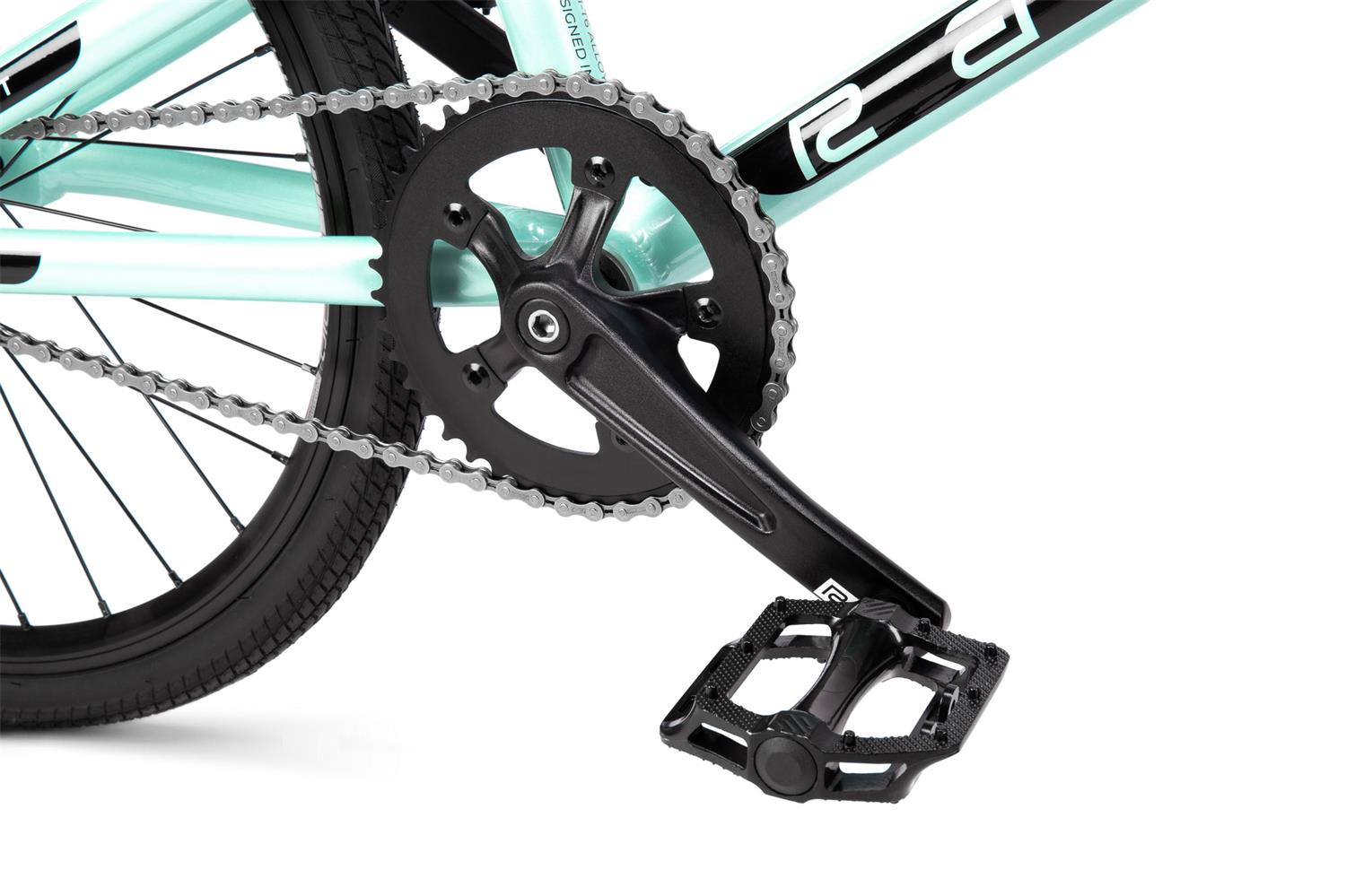

• CRANK: RADIO RACELINE "COBALT" 3pc crank, forged alloy, 165mm length
• BB: RADIO RACELINE BB set, BSA square taper, sealed
• PEDALS: RADIO RACELINE "COBALT PRO" pedal, alloy
• CHAIN: KMC "Z6" chain, 1/2" x 3/32"
• SPROCKET: RADIO RACELINE sprocket, 42T, alloy
• DRIVER: ATA freewheel, 16T, 1/2" x 3/32", crmo

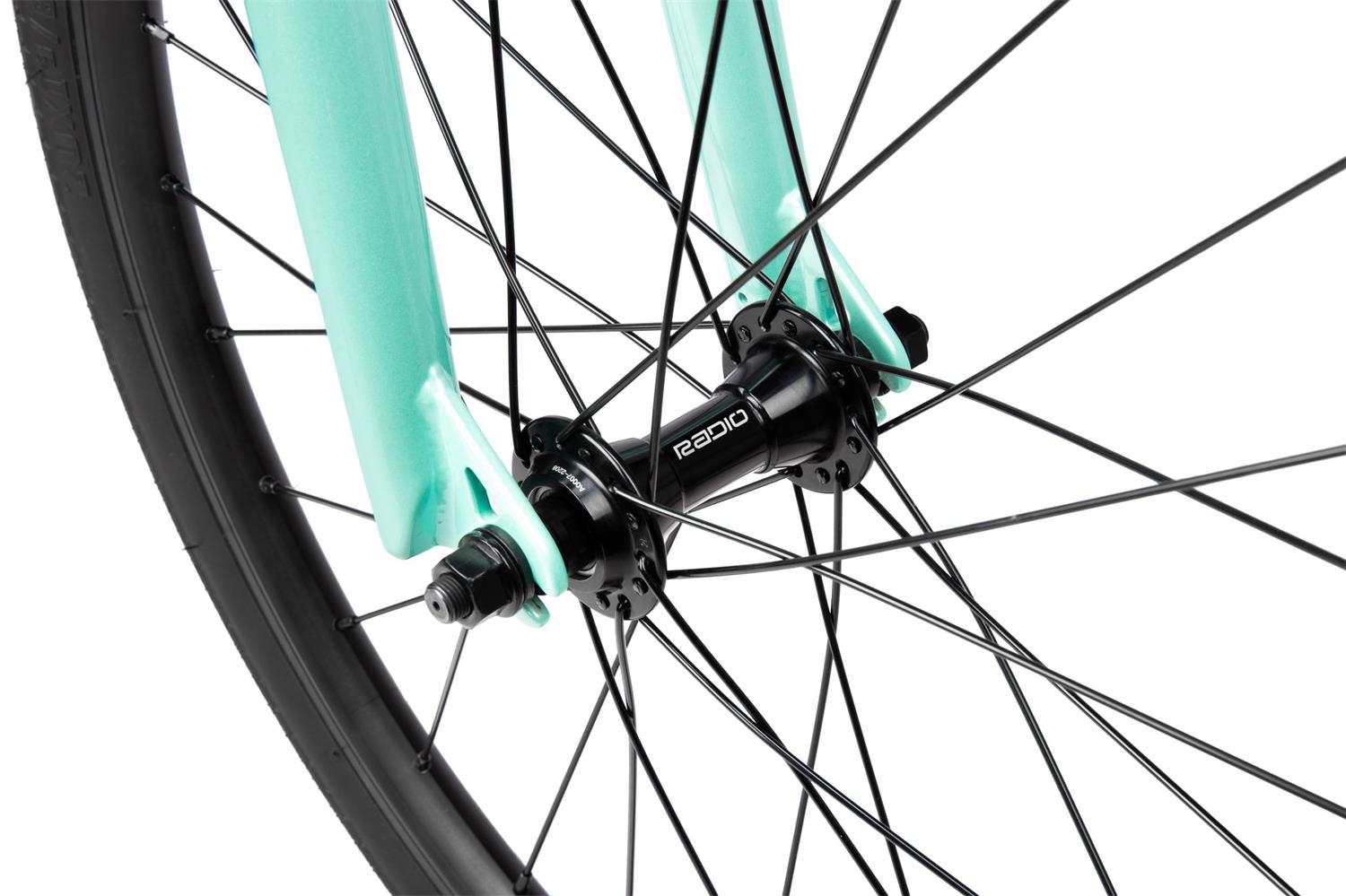

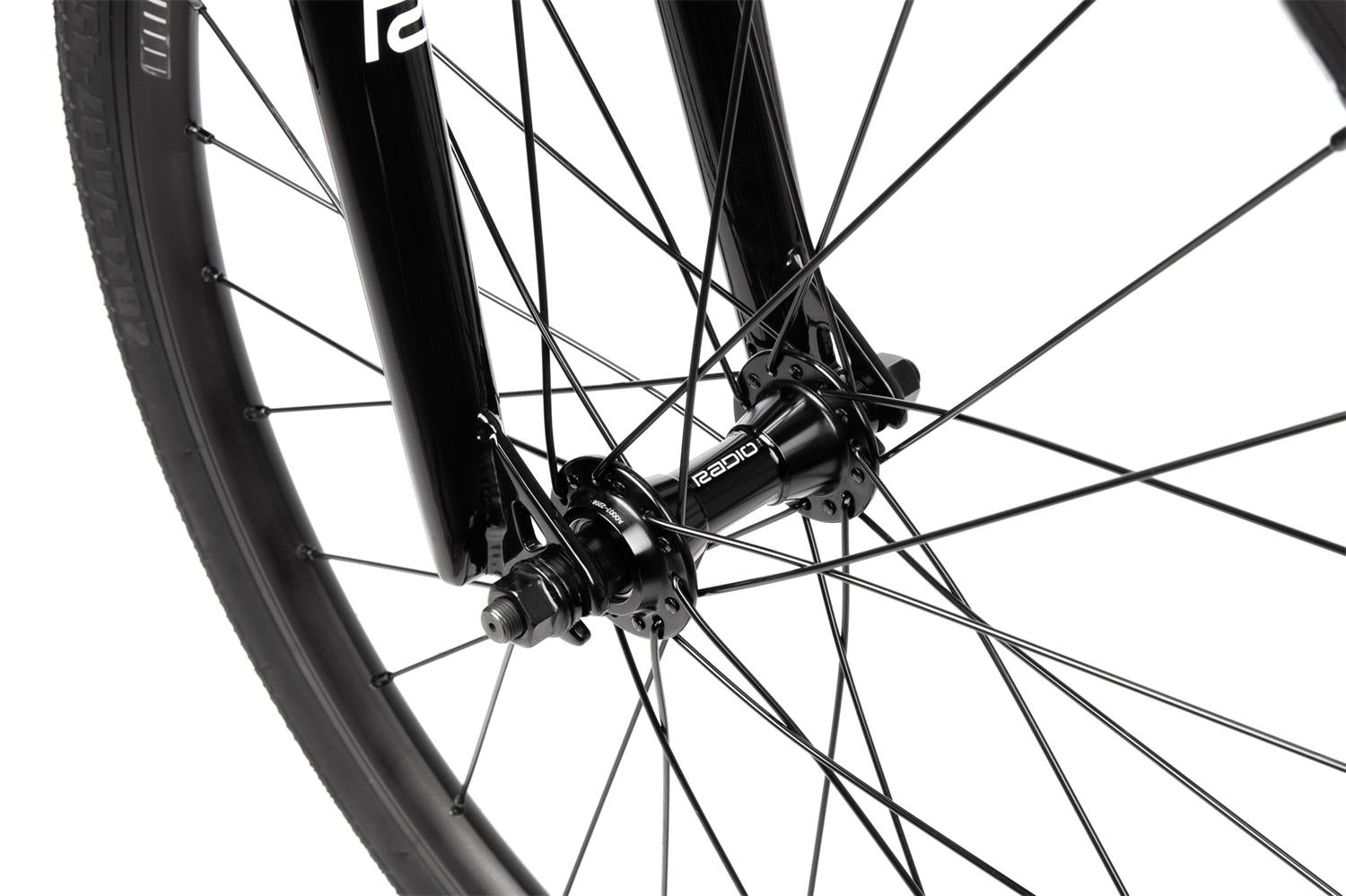

• FRONT HUB: RADIO RACELINE "COBALT" front hub, alloy cnc, fully sealed, 28h, 3/8" crmo axle

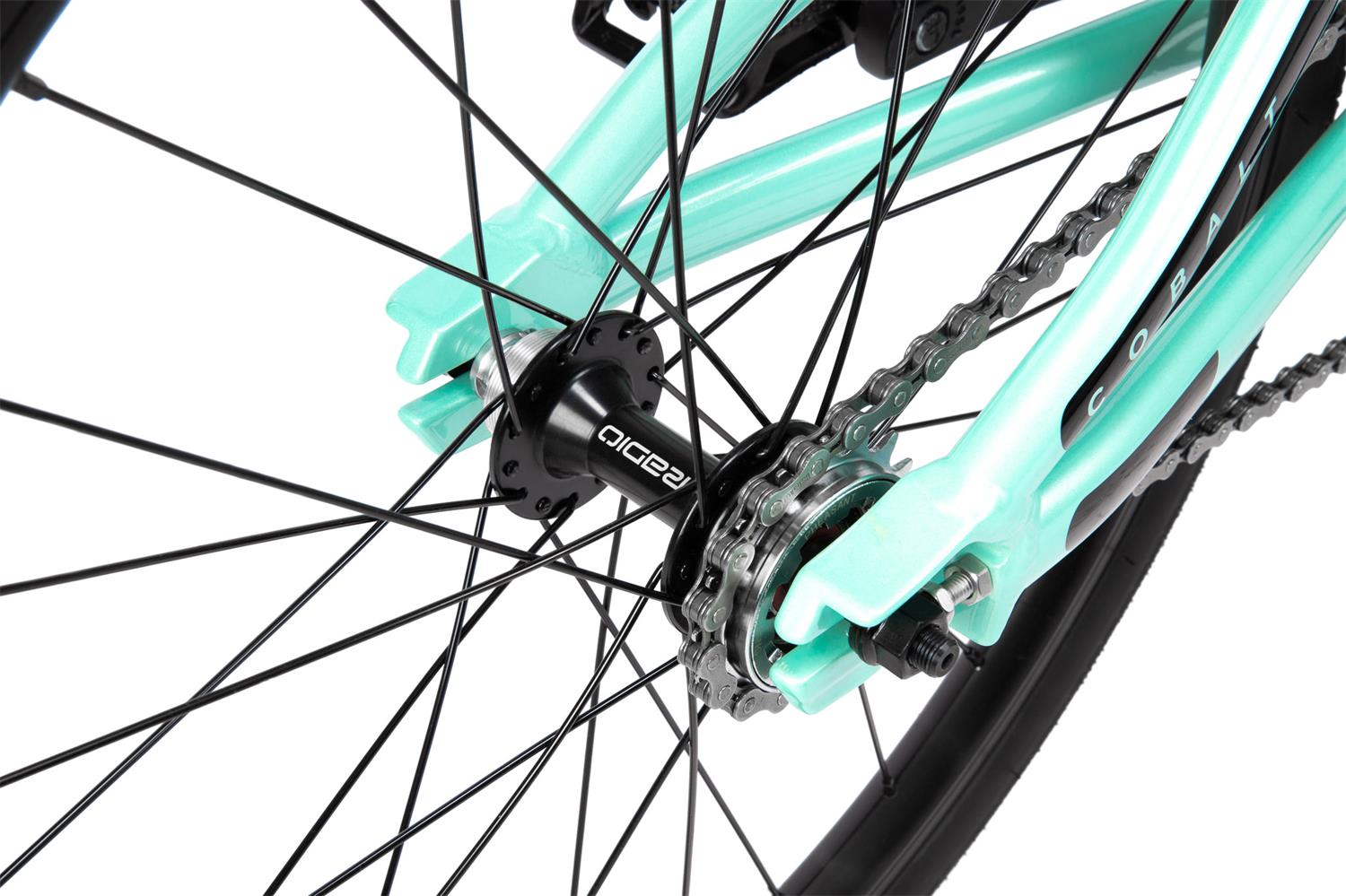

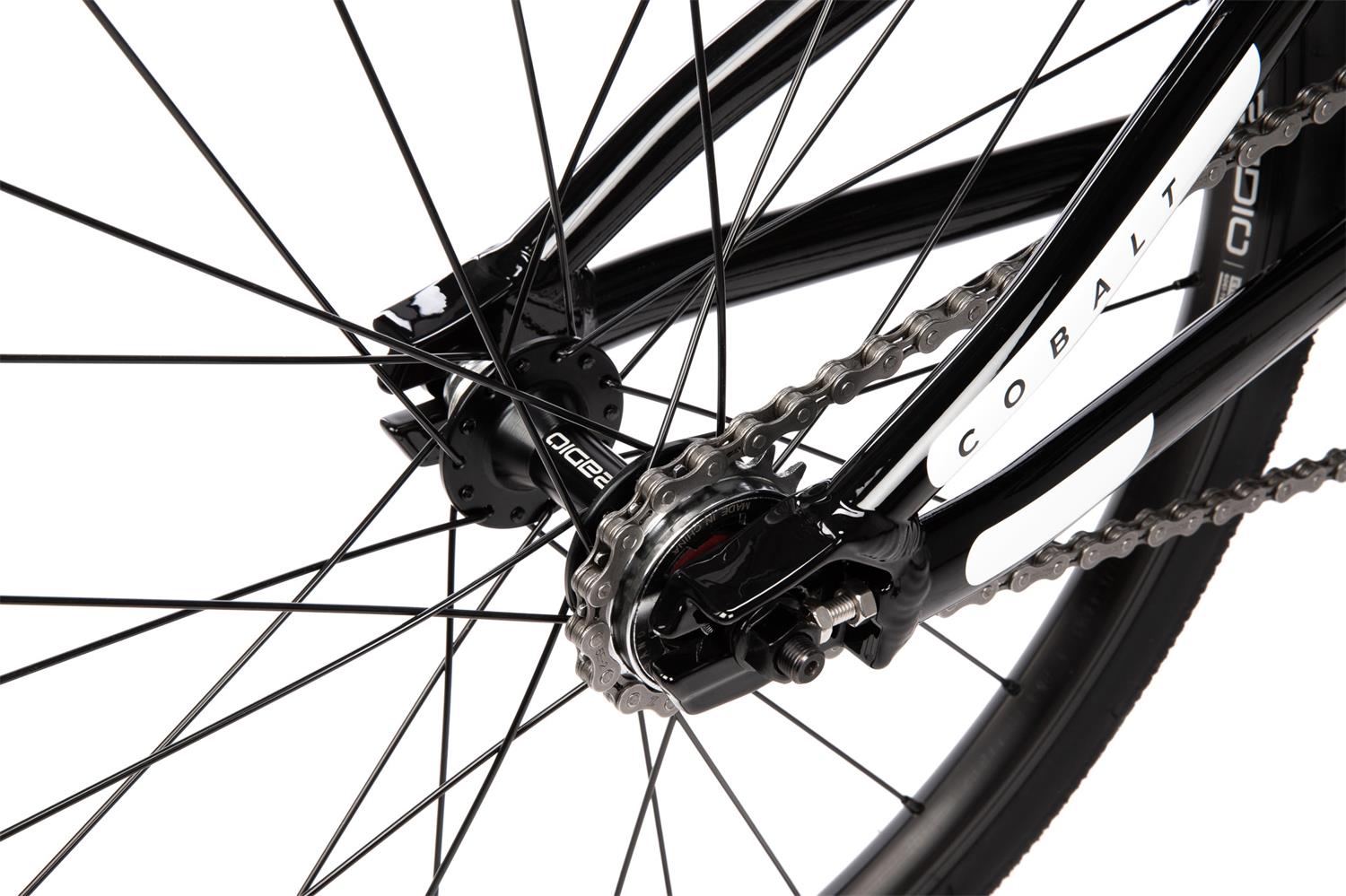

• REAR HUB: RADIO RACELINE "COBALT" front hub, alloy cnc, fully sealed, 28h, 3/8" crmo axle
• FRONT RIM: RADIO RACELINE "A-M5" rim, double wall, 28h, alloy
• REAR RIM: RADIO RACELINE "A-M5" rim, double wall, 28h, alloy

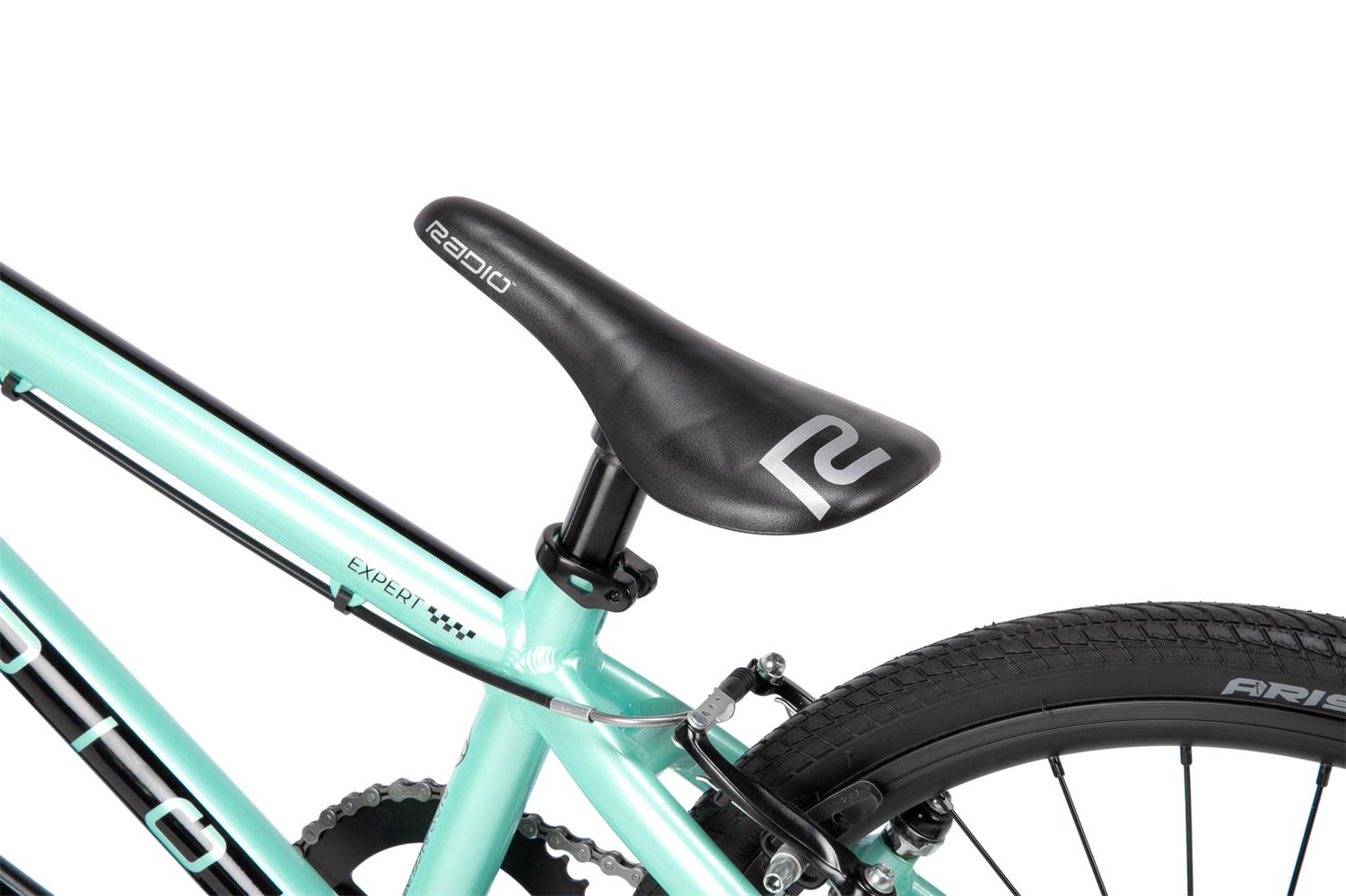

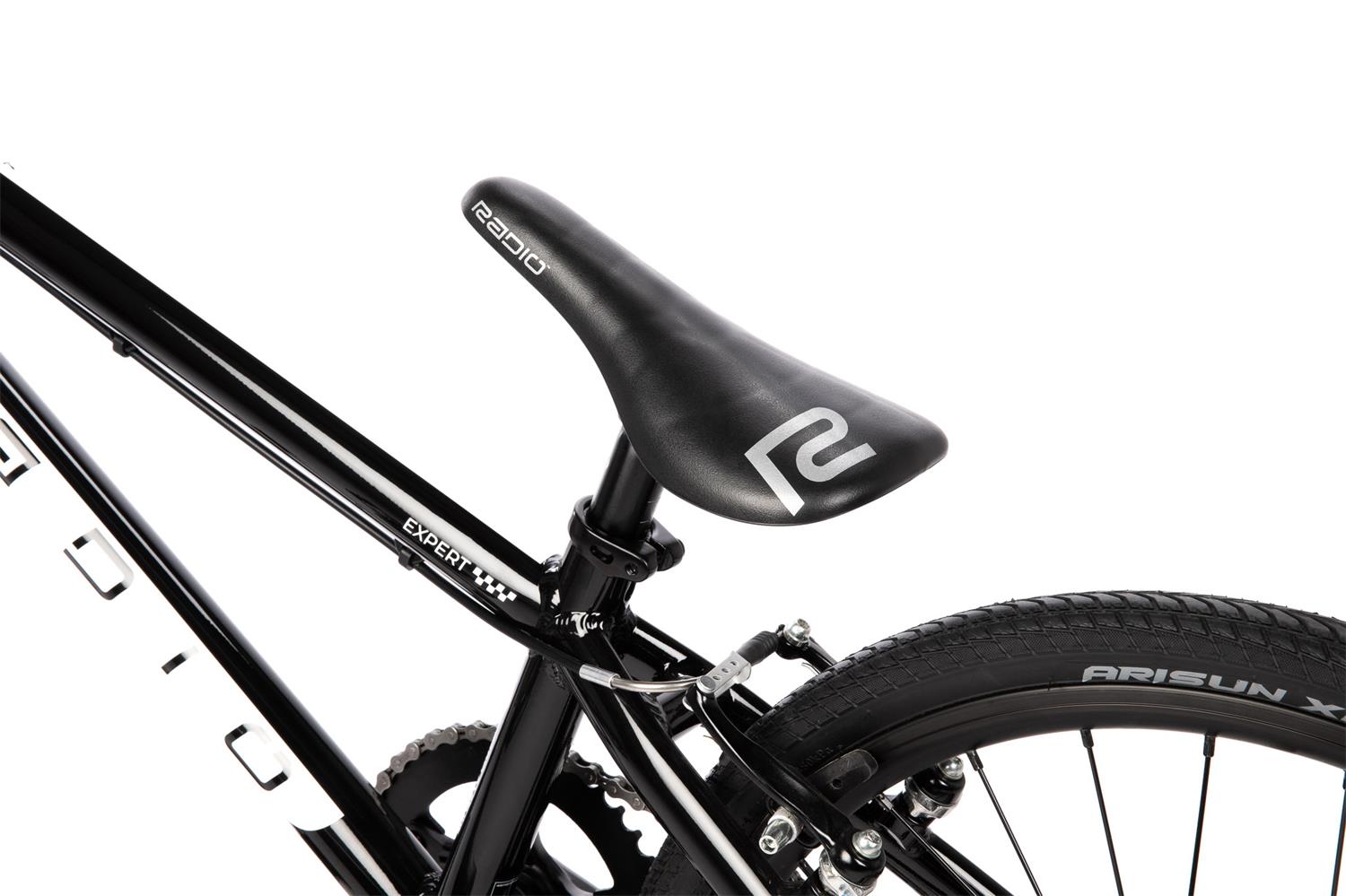

• SEAT: RADIO RACELINE Seat & Seatpost Combo
• SEAT CLAMP: RADIO RACELINE seat clamp, forged alloy

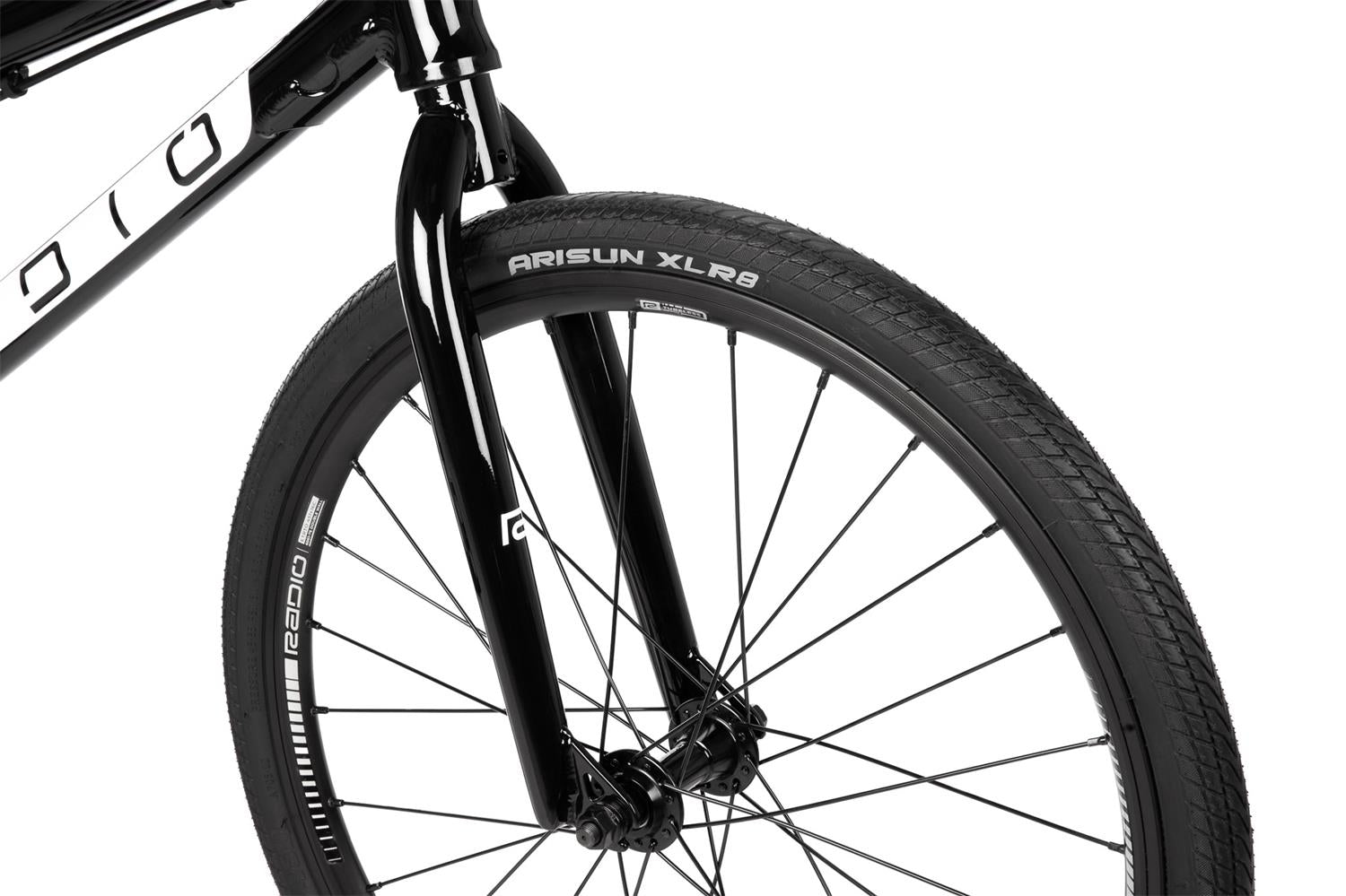

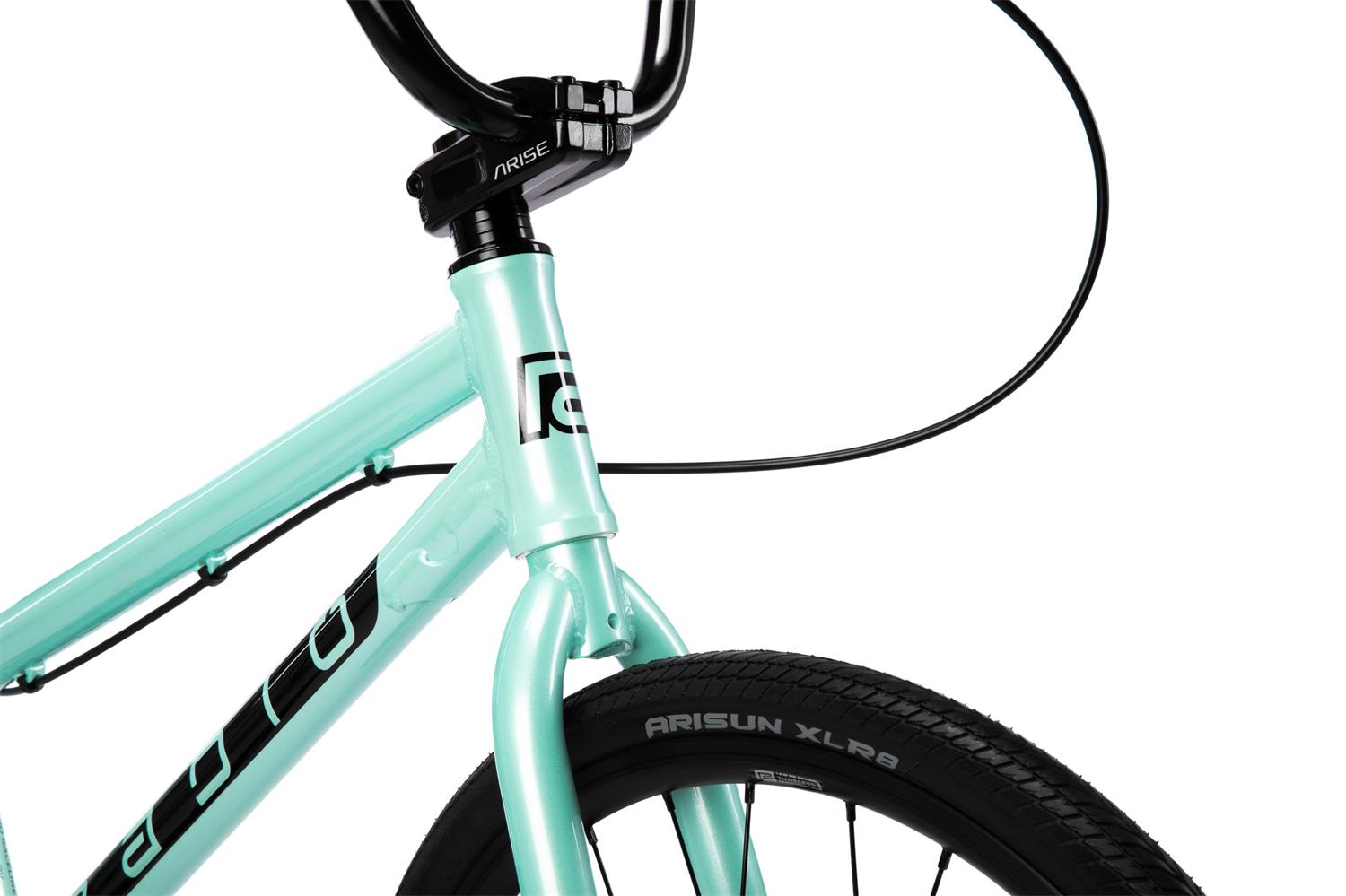

• TIRES: ARISUN "XLR8" tires, 20" x 1-3/8"

Weight: 8.95kg / 19.73lbs

Frame Geometry:

Handlebar Geometry:
