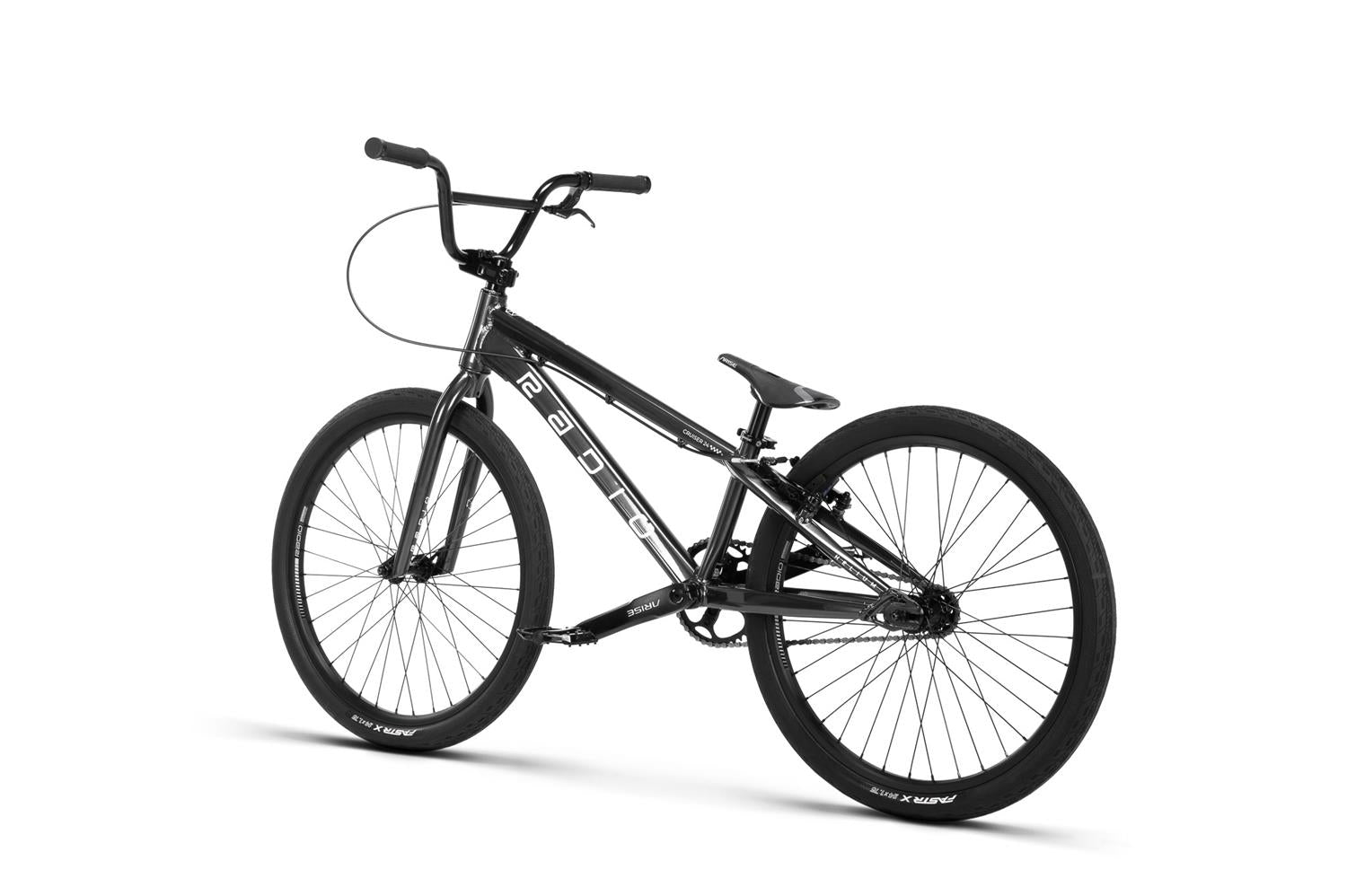

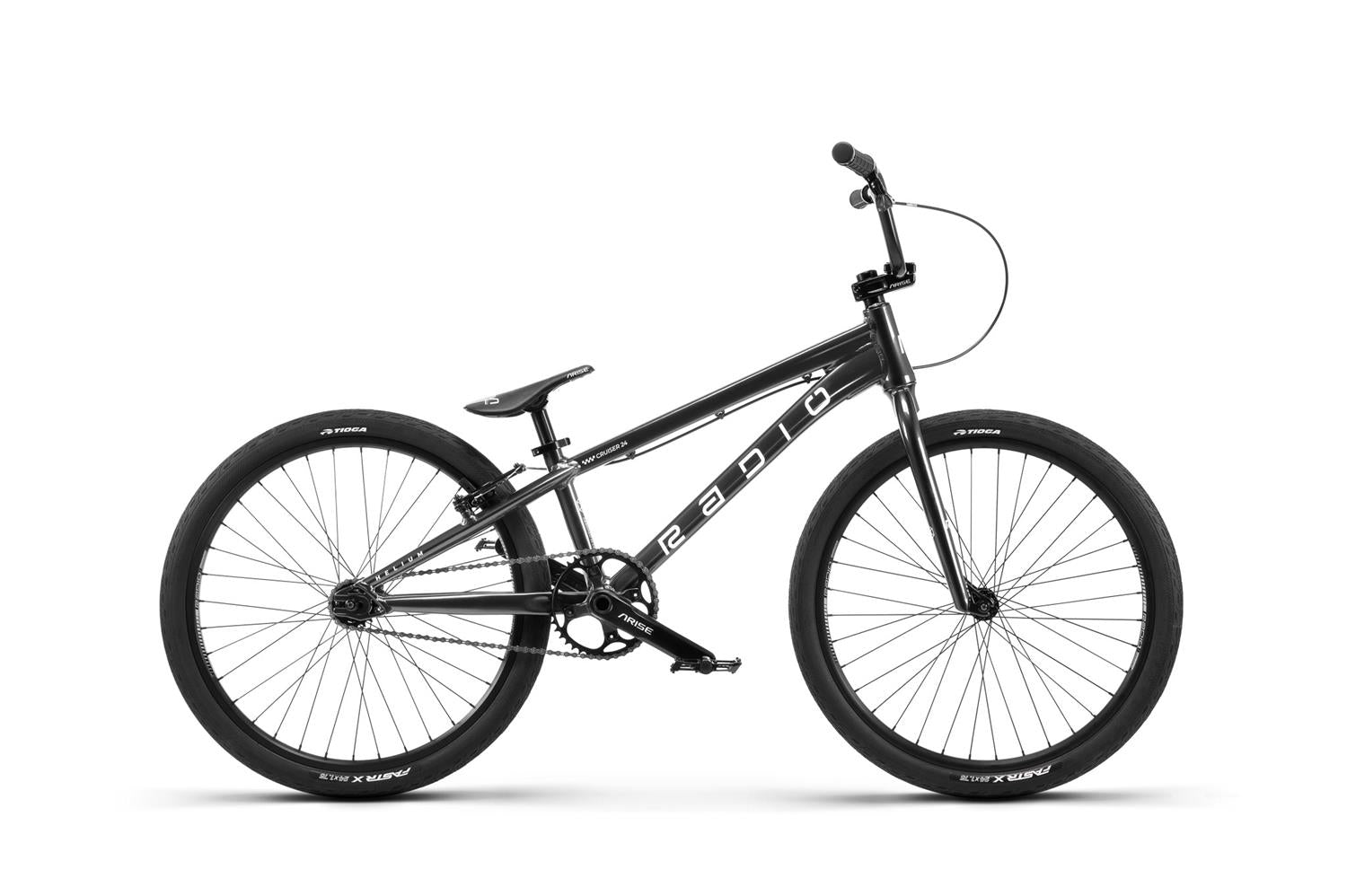

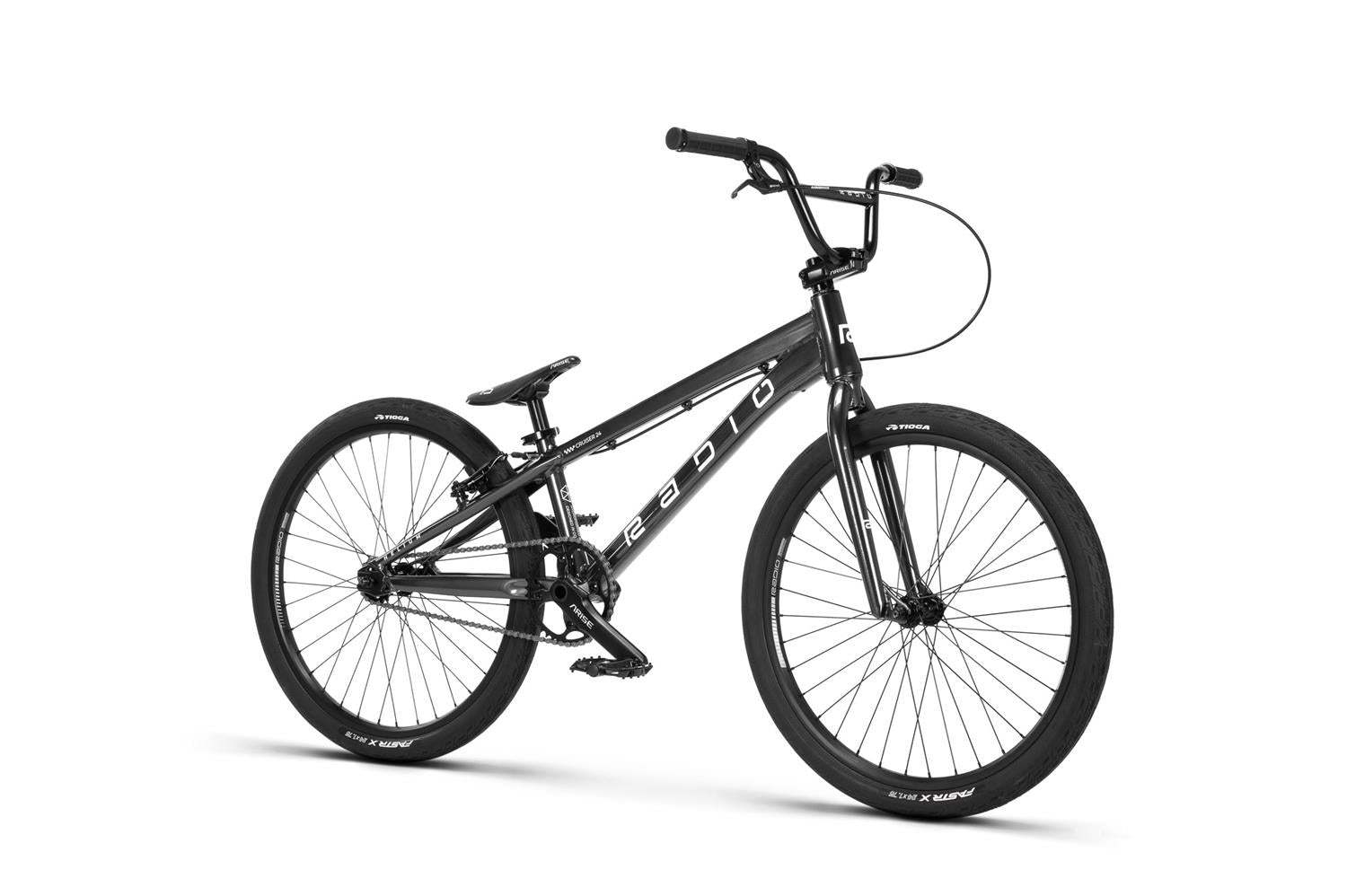

A bike that has developed quite the following, the Helium Cruiser XL is our 24” workhorse. Taking our aftermarket Helium cruiser frame and injecting it with a full pro parts package, we spared no details here.

From forged dropouts to our very own aftermarket Argon PRO Rims to parts from Promax and Tioga, this 24″ machine is a bike with no limits.

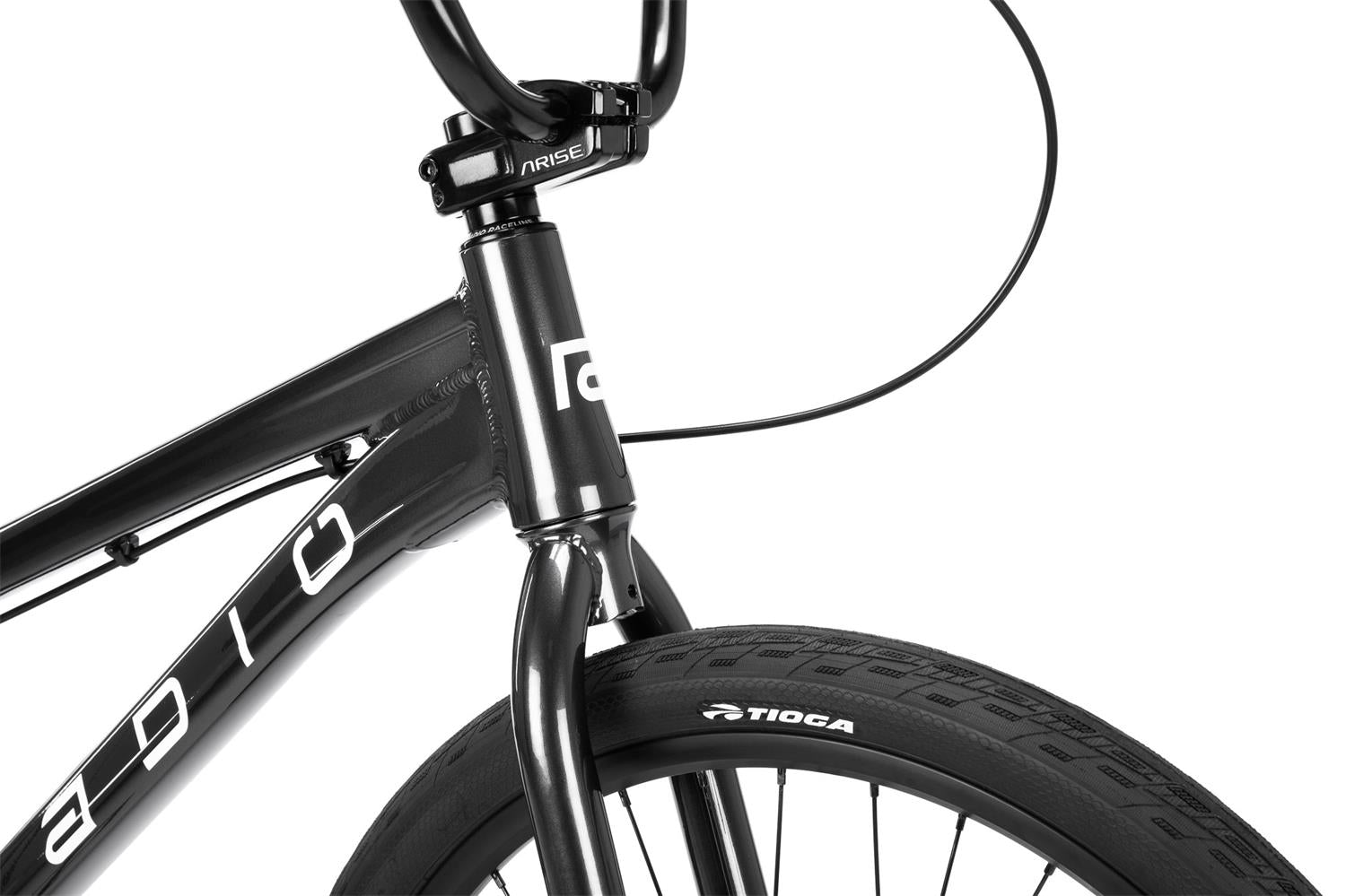

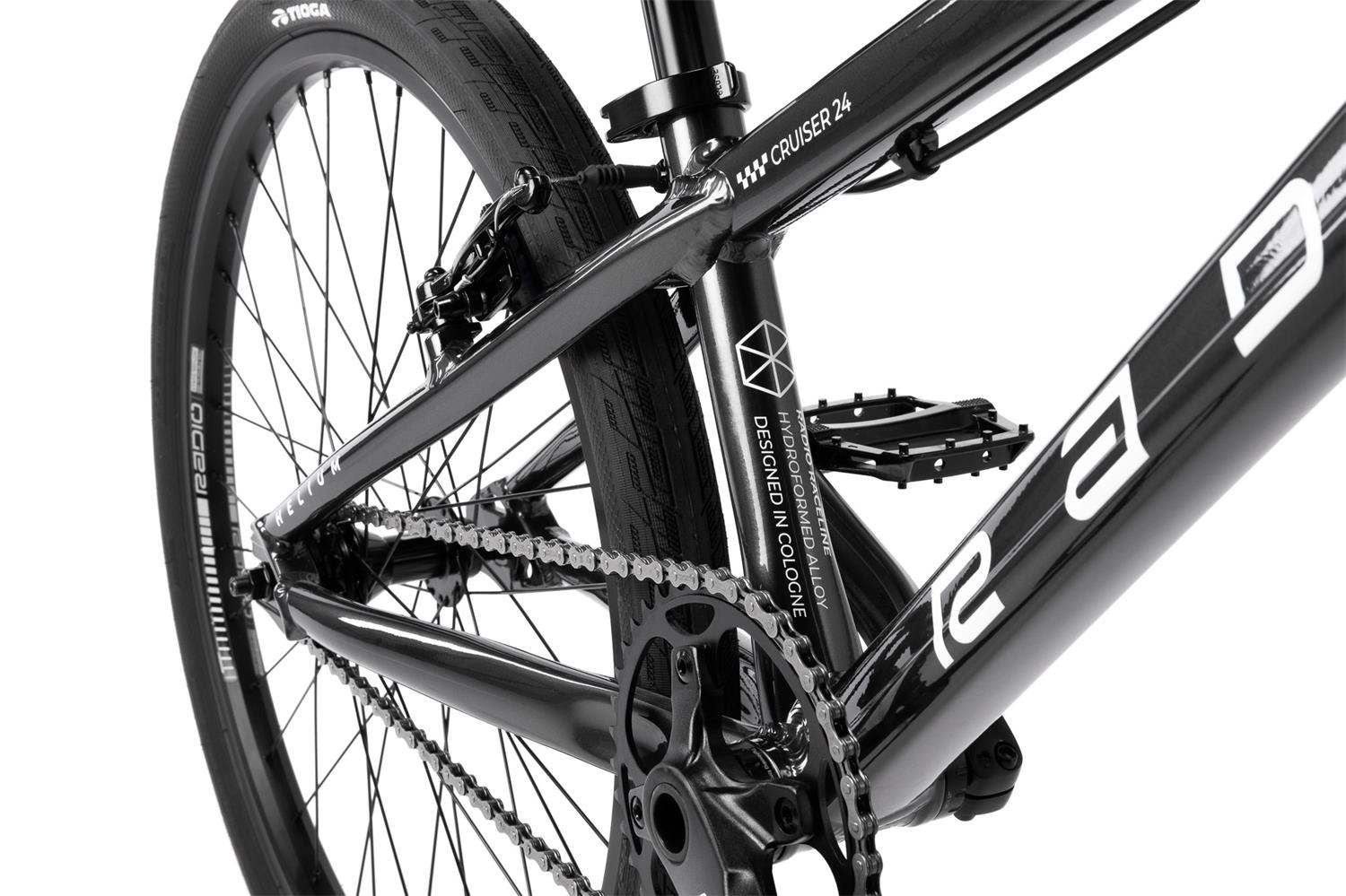

• FRAME: hydroformed 6061-T6 alloy frame, tapered headtube, forged dropouts, with int. chaintensioners

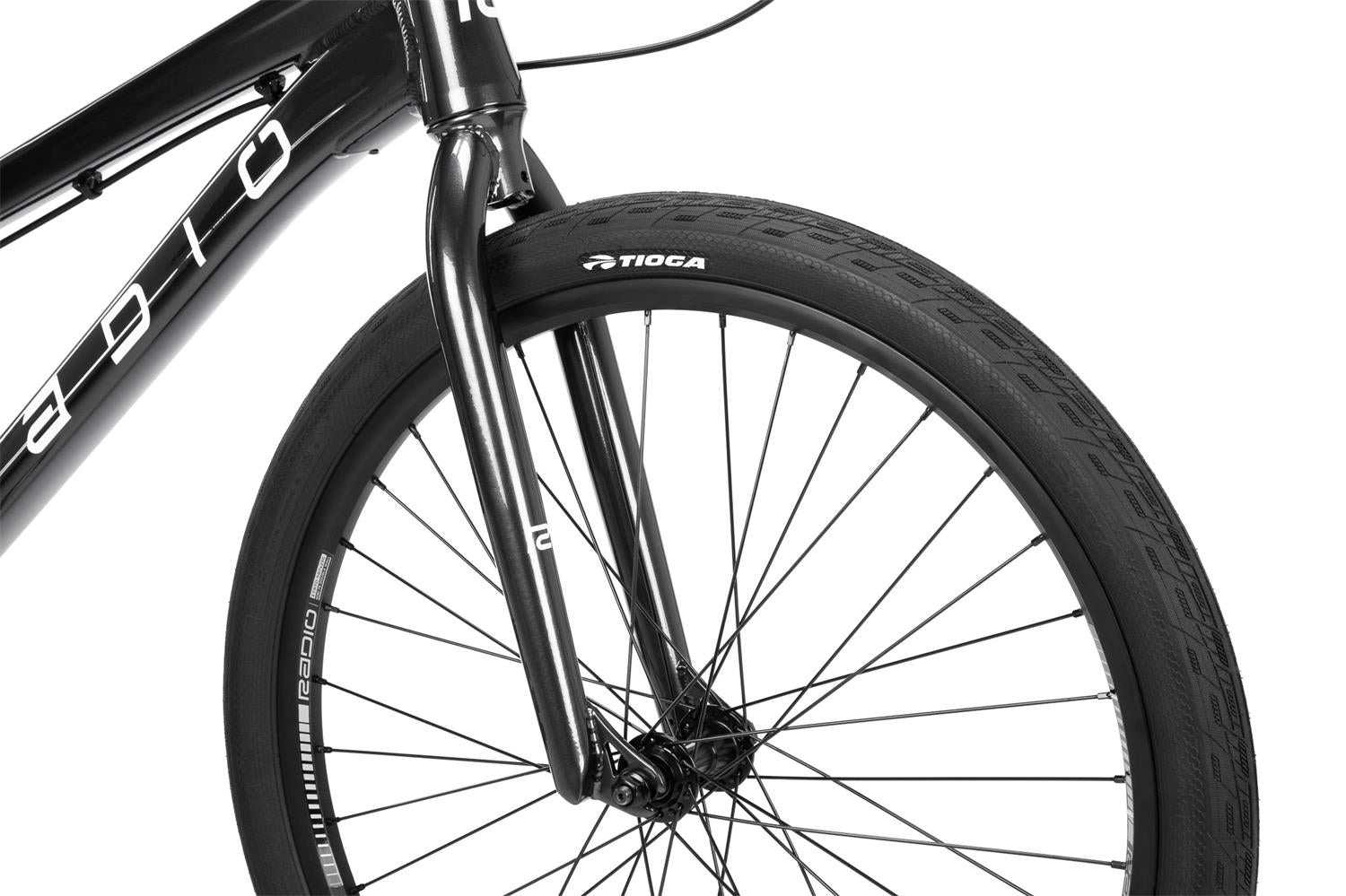

• FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 30mm offset

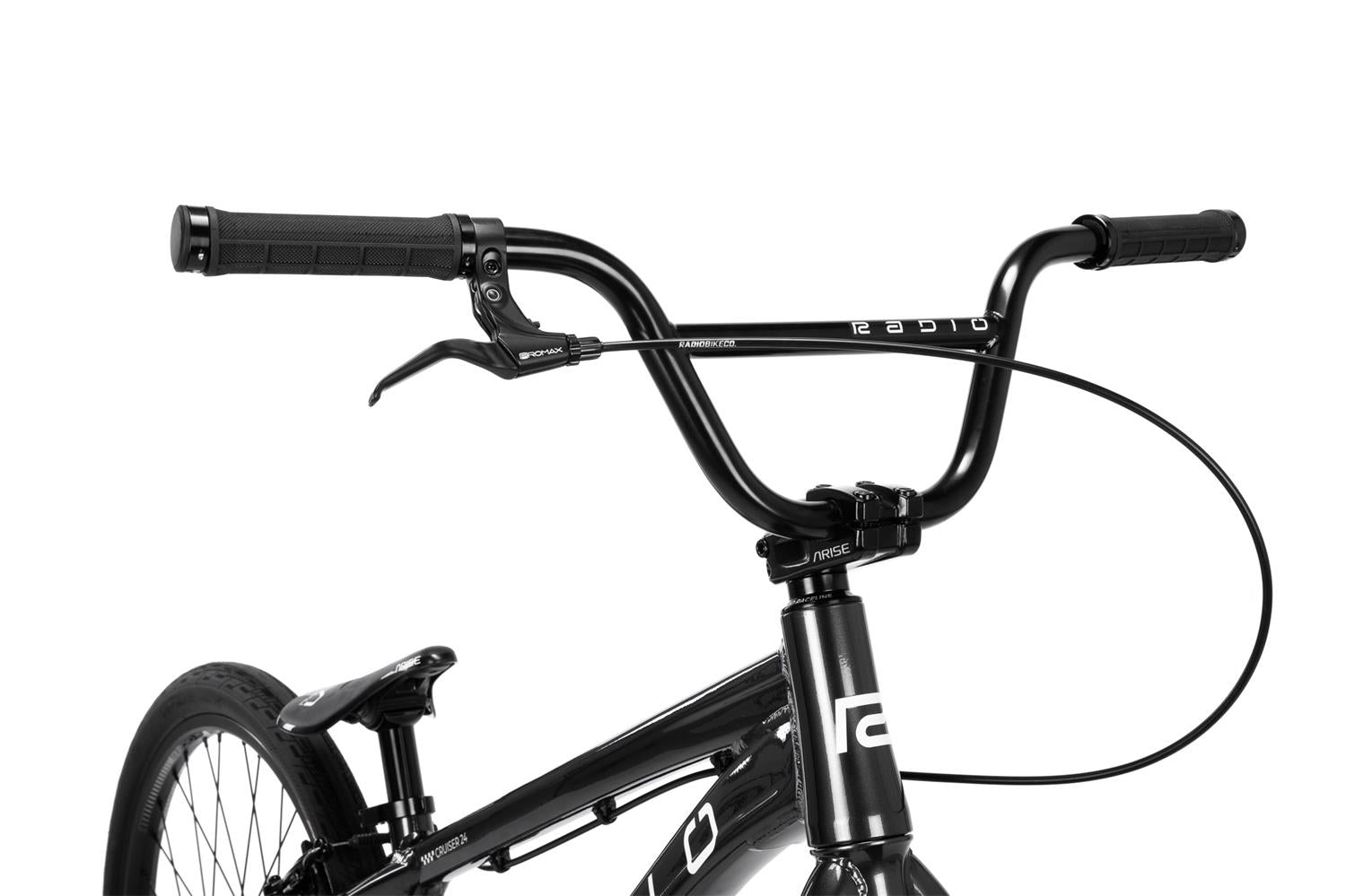

• HANDLEBAR: 4130 crmo bar, seamless
• GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length

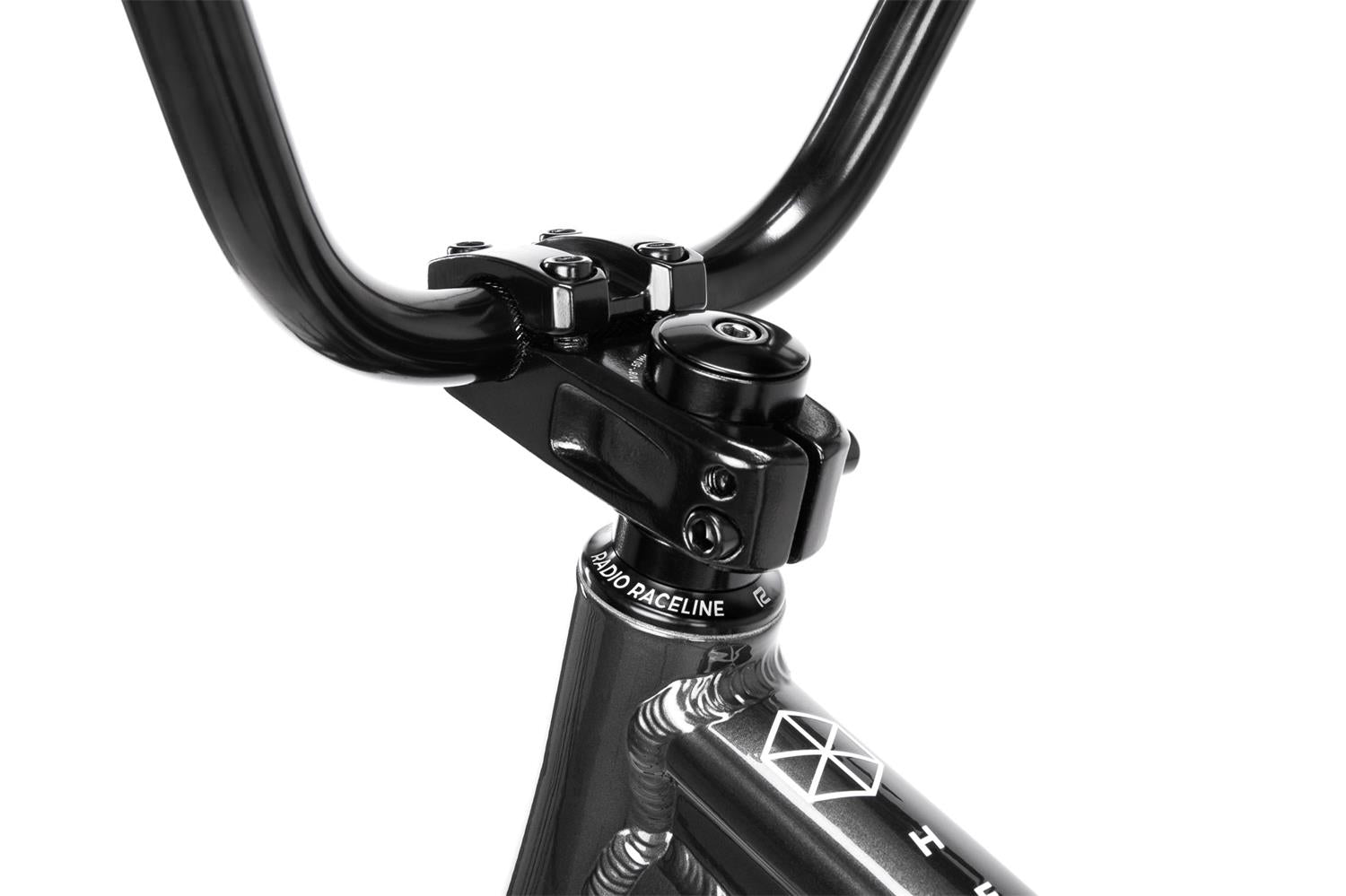

• STEM: ARISE "XENON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy
• HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5",  including fork crown race 1.5"-1 1/8" converter

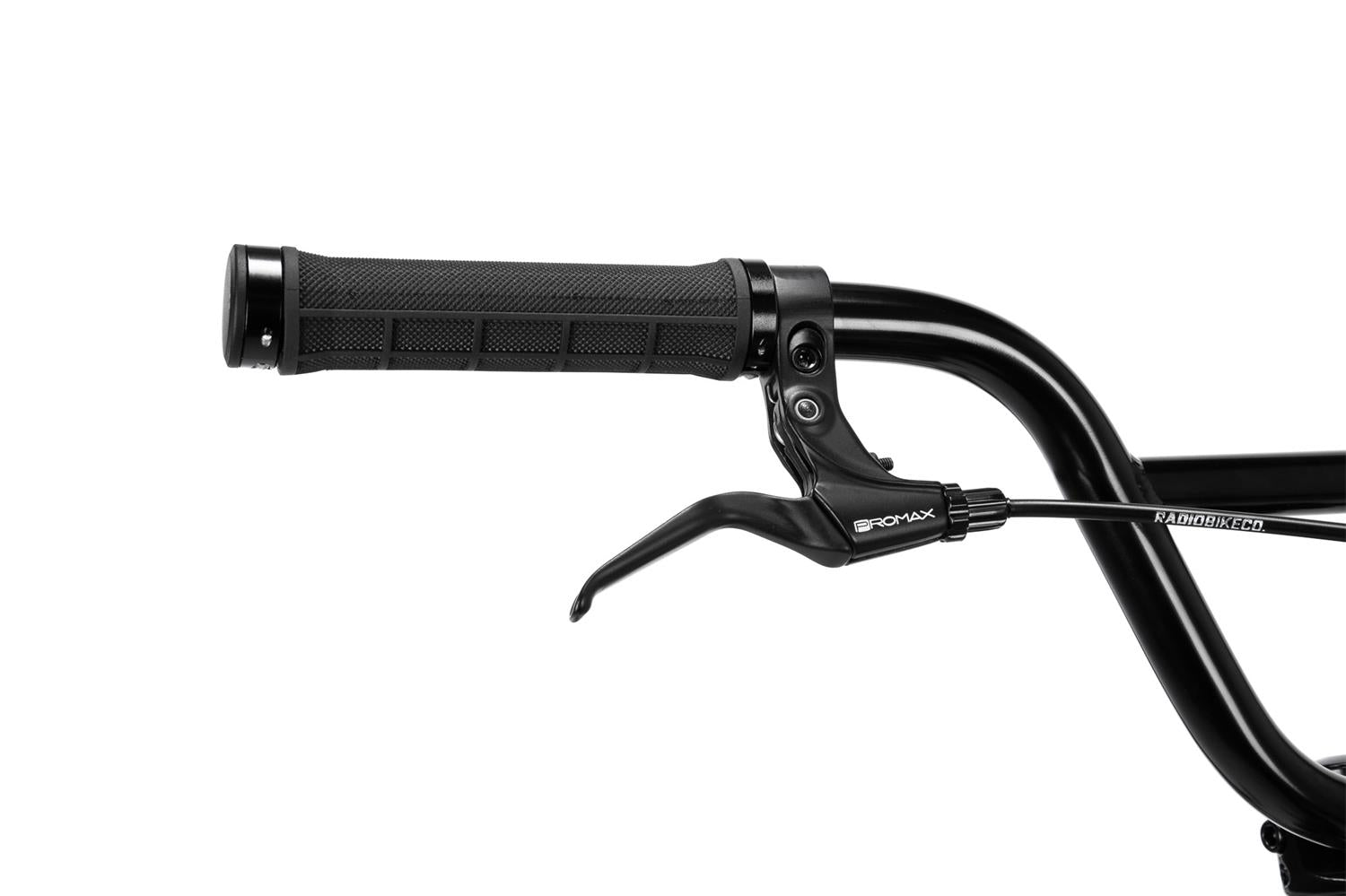

• BRAKE LEVER: PROMAX "XL-373" brake lever, rear
• BRAKE: PROMAX "TX-131" brake, rear

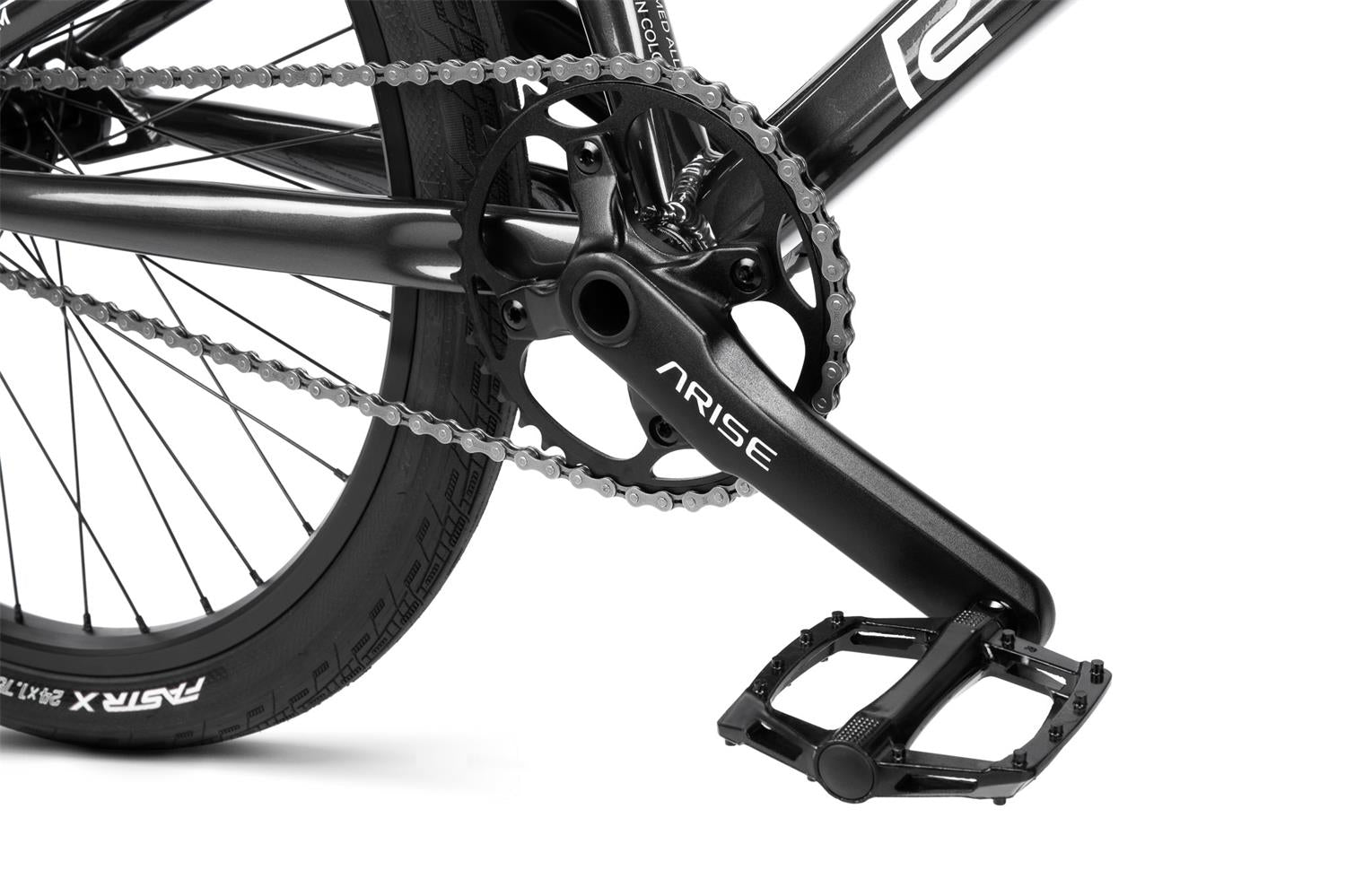

• CRANK: RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 180mm length, 24mm spindle
• BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
• PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
• CHAIN: KMC "Z6" chain, 1/2" x 3/32"
• SPROCKET: RADIO RACELINE "XENON PRO" sprocket, 41T, alloy
• DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

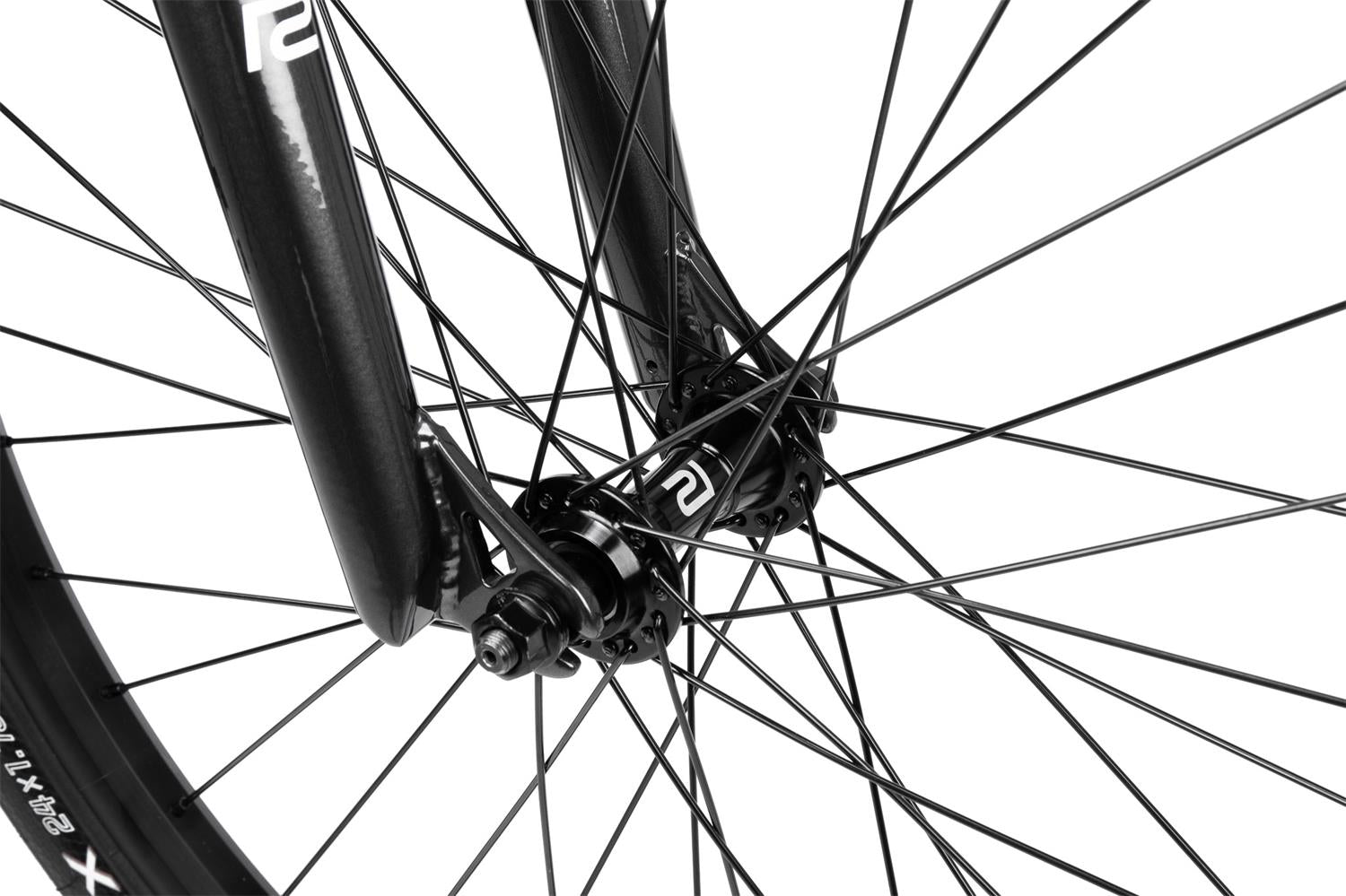

• FRONT HUB: RADIO RACELINE "XENON" front hub, alloy cnc, fully sealed, 36h, 3/8" crmo axle

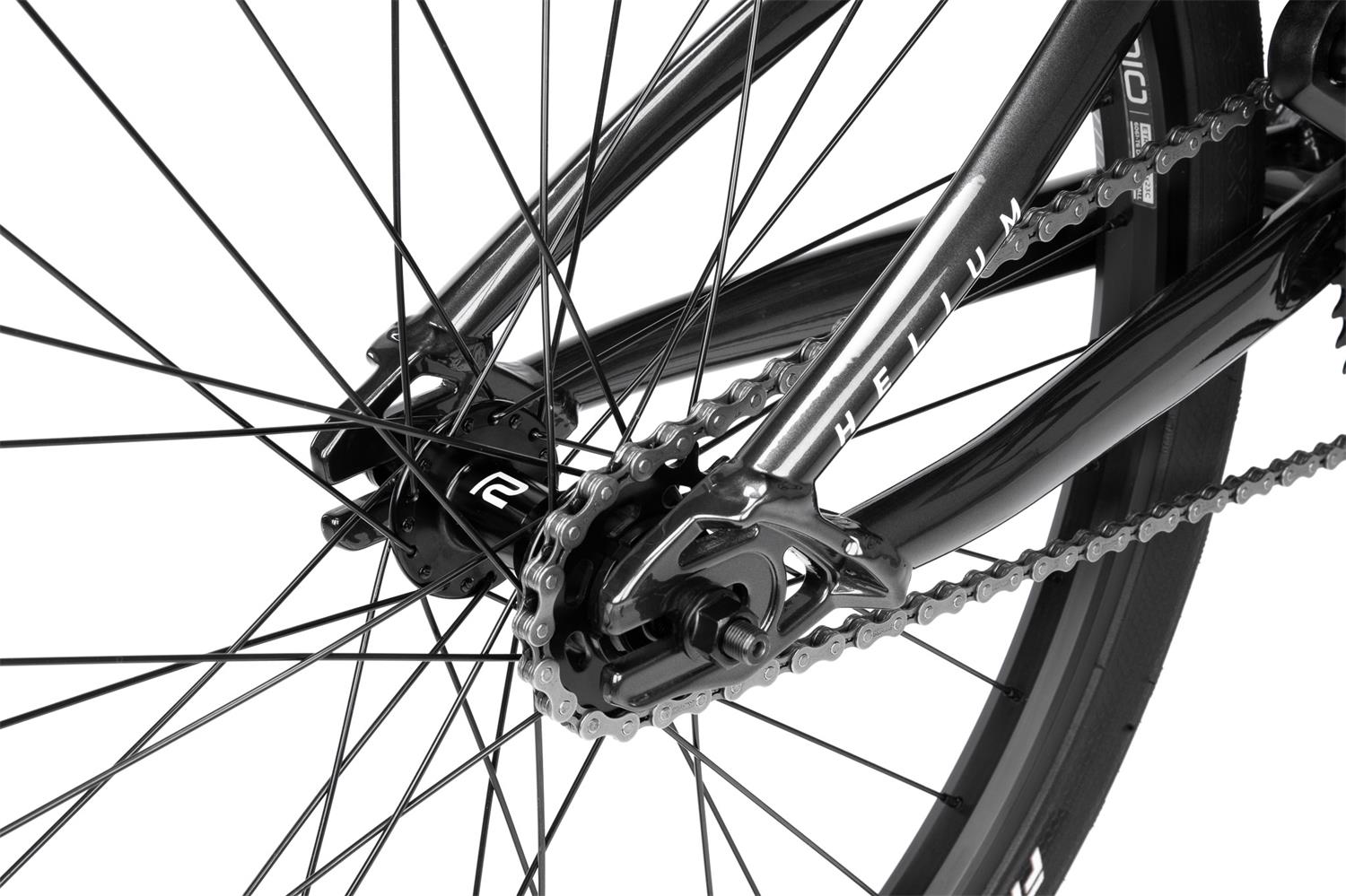

• REAR HUB: RADIO RACELINE "XENON" rear hub, alloy cnc, fully sealed, 36h, disc brake cassette, 3/8" crmo axle
• FRONT RIM: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36h, alloy
• REAR RIM: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36h, alloy

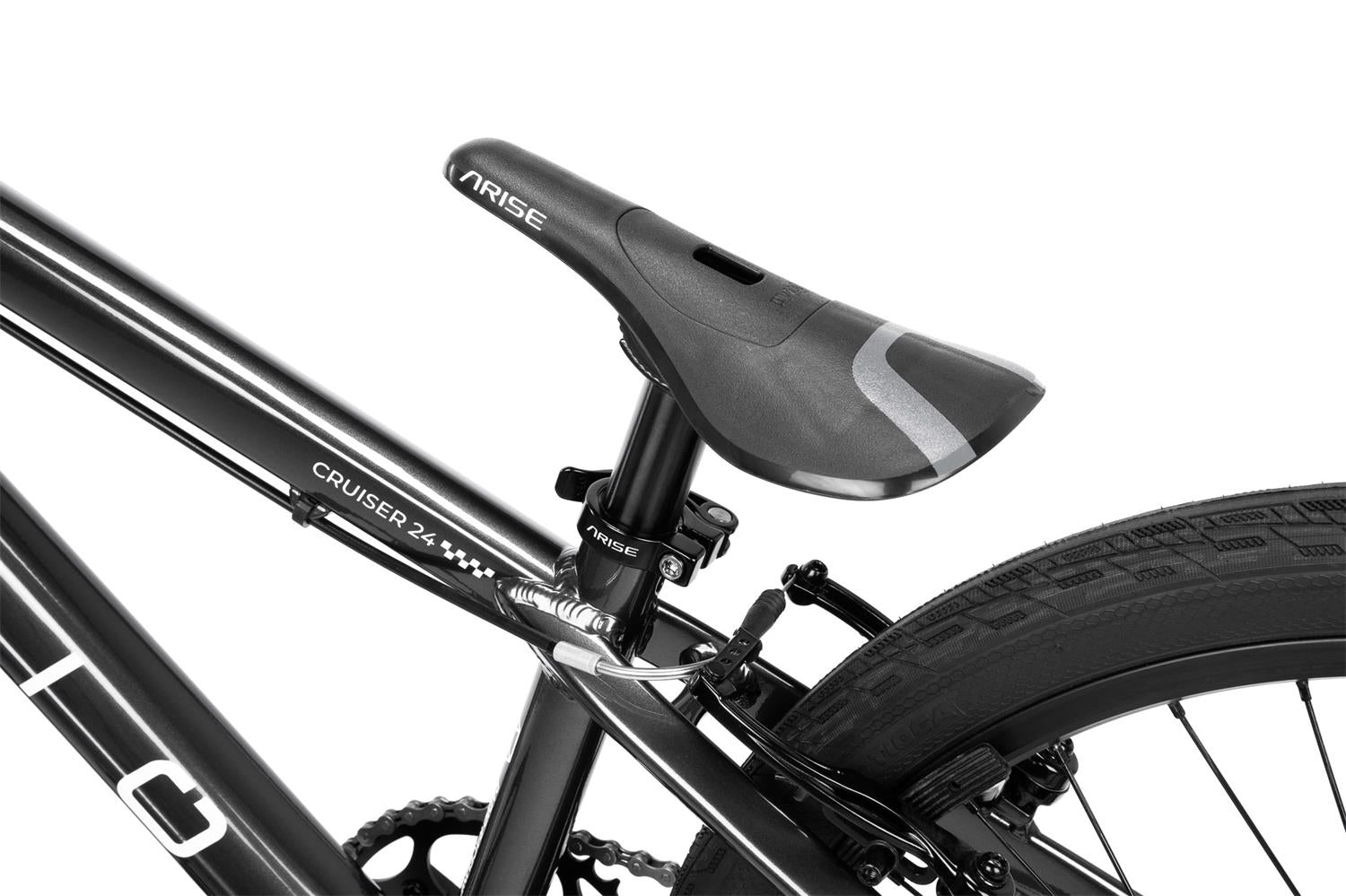

• SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
• SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
• SEAT CLAMP: ARISE "XENON" seat post, quick-release, alloy
• TIRES: TIOFA FASTR tires, front: 24" x 1.75" and rear: 24" x 1.6"

Weight: 10.24kg / 22.79lbs

Frame Geometry:

Handlebar Geometry:
