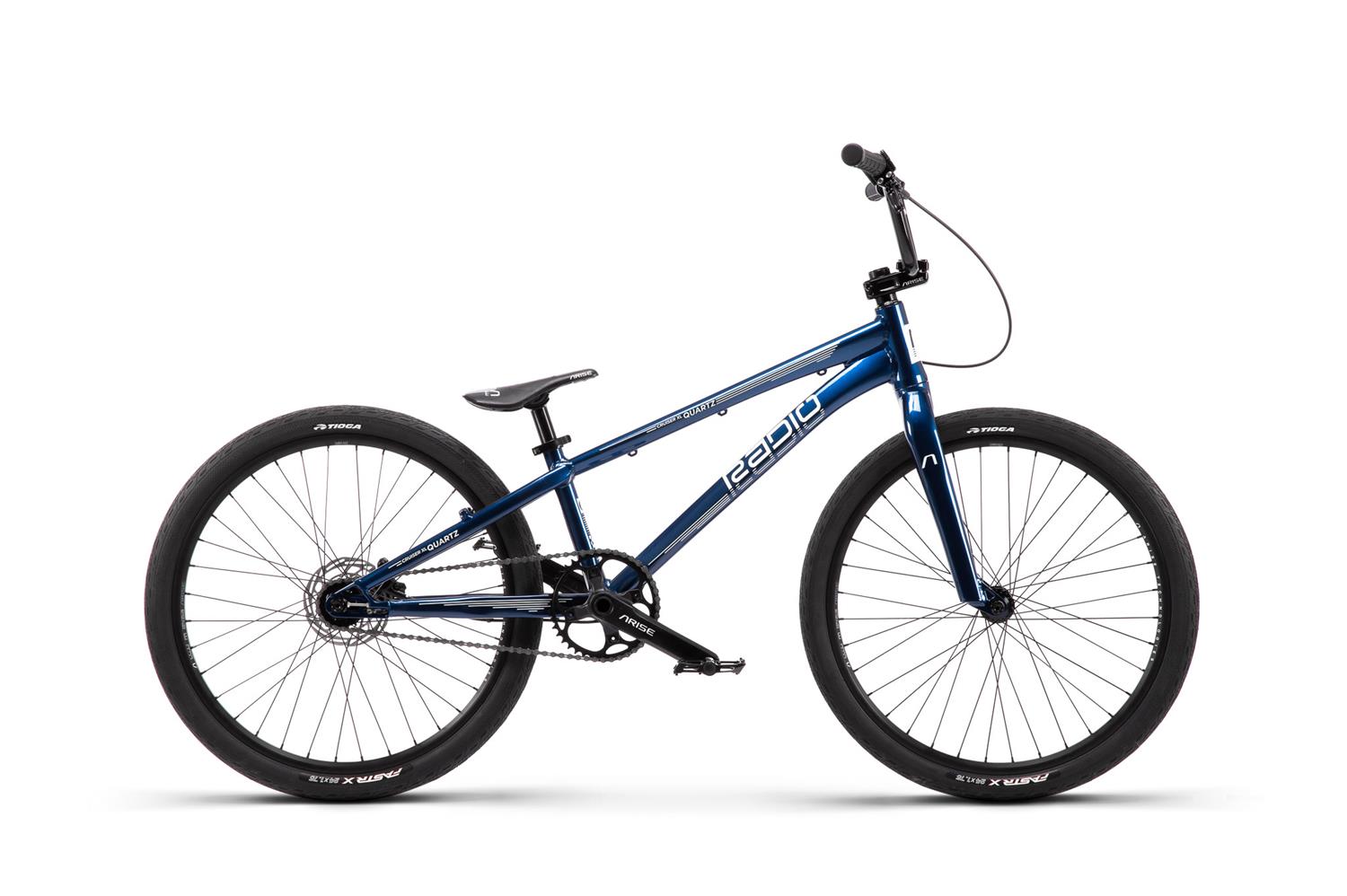

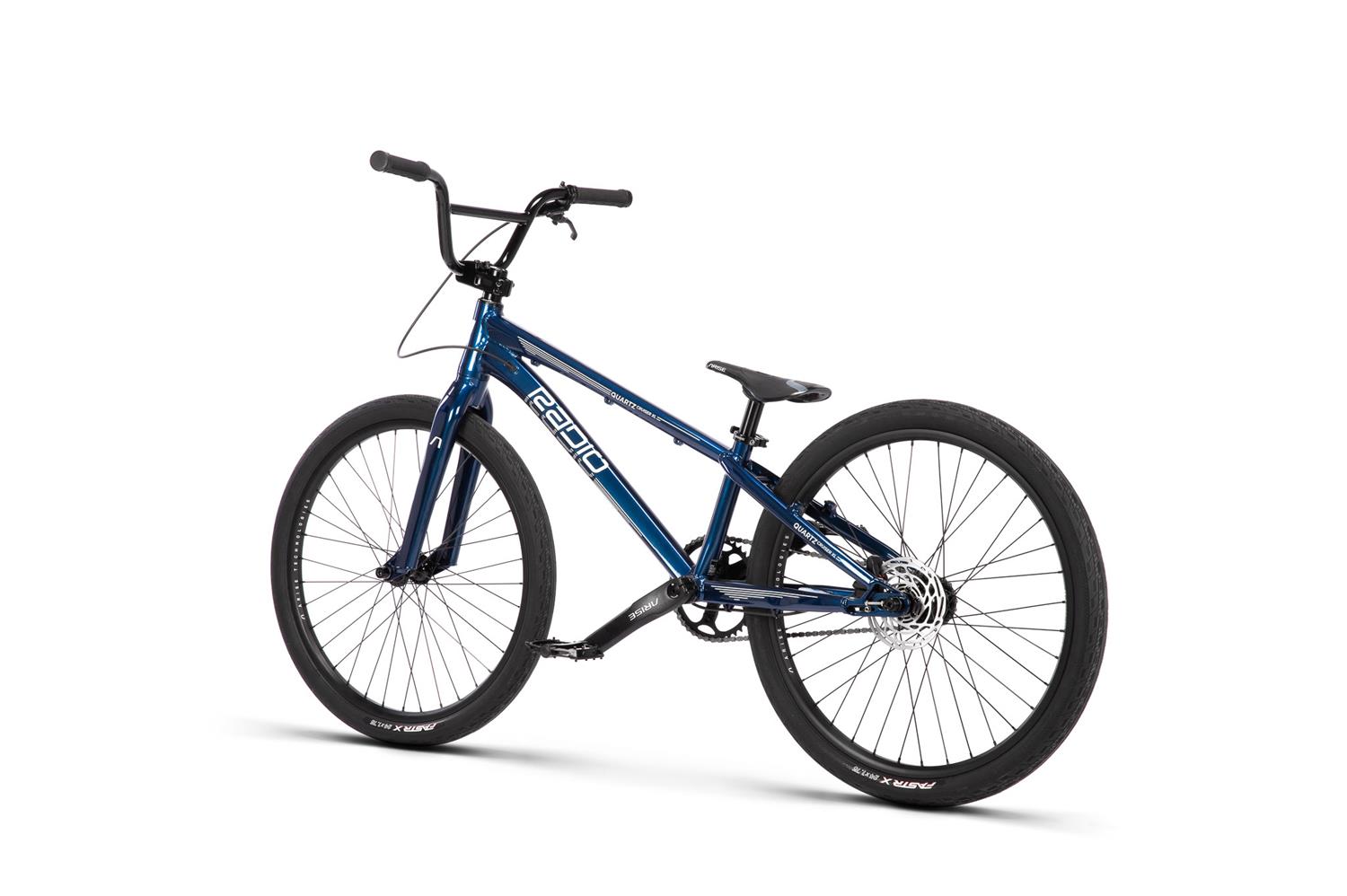

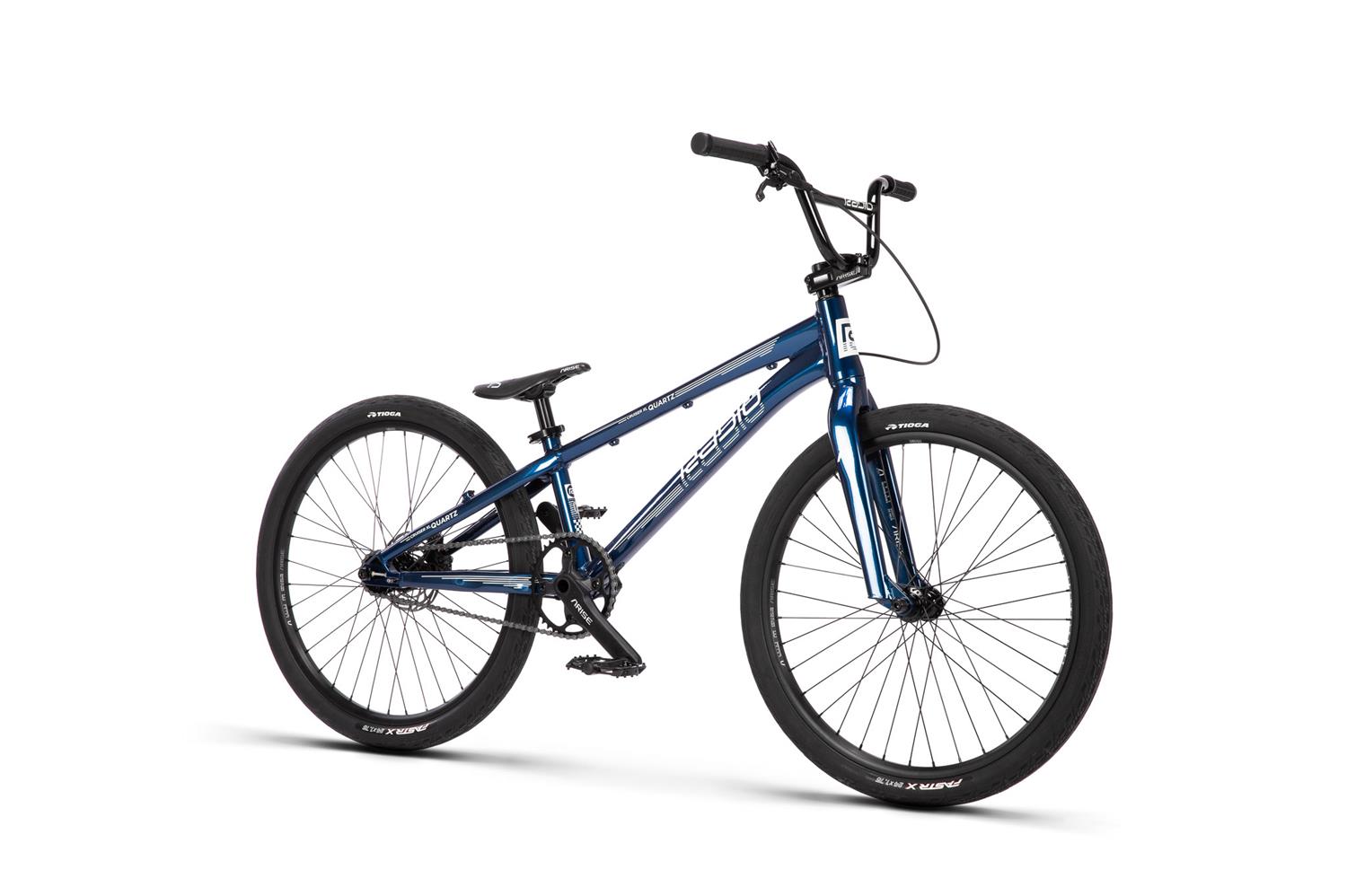

A bike that has developed quite the following, the Quartz Cruiser XL is our 24” workhorse. Taking our aftermarket Quartz cruiser frame and injecting it with a full pro parts package, we spared no details here. From sliding dropouts (SDDS System) to our very own aftermarket Argon PRO Rims to parts from Tioga, this 24″ machine is a bike with no limits.

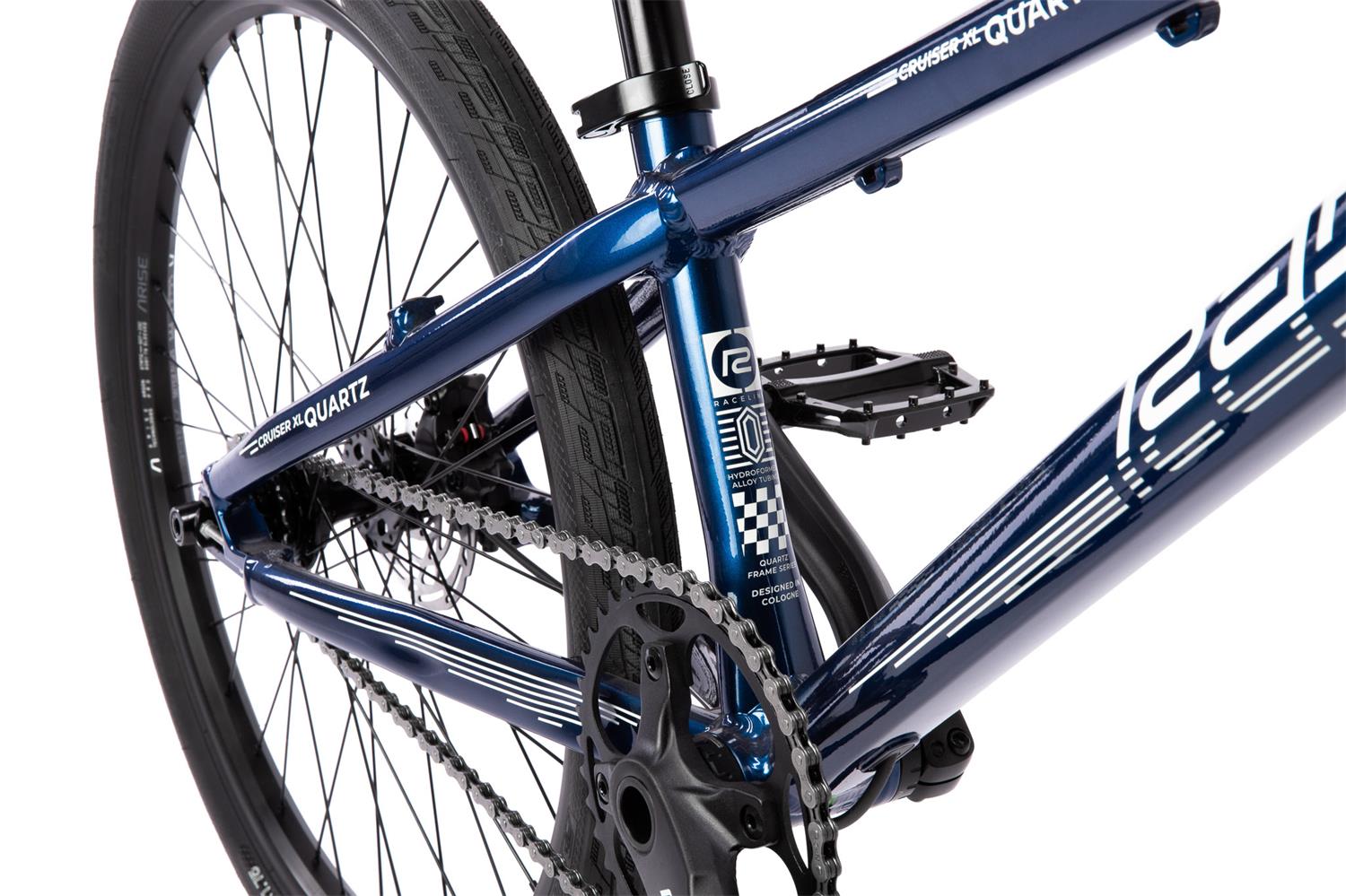

• FRAME: RADIO RACELINE "QUARTZ DISC" frame, lightweight hydroformed 6061-T6 alloy, tapered headtube, sliding forged dropouts, with int. chaintensioners, flatmount disc brake

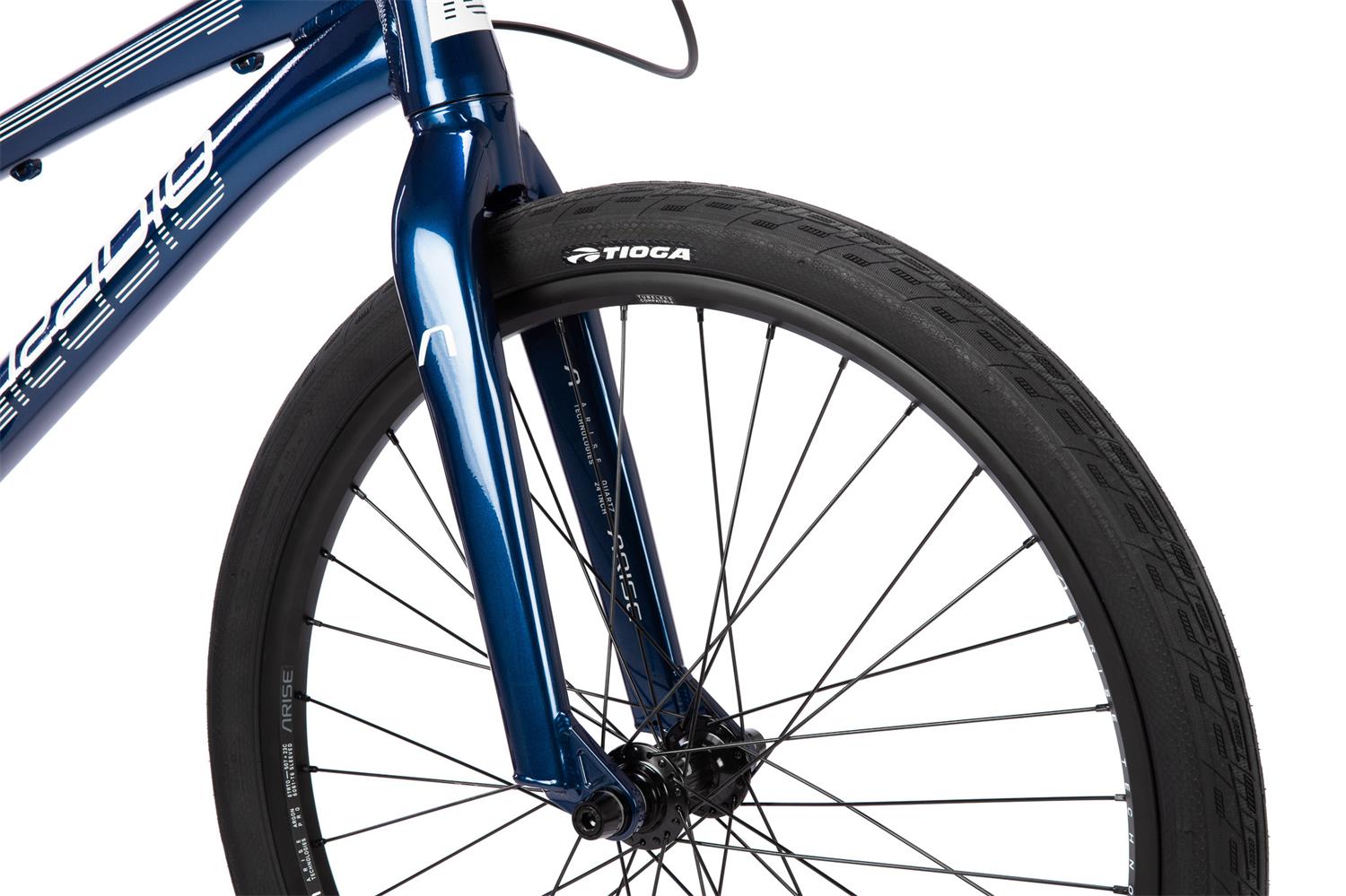

• FORK: ARISE QUARTZ PRO fork, aluminium, 31mm offset

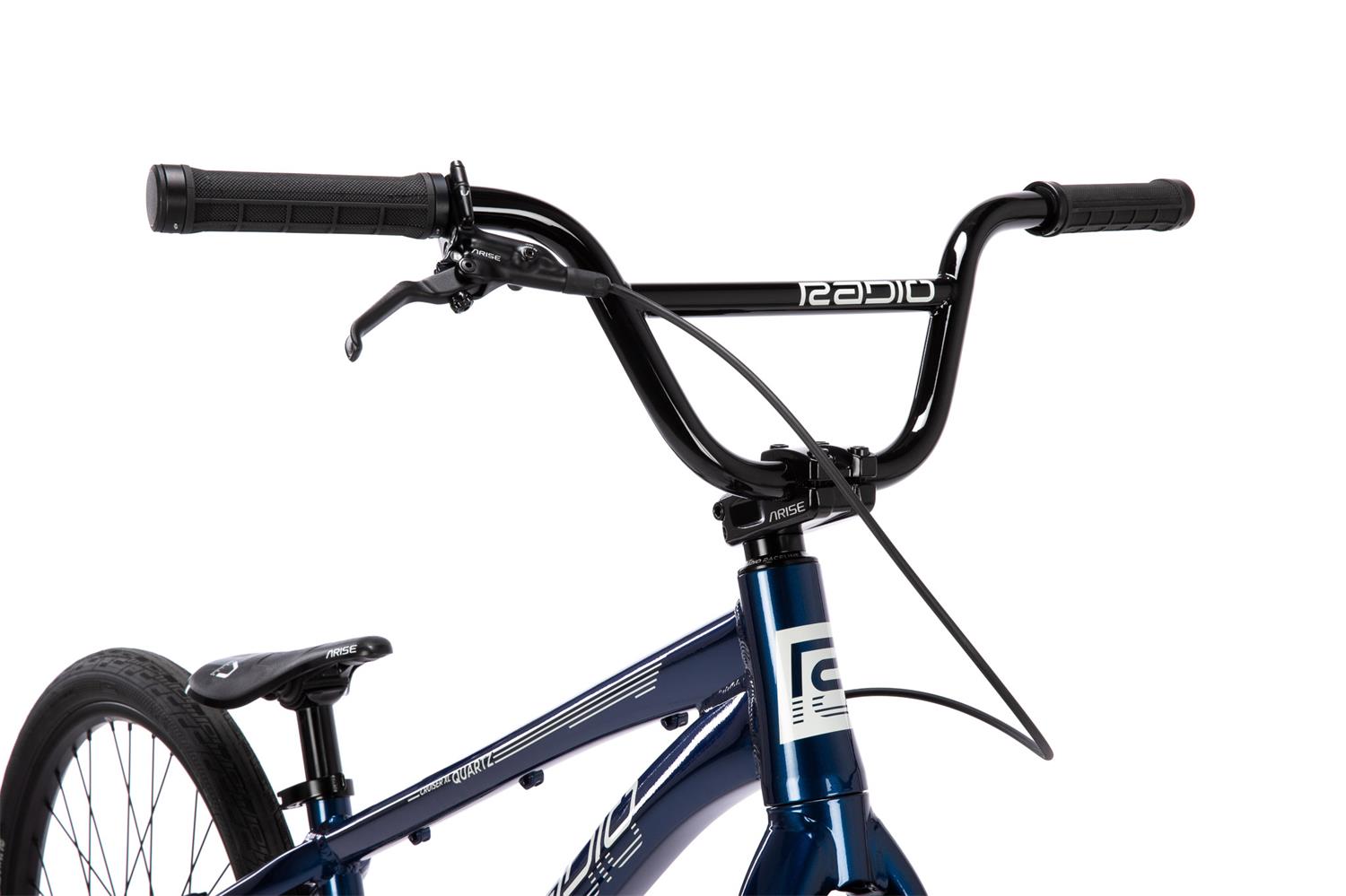

• HANDLEBAR: 6" 4130 crmo bar, seamless
• GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length

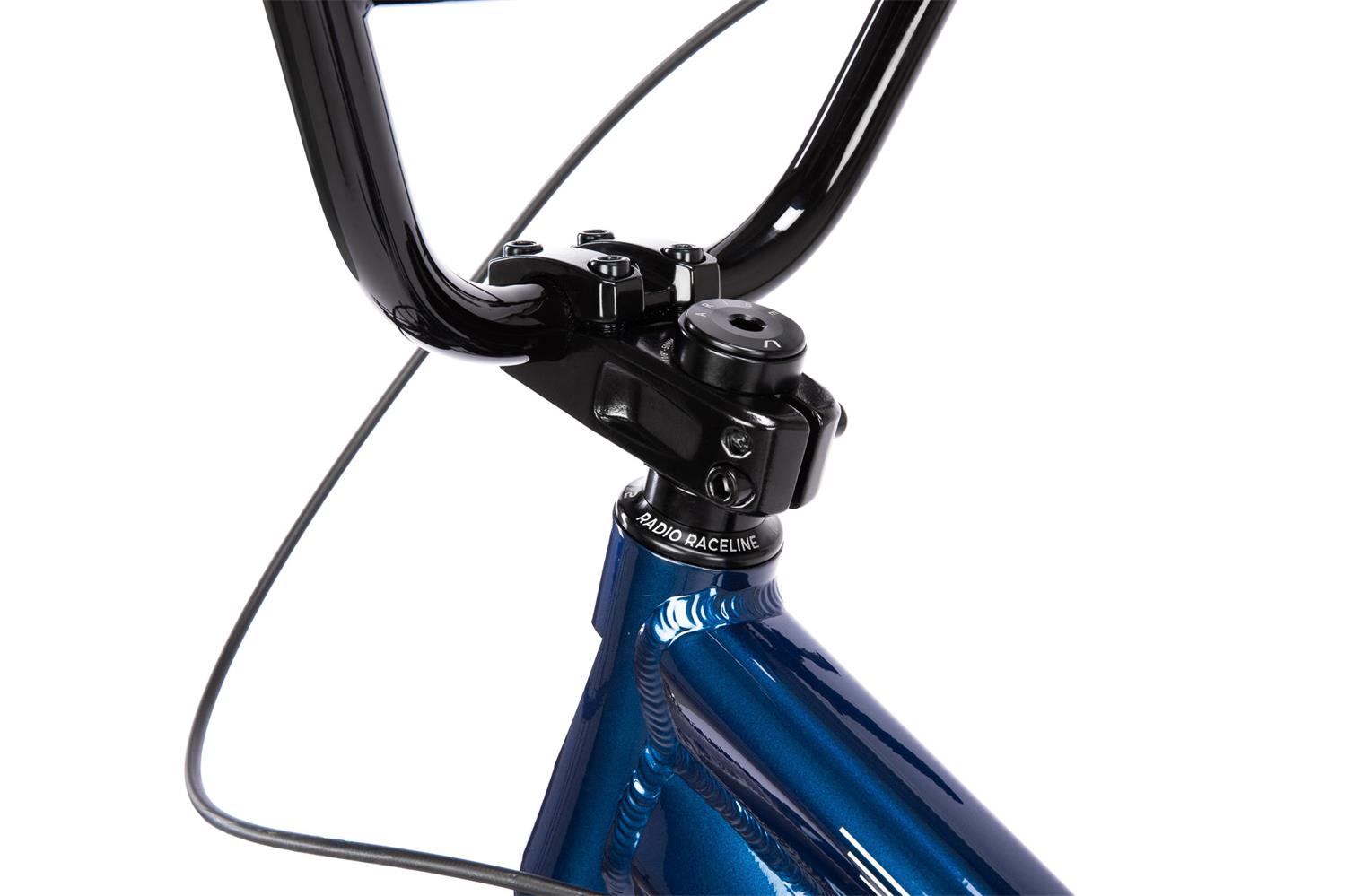

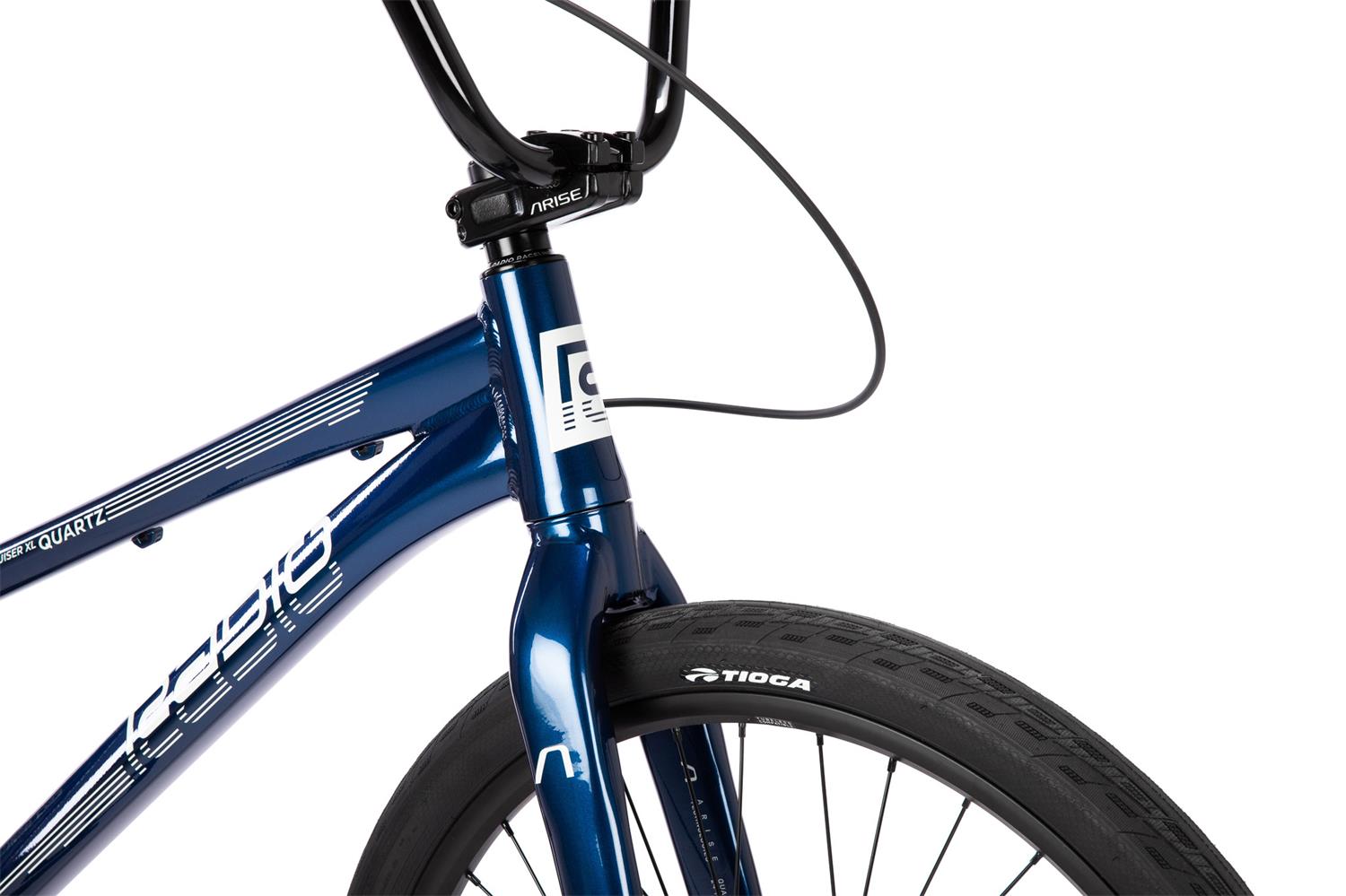

• STEM: ARISE "NEON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy
• HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5"

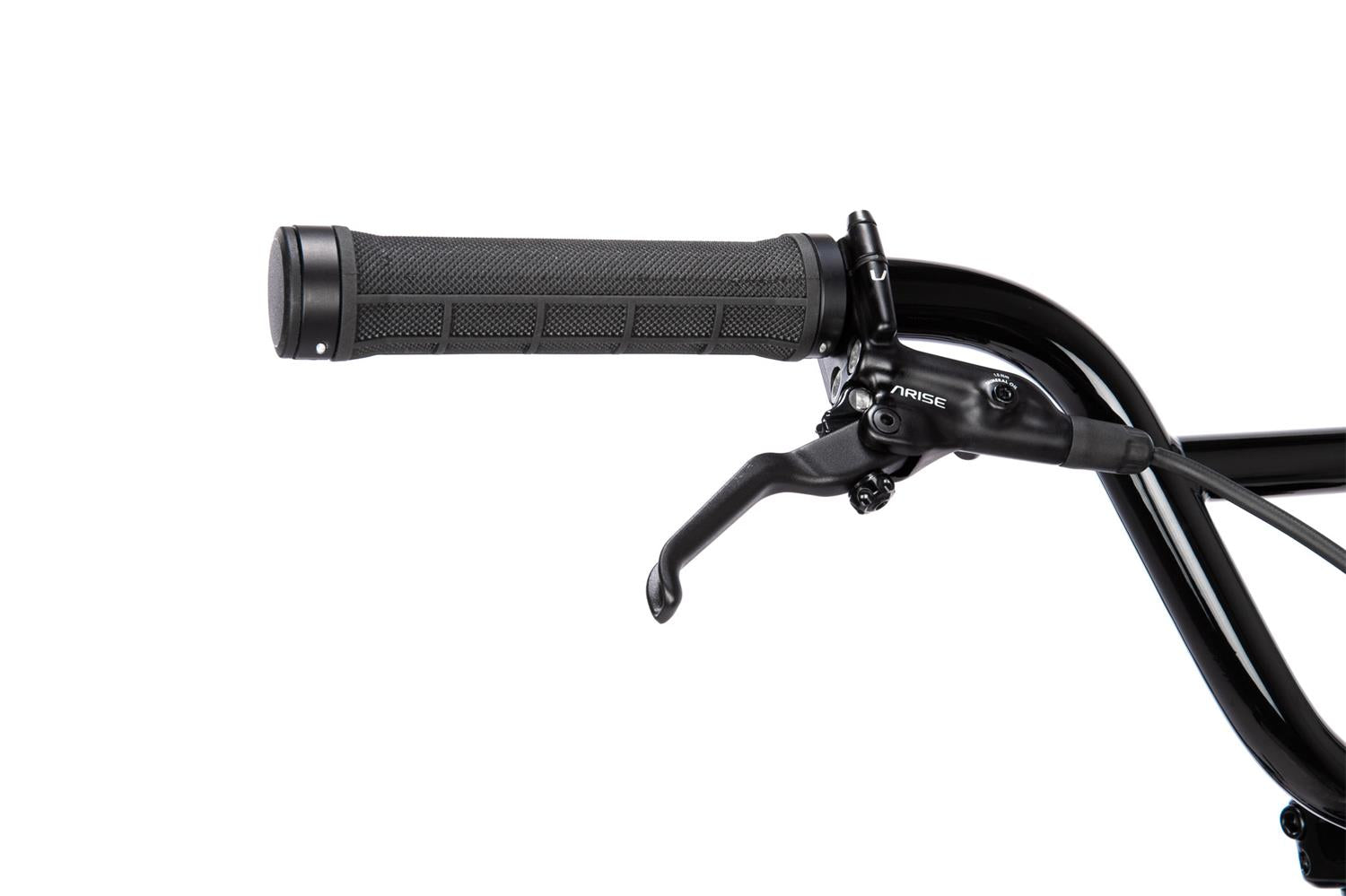

• BRAKE LEVER: ARISE XENON Disc Brake Lever
• BRAKE: ARISE XENON Disc Brake Rear

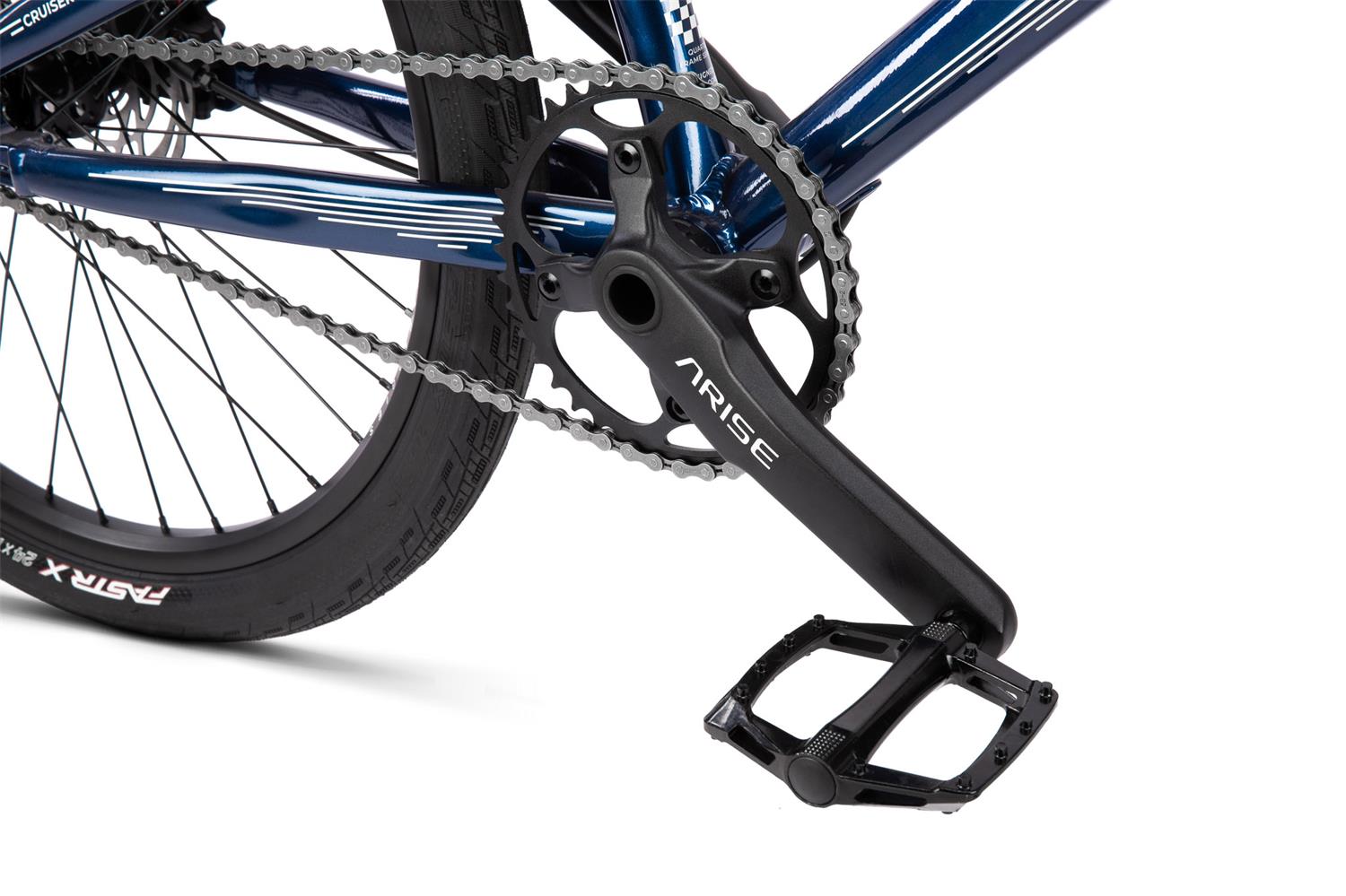

• CRANK: RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 175mm / 180mm length, 24mm spindle
• BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
• PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
• CHAIN: KMC "Z1eHX" chain, 1/2" x 3/32"
• SPROCKET: ARISE "XENON PRO" sprocket, 43T / 44T, alloy
• DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

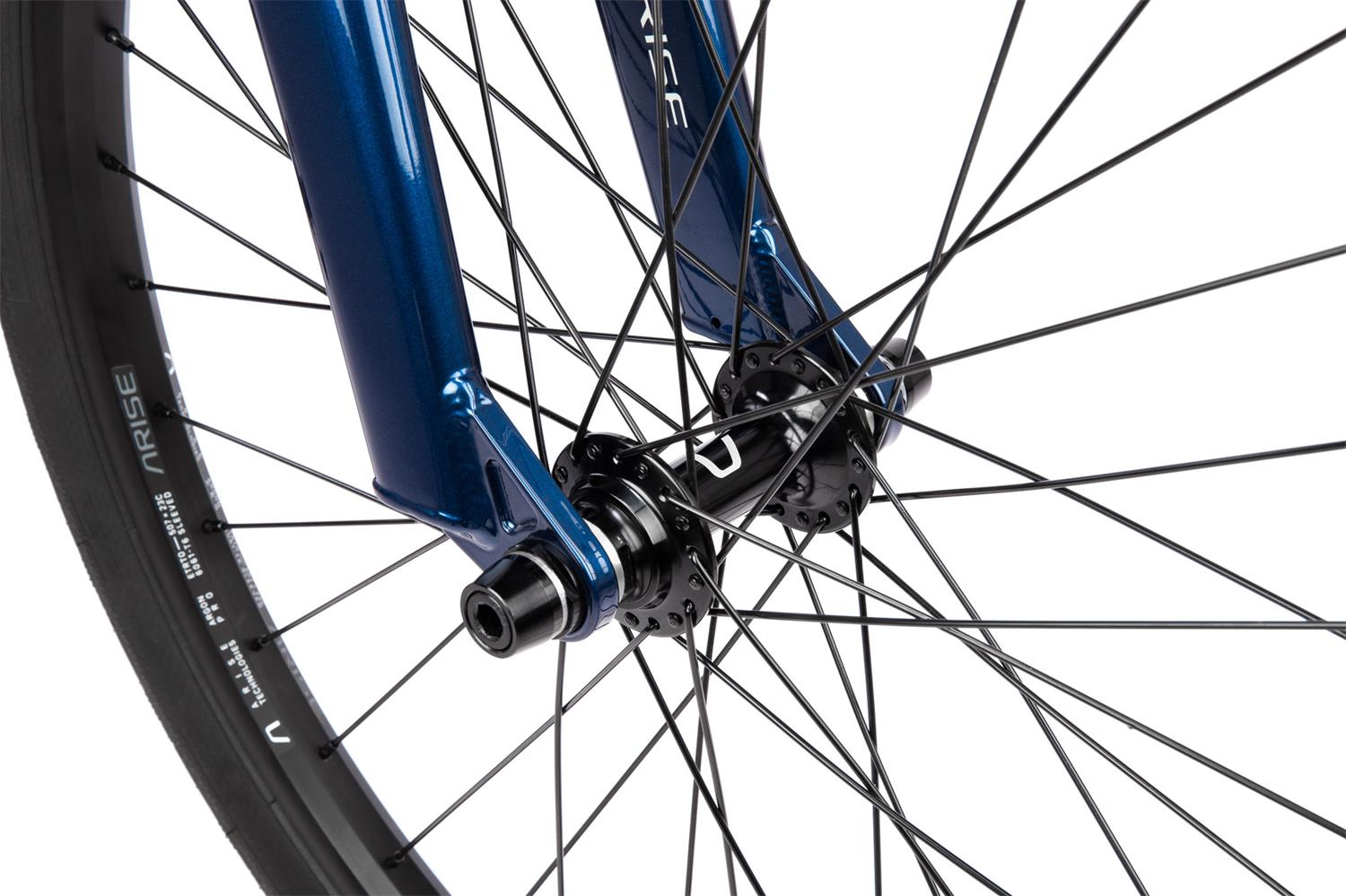

• FRONT HUB: ARISE "BRAVO" front hub, alloy cnc, fully sealed, 32h / 36h, 3/8" female crmo axle

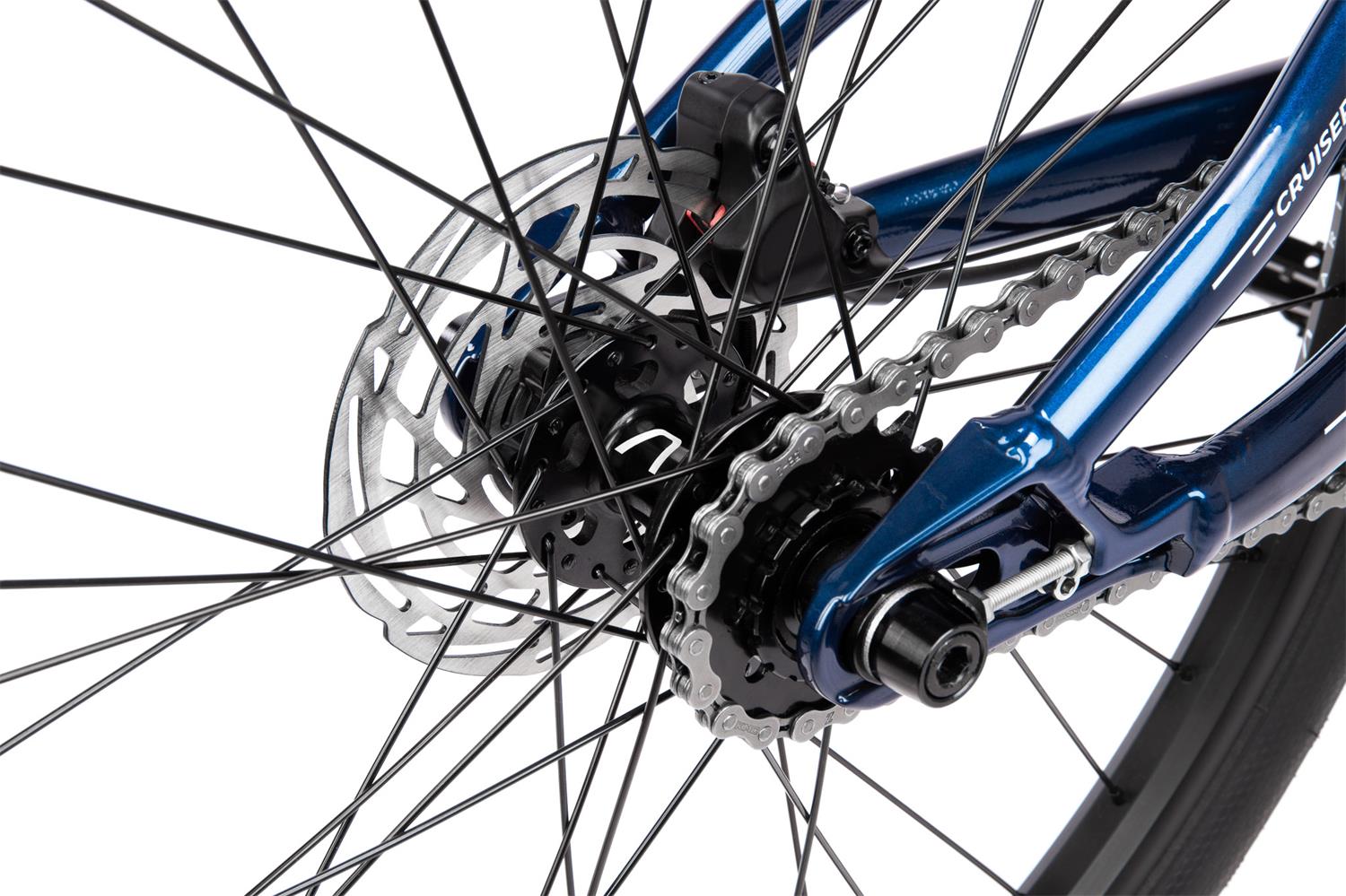

• REAR HUB: ARISE "BRAVO"" rear hub, alloy cnc, fully sealed, 32h / 36h, disc brake cassette, 3/8" female crmo axle
• FRONT RIM: ARISE "ARGON PRO" rim, flash welded, 32 / 36h, tubeless ready, alloy
• REAR RIM: ARISE "ARGON PRO" rim, flash welded, 32 / 36h, tubeless ready, alloy

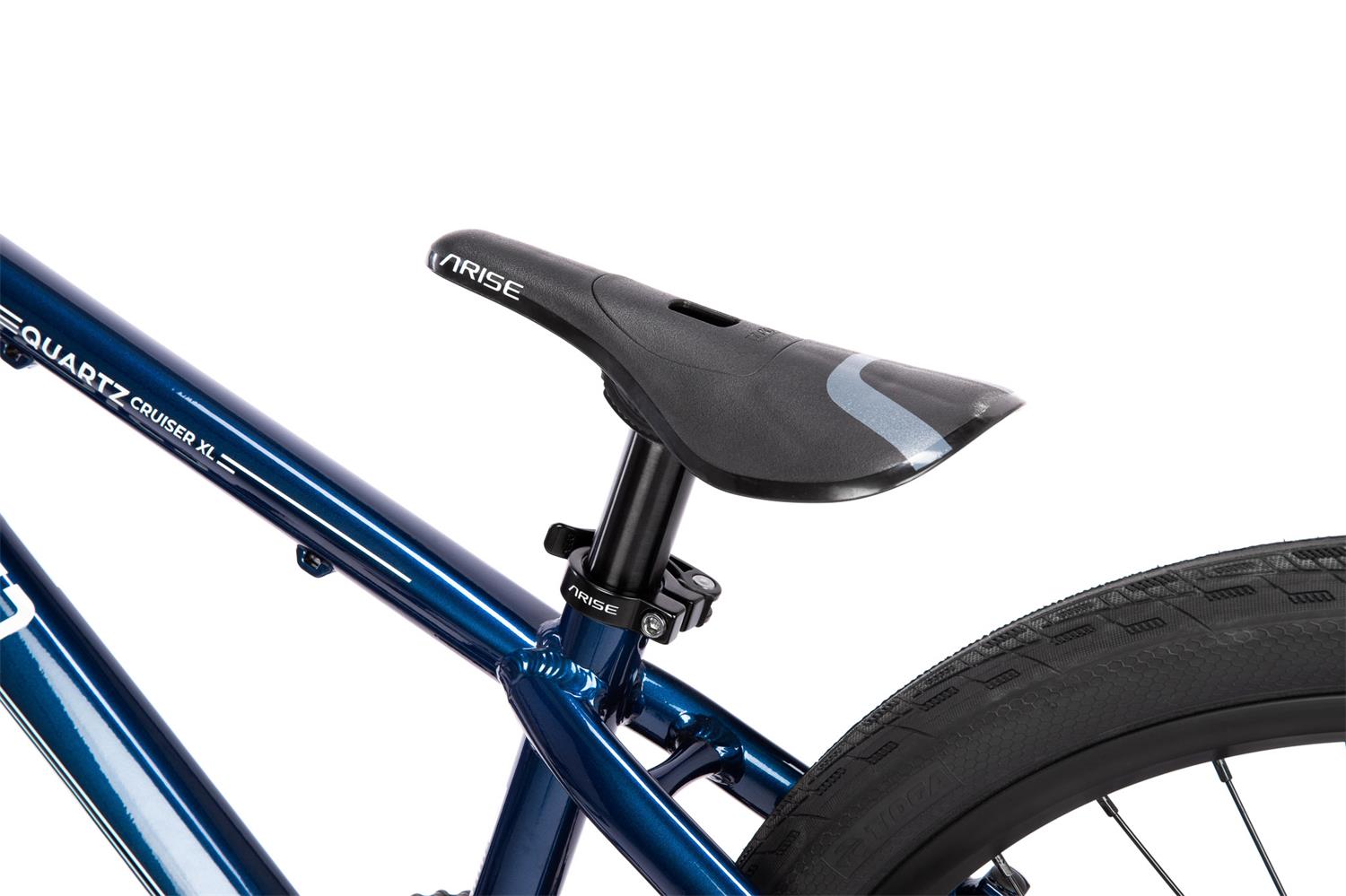

• SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
• SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
• SEAT CLAMP: ARISE HELIUM PRO seat clamp, quick-release, alloy
• TIRES: TIOGA FASTR TIRES front: 24" x 1.75" and rear: 24" x 1.75"

Weight

TBA
Frame Geometry:

Handlebar Geometry:
