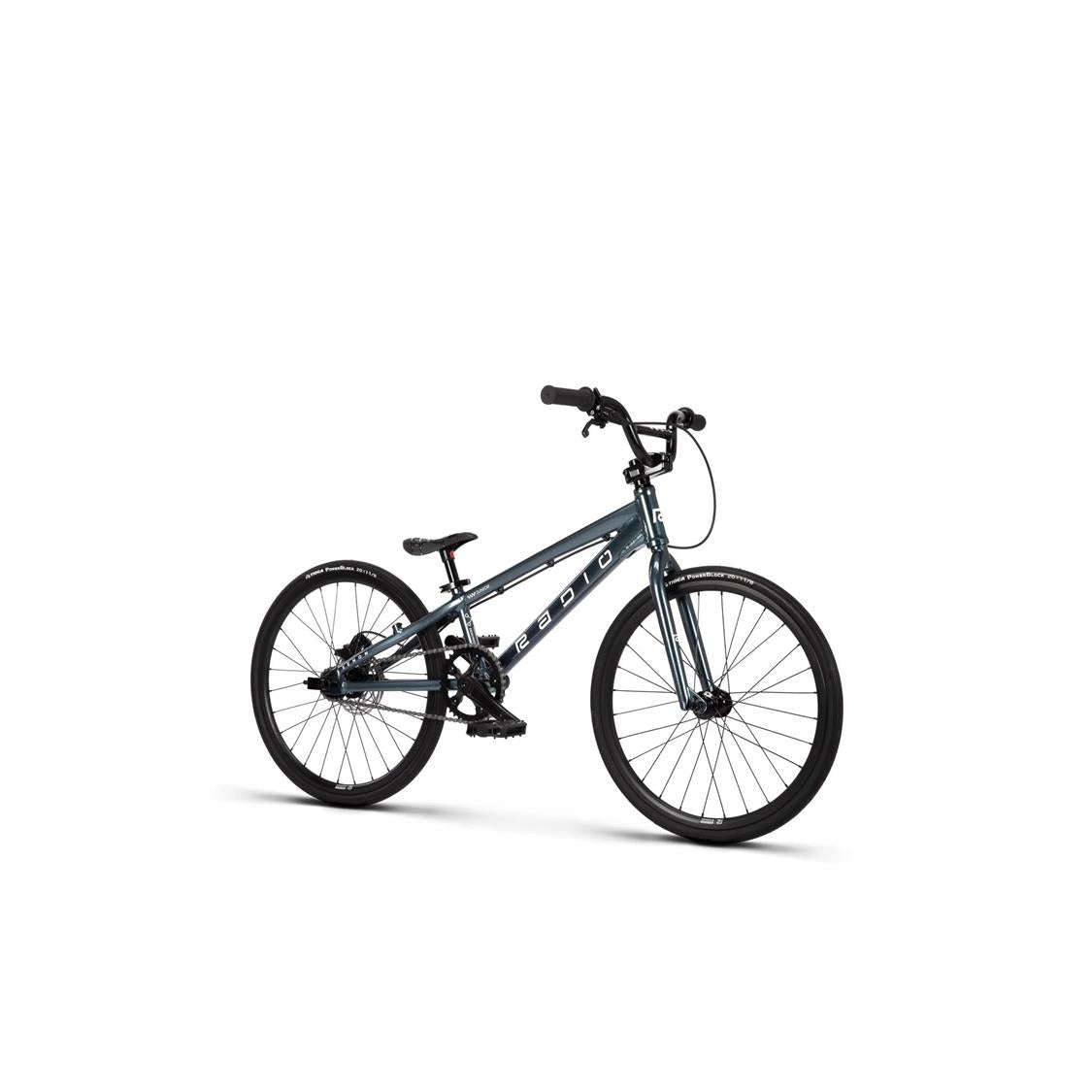

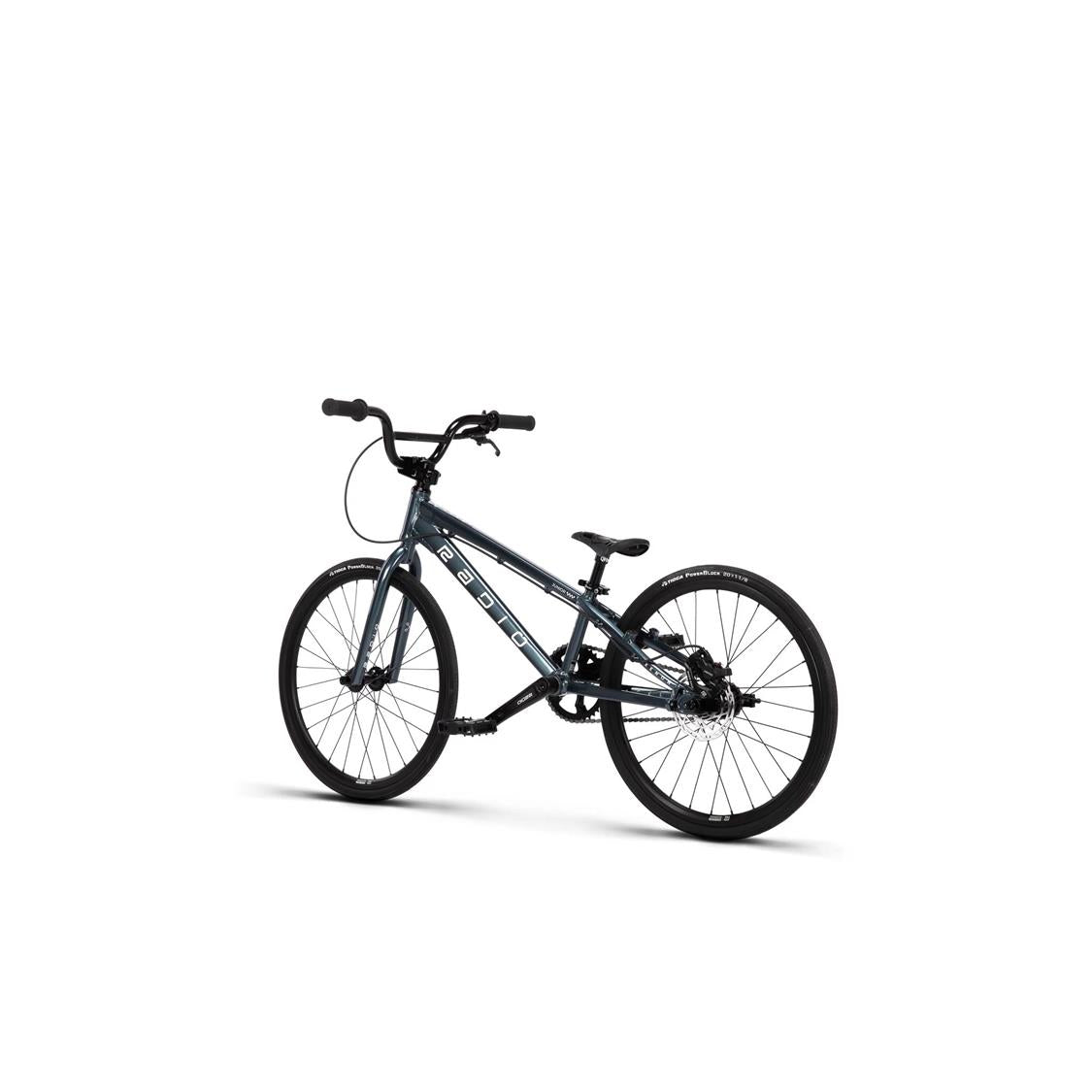

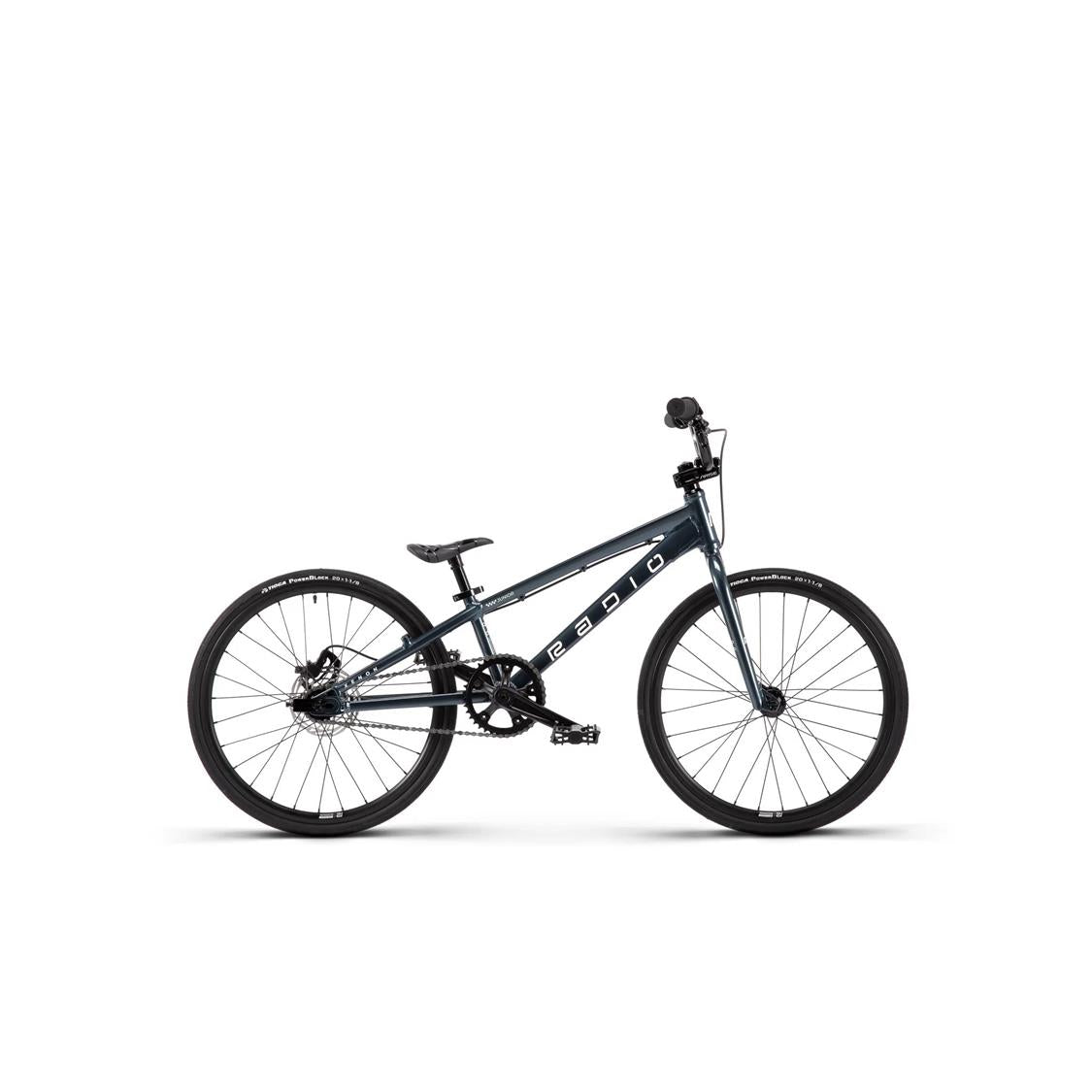

The Xenon Junior is light, tough and built to dominate. The mid-tier Xenon line is a game changer with all bikes being Disc-ready allowing you to convert them to a full disc-brake setup with our aftermarket disc brake kit.
We spared no details here, from forged disc-ready dropouts, our very own aftermarket Clipper Junior Rims to parts from Promax and Tioga, the Xenon is a natural born winner.

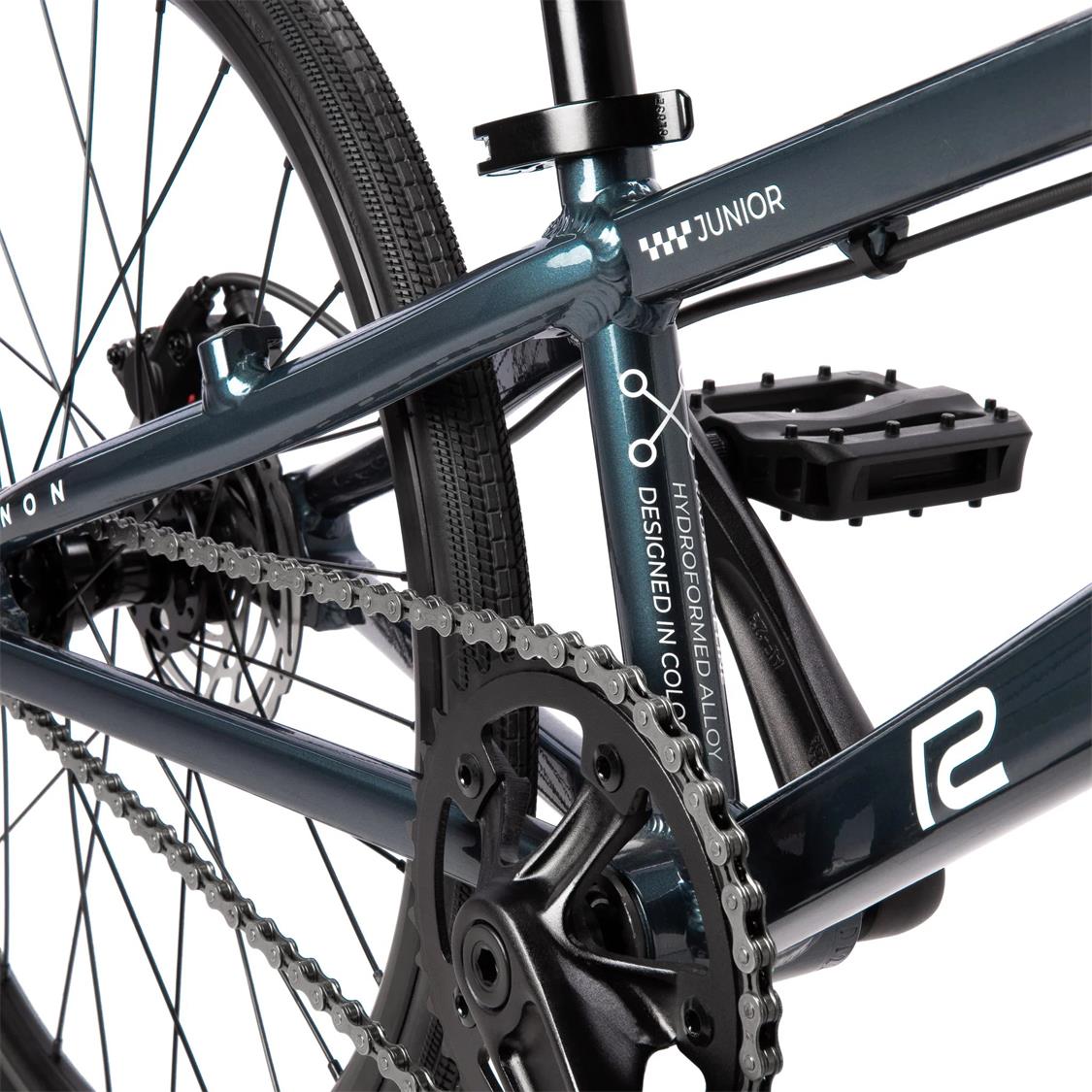

- FRAME: hydroformed 6061-T6 alloy frame, forged & disc brake mount ready dropouts

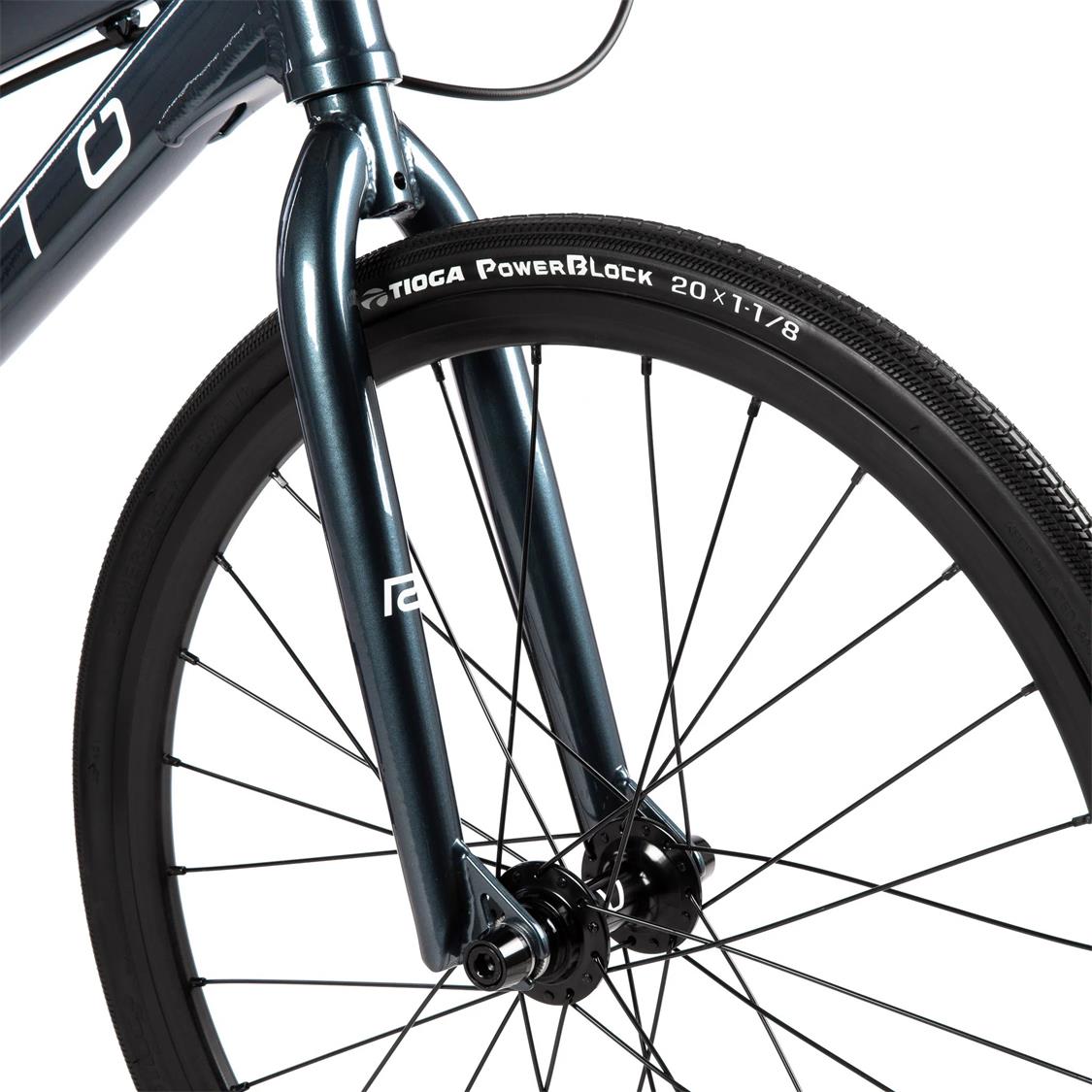

- FORK: crmo fork, 1" butted steerer, crmo fork legs, 23mm offset

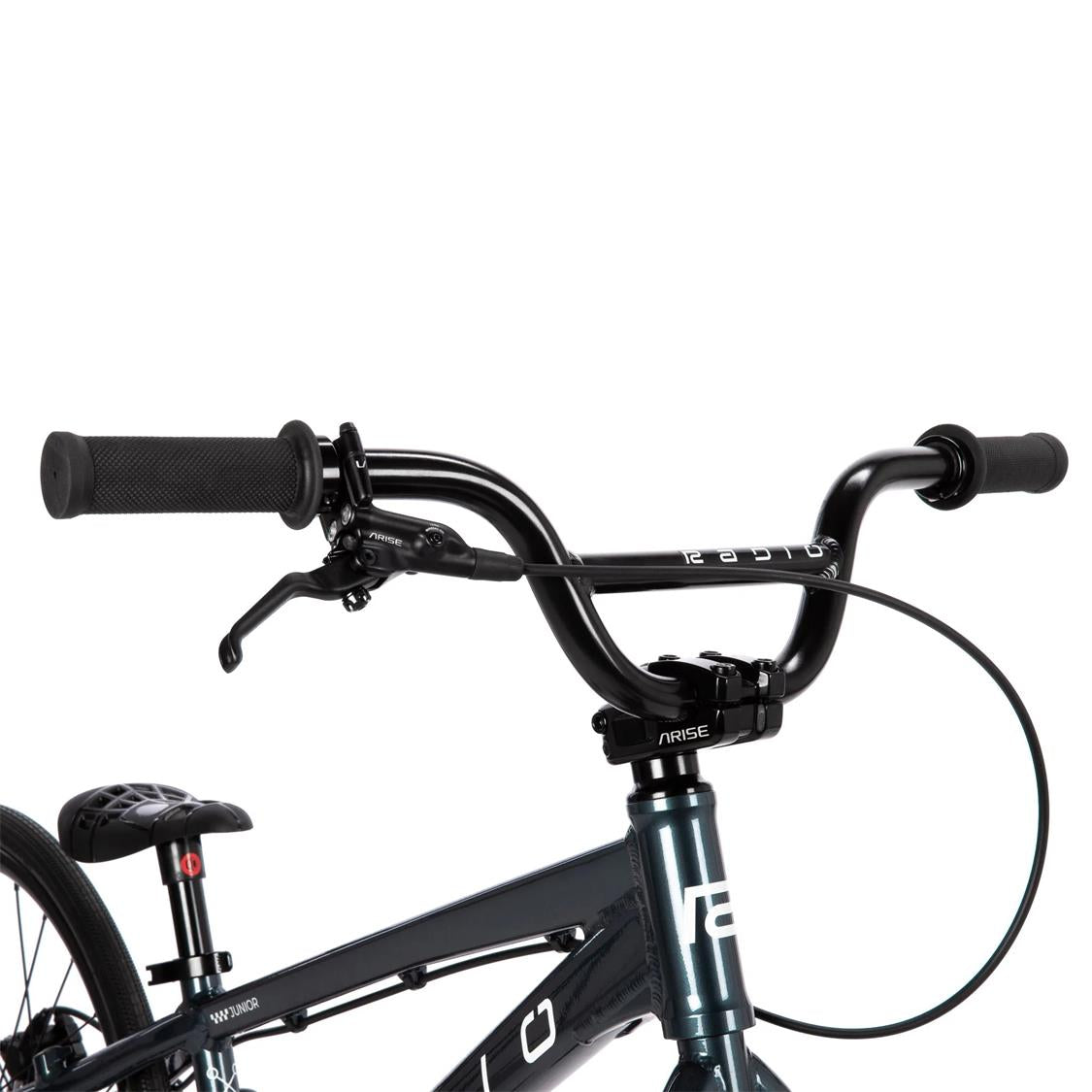

- HANDLEBAR: 6061-T6 alloy bar
- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 115mm length

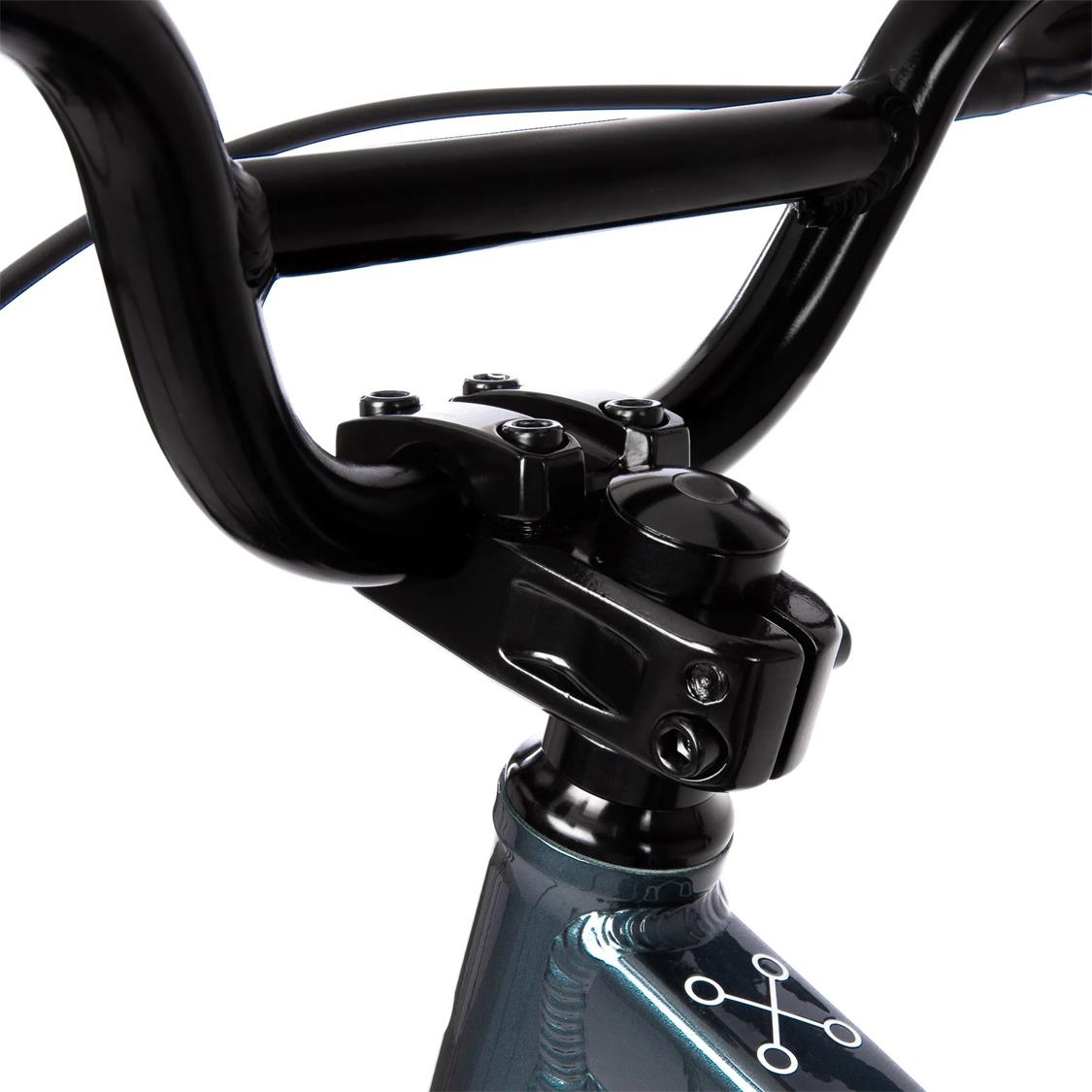

- STEM: ARISE "COBALT" toploader stem, ext. 40mm, alloy
- HEADSET: RADIO RACELINE integrated headset, sealed, 1"

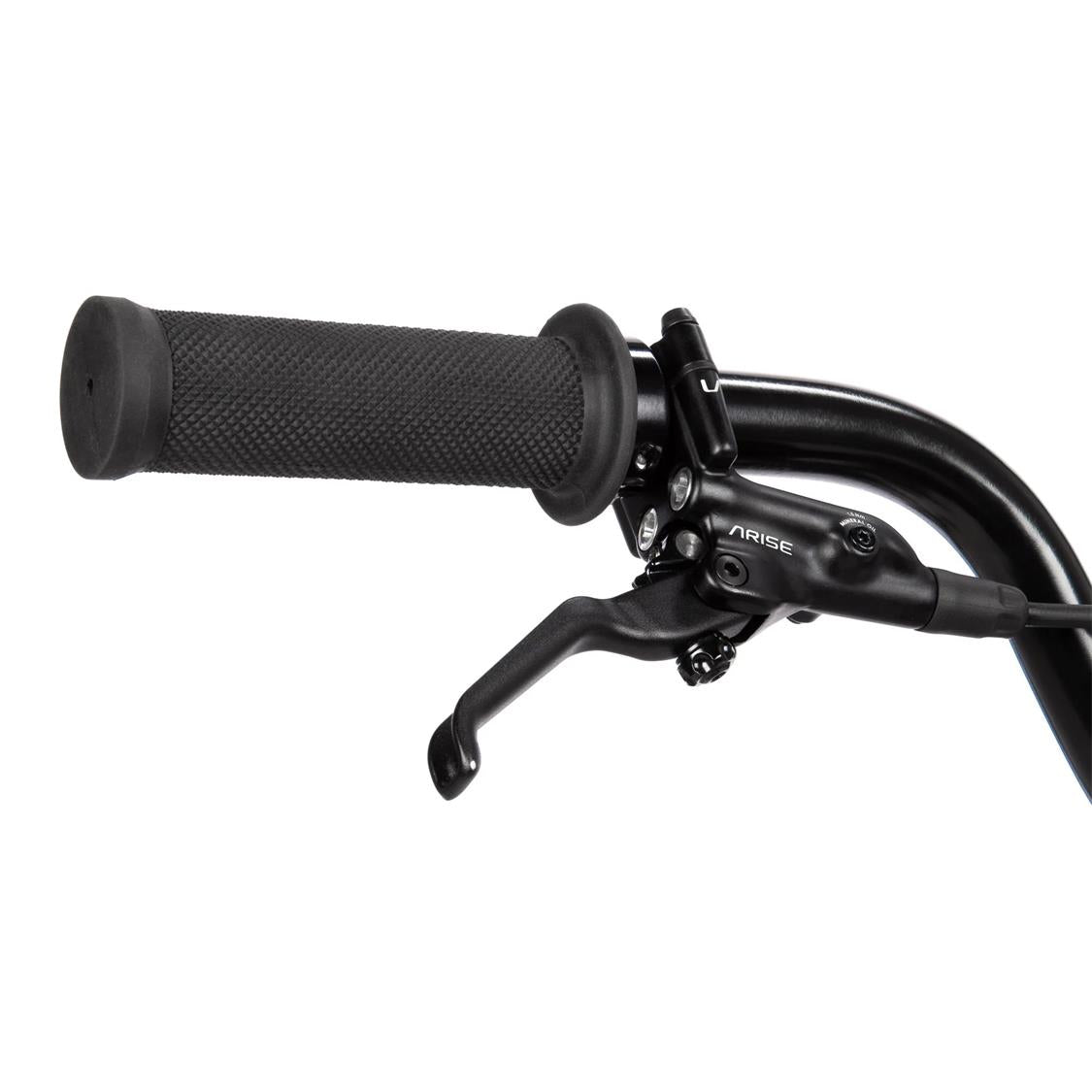

- BRAKE LEVER: ARISE "XENON" Disc brake lever, rear

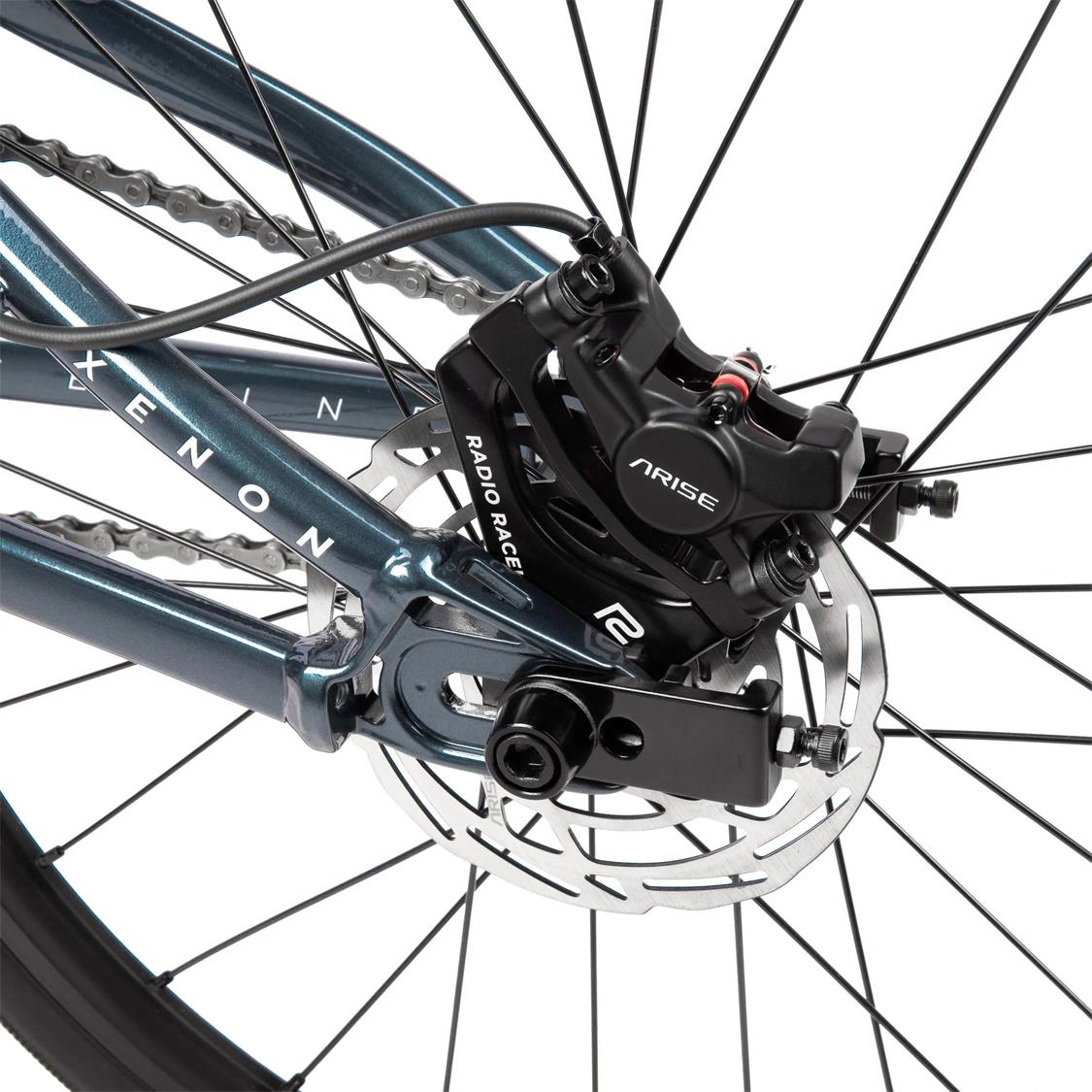

- BRAKE: ARISE "XENON" Disc brake, rear

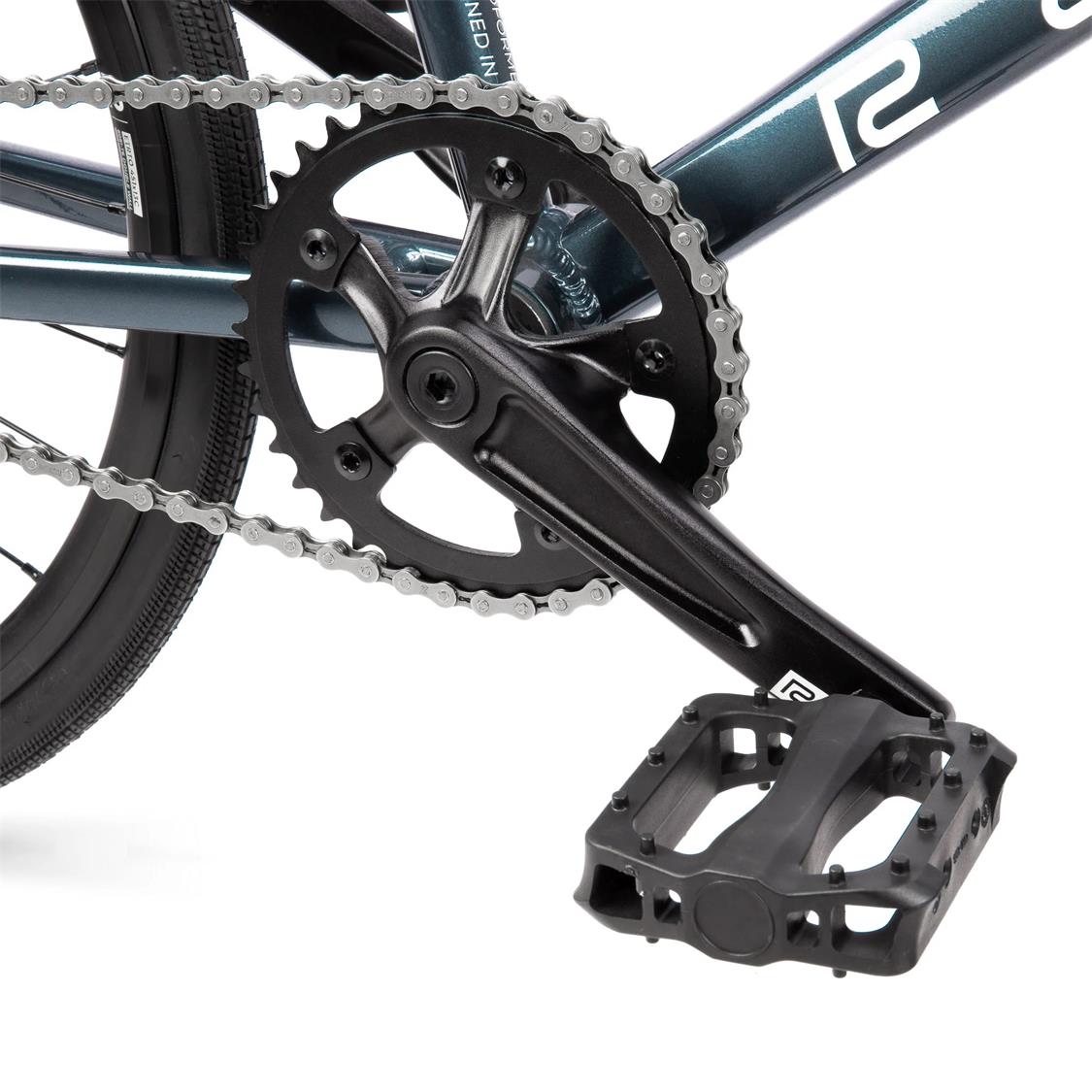

- CRANK: RADIO RACELINE "XENON" 3pc crank, forged alloy, cnc machined, 155mm length
- BB: RADIO RACELINE BB set, BSA square taper, sealed
- PEDALS: RADIO RACELINE "XENON JUNIOR" pedal, alloy
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: RADIO RACELINE sprocket, 40T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

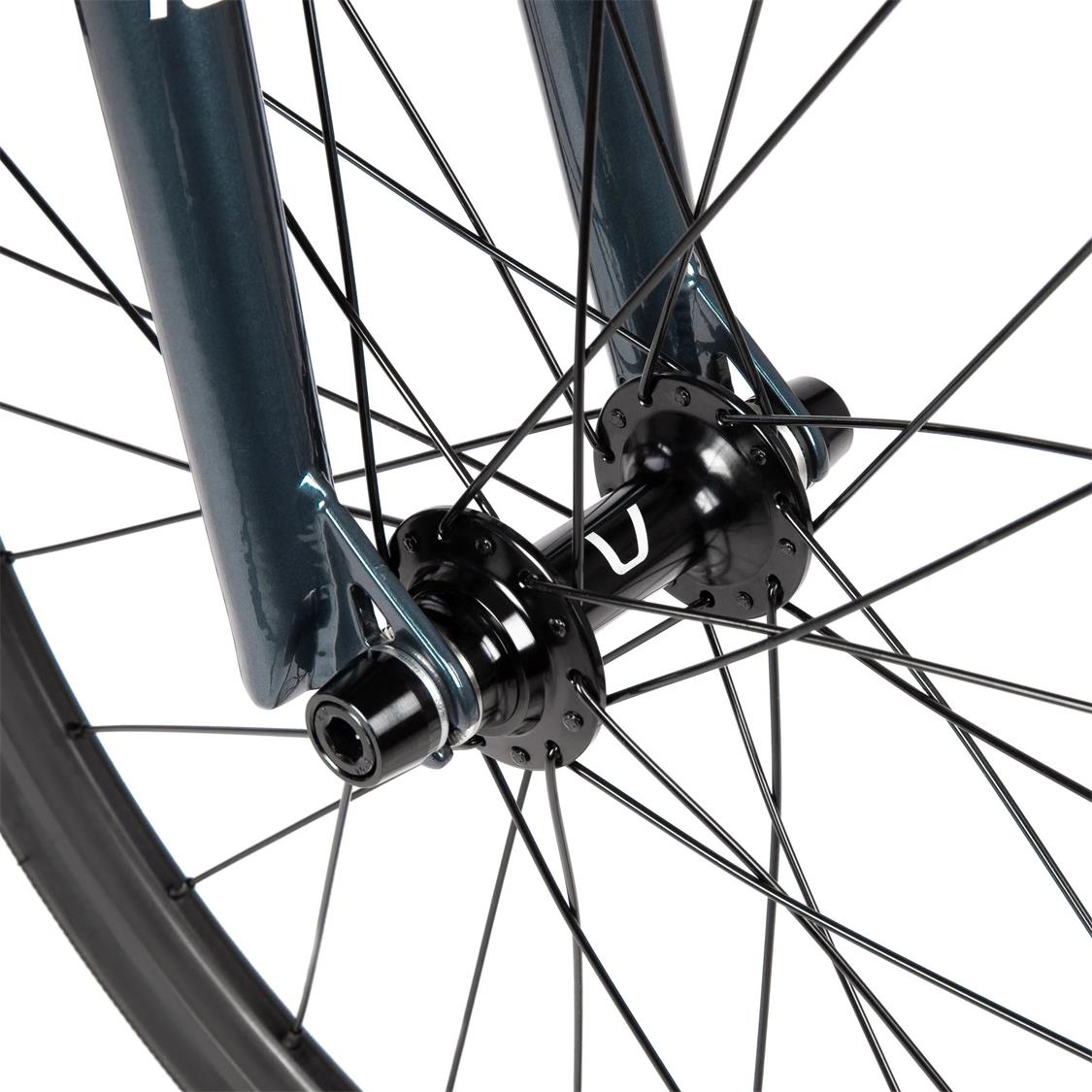

- FRONT HUB: ARISE "BRAVO" front hub, alloy cnc, fully sealed, 28h, 3/8" crmo axle

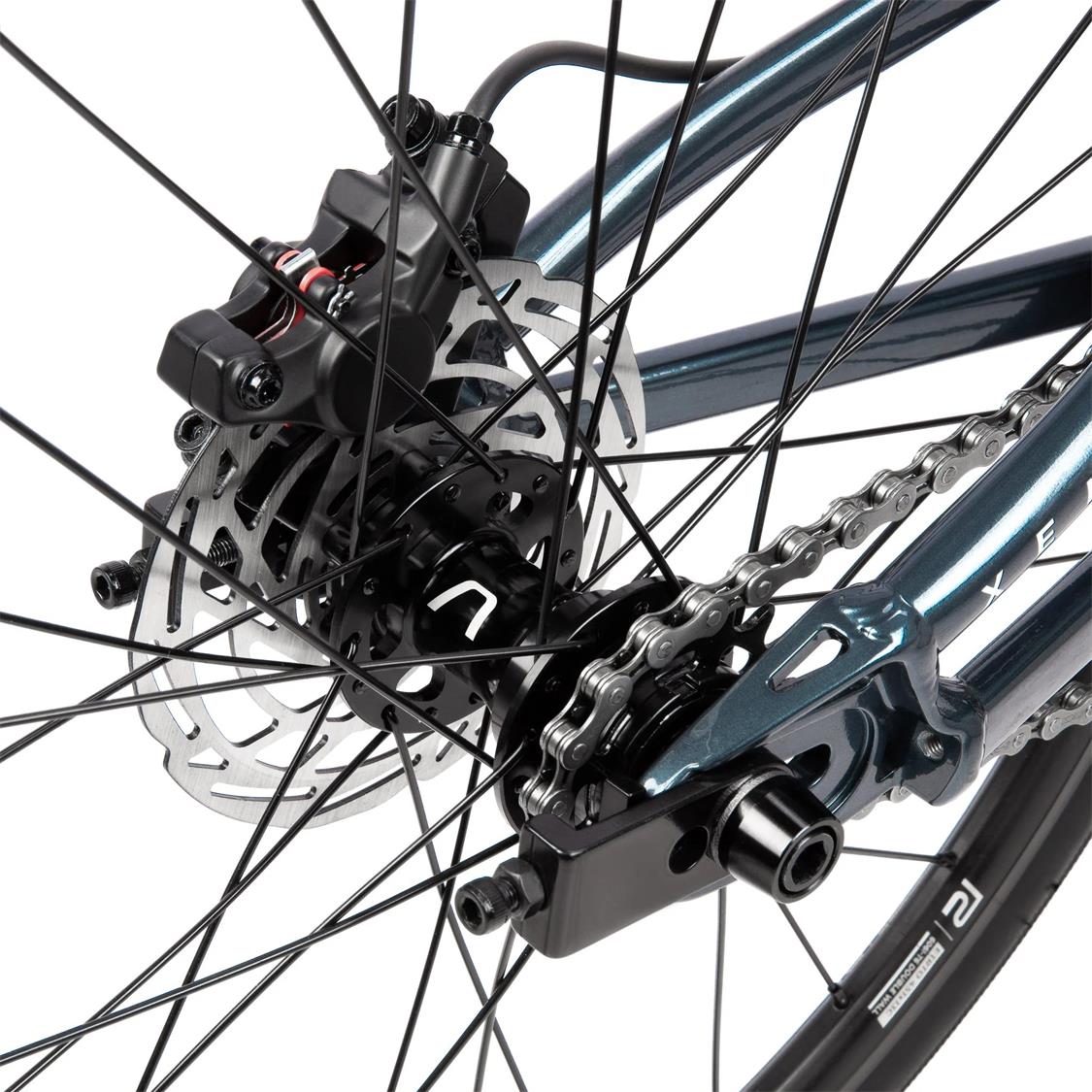

- REAR HUB: ARISE "ALFA" rear hub, alloy cnc, fully sealed, 28h, disc brake cassette, 3/8" crmo axle
- FRONT RIM: ARISE "CLIPPER JUNIOR" rim, sleeved joint, 28h, alloy
- REAR RIM: ARISE "CLIPPER JUNIOR" rim, sleeved joint, 28h, alloy

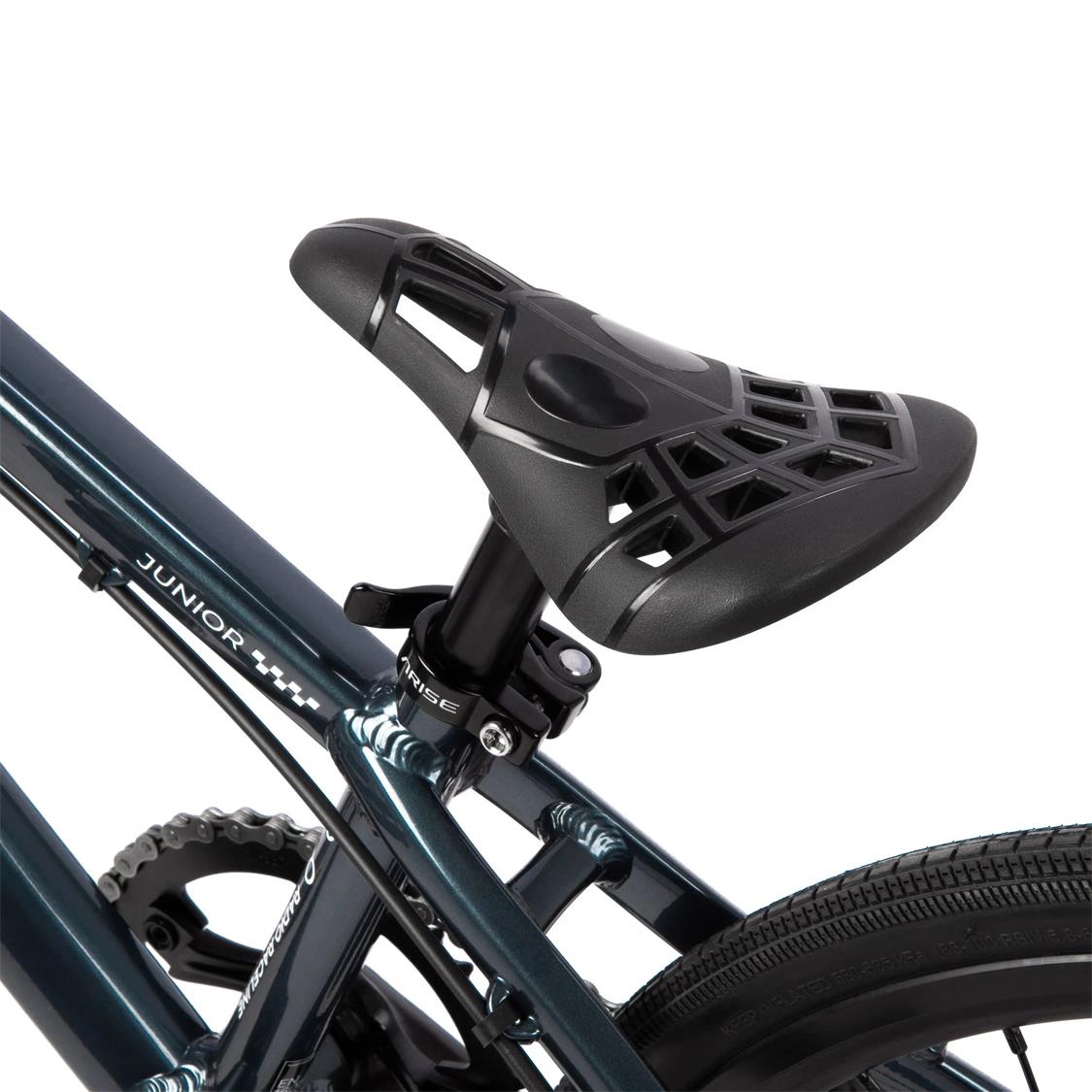

- SEAT: BOX TWO combo seat
- SEAT CLAMP: ARISE "XENON" seat post, quick-release, alloy

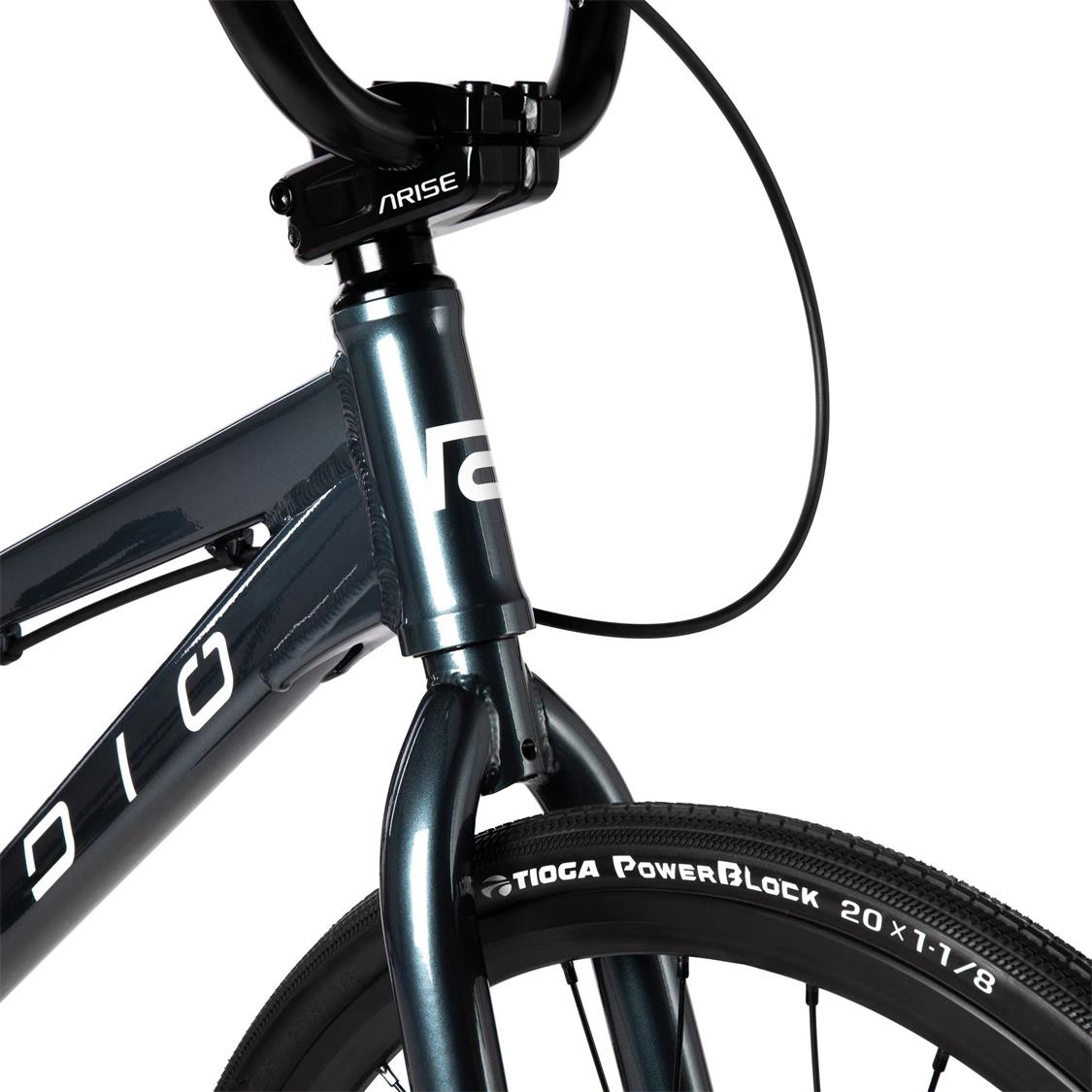

- TIRES: TIOGA "POWER-BLOCK" tires, 20" x 1-1/8"
Weight: 7.78kg / 17.16lbs
Frame Geometry:
| Top Tube Length | 18.6" |
| Chain Stay Length | 13.4" |
| Head Tube Angle | 73.5° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 10.6" |
Handlebar Geometry:
| Rise | 4.25" |
| Width | 24" |
| Backsweep | 8° |
| Upsweep | 2° |
