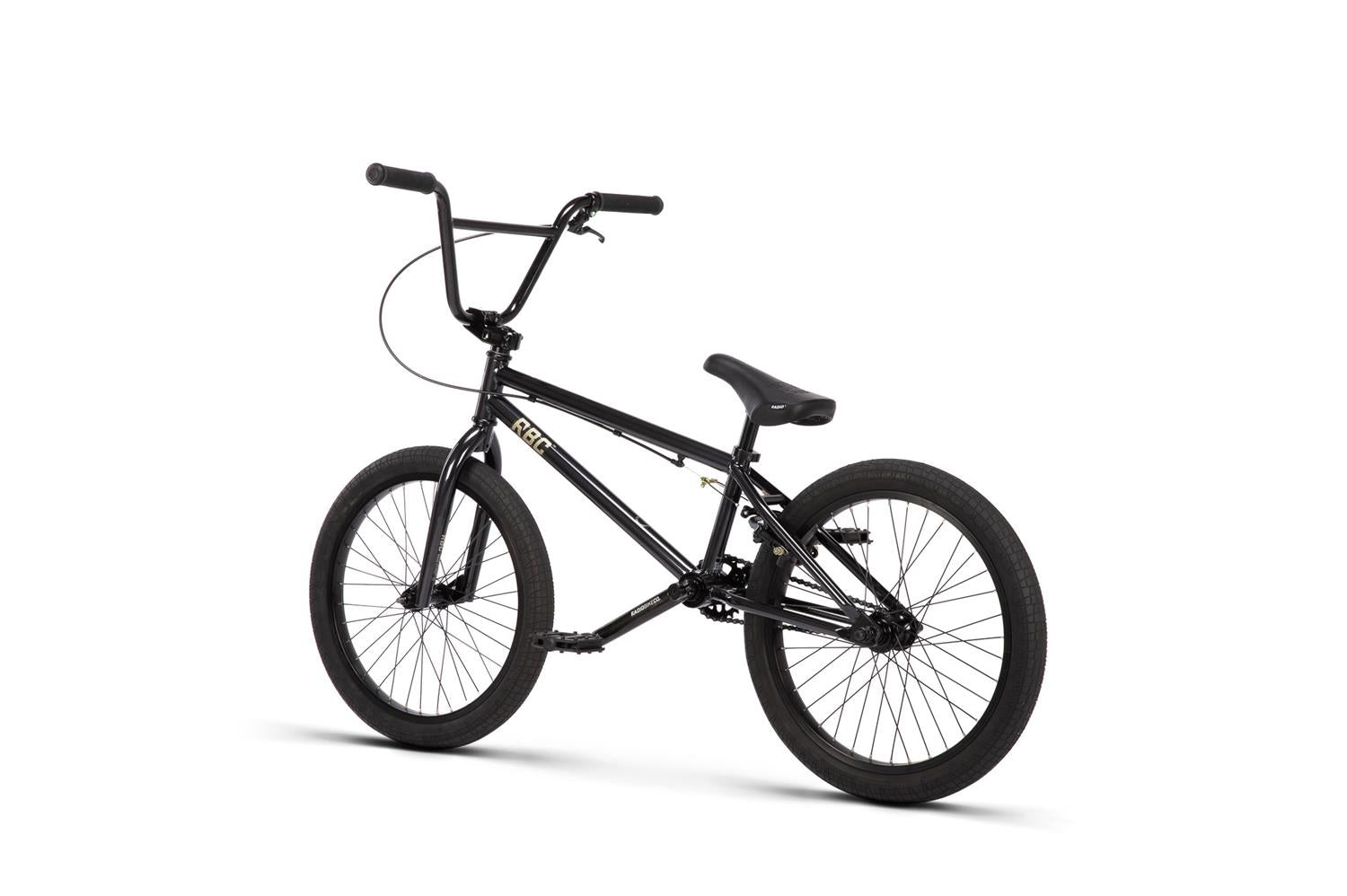

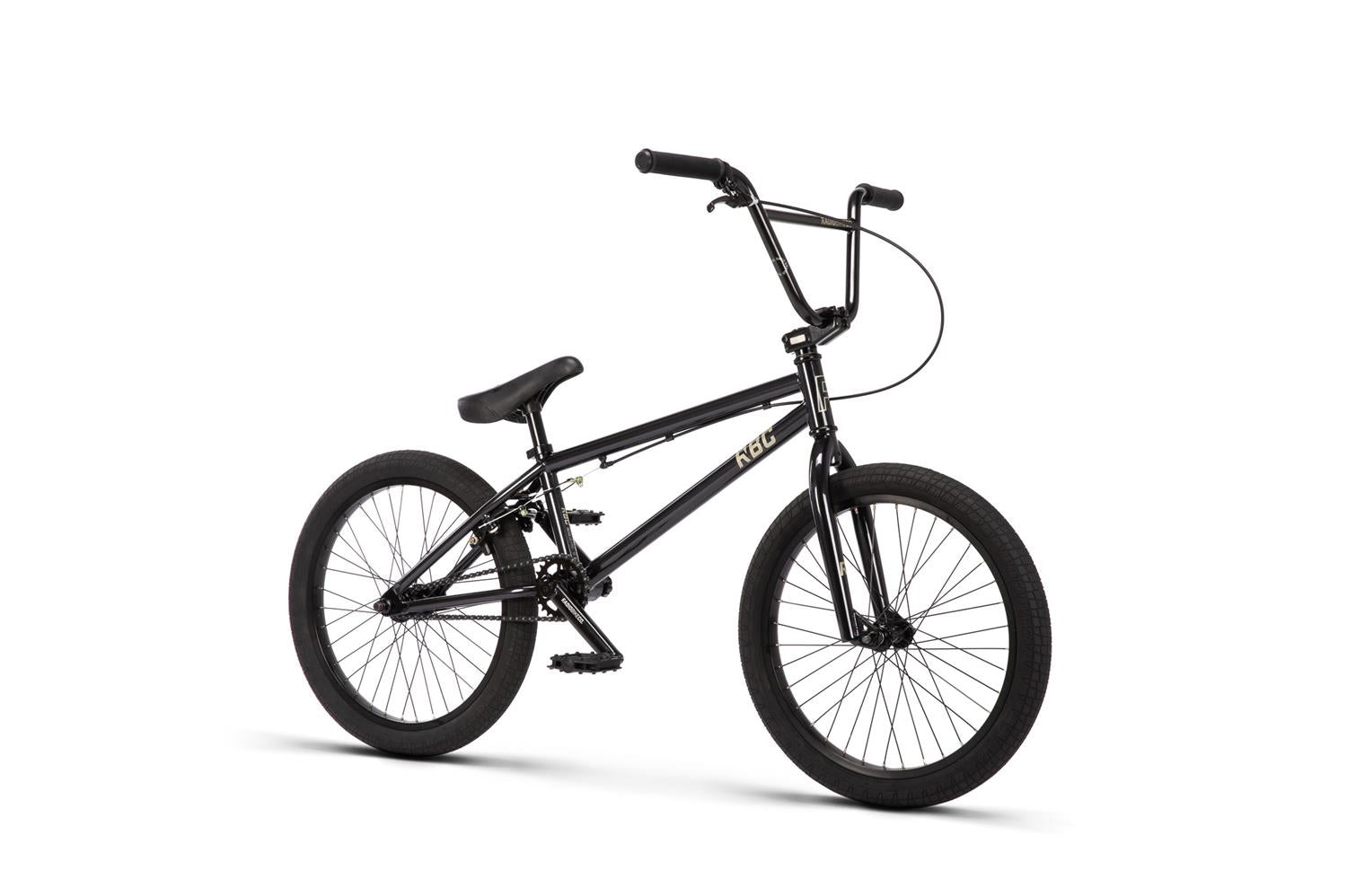

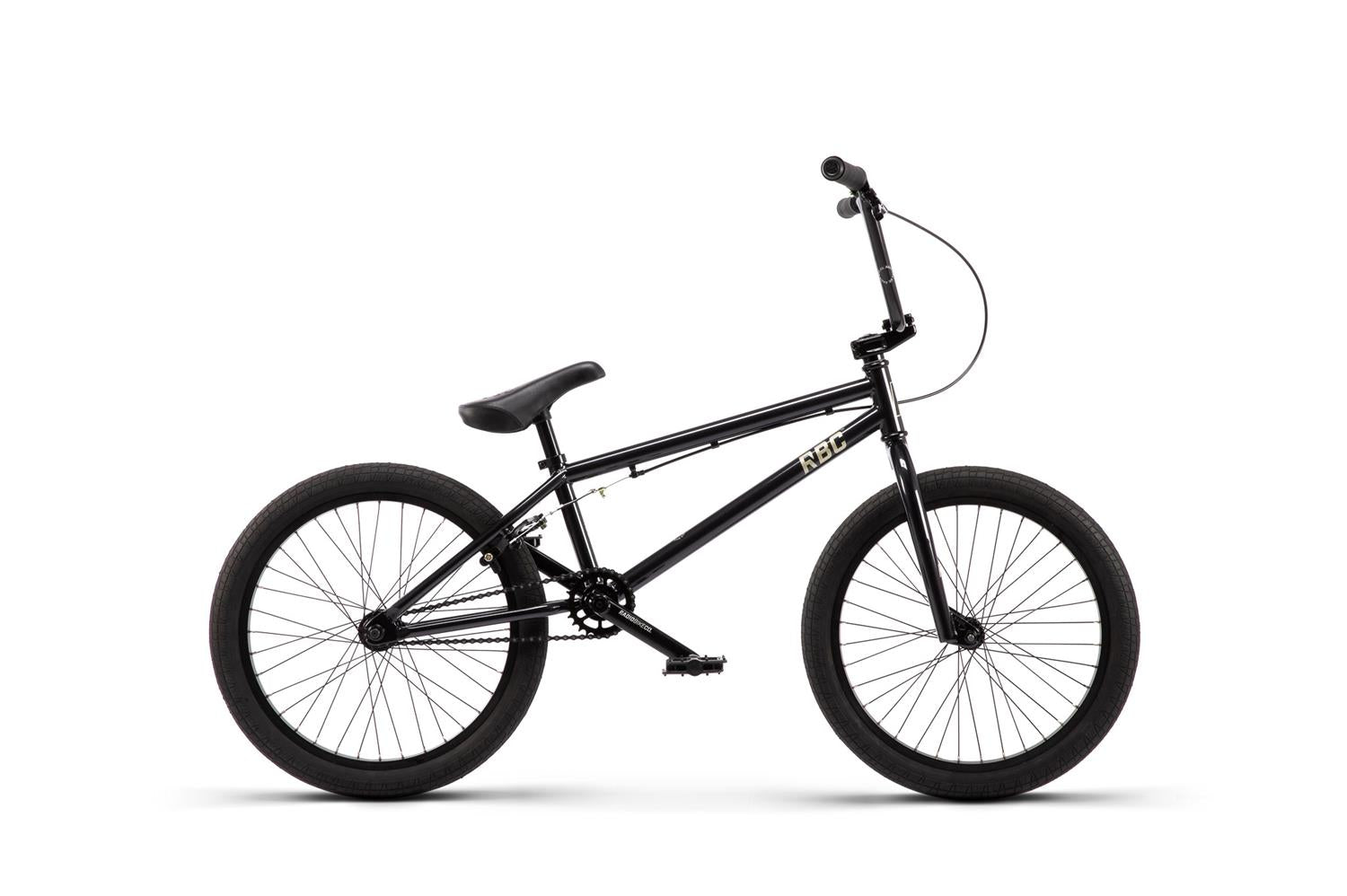

Revo Pro 20" Complete Bike
The Revo line allows you to get your first taste of the BMX world on a solid and well-designed bike. We took extra care when hand-selecting the components on these bikes to ensure that the bike could be ridden straight out of the box, simple to work on and maintain, but also easily upgradeable over time. Despite the low price point, the Revo is packed full of great features like 25-9 gearing, tapered fork legs, and short/responsive pro-inspired geometry.
The Revo 20″ Pro allows you to get your first taste of the BMX world on a solid and well-designed bike. Building on the Revo 20″, the Revo Pro adds a 3pc crank upgrade making this machine even more dialled than ever before.
- FRAME: RADIO “REVO PRO 20” frame, full 1020 hi-ten

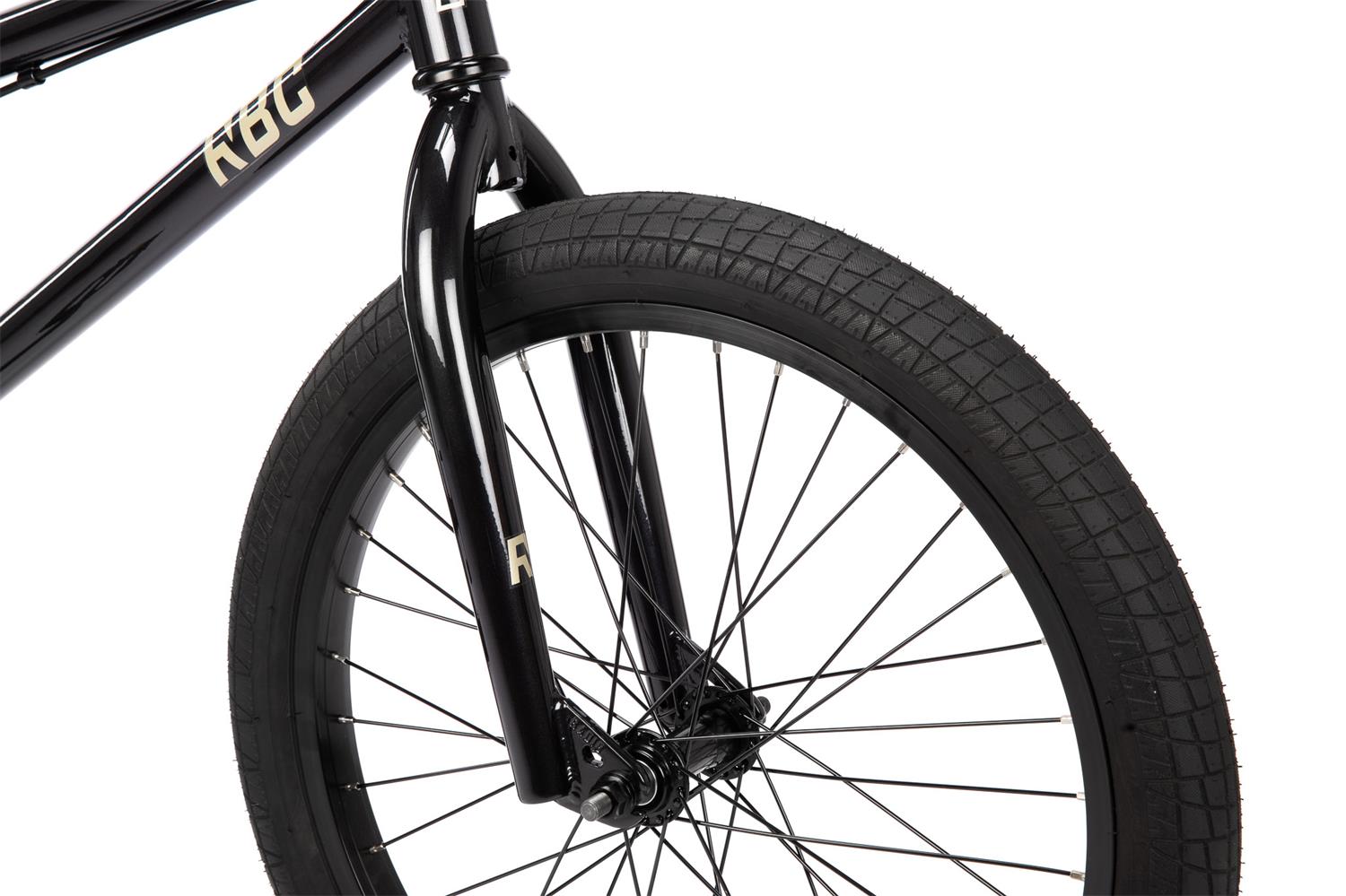

- FORK: RADIO “AM 20” fork, 1020 hi-ten, crmo steerer

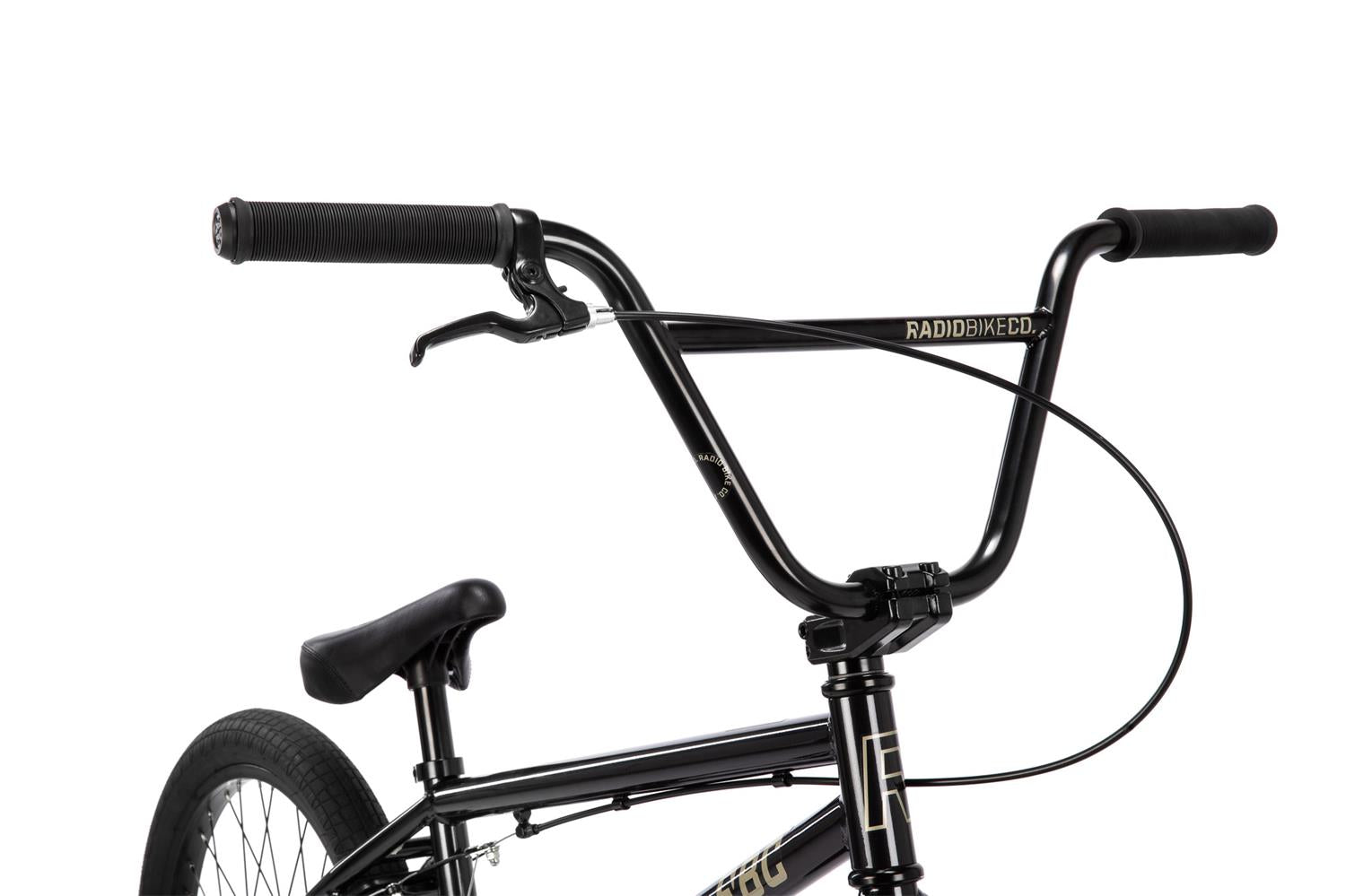

- HANDLEBAR: RADIO “REVO PRO 20” bar, hi-ten

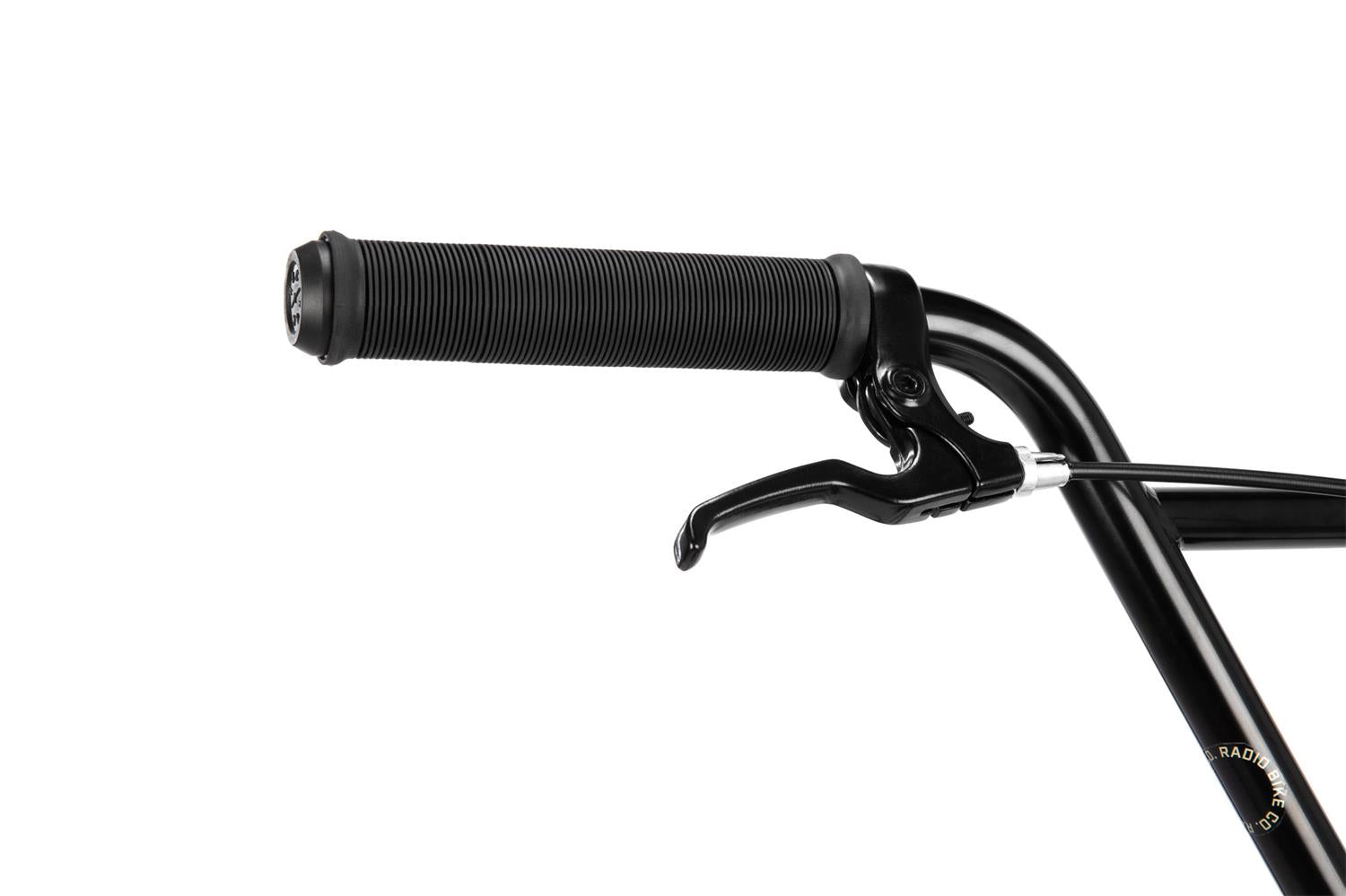

- GRIPS: RADIO “AM” grips, flangeless, 150mm

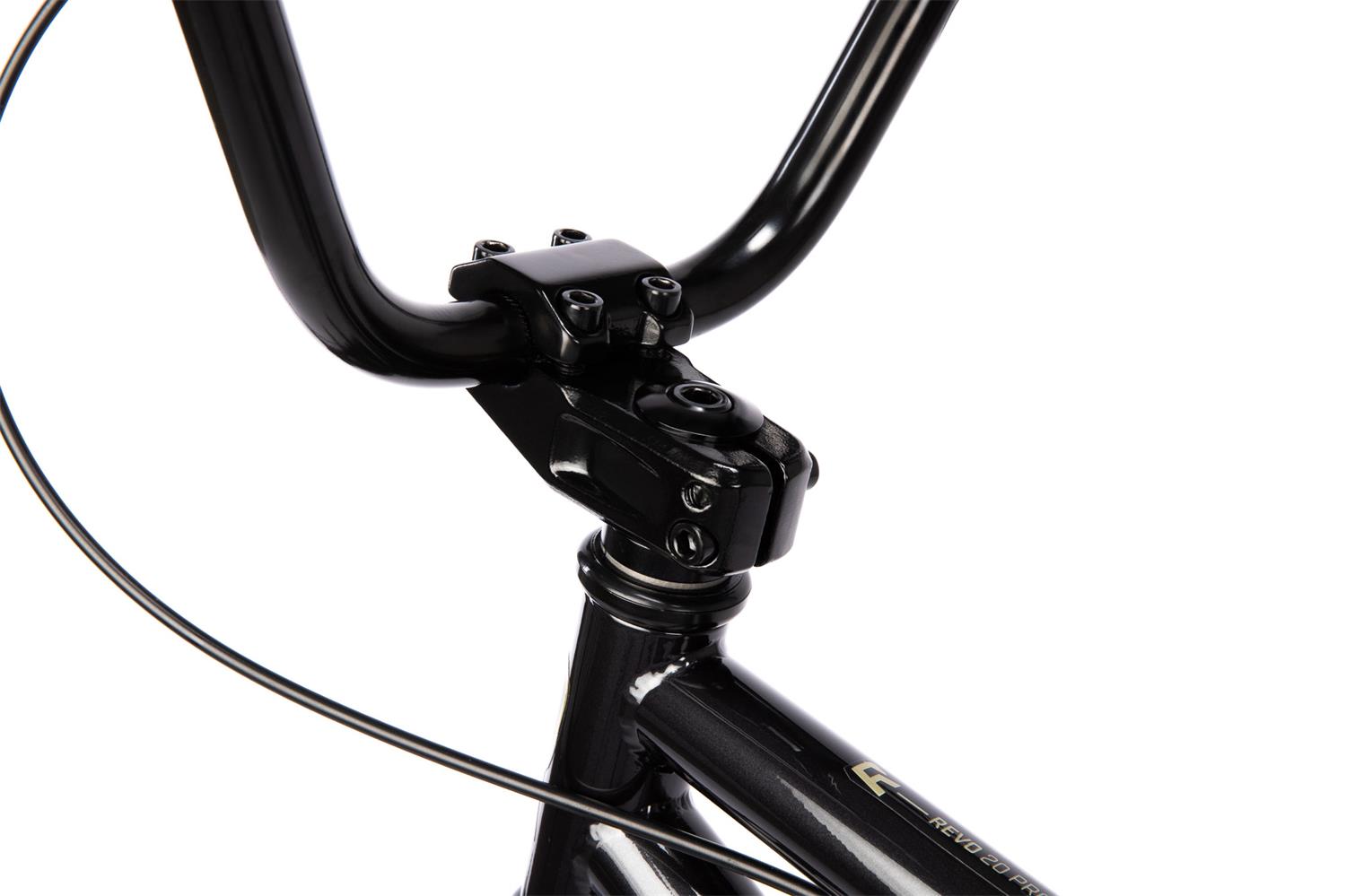

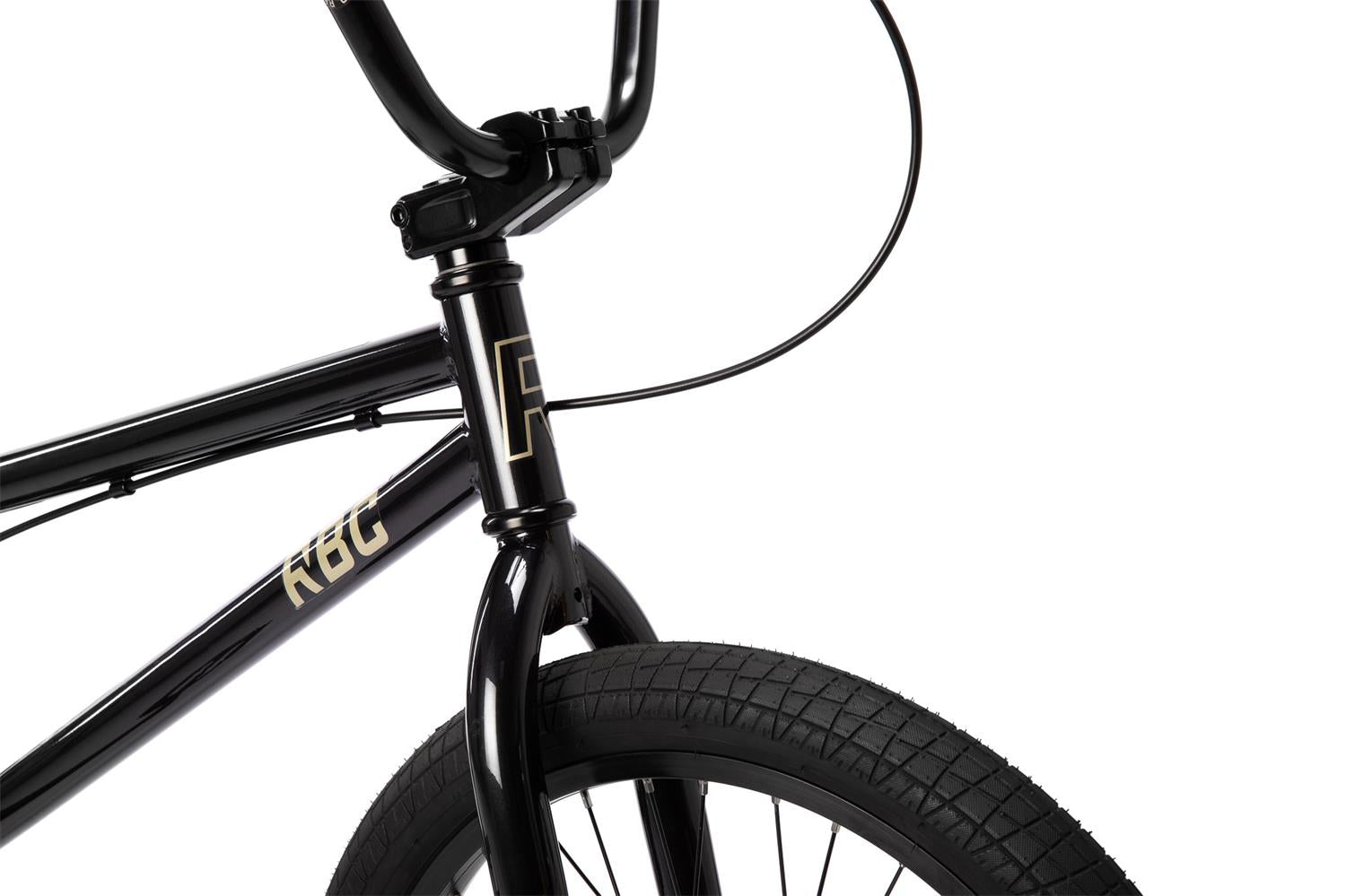

- STEM: SALT “AM” topload stem, 50mm reach
- HEADSET: FSA A-headset, loose ball
- BRAKE LEVER: RADIO “AM” brake lever, alloy
- BRAKE: RADIO "AM" u-brake, alloy, rear

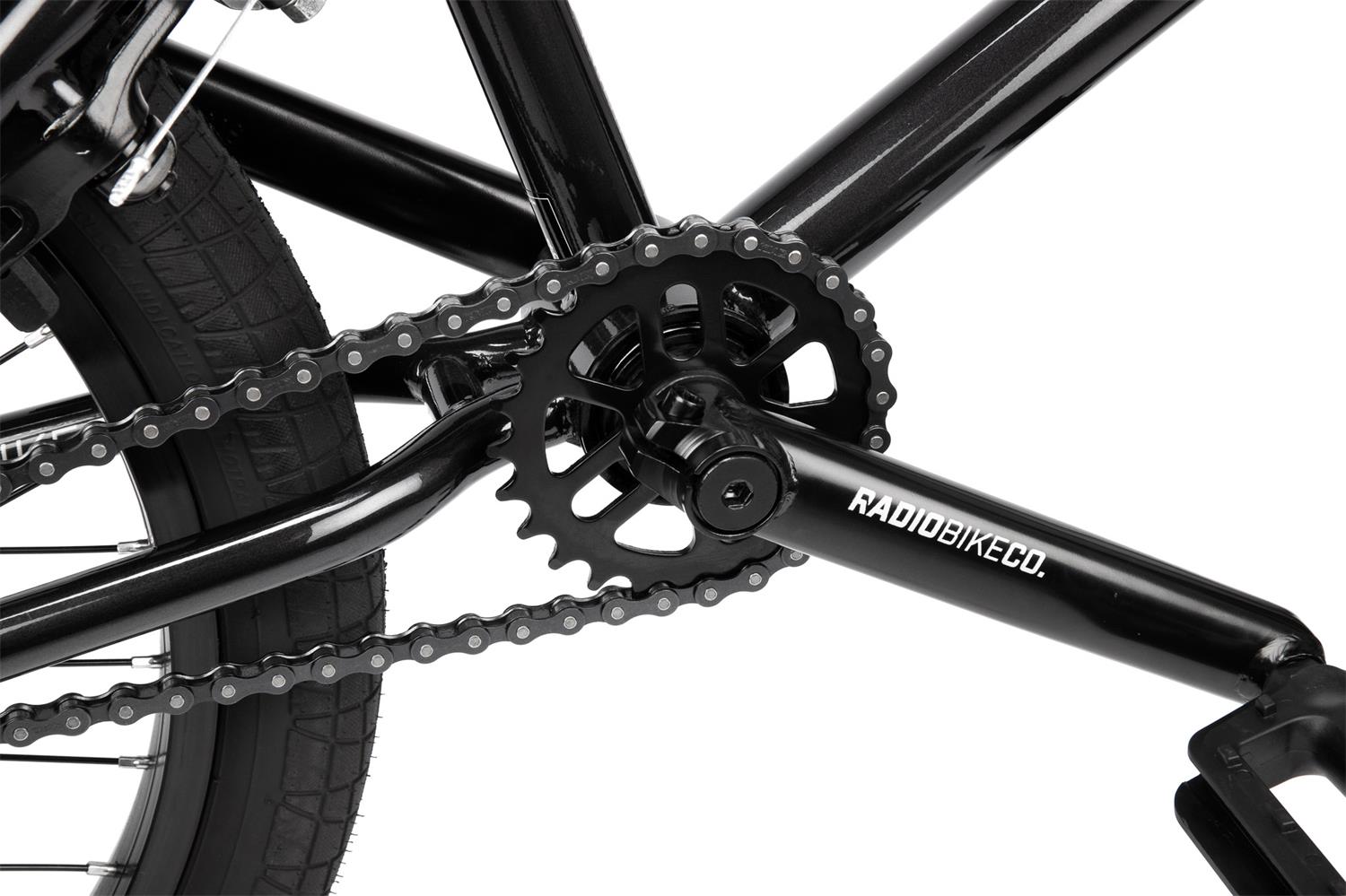

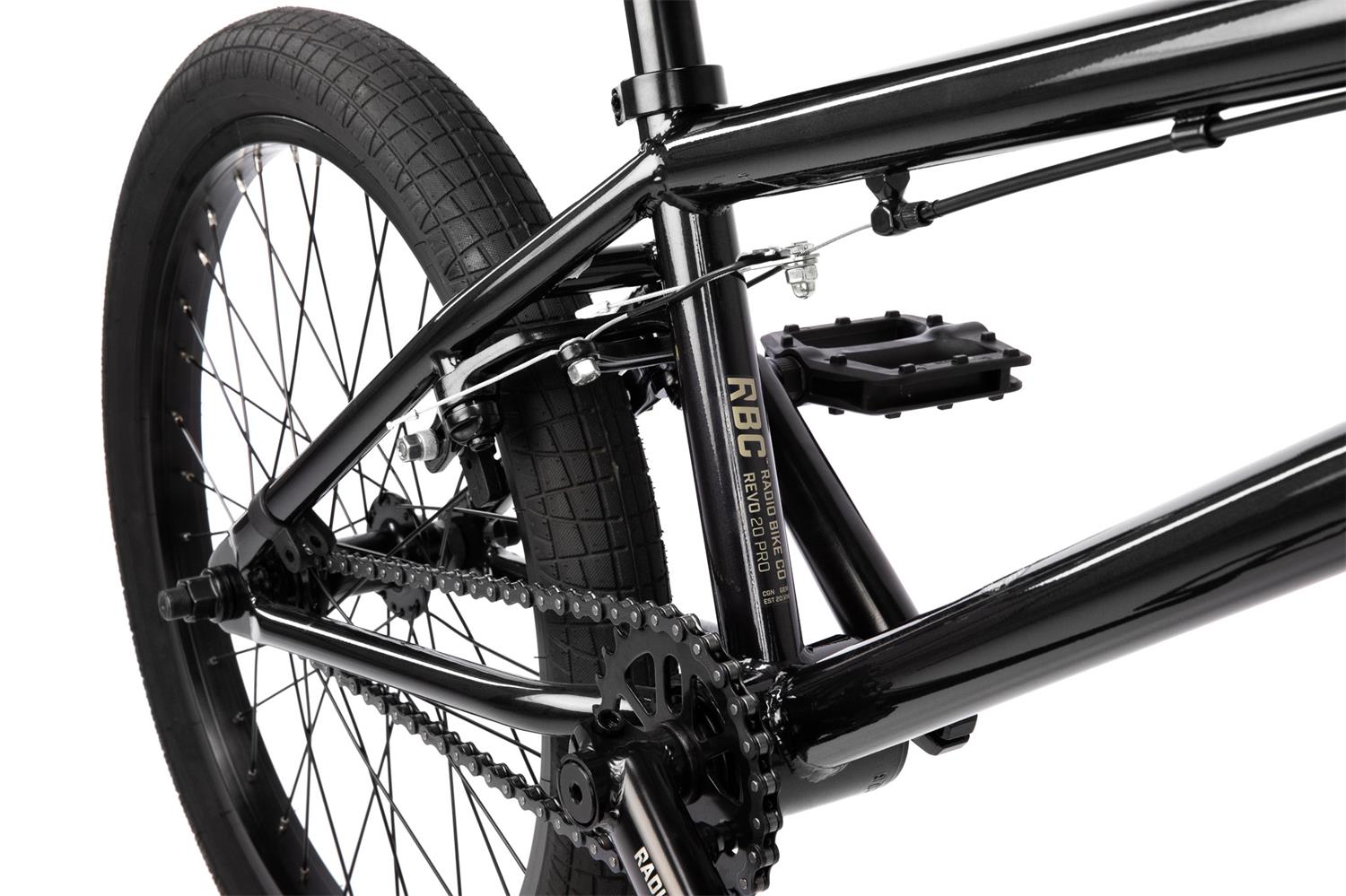

- CRANK: RADIO “ROOKIE” 3pc crank, forged, crmo, 170mm
- BB: RADIO "US" bb set, loose ball

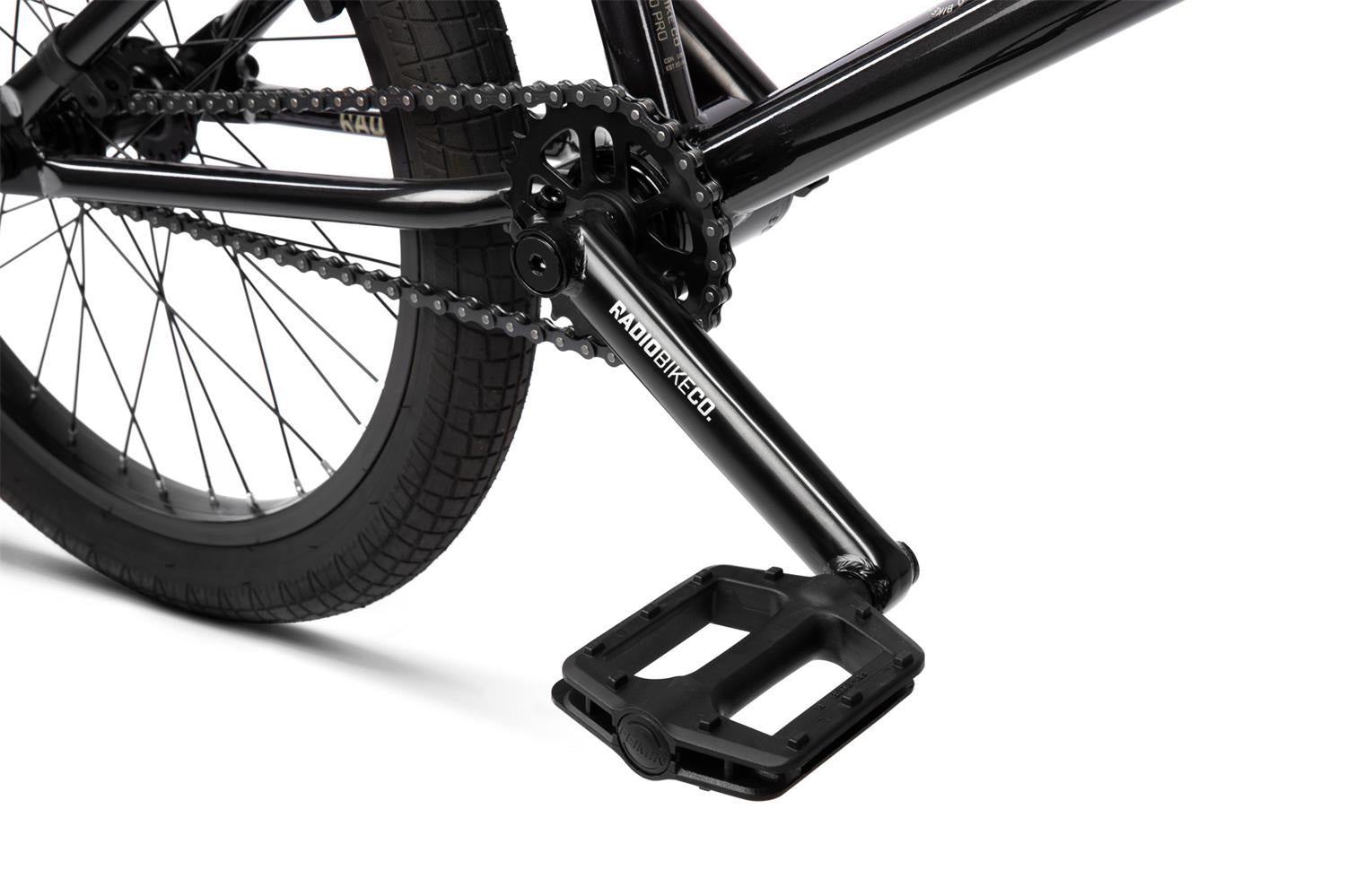

- PEDALS: RADIO “ROOKIE” pedals, nylon
- CHAIN: KMC “S1” chain
- SPROCKET: RADIO “ROOKIE” sprocket, steel, 25t
- DRIVER: cassette driver, 9t

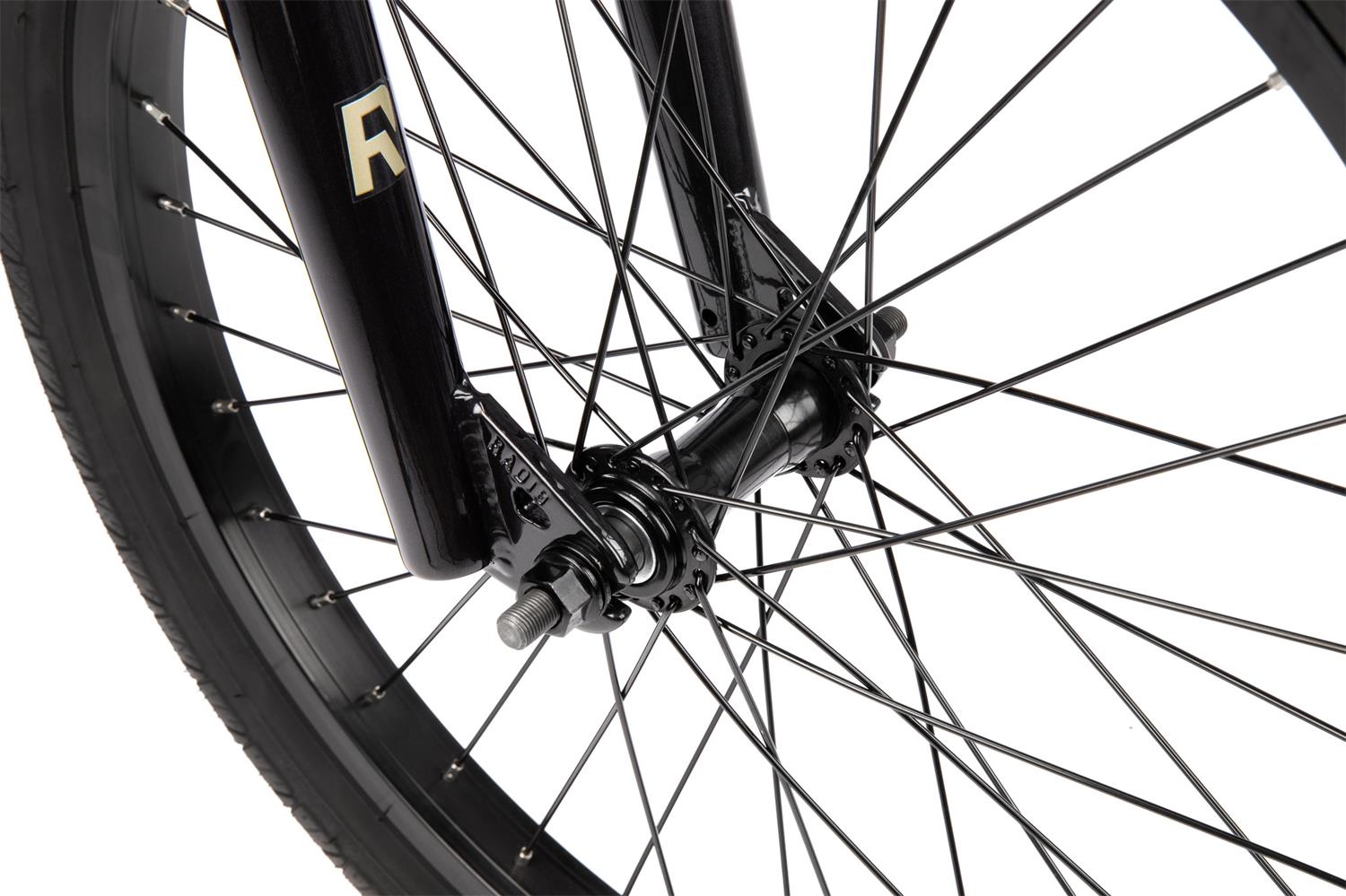

- FRONT HUB: RADIO "ROOKIE" hub, steel, lb, 3/8"s, 36h

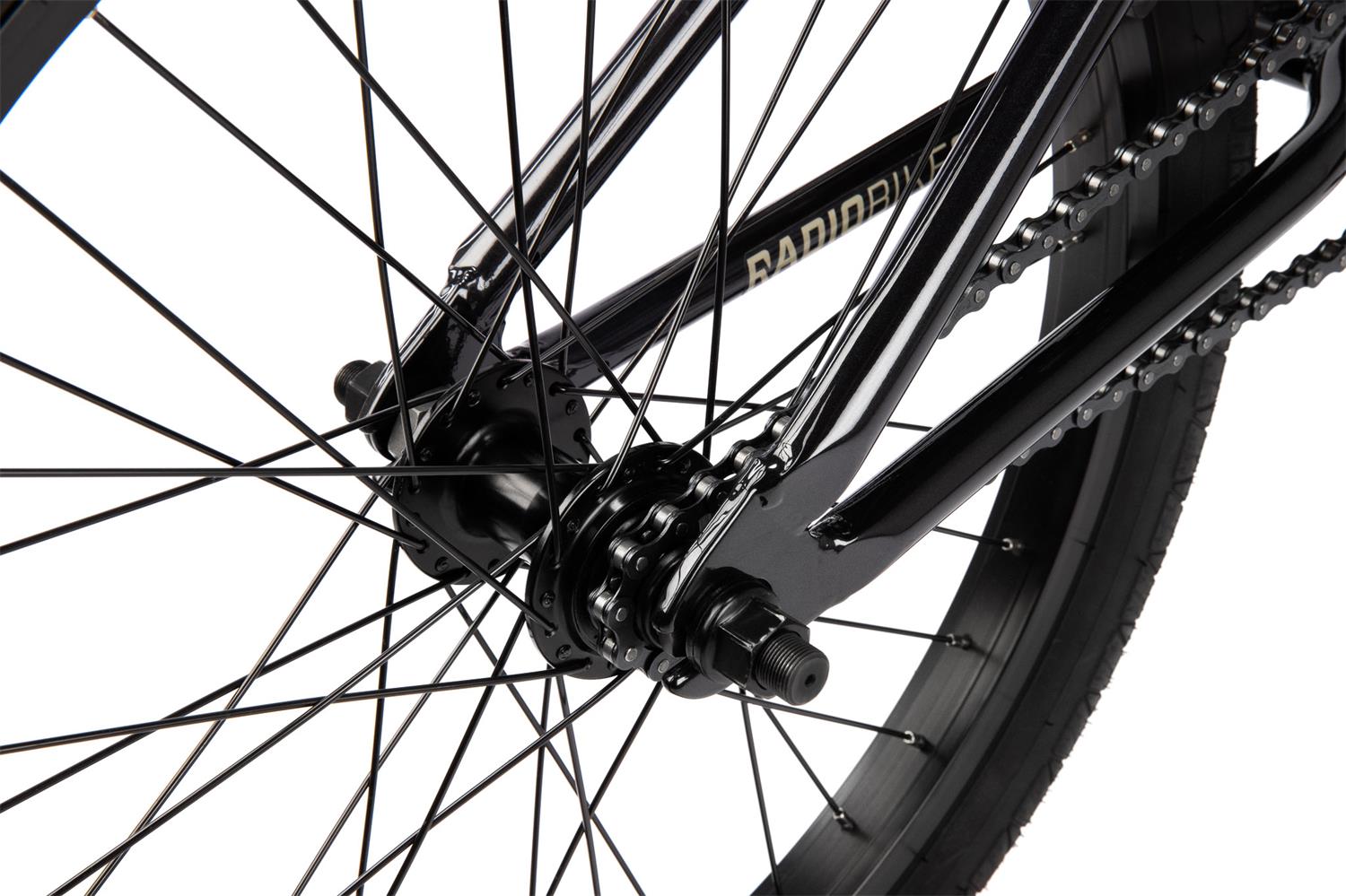

- REAR HUB: RADIO “ROOKIE” cassette hub, steel, lb, 9T, 14mm axle, 36h
- FRONT RIM: SALT “AM” rim, straight single wall, 36h
- REAR RIM: SALT “AM” rim, straight single wall, 36h

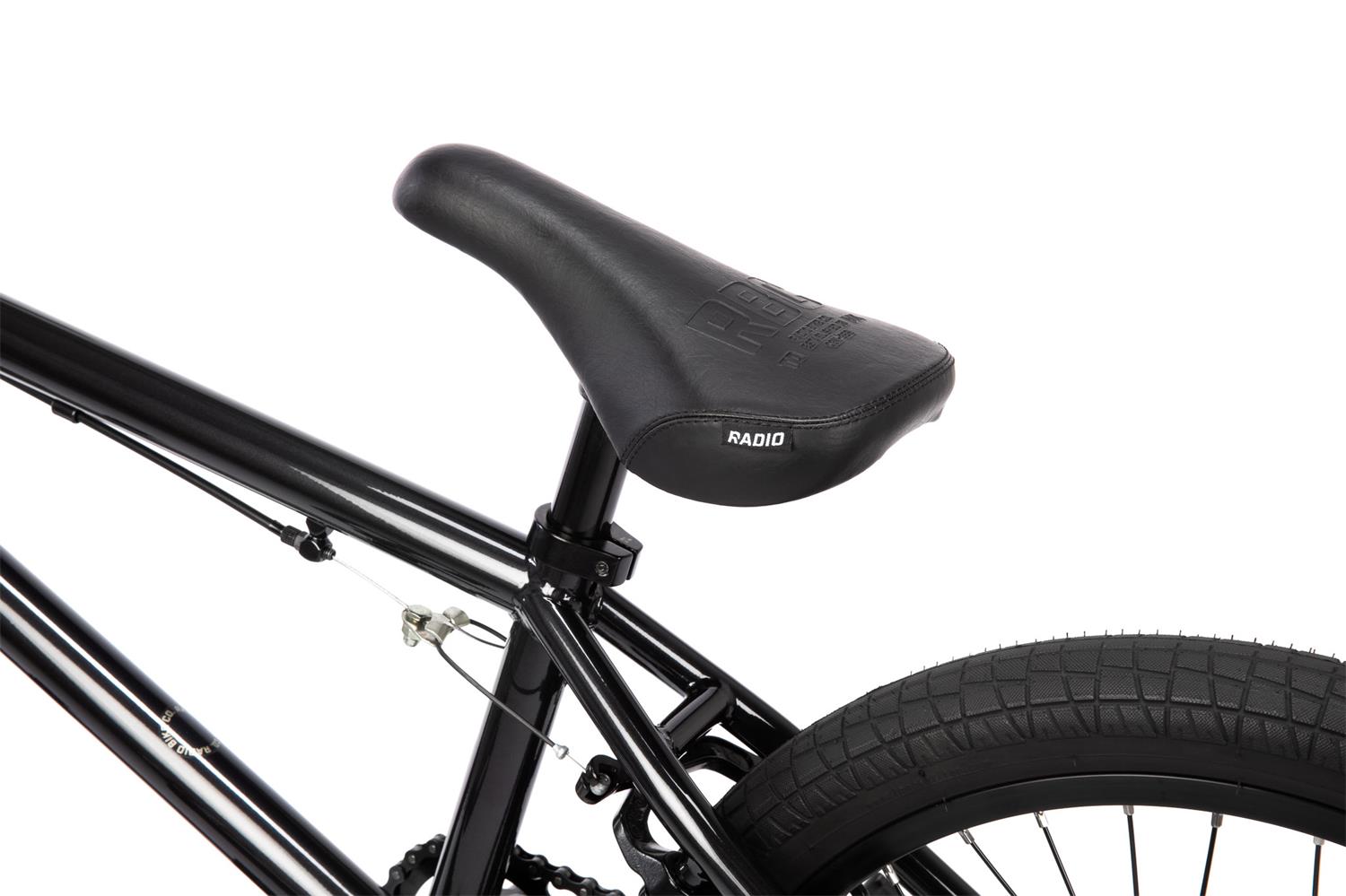

- SEAT: RADIO "CENTURY" combo seat, slim padded
- SEAT CLAMP: RADIO seat clamp, slim, alloy
- TIRES: RADIO “ROOKIE” tires, 20″x2.2″, front & rear
Weight: 12.51kg / 27.59lbs
Frame Geometry:
| Top Tube Length | 20" |
| Chain Stay Length | 13" |
| Head Tube Angle | 75° |
| Seat Tube Angle | 71.5° |
| Bottom Bracket Height | 11.75" |
| Standover Height | 7.8" |
Handlebar Geometry:
| Rise | 8.75" |
| Width | 29" |
| Backsweep | 11° |
| Upsweep | 2° |
