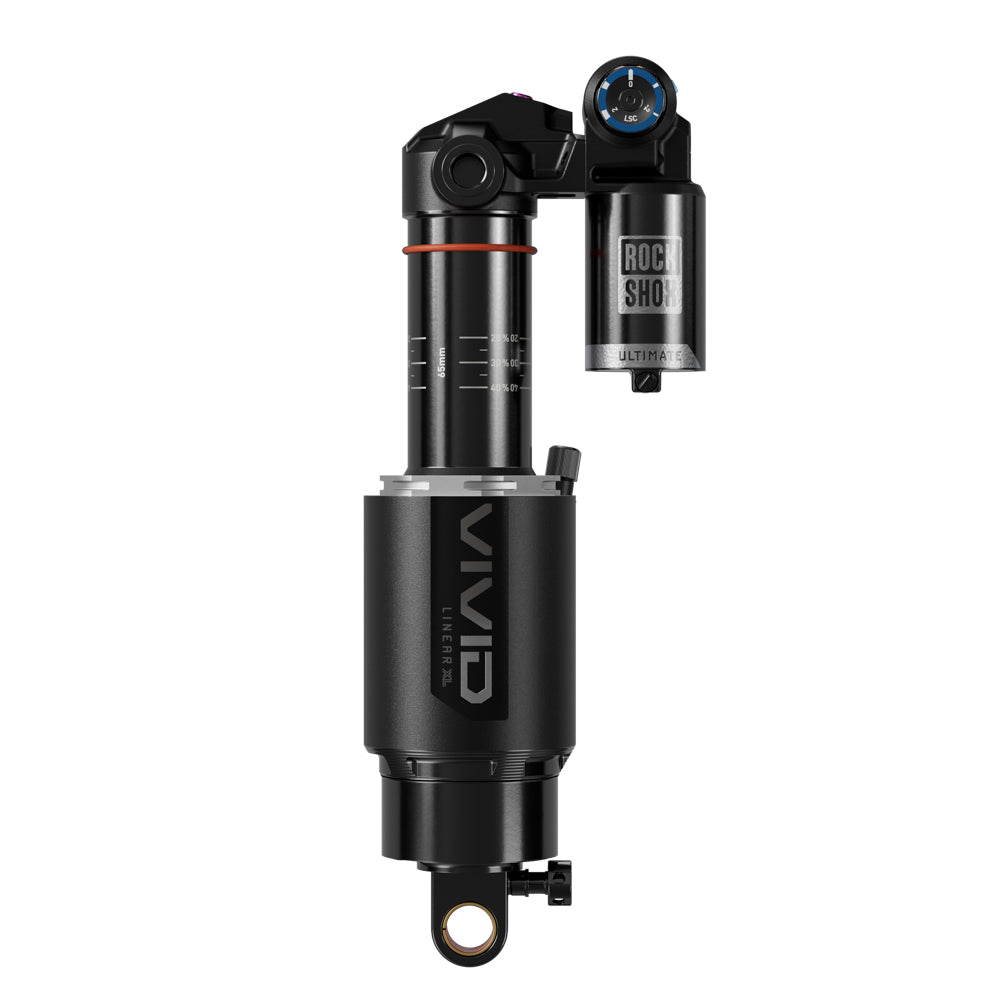

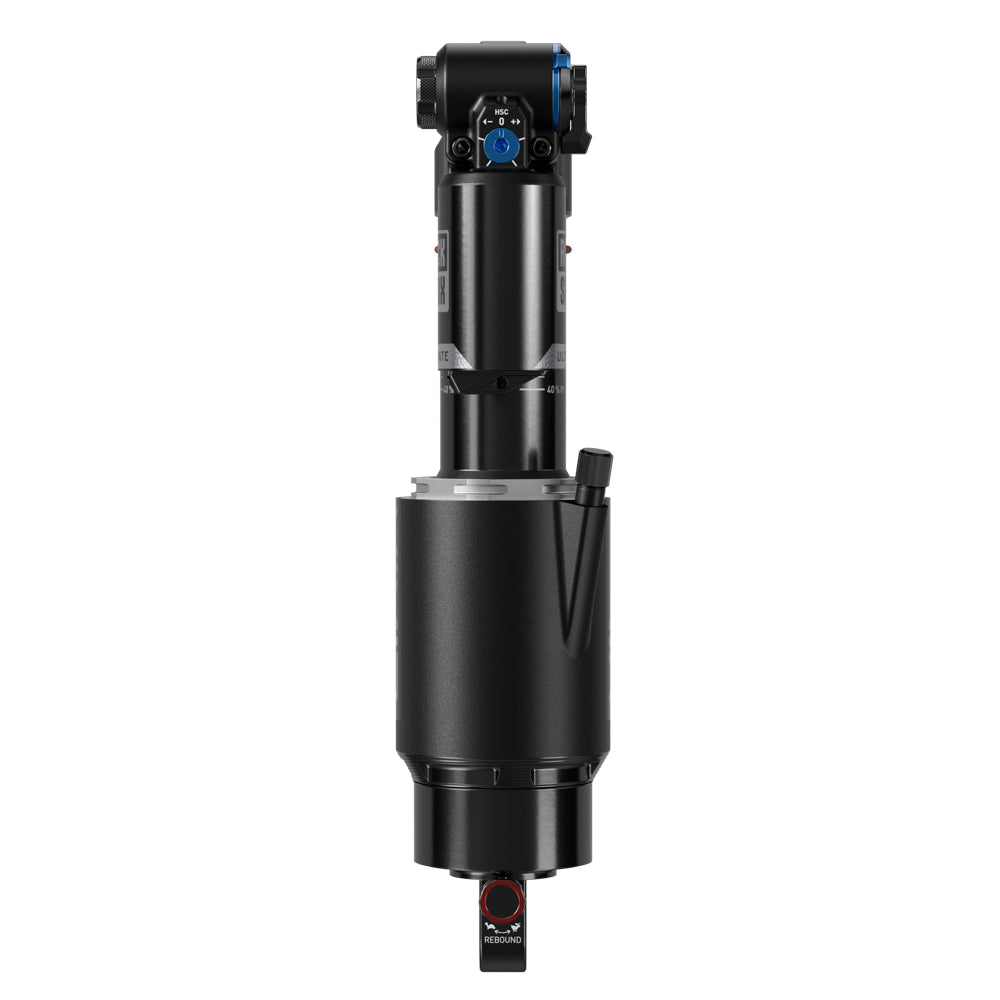

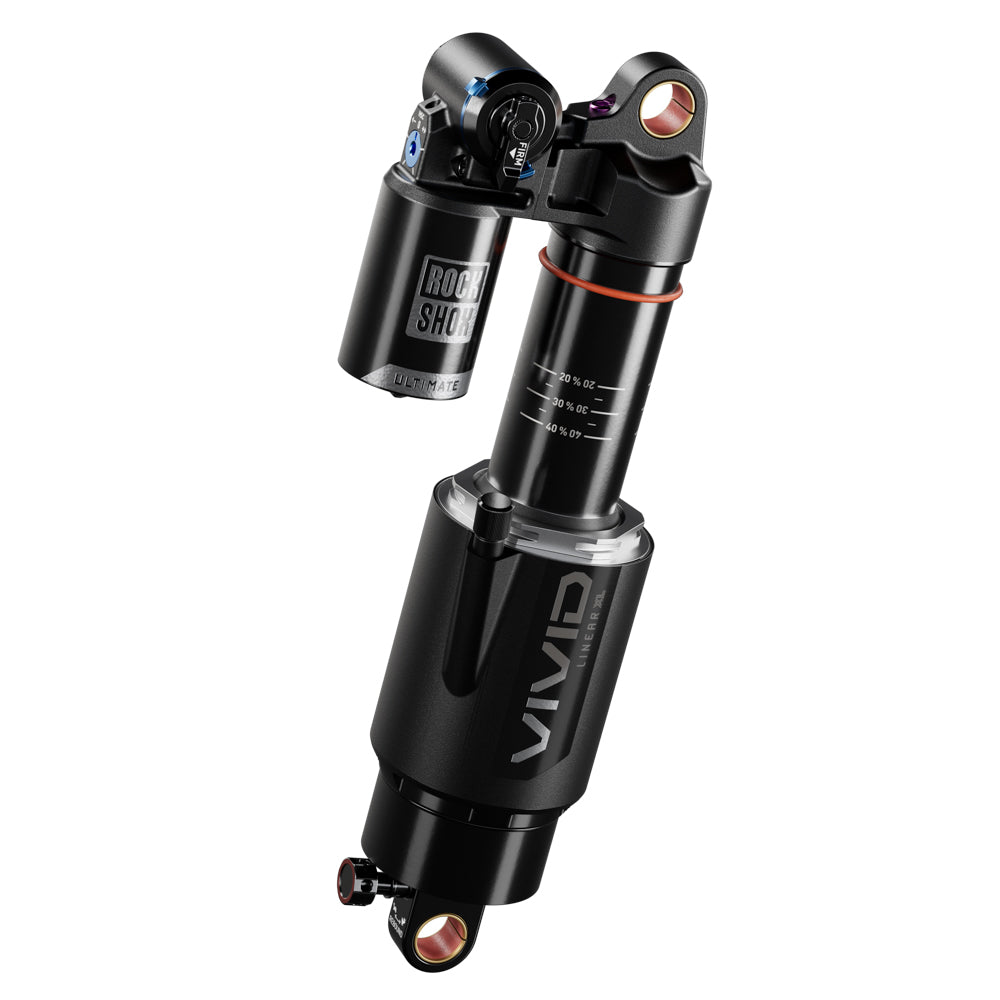

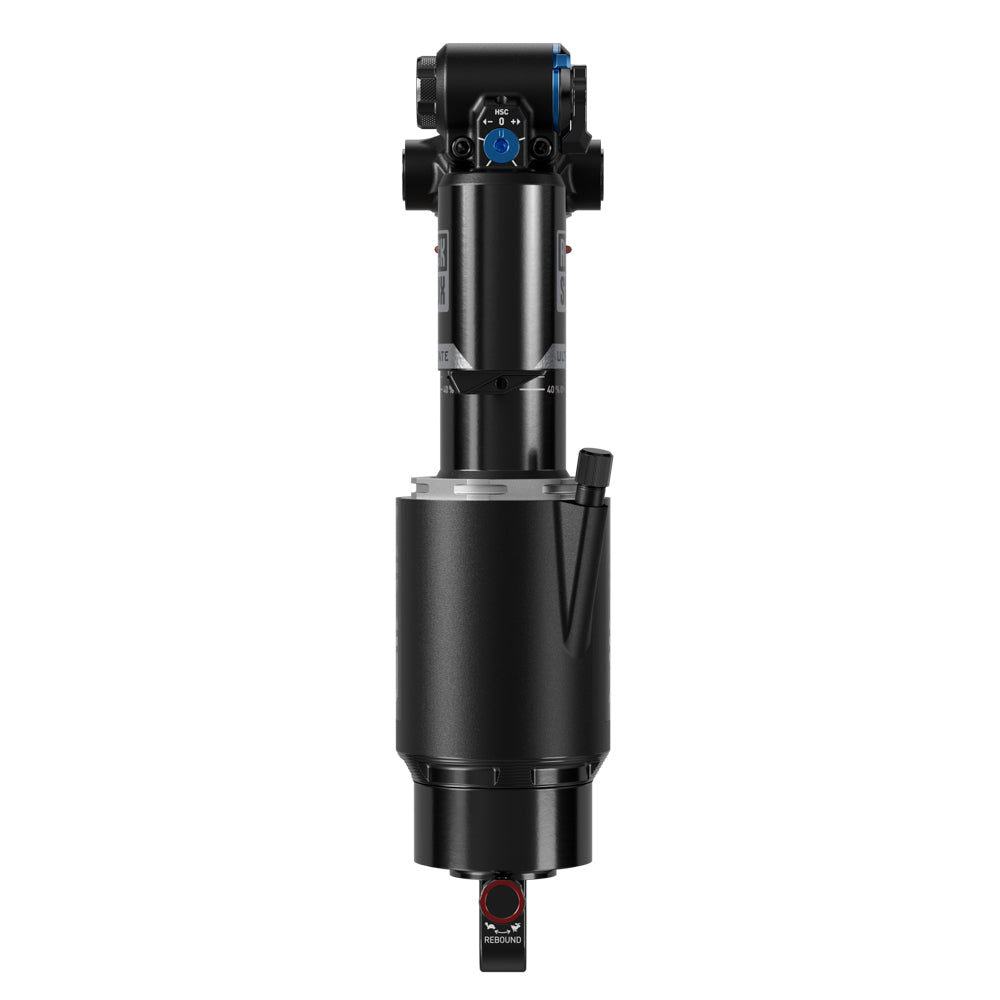

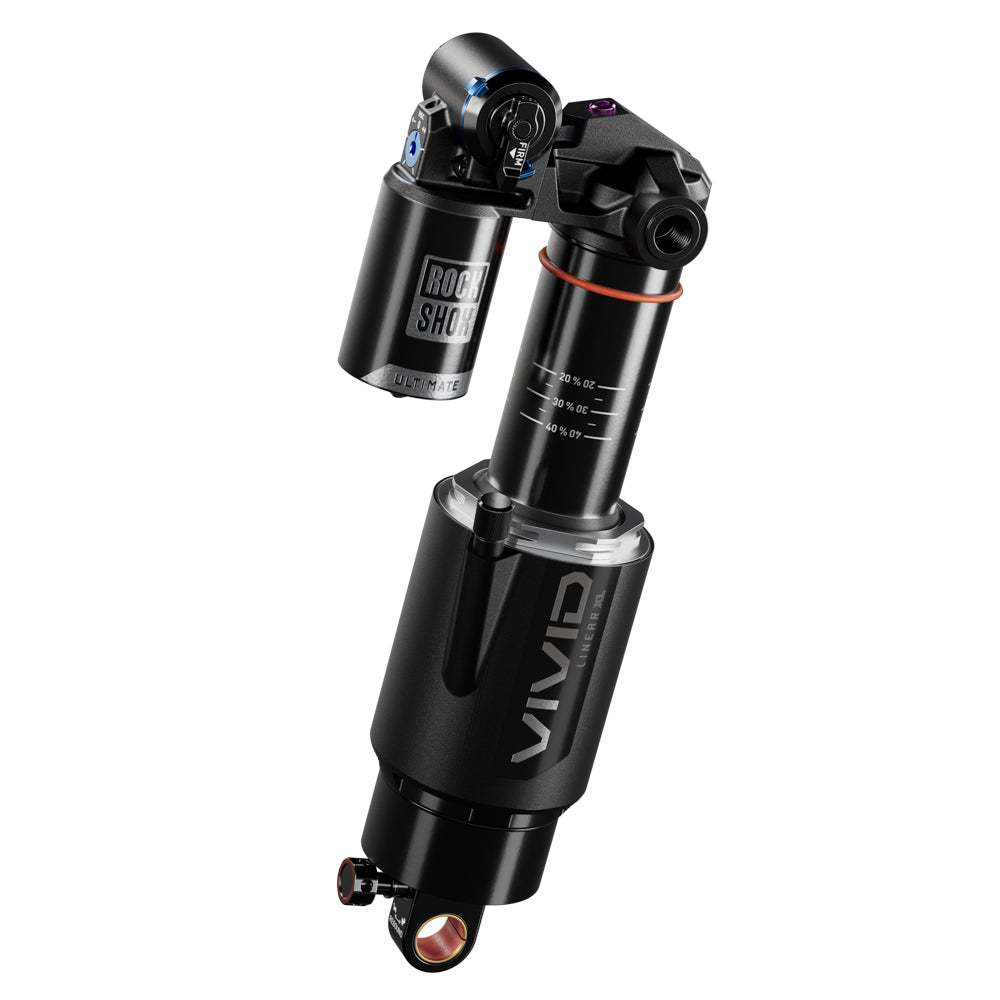

RockShox Vivid Air Ultimate Rear Shock
Coil-Like Feel. Downhill-Proven Performance. Ultimate Adjustability.
The RockShox Vivid Air Ultimate is built for riders who demand the highest level of rear suspension performance. Developed and proven on the World Cup circuit, it delivers the sensitivity and control of a coil shock with the versatility and tunability of an air spring. Whether you're racing downhill, charging enduro stages, or riding a powerful eMTB, the Vivid Air Ultimate is designed to stay composed on the biggest hits while maintaining exceptional traction throughout the entire ride.
Its LinearXL air spring provides a supple initial stroke, supportive mid-stroke, and predictable end-stroke control, while the RC2T damper offers independent High Speed and Low Speed Compression adjustment for precise tuning. The addition of Adjustable Bottom Out (ABO) lets you fine-tune the final portion of the shock's travel, helping you ride harder with greater confidence.
Key Features
- World Cup-proven performance for downhill, enduro, and eMTB riding
- NEW LinearXL air spring delivers a smooth, coil-like ride feel
- Easy-to-change Bottomless Tokens allow spring progression tuning
- NEW RC2T damper with independent High Speed Compression (HSC) and Low Speed Compression (LSC) adjustment
- Numbered compression adjusters for quick, repeatable setup
- Main piston tune matched to Charger 3.2 damper performance for improved mid-stroke support
- Reduced internal friction for exceptional small bump sensitivity and traction
- Externally Adjustable Bottom Out (ABO) with five compression settings
- Removable rebound knob doubles as HSC and ABO adjustment tool
- 20-click rebound adjustment for precise tuning
- E-bike approved
- 8 × 30mm bearing adapter available separately for standard eyelets
Specifications
- Damper: RC2T with Adjustable Hydraulic Bottom Out
- Air Spring: LinearXL
- Bottom Out: Externally Adjustable Bottom Out (ABO)
- Rebound Tune: R55
- Compression Tunes: C26 / C30 / C34 / C37 / C43
- Lockout Force: X25 / X45
- Body Eyelets: Standard or Trunnion
- Shaft Eyelets: Standard, Standard 75° Rotation, No Bushing, or No Bushing 90° Rotation
- E-bike Approved
- Available Sizes:
- 185 × 55mm (Trunnion)
- 205 × 57.5mm (Trunnion)
- 205 × 60mm (Trunnion)
- 205 × 62.5mm (Trunnion)
- 205 × 65mm (Trunnion)
- 210 × 55mm
- 230 × 57.5mm
- 230 × 60mm
- 230 × 62.5mm
- 230 × 65mm
Why Choose the RockShox Vivid Air Ultimate?
If you want the feel of a coil shock without sacrificing the convenience and tunability of air, the RockShox Vivid Air Ultimate is hard to beat. Its exceptionally supple LinearXL air spring, highly adjustable RC2T damper, and five-position Adjustable Bottom Out system allow you to dial in your suspension for everything from bike park laps to elite-level downhill racing. The result is more traction, greater confidence, and a rear shock that's ready for the most demanding terrain.
