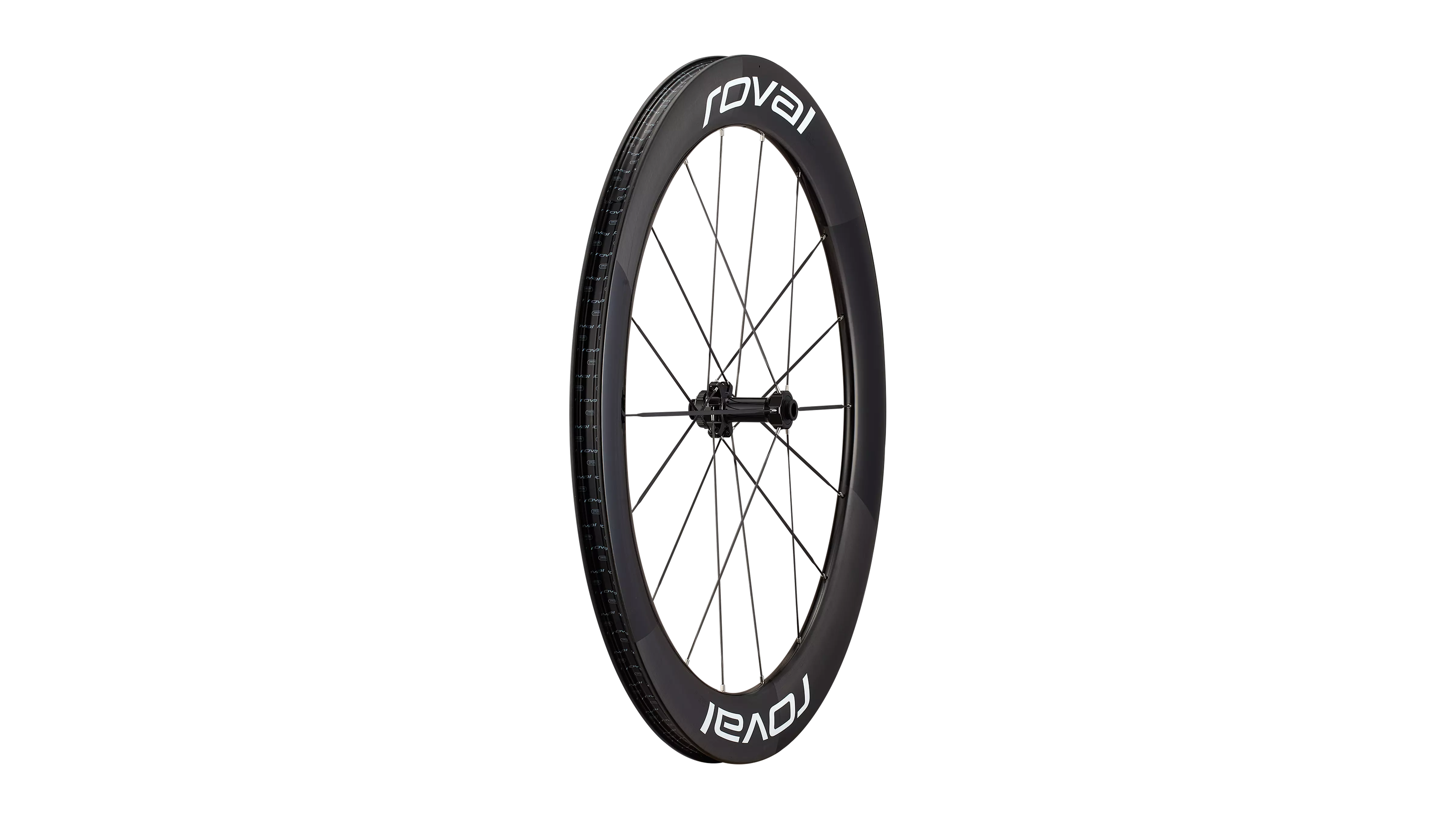

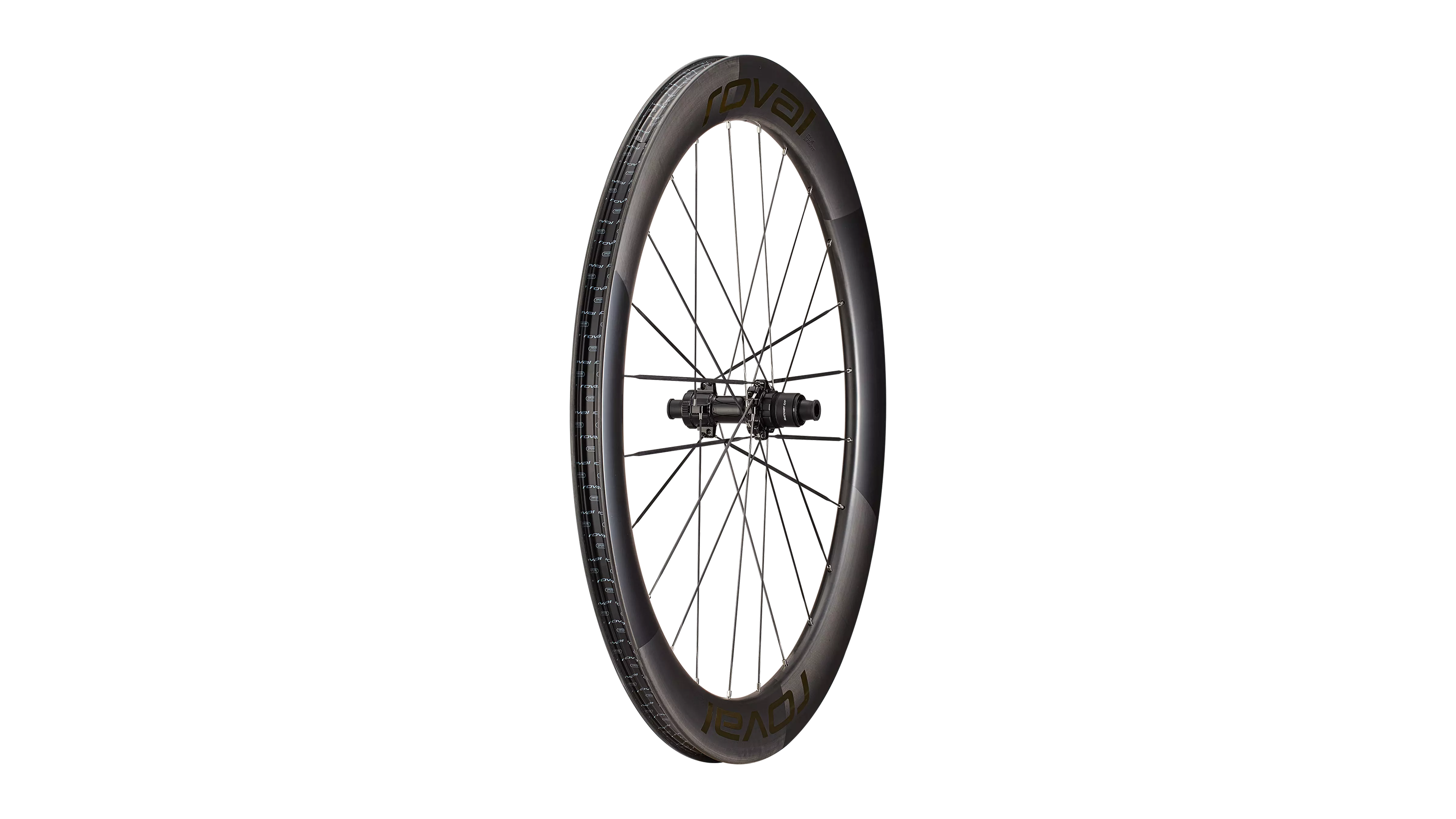

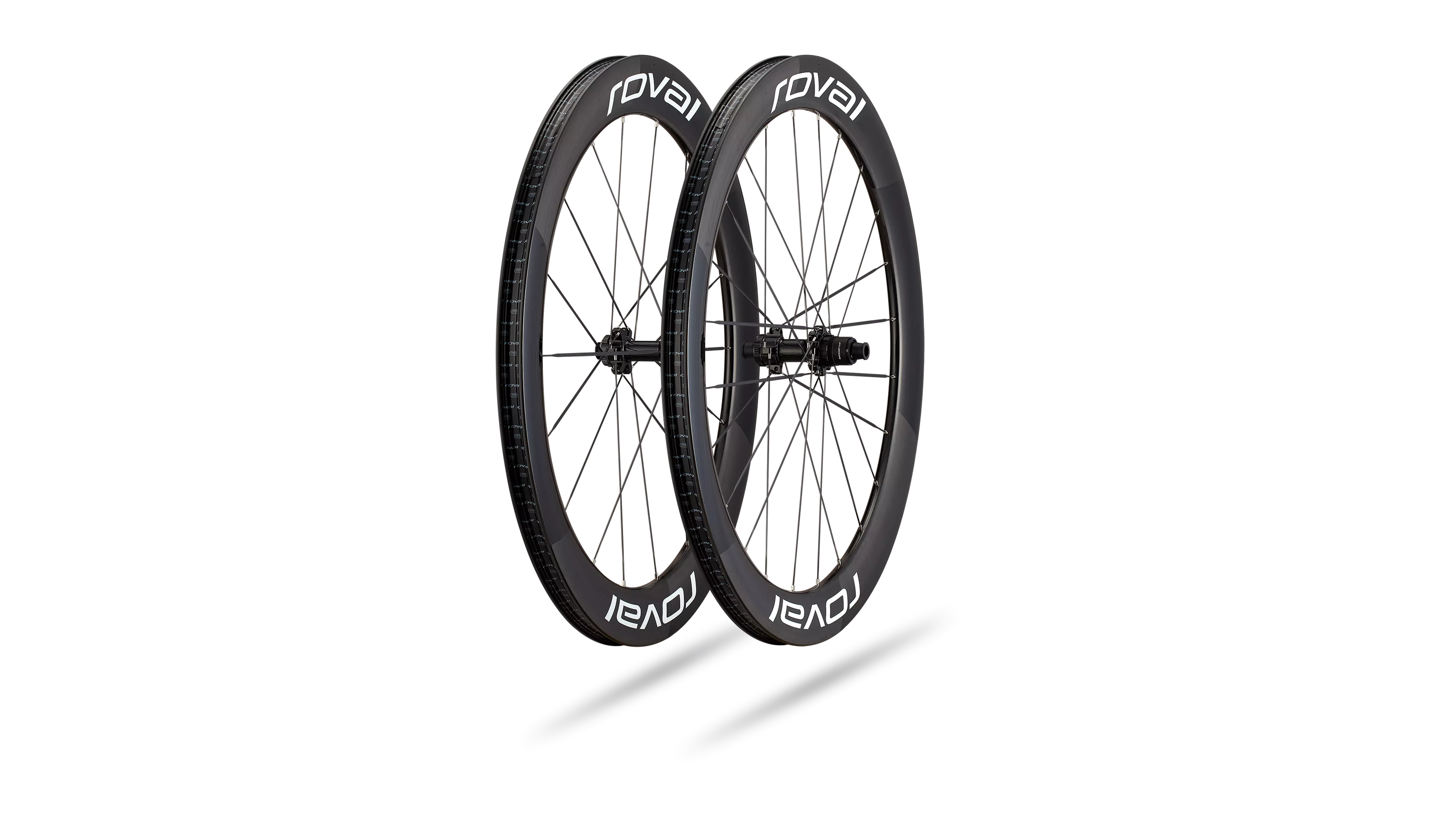

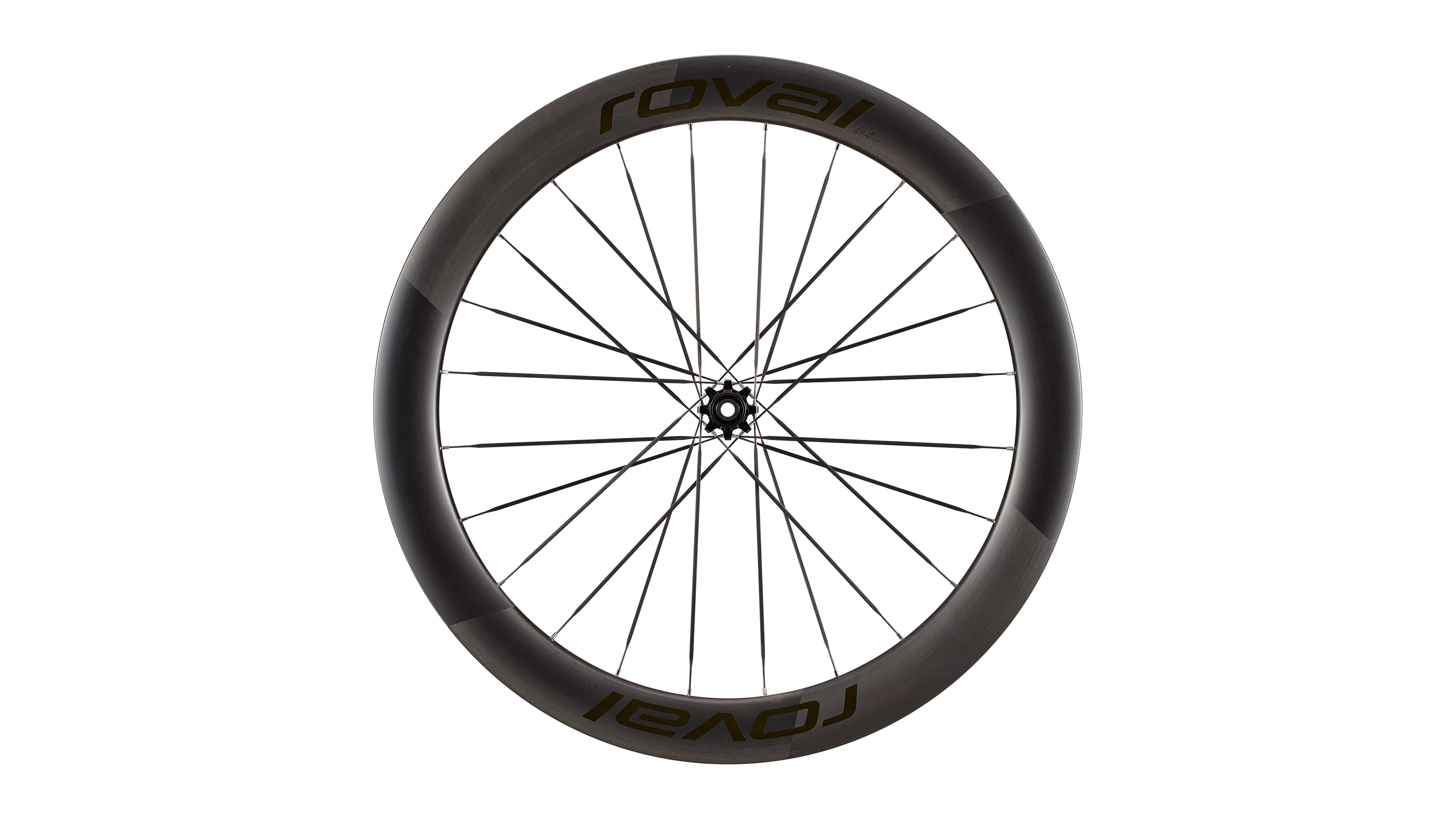

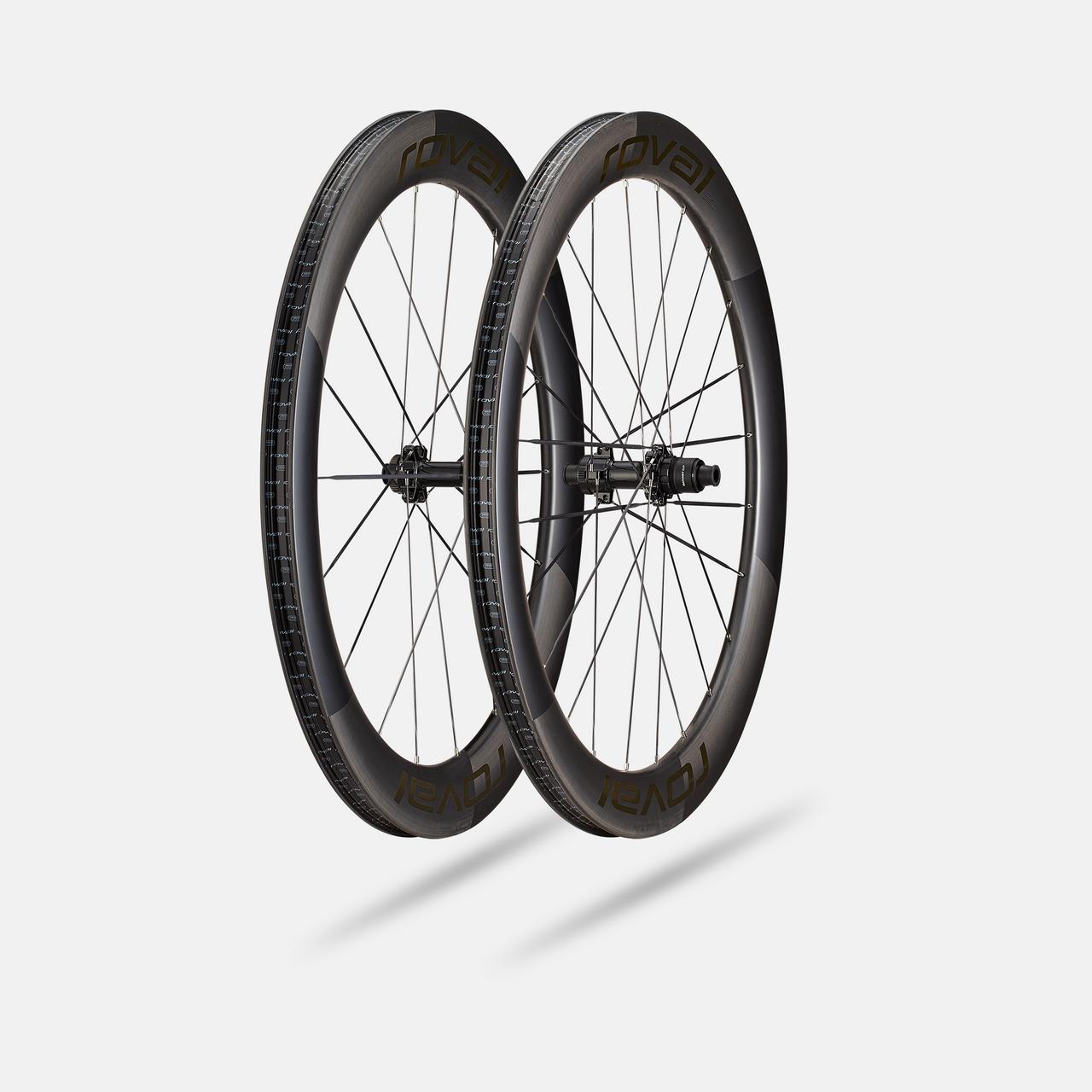

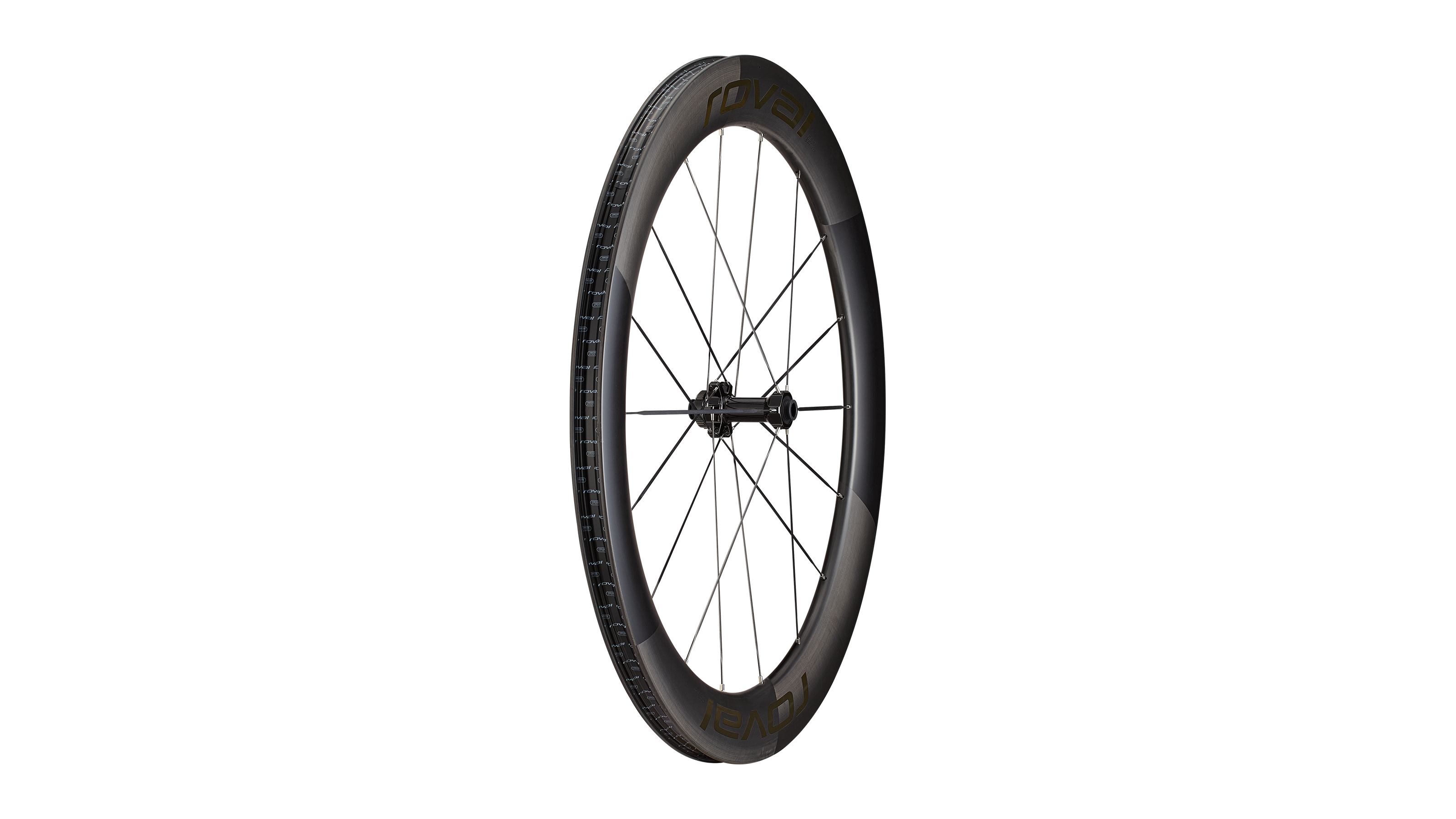

Meet the Roval Rapide CLX Sprint—built to get to the finish line first. Since 90% of aero benefit comes from the front wheel, we went all-in with a 63mm deep front rim to slice through the wind, and a lightweight 58mm rear with carbon spokes for blistering acceleration when it counts. Charge full gas with confidence: FlatStop bead hooks demand 39% more force to flat, delivering race-day reliability that lasts to the line. Roval is shifting the aero paradigm—depth redefined for absolute speed. Use - Road Racing
Weight - 1,395 grams
Hub & Engagement - DT Swiss 180 EXP internals, 36T

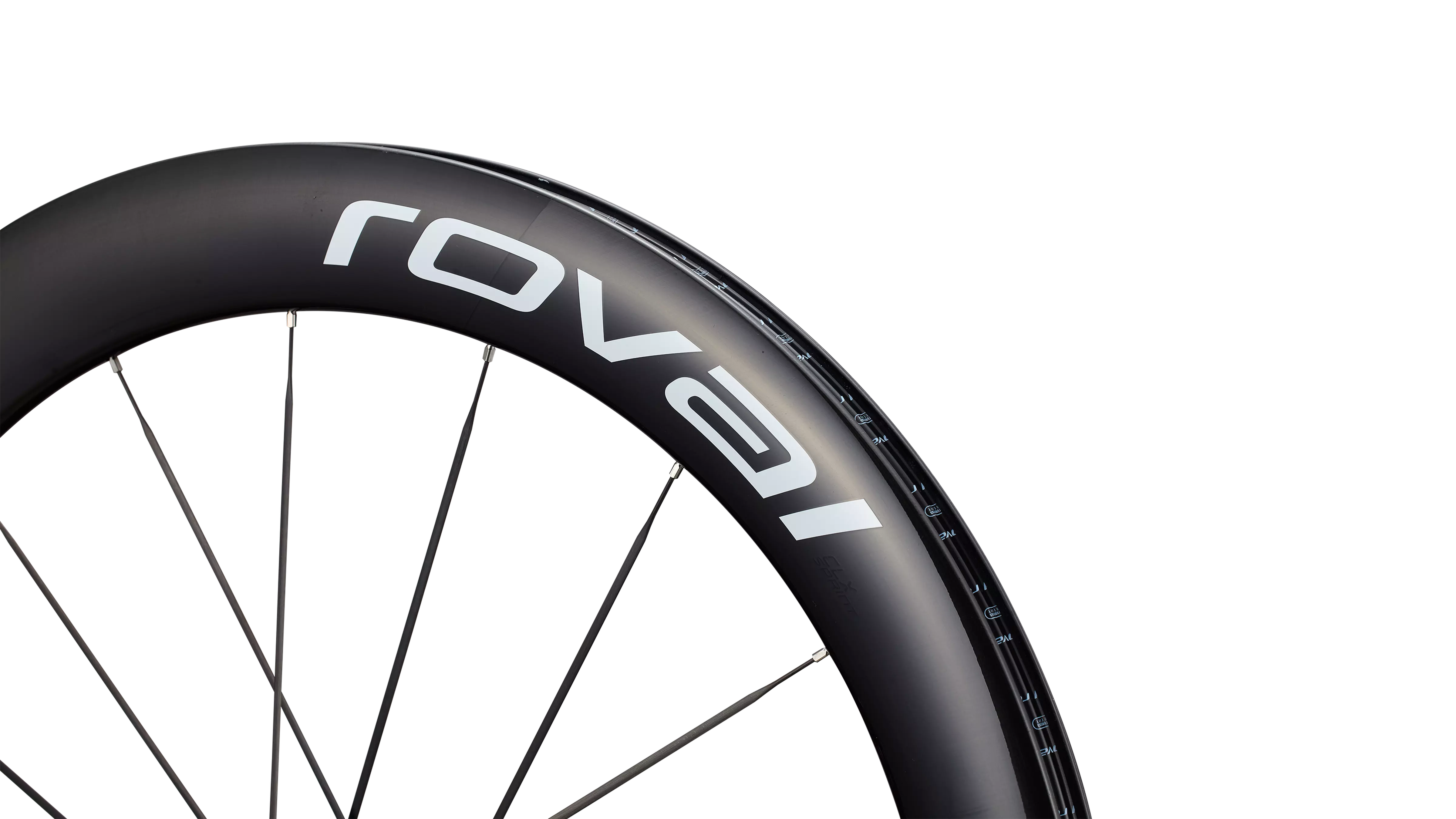

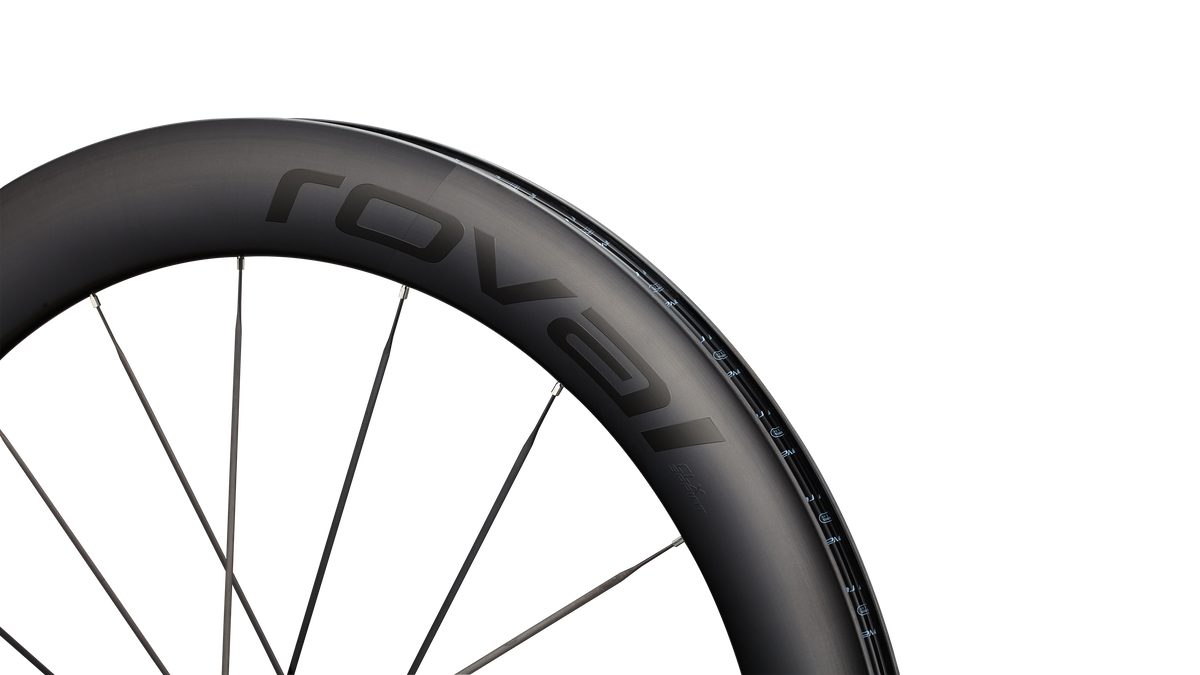

Rim Depth - 63mm front, 58mm rear
Spoke Count - 18F/24R
Tire Size - 28mm Optimized
Rims
Wheel Size / ETRTO
622 × 21 (700c)
Tubeless Compatibility
Yes
Insert Compatibility
Yes
Brake Compatibility
Disc (Centerlock)
Rim Construction
Carbon Clincher Hooked
Valve Stem Length
Roval Tubeless Vlave, Alloy 80mm
Hole Count
Front: 18H, Rear: 24H

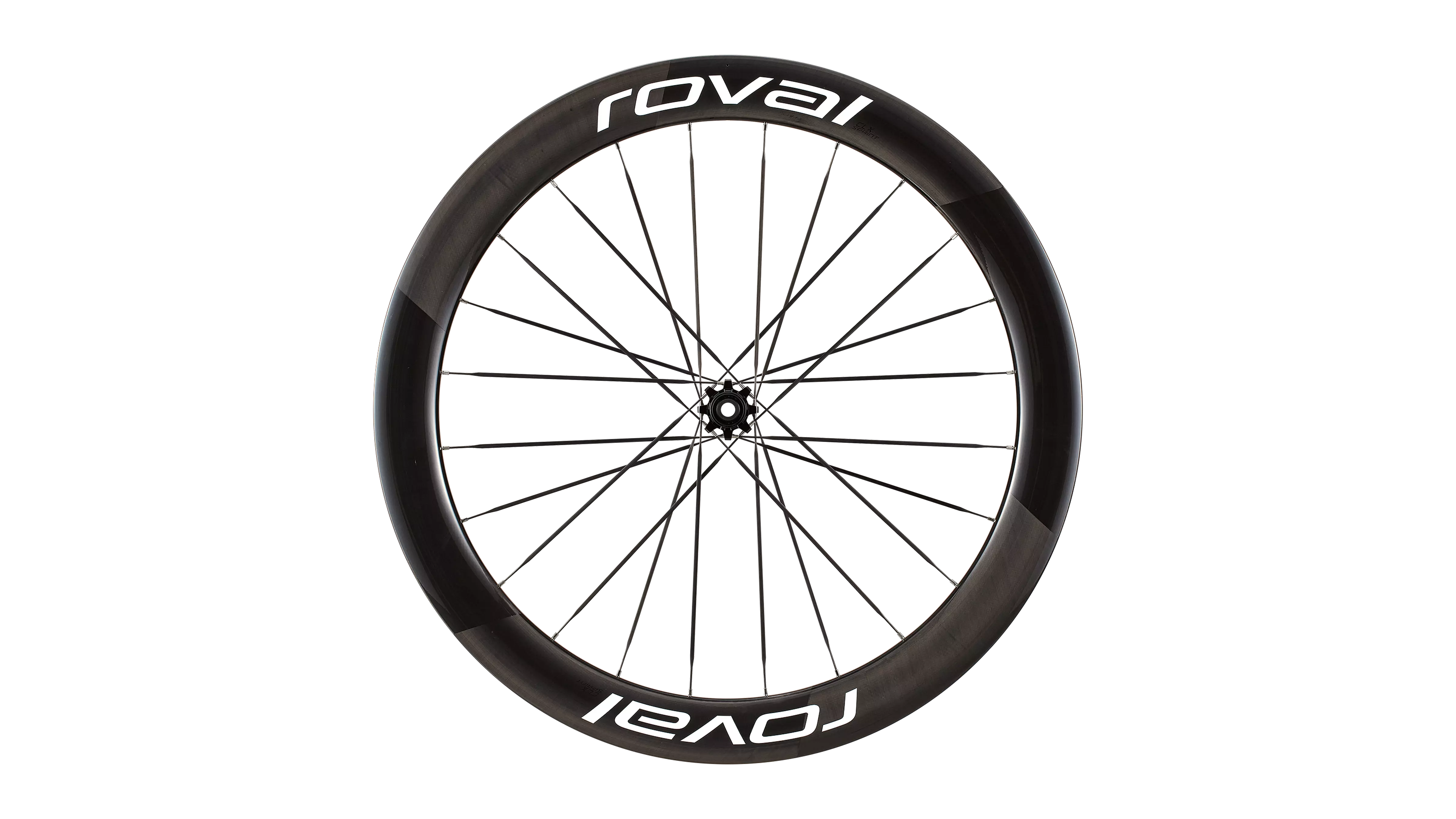

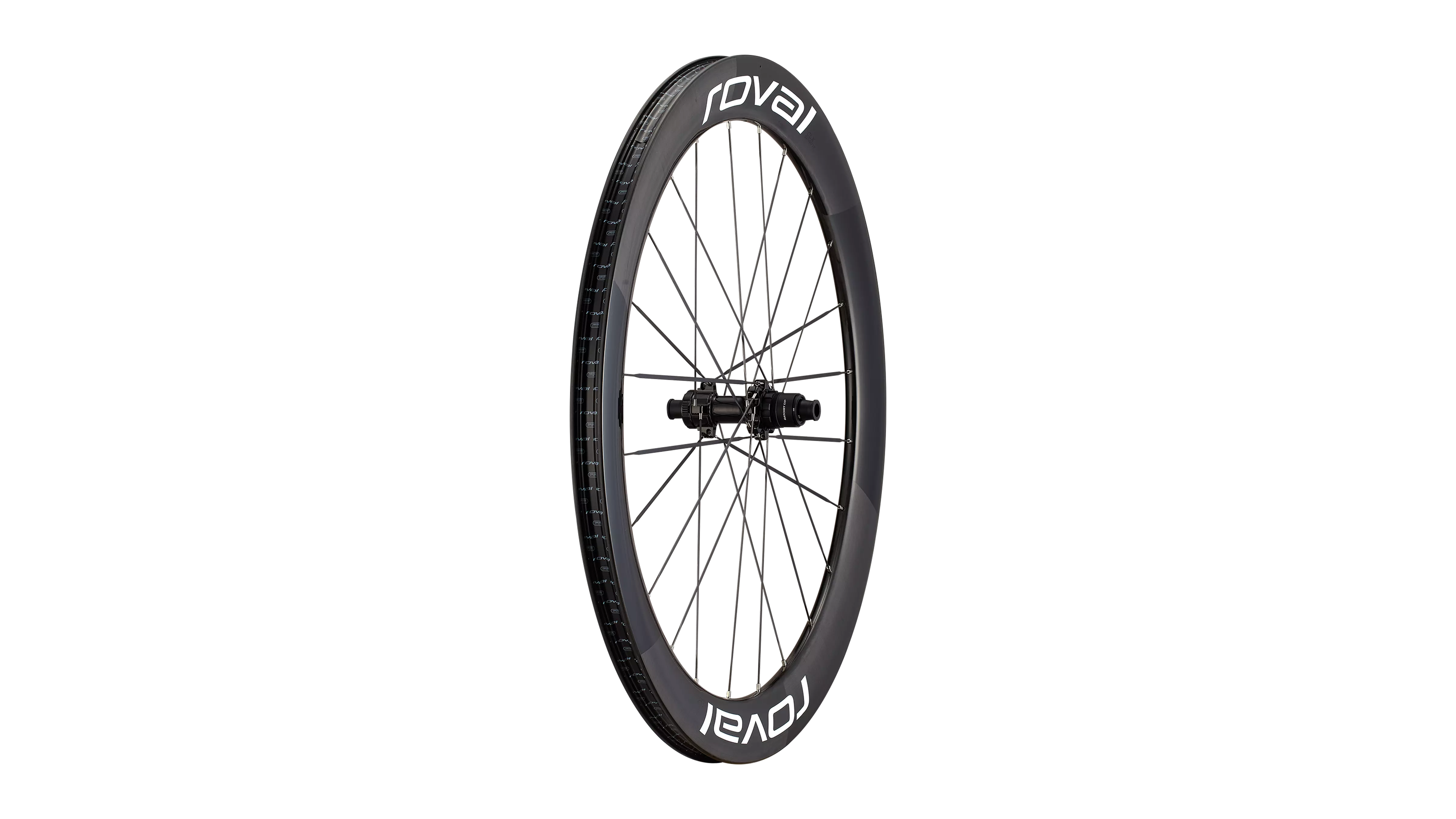

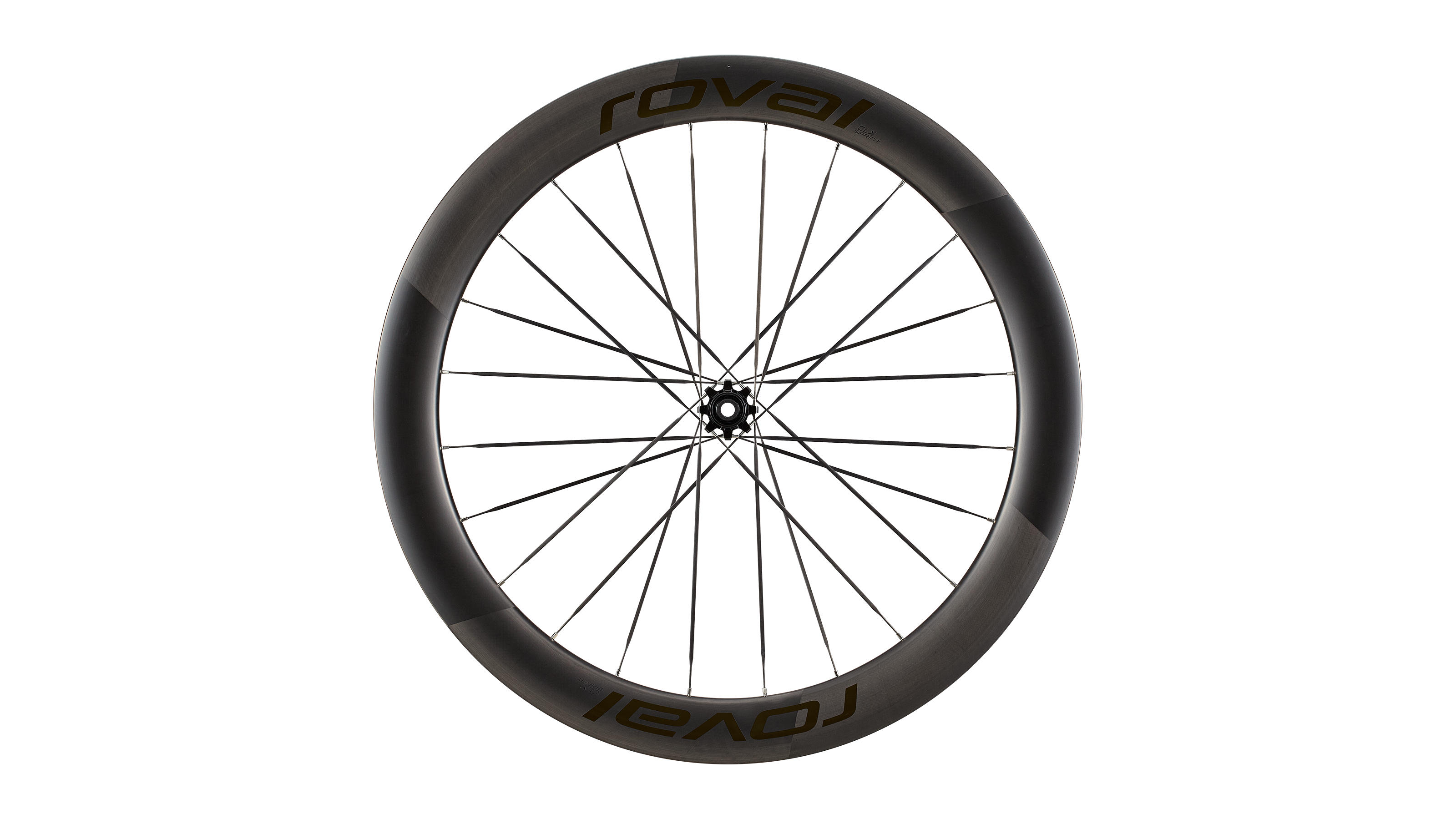

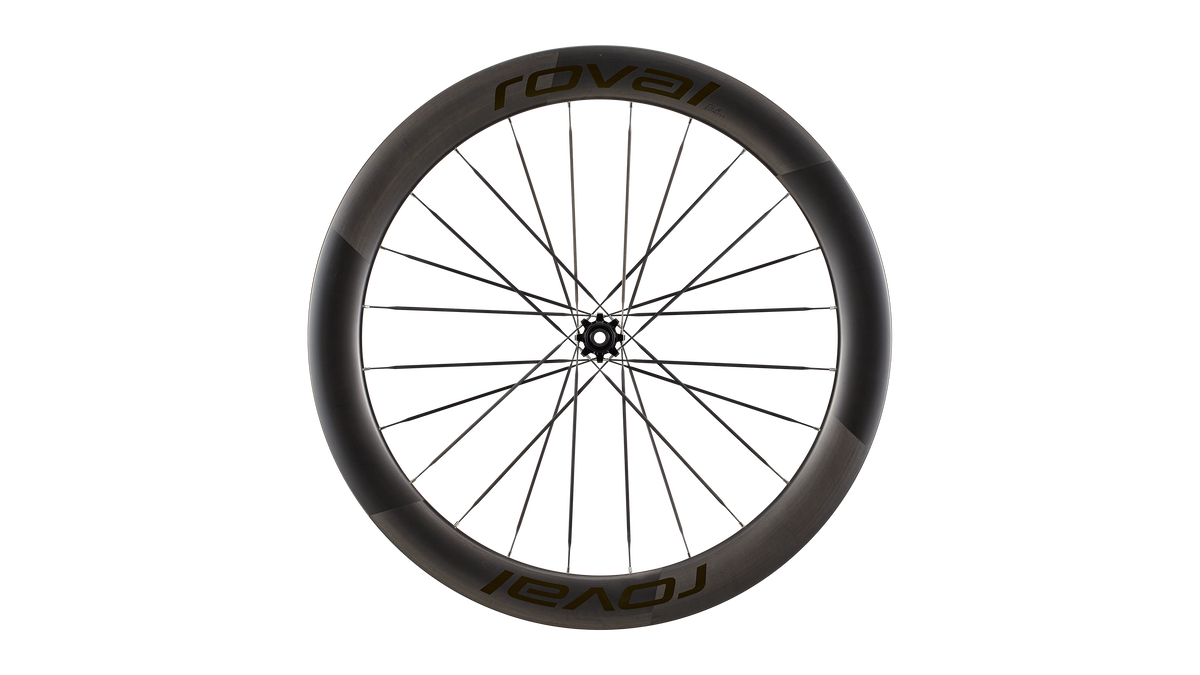

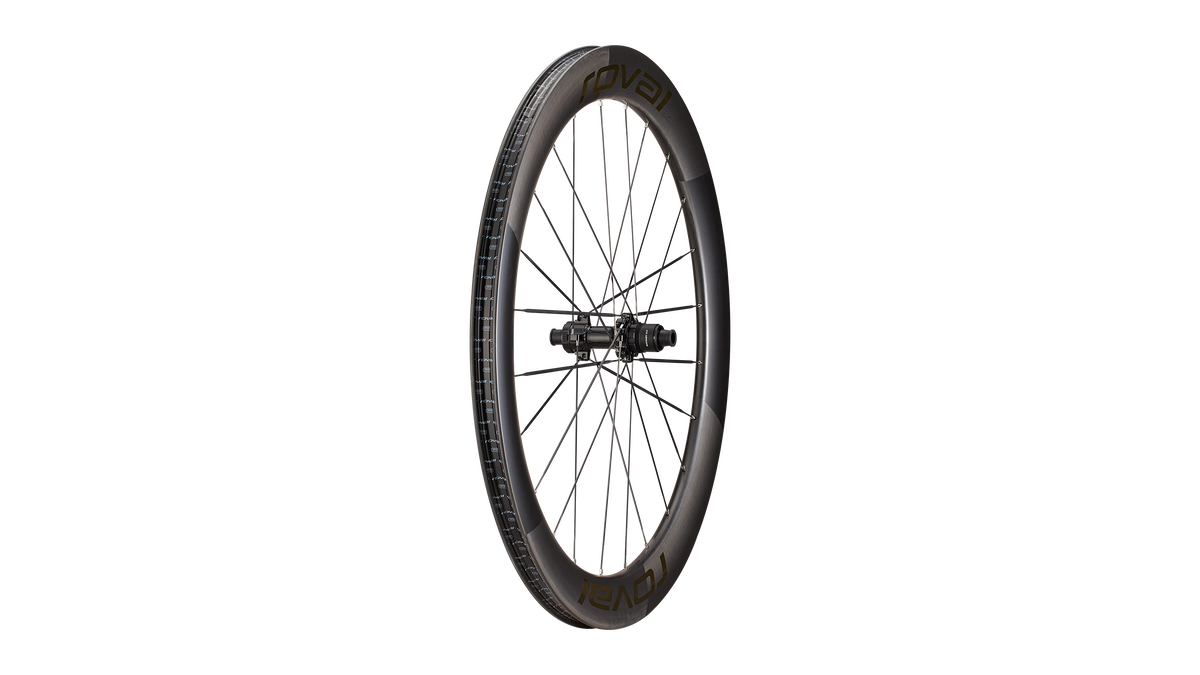

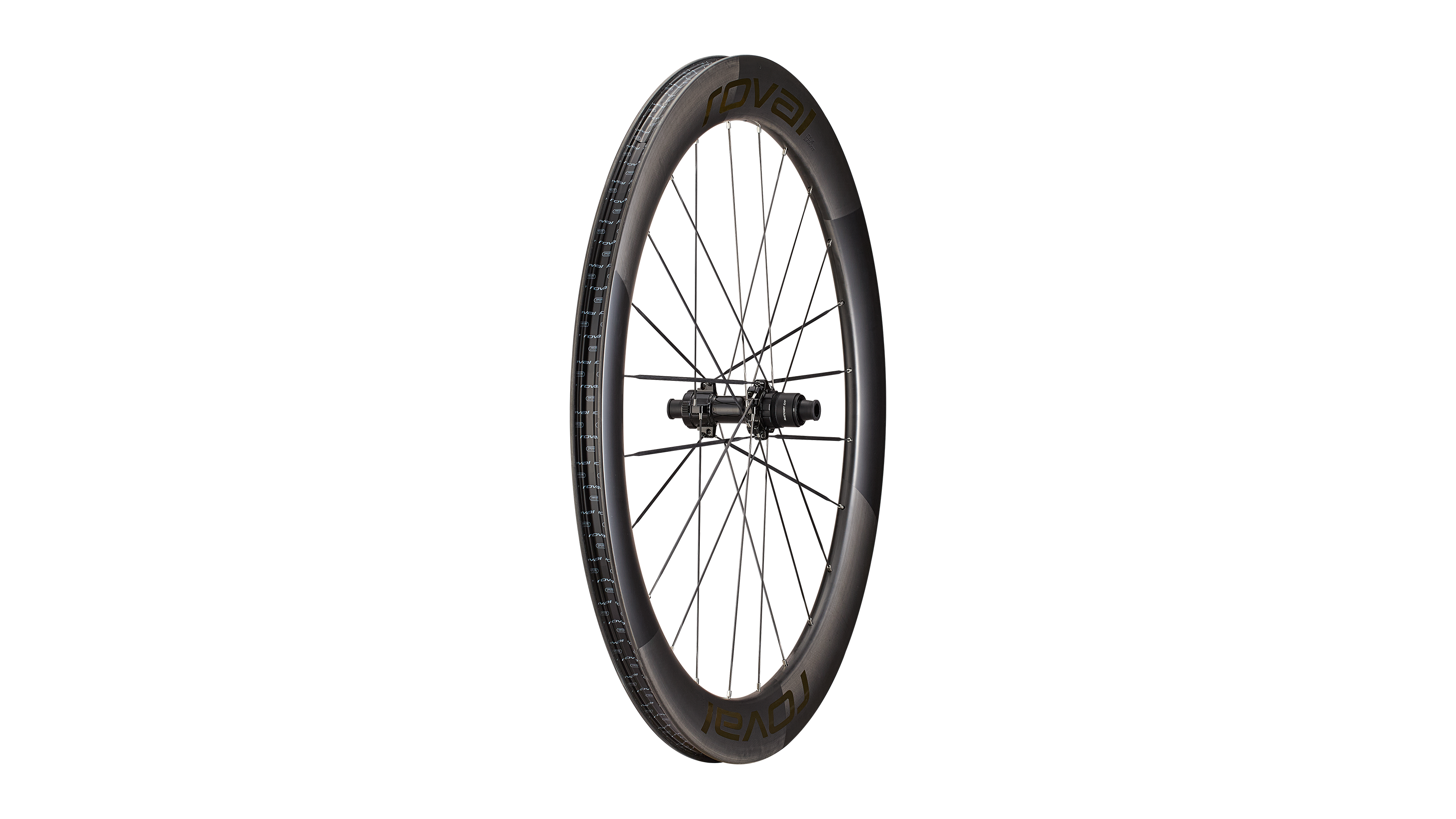

Rear Rim
Rapide Sprint CLX Carbon Clincher Rear, 700c (CR2375)
Rear Rim Dimensions
Depth: 58mm, External Width (at widest point): 34.4mm, Internal Width: 21mm, Bead Hook Width: (4.2)mm

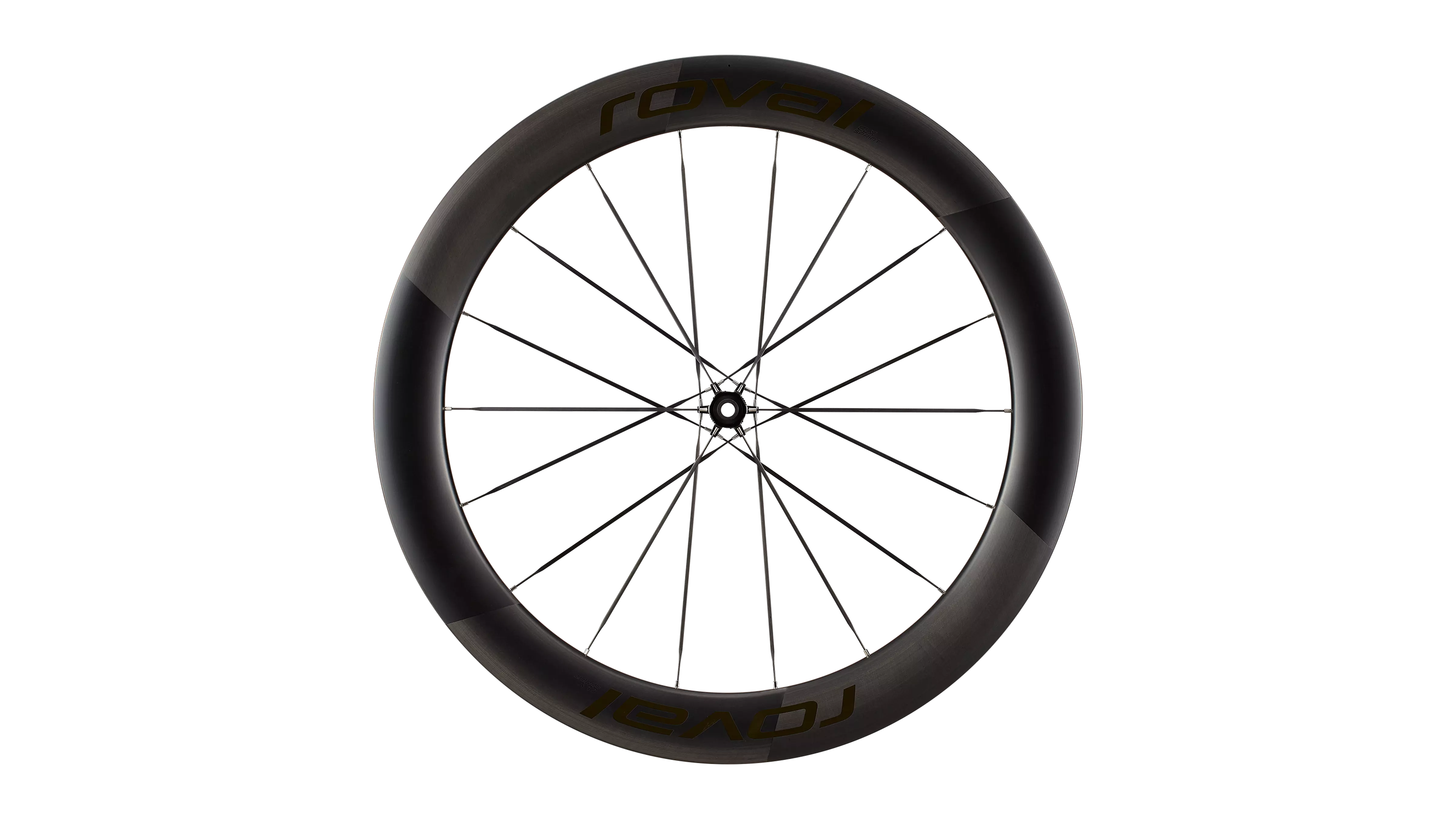

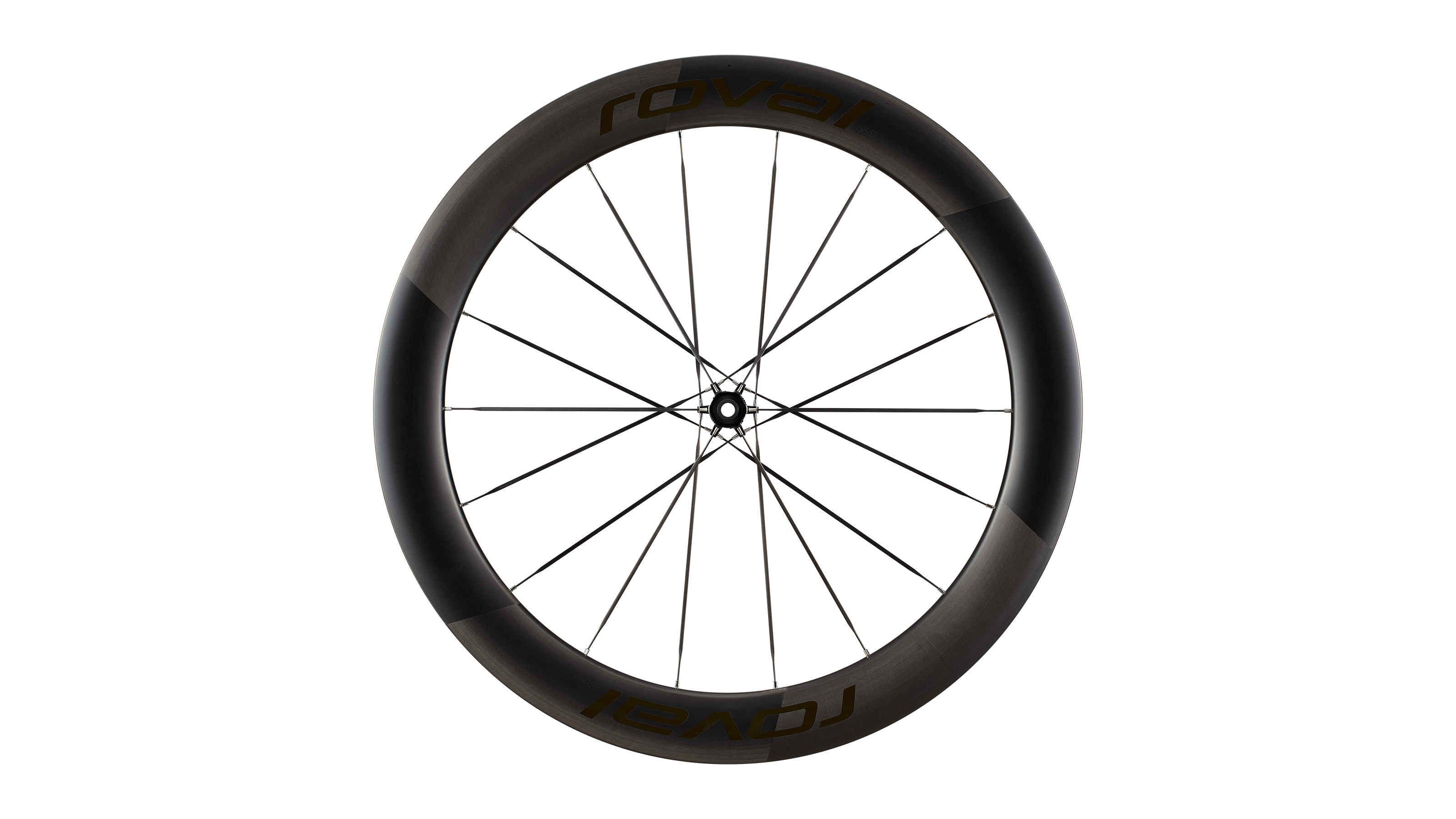

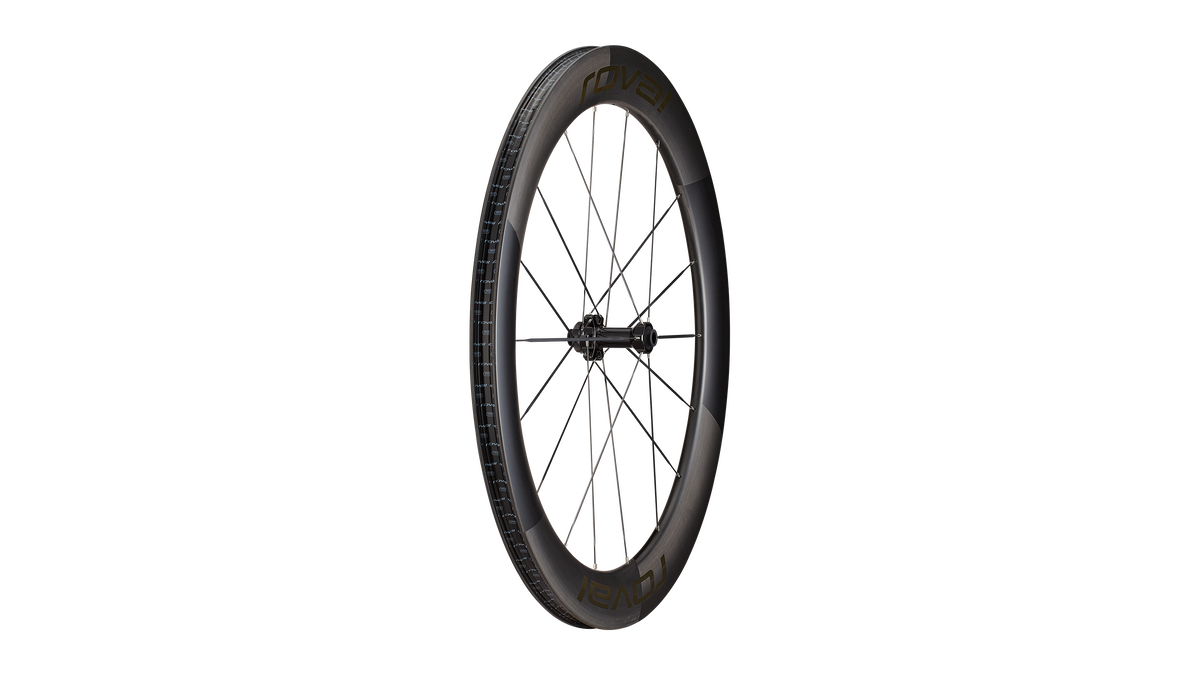

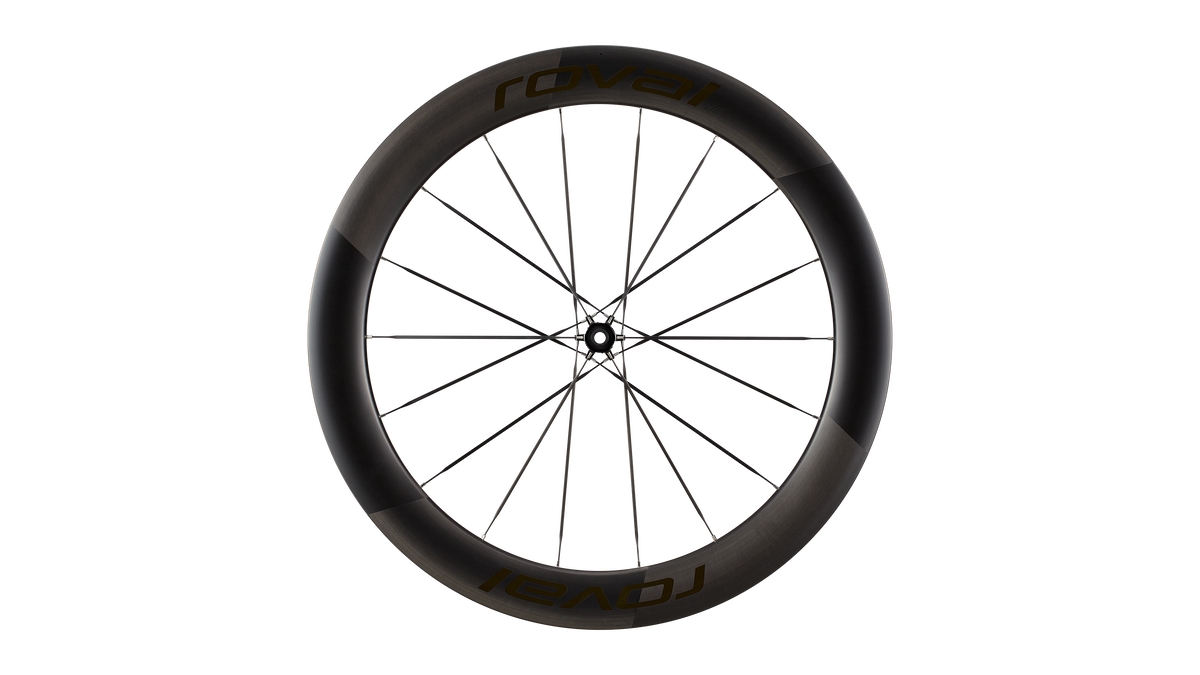

Front Rim
Rapide Sprint CLX Carbon Clincher Front, 700c (CR2374)

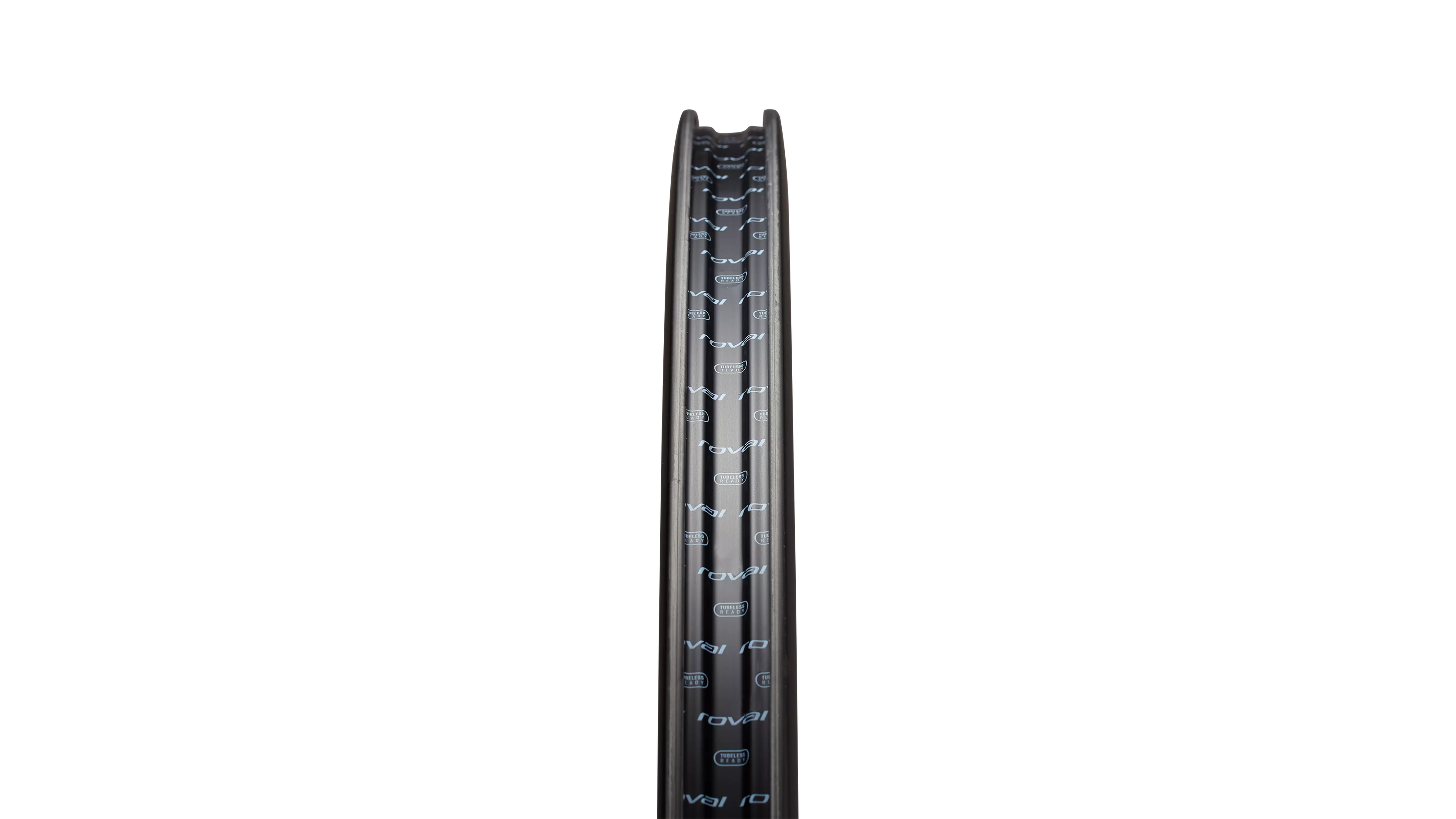

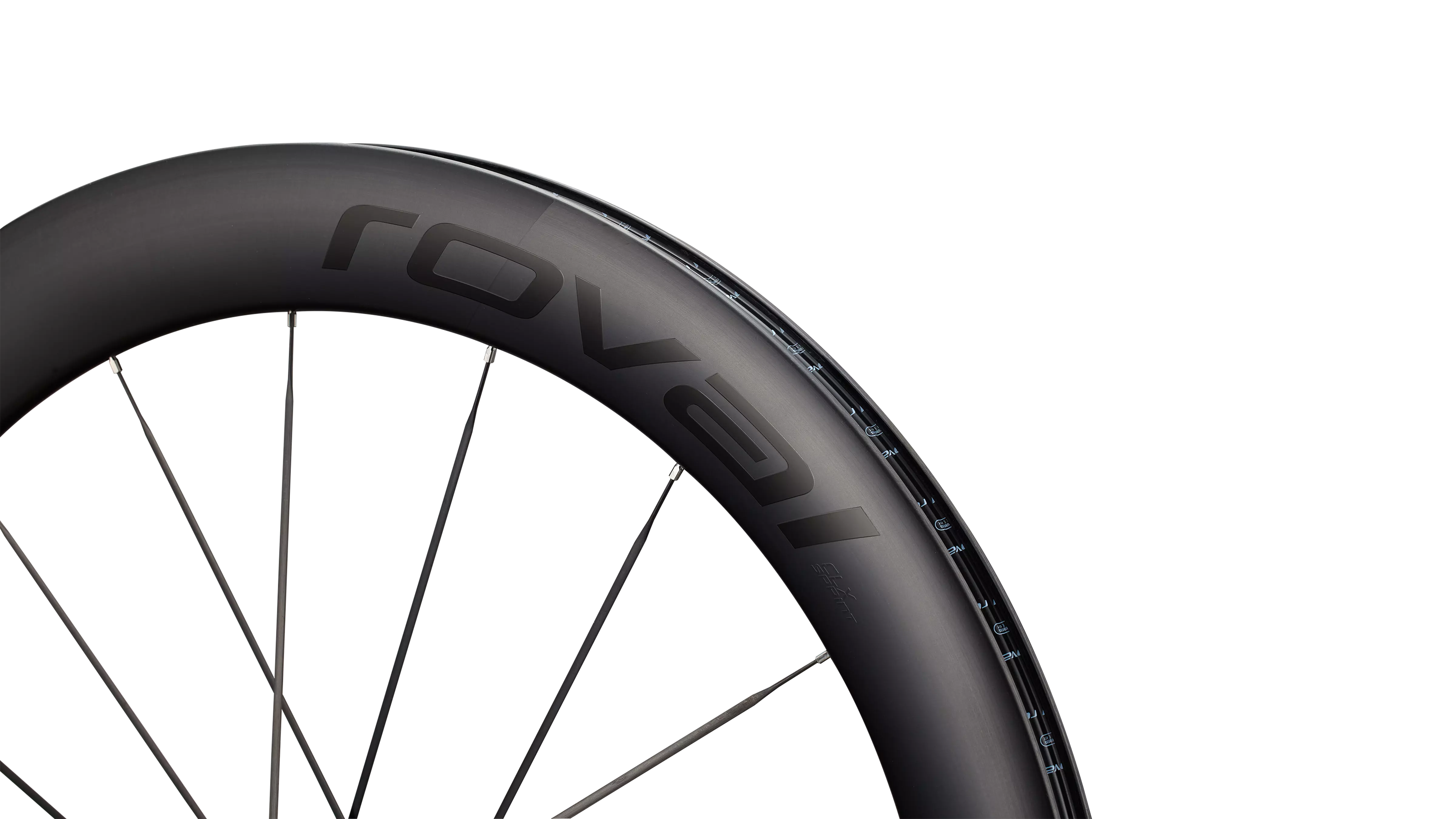

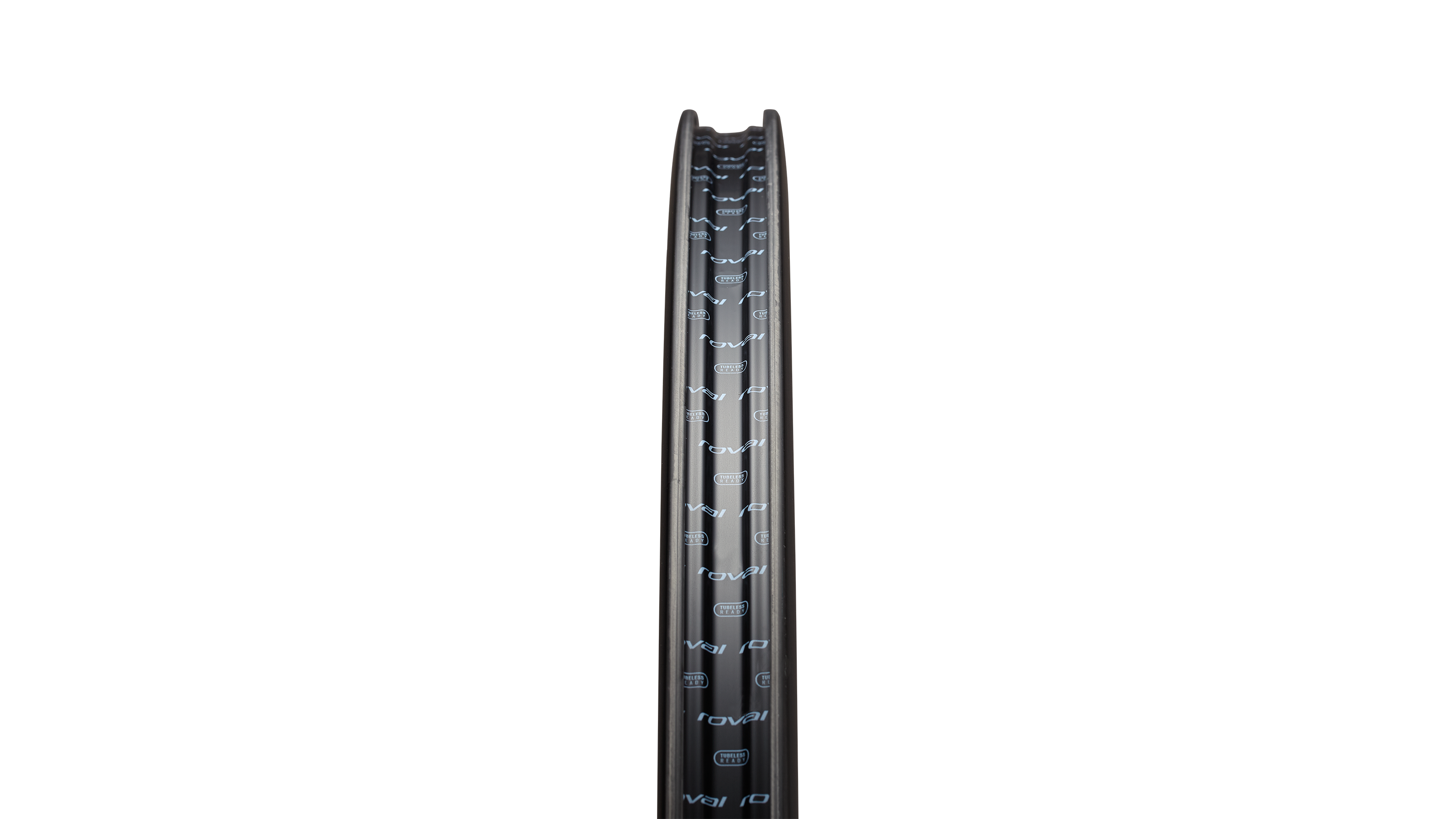

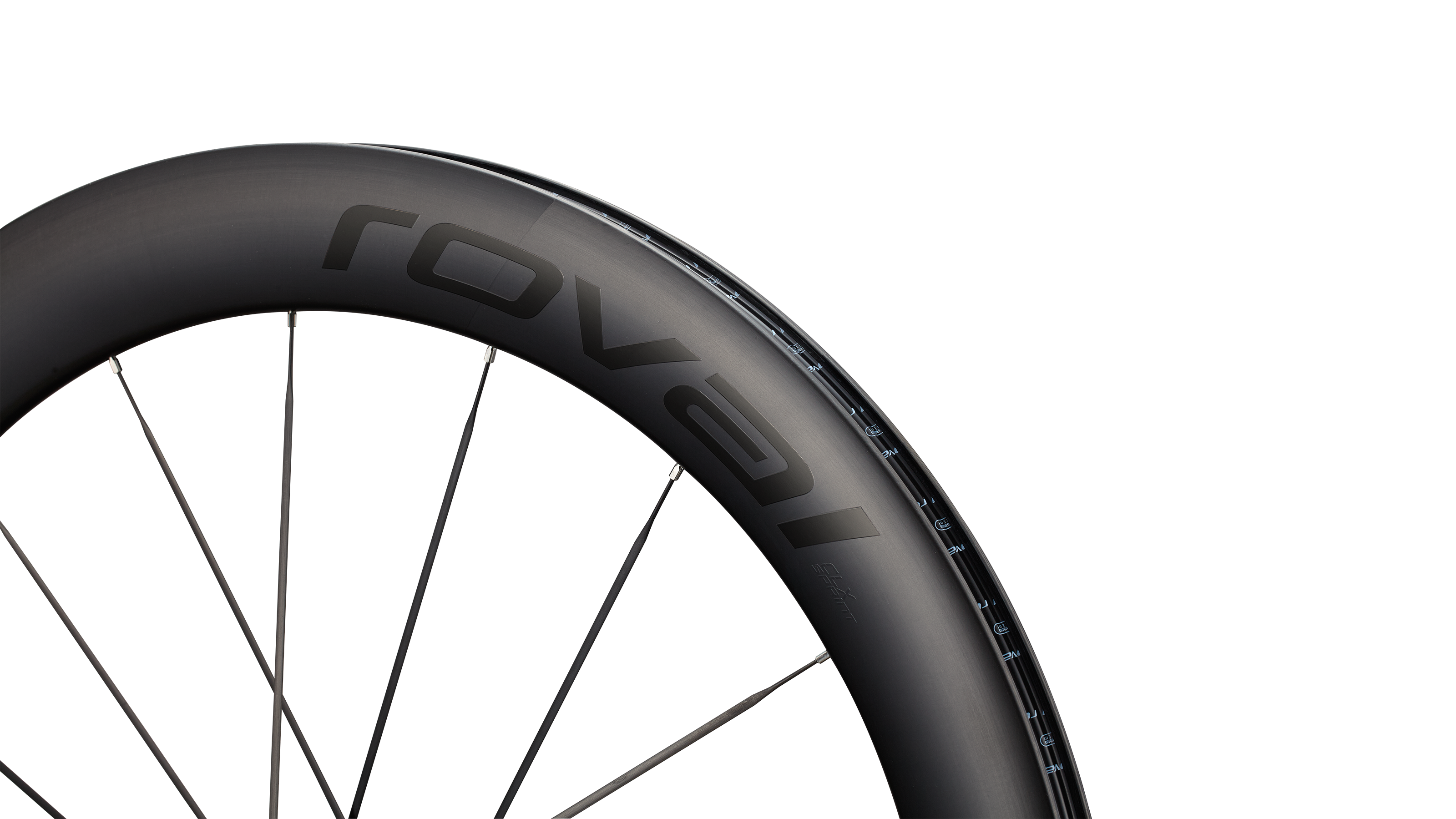

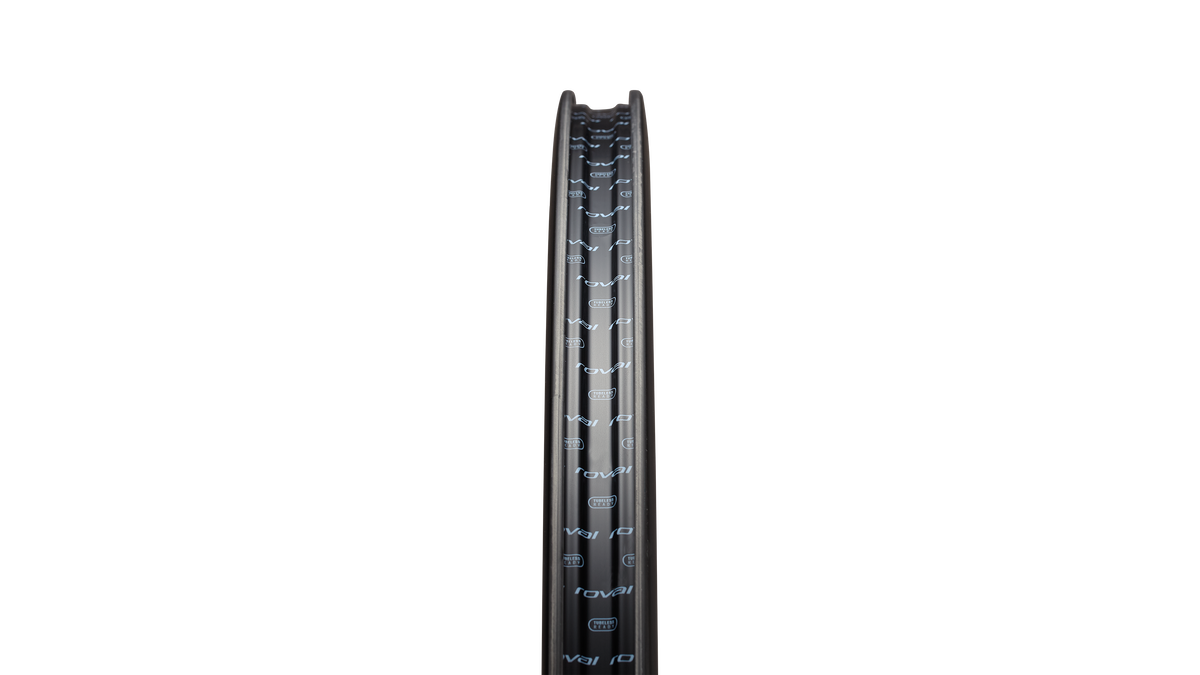

Front Rim Dimensions
Depth: 63mm, External Width (at widest point): 35mm, Internal Width: 21mm, Bead Hook Width: (4.3)mm
Hubs

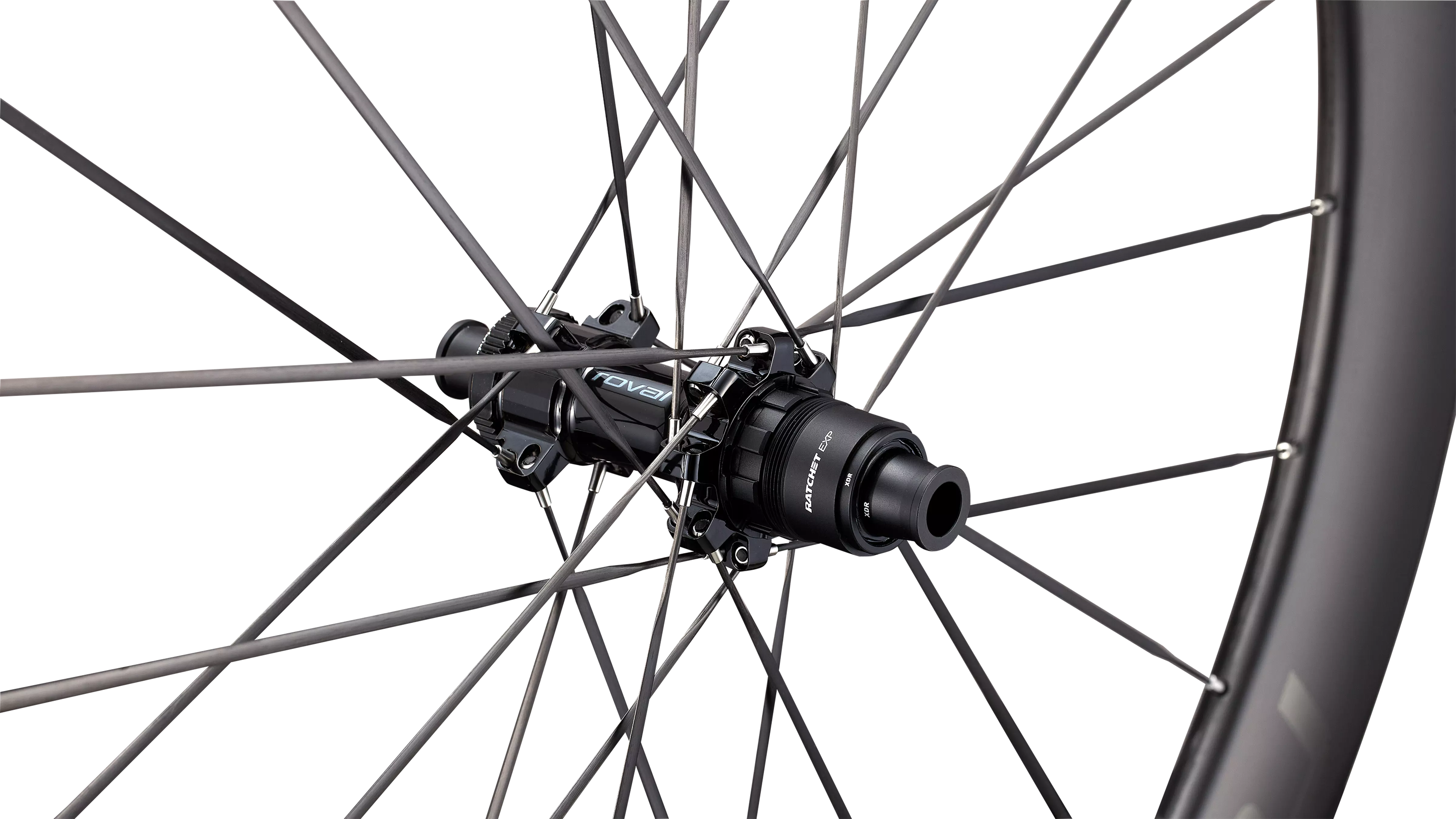

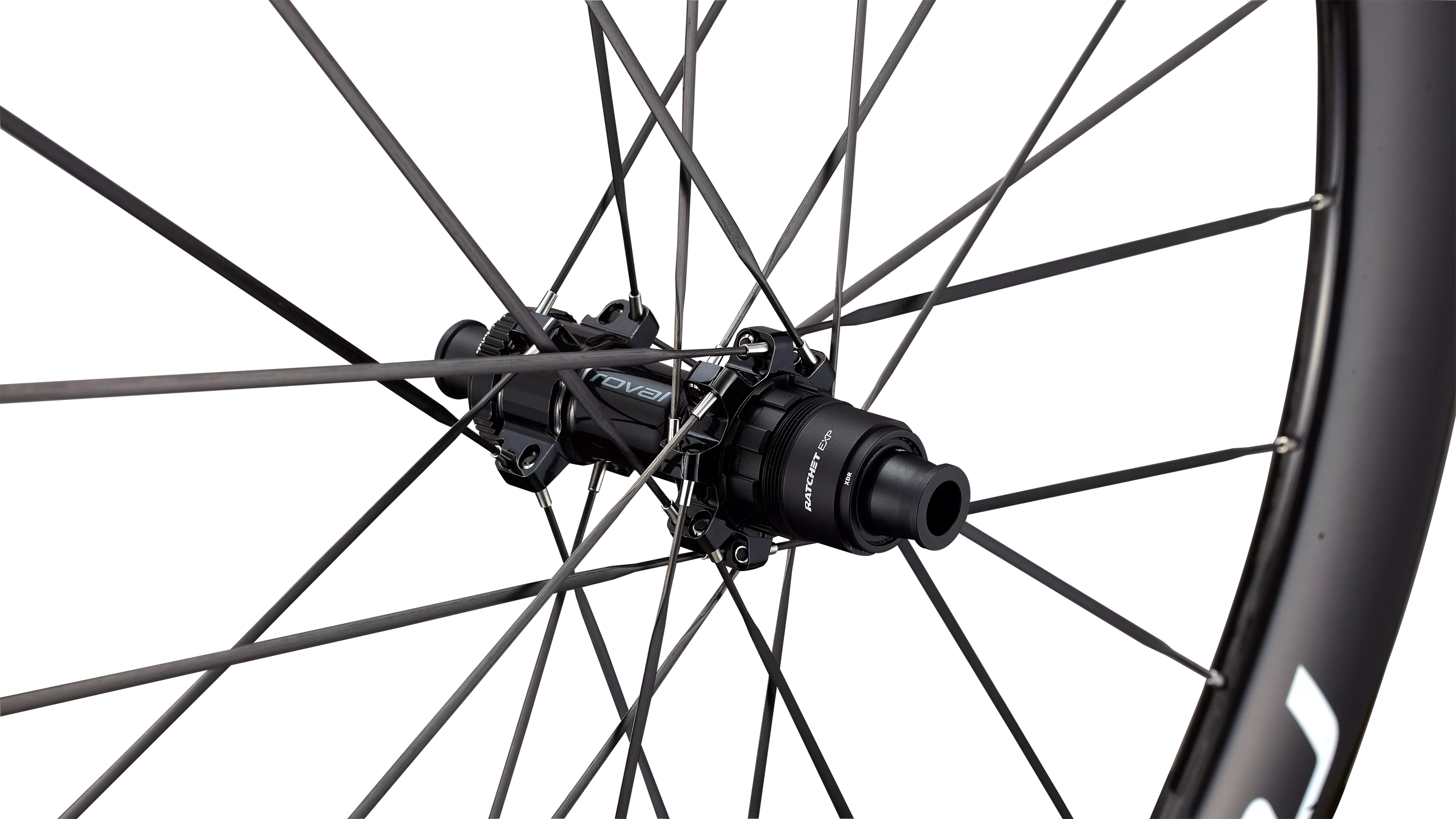

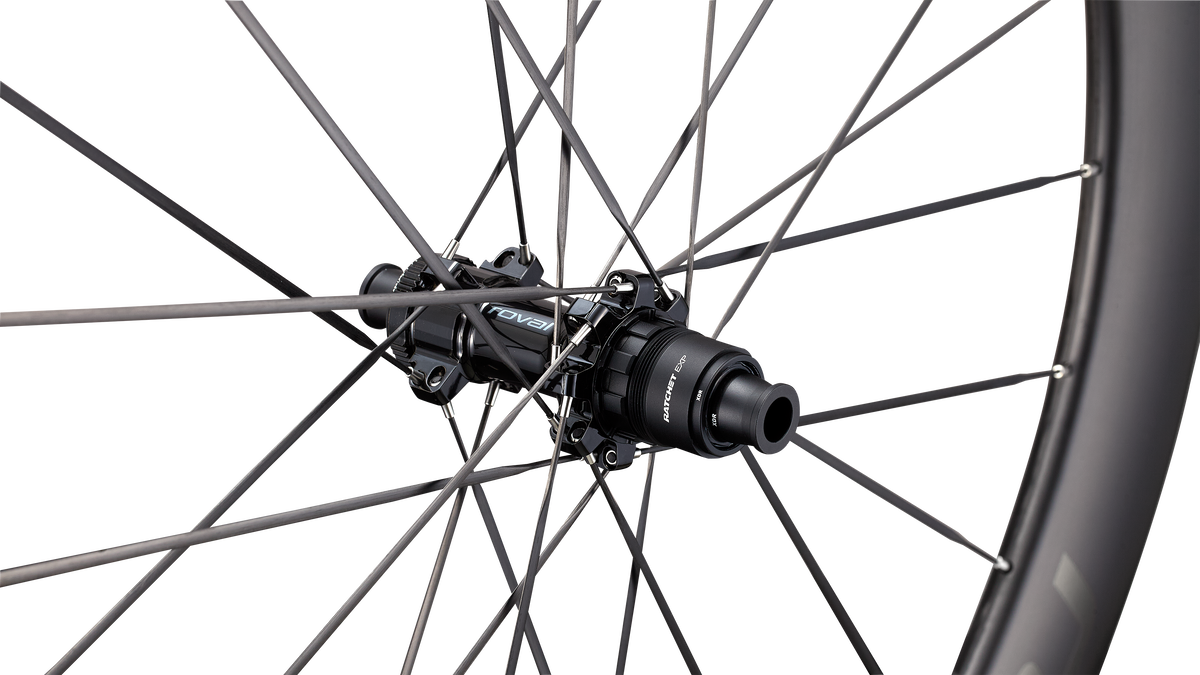

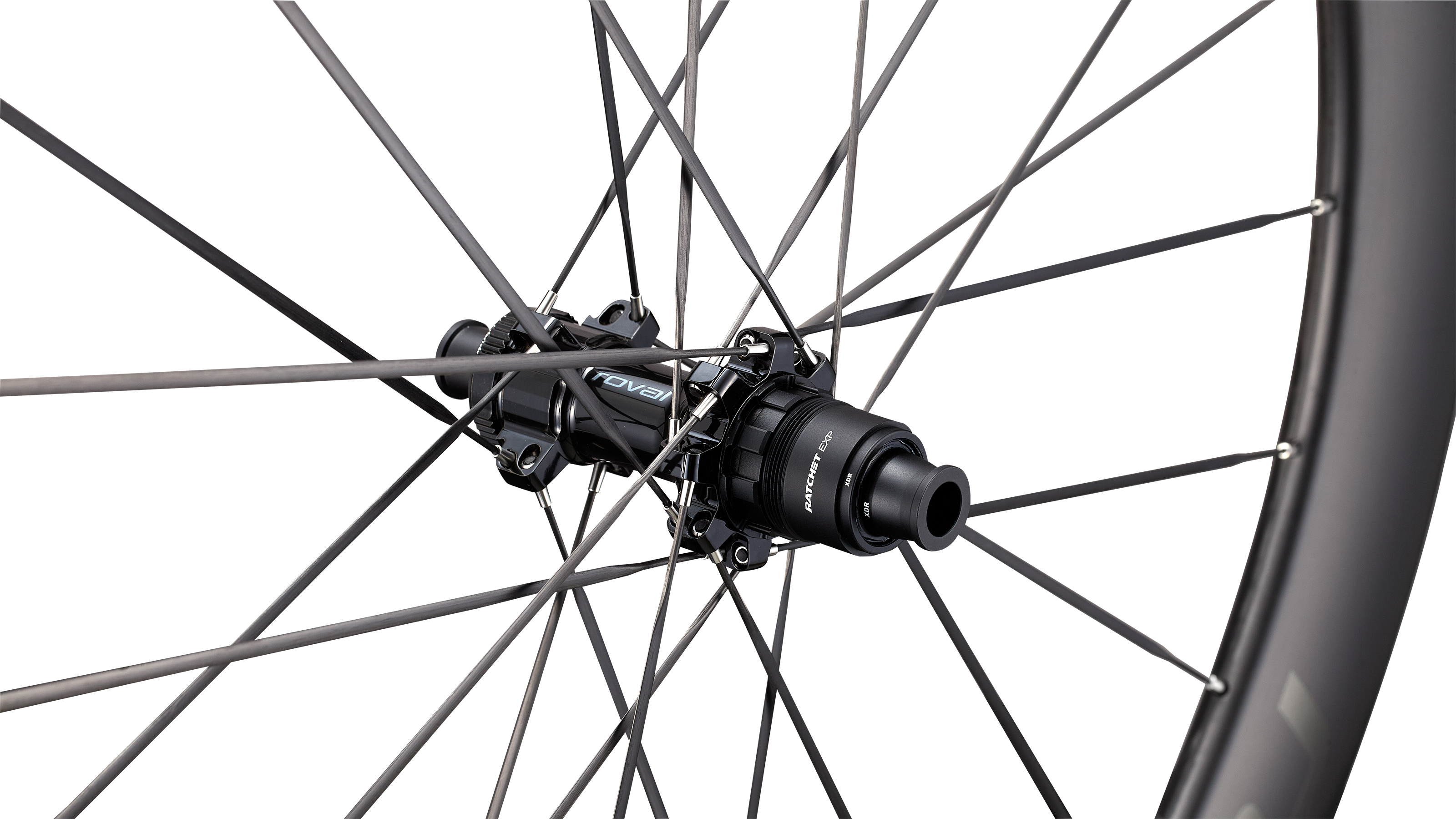

Rear Hub
Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R)
Rear Freehub Body
DT Swiss Ratchet EXP (36T ): Sram XD-R
Rear Hub Bearing
DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7 mm), NDS: 6802 (15 x 24 x 5 mm)

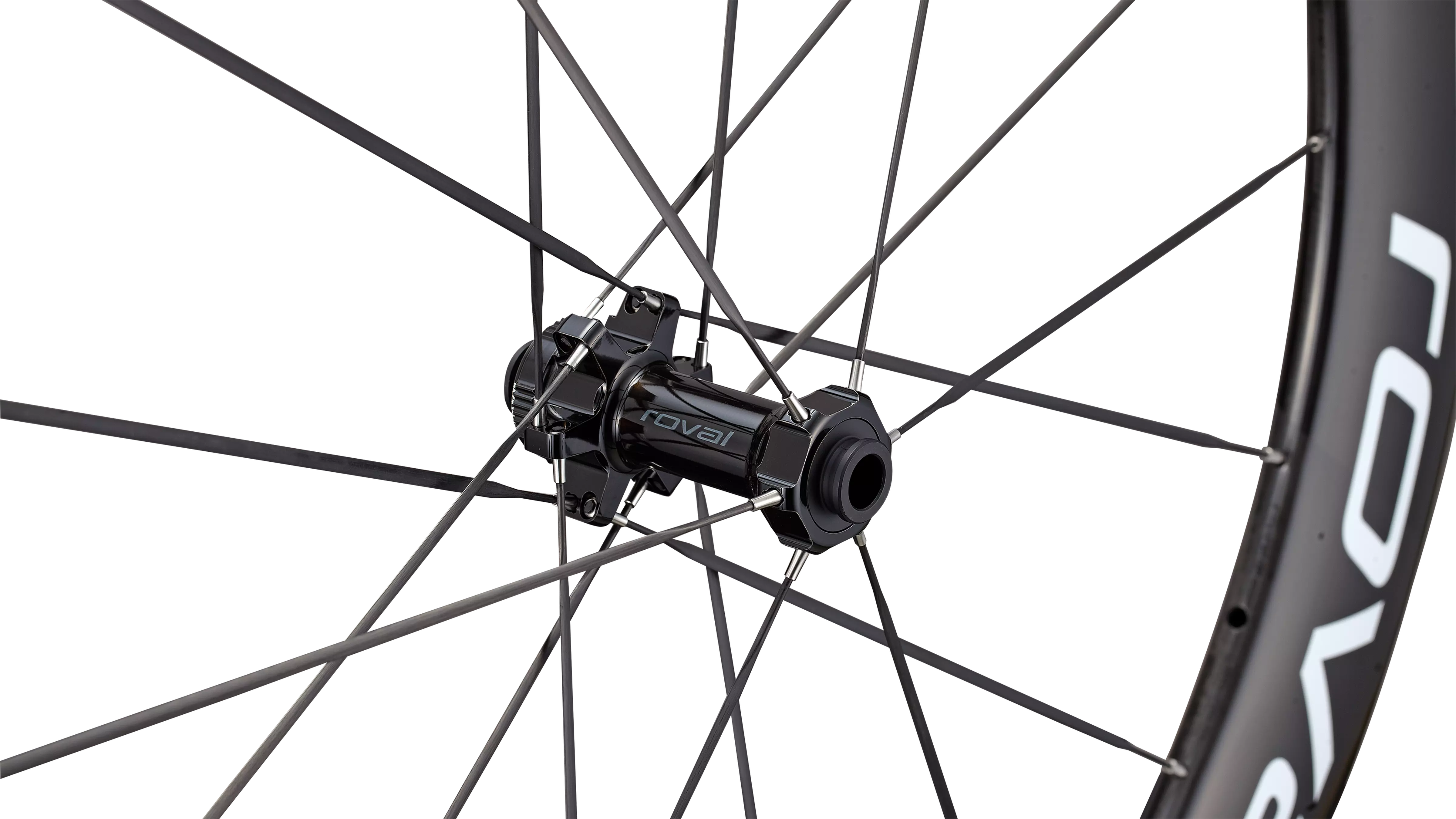

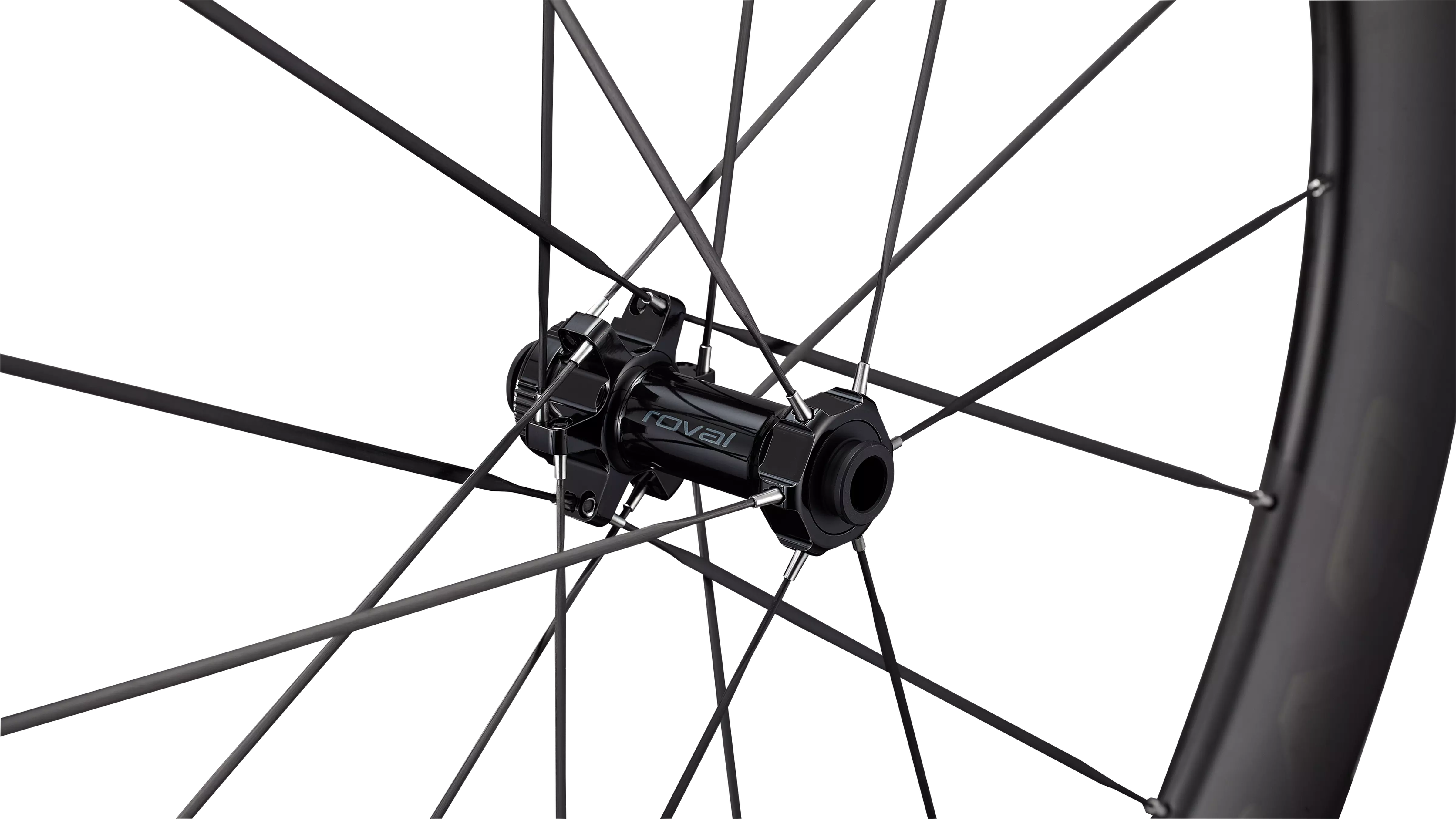

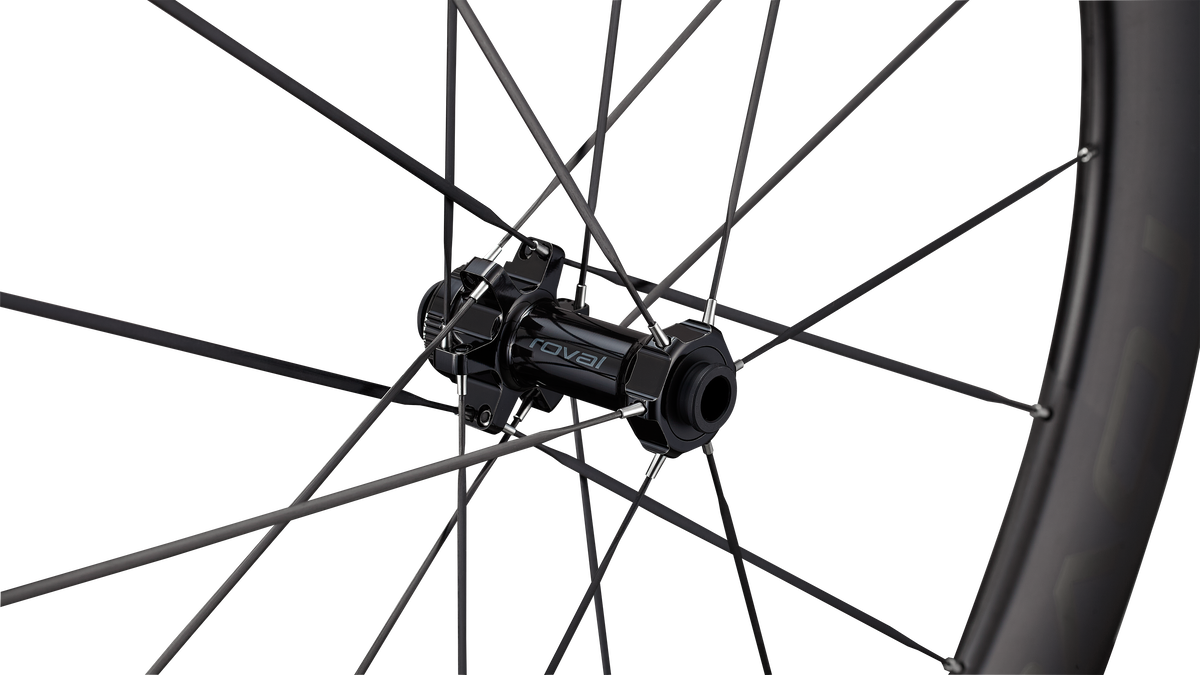

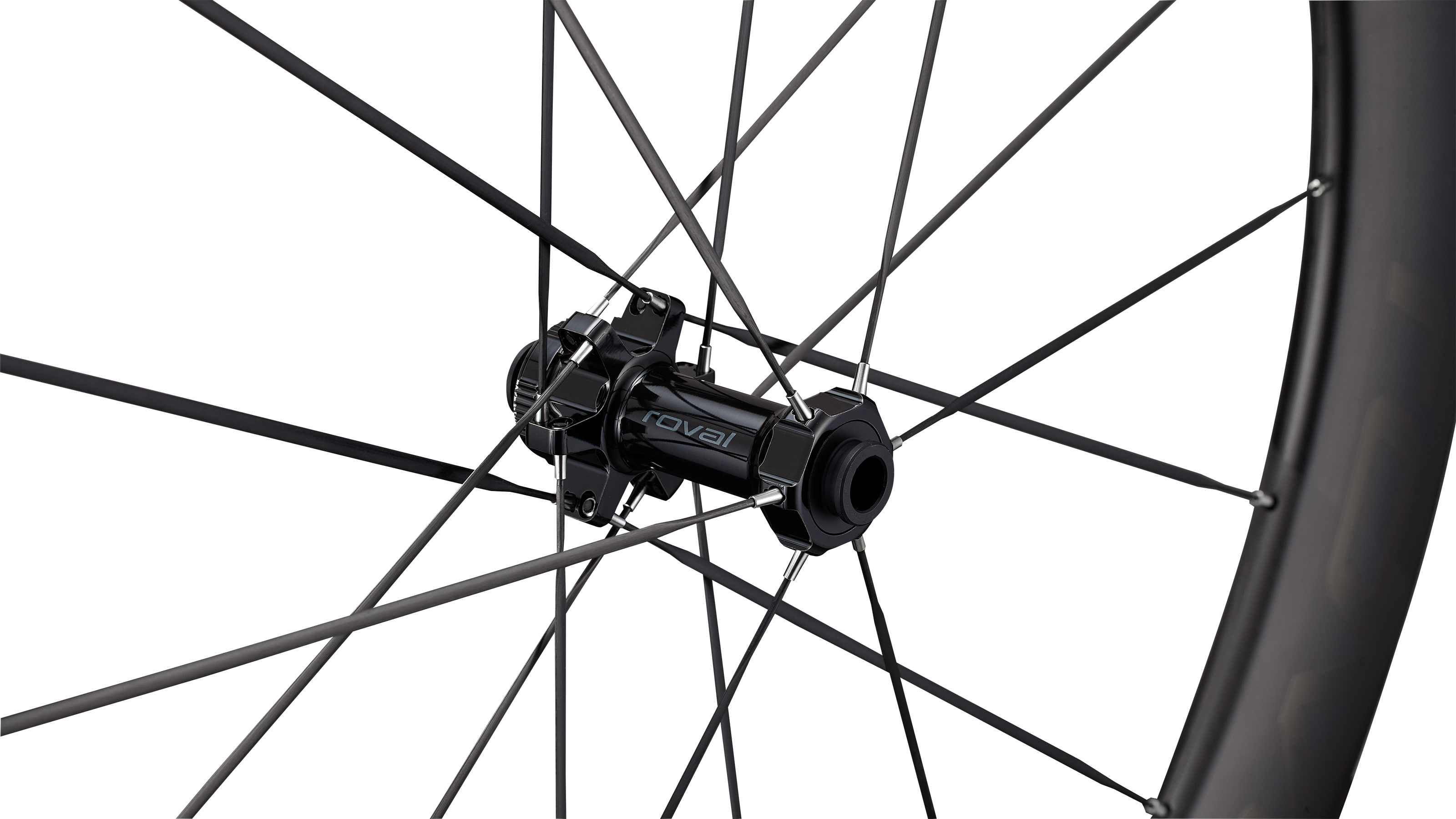

Front Hub
Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F)
Front Hub Bearing
DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5 mm), NDS: 6802 (15 x 24 x 5 mm)
Spokes & nipples
Nipples
Arris MK4 Spoke Nipple Alloy, 6 mm
Rear Spokes
Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 267mm, NDS: 263mm)
Rear Lacing Pattern
One-Cross / Three-Cross (2:1), Not Tucked
Front Spokes
Roval by Arris, Composite Aero Spoke with Ti End Pieces: T-head, 18qty, (DS: 251mm, NDS: 261mm)
Front Lacing Pattern
Two-Cross / Radial (2:1), Not Tucked
Tire info
Tubeless Tape Width
25mm
Tire Type
Clincher Tubeless and Clincher Tube Type
Design Tire
RapidAir TLR, 28mm
Approved Tire Widths
24mm-38mm
Max Pressure
Tubeless (110psi) Tubed (130psi), 36mm-38mm: Tubeless (60psi) Tubed (60psi)
Weight
Wheelset Weight
1395g (with valves and tape)
Rear Weight
755g (with valves and tape)
Front Weight
640g (with valves and tape)
General
Warranty
Limited Lifetime Warranty
Assembly Method
Hand Built
Weight Limit
275 lbs. / 125 kg.
Certifications
ISO 5775-2, UCI Approved
E-bike Approved
No
Extras
4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub & end Caps (rear wheel only)
