The Traverse HD is the strongest carbon trail wheel we’ve ever tested, engineered for those who live to send it—maybe harder than they should. Designed to handle big hits and rowdy lines, the Traverse HD 350 DEG is built to keep rolling no matter how hard you charge. Use - Aggressive Trail, Enduro.
Weight (29) - 1,884 grams (with valves and tape)
Recommended Tires - Butcher and Eliminator.
Internal Width- 30mm.
Hub - DT Swiss 350 DEG.
Spoke Count - 29 Front: 28H, 29 & 27.5 Rear: 32H
Technical Specifications
Rims
Wheel Size / ETRTO
Front: 29"/622 mm, Rear: 29"/622 mm 27.5"/584 mm
Tubeless Compatibility
Yes
Insert Compatibility
Yes
Brake Compatibility
Disc (6-Bolt)
Rim Construction
Carbon Clincher Hookless
Valve Stem Length
Roval Thread Bead 37mm, Standard Presta greater than 37mm
Hole Count
Front: 28H, Rear: 32H
Rear Rim Dimensions
Depth: 24mm, External Width: 40mm, Internal Width: 30mm, Bead Hook Width: 5mm
Rear Rim
Traverse HD Asymmetric Carbon 29" (WC037-3), 27.5" (WC041-3)
Front Rim Dimensions
Depth: 24mm, External Width: 40mm, Internal Width: 30mm, Bead Hook Width: 5mm
Front Rim
Traverse HD Asymmetric Carbon 29" (WC037-1)
Hubs

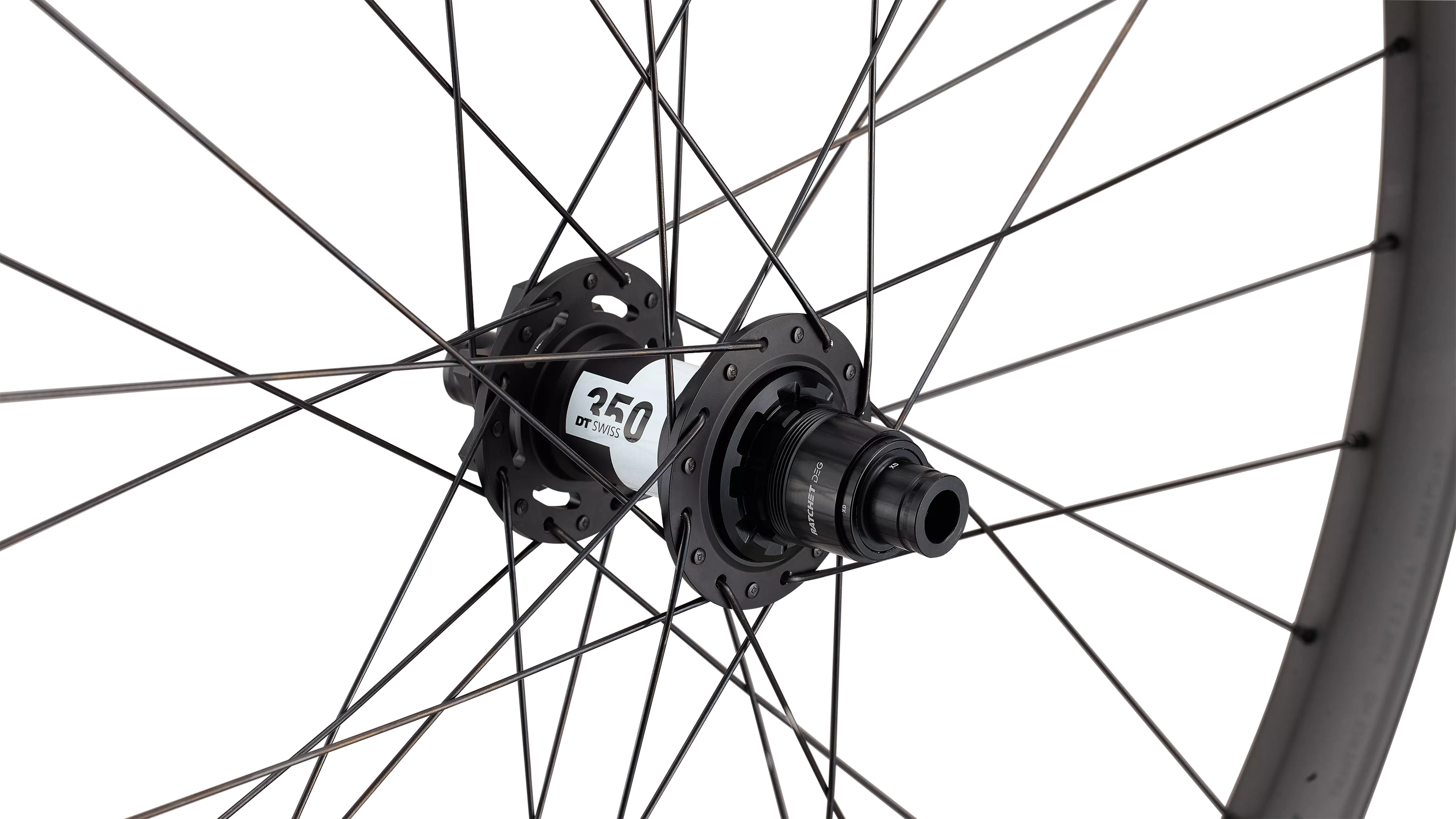

Rear Hub
DT Swiss 350 J-Bend, 6-Bolt, 12x148mm
Rear Freehub Body
DT Swiss Ratched DEG (72T): Sram XD
Rear Hub Bearing
DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)

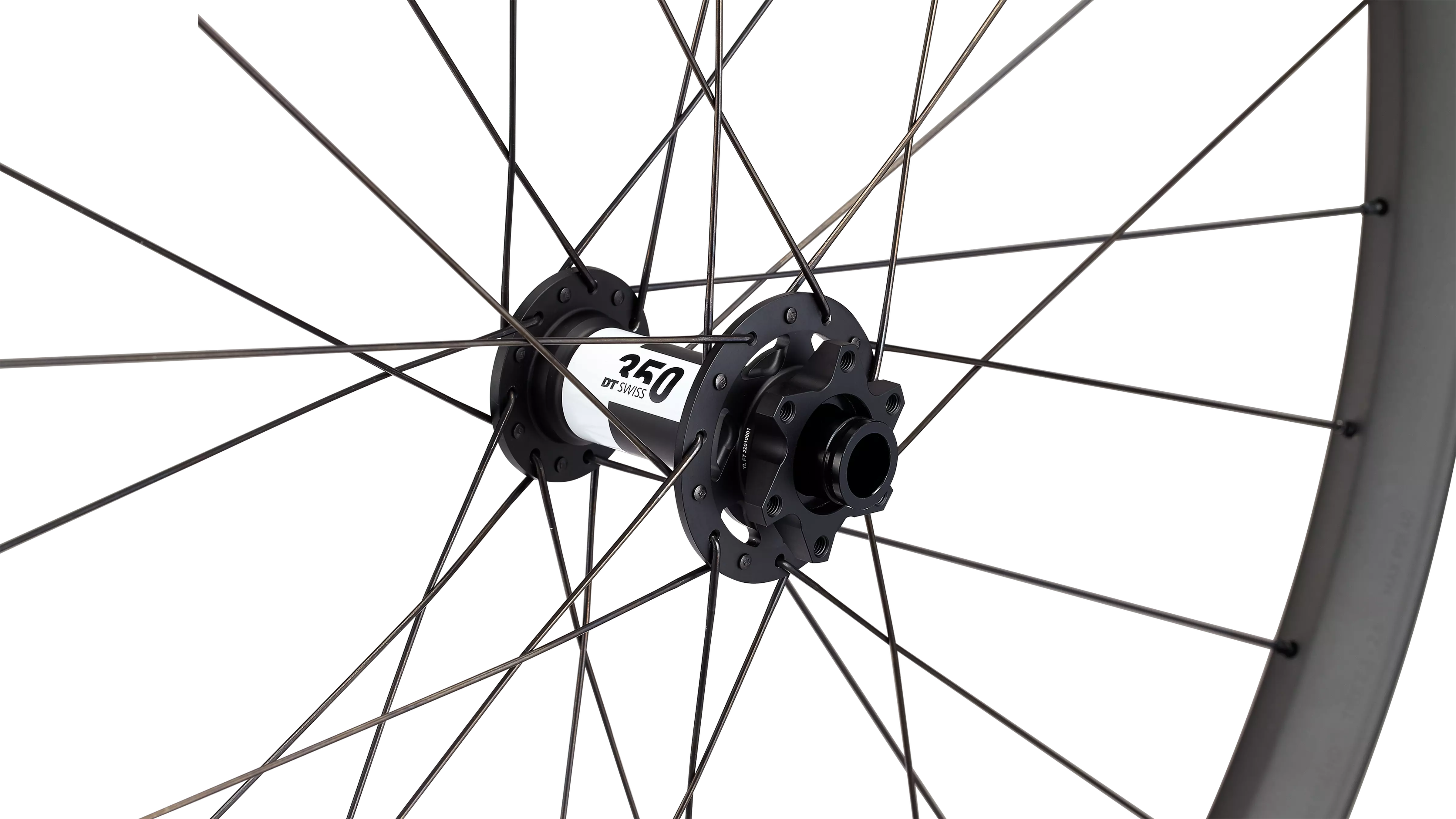

Front Hub
DT Swiss 350 J-Bend, 6-Bolt, 15x110mm, 19mm OD End Caps Installed
Front Hub Bearing
DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7 mm)
Spokes & nipples
Nipples
DT Swiss Pro Lock, Hexagonal, Alloy
Rear Spokes
DT Swiss Competition Race
Rear Lacing Pattern
Three-cross / Three-cross (1:1) Tucked
Front Spokes
DT Swiss Competition Race
Front Lacing Pattern
Two-cross / Two-cross (1:1) Tucked
Tire info
Tubeless Tape Width
32 mm
Tire Type
Tubeless, Tube Type Clincher
Design Tire
Butcher Grid Trail T9 TLR Trail Tire 29 x 2.4
Max Pressure
Tubeless 40 psi, Tubes 40 psi
Approved Tire Widths
2.3” - 2.6”
Weight
Wheelset Weight
1,884g (with valves and tape) - 29" / 1,778g (with tape and valves) - 29/27.5"
Rear Weight
1,060g (with valves and tape) - 29" / 954g (with tape and valves) - 27.5"
Front Weight
824g (with valves and tape)
General
Warranty
Limited Lifetime Warranty
Assembly Method
Hand Built
Weight Limit
275 lbs. / 125 kg.
E-bike Approved
Yes
Extras
4 Extra Spokes and Nipples, 31mm OD End Caps
