Replacement Bearings for Stan’s Hubs and Freehub Bodies.

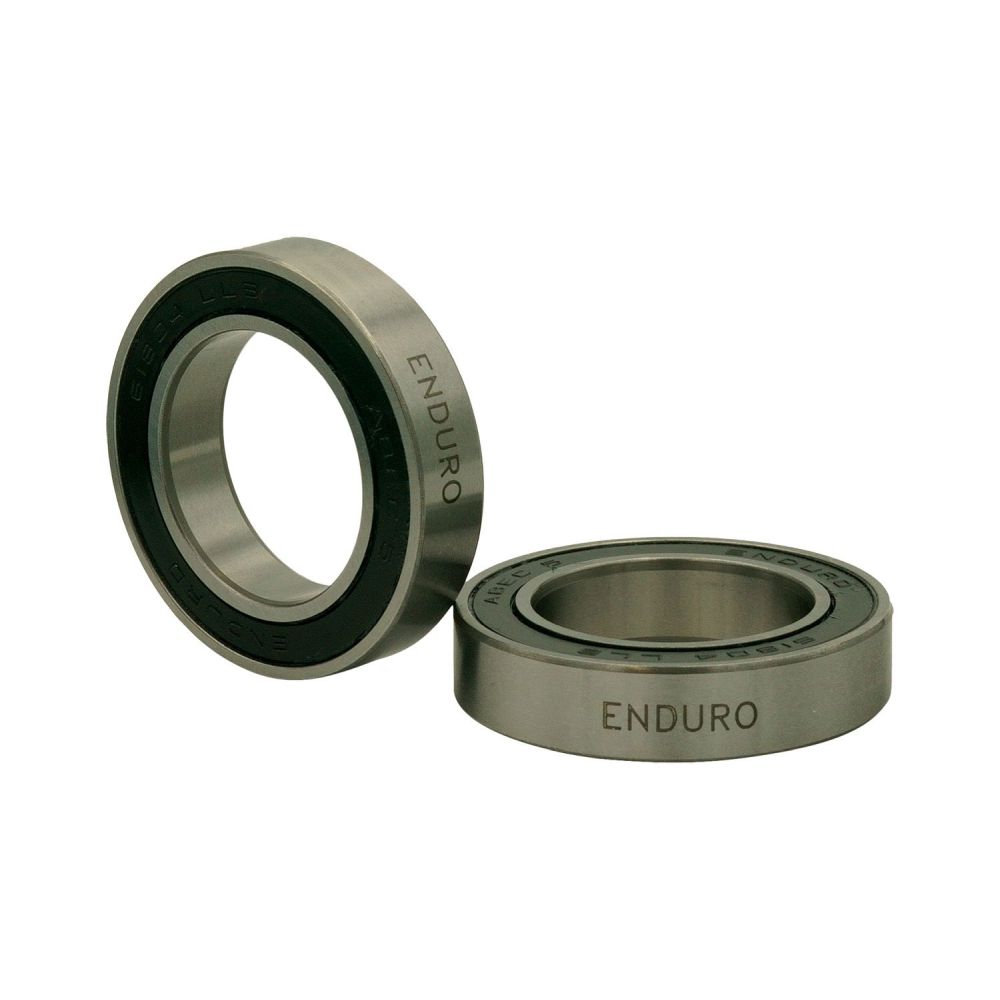

Genuine-specification Enduro bearings for servicing selected Stan’s front hubs, rear hubs and freehub bodies. Multiple bearing sizes and grades are available, so check the bearing code, dimensions and hub compatibility carefully before ordering.

Bearing Options and Compatibility

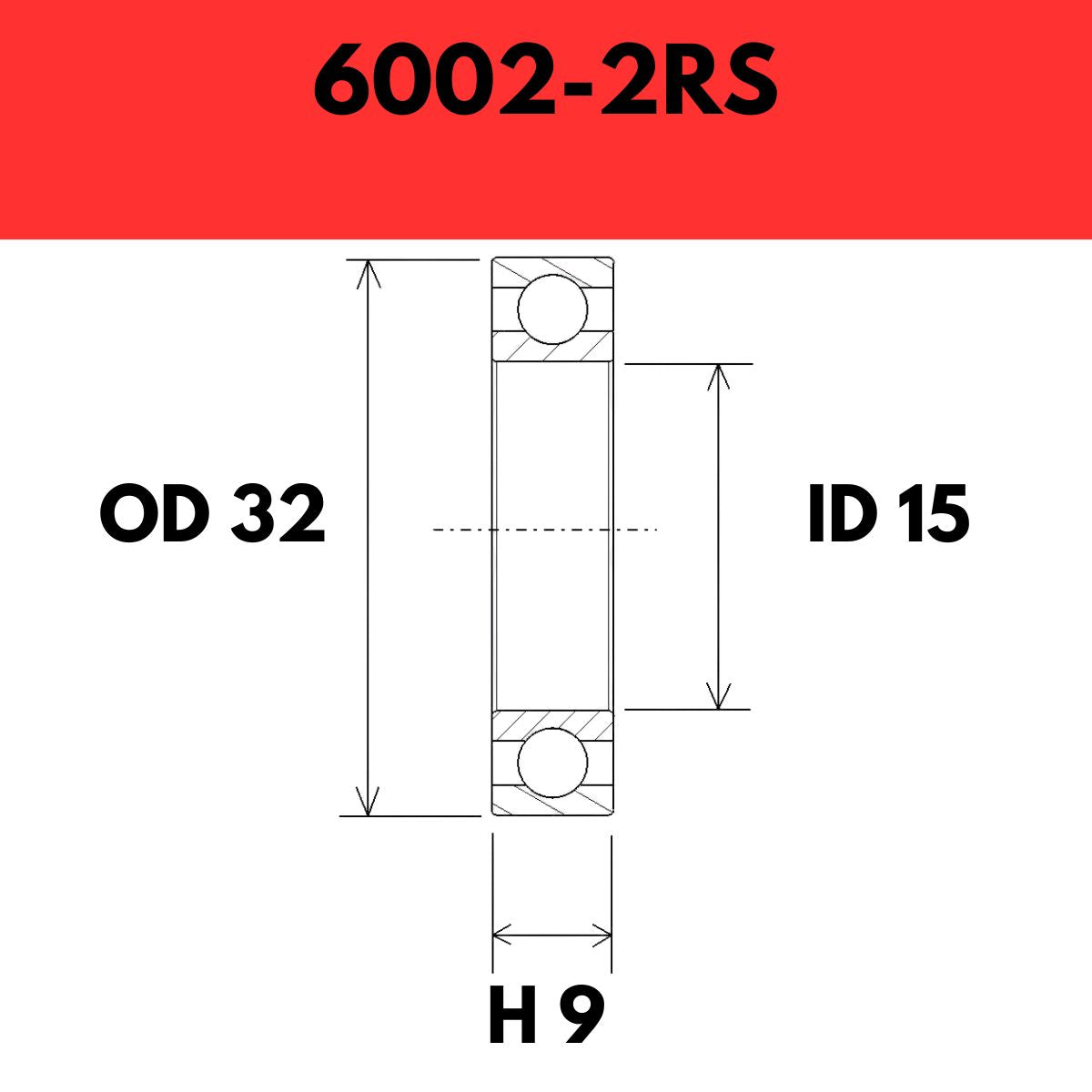

• 6002 Enduro Bearing: 15mm ID × 32mm OD × 9mm wide. Fits the non-drive side of 3.30HD rear hubs.

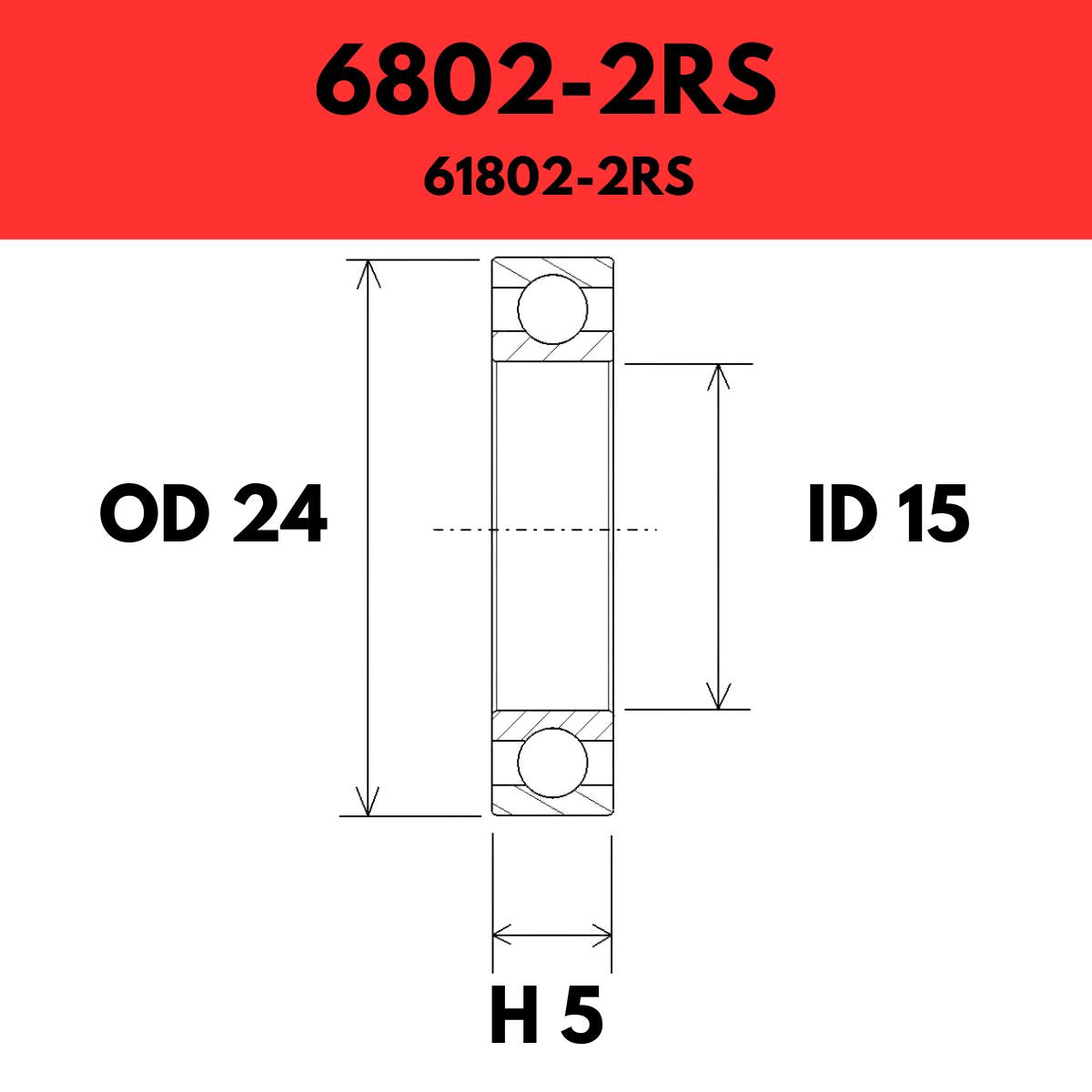

• 6802 Enduro Bearing: 15mm ID × 24mm OD × 5mm wide. Fits 3.30 QR rear hubs with silver end caps, 3.30SS single-speed hubs and 3.30 Road rear hubs.
• 6802 Stainless Steel ABEC 5: 15mm ID × 24mm OD × 5mm wide. Fits 3.30 and 3.30Ti rear hubs.

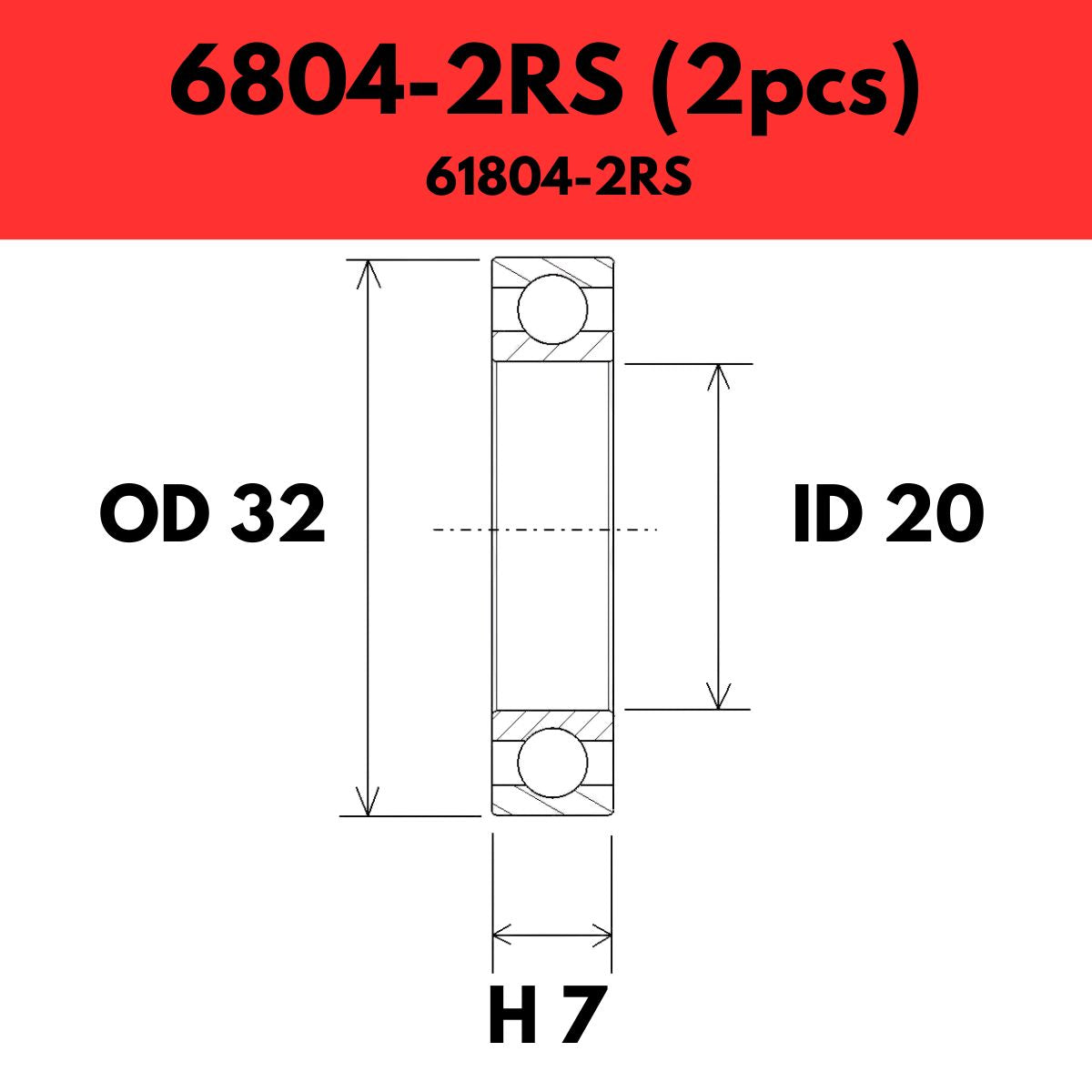

• 6804 Enduro Bearing: 20mm ID × 32mm OD × 7mm wide. Fits 3.30HD and ZTR HD front hubs.
• 6902 Enduro Bearing: 15mm ID × 28mm OD × 7mm wide. Fits Neo hub shells, 3.30, 3.30Ti and ZTR front disc hubs with silver end caps, plus the drive side of 3.30HD rear hubs.
• 6902 Stainless Steel ABEC 5: 15mm ID × 28mm OD × 7mm wide. Fits Neo hub shells and 3.30Ti front hubs.
• 6902 Freehub Bearing: Stan’s ZTR, 3.30, 3.30R, 3.30Ti, 3.30HD and 3.30SS freehub bodies require two 6902 bearings.

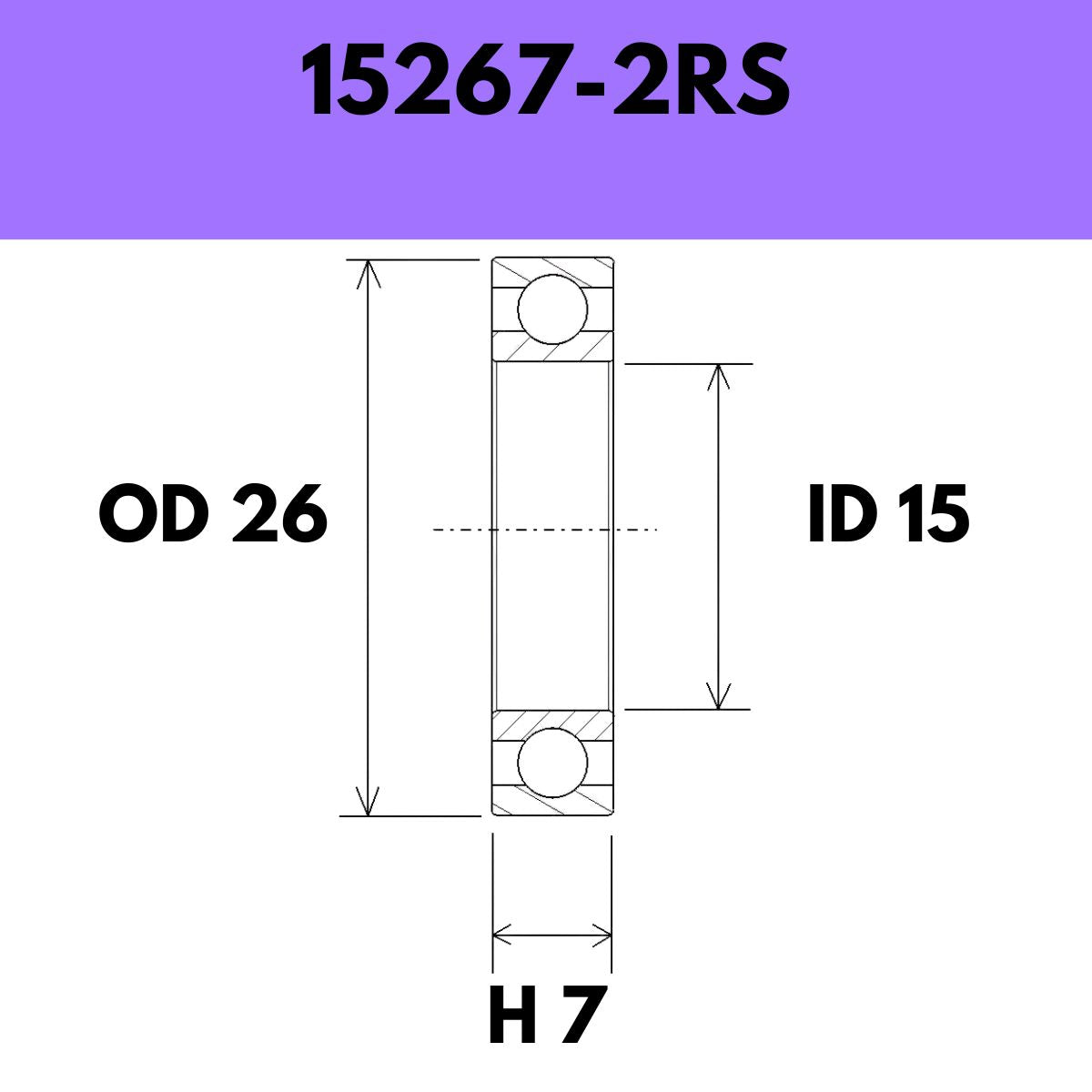

• 15267 Freehub Bearing: 15mm ID × 26mm OD × 7mm wide. Stan’s E-Sync freehub bodies use one MR 15267 LLU bearing.
• 152610 Freehub Bearing: 15mm ID × 26mm OD × 10mm wide. Stan’s E-Sync freehub bodies use one DR 152610 LLB bearing.

Important Compatibility Information

Bearings with similar external dimensions may use different internal constructions or seal specifications. Confirm the code printed on the existing bearing and check its location within the hub before ordering. Bearings are sold individually unless the selected option states otherwise.

Our Thoughts

Replacing worn bearings can restore smooth rotation and remove play, but correct installation matters. Bearings should be pressed squarely using tools that support the appropriate bearing race. If you are unsure which option your hub requires, bring the wheel or existing bearing into our Christchurch workshop.
