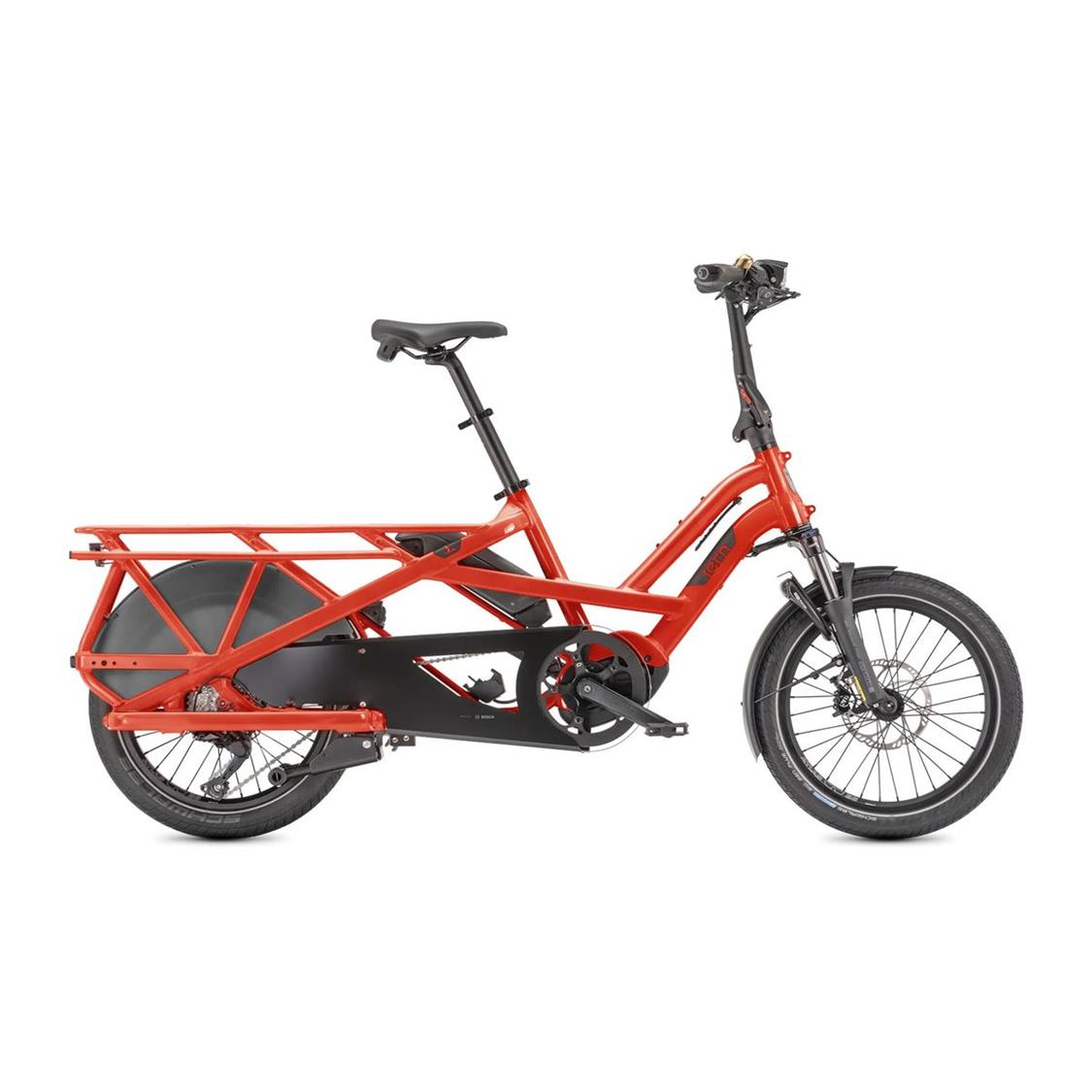

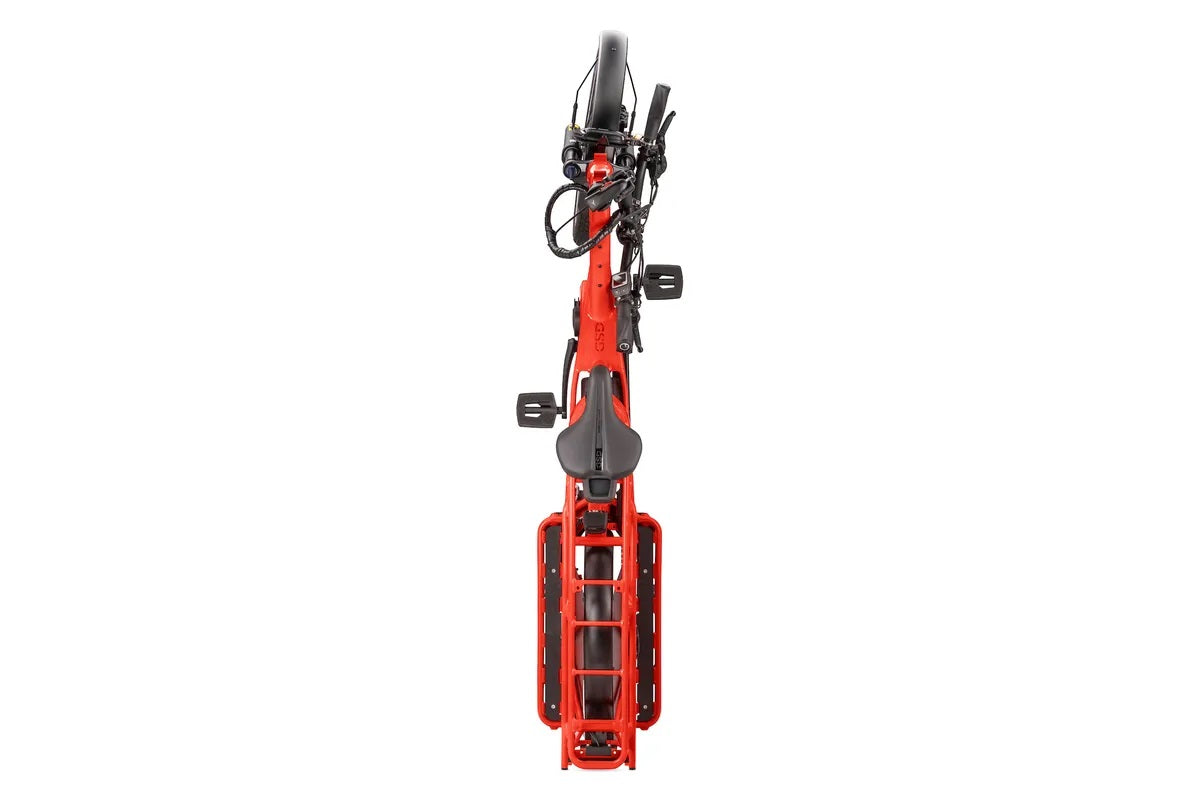

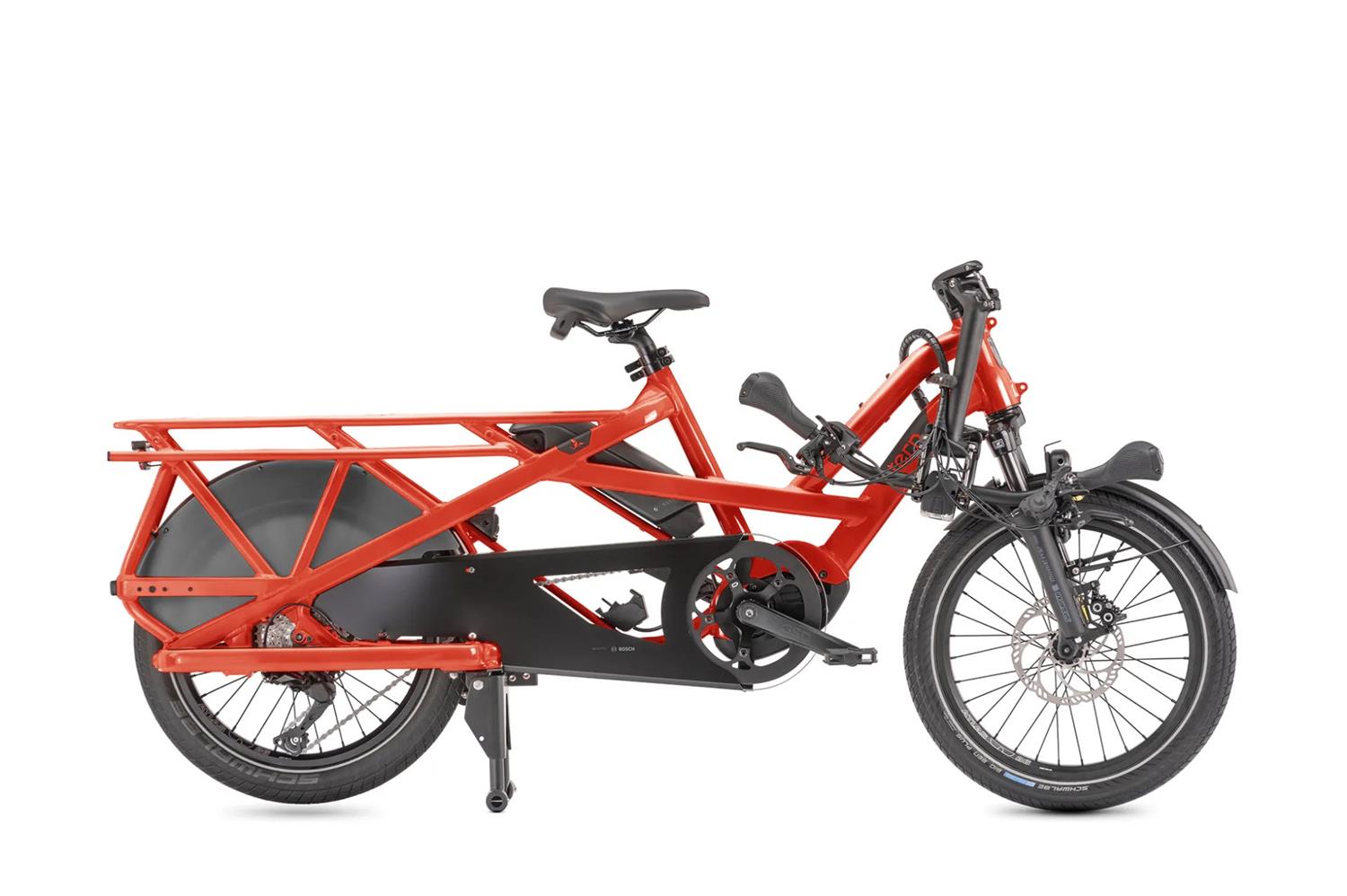

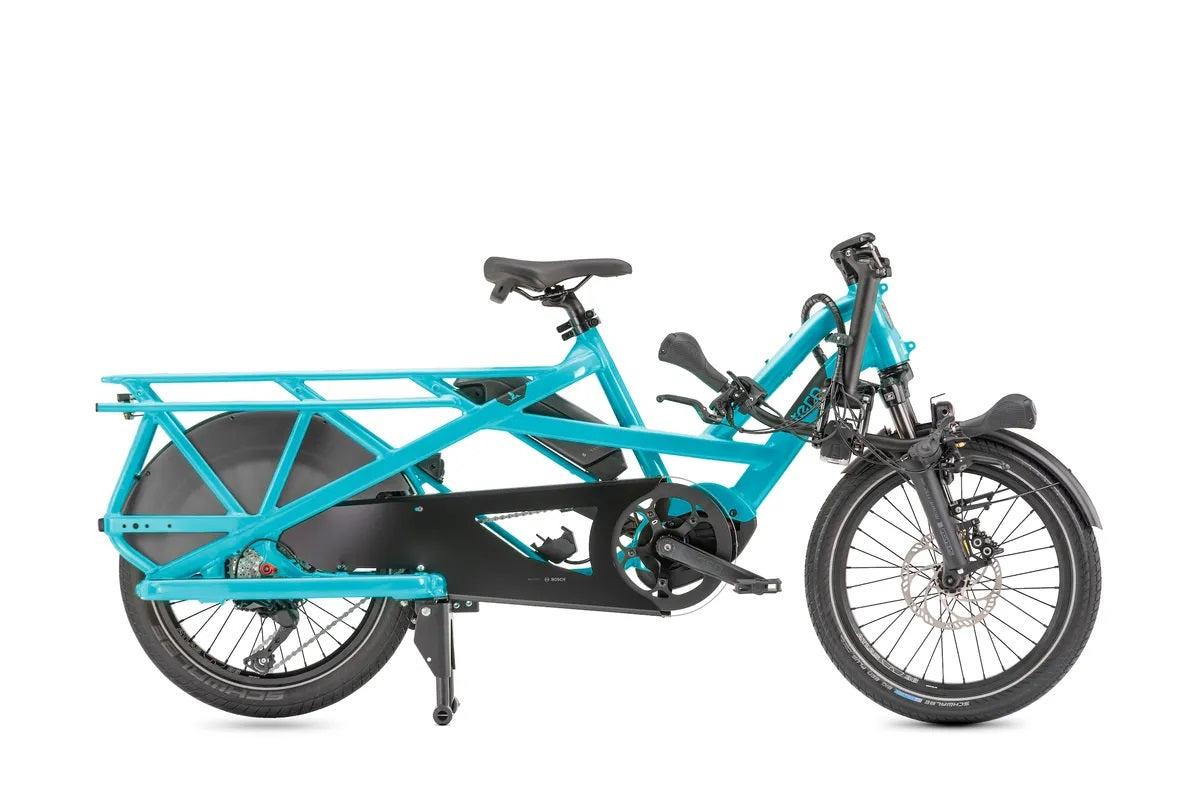

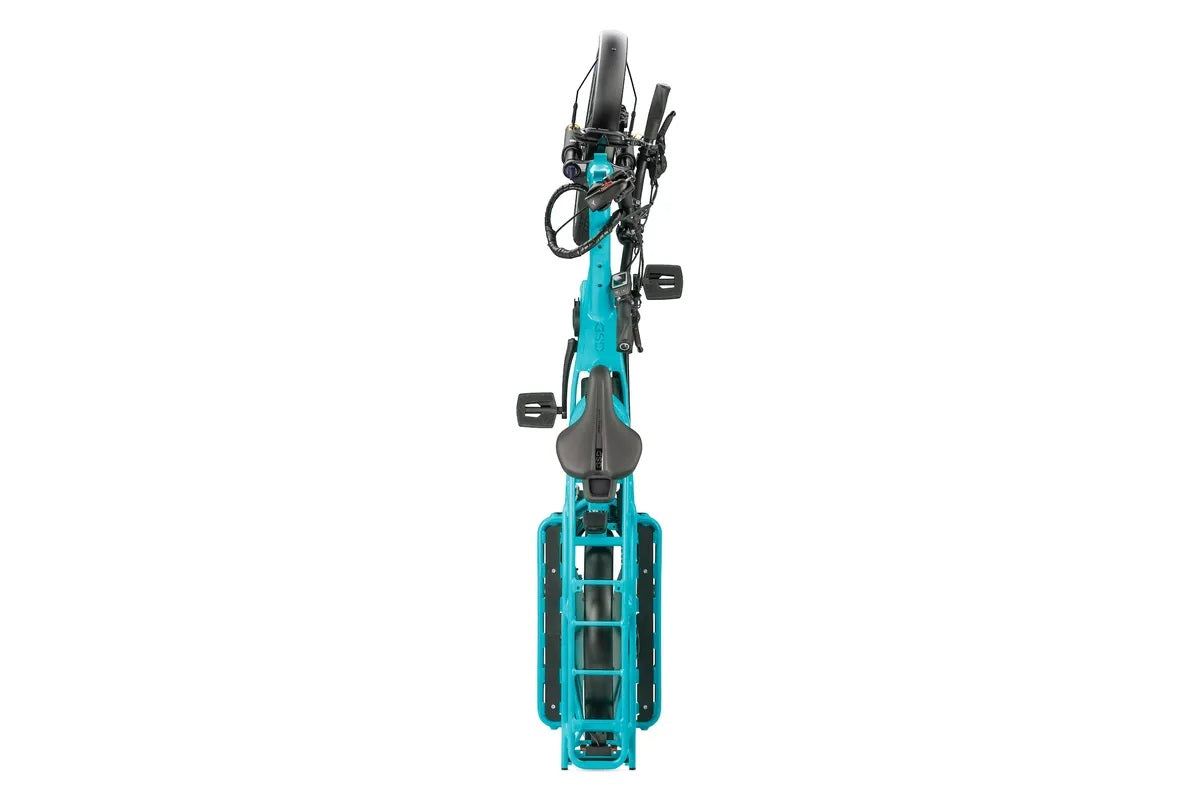

Still Small. Even More Useful. - With a 200 kg (440 lb) Maximum Gross Vehicle Weight, the GSD is ready to replace your car. It’ll let you carry two kids plus groceries, or a whole lot of cargo—but it’s the same length as a regular bike. Built-in dual-battery technology lets you ride all day, while space-saving features like FlatFold and Vertical Parking make the GSD incredibly easy to own and use.
- Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support
- Bosch dual-battery system (400/900 Wh) for a range of up to 195 km (Extra battery sold separately by Bosch NZ)
- Shimano® Deore 1 × 10-speed hub for smooth, efficient shifting
- Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock
- Heavy-duty frame-integrated rear rack and integrated lower decks
- Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes
- Always-on RearStop™ Brake Light helps you safely signal stops
- Upgraded Atlas Wheels™ with custom CNC machined hubs for extra strength and durability
| frame sizes | One size |
| rear derailleur | Shimano Deore Shadow+ |
| max rider weight | 120 kg |
| stem | Tern Andros, adjustable, forged construction, patented technology |
| seatpost | Tern Telescope, 34.9/30.9 mm, 2014-AL |
| seatpost clamp | Tern Collar, 6061-AL, 2pc |
| shifter cable & housing | Jagwire LEX-SL, slick treatment, alloy ferrules |

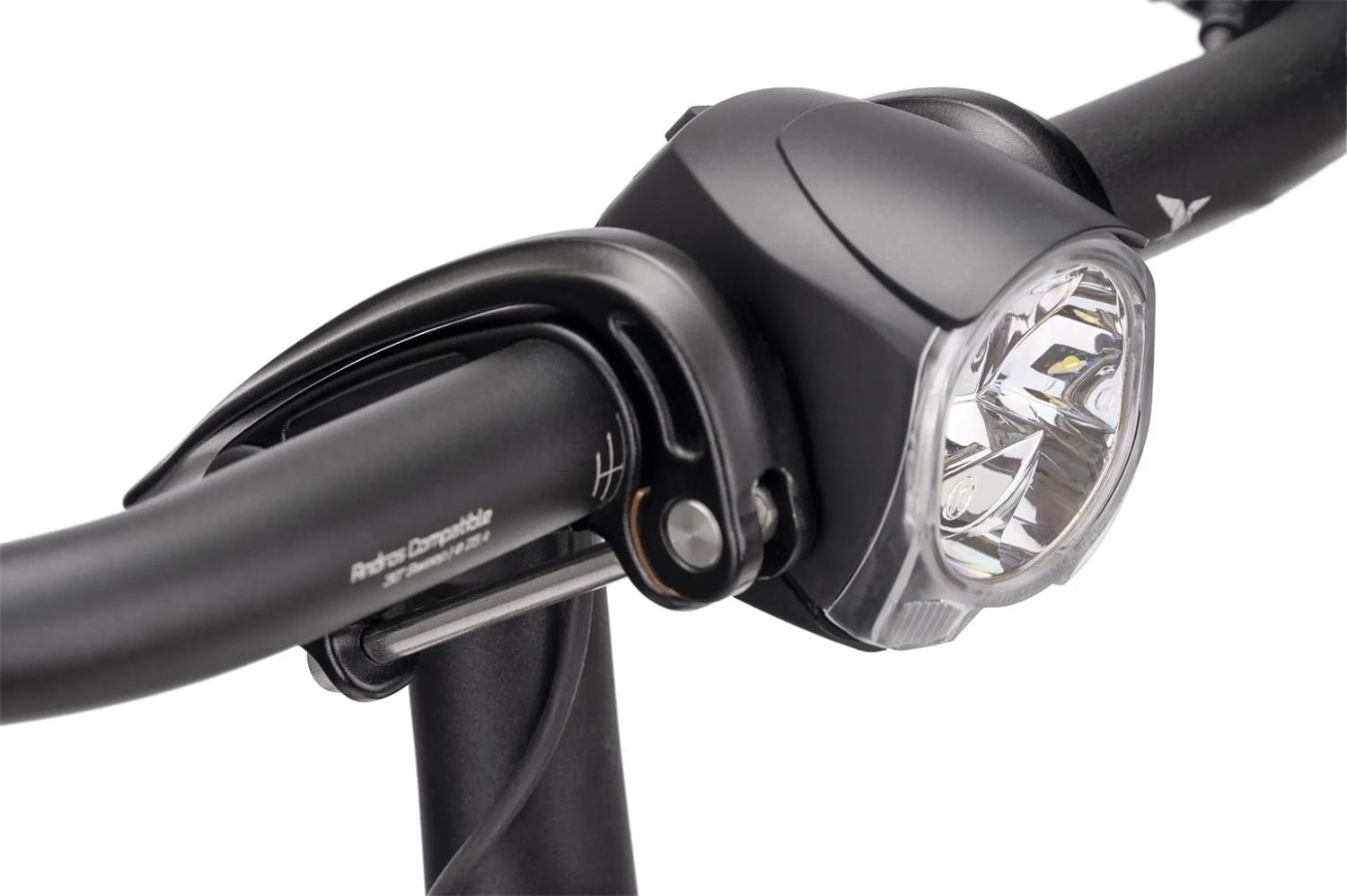

| front light | Tern Valo Direct, 190 lumens |
| luggage socket | Combo Mount |
| bottom bracket | Motor integrated |
| handlebar | Tern Sweep, 6061-AL, Tern Andros adapted |
| grips/bar tape | Ergon |
| chainguard | Tern Custom, full chain cover |
| distance (saddle to pedal) | 69 - 105 cm |
| suggested rider height | 150 - 195 cm |
| max gross vehicle weight | 200 kg |
| handlepost | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm |
| headset | Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated |

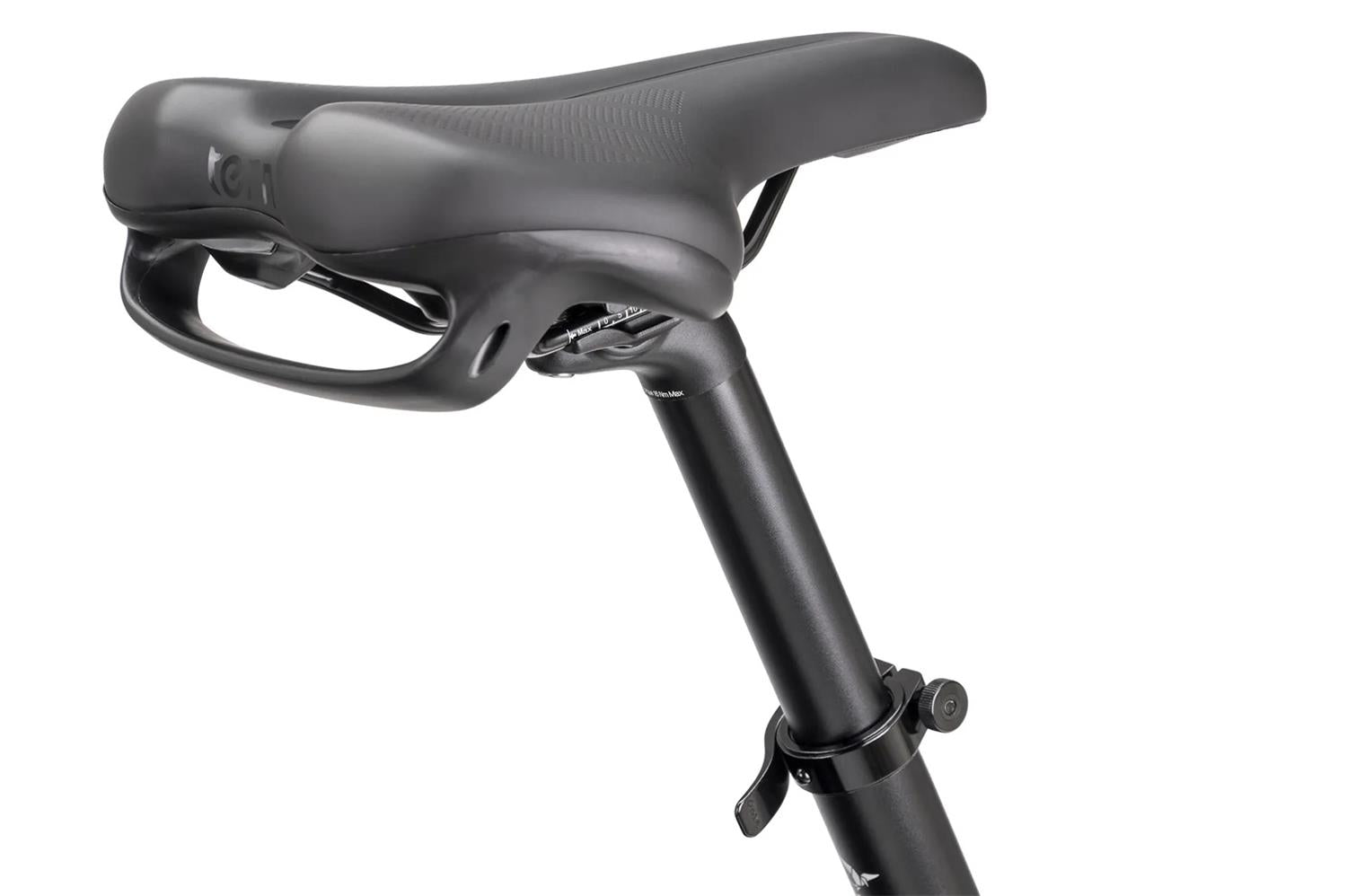

| saddle | Tern GSD by Velo, with rear handle |
| brake levers | Magura MT5 e-stop, hydraulic, with brake sensor |
| front hub | Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing |
| rear hub | Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design |
| spokes and nipples | Stainless steel, 13G |
| rims | Tern Atlas, ultra wide 36 mm, dual reinforced joint |
| shifter(s) | Shimano Deore, 1 x 10 spd |
| crankset | Tern GSD custom, forged 6061-AL DH crankarm |
| cassette/freewheel | Shimano 11-36T, 10 spd |
| chain | 10 spd, DHT for eBike, GST corrosion resistant coating |
| pedals | Urban with non-slip surface, sealed bearings |
| motor | Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 32km/h |
| battery | Bosch Dual Battery system, 400 Wh/900 Wh (extra 500Wh battery not included) |
| charger | 240V, 4A (AU/NZ) |
| bell | Pitch Plus, brass |
| kickstand | Atlas Lockstand, w/ remote unlock, patented technology |
| rear light | RearStop Brake Light, Always on brake light |
| fenders | Integrated Wheel Guard, AL6061, w/ Side Skirt |
| accessory | ABUS, keyed-alike with Bosch battery |
| speeds | 1 x 10 |
| weight | 33.58 kg |
| gear inches | 2.08 - 7.91 m |
| folding size | 176 × 40.5 × 83 cm |
| distance (seatpost to handlebar) | 49 - 59 cm |
| frame | Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved for 200 kg |
| fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved for 200 kg |

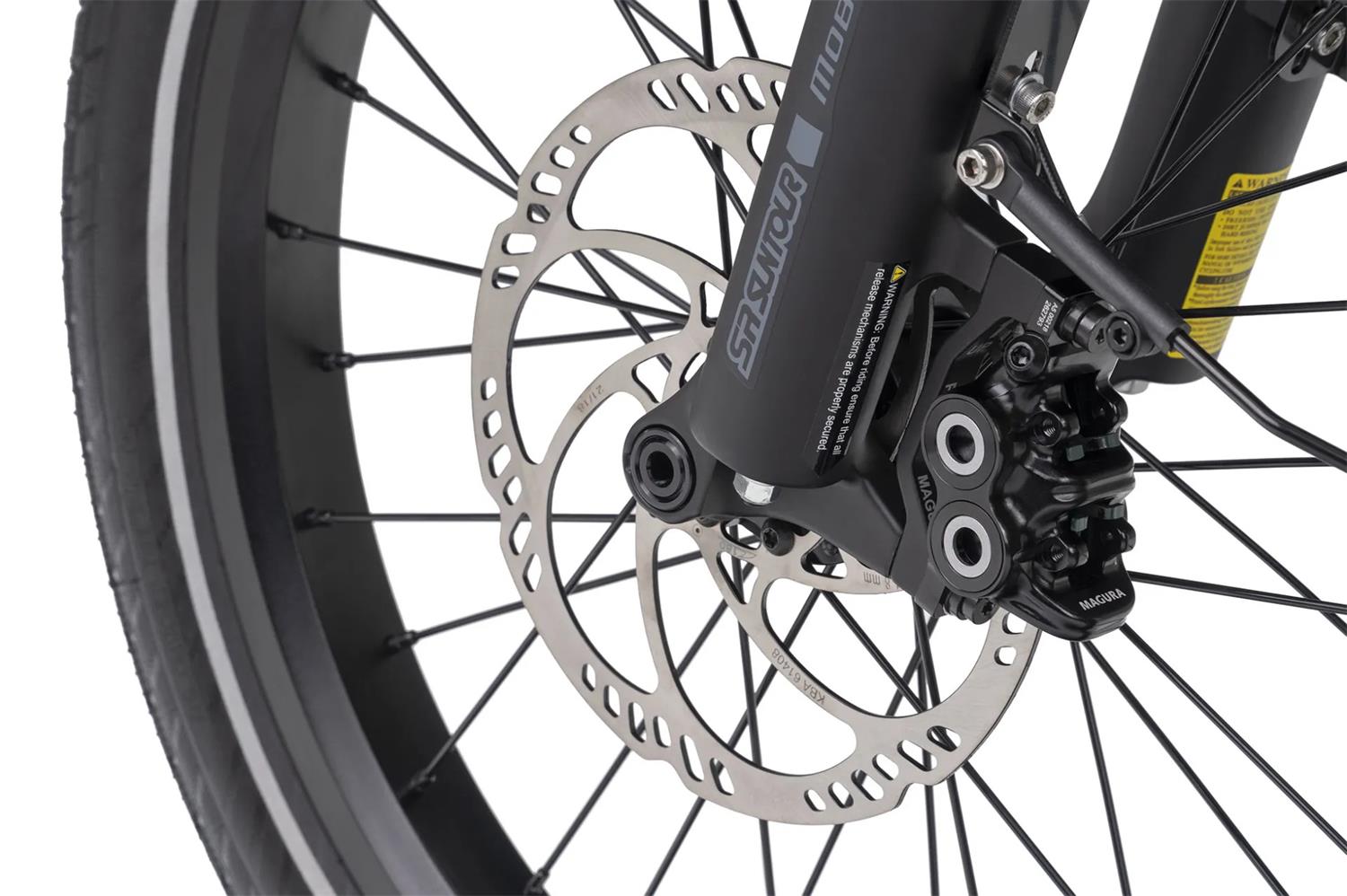

| brakes (front + rear) | Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |

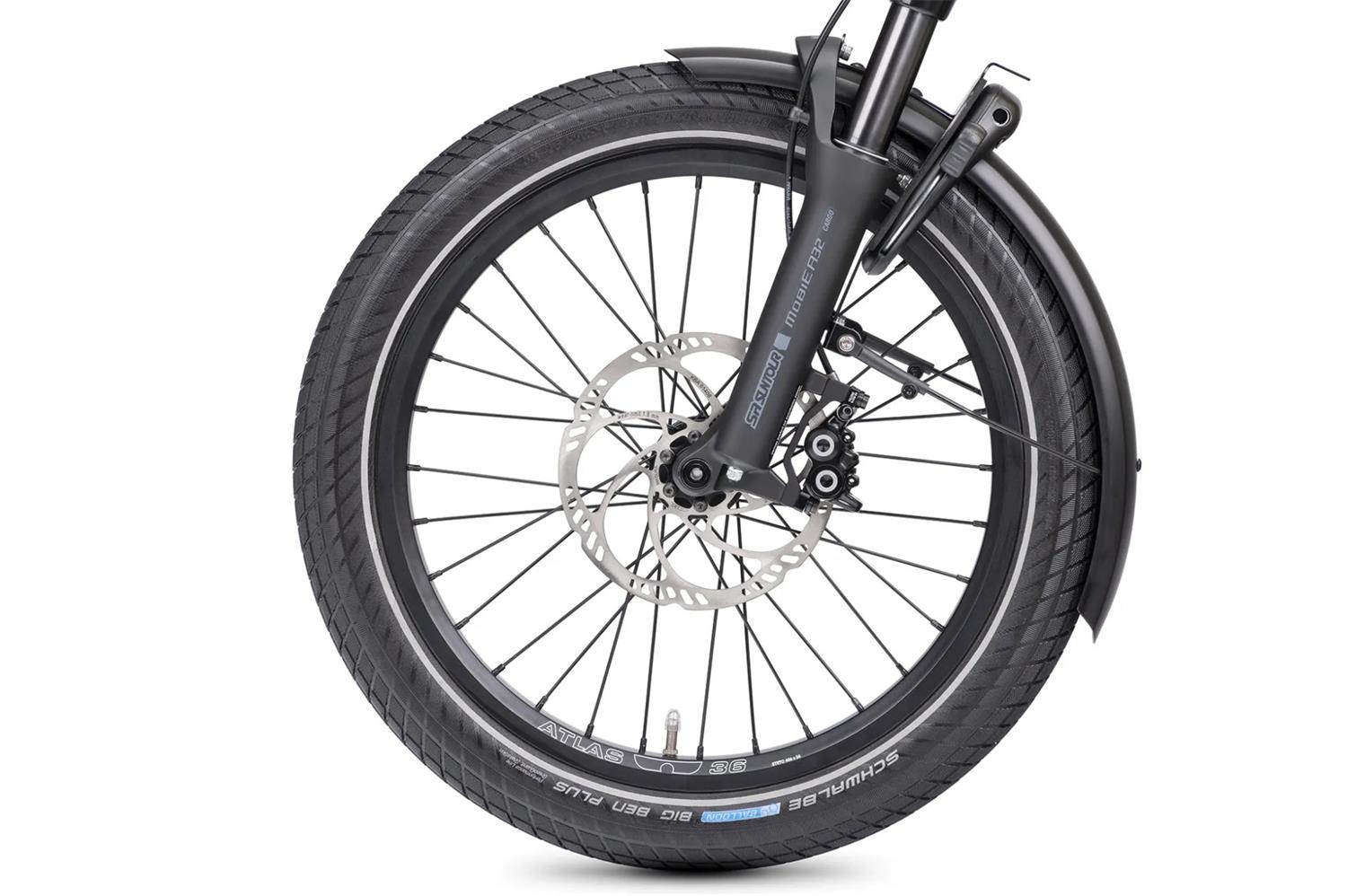

| tyres | F - Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex / R - Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex |
| display | Bosch Purion, 4 mode selectable, walk assist |
| range | 400 Wh - 42-85 km / 900 Wh - 97-195 km |
| rack(s) | Frame integrated, heavy duty design. Max load weight - 100 kg |
