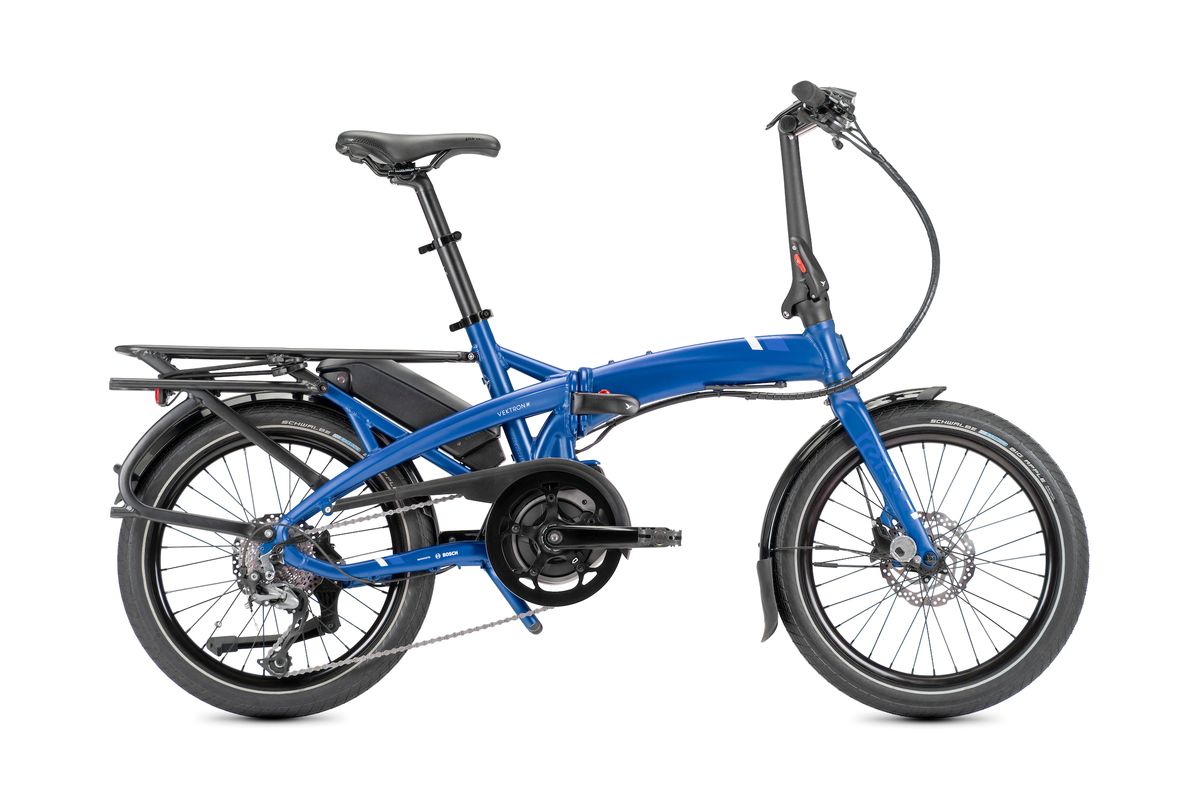

Ride it, Fold it, Go Further

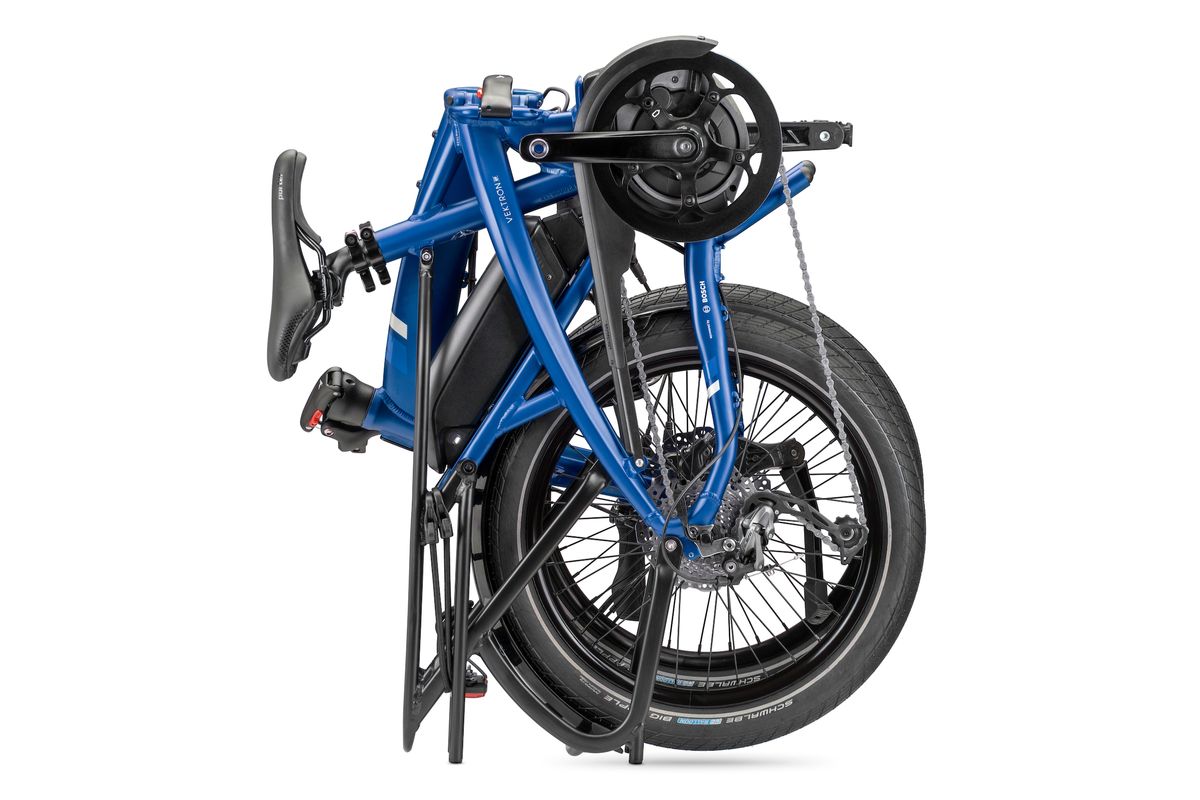

The Vektron is a best-in-class electric bike that folds in 10 seconds to go on trains, in cars, and under desks. Shorten distances and flatten the hills on your commute, or put a couple of Vektrons in the trunk of your car on your next trip, so you can explore further.
The Tern Vektron combines a serious folding commuter bike and the more powerful Bosch Active Line Plus drive system to create a bike that customers have been asking for: a folding electric bike with ample power and a ride quality that defies logic.
The Vektron Q9 brings the full-size e-bike qualities to the table in an e-folder. While it weighs less than 50 pounds and folds up to roughly the size of a skinny end table in seconds, the Tern Vektron Q9 is versatile enough to carry riders up to 6 feet 3 inches with everything you need to get to work.
By configuring the Vektron Q9 with a mid-drive motor, Tern’s designers have optimised weight distribution, giving this folding e-bike fantastically balanced agility.
Tern has developed a great folding bike for those looking for a compact and practical bike for everyday use.
Features:
- Upgraded to the Bosch Active Line Plus electric drivetrain for up to 270% assistance and 50 Nm of torque
- Hydraulic disc brakes for all-weather stopping power
- Updated frame with a reclining battery for a lower center of gravity and better ride
- Frame passed strict European safety standards for pedal-assist e-bikes, having been certified as EN15194-compliant by EFBE Prüftechnik
- Integrated Atlas V Rack™ works seamlessly with Thule Yepp Maxi and Dash® RM child seats—no adapters needed
- Resizes in seconds to fit riders 147 – 195 cm (4’10” – 6’5”) so a single bike can be shared by the family
One Size Fits Most
The Vektron has a low-step frame design and resizes in seconds—no tools required—to fit riders between 147 and 195 cm (4’10” – 6’5”), so you can share the bike with anyone in your family.
SPECIFICATIONS
| folding time | 10 sec |
| frame sizes | One size |
| luggage socket | Yes |
| bell | Aluminum |
| rear derailleur | Shimano Alivio Shadow |
| battery | Bosch PowerPack 400 wh |
| speeds | 1 x 9 |
| weight | 21.9 kg (48.3 lb) |
| gear inches | 33" - 97" (2.65 - 7.72 m) |
| seatpost to handlebar | 62 - 69 cm (24.4 - 27.2 in) |
| saddle to pedal | 67 - 110 cm (26.4 - 43.3 in) |
| suggested rider height | 147 - 195 cm (57.9 - 76.8 in) |
| max gross vehicle weight | 125 kg (275.6 lb) |
| frame | Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies |
| fork | Tern Tarsus, 6061-Al, hydroformed |
| handlepost | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm |
| stem | Tern Andros, adjustable, forged construction, patented technology |
| headset | Tern Flux, cartridge bearings, Physis integrated |
| handlebar | Flat bar, 6061-AL, Tern Andros adapted |
| saddle | Tern Porter, patented GripPad design |
| seatpost | Tern Telescope, 34.9/30.9 mm, 2014-AL |
| seatpost clamp | Tern Collar, 6061-AL, 2pc |
| front brake | Shimano, hydraulic disc |
| rear brake | Shimano, hydraulic disc |
| brake levers | Shimano, hydraulic disc |
| brake cable & housing | Shimano, hydraulic disc |
| front hub | Shimano disc |
| rear hub | Shimano disc |
| spokes and nipples | Stainless steel |
| shifter(s) | Shimano Alivio, 1 x 9 spd, trigger |
| crankset | Vektron custom, forged 6061-AL crankarm |
| cassette/freewheel | Shimano 11-32T, 9 spd |
| shifter cable & housing | Jagwire LEX-SL, slick treatment, alloy ferrules |
| chain | 9 spd, DHT for eBike, GST corrosion resistant coating |
| pedals | MKS EZY |
| motor | Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 20 mph / 32kph |
| charger | 220V, 4A |
| kickstand | URSUS, rear mount |
| clip system | Magnetix 3.0 |
| front light | Tern Valo Direct, 190 lumens |
| display | Bosch Purion, 4 mode selectable, walk assist |
| tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| rims | Kinetix Comp, for disc |
| chainguard | SKS Chainblade |
| rear light | Herrmans H-Trace, for eBike |
| fenders | SplashGuard, stainless hardware |
* All specifications listed are subject to change without notice. Please note that our specifications may be impacted by manufacturer component substitution changes caused by high global demand for bikes and resulting supply chain issues in the bike industry.
